在Docker下体验OceanBase

服务器信息：

操作系统：CentOS 7.9

内存：16G

CPU：8核

https://open.oceanbase.com/docs/tutorials/quickstart/V1.0.0/2-2-how-to-quickly-experience-oceanbase

https://docs.docker.com/engine/install/centos/

#安装docker
yum install -y yum-utils
yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
yum install -y docker-ce docker-ce-cli containerd.io

#启动docker
systemctl start docker

#拉取OceanBase数据库相关镜像
[root@oceanbase-docker ~]# docker search oceanbase
NAME                             DESCRIPTION                                     STARS     OFFICIAL   AUTOMATED
oceanbase/oceanbase-xe           OceanBase Database 2.2 Express Edition          4
oceanbase/obce-mini              obce-mini is a mini standalone test image fo…   3
oceanbase/oceanbase-ce           OceanBase is open source now. This is the do…   3
obpilot/oceanbase-ce             3 steps to run an OceanBase-CE docker in you…   2
oceanbase/obce-operator          obce-operator                                   1
zibuyu886/oceanbase-ce-cluster   OceanBase ce cluster                            1
oceanbase/centos7                                                                0
huweijie/oceanbase-ce-deploy                                                     0
superbigfu/oceanbase                                                             0
20220121/oceanbase                                                               0
hongweiqin/anolisos-oceanbase    A tentative deploy of oceanbase.                0
stutiredboy/centos_ob            Build environment for OceanBase 3.1 CE. Crea…   0

[root@oceanbase-docker ~]# docker pull obpilot/oceanbase-ce
Using default tag: latest
latest: Pulling from obpilot/oceanbase-ce
7a0437f04f83: Pull complete
615dc48ac9f1: Pull complete
b10c1cdae3af: Pull complete
4f4fb700ef54: Pull complete
c0f6c94a6a6a: Pull complete
792630f35e24: Pull complete
Digest: sha256:7ac28415cf27ba19cb47acb67a55ebf9848ad73a63d80b7e2e85d653233dbaeb
Status: Downloaded newer image for obpilot/oceanbase-ce:latest
docker.io/obpilot/oceanbase-ce:latest

#启动容器
[root@oceanbase-docker ~]# docker run -itd -m 10G --name oceanbase-ce obpilot/oceanbase-ce:latest
52e404ee47f6ae1955a2f6616c53deec4008f6e8085472e5866cf285faa5056f

[root@oceanbase-docker ~]# docker ps |grep obpilot
52e404ee47f6   obpilot/oceanbase-ce:latest   "/bin/bash"   14 seconds ago   Up 13 seconds   2881/tcp, 2883/tcp   oceanbase-ce

 #进入容器

[root@oceanbase-docker ~]# docker exec -it oceanbase-ce bash
[admin@52e404ee47f6 ~]$

#使用 OBD 命令完成后续的 OceanBase 集群部署。
#获取集群信息
[admin@52e404ee47f6 ~]$ obd cluster list
+------------------------------------------------------------+
|                        Cluster List                        |
+--------+---------------------------------+-----------------+
| Name   | Configuration Path              | Status (Cached) |
+--------+---------------------------------+-----------------+
| obdemo | /home/admin/.obd/cluster/obdemo | deployed        |
+--------+---------------------------------+-----------------+

#启动集群
[admin@52e404ee47f6 ~]$ obd cluster start obdemo
Get local repositories and plugins ok
Open ssh connection ok
Cluster param config check ok
Check before start observer ok
[WARN] (127.0.0.1) The recommended value of fs.aio-max-nr is 1048576 (Current value: 65536)

Check before start obproxy ok
Start observer ok
observer program health check ok
Connect to observer ok
Initialize cluster
Cluster bootstrap ok
Wait for observer init ok
+---------------------------------------------+
|                   observer                  |
+-----------+---------+------+-------+--------+
| ip        | version | port | zone  | status |
+-----------+---------+------+-------+--------+
| 127.0.0.1 | 3.1.1   | 2881 | zone1 | active |
+-----------+---------+------+-------+--------+

Start obproxy ok
obproxy program health check ok
Connect to obproxy ok
Initialize cluster
+---------------------------------------------+
|                   obproxy                   |
+-----------+------+-----------------+--------+
| ip        | port | prometheus_port | status |
+-----------+------+-----------------+--------+
| 127.0.0.1 | 2883 | 2884            | active |
+-----------+------+-----------------+--------+
obdemo running

#创建一个业务租户、一个业务数据库，以及一些表等
#创建租户
#在/home/admin/.obd/log/obd中有记录了root用户的初始的密码为rootPWD123
#登录127.0.0.1的observer 端口2881
[admin@52e404ee47f6 ~]$ obclient -h127.0.0.1 -uroot@sys -P2881 -prootPWD123 -c -A oceanbase
Welcome to the OceanBase.  Commands end with ; or \g.
Your MySQL connection id is 3221487717
Server version: 5.7.25 OceanBase 3.1.1 (r4-8c615943cbd25a6f7b8bdfd8677a13a21709a05e) (Built Oct 21 2021 10:52:05)

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MySQL [oceanbase]>

MySQL [oceanbase]> show parameters like 'cluster';
+-------+----------+-----------+----------+---------+-----------+-------------+---------------------+----------+---------+---------+-------------------+
| zone  | svr_type | svr_ip    | svr_port | name    | data_type | value       | info                | section  | scope   | source  | edit_level        |
+-------+----------+-----------+----------+---------+-----------+-------------+---------------------+----------+---------+---------+-------------------+
| zone1 | observer | 127.0.0.1 |     2882 | cluster | NULL      | obce-single | Name of the cluster | OBSERVER | CLUSTER | DEFAULT | DYNAMIC_EFFECTIVE |
+-------+----------+-----------+----------+---------+-----------+-------------+---------------------+----------+---------+---------+-------------------+
1 row in set (0.002 sec)
#获取到集群名称为obce-single

#也可以通过obproxy登录，127.0.0.1，端口2883，集群名称obce-single
[admin@52e404ee47f6 ~]$ obclient -h127.0.0.1 -uroot@sys#obce-single -P2883 -prootPWD123 -c -A oceanbase
Welcome to the OceanBase.  Commands end with ; or \g.
Your MySQL connection id is 4
Server version: 5.6.25 OceanBase 3.1.1 (r4-8c615943cbd25a6f7b8bdfd8677a13a21709a05e) (Built Oct 21 2021 10:52:05)

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MySQL [oceanbase]>

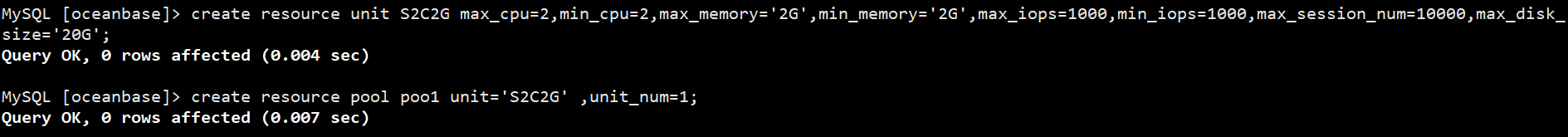

--创建资源单元
create resource unit S2C2G max_cpu=2,min_cpu=2,max_memory='2G',min_memory='2G',max_iops=1000,min_iops=1000,max_session_num=10000,max_disk_size='20G';
--创建资源池
create resource pool poo1 unit='S2C2G' ,unit_num=1;

--创建MySQL租户
create tenant obmysql resource_pool_list=('poo1'),primary_zone='RANDOM',charset='utf8' set ob_tcp_invited_nodes='%',ob_compatibility_mode='mysql';

#登录MySQL租户
[admin@52e404ee47f6 ~]$ obclient -h127.0.0.1 -uroot@obmysql#obce-single -P2883 -c
Welcome to the OceanBase.  Commands end with ; or \g.
Your MySQL connection id is 11
Server version: 5.6.25 OceanBase 3.1.1 (r4-8c615943cbd25a6f7b8bdfd8677a13a21709a05e) (Built Oct 21 2021 10:52:05)

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MySQL [(none)]>

--创建数据库
MySQL [(none)]> create database testdb;
Query OK, 1 row affected (0.009 sec)

MySQL [(none)]> show databases;
+--------------------+
| Database           |
+--------------------+
| oceanbase          |
| information_schema |
| mysql              |
| test               |
| testdb             |
+--------------------+
5 rows in set (0.002 sec)

--创建测试表MySQL [(none)]> use testdb;
Database changed
MySQL [testdb]> create table table1(id int primary key,name varchar(100),age int);
Query OK, 0 rows affected (0.025 sec)

MySQL [testdb]> desc table1;
+-------+--------------+------+-----+---------+-------+
| Field | Type         | Null | Key | Default | Extra |
+-------+--------------+------+-----+---------+-------+
| id    | int(11)      | NO   | PRI | NULL    |       |
| name  | varchar(100) | YES  |     | NULL    |       |
| age   | int(11)      | YES  |     | NULL    |       |
+-------+--------------+------+-----+---------+-------+
3 rows in set (0.004 sec)

--查看表定义
MySQL [testdb]> show create table table1;
+--------+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| Table  | Create Table                                                                                                                                                                                                                                                                                                        |
+--------+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| table1 | CREATE TABLE `table1` (
  `id` int(11) NOT NULL,
  `name` varchar(100) DEFAULT NULL,
  `age` int(11) DEFAULT NULL,
  PRIMARY KEY (`id`)
) DEFAULT CHARSET = utf8mb4 ROW_FORMAT = COMPACT COMPRESSION = 'zstd_1.3.8' REPLICA_NUM = 1 BLOCK_SIZE = 16384 USE_BLOOM_FILTER = FALSE TABLET_SIZE = 134217728 PCTFREE = 0 |
+--------+---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
1 row in set (0.004 sec)

--插入几条数据
MySQL [testdb]> insert into table1 values(1,'Harry',40),(2,'Wendy',39),(3,'Linda',10);
Query OK, 3 rows affected (0.002 sec)
Records: 3  Duplicates: 0  Warnings: 0

--查询数据
MySQL [testdb]> select * from table1;
+----+-------+------+
| id | name  | age  |
+----+-------+------+
|  1 | Harry |   40 |
|  2 | Wendy |   39 |
|  3 | Linda |   10 |
+----+-------+------+
3 rows in set (0.001 sec)

--创建业务用户
MySQL [testdb]> create user user1@'%' identified by 'user1';
Query OK, 0 rows affected (0.011 sec)

--授权
MySQL [testdb]> grant all privileges on *.* to user1@'%';
Query OK, 0 rows affected (0.008 sec)

#使用user1登录obmysql租户的testdb数据库
[admin@52e404ee47f6 ~]$ obclient -h127.0.0.1 -uuser1@obmysql#obce-single -P2883 -puser1 -c -A testdb
Welcome to the OceanBase.  Commands end with ; or \g.
Your MySQL connection id is 12
Server version: 5.6.25 OceanBase 3.1.1 (r4-8c615943cbd25a6f7b8bdfd8677a13a21709a05e) (Built Oct 21 2021 10:52:05)

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MySQL [testdb]>

--查询数据
MySQL [testdb]> select * from table1;
+----+-------+------+
| id | name  | age  |
+----+-------+------+
|  1 | Harry |   40 |
|  2 | Wendy |   39 |
|  3 | Linda |   10 |
+----+-------+------+
3 rows in set (0.001 sec)
