实战ora2pg迁移oracle11g到pg12.4

ora2pg版本选择

https://github.com/darold/ora2pg/releases，
经测试：21.1-23.1版本均导gis类型表时报错。

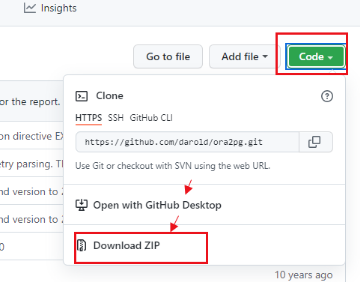

由于遇到2次bug，所有请不要在这个链接下载，而是从code去download zip最新的,参考如下截图：

ora2pg -p -c xxx.conf -t TABLE -o table.sql

FATAL: _column_info() ORA-00911: invalid character (DBD ERROR: error possibly near <> indicator at char 17 in 'SELECT ST_SRID(c.<>%s) FROM %s c')
DBI::db=HASH(0x2ec0bb8)->disconnect invalidates 1 active statement handle (either destroy statement handles or call finish on them before disconnecting) at /usr/local/share/perl5/Ora2Pg.pm line 14893.
Aborting export...

error in all the versions from 21.1-23.1

bug提交到github得到了回复：https://github.com/darold/ora2pg/commit/b3ef5a867d939d0bfe17d8bbb6a6ddb265c5599c

上述bug修复后，又遇到第2个bug：

the field type:ST_GEOMETRY, cannot copy??!!!!
when use ora2pg -p -c sde.conf -t COPY -a 'TABLE[BACK_SITE_LOCATION]' -o BACK_SITE_LOCATION.sql -j 1
the errors just look like :
[========================>] 1/1 tables (100.0%) end of scanning.
Can't use string ("POINT ( 116.52600000 39.8032500") as an ARRAY ref while "strict refs" in use at /usr/local/share/perl5/Ora2Pg/GEOM.pm line 163.
Issuing rollback() due to DESTROY without explicit disconnect() of DBD::Oracle::db handle (DESCRIPTION=(ADDRESS=(HOST=192.168.1.2)(PROTOCOL=tcp)(PORT=1521))(CONNECT_DATA=(SID=oradb))) at /usr/local/share/perl5/Ora2Pg/GEOM.pm line 163.
[========================>] 1/1 tables (100.0%) end of scanning.
Can't use string ("POLYGON (( 116.48583612 40.6728") as an ARRAY ref while "strict refs" in use at /usr/local/share/perl5/Ora2Pg/GEOM.pm line 163.
Issuing rollback() due to DESTROY without explicit disconnect() of DBD::Oracle::db handle (DESCRIPTION=(ADDRESS=(HOST=192.168.1.2)(PROTOCOL=tcp)(PORT=1521))(CONNECT_DATA=(SID=oradb))) at /usr/local/share/perl5/Ora2Pg/GEOM.pm line 163.

同样快速得到修复：
https://github.com/darold/ora2pg/commit/d5195d6ab659eaee964b9d66f8744f4f7df07bea

ora2pg -p -c xxx.conf -t TABLE -o table.sql

FATAL: _column_info() ORA-00911: invalid character (DBD ERROR: error possibly near <> indicator at char 17 in 'SELECT ST_SRID(c.<>%s) FROM %s c')
DBI::db=HASH(0x2ec0bb8)->disconnect invalidates 1 active statement handle (either destroy statement handles or call finish on them before disconnecting) at /usr/local/share/perl5/Ora2Pg.pm line 14893.
Aborting export...

最后使用最新下载源码：
。
如下看到的版本是v23.1但其实最新的并没有发布。

关于版本更换步骤很简单：

1.下载zip源码https://github.com/darold/ora2pg下载，如上图。
2.上传到oracle服务器，unzip解压相应目录v.xx
3.编译安装即可
cd v.xx
perl Makefile.PL
make && make install
ora2pg -v

安装ora2pg可参考：https://blog.csdn.net/jycjyc/article/details/108466740

1.准备配置文件

db.conf主要修改ORACLE_DSN，ORACLE_USER，ORACLE_PWD，SCHEMA等参数即可。

PG_VERSION 12
ORACLE_HOME /oracle/app/oracle/product/11.2.0/dbhome_1
ORACLE_DSN  dbi:Oracle:host=192.168.226.177;sid=oradb;port=1521
ORACLE_USER orauser
ORACLE_PWD  password
SCHEMA orauser
PG_NUMERIC_TYPE    0
PG_INTEGER_TYPE    1
DEFAULT_NUMERIC float
NLS_LANG    AMERICAN_AMERICA.UTF8
#ALLOW TPR_* TSM_*
#ALLOW tpr_*,tsm_*,twf_*
#exclude *_20_* *_TSM_FUNCTION_*
#SKIP    fkeys pkeys ukeys indexes checks
#OUTPUT     table.sql

2.导表结构和索引等

ora2pg -p -c db.conf -t TABLE -o table.sql
排除特定名称加参数 -e 'TABLE[XXX.*,XXX.*]'
指定名称加参数 -a 'TABLE[XXX.*,XXX.*]'

注意模糊匹配的这个点符号 .*

3.导表数据

对于小库，可以输出导1个文件data.sql

[root@db]# vi data.sh
ora2pg -p -c db.conf -t COPY -o data.sql -j 4
[root@db]# chmod +x data.sh
[root@db]# nohup ./data.sh > ./data.out &

对于大库，建议每个表数据单独输出，更加灵活。

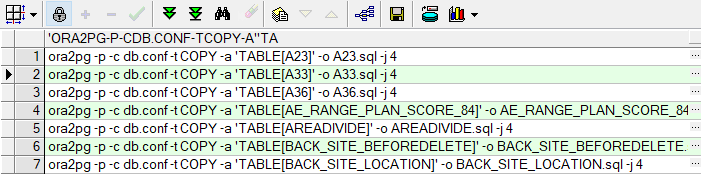

oracle拼接出导数据的脚本:脚本条件根据实际需要修改即可

select 'ora2pg -p -c db.conf -t COPY -a ''TABLE['|| table_name ||']'' -o '||table_name||'.sql -j 4' from user_tables where
 table_name not like '%LOG%' and table_name not like '%20%' and table_name not like '%19%' and table_name not like '%21%' and table_name not like '%0%' and table_name not like '%22%' and table_name not like '%_BAK%'
  and table_name not like '%ColumnMetadata%' and table_name not like '%AQ$%'
  order by 1 asc;

上述输出结果保持到文件data.sh赋执行权限chmod +x data.sh
然后执行nohup ./data.sh > ./data.out &即可

4.导视图、存储过程等其它对象

如下内容存放到other.sh中，然后执行即可。

# cat other.sh
ora2pg -p -c db.conf -t VIEW -o VIEW.sql
ora2pg -p -c db.conf -t SEQUENCE -o SEQUENCE.sql
ora2pg -p -c db.conf -t TRIGGER -o TRIGGER.sql
ora2pg -p -c db.conf -t FUNCTION -o FUNCTION.sql
ora2pg -p -c db.conf -t PROCEDURE -o PROCEDURE.sql
ora2pg -p -c db.conf -t PACKAGE -o PACKAGE.sql
ora2pg -p -c db.conf -t MVIEW -o MVIEW.sql
ora2pg -p -c db.conf -t DBLINK -o DBLINK.sql
ora2pg -p -c db.conf -t SYNONYM -o SYNONYM.sql
ora2pg -p -c db.conf -t TYPE -o TYPE.sql
# chmod +x other.sh
# nohup ./other.sh > ./other.out
# tail -f other.out

5.导入操作

export PGPASSWORD=xxx 省去每次提示输密码的麻烦

5.1导type类型，先导入：

psql --host=192.168.208.40 --port=5432 --username=pguser --echo-errors pgdb -f TYPE.sql -1

pg 导入的时候最后加上-1 参数，这样只要报错就会立即失败回滚抛错。后续发现改成-v ON_ERROR_STOP=1更准确。

5.2导表结构

psql --host=192.168.208.40 --port=5432 --username=pguser --echo-errors pgdb -f table.sql -1

5.3导序列

psql --host=192.168.208.40 --port=5432 --username=pguser --echo-errors pgdb -f SEQUENCE.sql

5.4导数据（类似第4步，可以考虑写到sh文件中，一次批量处理，再检查out日志，确认是否有问题需处理即可）

psql --host=192.168.208.40 --port=5432 --username=pguser --echo-errors pgdb -f data.sql -1

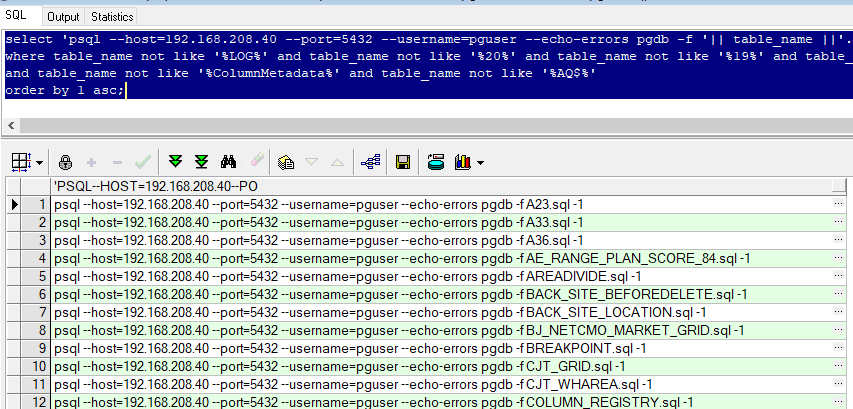

select 'psql --host=192.168.208.40 --port=5432 --username=pguser --echo-errors pgdb -f '|| table_name ||'.sql -1' from user_tables
where table_name not like '%LOG%' and table_name not like '%20%' and table_name not like '%19%' and table_name not like '%21%' and table_name not like '%0%' and table_name not like '%22%' and table_name not like '%_BAK%'
and table_name not like '%ColumnMetadata%' and table_name not like '%AQ$%'
order by 1 asc;

5.4导其它对象，同上

补充：关于gis导出的数据存在问题：临时在ora2pg导出的sql做两个替换，其中nan这块对于的具体值核查下源库数值。这样才顺利导入pg库
sed -i ‘s/SRID=;//g’ *.sql
sed -i ‘s/ nan/ -1.797693134862316e+308/g’ *.sql
对于字段类型ST_GEOMETRY替换为GEOMETRY：
sed -i ‘s/ ST_/ /g’ *.sql
