linux7.x根盘原298G，需要扩容增加500G。

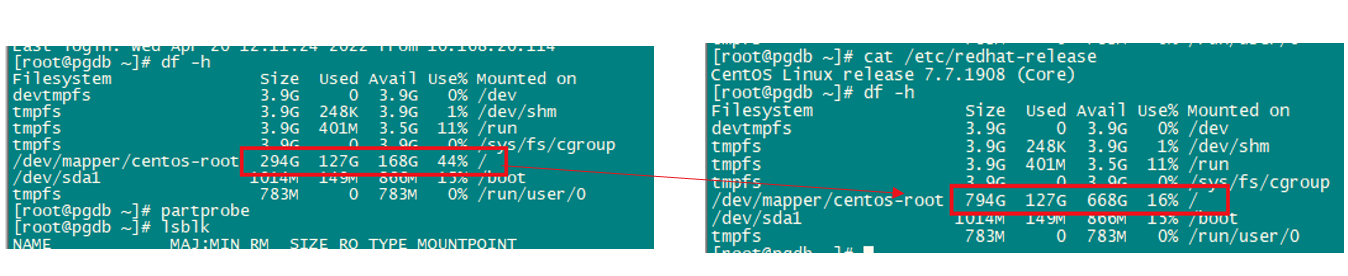

实现目标效果如下：
首先需要从虚机平台添加500硬盘到当前虚机。
系统上partprobe，lsblk查看是否识别到添加的盘。
如果不识别，则参考处理即可https://sqlora.blog.csdn.net/article/details/122358881
脚本参考：
[root@localhost ~]# cat scan.sh
#!/bin/bash
# Rescan SCSI bus
for host in /sys/class/scsi_host/*; do
echo "- - -" > ${host}/scan
done
[root@localhost ~]# chmod +x scan.sh
[root@localhost ~]# ./scan.sh
否则需重启系统才能识别。
系统上的扩容步骤：
1.pvcreate建pv
2.vgextend扩vg
3.lvextend扩lv
4.xfs_growfs扩fs (如果是ext3/4文件系统，则用resize2fs)
操作完整记录参考如下：
Last login: Wed Apr 20 12:11:24 2022 from 10.168.20.114
[root@pgdb ~]# df -h
Filesystem Size Used Avail Use% Mounted on
devtmpfs 3.9G 0 3.9G 0% /dev
tmpfs 3.9G 248K 3.9G 1% /dev/shm
tmpfs 3.9G 401M 3.5G 11% /run
tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
/dev/mapper/centos-root 294G 127G 168G 44% /
/dev/sda1 1014M 149M 866M 15% /boot
tmpfs 783M 0 783M 0% /run/user/0
[root@pgdb ~]# partprobe
[root@pgdb ~]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
fd0 2:0 1 4K 0 disk
sda 8:0 0 300G 0 disk
├─sda1 8:1 0 1G 0 part /boot
└─sda2 8:2 0 298G 0 part
├─centos-root 253:0 0 294G 0 lvm /
└─centos-swap 253:1 0 4G 0 lvm [SWAP]
sdb 8:16 0 500G 0 disk
sr0 11:0 1 1024M 0 rom
[root@pgdb ~]# vgs
VG #PV #LV #SN Attr VSize VFree
centos 1 2 0 wz--n- <298.00g 0
[root@pgdb ~]# pvs
PV VG Fmt Attr PSize PFree
/dev/sda2 centos lvm2 a-- <298.00g 0
[root@pgdb ~]# pvcreate /dev/sdb
Physical volume "/dev/sdb" successfully created.
[root@pgdb ~]# vgextend centos /dev/sdb
Volume group "centos" successfully extended
[root@pgdb ~]# df -T /
Filesystem Type 1K-blocks Used Available Use% Mounted on
/dev/mapper/centos-root xfs 308130816 132934444 175196372 44% /
[root@pgdb ~]# df -h
Filesystem Size Used Avail Use% Mounted on
devtmpfs 3.9G 0 3.9G 0% /dev
tmpfs 3.9G 248K 3.9G 1% /dev/shm
tmpfs 3.9G 401M 3.5G 11% /run
tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
/dev/mapper/centos-root 294G 127G 168G 44% /
/dev/sda1 1014M 149M 866M 15% /boot
tmpfs 783M 0 783M 0% /run/user/0
[root@pgdb ~]# lvs
LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert
root centos -wi-ao---- 294.00g
swap centos -wi-ao---- <4.00g
[root@pgdb ~]# vgs|grep Free
VG #PV #LV #SN Attr VSize VFree
[root@pgdb ~]# vgdisplay|grep Free
Free PE / Size 127999 / <500.00 GiB
[root@pgdb ~]# lvextend -l +127999 /dev/centos/root
Size of logical volume centos/root changed from 294.00 GiB (75264 extents) to <794.00 GiB (203263 extents).
Logical volume centos/root successfully resized.
[root@pgdb ~]# lvs
LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert
root centos -wi-ao---- <794.00g
swap centos -wi-ao---- <4.00g
[root@pgdb ~]# lvdisplay|grep dev
LV Path /dev/centos/root
Block device 253:0
LV Path /dev/centos/swap
Block device 253:1
[root@pgdb ~]# xfs_growfs /dev/centos/root
meta-data=/dev/mapper/centos-root isize=512 agcount=4, agsize=19267584 blks
= sectsz=512 attr=2, projid32bit=1
= crc=1 finobt=0 spinodes=0
data = bsize=4096 blocks=77070336, imaxpct=25
= sunit=0 swidth=0 blks
naming =version 2 bsize=4096 ascii-ci=0 ftype=1
log =internal bsize=4096 blocks=37632, version=2
= sectsz=512 sunit=0 blks, lazy-count=1
realtime =none extsz=4096 blocks=0, rtextents=0
data blocks changed from 77070336 to 208141312
[root@pgdb ~]# df -h
Filesystem Size Used Avail Use% Mounted on
devtmpfs 3.9G 0 3.9G 0% /dev
tmpfs 3.9G 248K 3.9G 1% /dev/shm
tmpfs 3.9G 401M 3.5G 11% /run
tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
/dev/mapper/centos-root 794G 127G 668G 16% /
/dev/sda1 1014M 149M 866M 15% /boot
tmpfs 783M 0 783M 0% /run/user/0
[root@pgdb ~]#
新需求：增加两块磁盘，1个255G,1个100G，新建vg存放，挂接目录/bjlt
[root@arcgisserver directories]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
fd0 2:0 1 4K 0 disk
sda 8:0 0 250G 0 disk
|-sda1 8:1 0 2G 0 part /boot
`-sda2 8:2 0 248G 0 part
|-centos-root 253:0 0 240G 0 lvm /
`-centos-swap 253:1 0 8G 0 lvm [SWAP]
sr0 11:0 1 1024M 0 rom
[root@arcgisserver directories]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
fd0 2:0 1 4K 0 disk
sda 8:0 0 250G 0 disk
|-sda1 8:1 0 2G 0 part /boot
`-sda2 8:2 0 248G 0 part
|-centos-root 253:0 0 240G 0 lvm /
`-centos-swap 253:1 0 8G 0 lvm [SWAP]
sr0 11:0 1 1024M 0 rom
[root@arcgisserver directories]# partprobe
[root@arcgisserver directories]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
fd0 2:0 1 4K 0 disk
sda 8:0 0 250G 0 disk
|-sda1 8:1 0 2G 0 part /boot
`-sda2 8:2 0 248G 0 part
|-centos-root 253:0 0 240G 0 lvm /
`-centos-swap 253:1 0 8G 0 lvm [SWAP]
sr0 11:0 1 1024M 0 rom
[root@arcgisserver directories]# fdisk -l
Disk /dev/sda: 268.4 GB, 268435456000 bytes, 524288000 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: dos
Disk identifier: 0x00029809
Device Boot Start End Blocks Id System
/dev/sda1 * 2048 4196351 2097152 83 Linux
/dev/sda2 4196352 524287999 260045824 8e Linux LVM
Disk /dev/mapper/centos-root: 257.7 GB, 257693843456 bytes, 503308288 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/mapper/centos-swap: 8589 MB, 8589934592 bytes, 16777216 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
[root@arcgisserver directories]# cd /sys/class/scsi_host
[root@arcgisserver scsi_host]# ll
total 0
lrwxrwxrwx 1 root root 0 May 10 21:31 host0 -> ../../devices/pci0000:00/0000:00:10.0/host0/scsi_host/host0
lrwxrwxrwx 1 root root 0 May 10 21:31 host1 -> ../../devices/pci0000:00/0000:00:07.1/ata1/host1/scsi_host/host1
lrwxrwxrwx 1 root root 0 May 10 21:31 host2 -> ../../devices/pci0000:00/0000:00:07.1/ata2/host2/scsi_host/host2
[root@arcgisserver scsi_host]# ll /sys/class/scsi_host/host0/scan
--w------- 1 root root 4096 May 13 05:24 /sys/class/scsi_host/host0/scan
[root@arcgisserver scsi_host]# ll /sys/class/scsi_host/host1/scan
--w------- 1 root root 4096 May 13 05:24 /sys/class/scsi_host/host1/scan
[root@arcgisserver scsi_host]# ll /sys/class/scsi_host/host2/scan
--w------- 1 root root 4096 May 13 05:25 /sys/class/scsi_host/host2/scan
[root@arcgisserver scsi_host]# echo "- - -" > /sys/class/scsi_host/host0/scan
echo "- - -" > /sys/class/scsi_host/host1/scan
[root@arcgisserver scsi_host]#
[root@arcgisserver scsi_host]# echo "- - -" > /sys/class/scsi_host/host1/scan
[root@arcgisserver scsi_host]# echo "- - -" > /sys/class/scsi_host/host2/scan
[root@arcgisserver scsi_host]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
fd0 2:0 1 4K 0 disk
sda 8:0 0 250G 0 disk
|-sda1 8:1 0 2G 0 part /boot
`-sda2 8:2 0 248G 0 part
|-centos-root 253:0 0 240G 0 lvm /
`-centos-swap 253:1 0 8G 0 lvm [SWAP]
sdb 8:16 0 255G 0 disk
sr0 11:0 1 1024M 0 rom
[root@arcgisserver scsi_host]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/centos-root 240G 194G 47G 81% /
devtmpfs 3.9G 0 3.9G 0% /dev
tmpfs 3.9G 0 3.9G 0% /dev/shm
tmpfs 3.9G 9.4M 3.9G 1% /run
tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
/dev/sda1 2.0G 142M 1.9G 7% /boot
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/58b7e6c6eeaf98f68cac087ff2c75ec4c6a905e4dcddb0e228f6c30098b4bc5b/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/77c31ffd178ebef67bf5fec137d3d9554eb54ea18929749cb3a7b87571739225/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/e290dacfc9c882c83fb8a944512cb53000b22b1528738cfb0bb027f9ed379aa7/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/945fcee8a08a1867d68cfcc1fa1cead888a1a8b62083b473f39836bd485365b4/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/6a22fe7ca6f0d56413fd9f96bf74d72186de1b8ce945995c79a0baf9ff7adf91/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/d565f5ee5d055e6717ccd6ad6e7e30574a35b0c2733dfb99f42dc9366970f1c9/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/1a6516db217812f349f479f835853ca8bc51465b9d9127e32f0edd34ffdeb73f/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/0e5bacc92be702e1389a349ba062be1536c3bddf8114f4c2635ce54683423841/merged
shm 64M 0 64M 0% /var/lib/docker/containers/fb88fbcc61060ff6b4c0ba4842c5c95d15151d8c5280102a8d26a6cf3904903a/mounts/shm
shm 64M 8.0K 64M 1% /var/lib/docker/containers/e1bd646830e23ec42bc3d08a267b1fb6e01185e61c1ae9b04d1d52eada96cbc5/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/473815db18bd4ac294b282c55cb13f0340a2489ca3c9ea073c4ed32beca27bf8/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/ccfa80d5e2ff9dce37b40c49ab2be06a9e2024c4240a7992c13c0ce3164181a5/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/f4efb1e0a67c513852230d55807ca26d8a3395962446f154908850fa35057c23/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/07f6eb374c935cac3bc36db8a66947d957ad90e667a7089945181565547a5885/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/2d76262a45c72232f60d6d3d04d4f1df080d77bf08c54144f28071a8b376d1f9/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/db2efa78d67167b27cd812314d9b0659866472f4bbbf19fec7b7448d1242fce1/mounts/shm
tmpfs 783M 0 783M 0% /run/user/0
[root@arcgisserver scsi_host]# pvcreate /dev/sdb
Physical volume "/dev/sdb" successfully created.
[root@arcgisserver scsi_host]# df -Th
Filesystem Type Size Used Avail Use% Mounted on
/dev/mapper/centos-root xfs 240G 194G 47G 81% /
devtmpfs devtmpfs 3.9G 0 3.9G 0% /dev
tmpfs tmpfs 3.9G 0 3.9G 0% /dev/shm
tmpfs tmpfs 3.9G 9.4M 3.9G 1% /run
tmpfs tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
/dev/sda1 xfs 2.0G 142M 1.9G 7% /boot
overlay overlay 240G 194G 47G 81% /var/lib/docker/overlay2/58b7e6c6eeaf98f68cac087ff2c75ec4c6a905e4dcddb0e228f6c30098b4bc5b/merged
overlay overlay 240G 194G 47G 81% /var/lib/docker/overlay2/77c31ffd178ebef67bf5fec137d3d9554eb54ea18929749cb3a7b87571739225/merged
overlay overlay 240G 194G 47G 81% /var/lib/docker/overlay2/e290dacfc9c882c83fb8a944512cb53000b22b1528738cfb0bb027f9ed379aa7/merged
overlay overlay 240G 194G 47G 81% /var/lib/docker/overlay2/945fcee8a08a1867d68cfcc1fa1cead888a1a8b62083b473f39836bd485365b4/merged
overlay overlay 240G 194G 47G 81% /var/lib/docker/overlay2/6a22fe7ca6f0d56413fd9f96bf74d72186de1b8ce945995c79a0baf9ff7adf91/merged
overlay overlay 240G 194G 47G 81% /var/lib/docker/overlay2/d565f5ee5d055e6717ccd6ad6e7e30574a35b0c2733dfb99f42dc9366970f1c9/merged
overlay overlay 240G 194G 47G 81% /var/lib/docker/overlay2/1a6516db217812f349f479f835853ca8bc51465b9d9127e32f0edd34ffdeb73f/merged
overlay overlay 240G 194G 47G 81% /var/lib/docker/overlay2/0e5bacc92be702e1389a349ba062be1536c3bddf8114f4c2635ce54683423841/merged
shm tmpfs 64M 0 64M 0% /var/lib/docker/containers/fb88fbcc61060ff6b4c0ba4842c5c95d15151d8c5280102a8d26a6cf3904903a/mounts/shm
shm tmpfs 64M 8.0K 64M 1% /var/lib/docker/containers/e1bd646830e23ec42bc3d08a267b1fb6e01185e61c1ae9b04d1d52eada96cbc5/mounts/shm
shm tmpfs 64M 0 64M 0% /var/lib/docker/containers/473815db18bd4ac294b282c55cb13f0340a2489ca3c9ea073c4ed32beca27bf8/mounts/shm
shm tmpfs 64M 0 64M 0% /var/lib/docker/containers/ccfa80d5e2ff9dce37b40c49ab2be06a9e2024c4240a7992c13c0ce3164181a5/mounts/shm
shm tmpfs 64M 0 64M 0% /var/lib/docker/containers/f4efb1e0a67c513852230d55807ca26d8a3395962446f154908850fa35057c23/mounts/shm
shm tmpfs 64M 0 64M 0% /var/lib/docker/containers/07f6eb374c935cac3bc36db8a66947d957ad90e667a7089945181565547a5885/mounts/shm
shm tmpfs 64M 0 64M 0% /var/lib/docker/containers/2d76262a45c72232f60d6d3d04d4f1df080d77bf08c54144f28071a8b376d1f9/mounts/shm
shm tmpfs 64M 0 64M 0% /var/lib/docker/containers/db2efa78d67167b27cd812314d9b0659866472f4bbbf19fec7b7448d1242fce1/mounts/shm
tmpfs tmpfs 783M 0 783M 0% /run/user/0
[root@arcgisserver scsi_host]# cat /etc/redhat-release
CentOS Linux release 7.5.1804 (Core)
[root@arcgisserver scsi_host]# vgcreate vg-bjlt /dev/sdb
Volume group "vg-bjlt" successfully created
[root@arcgisserver scsi_host]# lvcreate -n lv-bjlt -l 100%free vg-bjlt
Logical volume "lv-bjlt" created.
[root@arcgisserver scsi_host]# vgs
VG #PV #LV #SN Attr VSize VFree
centos 1 2 0 wz--n- <248.00g 0
vg-bjlt 1 1 0 wz--n- <255.00g 0
[root@arcgisserver scsi_host]# lvs
LV VG Attr LSize Pool Origin Data% Meta% Move Log Cpy%Sync Convert
root centos -wi-ao---- <240.00g
swap centos -wi-ao---- 8.00g
lv-bjlt vg-bjlt -wi-a----- <255.00g
[root@arcgisserver scsi_host]# mkfs.ext4 /dev/vg-bjlt/lv-bjlt
mke2fs 1.42.9 (28-Dec-2013)
Filesystem label=
OS type: Linux
Block size=4096 (log=2)
Fragment size=4096 (log=2)
Stride=0 blocks, Stripe width=0 blocks
16711680 inodes, 66845696 blocks
3342284 blocks (5.00%) reserved for the super user
First data block=0
Maximum filesystem blocks=2214592512
2040 block groups
32768 blocks per group, 32768 fragments per group
8192 inodes per group
Superblock backups stored on blocks:
32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
4096000, 7962624, 11239424, 20480000, 23887872
Allocating group tables: done
Writing inode tables: done
Creating journal (32768 blocks): done
Writing superblocks and filesystem accounting information: done
[root@arcgisserver scsi_host]# mkdir /bjlt
[root@arcgisserver scsi_host]# mount -t ext4 /dev/vg-bjlt/lv-bjlt /bjlt
[root@arcgisserver scsi_host]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/centos-root 240G 194G 47G 81% /
devtmpfs 3.9G 0 3.9G 0% /dev
tmpfs 3.9G 0 3.9G 0% /dev/shm
tmpfs 3.9G 9.4M 3.9G 1% /run
tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
/dev/sda1 2.0G 142M 1.9G 7% /boot
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/58b7e6c6eeaf98f68cac087ff2c75ec4c6a905e4dcddb0e228f6c30098b4bc5b/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/77c31ffd178ebef67bf5fec137d3d9554eb54ea18929749cb3a7b87571739225/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/e290dacfc9c882c83fb8a944512cb53000b22b1528738cfb0bb027f9ed379aa7/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/945fcee8a08a1867d68cfcc1fa1cead888a1a8b62083b473f39836bd485365b4/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/6a22fe7ca6f0d56413fd9f96bf74d72186de1b8ce945995c79a0baf9ff7adf91/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/d565f5ee5d055e6717ccd6ad6e7e30574a35b0c2733dfb99f42dc9366970f1c9/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/1a6516db217812f349f479f835853ca8bc51465b9d9127e32f0edd34ffdeb73f/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/0e5bacc92be702e1389a349ba062be1536c3bddf8114f4c2635ce54683423841/merged
shm 64M 0 64M 0% /var/lib/docker/containers/fb88fbcc61060ff6b4c0ba4842c5c95d15151d8c5280102a8d26a6cf3904903a/mounts/shm
shm 64M 8.0K 64M 1% /var/lib/docker/containers/e1bd646830e23ec42bc3d08a267b1fb6e01185e61c1ae9b04d1d52eada96cbc5/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/473815db18bd4ac294b282c55cb13f0340a2489ca3c9ea073c4ed32beca27bf8/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/ccfa80d5e2ff9dce37b40c49ab2be06a9e2024c4240a7992c13c0ce3164181a5/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/f4efb1e0a67c513852230d55807ca26d8a3395962446f154908850fa35057c23/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/07f6eb374c935cac3bc36db8a66947d957ad90e667a7089945181565547a5885/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/2d76262a45c72232f60d6d3d04d4f1df080d77bf08c54144f28071a8b376d1f9/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/db2efa78d67167b27cd812314d9b0659866472f4bbbf19fec7b7448d1242fce1/mounts/shm
tmpfs 783M 0 783M 0% /run/user/0
/dev/mapper/vg--bjlt-lv--bjlt 251G 61M 239G 1% /bjlt
[root@arcgisserver scsi_host]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
fd0 2:0 1 4K 0 disk
sda 8:0 0 250G 0 disk
|-sda1 8:1 0 2G 0 part /boot
`-sda2 8:2 0 248G 0 part
|-centos-root 253:0 0 240G 0 lvm /
`-centos-swap 253:1 0 8G 0 lvm [SWAP]
sdb 8:16 0 255G 0 disk
`-vg--bjlt-lv--bjlt 253:2 0 255G 0 lvm /bjlt
sr0 11:0 1 1024M 0 rom
[root@arcgisserver scsi_host]# echo "- - -" > /sys/class/scsi_host/host0/scan
[root@arcgisserver scsi_host]# echo "- - -" > /sys/class/scsi_host/host1/scan
[root@arcgisserver scsi_host]# echo "- - -" > /sys/class/scsi_host/host2/scan
[root@arcgisserver scsi_host]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
fd0 2:0 1 4K 0 disk
sda 8:0 0 250G 0 disk
|-sda1 8:1 0 2G 0 part /boot
`-sda2 8:2 0 248G 0 part
|-centos-root 253:0 0 240G 0 lvm /
`-centos-swap 253:1 0 8G 0 lvm [SWAP]
sdb 8:16 0 255G 0 disk
`-vg--bjlt-lv--bjlt 253:2 0 255G 0 lvm /bjlt
sdc 8:32 0 120G 0 disk
sr0 11:0 1 1024M 0 rom
[root@arcgisserver scsi_host]# pvcreate /dev/sdc
Physical volume "/dev/sdc" successfully created.
[root@arcgisserver scsi_host]# vgextend vg-bjlt /dev/sdc
Volume group "vg-bjlt" successfully extended
[root@arcgisserver scsi_host]# vgdisplay vg-bjlt|grep Free
Free PE / Size 30719 / <120.00 GiB
[root@arcgisserver scsi_host]# lvextend -l +30719 /dev/vg-bjlt/lv-bjlt
或者命令：全部分配：lvextend -l +100%FREE /dev/vg-bjlt/lv-bjlt
Size of logical volume vg-bjlt/lv-bjlt changed from <255.00 GiB (65279 extents) to 374.99 GiB (95998 extents).
Logical volume vg-bjlt/lv-bjlt successfully resized.
[root@arcgisserver scsi_host]# resize2fs /dev/vg-bjlt/lv-bjlt
resize2fs 1.42.9 (28-Dec-2013)
Filesystem at /dev/vg-bjlt/lv-bjlt is mounted on /bjlt; on-line resizing required
old_desc_blocks = 32, new_desc_blocks = 47
The filesystem on /dev/vg-bjlt/lv-bjlt is now 98301952 blocks long.
[root@arcgisserver scsi_host]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/centos-root 240G 194G 47G 81% /
devtmpfs 3.9G 0 3.9G 0% /dev
tmpfs 3.9G 0 3.9G 0% /dev/shm
tmpfs 3.9G 9.4M 3.9G 1% /run
tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
/dev/sda1 2.0G 142M 1.9G 7% /boot
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/58b7e6c6eeaf98f68cac087ff2c75ec4c6a905e4dcddb0e228f6c30098b4bc5b/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/77c31ffd178ebef67bf5fec137d3d9554eb54ea18929749cb3a7b87571739225/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/e290dacfc9c882c83fb8a944512cb53000b22b1528738cfb0bb027f9ed379aa7/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/945fcee8a08a1867d68cfcc1fa1cead888a1a8b62083b473f39836bd485365b4/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/6a22fe7ca6f0d56413fd9f96bf74d72186de1b8ce945995c79a0baf9ff7adf91/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/d565f5ee5d055e6717ccd6ad6e7e30574a35b0c2733dfb99f42dc9366970f1c9/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/1a6516db217812f349f479f835853ca8bc51465b9d9127e32f0edd34ffdeb73f/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/0e5bacc92be702e1389a349ba062be1536c3bddf8114f4c2635ce54683423841/merged
shm 64M 0 64M 0% /var/lib/docker/containers/fb88fbcc61060ff6b4c0ba4842c5c95d15151d8c5280102a8d26a6cf3904903a/mounts/shm
shm 64M 8.0K 64M 1% /var/lib/docker/containers/e1bd646830e23ec42bc3d08a267b1fb6e01185e61c1ae9b04d1d52eada96cbc5/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/473815db18bd4ac294b282c55cb13f0340a2489ca3c9ea073c4ed32beca27bf8/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/ccfa80d5e2ff9dce37b40c49ab2be06a9e2024c4240a7992c13c0ce3164181a5/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/f4efb1e0a67c513852230d55807ca26d8a3395962446f154908850fa35057c23/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/07f6eb374c935cac3bc36db8a66947d957ad90e667a7089945181565547a5885/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/2d76262a45c72232f60d6d3d04d4f1df080d77bf08c54144f28071a8b376d1f9/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/db2efa78d67167b27cd812314d9b0659866472f4bbbf19fec7b7448d1242fce1/mounts/shm
tmpfs 783M 0 783M 0% /run/user/0
/dev/mapper/vg--bjlt-lv--bjlt 369G 68M 352G 1% /bjlt
[root@arcgisserver scsi_host]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/centos-root 240G 194G 47G 81% /
devtmpfs 3.9G 0 3.9G 0% /dev
tmpfs 3.9G 0 3.9G 0% /dev/shm
tmpfs 3.9G 9.4M 3.9G 1% /run
tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
/dev/sda1 2.0G 142M 1.9G 7% /boot
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/58b7e6c6eeaf98f68cac087ff2c75ec4c6a905e4dcddb0e228f6c30098b4bc5b/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/77c31ffd178ebef67bf5fec137d3d9554eb54ea18929749cb3a7b87571739225/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/e290dacfc9c882c83fb8a944512cb53000b22b1528738cfb0bb027f9ed379aa7/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/945fcee8a08a1867d68cfcc1fa1cead888a1a8b62083b473f39836bd485365b4/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/6a22fe7ca6f0d56413fd9f96bf74d72186de1b8ce945995c79a0baf9ff7adf91/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/d565f5ee5d055e6717ccd6ad6e7e30574a35b0c2733dfb99f42dc9366970f1c9/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/1a6516db217812f349f479f835853ca8bc51465b9d9127e32f0edd34ffdeb73f/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/0e5bacc92be702e1389a349ba062be1536c3bddf8114f4c2635ce54683423841/merged
shm 64M 0 64M 0% /var/lib/docker/containers/fb88fbcc61060ff6b4c0ba4842c5c95d15151d8c5280102a8d26a6cf3904903a/mounts/shm
shm 64M 8.0K 64M 1% /var/lib/docker/containers/e1bd646830e23ec42bc3d08a267b1fb6e01185e61c1ae9b04d1d52eada96cbc5/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/473815db18bd4ac294b282c55cb13f0340a2489ca3c9ea073c4ed32beca27bf8/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/ccfa80d5e2ff9dce37b40c49ab2be06a9e2024c4240a7992c13c0ce3164181a5/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/f4efb1e0a67c513852230d55807ca26d8a3395962446f154908850fa35057c23/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/07f6eb374c935cac3bc36db8a66947d957ad90e667a7089945181565547a5885/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/2d76262a45c72232f60d6d3d04d4f1df080d77bf08c54144f28071a8b376d1f9/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/db2efa78d67167b27cd812314d9b0659866472f4bbbf19fec7b7448d1242fce1/mounts/shm
tmpfs 783M 0 783M 0% /run/user/0
/dev/mapper/vg--bjlt-lv--bjlt 369G 68M 352G 1% /bjlt
[root@arcgisserver scsi_host]# vi /etc/fstab
#
# /etc/fstab
# Created by anaconda on Mon Aug 12 10:49:53 2019
#
# Accessible filesystems, by reference, are maintained under '/dev/disk'
# See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info
#
/dev/mapper/centos-root / xfs defaults 0 0
UUID=0888eebb-f695-4680-9413-25c5bd2e95a7 /boot xfs defaults 0 0
/dev/mapper/centos-swap swap swap defaults 0 0
/dev/vg-bjlt/lv-bjlt /bjlt ext4 defaults 0 0
~
"/etc/fstab" 12L, 517C written
[root@arcgisserver scsi_host]# cat /etc/fstab
#
# /etc/fstab
# Created by anaconda on Mon Aug 12 10:49:53 2019
#
# Accessible filesystems, by reference, are maintained under '/dev/disk'
# See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info
#
/dev/mapper/centos-root / xfs defaults 0 0
UUID=0888eebb-f695-4680-9413-25c5bd2e95a7 /boot xfs defaults 0 0
/dev/mapper/centos-swap swap swap defaults 0 0
/dev/vg-bjlt/lv-bjlt /bjlt ext4 defaults 0 0
[root@arcgisserver scsi_host]# umount /bjlt
[root@arcgisserver scsi_host]# mount /bjlt
[root@arcgisserver scsi_host]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/centos-root 240G 194G 47G 81% /
devtmpfs 3.9G 0 3.9G 0% /dev
tmpfs 3.9G 0 3.9G 0% /dev/shm
tmpfs 3.9G 9.4M 3.9G 1% /run
tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
/dev/sda1 2.0G 142M 1.9G 7% /boot
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/58b7e6c6eeaf98f68cac087ff2c75ec4c6a905e4dcddb0e228f6c30098b4bc5b/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/77c31ffd178ebef67bf5fec137d3d9554eb54ea18929749cb3a7b87571739225/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/e290dacfc9c882c83fb8a944512cb53000b22b1528738cfb0bb027f9ed379aa7/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/945fcee8a08a1867d68cfcc1fa1cead888a1a8b62083b473f39836bd485365b4/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/6a22fe7ca6f0d56413fd9f96bf74d72186de1b8ce945995c79a0baf9ff7adf91/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/d565f5ee5d055e6717ccd6ad6e7e30574a35b0c2733dfb99f42dc9366970f1c9/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/1a6516db217812f349f479f835853ca8bc51465b9d9127e32f0edd34ffdeb73f/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/0e5bacc92be702e1389a349ba062be1536c3bddf8114f4c2635ce54683423841/merged
shm 64M 0 64M 0% /var/lib/docker/containers/fb88fbcc61060ff6b4c0ba4842c5c95d15151d8c5280102a8d26a6cf3904903a/mounts/shm
shm 64M 8.0K 64M 1% /var/lib/docker/containers/e1bd646830e23ec42bc3d08a267b1fb6e01185e61c1ae9b04d1d52eada96cbc5/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/473815db18bd4ac294b282c55cb13f0340a2489ca3c9ea073c4ed32beca27bf8/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/ccfa80d5e2ff9dce37b40c49ab2be06a9e2024c4240a7992c13c0ce3164181a5/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/f4efb1e0a67c513852230d55807ca26d8a3395962446f154908850fa35057c23/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/07f6eb374c935cac3bc36db8a66947d957ad90e667a7089945181565547a5885/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/2d76262a45c72232f60d6d3d04d4f1df080d77bf08c54144f28071a8b376d1f9/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/db2efa78d67167b27cd812314d9b0659866472f4bbbf19fec7b7448d1242fce1/mounts/shm
tmpfs 783M 0 783M 0% /run/user/0
/dev/mapper/vg--bjlt-lv--bjlt 369G 68M 352G 1% /bjlt
[root@arcgisserver scsi_host]# id arcgis
uid=1001(arcgis) gid=1001(esri) groups=1001(esri)
[root@arcgisserver scsi_host]# chown -R arcgis:esri /bjlt
[root@arcgisserver scsi_host]# ll /
total 20
lrwxrwxrwx. 1 root root 7 Aug 12 2019 bin -> usr/bin
drwxr-xr-x 3 arcgis esri 4096 May 13 05:30 bjlt
dr-xr-xr-x. 5 root root 4096 Aug 12 2019 boot
drwxr-xr-x 20 root root 3260 May 13 05:35 dev
drwxr-xr-x. 80 root root 8192 May 13 05:39 etc
drwxr-xr-x. 4 root root 34 Aug 14 2019 home
lrwxrwxrwx. 1 root root 7 Aug 12 2019 lib -> usr/lib
lrwxrwxrwx. 1 root root 9 Aug 12 2019 lib64 -> usr/lib64
drwxr-xr-x. 2 root root 6 Apr 11 2018 media
drwxr-xr-x. 2 root root 6 Apr 11 2018 mnt
drwxr-xr-x. 5 root root 52 Aug 24 2020 opt
dr-xr-xr-x 228 root root 0 May 10 21:31 proc
dr-xr-x---. 5 root root 203 Dec 14 2020 root
drwxr-xr-x 26 root root 800 May 12 04:28 run
lrwxrwxrwx. 1 root root 8 Aug 12 2019 sbin -> usr/sbin
drwxrwxrwx. 3 root root 102 Aug 12 2019 soft
drwxr-xr-x. 2 root root 6 Apr 11 2018 srv
dr-xr-xr-x 13 root root 0 May 11 22:52 sys
drwxrwxrwt. 12 root root 275 May 13 03:20 tmp
drwxr-xr-x. 13 root root 155 Aug 12 2019 usr
drwxr-xr-x. 19 root root 267 Aug 12 2019 var
[root@arcgisserver scsi_host]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/centos-root 240G 194G 47G 81% /
devtmpfs 3.9G 0 3.9G 0% /dev
tmpfs 3.9G 0 3.9G 0% /dev/shm
tmpfs 3.9G 9.4M 3.9G 1% /run
tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
/dev/sda1 2.0G 142M 1.9G 7% /boot
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/58b7e6c6eeaf98f68cac087ff2c75ec4c6a905e4dcddb0e228f6c30098b4bc5b/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/77c31ffd178ebef67bf5fec137d3d9554eb54ea18929749cb3a7b87571739225/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/e290dacfc9c882c83fb8a944512cb53000b22b1528738cfb0bb027f9ed379aa7/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/945fcee8a08a1867d68cfcc1fa1cead888a1a8b62083b473f39836bd485365b4/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/6a22fe7ca6f0d56413fd9f96bf74d72186de1b8ce945995c79a0baf9ff7adf91/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/d565f5ee5d055e6717ccd6ad6e7e30574a35b0c2733dfb99f42dc9366970f1c9/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/1a6516db217812f349f479f835853ca8bc51465b9d9127e32f0edd34ffdeb73f/merged
overlay 240G 194G 47G 81% /var/lib/docker/overlay2/0e5bacc92be702e1389a349ba062be1536c3bddf8114f4c2635ce54683423841/merged
shm 64M 0 64M 0% /var/lib/docker/containers/fb88fbcc61060ff6b4c0ba4842c5c95d15151d8c5280102a8d26a6cf3904903a/mounts/shm
shm 64M 8.0K 64M 1% /var/lib/docker/containers/e1bd646830e23ec42bc3d08a267b1fb6e01185e61c1ae9b04d1d52eada96cbc5/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/473815db18bd4ac294b282c55cb13f0340a2489ca3c9ea073c4ed32beca27bf8/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/ccfa80d5e2ff9dce37b40c49ab2be06a9e2024c4240a7992c13c0ce3164181a5/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/f4efb1e0a67c513852230d55807ca26d8a3395962446f154908850fa35057c23/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/07f6eb374c935cac3bc36db8a66947d957ad90e667a7089945181565547a5885/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/2d76262a45c72232f60d6d3d04d4f1df080d77bf08c54144f28071a8b376d1f9/mounts/shm
shm 64M 0 64M 0% /var/lib/docker/containers/db2efa78d67167b27cd812314d9b0659866472f4bbbf19fec7b7448d1242fce1/mounts/shm
tmpfs 783M 0 783M 0% /run/user/0

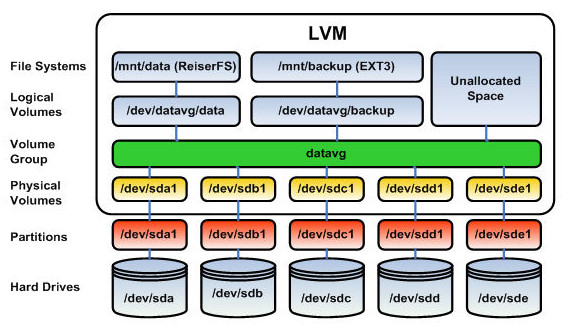

/dev/mapper/vg--bjlt-lv--bjlt 369G 68M 352G 1% /bjlt
[root@arcgisserver scsi_host]# pwd
/sys/class/scsi_host
[root@arcgisserver scsi_host]# cd /bjlt/
[root@arcgisserver bjlt]# ll
total 20
drwxr-xr-x 3 arcgis esri 4096 May 13 05:43 arcgiscache
drwx------ 2 arcgis esri 16384 May 13 05:30 lost+found
[root@arcgisserver bjlt]# pwd
/bjlt
[root@arcgisserver bjlt]# cd arcgiscache/
[root@arcgisserver arcgiscache]# pwd
/bjlt/arcgiscache
[root@arcgisserver arcgiscache]# ll
total 8
-rw-r--r-- 1 arcgis esri 3379 Oct 10 2021 conf.xml
最后修改时间：2025-06-26 14:37:28
「喜欢这篇文章，您的关注和赞赏是给作者最好的鼓励」
关注作者
【版权声明】本文为墨天轮用户原创内容，转载时必须标注文章的来源（墨天轮），文章链接，文章作者等基本信息，否则作者和墨天轮有权追究责任。如果您发现墨天轮中有涉嫌抄袭或者侵权的内容，欢迎发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。
