本文通过StarRocks自带的broker，备份数据库表到kerberos加密的CDP HDFS HA上进行演示。

0.ENV

CentOS 7.8.2003
StarRocks 1.15.2(含apache_hdfs_broker)
CDP 7.1.4

1. 在Broker主机上安装mysql-client

1) 下载并解压mysql

[root@sr03 soft]# wget https://dev.mysql.com/get/Downloads/MySQL-5.7/mysql-5.7.33-1.el7.x86_64.rpm-bundle.tar
[root@sr03 soft]# mkdir 5.7.33
[root@sr03 soft]# tar xvf mysql-5.7.33-1.el7.x86_64.rpm-bundle.tar -C 5.7.33
[root@sr03 soft]# yum -y install libmysqlclient.so.18      #会安装maridb-libs

2) 卸载mariadb软件包

查看：

[root@cdh1 soft]# rpm -qa|grep mariadb

卸载：

[root@cdh1 soft]# rpm -e --nodeps mariadb-libs-5.5.68-1.el7.i686

3) 安装mysql客户端

[root@sr03 5.7.33]# rpm -ivh mysql-community-common-5.7.33-1.el7.x86_64.rpm
[root@sr03 5.7.33]# rpm -ivh mysql-community-libs-5.7.33-1.el7.x86_64.rpm
[root@sr03 5.7.33]# rpm -ivh mysql-community-client-5.7.33-1.el7.x86_64.rpm

4) 验证客户端

登录StarRocks，成功

[root@sr03 5.7.33]# mysql -hsr01 -P9030 -uroot -p87z_L8do

2. 安装keberos依赖包

1) 在broker节点安装kerberos客户端软件包

# yum -y install krb5-libs krb5-workstation openldap-clients

2) 配置客户端

hdfs采用Kerberos认证方式，Broker备份到hdfs上需要krb5.conf文件，krb5.conf文件包含Kerberos的配置信息。

默认方式，将krb5.conf文件存放在/etc目录中。

[root@sr03 ~]# cat etc/krb5.conf
[libdefaults]
 dns_lookup_realm = false
 dns_lookup_kdc = false
 ticket_lifetime = 24h
 renew_lifetime = 7d
 forwardable = true
 rdns = false
 default_realm = RUNDBA.NET
[realms]
 RUNDBA.NET = {
  kdc = nn01.rundba.net:88
  kdc = nn02.rundba.net:88
  master_kdc = nn01.rundba.net:88
  admin_server = nn01.rundba.net:749
}
[domain_realm]
 rundba.net = RUNDBA.NET
 .rundba.net = RUNDBA.NET

也可以通过设置环境变量KRB5_CONFIG指定krb5.conf文件位置-本次不使用

KRB5_CONFIG环境变量配置参考：

vi etc/profile
### StarRocks apache_hdfs_broker CDP kerberos ###
export KRB5_CONFIG=/StarRocks/apache_hdfs_broker/conf/krb5.conf
######

加载环境变量-本次不使用

[root@sr03 StarRocks]# source etc/profile

3) 重启broker

[root@sr03 StarRocks]# StarRocks/apache_hdfs_broker/bin/stop_broker.sh
stop java, and remove pid file.
[root@sr03 StarRocks]# StarRocks/apache_hdfs_broker/bin/start_broker.sh --daemon
[root@sr03 StarRocks]# jps
9952 BrokerBootstrap
9975 Jps

3. CDP用户密码keytab上传至Broker主机上

1) 用户keytab文件上传至Broker主机

将用户的it01.keytab文件上传至服务器端任意路径，如/StarRocks/apache_hdfs_broker/conf/,权限为1007:1007

[root@sr03 ~]# ls -l StarRocks/apache_hdfs_broker/conf/it01.keytab
-rw-r--r-- 1 1007 1007 506 Jun  7 14:33 StarRocks/apache_hdfs_broker/conf/it01.keytab

2) 验证登录

[root@sr03 conf]# kinit it01
Password for it01@RUNDBA.NET:           #输入密码
[root@sr03 conf]# klist                  #当前用户已经登录
Ticket cache: FILE:/tmp/krb5cc_0
Default principal: it01@RUNDBA.NET
Valid starting       Expires              Service principal
06/16/2021 15:12:00  06/17/2021 15:10:53  krbtgt/RUNDBA.NET@RUNDBA.NET
  renew until 06/23/2021 15:10:53

3) 创建备份文件目录-在CDP集群主机上

[root@nn01 ~]# hdfs dfs -ls user/it01
[root@nn01 ~]# hdfs dfs -mkdir user/it01/backup
[root@nn01 ~]# hdfs dfs -ls -d user/it01/backup
drwxr-xr-x   - it01 it01          0 2021-06-16 15:11 user/it01/backup

4. 创建REPOSITORY

1) 创建REPOSITORY

CDP启用HDFS HA,且使用了kerberos加密

mysql> CREATE REPOSITORY cdp_repo
    -> WITH BROKER broker3
    -> ON LOCATION "hdfs://nameservice1:8020/user/it01/backup"
    -> PROPERTIES
    -> (
    ->     "dfs.nameservices" = "nameservice1",
    ->     "dfs.ha.namenodes.nameservice1" = "namenode573, namenode981",
    ->     "dfs.namenode.rpc-address.nameservice1.namenode573" = "nn01.rundba.net:8020",
    ->     "dfs.namenode.rpc-address.nameservice1.namenode981" = "nn02.rundba.net:8020",
    ->     "dfs.client.failover.proxy.provider" = "org.apache.hadoop.hdfs.server.namenode.ha.ConfiguredFailoverProxyProvider",
    ->     "hadoop.security.authentication" = "kerberos",
    ->     "kerberos_principal" = "it01@RUNDBA.NET",
    ->     "kerberos_keytab" = "/StarRocks/apache_hdfs_broker/conf/it01.keytab"
    -> );
Query OK, 0 rows affected (1.27 sec)

2) 查看REPOSITORY

cdp_repo之前已经删除，后来又重新创建，但createTime显示仍为之前创建时间，应为bug。

mysql> SHOW REPOSITORIES;
+--------+----------+---------------------+------------+-------------------------------------------+---------+--------+
| RepoId | RepoName | CreateTime          | IsReadOnly | Location                                  | Broker  | ErrMsg |
+--------+----------+---------------------+------------+-------------------------------------------+---------+--------+
| 20006  | cdp_repo | 2021-06-08 16:01:37 | false      | hdfs://nameservice1:8020/user/it01/backup | broker3 | NULL   |
+--------+----------+---------------------+------------+-------------------------------------------+---------+--------+
1 row in set (0.01 sec)

3) 删除REPOSITORY

当不使用时，可删除repository

mysql> drop repository cdp_repo;

5. 备份

1) 全量备份ssb数据库下的表dates到仓库cdp_repo中

BACKUP SNAPSHOT ssb.snapshot_label3
TO cdp_repo
ON (dates)
PROPERTIES ("type" = "full");

2) 查看备份进度

mysql> show backup;
+-------+-----------------+--------+-------------+-----------------------------+---------------------+----------------------+--------------------+--------------+-----------------+----------+------------+--------+---------+
| JobId | SnapshotName    | DbName | State       | BackupObjs                  | CreateTime          | SnapshotFinishedTime | UploadFinishedTime | FinishedTime | UnfinishedTasks | Progress | TaskErrMsg | Status | Timeout |
+-------+-----------------+--------+-------------+-----------------------------+---------------------+----------------------+--------------------+--------------+-----------------+----------+------------+--------+---------+
| 20008 | snapshot_label3 | ssb    | SNAPSHOTING | [default_cluster:ssb.dates] | 2021-06-16 15:28:21 | NULL                 | NULL               | NULL         |                 |          |            | [OK]   | 86400   |
+-------+-----------------+--------+-------------+-----------------------------+---------------------+----------------------+--------------------+--------------+-----------------+----------+------------+--------+---------+
1 row in set (0.01 sec)
mysql> show backup;
+-------+-----------------+--------+-----------------+-----------------------------+---------------------+----------------------+--------------------+--------------+-----------------+----------+------------+--------+---------+
| JobId | SnapshotName    | DbName | State           | BackupObjs                  | CreateTime          | SnapshotFinishedTime | UploadFinishedTime | FinishedTime | UnfinishedTasks | Progress | TaskErrMsg | Status | Timeout |
+-------+-----------------+--------+-----------------+-----------------------------+---------------------+----------------------+--------------------+--------------+-----------------+----------+------------+--------+---------+
| 20008 | snapshot_label3 | ssb    | UPLOAD_SNAPSHOT | [default_cluster:ssb.dates] | 2021-06-16 15:28:21 | 2021-06-16 15:28:27  | NULL               | NULL         |                 |          |            | [OK]   | 86400   |
+-------+-----------------+--------+-----------------+-----------------------------+---------------------+----------------------+--------------------+--------------+-----------------+----------+------------+--------+---------+
1 row in set (0.00 sec)
mysql> show backup;
+-------+-----------------+--------+-----------+-----------------------------+---------------------+----------------------+---------------------+--------------+-----------------+----------+------------+--------+---------+
| JobId | SnapshotName    | DbName | State     | BackupObjs                  | CreateTime          | SnapshotFinishedTime | UploadFinishedTime  | FinishedTime | UnfinishedTasks | Progress | TaskErrMsg | Status | Timeout |
+-------+-----------------+--------+-----------+-----------------------------+---------------------+----------------------+---------------------+--------------+-----------------+----------+------------+--------+---------+
| 20008 | snapshot_label3 | ssb    | SAVE_META | [default_cluster:ssb.dates] | 2021-06-16 15:28:21 | 2021-06-16 15:28:27  | 2021-06-16 15:28:33 | NULL         |                 |          |            | [OK]   | 86400   |
+-------+-----------------+--------+-----------+-----------------------------+---------------------+----------------------+---------------------+--------------+-----------------+----------+------------+--------+---------+
1 row in set (0.00 sec)
mysql> show backup;
+-------+-----------------+--------+----------+-----------------------------+---------------------+----------------------+---------------------+---------------------+-----------------+----------+------------+--------+---------+
| JobId | SnapshotName    | DbName | State    | BackupObjs                  | CreateTime          | SnapshotFinishedTime | UploadFinishedTime  | FinishedTime        | UnfinishedTasks | Progress | TaskErrMsg | Status | Timeout |
+-------+-----------------+--------+----------+-----------------------------+---------------------+----------------------+---------------------+---------------------+-----------------+----------+------------+--------+---------+
| 20008 | snapshot_label3 | ssb    | FINISHED | [default_cluster:ssb.dates] | 2021-06-16 15:28:21 | 2021-06-16 15:28:27  | 2021-06-16 15:28:33 | 2021-06-16 15:28:39 |                 |          |            | [OK]   | 86400   |
+-------+-----------------+--------+----------+-----------------------------+---------------------+----------------------+---------------------+---------------------+-----------------+----------+------------+--------+---------+
1 row in set (0.00 sec)

State一列表示备份作业当前所在阶段，可以随时关注备份进度，状态参考：

PENDING：作业初始状态。
SNAPSHOTING：正在进行快照操作。
UPLOAD_SNAPSHOT：快照结束，准备上传。
UPLOADING：正在上传快照。
SAVE_META：正在本地生成元数据文件。
UPLOAD_INFO：上传元数据文件和本次备份作业的信息。
FINISHED：备份完成。
CANCELLED：备份失败或被取消。

6. 备份速度计算及HDFS特性说明

1) lineorder_flat表大小查看

当前表占用空间约370G

mysql> show data from ssb.lineorder_flat;
+----------------+----------------+------------+--------------+------------+
| TableName      | IndexName      | Size       | ReplicaCount | RowCount   |
+----------------+----------------+------------+--------------+------------+
| lineorder_flat | lineorder_flat | 369.205 GB | 480          | 3643371678 |
|                | Total          | 369.205 GB | 480          |            |
+----------------+----------------+------------+--------------+------------+
2 rows in set (0.00 sec)

2) 备份

备份数据库ssb下的lineorder_flat表

mysql> BACKUP SNAPSHOT ssb.snapshot_label4
    -> TO cdp_repo
    -> ON (lineorder_flat)
    -> PROPERTIES ("type" = "full");
Query OK, 0 rows affected (0.06 sec)

3) 备份时长及速率

369.205GB快照创建时长4秒，上传hdfs占用14分钟，平均上传速率370G*3/(14*60)=1.32G/s

mysql> show backup;
+-------+-----------------+--------+----------+--------------------------------------+---------------------+----------------------+---------------------+---------------------+-----------------+----------+------------+--------+---------+
| JobId | SnapshotName    | DbName | State    | BackupObjs                           | CreateTime          | SnapshotFinishedTime | UploadFinishedTime  | FinishedTime        | UnfinishedTasks | Progress | TaskErrMsg | Status | Timeout |
+-------+-----------------+--------+----------+--------------------------------------+---------------------+----------------------+---------------------+---------------------+-----------------+----------+------------+--------+---------+
| 20010 | snapshot_label4 | ssb    | FINISHED | [default_cluster:ssb.lineorder_flat] | 2021-06-16 15:41:35 | 2021-06-16 15:41:39  | 2021-06-16 15:55:39 | 2021-06-16 15:55:45 |                 |          |            | [OK]   | 86400   |
+-------+-----------------+--------+----------+--------------------------------------+---------------------+----------------------+---------------------+---------------------+-----------------+----------+------------+--------+---------+
1 row in set (0.00 sec)

4) 速率对比

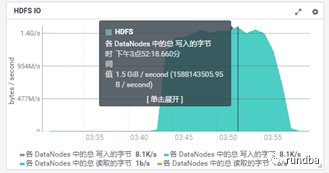

HDFS IO写入峰值为1.5G/s，数据初始写入和写入结束IO较低，通过hdfs监控页面IO速率和上步骤计算平均速率1.3G/s相差不大，以计算值为准。

可以通过计算速率对整库备份时长进行估算。

5) 备份说明

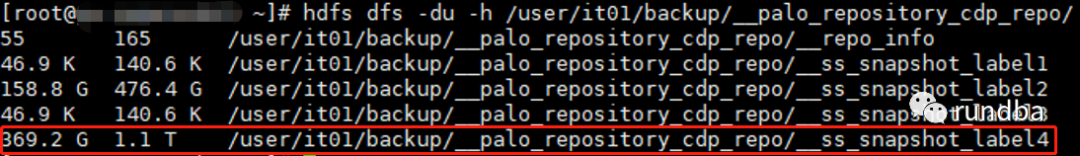

备份数据需要写入3份，每一个块有2份冗余，lable4为lineorder_flat表数据量370G的备份，共占用hdfs 1.1T。

[root@nn01 ~]# hdfs dfs -du -h /user/it01/backup/__palo_repository_cdp_repo/
55       165      /user/it01/backup/__palo_repository_cdp_repo/__repo_info
46.9 K   140.6 K  /user/it01/backup/__palo_repository_cdp_repo/__ss_snapshot_label1
158.8 G  476.4 G  /user/it01/backup/__palo_repository_cdp_repo/__ss_snapshot_label2
46.9 K   140.6 K  /user/it01/backup/__palo_repository_cdp_repo/__ss_snapshot_label3
369.2 G  1.1 T    /user/it01/backup/__palo_repository_cdp_repo/__ss_snapshot_label4
