故障分析 | DDL 导致的 Xtrabackup 备份失败

爱可生开源社区 2022-05-28
3535
作者：赵黎明
爱可生 MySQL DBA 团队成员，熟悉 Oracle、MySQL 等数据库，擅长数据库性能问题诊断、事务与锁问题的分析等，负责处理客户 MySQL 及我司自研 DMP 平台日常运维中的问题，对开源数据库相关技术非常感兴趣。
本文来源：原创投稿

* 爱可生开源社区出品，原创内容未经授权不得随意使用，转载请联系小编并注明来源。

背景

近日，客户反馈某生产业务系统凌晨的物理备份都失败了（一主二从的集群，仅在两个从库上做 Xtrabackup 全备，主库不参与备份），需排查备份失败的原因。

案例分析

由于客户使用的是我司爱可生的 DMP 数据库管理平台，当备份失败时，在备份目录中会写入一个 FAIL 的标志文件，然后回滚掉残留文件，此时 Xtrabackup 自身的日志已无法查看，不过可以通过 urman-agent 组件（负责备份恢复）日志来获取备份失败的信息，以下是当时两个从库上的报错信息。

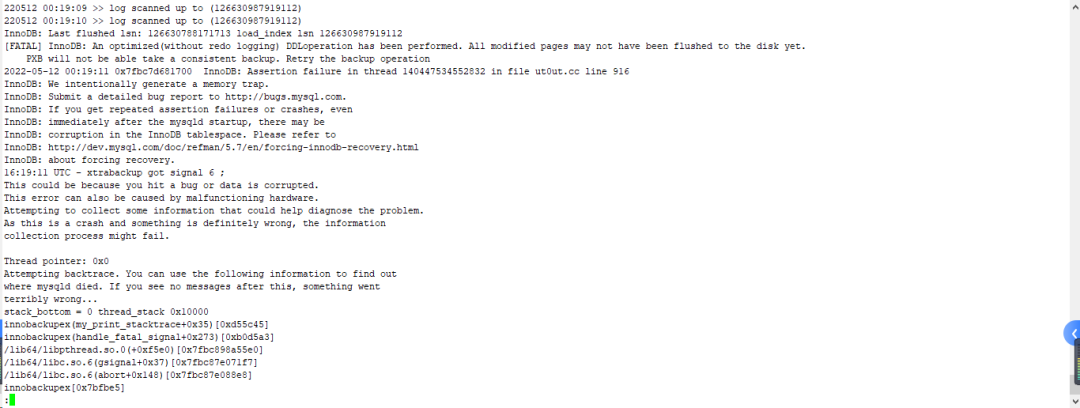

  • 从库1日志

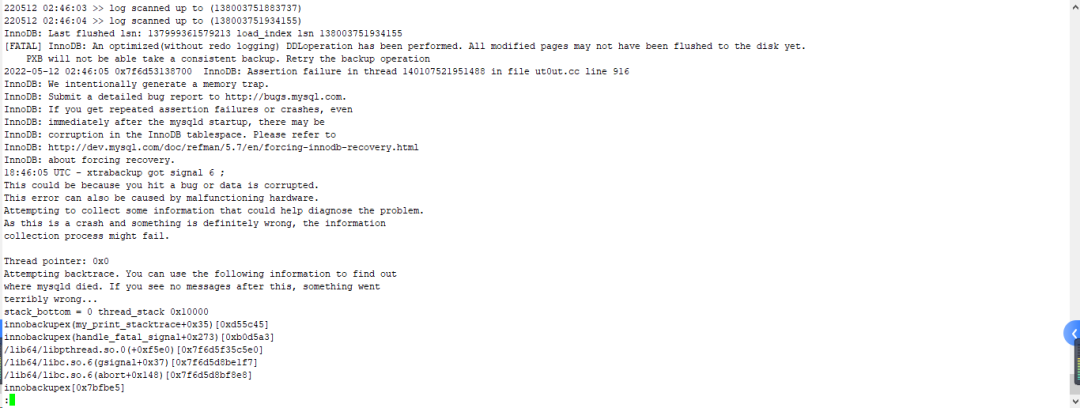

  • 从库2日志

两个从库虽然报错的时间不同，但报错的内容一致，都指向了“不记录 redo 日志的 DDL 操作”：

[FATAL] InnoDB: An optimized(without redo logging) DDLoperation has been performed. All modified pages may not have been flushed to the disk yet. PXB will not be able take a consistent backup. Retry the backup operation

经确认，客户的确是在凌晨执行了 DDL 业务变更，变更的内容为创建一张新表，并给现存的两张表添加字段，加字段的表大约有几百万行记录，这一信息与日志给出的内容吻合，看来问题大概率是出在加字段的 DDL 操作上

那什么是不记录 redo 的 DDL 的操作呢？为何会存在不记录 redo 的 DDL ？

首先，我们知道，在 MySQL 5.7 中给表加字段属于 ONLINE DLL ，会重建表，但允许并发 DML（PS：MySQL 8.0 加字段不需要重建表）

由于 MySQL 采用的是索引组织表（IOT），表上的索引当然也需要重建，由于采用了 ALGORITHM=INPLACE 的方式，允许并发 DML

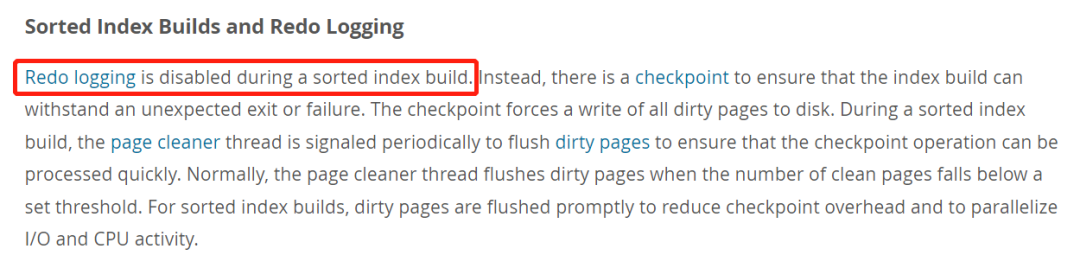

在 MySQL 5.7 中，对索引有一个优化，即 Sorted Index Builds ，会在创建或重建索引的时候通过 bulk load 、bottom-up 的方式来填充索引记录


采用 Sorted Index Build 方式创建索引时，不会记录到 redo 日志中，而这就是之前 Xtrabackup 报错中所描述的“An optimized(without redo logging) DDL operation”的场景

Percona 称这是 Xtrabackup 2.4.x 的一个 bug ，主要是为了避免得到一个错误的备份集，一旦检测到有不记录 redo 的 DDL 操作，就会将备份进程终止，而客户生产环境中的 PXB 版本正是2.4.5
针对这一问题，Percona 在 Xtrabackup 2.4.8 及之后的版本中，新增了--lock-ddl，--lock-ddl-timeout，--lock-ddl-per-table这几个参数，使其可以在备份时加上备份锁，或给表加上 MDL 锁来阻塞其他的 DDL 操作，使备份顺利完成
原因明确了，就知道如何解决问题了，最后分别在2个从库上执行手动备份，每个实例（500G左右）大约耗时2小时40分钟完成备份
Percona 以增加参数的方式提供了解决备份失败的方法，那如果暂时无法升级 PXB 版本，仅在 MySQL 层面，有没有解决方法呢？其实也是可以的。
对于以上提到的几种场景，我们都来测试一下吧

场景测试

环境准备

创建测试表

/usr/local/sysbench/share/sysbench# sysbench oltp_insert.lua --db-driver=mysql --threads=256 --time=300 --mysql-host=10.186.60.68 --mysql-port=3332 --mysql-user=zlm --mysql-password=zlm --tables=2 --table-size=2000000 --db-ps-mode=disable --report-interval=10 prepare
sysbench 1.0.17 (using bundled LuaJIT 2.1.0-beta2)

Initializing worker threads...

Creating table 'sbtest2'...
Inserting 2000000 records into 'sbtest2'
Creating table 'sbtest1'...
Inserting 2000000 records into 'sbtest1'
Creating a secondary index on 'sbtest2'...
Creating a secondary index on 'sbtest1'...

准备脚本（batch_ddl.sh）

-- 该脚本的作用是对测试表进行持续的DDL操作（增加/删除字段，模拟客户的业务变更）
dmp2 (master) ~/script# echo > batch_ddl.sh
dmp2 (master) ~/script# cat << EOF > batch_ddl.sh
> #!/bin/bash
> echo "alter table sbtest1 add sid varchar(32);"|/data/mysql/base/5.7.36/bin/mysql -h10.186.60.68 -P3332 -uzlm -pzlm sbtest
> sleep 1
> echo "alter table sbtest2 add sid varchar(32);"|/data/mysql/base/5.7.36/bin/mysql -h10.186.60.68 -P3332 -uzlm -pzlm sbtest
> sleep 10
> echo "alter table sbtest1 drop sid;"|/data/mysql/base/5.7.36/bin/mysql -h10.186.60.68 -P3332 -uzlm -pzlm sbtest
> sleep 1
> echo "alter table sbtest2 drop sid;"|/data/mysql/base/5.7.36/bin/mysql -h10.186.60.68 -P3332 -uzlm -pzlm sbtest
> EOF

场景1：备份时并发执行 DDL（无额外参数）

执行脚本

dmp2 (master) ~/script# while true; do bash batch_ddl.sh; done
mysql: [Warning] Using a password on the command line interface can be insecure.
mysql: [Warning] Using a password on the command line interface can be insecure.
... 略

验证脚本是否生效（观察测试表的 sid 字段，时而有，时而无）

zlm@10.186.60.68 [sbtest]> show create table sbtest1\G
*************************** 1. row ***************************
       Table: sbtest1
Create Table: CREATE TABLE `sbtest1` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `k` int(11) NOT NULL DEFAULT '0',
  `c` char(120) NOT NULL DEFAULT '',
  `pad` char(60) NOT NULL DEFAULT '',
  PRIMARY KEY (`id`),
  KEY `k_1` (`k`)
) ENGINE=InnoDB AUTO_INCREMENT=2000001 DEFAULT CHARSET=utf8
1 row in set (0.00 sec)

zlm@10.186.60.68 [sbtest]> show create table sbtest1\G
*************************** 1. row ***************************
       Table: sbtest1
Create Table: CREATE TABLE `sbtest1` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `k` int(11) NOT NULL DEFAULT '0',
  `c` char(120) NOT NULL DEFAULT '',
  `pad` char(60) NOT NULL DEFAULT '',
  `sid` varchar(32) DEFAULT NULL,
  PRIMARY KEY (`id`),
  KEY `k_1` (`k`)
) ENGINE=InnoDB AUTO_INCREMENT=2000001 DEFAULT CHARSET=utf8
1 row in set (0.00 sec)

执行 Xtrabackup 备份

-- 检查Xtrabackup的版本（客户生产环境为2.4.5）
dmp2 data/urman-agent/bin# ./xtrabackup --version
xtrabackup: recognized server arguments: --datadir=/var/lib/mysql
./xtrabackup version 2.4.20 based on MySQL server 5.7.26 Linux (x86_64) (revision id: c8b4056)

-- 执行备份
./xtrabackup --defaults-file=/data/mysql/mysql3332/my.cnf \
--user=zlm --password=zlm --target-dir=/data/backup/`date +%F_%H-%M-%S` \
--backup --host=127.0.0.1 --port=3332 --parallel 4 \
--check-privileges --no-version-check
... 略
220512 15:11:11 [01] Copying ./sbtest/db.opt to data/backup/2022-05-12_15-10-56/sbtest/db.opt
220512 15:11:11 [01]        ...done
220512 15:11:11 [01] Copying ./sbtest/sbtest2.frm to data/backup/2022-05-12_15-10-56/sbtest/sbtest2.frm
220512 15:11:11 [01]        ...done
220512 15:11:11 [01] Copying ./sbtest/sbtest1.frm to data/backup/2022-05-12_15-10-56/sbtest/sbtest1.frm
220512 15:11:11 [01]        ...done
220512 15:11:11 Finished backing up non-InnoDB tables and files
220512 15:11:11 [00] Writing data/backup/2022-05-12_15-10-56/xtrabackup_binlog_info
220512 15:11:11 [00]        ...done
220512 15:11:11 Executing FLUSH NO_WRITE_TO_BINLOG ENGINE LOGS...
xtrabackup: The latest check point (for incremental): '250912794909'
xtrabackup: Stopping log copying thread.
.InnoDB: Last flushed lsn: 250912650797 load_index lsn 250913206547
InnoDB: An optimized (without redo logging) DDL operation has been performed. All modified pages may not have been flushed to the disk yet.
PXB will not be able to make a consistent backup. Retry the backup operation
dmp2 data/urman-agent/bin#

## 以上步骤，直接复现了客户生产环境的故障场景

终止脚本

mysql: [Warning] Using a password on the command line interface can be insecure.
mysql: [Warning] Using a password on the command line interface can be insecure.
mysql: [Warning] Using a password on the command line interface can be insecure.
mysql: [Warning] Using a password on the command line interface can be insecure.
mysql: [Warning] Using a password on the command line interface can be insecure.
mysql: [Warning] Using a password on the command line interface can be insecure.
^C^C -- query aborted
ERROR 1317 (70100) at line 1: Query execution was interrupted

小结

默认情况下，即使是 Xtrabackup 高版本，如果备份时并发执行 DDL ，并且没有指定 DDL 锁参数（--lock-ddl，--lock-ddl-per-table），会导致备份失败

场景2：备份时并发执行 DDL（加--lock-ddl参数）

执行脚本

dmp2 (master) ~/script# while true; do bash batch_ddl.sh; done
mysql: [Warning] Using a password on the command line interface can be insecure.
mysql: [Warning] Using a password on the command line interface can be insecure.
... 略

执行 Xtrabackup 备份

dmp2 data/urman-agent/bin# ./xtrabackup --defaults-file=/data/mysql/mysql3332/my.cnf --user=zlm --password=zlm --target-dir=/data/backup/`date +%F_%H-%M-%S` --backup --host=127.0.0.1 --port=3332 --parallel 4 --check-privileges --no-version-check --lock-ddl
xtrabackup: recognized server arguments: --datadir=/data/mysql/mysql3332/data --tmpdir=/data/mysql/mysql3332/tmp --open_files_limit=65535 --server-id=31782647 --log_bin=/data/mysql/mysql3332/logs/mysql-bin --innodb_buffer_pool_size=100M --innodb_data_file_path=ibdata1:100M:autoextend --innodb_flush_log_at_trx_commit=1 --innodb_log_buffer_size=8M --innodb_log_file_size=100M --innodb_log_files_in_group=3 --innodb_max_dirty_pages_pct=50 --innodb_file_per_table=1 --innodb_io_capacity=2000 --innodb_flush_method=O_DIRECT --innodb_flush_log_at_trx_commit=1 --parallel=4
xtrabackup: recognized client arguments: --port=3332 --socket=/tmp/mysql3332.sock --user=zlm --password=* --target-dir=/data/backup/2022-05-12_16-02-37 --backup=1 --host=127.0.0.1 --port=3332 --check-privileges=1 --no-version-check=1 --lock-ddl=1
220512 16:02:37 Connecting to MySQL server host: 127.0.0.1, user: zlm, password: set, port: 3332, socket: tmp/mysql3332.sock
Using server version 5.7.36-log
220512 16:02:37 Error: LOCK TABLES FOR BACKUP is not supported.

## MySQL社区版不支持--lock-ddl参数，直接报错

小结

lock-ddl 其实就是在进行备份的时候，执行备份锁（LOCK TABLES FOR BACKUP）来阻塞 DDL 语句，由于只有 Percona Server 支持该语法，MySQL 社区版暂时无法模拟，MariaDB 分支也同样不支持该语法

场景3：备份时并发执行 DDL（加--lock-ddl-per-table参数）

执行脚本

dmp2 (master) ~/script# while true; do bash batch_ddl.sh; done
mysql: [Warning] Using a password on the command line interface can be insecure.
mysql: [Warning] Using a password on the command line interface can be insecure.
... 略

执行 Xtrabackup 备份

dmp2 data/urman-agent/bin# ./xtrabackup --defaults-file=/data/mysql/mysql3332/my.cnf --user=zlm --password=zlm --target-dir=/data/backup/`date +%F_%H-%M-%S` --backup --host=127.0.0.1 --port=3332 --parallel 4 --check-privileges --no-version-check --lock-ddl-per-table
xtrabackup: recognized server arguments: --datadir=/data/mysql/mysql3332/data --tmpdir=/data/mysql/mysql3332/tmp --open_files_limit=65535 --server-id=31782647 --log_bin=/data/mysql/mysql3332/logs/mysql-bin --innodb_buffer_pool_size=100M --innodb_data_file_path=ibdata1:100M:autoextend --innodb_flush_log_at_trx_commit=1 --innodb_log_buffer_size=8M --innodb_log_file_size=100M --innodb_log_files_in_group=3 --innodb_max_dirty_pages_pct=50 --innodb_file_per_table=1 --innodb_io_capacity=2000 --innodb_flush_method=O_DIRECT --innodb_flush_log_at_trx_commit=1 --parallel=4
xtrabackup: recognized client arguments: --port=3332 --socket=/tmp/mysql3332.sock --user=zlm --password=* --target-dir=/data/backup/2022-05-12_16-07-12 --backup=1 --host=127.0.0.1 --port=3332 --check-privileges=1 --no-version-check=1 --lock-ddl-per-table=1
220512 16:07:12 Connecting to MySQL server host: 127.0.0.1, user: zlm, password: set, port: 3332, socket: tmp/mysql3332.sock
Using server version 5.7.36-log
./xtrabackup version 2.4.20 based on MySQL server 5.7.26 Linux (x86_64) (revision id: c8b4056)
xtrabackup: uses posix_fadvise().
xtrabackup: cd to data/mysql/mysql3332/data
xtrabackup: open files limit requested 65535, set to 65535
xtrabackup: using the following InnoDB configuration:
xtrabackup:   innodb_data_home_dir = .
xtrabackup:   innodb_data_file_path = ibdata1:100M:autoextend
xtrabackup:   innodb_log_group_home_dir = ./
xtrabackup:   innodb_log_files_in_group = 3
xtrabackup:   innodb_log_file_size = 104857600
xtrabackup: using O_DIRECT
InnoDB: Number of pools: 1
220512 16:07:13 >> log scanned up to (250920385317)
xtrabackup: Generating a list of tablespaces
... 略
220512 16:07:14 Locking MDL for `sbtest`.`sbtest1`  ## 备份sbtest1表数据前，先加上MDL锁
220512 16:07:14 [04] Copying ./sbtest/sbtest1.ibd to data/backup/2022-05-12_16-07-12/sbtest/sbtest1.ibd
220512 16:07:14 [02] Copying ./sbtest/sbtest2.ibd to data/backup/2022-05-12_16-07-12/sbtest/sbtest2.ibd
220512 16:07:15 >> log scanned up to (250920494721)
220512 16:07:16 >> log scanned up to (250920494832)
220512 16:07:17 >> log scanned up to (250920494841)
220512 16:07:18 >> log scanned up to (250920494841)
220512 16:07:19 [02]        ...done
220512 16:07:19 >> log scanned up to (250920494841)
220512 16:07:20 >> log scanned up to (250920494841)
220512 16:07:20 [01]        ...done
220512 16:07:20 [04]        ...done
220512 16:07:21 Starting to backup non-InnoDB tables and files
... 略
220512 16:07:21 [01] Copying ./sbtest/sbtest2.frm to data/backup/2022-05-12_16-07-12/sbtest/sbtest2.frm
220512 16:07:21 [01]        ...done
220512 16:07:21 [01] Copying ./sbtest/sbtest1.frm to data/backup/2022-05-12_16-07-12/sbtest/sbtest1.frm
220512 16:07:21 [01]        ...done
220512 16:07:21 Finished backing up non-InnoDB tables and files
220512 16:07:21 [00] Writing data/backup/2022-05-12_16-07-12/xtrabackup_binlog_info
220512 16:07:21 [00]        ...done
220512 16:07:21 Executing FLUSH NO_WRITE_TO_BINLOG ENGINE LOGS...
xtrabackup: The latest check point (for incremental): '250920494832'
xtrabackup: Stopping log copying thread.
.220512 16:07:21 >> log scanned up to (250920494841)

220512 16:07:21 Executing UNLOCK TABLES
220512 16:07:21 All tables unlocked
220512 16:07:21 [00] Copying ib_buffer_pool to data/backup/2022-05-12_16-07-12/ib_buffer_pool
220512 16:07:21 [00]        ...done
220512 16:07:21 Backup created in directory '/data/backup/2022-05-12_16-07-12/'
MySQL binlog position: filename 'mysql-bin.000012', position '472261259', GTID of the last change '0e795785-0ee5-11ec-9350-02000aba3c44:1-1619'
220512 16:07:21 [00] Writing data/backup/2022-05-12_16-07-12/backup-my.cnf
220512 16:07:21 [00]        ...done
220512 16:07:21 [00] Writing data/backup/2022-05-12_16-07-12/xtrabackup_info
220512 16:07:21 [00]        ...done
220512 16:07:21 Unlocking MDL for all tablesxtrabackup: Transaction log of lsn (250920249371) to (250920494841) was copied.  ## 释放所有表上的MDL锁
220512 16:07:22 completed OK!

终止脚本

... 略
mysql: [Warning] Using a password on the command line interface can be insecure.
^C^C -- query aborted
ERROR 1317 (70100) at line 1: Query execution was interrupted
mysql: [Warning] Using a password on the command line interface can be insecure.
^C^C -- query aborted
ERROR 1317 (70100) at line 1: Query execution was interrupted
mysql: [Warning] Using a password on the command line interface can be insecure.
ERROR 1060 (42S21) at line 1: Duplicate column name 'sid'
mysql: [Warning] Using a password on the command line interface can be insecure.
ERROR 1060 (42S21) at line 1: Duplicate column name 'sid'

^C
dmp2 (master) ~/script#

小结

备份时使用 --lock-ddl-per-table 参数，会在拷贝每个表的 ibd 文件前先加一个 MDL 锁，用于阻塞该表上 DDL 语句的执行，直到备份完成后，DDL 才能继续执行

场景4：备份时并发执行DDL（设置MySQL参数：old_alter_table=1）

关闭 ONLINE DDL 特性

zlm@10.186.60.68 [(none)]> set global old_alter_table=1;
Query OK, 0 rows affected (0.00 sec)

zlm@10.186.60.68 [(none)]> show variables like 'old_alter_table';
+-----------------+-------+
| Variable_name   | Value |
+-----------------+-------+
| old_alter_table | OFF   |
+-----------------+-------+
1 row in set (0.00 sec)

zlm@10.186.60.68 [(none)]> exit
Bye
dmp2 (master) ~/script# m3332 -Nse "show variables like 'old_alter_table';"
mysql: [Warning] Using a password on the command line interface can be insecure.
old_alter_table ON

执行脚本

dmp2 (master) ~/script# while true; do bash batch_ddl.sh; done
mysql: [Warning] Using a password on the command line interface can be insecure.
ERROR 1060 (42S21) at line 1: Duplicate column name 'sid'
mysql: [Warning] Using a password on the command line interface can be insecure.
ERROR 1060 (42S21) at line 1: Duplicate column name 'sid'
mysql: [Warning] Using a password on the command line interface can be insecure.
mysql: [Warning] Using a password on the command line interface can be insecure.
... 略

执行 Xtrabackup 备份

dmp2 data/urman-agent/bin# ./xtrabackup --defaults-file=/data/mysql/mysql3332/my.cnf --user=zlm --password=zlm --target-dir=/data/backup/`date +%F_%H-%M-%S` --backup --host=127.0.0.1 --port=3332 --parallel 4 --check-privileges --no-version-check
xtrabackup: recognized server arguments: --datadir=/data/mysql/mysql3332/data --tmpdir=/data/mysql/mysql3332/tmp --open_files_limit=65535 --server-id=31782647 --log_bin=/data/mysql/mysql3332/logs/mysql-bin --innodb_buffer_pool_size=100M --innodb_data_file_path=ibdata1:100M:autoextend --innodb_flush_log_at_trx_commit=1 --innodb_log_buffer_size=8M --innodb_log_file_size=100M --innodb_log_files_in_group=3 --innodb_max_dirty_pages_pct=50 --innodb_file_per_table=1 --innodb_io_capacity=2000 --innodb_flush_method=O_DIRECT --innodb_flush_log_at_trx_commit=1 --parallel=4
xtrabackup: recognized client arguments: --port=3332 --socket=/tmp/mysql3332.sock --user=zlm --password=* --target-dir=/data/backup/2022-05-12_16-48-00 --backup=1 --host=127.0.0.1 --port=3332 --check-privileges=1 --no-version-check=1
220512 16:48:00 Connecting to MySQL server host: 127.0.0.1, user: zlm, password: set, port: 3332, socket: tmp/mysql3332.sock
Using server version 5.7.36-log
./xtrabackup version 2.4.20 based on MySQL server 5.7.26 Linux (x86_64) (revision id: c8b4056)
xtrabackup: uses posix_fadvise().
xtrabackup: cd to data/mysql/mysql3332/data
xtrabackup: open files limit requested 65535, set to 65535
xtrabackup: using the following InnoDB configuration:
xtrabackup:   innodb_data_home_dir = .
xtrabackup:   innodb_data_file_path = ibdata1:100M:autoextend
xtrabackup:   innodb_log_group_home_dir = ./
xtrabackup:   innodb_log_files_in_group = 3
xtrabackup:   innodb_log_file_size = 104857600
xtrabackup: using O_DIRECT
InnoDB: Number of pools: 1
220512 16:48:02 >> log scanned up to (251659945145)
xtrabackup: Generating a list of tablespaces
... 略
220512 16:48:03 [02] Copying ./zlm/t.ibd to data/backup/2022-05-12_16-48-00/zlm/t.ibd
220512 16:48:03 [03]        ...done
220512 16:48:03 [02]        ...done
220512 16:48:03 [03] Copying ./sbtest/sbtest2.ibd to data/backup/2022-05-12_16-48-00/sbtest/sbtest2.ibd
220512 16:48:03 [04] Copying ./zlm1/t1.ibd to data/backup/2022-05-12_16-48-00/zlm1/t1.ibd
220512 16:48:03 [02] Copying ./sbtest/sbtest1.ibd to data/backup/2022-05-12_16-48-00/sbtest/sbtest1.ibd
220512 16:48:03 [04]        ...done
220512 16:48:03 [04] Copying ./sbtest/#sql-c61_30133.ibd to data/backup/2022-05-12_16-48-00/sbtest/#sql-c61_30133.ibd
220512 16:48:04 >> log scanned up to (251669706184)
220512 16:48:04 [04]        ...done
220512 16:48:05 >> log scanned up to (251672429294)
220512 16:48:06 >> log scanned up to (251675700622)
220512 16:48:07 >> log scanned up to (251678520383)
220512 16:48:08 >> log scanned up to (251681195105)
220512 16:48:09 [02]        ...done
220512 16:48:09 >> log scanned up to (251683273712)
220512 16:48:09 [01]        ...done
220512 16:48:10 >> log scanned up to (251694062575)
220512 16:48:11 >> log scanned up to (251707703017)
220512 16:48:12 [03]        ...done
220512 16:48:12 >> log scanned up to (251713134341)
220512 16:48:12 Executing FLUSH NO_WRITE_TO_BINLOG TABLES...
220512 16:48:13 >> log scanned up to (251721786959)
... 略
220512 16:48:38 [01] Copying ./sbtest/sbtest1.frm to data/backup/2022-05-12_16-48-00/sbtest/sbtest1.frm
220512 16:48:38 [01]        ...done
220512 16:48:38 [01] Copying ./sbtest/sbtest2.frm to data/backup/2022-05-12_16-48-00/sbtest/sbtest2.frm
220512 16:48:38 [01]        ...done
220512 16:48:38 Finished backing up non-InnoDB tables and files
220512 16:48:38 [00] Writing data/backup/2022-05-12_16-48-00/xtrabackup_binlog_info
220512 16:48:38 [00]        ...done
220512 16:48:38 Executing FLUSH NO_WRITE_TO_BINLOG ENGINE LOGS...
xtrabackup: The latest check point (for incremental): '251977260800'
xtrabackup: Stopping log copying thread.
.220512 16:48:38 >> log scanned up to (252017389382)

220512 16:48:38 Executing UNLOCK TABLES
220512 16:48:38 All tables unlocked
220512 16:48:38 [00] Copying ib_buffer_pool to /data/backup/2022-05-12_16-48-00/ib_buffer_pool
220512 16:48:38 [00]        ...done
220512 16:48:38 Backup created in directory '/data/backup/2022-05-12_16-48-00/'
MySQL binlog position: filename 'mysql-bin.000012', position '472262307', GTID of the last change '0e795785-0ee5-11ec-9350-02000aba3c44:1-1625'
220512 16:48:38 [00] Writing /data/backup/2022-05-12_16-48-00/backup-my.cnf
220512 16:48:38 [00]        ...done
220512 16:48:38 [00] Writing /data/backup/2022-05-12_16-48-00/xtrabackup_info
220512 16:48:38 [00]        ...done
xtrabackup: Transaction log of lsn (251552488790) to (252017389382) was copied.
220512 16:48:38 completed OK!
dmp2 /data/urman-agent/bin#

## Xtrabackup备份日志中没有发现MDL锁，备份也顺利地执行完了，说明启用old_alter_table也能够解决备份失败的问题

终止脚本

... 略
mysql: [Warning] Using a password on the command line interface can be insecure.
^C^C -- query aborted
ERROR 1317 (70100) at line 1: Query execution was interrupted
mysql: [Warning] Using a password on the command line interface can be insecure.
^C^C -- query aborted
ERROR 1317 (70100) at line 1: Query execution was interrupted
^C
04:48 PM dmp2 (master) ~/script#

小结

当关闭 ONLINE DDL 特性时（old_alter_table=1），即执行 DDL 时强制其都采用 ALGORITHM=COPY 来代替 ALGORITHM=INPLACE ，此时即使备份时没有使用 DDL 锁的参数，也不会影响备份执行，但要注意的是，关闭 ONLINE DDL 特性会影响表上的 DML 并发，不推荐使用。

总结

  1. DDL 业务变更操作应尽量避开备份窗口
  2. Sorted Index Builds 对创建索引的优化与 PXB 2.4.x 备份存在冲突，需要替换为 PXB 高版本，并通过加备份锁或 MDL 锁的参数来避免备份失败
  3. MySQL 自身也可以通过关闭 ONLINE DDL 特性来解决备份失败的问题，但是会影响 DML 并发，需权衡利弊

参考链接

https://dev.mysql.com/doc/refman/5.7/en/sorted-index-builds.html
https://dev.mysql.com/doc/refman/5.7/en/innodb-online-ddl-operations.html#online-ddl-column-operations

https://dev.mysql.com/doc/refman/5.7/en/server-system-variables.html#sysvar_old_alter_table

本文关键字：#Online DDL# #Xtrabackup# #备份#

文章推荐：

技术分享 | 实测在 after_sync 中使用 gh-ost是如何丢数据的

技术分享 | binlog 实用解析工具 my2sql

技术分享 | 如何优雅地在 Windows 上从 MySQL 5.6 升级到 5.7

技术分享 | 什么是半一致性读？

关于SQLE

爱可生开源社区的 SQLE 是一款面向数据库使用者和管理者，支持多场景审核，支持标准化上线流程，原生支持 MySQL 审核且数据库类型可扩展的 SQL 审核工具。

SQLE 获取
类型地址
版本库https://github.com/actiontech/sqle
文档https://actiontech.github.io/sqle-docs-cn/
发布信息https://github.com/actiontech/sqle/releases
数据审核插件开发文档https://actiontech.github.io/sqle-docs-cn/3.modules/3.7_auditplugin/auditplugin_development.html

更多关于 SQLE 的信息和交流，请加入官方QQ交流群：637150065...

点击阅读原文，详细了解SQLE
xtrabackupmysqllog文件sql优化ddl
文章转载自爱可生开源社区，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

评论
