Oracle的 数据重演

ORACLE的数据重演是个比较好的功能，比其他压力测试来的真实。

比如说更改某个参数，会带来什么影响呢？ 增加内存又会带来什么影响呢？ 这些是压力测试软件无法做到的。

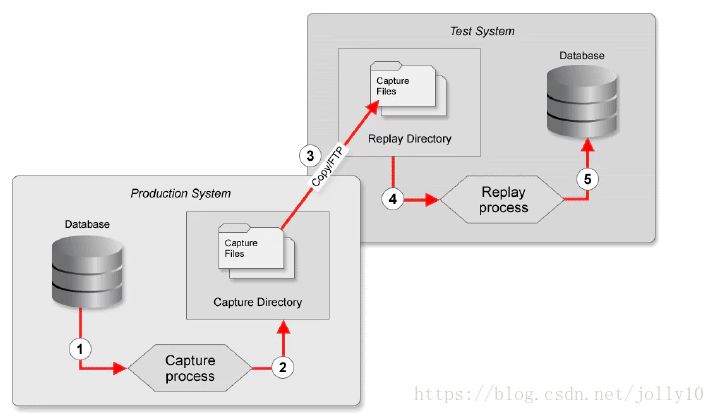

那ORACLE重演功能 是抓获线上，生产数据库的真实负载或者是说请求，把它保存在文件中，然后移到测试机器上进行重演，或者叫重放。

接下来我们做做测试看看怎么玩！

目前本仙是两台组件的RAC

#在所有节点新建目录

mkdir backup/ora_cap_rep/

mkdir backup/ora_cap_rep/

sqlpllus as sysdba

#创建捕获目录

CREATE OR REPLACE DIRECTORY db_replay_capture_dir AS '/backup/ora_cap_rep/';

#创建捕获过滤,不想捕获所有的负载 专门捕获节点2 用户 CMS

exec dbms_workload_capture.ADD_FILTER('CMS_CAP_FILTER01','USER', 'CMS');

exec dbms_workload_capture.ADD_FILTER('CMS_CAP_FILTER02','INSTANCE_NUMBER', '2');

#过滤器解释 第一个参数是过滤名字,

第二个参数是过滤条件,

第三个是条件值

 INSTANCE_NUMBER;USER;MODULE;ACTION;PROGRAM;SERVICE

开始捕获前生成个快照：

   Exec dbms_workload_repository.create_snapshot;

#开始捕获 捕获1个小时 default_action 表示包含和排除,默认包含则过滤器为排除条件,如果是排除,过滤器为包含条件

BEGIN

  DBMS_WORKLOAD_CAPTURE.start_capture (

                                      name     => 'test_capture_1',

                                       dir      => 'DB_REPLAY_CAPTURE_DIR',

                                      default_action => 'EXCLUDE',

                                       duration => 3600

                                       );

END;

/

# duration => null 表示需要手工停止

# 停止捕获工作量

#exec dbms_workload_capture.finish_capture();

#ERROR

ORA-15505: cannot start workload capture because instance 2 encountered errors while accessing directory "/backup/ora_cap_rep/"

说明目录不干净 删除重建

等待1个小时后 从告警文件可以看到

DBMS_WORKLOAD_CAPTURE.START_CAPTURE(): Starting database capture at 04/11/2019 15:45:14

Thu Apr 11 16:45:45 2019

DBMS_WORKLOAD_CAPTURE.FINISH_CAPTURE(): Stopped database capture successfully at 04/11/2019 16:45:45

 查看捕获的信息：

#获取capture ID

SELECT DBMS_WORKLOAD_CAPTURE.get_capture_info('DB_REPLAY_CAPTURE_DIR') FROM   dual;

 SELECT id, name FROM dba_workload_captures;

导出AWR快照

BEGIN

  DBMS_WORKLOAD_CAPTURE.export_awr (capture_id => 8);

END;

/

再看目录 多了两个

 wcr_ca.log

 wcr_ca.dmp

收集报告

Replay报告有几种，本文主要介绍replay report、compare period report两种。

replay reports将replay执行时的性能统计信息列出来，并与capture作简单的比较

compare period report侧重于在两个不同的replay之间，或者replay和capture之间

从数据库参数配置、主机硬件环境、Top SQL耗用资源等方面形成全方位的诊断报告

捕获报告：

文本模式的捕获报告：

SQL> set pagesize 0 long 30000000 longchunksize 1000

SQL> select dbms_workload_capture.report(1,'TEXT') from dual;

HTML模式捕获报告

set serveroutput on

spool home/oracle/capture01.html

set pagesize 20000

set long 200000

DECLARE

v_offset number;

v_length number;

v_nowlength number;

v_char1 varchar2(32767);

v_reprpt CLOB;

BEGIN

v_reprpt := DBMS_WORKLOAD_CAPTURE.report(capture_id=> 1, format=>DBMS_WORKLOAD_CAPTURE.TYPE_HTML);

  v_nowlength:=1;

  v_length:=dbms_lob.getlength(lob_loc=>v_reprpt);

  v_offset:=1;

  while ( v_offset < v_length ) loop

    v_char1:=dbms_lob.substr(lob_loc=>v_reprpt,offset=>v_offset);

    dbms_output.put_line(v_char1);

    v_offset:=v_offset+32767;

  end loop;

end;

/

spool off

Captured Workload Statistics

• 'Value' represents the corresponding statistic aggregated across the entire captured database workload.

• '% Total' is the percentage of 'Value' over the corresponding system-wide aggregated total.

Top Events Filtered Out

 重放部分：

把目录ora_cap_rep复制到测试库中/u01/ora_expdp/下

假如测试库需要还原的话,最好启动归档模式,并建立还原点,一遍重放后再还原回去.

CONN sys/password@test AS SYSDBA

create or replace directory replay_dir as '/u01/ora_expdp/ora_cap_rep/';

初始化重演

1 使用PROCESS_CAPTURE过程来准备capture logs 执行完毕后，

会生成

wcr_process.wmd,

wcr_login.pp,

wcr_seq_data.extb,

wcr_scn_order.extb ,

wcr_conn_data.extb等文件。

begin

dbms_workload_replay.process_capture(capture_dir => 'REPLAY_DIR');

dbms_workload_replay.initialize_replay('cms_replay_1', 'REPLAY_DIR');

dbms_workload_replay.PREPARE_REPLAY();

end;

/

PL/SQL 过程已成功完成。

2 使用wrc 工具效验

wrc mode=calibrate replaydir=/u01/ora_expdp/ora_cap_rep

Workload Replay Client: Release 11.2.0.4.0 - Production on 星期五 4月 26 17:11:37 2019

Copyright (c) 1982, 2011, Oracle and/or its affiliates.  All rights reserved.

Report for Workload in: u01/ora_expdp/ora_cap_rep

-----------------------

Recommendation:

Consider using at least 2 clients divided among 1 CPU(s)

You will need at least 105 MB of memory per client process.

If your machine(s) cannot match that number, consider using more clients.

Workload Characteristics:

- max concurrency: 55 sessions

- total number of sessions: 157

Assumptions:

- 1 client process per 50 concurrent sessions

- 4 client process per CPU

- 256 KB of memory cache per concurrent session

- think time scale = 100

- connect time scale = 100

- synchronization = TRUE

效验结果会显示完成replay需要replayclents和hosts的数量。

本列是要求至少2个客户机,开两个SHELL窗口执行下面命令

wrc system/235619@JXREPORT mode=replay

replaydir=/u01/ora_expdp/ora_cap_rep

3 开始重演 ,回到SQLPLUS窗口

BEGIN

  DBMS_WORKLOAD_REPLAY.start_replay;

END;

这个时候回头看两个客户机信息

[oracle@jxreport ora_cap_rep]wrc system/235619@JXREPORT mode=replay replaydir=/u01/ora_expdp/ora_cap_rep

Workload Replay Client: Release 11.2.0.4.0 - Production on 星期五 4月 26 17:56:09 2019

Copyright (c) 1982, 2011, Oracle and/or its affiliates.  All rights reserved.

Wait for the replay to start (17:56:09)

Replay client 1 started (17:56:32)

[oracle@jxreport ~]wrc system/235619@JXREPORT mode=replay replaydir=/u01/ora_expdp/ora_cap_rep

Workload Replay Client: Release 11.2.0.4.0 - Production on 星期五 4月 26 17:56:12 2019

Copyright (c) 1982, 2011, Oracle and/or its affiliates.  All rights reserved.

Wait for the replay to start (17:56:12)

Replay client 2 started (17:56:32)

等待重演完成。。。。。

大约1个小时后

Replay client 1 finished (18:58:54)

Replay client 2 finished (18:59:55)

4 重演结束

1 查看信息

SELECT id, name FROM dba_workload_replays;

SELECT DBMS_WORKLOAD_CAPTURE.get_capture_info('REPLAY_DIR') FROM dual;

收集报告

文本模式重放报告：

SQL> set pagesize 0 long 30000000 longchunksize 1000

select dbms_workload_replay.report(2,'TEXT') from dual;

HTML模式重放报告

set serveroutput on

spool home/oracle/v1028r1.html

set pagesize 20000

set long 200000

declare

v_offset number;

v_length number;

v_nowlength number;

v_char1 varchar2(32767);

v_reprpt clob;

begin

v_reprpt:=dbms_workload_replay.report(replay_id=>2,format=>dbms_workload_replay.TYPE_HTML);

  v_nowlength:=1;

  v_length:=dbms_lob.getlength(lob_loc=>v_reprpt);

  v_offset:=1;

  while ( v_offset < v_length ) loop

    v_char1:=dbms_lob.substr(lob_loc=>v_reprpt,offset=>v_offset);

    dbms_output.put_line(v_char1);

    v_offset:=v_offset+32767;

  end loop;

end;

/

spool off

Replay Information

Replay Options

Replay Statistics

Replay Divergence Summary

Workload Profile

Top Events

(-) Hide

Top SQL with Top Events

(-) Hide

重演报告简单的对比了生产库和测试库信息

报告下面是失败的语句之类的，测试库的数据和生产的数据本身不同步造成的。不过从简单对比来看DB TIME时间增加了1倍；从等待事件来看花费在CPU身上挺多的。说明测试库的CPU不那么给力！

导入捕获的AWR

这点没有明白，为何把线上AWR导入到测试呢？或许做捕获和重放的对比？

SQL> var v_randbid number;

SQL> exec :v_randbid:=DBMS_WORKLOAD_CAPTURE.IMPORT_AWR(capture_id=>1,staging_schema=>'SYSTEM',force_cleanup=>FALSE);

PL/SQL 过程已成功完成。

SQL> print :v_randbid;

 V_RANDBID

----------

 686404447

 看到了些信息

 select id,name,status,start_time,end_time,dir_path,awr_dbid,awr_begin_snap,awr_end_snap from dba_workload_captures;

 看到了快照

 select snap_id,dbid,begin_interval_time,end_interval_time from dba_hist_snapshot where dbid=686404447

生成比较报告：

set serveroutput on

spool home/oracle/v1028r1r2.html

declare

v_rlt clob;

v_replay_id1 number:=1;

v_replay_id2 number:=2;

v_snum number:=1;

v_length number;

v_char varchar2(32767);

begin

dbms_workload_replay.compare_period_report(replay_id1=>v_replay_id1,replay_id2=>v_replay_id2,format=>'HTML',result=>v_rlt);

v_length:=dbms_lob.GETLENGTH(v_rlt);

while ( v_snum < v_length ) loop

v_char:=dbms_lob.substr(lob_loc=>v_rlt,amount=>32767,offset=>v_snum);

v_snum:=v_snum+32767;

dbms_output.put_line(v_char);

end loop;

end;

/

spool off

这个比较报告没有生成出数据出来,

如果要进行更细化的针对每条sql语句的分析，可以使用dbms_workload_replay.compare_sqlset_report函数，

其实质是利用SPA对于两次replay期间生成的STS进行分析，

函数dbms_workload_replay.compare_sqlset_report返回值是task_name，在dba_advisor_tasks中能够查到

set serveroutput on

spool home/oracle/v1028r1r2_spa.html

declare

v_rlt clob;

v_replay_id1 number:=26;

v_replay_id2 number:=24;

v_snum number:=1;

v_length number;

v_char varchar2(32767);

v_ret varchar2(32767);

begin

v_ret:=dbms_workload_replay.compare_sqlset_report(replay_id1=>v_replay_id1,replay_id2=>v_replay_id2,format=>'HTML',result=>v_rlt);

v_length:=dbms_lob.GETLENGTH(v_rlt);

while ( v_snum < v_length ) loop

v_char:=dbms_lob.substr(lob_loc=>v_rlt,amount=>32767,offset=>v_snum);

v_snum:=v_snum+32767;

dbms_output.put_line(v_char);

end loop;

dbms_output.put_line(v_ret);

end;

/

spool off

后期命令：

-- 暂停重放

exec dbms_workload_replay.pause_replay();

-- 继续重放

exec dbms_workload_replay.resume_replay();

-- 终止重放

exec dbms_workload_replay.cancel_replay();

-- 删除捕获信息

exec dbms_workload_capture.delete_capture_info(&id);

-删除重放信息

exec dbms_workload_replay.delete_replay_info(&id);

输入上面查询dba_workload_replays的id值进行删除。

--通过内部函数读取：

SQL> select  DBMS_WORKLOAD_CAPTURE.get_capture_info('DB_REPLAY_CAPTURE_DIR') FROM   dual;

DBMS_WORKLOAD_CAPTURE.GET_CAPTURE_INFO('DB_REPLAY_CAPTURE_DIR')

---------------------------------------------------------------

                                                             11

--读取dba_workload_captures视图读取:

SQL> SELECT id, name FROM dba_workload_captures;

        ID NAME

---------- ------------------------------

        11 test_capture_1

 如果是物理备库

 转换物理备库为快照备库

alter database convert to snapshot standby;

shutdown immediate

startup

恢复数据卫士为物理备库

shutdown immeidate

SQL> startup mount

SQL> alter database convert to physical standby;

如果是普通数据库

1 开启闪回数据库特性

2 建立还原点

3 回滚到还原点

1 开启闪回数据库特性

SQL> archive log list;  --确认已开启归档

Database log mode              Archive Mode

Automatic archival             Enabled

Archive destination            USE_DB_RECOVERY_FILE_DEST

Oldest online log sequence     79

Next log sequence to archive   81

Current log sequence           81

SQL> select flashback_on from v$database; --确定开启flashbak数据库

FLASHBACK_ON

------------------

YES

2 建立还原点

SQL> create restore point gold;

Restore point created

3 回滚到还原点

SQL> shutdown immediate;

Database closed.

Database dismounted.

ORACLE instance shut down.

SQL> startup mount;

ORACLE instance started.

Total System Global Area  313159680 bytes

Fixed Size                  2227944 bytes

Variable Size             201326872 bytes

Database Buffers          104857600 bytes

Redo Buffers                4747264 bytes

Database mounted.

SQL> flashback database to restore point gold;

Flashback complete.

SQL> alter database open resetlogs;

Database altered
