1、Page整体布局

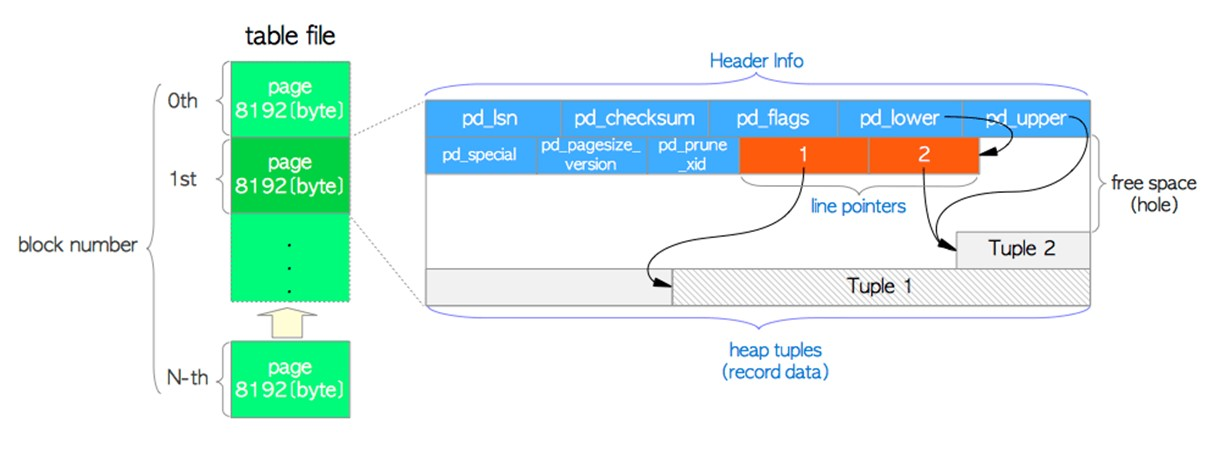

MogDB/opengauss基于pg 9.2开发,在存储数据结构上基本上沿用PG的数据结构，并稍微修改。整体布局上这里盗了一张PG的图，进行介绍。
这张page结构图中少了在page尾部的special space数据区，一般存放与索引相关的特定数据，table relation没有该区域。
整理布局分为4个部分
1、PageHeaderData/HeapPageHeaderData 页面头/heap页面头数据
2、linp array,行指针数组
3、free space 空闲空间
4、tuple数据，行数据
5、special space，在页面尾部，通过pagehead中的pd_special指向该区域, 一般存放与索引相关的特定数据，table relation page该区域为空，这张图没画出来。
下面逐个介绍
2、HeapPageHeaderData
./src/include/storage/bufpage.h
typedef struct {
/* XXX LSN is member of *any* block, not only page-organized ones */
PageXLogRecPtr pd_lsn; /* LSN: next byte after last byte of xlog
* record for last change to this page */
uint16 pd_checksum; /* checksum */
uint16 pd_flags; /* flag bits, see below */
LocationIndex pd_lower; /* offset to start of free space */
LocationIndex pd_upper; /* offset to end of free space */
LocationIndex pd_special; /* offset to start of special space */
uint16 pd_pagesize_version;
ShortTransactionId pd_prune_xid; /* oldest prunable XID, or zero if none */
TransactionId pd_xid_base; /* base value for transaction IDs on page */
TransactionId pd_multi_base; /* base value for multixact IDs on page */
ItemIdData pd_linp[FLEXIBLE_ARRAY_MEMBER]; /* beginning of line pointer array */
} HeapPageHeaderData;
disk page organization
space management information generic to any page
pd_lsn - identifies xlog record for last change to this page.
pd_checksum - page checksum, if set.
pd_flags - flag bits.
pd_lower - offset to start of free space.
pd_upper - offset to end of free space.
pd_special - offset to start of special space.
pd_pagesize_version - size in bytes and page layout version number.
pd_prune_xid - oldest XID among potentially prunable tuples on page.
pg的PageHeaderData为20字节,openguass的HeapPageHeaderData在此基础上增加了两个8字节数据项，pd_xid_base，pd_multi_base。这也说明opengauss把事物ID从4字节扩到了8字节.
- 空闲空间起始位置
pd_lower指向freespace开始，也就是linp array结尾处
pd_upper执行freespace结束，也就是tuple data开始处
3、linp，行指针
typedef struct ItemIdData {
unsigned lp_off : 15, /* offset to tuple (from start of page) */
lp_flags : 2, /* state of item pointer, see below */
lp_len : 15; /* byte length of tuple */
} ItemIdData;
lp_flags
define LP_UNUSED 0 /* unused (should always have lp_len=0) */
define LP_NORMAL 1 /* used (should always have lp_len>0) */
define LP_REDIRECT 2 /* HOT redirect (should have lp_len=0) */
define LP_DEAD 3 /* dead, may or may not have storage */

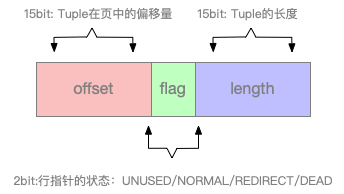

- 每个行指针大小为4字节，也就是32bit.
- 低15位为lp_off,tuple起始位置在页面内的偏移量
- 中间2位为lp_flags,标志信息
LP_UNUSED 0 未使用,lp_len=0
LP_NORMAL 1 正常状态，lp_len>0
LP_REDIRECT 2 发生HOT时，执行行新的位置，lp_len=0
LP_DEAD 3 行为dead - lp_len tuple占用空间长度
- 计算linp数组在heappageheader之后，结束于pd_lower
计算linp指针的个数，（pd_lower-linp开始位置)/4
4、freespace 空闲空间
页面内的空闲空间
linp从pd_lower处往后增长
tuple data从尾部，也就是pd_upper往前增长
5、tuple data
tuple数据，也是页面最重要的部分,由 tuple header+tuple data组成
tuple header
- Tuple头部是由23byte固定大小的前缀和可选的NullBitMap构成。
- t_xmin：代表插入此元组的事务xid；
- t_xmax：代表更新或者删除此元组的事务xid，如果该元组插入后未进行更新或者删除，t_xmax=0；
- t_cid：command id，代表在当前事务中，已经执行过多少条sql，例如执行第一条sql时cid=0，执行第二条sql时cid=1；
- t_ctid：待研究，在 pg中为update后旧版本指向新tuple的指针
- t_infomask标志位，记录各种信息，如是否存在null列，是否有变长列，是否有OID列等
- 如果有允许为空的列，则存在null bitmap,可以通过t_infomask判断 t_infomask&0x0001, bitmap的大小与列个数有关。
- t_hoff 记录 header的大小，包含null bitmap,padding
- tuple header后会有padding,使tuple header的大小为8的整数倍
typedef struct HeapTupleHeaderData {
union {
HeapTupleFields t_heap;
DatumTupleFields t_datum;
} t_choice;
ItemPointerData t_ctid; /* current TID of this or newer tuple */
/* Fields below here must match MinimalTupleData! */
uint16 t_infomask2; /* number of attributes + various flags */
uint16 t_infomask; /* various flag bits, see below */
int8 t_hoff; /* sizeof header incl. bitmap, padding */
/* ^ - 23 bytes - ^ */
bits8 t_bits[FLEXIBLE_ARRAY_MEMBER]; /* bitmap of NULLs -- VARIABLE LENGTH */
/* MORE DATA FOLLOWS AT END OF STRUCT */
} HeapTupleHeaderData;
typedef struct HeapTupleFields {
ShortTransactionId t_xmin; /* inserting xact ID */
ShortTransactionId t_xmax; /* deleting or locking xact ID */
union {
CommandId t_cid; /* inserting or deleting command ID, or both */
ShortTransactionId t_xvac; /* old-style VACUUM FULL xact ID */
} t_field3;
} HeapTupleFields;
/*
* information stored in t_infomask:
*/
#define HEAP_HASNULL 0x0001 /* has null attribute(s) */
#define HEAP_HASVARWIDTH 0x0002 /* has variable-width attribute(s) */
#define HEAP_HASEXTERNAL 0x0004 /* has external stored attribute(s) */
#define HEAP_HASOID 0x0008 /* has an object-id field */
#define HEAP_COMPRESSED 0x0010 /* has compressed data */
#define HEAP_COMBOCID 0x0020 /* t_cid is a combo cid */
#define HEAP_XMAX_EXCL_LOCK 0x0040 /* xmax is exclusive locker */
#define HEAP_XMAX_SHARED_LOCK 0x0080 /* xmax is shared locker */
/* if either LOCK bit is set, xmax hasn't deleted the tuple, only locked it */
#define HEAP_IS_LOCKED (HEAP_XMAX_EXCL_LOCK | HEAP_XMAX_SHARED_LOCK)
#define HEAP_XMIN_COMMITTED 0x0100 /* t_xmin committed */
#define HEAP_XMIN_INVALID 0x0200 /* t_xmin invalid/aborted */
#define HEAP_XMIN_FROZEN (HEAP_XMIN_INVALID | HEAP_XMIN_COMMITTED)
#define HEAP_XMAX_COMMITTED 0x0400 /* t_xmax committed */
#define HEAP_XMAX_INVALID 0x0800 /* t_xmax invalid/aborted */
#define HEAP_XMAX_IS_MULTI 0x1000 /* t_xmax is a MultiXactId */
#define HEAP_UPDATED 0x2000 /* this is UPDATEd version of row */
#define HEAP_MOVED_OFF \
0x4000 /* moved to another place by pre-9.0 \
* VACUUM FULL; kept for binary \
* upgrade support */
#define HEAP_MOVED_IN \
0x8000 /* moved from another place by pre-9.0 \
* VACUUM FULL; kept for binary \
* upgrade support */
#define HEAP_MOVED (HEAP_MOVED_OFF | HEAP_MOVED_IN)
#define HEAP_XACT_MASK 0xFFE0 /* visibility-related bits */
/*
* information stored in t_infomask2:
*/
#define HEAP_NATTS_MASK 0x07FF /* 11 bits for number of attributes */
/* bits 0x1800 are available */
#define HEAP_HAS_REDIS_COLUMNS 0x2000 /* tuple has hidden columns added by redis */
#define HEAP_HOT_UPDATED 0x4000 /* tuple was HOT-updated */
#define HEAP_ONLY_TUPLE 0x8000 /* this is heap-only tuple */
#define HEAP2_XACT_MASK 0xC000 /* visibility-related bits */
tuple data
1、tuple data 有多个列（属性）组成
2、每个属性的长度分定长与变长
3、每个属性有不同的字节对齐
4、每个属性有不同的存储策略
5、tuple data中不存储null值
6、起始位置8字节对齐
变长类型（typlen = -1）存储策略
-
PLAN 避免压缩和行外存储
-
EXTENDED 允许压缩和行外存储，大多数可以TOAST的数据类型的默认策略
-
EXTERNAL 允许行外存储，但不许压缩
-
MAIN 允许压缩，尽量不使用行外存储
参考 pg_type.typstorage
- p: Value must always be stored plain.
- e: Value can be stored in a “secondary” relation (if relation has one, see pg_class.reltoastrelid).
- m: Value can be stored compressed inline.
- x: Value can be stored compressed inline or stored in “secondary” storage.
对齐（起始地址需要是某个长度的整数倍）
参考 pg_type.typalign
- c = char alignment, i.e., no alignment needed.
- s = short alignment (2 bytes on most machines).
- i = int alignment (4 bytes on most machines).
- d = double alignment (8 bytes on many machines, but by no means all).
typalign | typstorage | count
----------+------------+-------
c | p | 6
i | m | 3
d | x | 269
s | p | 3
d | p | 17
i | p | 39
i | x | 70
(7 rows)
通过pg_type可以查到各个数据类型数据存储长度，对齐大小，存储策略
也可以通过pg_attribute去查表上各列的相关属性
如下面t表示例
create table t(id int,id2 bigint,c varchar(100),d date,ts timestamp);
insert into t select i,i,'test'||i,now(),now() from generate_series(1,1000)i;
test=# SELECT a.attname,
test-# pg_catalog.format_type(a.atttypid, a.atttypmod),attlen,
test-# (SELECT substring(pg_catalog.pg_get_expr(d.adbin, d.adrelid) for 128)
test(# FROM pg_catalog.pg_attrdef d
test(# WHERE d.adrelid = a.attrelid AND d.adnum = a.attnum AND a.atthasdef),
test-# a.attnotnull, a.attnum,
test-# (SELECT c.collname FROM pg_catalog.pg_collation c, pg_catalog.pg_type t
test(# WHERE c.oid = a.attcollation AND t.oid = a.atttypid AND a.attcollation <> t.typcollation) AS attcollation,
test-# a.attidentity,
test-# NULL AS indexdef,
test-# NULL AS attfdwoptions,
test-# a.attstorage,attalign,
test-# CASE WHEN a.attstattarget=-1 THEN NULL ELSE a.attstattarget END AS attstattarget, pg_catalog.col_description(a.attrelid, a.attnum)
test-# FROM pg_catalog.pg_attribute a
test-# WHERE a.attrelid = 't'::regclass AND a.attnum > 0 AND NOT a.attisdropped
test-# ORDER BY a.attnum;
attname | format_type | attlen | substring | attnotnull | attnum | attstorage | attalign
---------+-----------------------------+--------+-----------+------------+--------+------------+----------
id | integer | 4 | | f | 1 | p | i
id2 | bigint | 8 | | f | 2 | p | d
c | character varying(100) | -1 | | f | 3 | x | i
d | date | 4 | | f | 4 | p | i
ts | timestamp without time zone | 8 | | f | 5 | p | d
(5 rows)
test=# select * from heap_page_items(get_raw_page('t',0));
lp | lp_off | lp_flags | lp_len | t_xmin | t_xmax | t_field3 | t_ctid | t_infomask2 | t_infomask | t_hoff | t_bits | t_oid | t_data
-----+--------+----------+--------+-----------+--------+----------+---------+-------------+------------+--------+--------+-------+------------------------------------------------------------------------------------
1 | 8128 | 1 | 64 | 377048720 | 0 | 0 | (0,1) | 5 | 2306 | 24 | | | \x010000000000000001000000000000000d74657374310000e91d000000000000961c1f75bc590200
2 | 8064 | 1 | 64 | 377048720 | 0 | 0 | (0,2) | 5 | 2306 | 24 | | | \x020000000000000002000000000000000d74657374320000e91d000000000000961c1f75bc590200
3 | 8000 | 1 | 64 | 377048720 | 0 | 0 | (0,3) | 5 | 2306 | 24 | | | \x030000000000000003000000000000000d74657374330000e91d000000000000961c1f75bc590200
4 | 7936 | 1 | 64 | 377048720 | 0 | 0 | (0,4) | 5 | 2306 | 24 | | | \x040000000000000004000000000000000d74657374340000e91d000000000000961c1f75bc590200
5 | 7872 | 1 | 64 | 377048720 | 0 | 0 | (0,5) | 5 | 2306 | 24 | | | \x050000000000000005000000000000000d74657374350000e91d000000000000961c1f75bc590200
0100000000000000 0100000000000000 0d74657374310000 e91d000000000000 961c1f75bc590200
test=# select * from heap_page_item_attrs(get_raw_page('t',0),'t');
lp | lp_off | lp_flags | lp_len | t_xmin | t_xmax | t_field3 | t_ctid | t_infomask2 | t_infomask | t_hoff | t_bits | t_oid | t_attrs
-----+--------+----------+--------+-----------+--------+----------+---------+-------------+------------+--------+--------+-------+-------------------------------------------------------------------------------------------
------
1 | 8128 | 1 | 64 | 377048720 | 0 | 0 | (0,1) | 5 | 2306 | 24 | | | {"\\x01000000","\\x0100000000000000","\\x0d7465737431","\\xe91d0000","\\x961c1f75bc590200"
}
2 | 8064 | 1 | 64 | 377048720 | 0 | 0 | (0,2) | 5 | 2306 | 24 | | | {"\\x02000000","\\x0200000000000000","\\x0d7465737432","\\xe91d0000","\\x961c1f75bc590200"
}
3 | 8000 | 1 | 64 | 377048720 | 0 | 0 | (0,3) | 5 | 2306 | 24 | | | {"\\x03000000","\\x0300000000000000","\\x0d7465737433","\\xe91d0000","\\x961c1f75bc590200"
}
4 | 7936 | 1 | 64 | 377048720 | 0 | 0 | (0,4) | 5 | 2306 | 24 | | | {"\\x04000000","\\x0400000000000000","\\x0d7465737434","\\xe91d0000","\\x961c1f75bc590200"
}
5 | 7872 | 1 | 64 | 377048720 | 0 | 0 | (0,5) | 5 | 2306 | 24 | | | {"\\x05000000","\\x0500000000000000","\\x0d7465737435","\\xe91d0000","\\x961c1f75bc590200"
}
变长类型的存储
定长数据类型根据pg_attribute.attlen对齐后直接存储在tupledata中，变长数据类型由于长度不固定，存储时有些特殊。需要在数据中保存长度等信息。
pg_attribute.attlen==-1则为变长类型
1、第一个字节(va_header)=0x01,第二个字节va_tag=18(VARTAG_INDIRECT)
toast机制
1 字节va_header+1字节va_tag+4*4字节varatt_external(toast指针)
typedef struct varatt_external {
int32 va_rawsize; /* Original data size (includes header) */
int32 va_extsize; /* External saved size (doesn't) */
Oid va_valueid; /* Unique ID of value within TOAST table */
Oid va_toastrelid; /* RelID of TOAST table containing it */
} varatt_external;
2、short varlena，当长度<=126时
判断va_header!=0x01 and va_header&0x01==0x01
第一个字节前7位存储大小，最后一位为0x01
3、full 4-byte header varlena
(前4字节>>2)&0x3FFFFFFF 数据长度
最后修改时间：2021-11-25 21:47:54
