ASM资源OFFLINE故障之禁用HAIP

原创哈萨雅琪 2022-06-30

2341

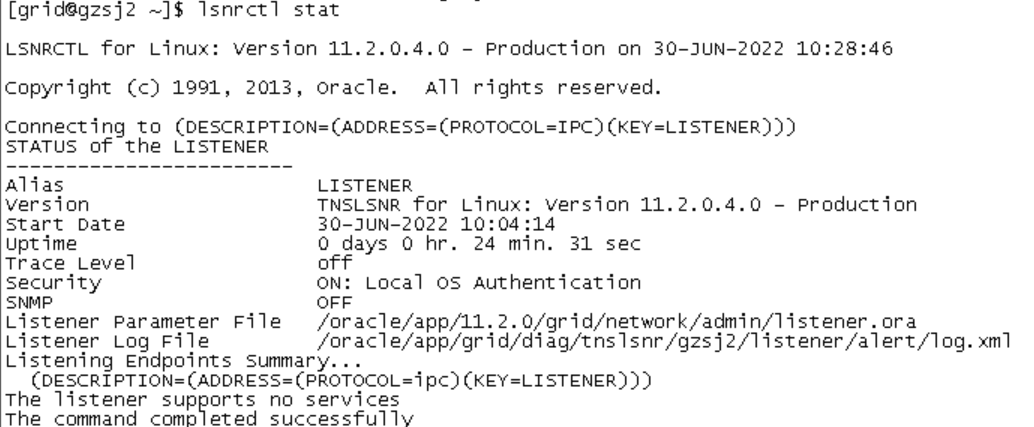

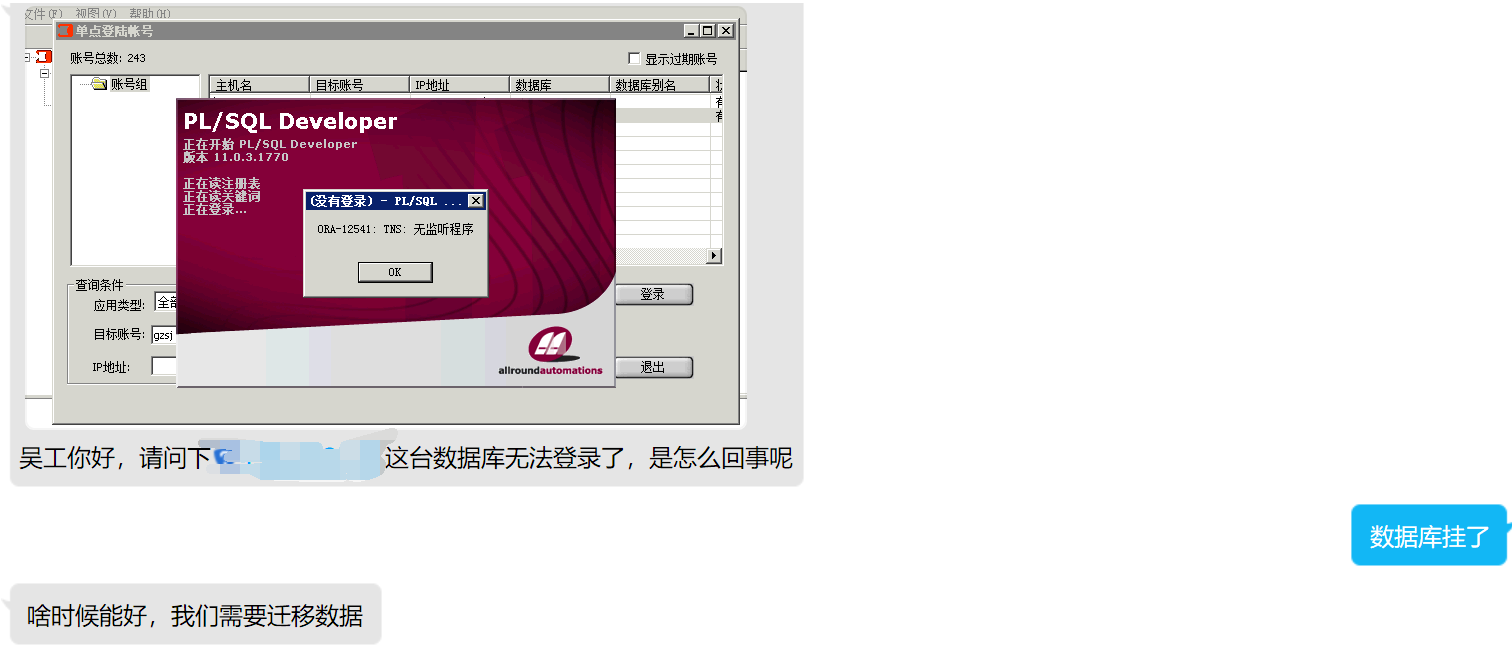

6月30号10点，应用反馈连接某个节点提示 nolistener.

我进去数据库一看，已经挂了十几天了，问了一下，数据库上已经无应用连接，此次是因为迁移数据需要，才重新来连接数据库。

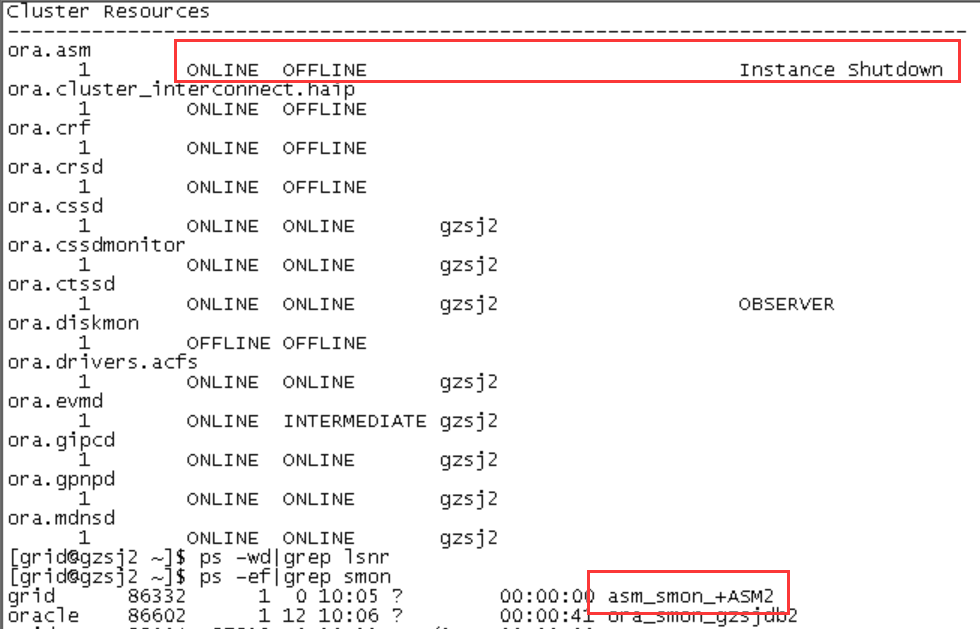

此时数据库资源已经无法启动，ora.asm资源OFFLINE,即使手动startup了ASM实例，仍旧不能使其online。

虽然有smon进程，磁盘也是mounted，但是资源仍旧是OFFLINE,过了一会儿看db再次挂掉。

由于此次仅是迁移数据需要，且比较紧急，于是我采用了比较粗鲁的解决方法。

1.手动启动asm资源：

是haip资源故障，导致了ASM资源无法启动。以下选择直接禁用haip。

2.禁用haip

#停止所有节点的crs。因为另一个节点我已经无法登陆，且也已经是挂掉的状态，所以只对本节点进行操作：

[root@gzsj2 ~]# /oracle/app/11.2.0/grid/bin/crsctl stop crs -f

CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'gzsj2'
CRS-2673: Attempting to stop 'ora.mdnsd' on 'gzsj2'
CRS-2673: Attempting to stop 'ora.ctssd' on 'gzsj2'
CRS-2673: Attempting to stop 'ora.evmd' on 'gzsj2'
CRS-2673: Attempting to stop 'ora.drivers.acfs' on 'gzsj2'
CRS-2677: Stop of 'ora.evmd' on 'gzsj2' succeeded
CRS-2677: Stop of 'ora.ctssd' on 'gzsj2' succeeded
CRS-2673: Attempting to stop 'ora.cssd' on 'gzsj2'
CRS-2677: Stop of 'ora.drivers.acfs' on 'gzsj2' succeeded
CRS-2677: Stop of 'ora.mdnsd' on 'gzsj2' succeeded
CRS-2677: Stop of 'ora.cssd' on 'gzsj2' succeeded
CRS-2673: Attempting to stop 'ora.gipcd' on 'gzsj2'
CRS-2677: Stop of 'ora.gipcd' on 'gzsj2' succeeded
CRS-2673: Attempting to stop 'ora.gpnpd' on 'gzsj2'
CRS-2677: Stop of 'ora.gpnpd' on 'gzsj2' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'gzsj2' has completed
CRS-4133: Oracle High Availability Services has been stopped.

#以独占模式且不启动crs的状态下启动集群

[root@gzsj2 ~]# /oracle/app/11.2.0/grid/bin/crsctl start crs -excl -nocrs
CRS-4123: Oracle High Availability Services has been started.
CRS-2672: Attempting to start 'ora.mdnsd' on 'gzsj2'
CRS-2676: Start of 'ora.mdnsd' on 'gzsj2' succeeded
CRS-2672: Attempting to start 'ora.gpnpd' on 'gzsj2'
CRS-2676: Start of 'ora.gpnpd' on 'gzsj2' succeeded
CRS-2672: Attempting to start 'ora.cssdmonitor' on 'gzsj2'
CRS-2672: Attempting to start 'ora.gipcd' on 'gzsj2'
CRS-2676: Start of 'ora.cssdmonitor' on 'gzsj2' succeeded
CRS-2676: Start of 'ora.gipcd' on 'gzsj2' succeeded
CRS-2672: Attempting to start 'ora.cssd' on 'gzsj2'
CRS-2672: Attempting to start 'ora.diskmon' on 'gzsj2'
CRS-2676: Start of 'ora.diskmon' on 'gzsj2' succeeded
CRS-2676: Start of 'ora.cssd' on 'gzsj2' succeeded
CRS-2672: Attempting to start 'ora.drivers.acfs' on 'gzsj2'
CRS-2679: Attempting to clean 'ora.cluster_interconnect.haip' on 'gzsj2'
CRS-2672: Attempting to start 'ora.ctssd' on 'gzsj2'
CRS-2681: Clean of 'ora.cluster_interconnect.haip' on 'gzsj2' succeeded
CRS-2672: Attempting to start 'ora.cluster_interconnect.haip' on 'gzsj2'
CRS-2676: Start of 'ora.drivers.acfs' on 'gzsj2' succeeded
CRS-2676: Start of 'ora.ctssd' on 'gzsj2' succeeded
CRS-5017: The resource action "ora.cluster_interconnect.haip start" encountered the following error:
Start action for HAIP aborted. For details refer to "(:CLSN00107:)" in "/oracle/app/11.2.0/grid/log/gzsj2/agent/ohasd/orarootagent_root//orarootagent_root.log".
CRS-2674: Start of 'ora.cluster_interconnect.haip' on 'gzsj2' failed
CRS-2679: Attempting to clean 'ora.cluster_interconnect.haip' on 'gzsj2'
CRS-2681: Clean of 'ora.cluster_interconnect.haip' on 'gzsj2' succeeded
CRS-2673: Attempting to stop 'ora.ctssd' on 'gzsj2'
CRS-2677: Stop of 'ora.ctssd' on 'gzsj2' succeeded
CRS-2673: Attempting to stop 'ora.drivers.acfs' on 'gzsj2'
CRS-2677: Stop of 'ora.drivers.acfs' on 'gzsj2' succeeded
CRS-4000: Command Start failed, or completed with errors.

#如果asm资源正常，还得先停止asm资源。由于本故障asm已经完全无法启动了，所以省去此步骤：crsctl stop res ora.asm -init

#禁用haip,修改asm依赖关系

[root@gzsj2 ~]# /oracle/app/11.2.0/grid/bin/crsctl modify res ora.cluster_interconnect.haip -attr "ENABLED=0" -init
[root@gzsj2 ~]# /oracle/app/11.2.0/grid/bin/crsctl modify res ora.asm -attr "START_DEPENDENCIES='hard(ora.cssd,ora.ctssd)pullup(ora.cssd,ora.ctssd)weak(ora.drivers.acfs)',STOP_DEPENDENCIES='hard(intermediate:ora.cssd)'" -init

#restart crs

[root@gzsj2 ~]# /oracle/app/11.2.0/grid/bin/crsctl stop crs -f
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'gzsj2'
CRS-2673: Attempting to stop 'ora.mdnsd' on 'gzsj2'
CRS-2673: Attempting to stop 'ora.cssd' on 'gzsj2'
CRS-2677: Stop of 'ora.cssd' on 'gzsj2' succeeded
CRS-2673: Attempting to stop 'ora.gipcd' on 'gzsj2'
CRS-2677: Stop of 'ora.mdnsd' on 'gzsj2' succeeded
CRS-2677: Stop of 'ora.gipcd' on 'gzsj2' succeeded
CRS-2673: Attempting to stop 'ora.gpnpd' on 'gzsj2'
CRS-2677: Stop of 'ora.gpnpd' on 'gzsj2' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'gzsj2' has completed
CRS-4133: Oracle High Availability Services has been stopped.
[root@gzsj2 ~]# /oracle/app/11.2.0/grid/bin/crsctl start crs
CRS-4123: Oracle High Availability Services has been started.

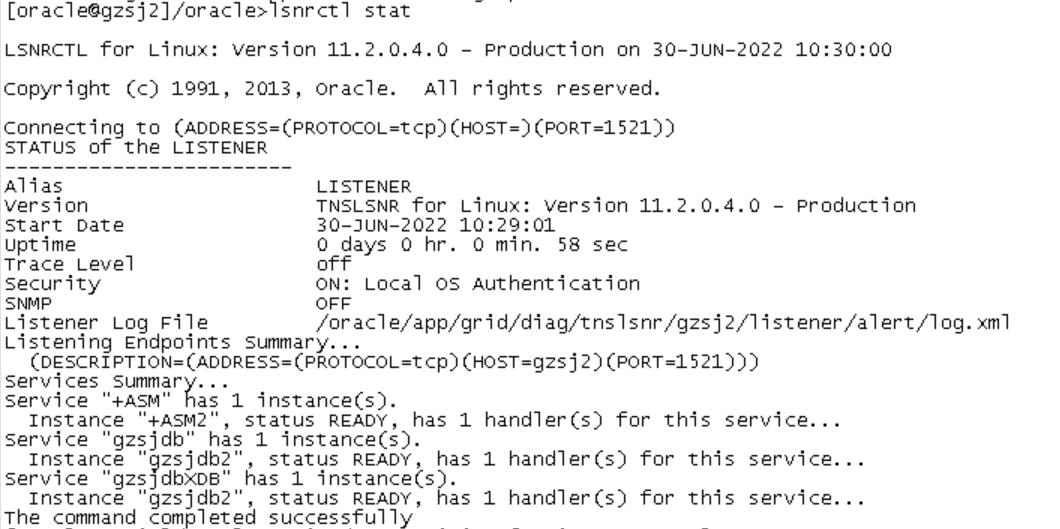

3.检查资源状态

可以看到asm资源已经online，且haip资源offline。
