linux环境部署 prometheus + grafana + nacos对微服务监控

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>common-starter</artifactId>
        <groupId>com.wlc.cloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>wlc-prometheus-starter</artifactId>
    <version>1.0-SNAPSHOT</version>
    <dependencies>
        <!--prometheus监控  https://prometheus.io/docs/introduction/overview/-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!--prometheus监控  https://prometheus.io/docs/introduction/overview/-->
        <dependency>
            <groupId>io.micrometer</groupId>
            <artifactId>micrometer-registry-prometheus</artifactId>
        </dependency>
    </dependencies>

</project>

import io.micrometer.core.instrument.MeterRegistry;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.actuate.autoconfigure.metrics.MeterRegistryCustomizer;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.stereotype.Component;


/**
 * 描述: prometheus注册配置 </br>
 * 时间: 2020-05-23 15:42  </br>
 * 作者：老王
 */
@Component
@Configuration

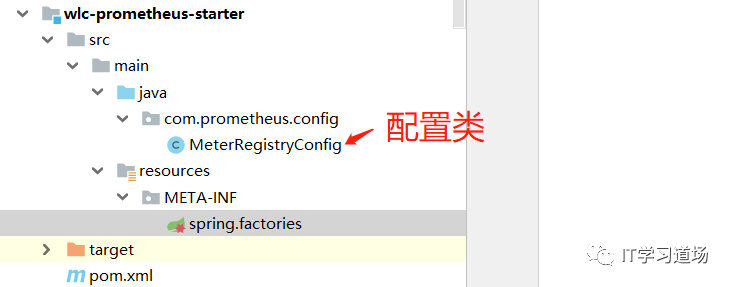

public class MeterRegistryConfig {
    @Bean
    MeterRegistryCustomizer<MeterRegistry> configurer(@Value("${spring.application.name}") String applicationName) {
        return (registry) -> registry.config().commonTags("application", applicationName);
    }


}

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
  com.prometheus.config.MeterRegistryConfig

<!--自定义普罗米修斯spring-boot-starter-->
<dependency>
   <groupId>com.wlc.cloud</groupId>
   <artifactId>wlc-prometheus-starter</artifactId>
   <version>1.0-SNAPSHOT</version>
</dependency>

<!--nacos-consul-adapter适配器，为了让nacos的注册服务都注册到prometheus-->
<dependency>
    <groupId>io.github.chen-gliu</groupId>
    <artifactId>nacos-consul-adapter</artifactId>
    <version>0.0.3.M</version>
</dependency>
<!--自定义普罗米修斯spring-boot-starter-->
<dependency>
    <groupId>com.wlc.cloud</groupId>
    <artifactId>wlc-prometheus-starter</artifactId>
    <version>1.0-SNAPSHOT</version>
</dependency>

<!--自定义普罗米修斯spring-boot-starter-->
<dependency>
    <groupId>com.wlc.cloud</groupId>
    <artifactId>wlc-prometheus-starter</artifactId>
    <version>1.0-SNAPSHOT</version>
</dependency>

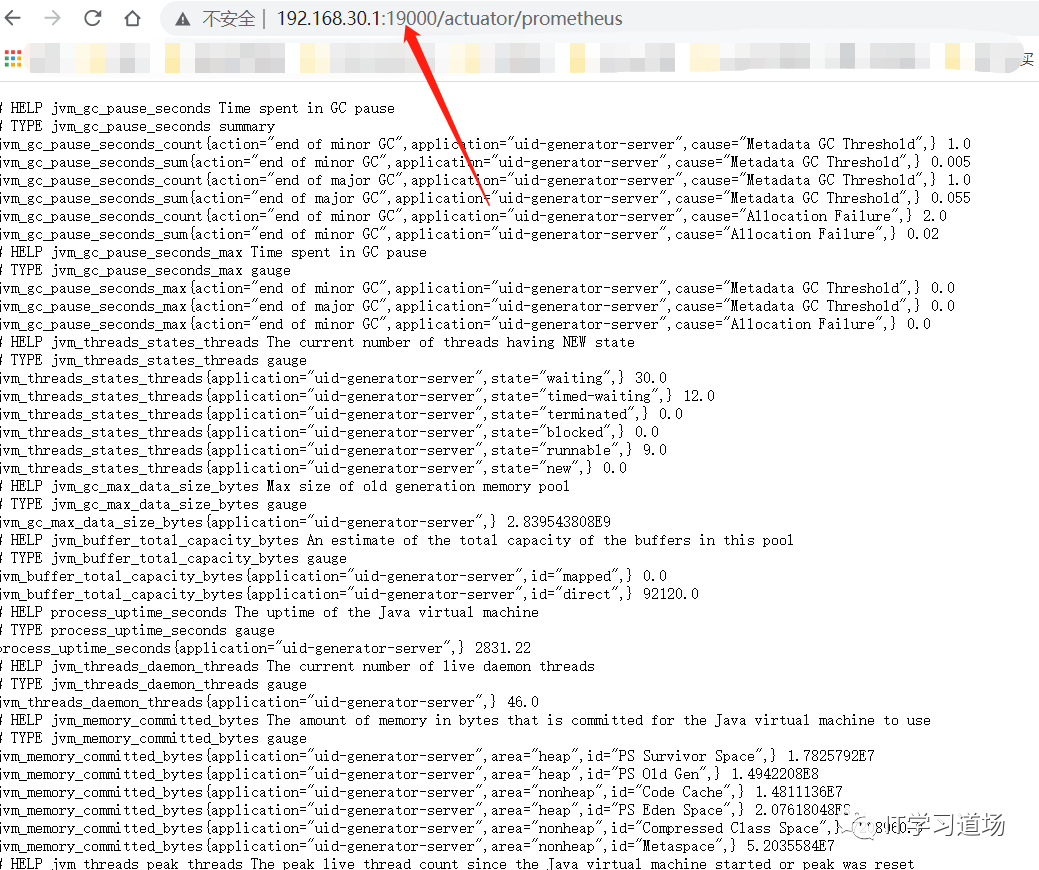

management:
  #prometheus+grafana+springboot2监控集成配置
  metrics:
    export:
      prometheus:
        enabled: true
      jmx:
        enabled: true
  endpoints:
    web:
      exposure:
        include: '*'

<!--自定义普罗米修斯spring-boot-starter-->
<dependency>
    <groupId>com.wlc.cloud</groupId>
    <artifactId>wlc-prometheus-starter</artifactId>
    <version>1.0-SNAPSHOT</version>
</dependency>

management:
  #prometheus+grafana+springboot2监控集成配置
  metrics:
    export:
      prometheus:
        enabled: true
      jmx:
        enabled: true
  endpoints:
    web:
      exposure:
        include: '*'

# my global config
global:
  scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).


# Alertmanager configuration
alerting:
  alertmanagers:
    - static_configs:
        - targets:
          # - alertmanager:9093


# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"


# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: "prometheus"


    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.


    static_configs:
      - targets: ['localhost:9090']

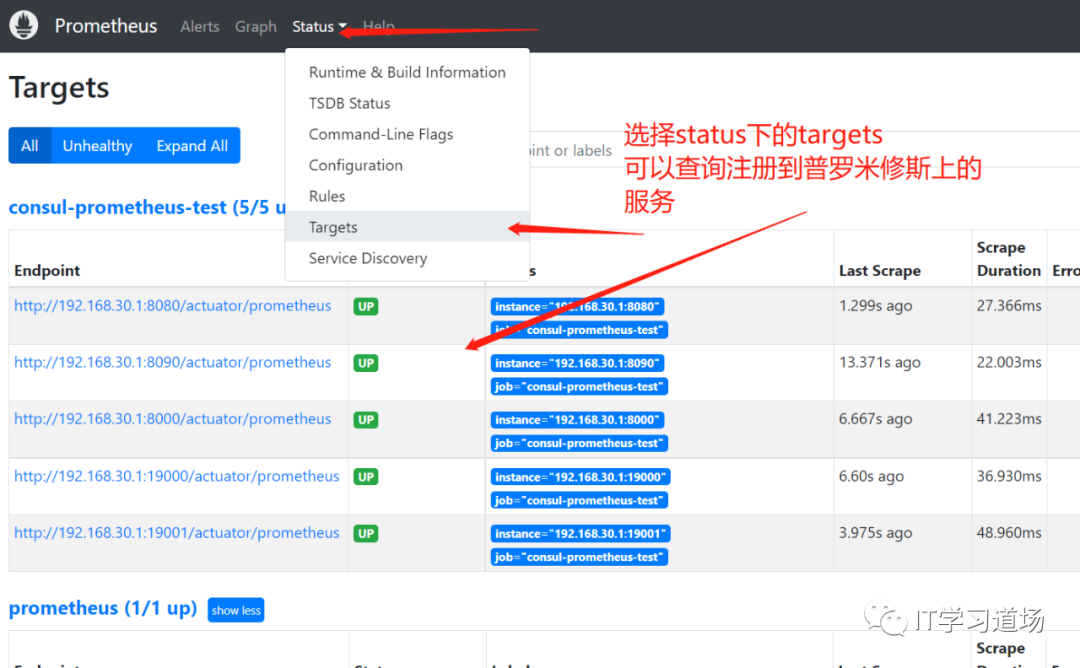

  #这是新增的监控job，是配置nacos-consul-adapter适配器的服务，也就是我的网关
  - job_name: 'consul-prometheus-test'
    metrics_path: '/actuator/prometheus'
    consul_sd_configs:
    #这里是nacos-consul-adapter适配器的服务，也就是我的网关的ip和端口号
    - server: '127.0.0.1:8080'

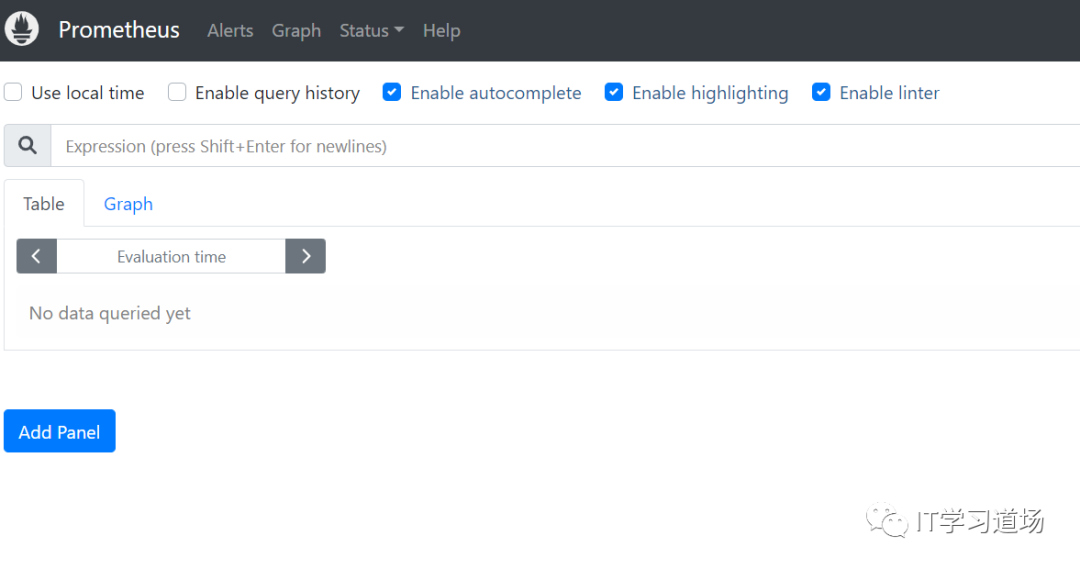

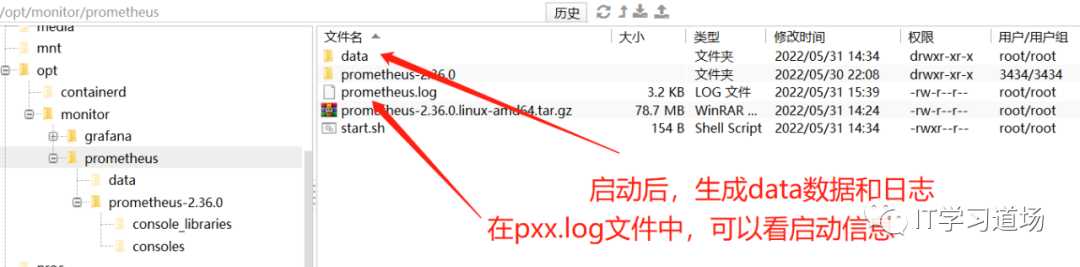

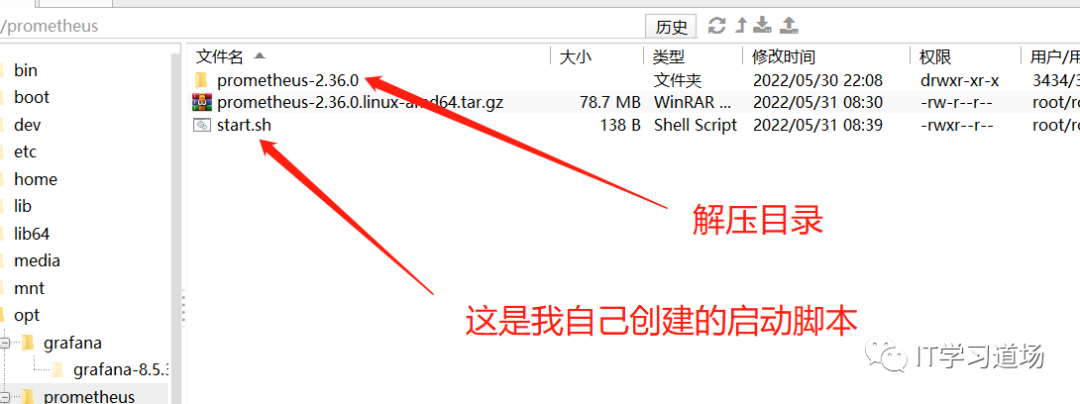

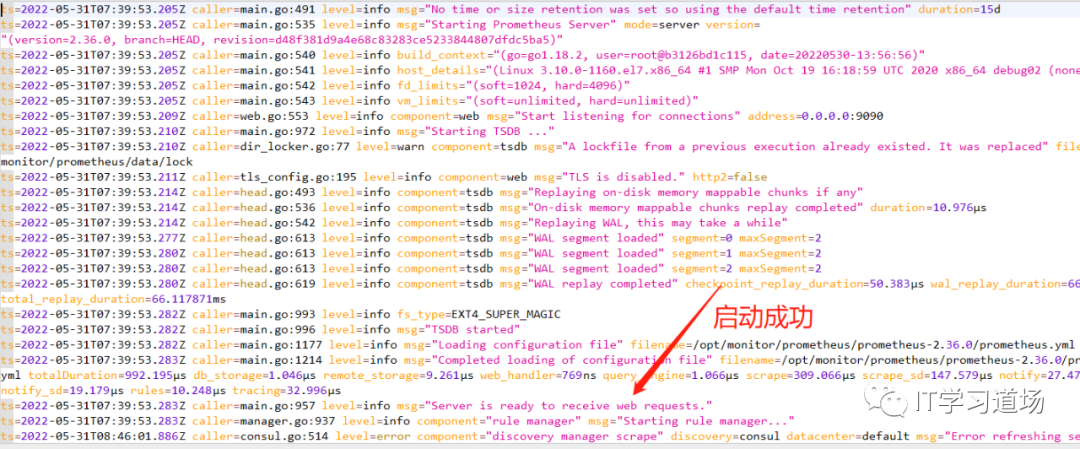

nohup ./prometheus-2.36.0/prometheus --config.file=/opt/monitor/prometheus/prometheus-2.36.0/prometheus.yml >/opt/monitor/prometheus/prometheus.log 2>&1 &

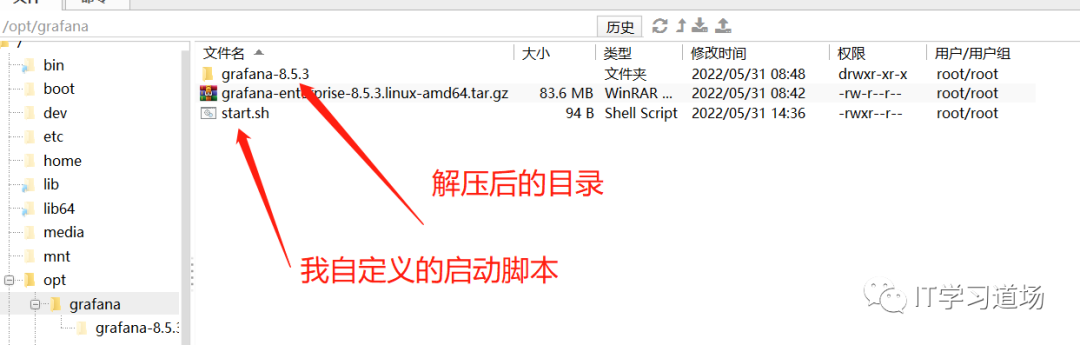

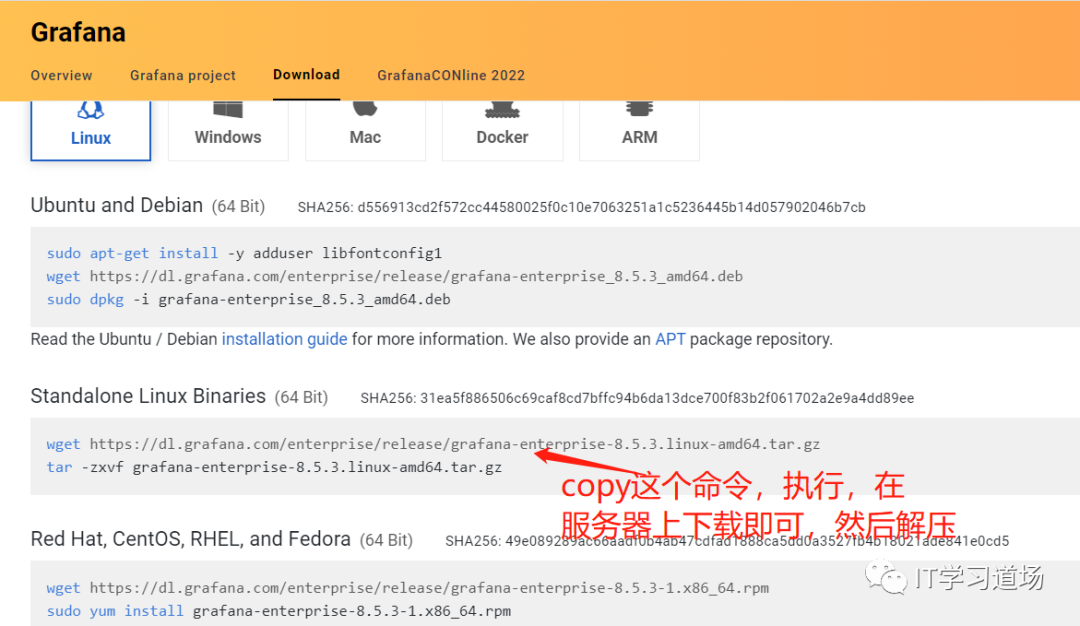

wget https://dl.grafana.com/enterprise/release/grafana-enterprise-8.5.3.linux-amd64.tar.gz

cd /opt/monitor/grafana/grafana-8.5.3/bin

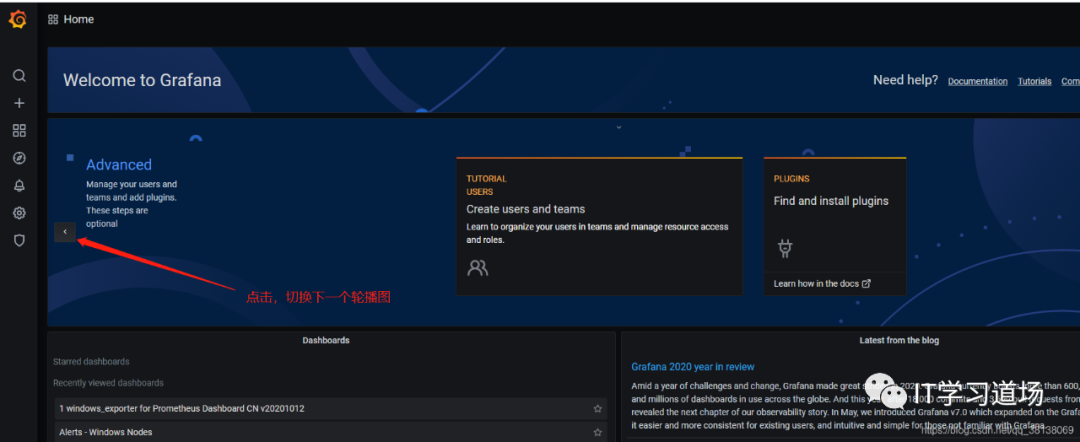

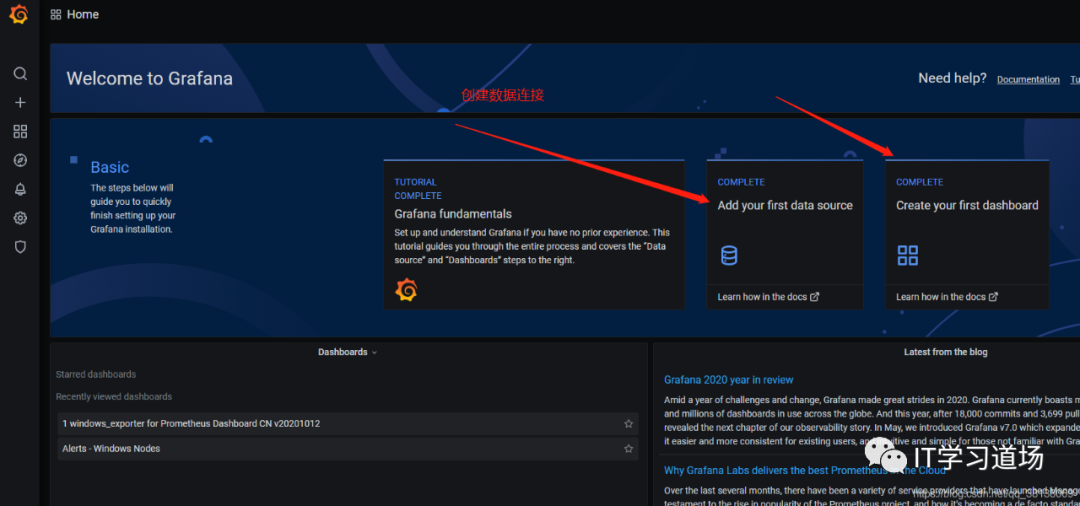

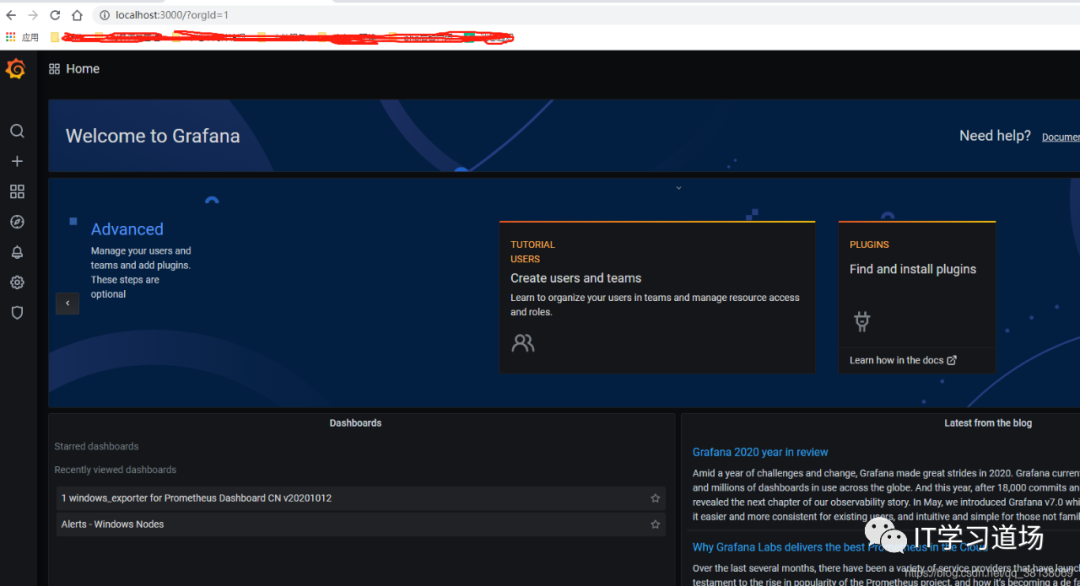

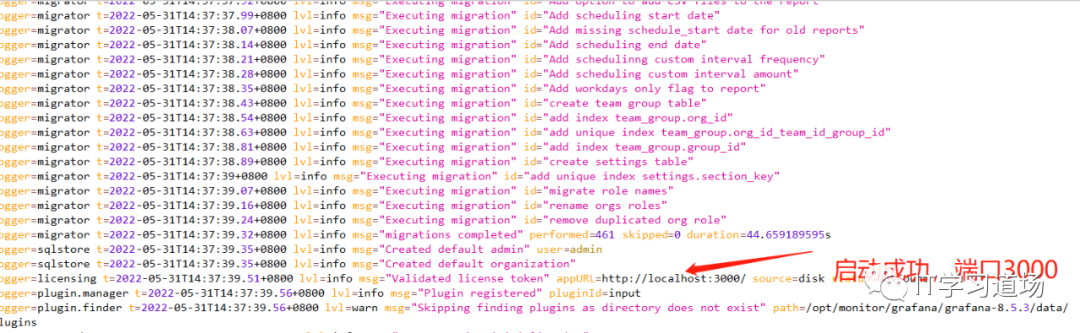

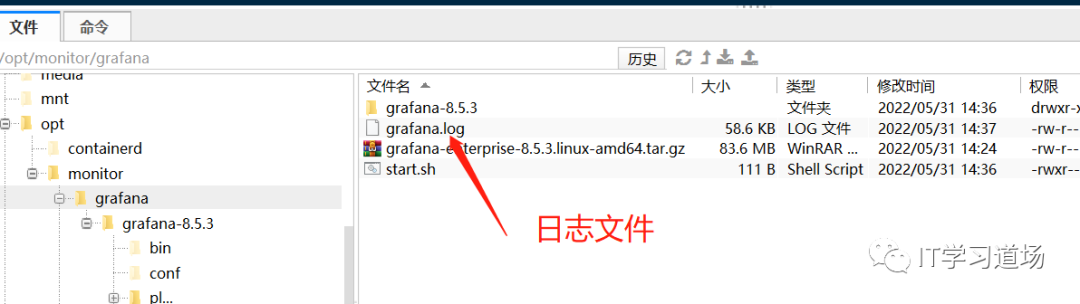

nohup ./grafana-server start >/opt/monitor/grafana/grafana.log 2>&1 &
