负载均衡

为了保证服务高可用和高性能，通常服务端会部署多个节点，这样即使某个节点发生故障，也不会导致整个服务不可用。如何让服务端的各个节点处理请求的数量均衡，就是负载均衡考虑的事情。根据负载均衡实现来区分，可以分为服务端负载均衡和客户端负载均衡。

服务端负载均衡

在客户端和服务端之间搭建一个代理服务，客户端 gRPC
请求发送给代理，由代理将请求转发给服务端。客户端不需要关心服务端的状态，也不需要知道负载均衡实现逻辑，完全由代理处理即可。常见的代理服务有Nginx
和 Envoy proxy

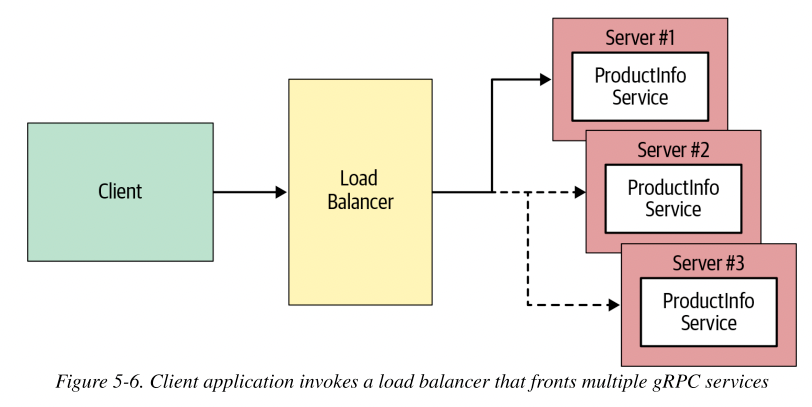

，如下图所示。

客户端负载均衡

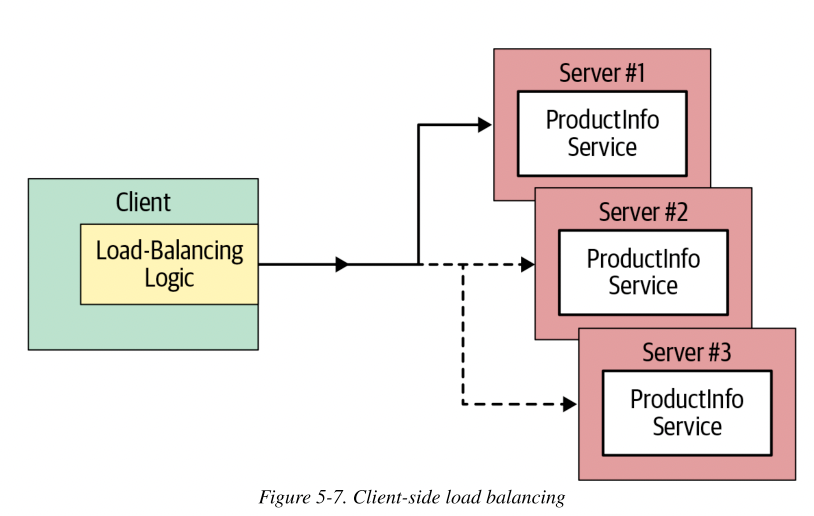

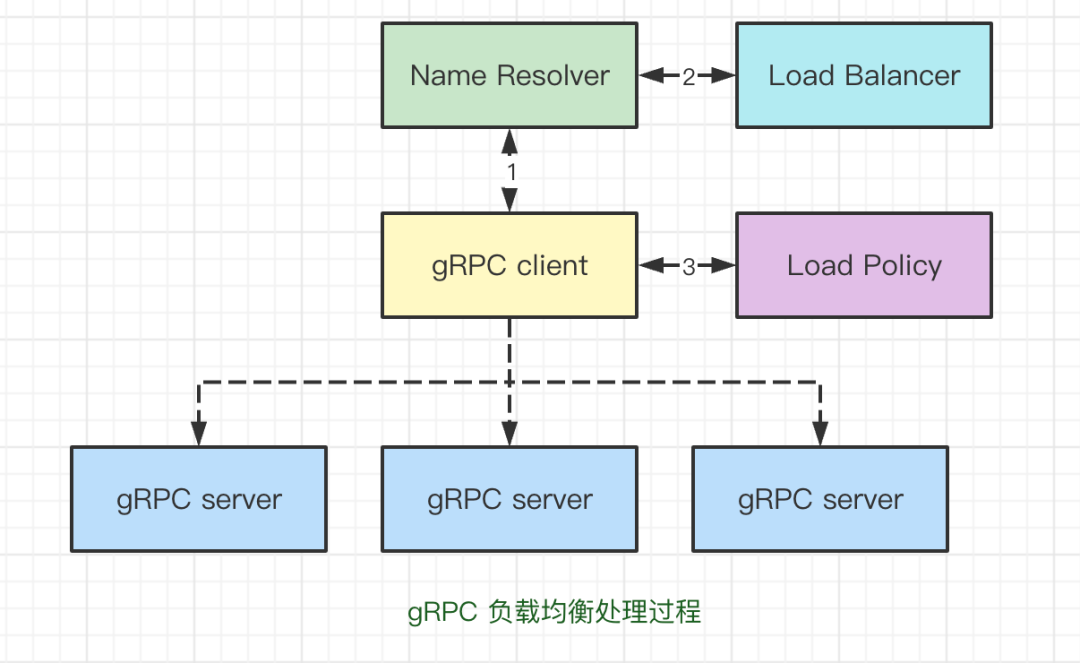

不同于服务端负载均衡，它由客户端实现负载均衡逻辑，客户端需要知道服务端所有节点的状态，根据负载均衡策略，选择最优的节点转发请求。gRPC
就支持客户端负载均衡，gRPC-go
中内置了 pick_first
和 round_bin
两种算法。pick_first
尝试连接到第一个地址，如果连接失败才尝试连接下一个地址，round_bin
则按照轮询的方式连接服务端。具体使用方法见下面的示例代码。

服务端

package main


import (
  "context"
  "fmt"
  "log"
  "net"
  "sync"


  "google.golang.org/grpc"
  "google.golang.org/grpc/codes"
  "google.golang.org/grpc/status"


  ecpb "github.com/unendlichkeiten/private_projects/pb"
)


var (
  addrs = []string{":9527", ":9528"}
)


type ecServer struct {
  addr string
}


func (s *ecServer) UnaryEcho(
  ctx context.Context,
  req *ecpb.EchoRequest) (*ecpb.EchoResponse, error) {
  return &ecpb.EchoResponse{
    Message: fmt.Sprintf("%s (from %s)", req.Message, s.addr),
  }, nil
}
func (s *ecServer) ServerStreamingEcho(
  *ecpb.EchoRequest,
  ecpb.Echo_ServerStreamingEchoServer) error {
  return status.Errorf(codes.Unimplemented, "not implemented")
}
func (s *ecServer) ClientStreamingEcho(ecpb.Echo_ClientStreamingEchoServer) error {
  return status.Errorf(codes.Unimplemented, "not implemented")
}
func (s *ecServer) BidirectionalStreamingEcho(
  ecpb.Echo_BidirectionalStreamingEchoServer) error {
  return status.Errorf(codes.Unimplemented, "not implemented")
}


func startServer(addr string) {
  lis, err := net.Listen("tcp", addr)
  if err != nil {
    log.Fatalf("failed to listen: %v", err)
  }
  s := grpc.NewServer()
  ecpb.RegisterEchoServer(s, &ecServer{addr: addr})
  log.Printf("serving on %s\n", addr)
  if err := s.Serve(lis); err != nil {
    log.Fatalf("failed to serve: %v", err)
  }
}


func main() {
  var wg sync.WaitGroup
  for _, addr := range addrs {
    wg.Add(1)
    go func(addr string) {
      defer wg.Done()
      startServer(addr)
    }(addr)
  }
  wg.Wait()
}

客户端

package main


import (
  "context"
  "fmt"
  "log"
  "time"


  ecpb "github.com/unendlichkeiten/private_projects/pb"
  "google.golang.org/grpc"
  "google.golang.org/grpc/resolver"
)


const (
  myScheme      = "example"
  myServiceName = "lb.example.grpc.io"
)


var addrs = []string{"localhost:9527", "localhost:9528"}


func callUnaryEcho(c ecpb.EchoClient, message string) {
  ctx, cancel := context.WithTimeout(context.Background(), time.Second)
  defer cancel()
  r, err := c.UnaryEcho(ctx, &ecpb.EchoRequest{Message: message})
  if err != nil {
    log.Fatalf("could not greet: %v", err)
  }
  fmt.Println(r.Message)
}


func makeRPCs(cc *grpc.ClientConn, n int) {
  hwc := ecpb.NewEchoClient(cc)
  for i := 0; i < n; i++ {
    callUnaryEcho(hwc, "this is examples/load_balancing")
  }
}


func main() {
  pickfirstConn, err := grpc.Dial(
    fmt.Sprintf("%s:///%s", myScheme, myServiceName),
    grpc.WithInsecure(),
    // 默认采用 pick_first 原则，不需要添加该选项
    // grpc.WithBalancerName("pick_first"),
  )
  if err != nil {
    log.Fatalf("did not connect: %v", err)
  }
  defer pickfirstConn.Close()


  log.Println("==== hamming pick_first ====")
  makeRPCs(pickfirstConn, 10)


  // Make another ClientConn with round_robin policy.
  roundrobinConn, err := grpc.Dial(
    fmt.Sprintf("%s:///%s", myScheme, myServiceName),
    grpc.WithBalancerName("round_robin"),
    grpc.WithInsecure(),
  )
  if err != nil {
    log.Fatalf("did not connect: %v", err)
  }
  defer roundrobinConn.Close()


  log.Println("==== hamming round_robin ====")
  makeRPCs(roundrobinConn, 10)
}


// Name resolver implementation


type exampleResolverBuilder struct{}


func (*exampleResolverBuilder) Build(
  target resolver.Target,
  cc resolver.ClientConn,
  opts resolver.BuildOptions) (resolver.Resolver, error) {
  r := &exampleResolver{
    target: target,
    cc:     cc,
    addrsStore: map[string][]string{
      myServiceName: addrs, // "lb.example.grpc.io": "localhost:50051", "localhost:50052"
    },
  }
  r.start()
  return r, nil
}
func (*exampleResolverBuilder) Scheme() string { return myScheme } // "example"


type exampleResolver struct {
  target     resolver.Target
  cc         resolver.ClientConn
  addrsStore map[string][]string
}


func (r *exampleResolver) start() {
  addrStrs := r.addrsStore[r.target.Endpoint]
  addrs := make([]resolver.Address, len(addrStrs))
  for i, s := range addrStrs {
    addrs[i] = resolver.Address{Addr: s}
  }
  r.cc.UpdateState(resolver.State{Addresses: addrs})
}
func (*exampleResolver) ResolveNow(o resolver.ResolveNowOptions) {}
func (*exampleResolver) Close()                                  {}


func init() {
  resolver.Register(&exampleResolverBuilder{})
}

运行结果

客户端

hamming@192 client % go run main.go
2022/08/18 21:54:22 ==== hamming pick_first ====
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9527)
2022/08/18 21:54:22 ==== hamming round_robin ====
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9528)
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9528)
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9528)
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9528)
this is examples/load_balancing (from :9527)
this is examples/load_balancing (from :9528)

服务端

hamming@192 server % go run main.go
2022/08/18 21:54:08 serving on :9528
2022/08/18 21:54:08 serving on :9527

负载均衡源码分析（基于 `grpc-go v1.36.0`
）

负载均衡器初始化

// 客户端通过 grpc.Dial 配置负载均衡器
roundrobinConn, err := grpc.Dial(
  fmt.Sprintf("%s:///%s", myScheme, myServiceName),
  // 声明负载均衡策略，默认使用的 pick_first 不需要显示声明
  grpc.WithBalancerName("round_robin"),
  grpc.WithInsecure(),
)

客户端 grpc.Dial
方法声明负载均衡策略，调用 grpc.WithBalancerName
方法返回一个绑定负载均衡器的接口。

// diaoption.go
func WithBalancerName(balancerName string) DialOption {
  // balancer.Get 获取 builder
  builder := balancer.Get(balancerName)
  if builder == nil {
    panic(fmt.Sprintf("grpc.WithBalancerName: no balancer is registered for name %v", balancerName))
  }
  // 下面的方法在后面的代码中会被用于连接参数设置
  return newFuncDialOption(func(o *dialOptions) {
    o.balancerBuilder = builder
  })
}

进入 balancer.Get
方法，发现负载均衡 builer
实际上是从负载均衡器 map
中拿到的，如下：

// balancer.go
func Get(name string) Builder {
  if b, ok := m[strings.ToLower(name)]; ok {
    return b
  }
  return nil
}

那这个 map
又是如何初始化的呢？前面我们配置的负载均衡策略是 roundrobin，我们进入这个包内看看。

// roundrobin.go
// init 函数会把负载均衡 builder 注册到上面的 m 中
func init() {
  balancer.Register(newBuilder())
}


// newBuilder creates a new roundrobin balancer builder.
func newBuilder() balancer.Builder {
  return base.NewBalancerBuilder(Name, &rrPickerBuilder{}, base.Config{HealthCheck: true})
}

知道了负载均衡器的 Builder
是怎么来的，我们看下实现负载均衡的过程。按照客户端调用过程进行分析，Dial -> DialContext
，在 DialContext
中有这么一段代码。

// clientconn.go
// 创建一个解析器，这里和上篇文章分析过程一样。
rWrapper, err := newCCResolverWrapper(cc, resolverBuilder)
if err != nil {
  return nil, fmt.Errorf("failed to build resolver: %v", err)
}


// resolve_conn_wrapper.go
func newCCResolverWrapper(cc *ClientConn, rb resolver.Builder) (*ccResolverWrapper, error) {
  // ...
  // 创建解析器
  ccr.resolver, err = rb.Build(cc.parsedTarget, ccr, rbo)
  if err != nil {
    return nil, err
  }
  // ...
}

这里我们使用的是自定义的解析器。

// main.go
func (*exampleResolverBuilder) Build(
  target resolver.Target,
  cc resolver.ClientConn,
  opts resolver.BuildOptions) (resolver.Resolver, error) {
  r := &exampleResolver{
    target: target,
    cc:     cc,
    addrsStore: map[string][]string{
      myServiceName: addrs, // "lb.example.grpc.io": "localhost:50051", "localhost:50052"
    },
  }
  // 看这里，负载均衡器实现实现入口
  r.start()
  return r, nil
}


func (r *exampleResolver) start() {
  addrStrs := r.addrsStore[r.target.Endpoint]
  addrs := make([]resolver.Address, len(addrStrs))
  for i, s := range addrStrs {
    addrs[i] = resolver.Address{Addr: s}
  }
  // 负载均衡器的初始化在这里面实现，State 很重要，记住
  r.cc.UpdateState(resolver.State{Addresses: addrs})
}

进入 UpdateState
方法

func (ccr *ccResolverWrapper) UpdateState(s resolver.State) {
  if ccr.done.HasFired() {
    return
  }
  channelz.Infof(logger, ccr.cc.channelzID, "ccResolverWrapper: sending update to cc: %v", s)
  if channelz.IsOn() {
    ccr.addChannelzTraceEvent(s)
  }
  ccr.curState = s
  // 看这里 ...
  ccr.poll(ccr.cc.updateResolverState(ccr.curState, nil))
}

这里没什么特殊处理，进入 updateResolverState
查看

// clientconn.go
func (cc *ClientConn) updateResolverState(s resolver.State, err error) error {
  ...
  if cc.dopts.disableServiceConfig || s.ServiceConfig == nil {
    cc.maybeApplyDefaultServiceConfig(s.Addresses)
    // TODO: do we need to apply a failing LB policy if there is no
    // default, per the error handling design?
  }
  ...
}


func (cc *ClientConn) applyServiceConfigAndBalancer(
  sc *ServiceConfig,
  configSelector iresolver.ConfigSelector,
  addrs []resolver.Address) {
  ...
  // 最开始初始化的时候 cc.dopts.balancerBuilder = nil
  if cc.dopts.balancerBuilder == nil {
    ...
    cc.switchBalancer(newBalancerName)
  } else if cc.balancerWrapper == nil {
    ...
  }
  ...
}

进入 switchBalancer
方法我们看做了什么

// clientconn.go
func (cc *ClientConn) switchBalancer(name string) {
  if strings.EqualFold(cc.curBalancerName, name) {
    return
  }


  channelz.Infof(logger, cc.channelzID, "ClientConn switching balancer to %q", name)
  if cc.dopts.balancerBuilder != nil {
    channelz.Info(logger, cc.channelzID, "ignoring balancer switching: Balancer DialOption used instead")
    return
  }
  if cc.balancerWrapper != nil {
    cc.balancerWrapper.close()
  }


  // 根据负载均衡策略的名字 round_roubin 获取对应的负载均衡器
  builder := balancer.Get(name)
  if builder == nil {
    channelz.Warningf(logger, cc.channelzID, "Channel switches to new LB policy %q due to fallback from invalid balancer name", PickFirstBalancerName)
    channelz.Infof(logger, cc.channelzID, "failed to get balancer builder for: %v, using pick_first instead", name)
    builder = newPickfirstBuilder()
  } else {
    channelz.Infof(logger, cc.channelzID, "Channel switches to new LB policy %q", name)
  }


  cc.curBalancerName = builder.Name()
  // 创建负载均衡绑定器
  cc.balancerWrapper = newCCBalancerWrapper(cc, builder, cc.balancerBuildOpts)
}

到这里负载均衡初始化就完成了。

请求调用过程

上面通过 Dial
方法创建连接后，我们看看客户端是如何请求的，直接看 main.go
中调用的 gRPC
方法 UnaryEcho

// echo.pb.go
func (c *echoClient) UnaryEcho(
  ctx context.Context,
  in *EchoRequest,
  opts ...grpc.CallOption) (*EchoResponse, error) {
  out := new(EchoResponse)
  // 看这里
  err := c.cc.Invoke(ctx, "/echo.Echo/UnaryEcho", in, out, opts...)
  if err != nil {
    return nil, err
  }
  return out, nil
}


// call.go
func (cc *ClientConn) Invoke(
  ctx context.Context,
  method string,
  args, reply interface{},
  opts ...CallOption) error {
  // allow interceptor to see all applicable call options, which means those
  // configured as defaults from dial option as well as per-call options
  opts = combine(cc.dopts.callOptions, opts)


  if cc.dopts.unaryInt != nil {
    return cc.dopts.unaryInt(ctx, method, args, reply, cc, invoke, opts...)
  }
  return invoke(ctx, method, args, reply, cc, opts...)
}


// call.go
func invoke(
  ctx context.Context,
  method string,
  req, reply interface{},
  cc *ClientConn,
  opts ...CallOption) error {
  // 看这里
  cs, err := newClientStream(ctx, unaryStreamDesc, cc, method, opts...)
  if err != nil {
    return err
  }
  if err := cs.SendMsg(req); err != nil {
    return err
  }
  return cs.RecvMsg(reply)
}


// stream.go
func newClientStream(ctx context.Context, desc *StreamDesc, cc *ClientConn, method string, opts ...CallOption) (_ ClientStream, err error) {
  ...
  if err := cs.newAttemptLocked(sh, trInfo); err != nil {
    cs.finish(err)
    return nil, err
  }
  ...
}


// stream.go
func (cs *clientStream) newAttemptLocked(sh stats.Handler, trInfo *traceInfo) (retErr error) {
  ...
  t, done, err := cs.cc.getTransport(ctx, cs.callInfo.failFast, cs.callHdr.Method)
  if err != nil {
    return err
  }
  if trInfo != nil {
    trInfo.firstLine.SetRemoteAddr(t.RemoteAddr())
  }
  newAttempt.t = t
  newAttempt.done = done
  cs.attempt = newAttempt
  return nil
}


// clinetconn.go
func (cc *ClientConn) getTransport(
  ctx context.Context,
  failfast bool,
  method string) (
  transport.ClientTransport,
  func(balancer.DoneInfo), error) {
  // 最后这里调用了负载均衡器的 pick 方法，我们用的是 round_robin
  t, done, err := cc.blockingpicker.pick(ctx, failfast, balancer.PickInfo{
    Ctx:            ctx,
    FullMethodName: method,
  })
  if err != nil {
    return nil, nil, toRPCErr(err)
  }
  return t, done, nil
}


// roundroubin.go
func (p *rrPicker) Pick(balancer.PickInfo) (balancer.PickResult, error) {
  p.mu.Lock()
  sc := p.subConns[p.next]
  p.next = (p.next + 1) % len(p.subConns)
  p.mu.Unlock()
  return balancer.PickResult{SubConn: sc}, nil
}

从最后的 Pick
方法我们确定了请求的最终地址，负载均衡的功能完成。

总结

整个过程可以概括为，首先客户端初始化名字解析器，在解析名字的过程会加载负载均衡器，请求过程中基于负载均衡器确定每次具体请求的地址，发起 connect
请求。

参考资料

https://www.bookstack.cn/read/grpc-read/6-grpc%20%E8%B4%9F%E8%BD%BD%E5%9D%87%E8%A1%A1.md
gRPC Up & Running by Kasun Indrasiri and Danesh Kuruppu
示例完整代码：https://github.com/unendlichkeiten/grpc_demo

关注公众号一起学习——无涯的计算机笔记

文章转载自无涯的计算机笔记，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。
