1 x M.2 Card,QCN9074,AX200NGW
Adapter Card support DR9074-6E
MT7915/MT7975/IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ4028/IPQ8072/IPQ8072A/IPQ8074/IPQ8074A/IQCN6024/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344 /AX200NGW/AP9342
With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and wireless network cards.
In the complex market, Wallys products stand out and are affirmed by partners. From 802.11 a - ax, Wallys always keeps up with the most cutting-edge wireless technology, aimed to help customers take the preemptive opportunities to occupy the market and lead a win-win cooperation.
BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:sales3@wallystech.com
DR3G11
https://www.youtube.com/watch?v=2jaZoL5mCRw
Features
Support 1 pcs M.2 card
Support AX200NGW
Support DR9074-6E
RoHS compliance ensure a high level protection of human health and the
environment from risks that can be posed by chemicals
Product Description

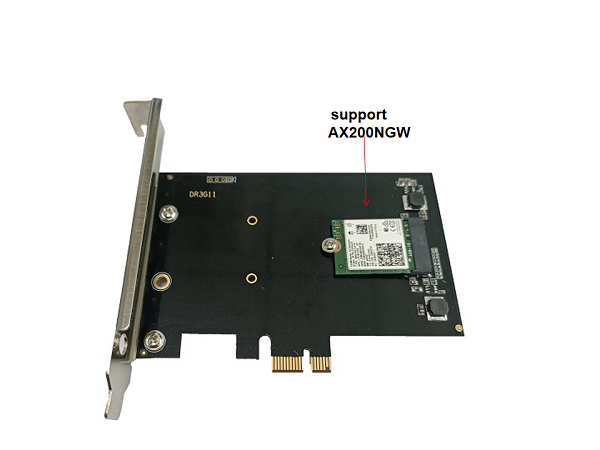

DR3G11 is an adapter card with one M.2 slot. It can be used in a PC with a PCIe slot. Use this new adapter to expand your connectivity and upgrade your device to use the latest m.2 interface cards. Each comes with both low and regular profile brackets.
Brackets include holes for mounting SMA connectors, or for using as cable exit holes.
Specifications |
Parameter | Rating | Unit |
Input voltage | 12 | V |
Output Voltage | 3.3 | V |
Operating Temperature | -40 to +70 | ºC |
Operating Humidity Range | 5 to +95 (non-condensing) | % |
Storage Humidity Range | 0 to +90 (non-condensing) | % |
ROHS Compliance | YES |
Outline |
Parameter | Rating | Unit |
Length | 110 | Mm |
Width | 66 | Mm |
