目录
一、从Docker Hub或阿里云镜像下载小麦苗上传的镜像文件二、创建容器并启动数据库三、尽情使用吧3.1 数据库使用3.2 创建数据库3.3 EMDE的使用3.4 使用ssh连接到容器内3.5 外部客户端连接容器内的数据库
一、从Docker Hub或阿里云镜像下载小麦苗上传的镜像文件

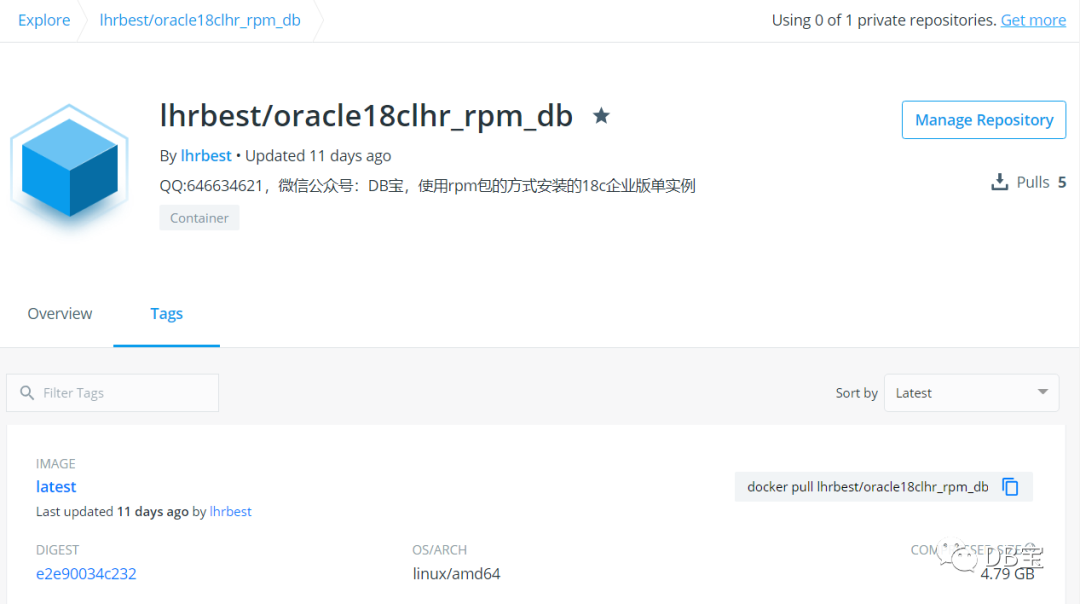

小麦苗的Docker Hub的地址：https://hub.docker.com/u/lhrbest Oracle 18c DB的地址：https://hub.docker.com/r/lhrbest/oracle18clhr_rpm_db/tags
1# 从Docker hub下载，网络不好时，一般比较慢
2docker pull lhrbest/oracle18clhr_rpm_db
3# 可以选择从阿里云下载
4docker pull registry.cn-hangzhou.aliyuncs.com/lhrbest/oracle18clhr_rpm_db
5# 从阿里云下载后可以tag成如下形式
6docker tag registry.cn-hangzhou.aliyuncs.com/lhrbest/oracle18clhr_rpm_db lhrbest/oracle18clhr_rpm_db
镜像大概5G左右，解压后大约13G左右，所以请保留充足的空间。执行过程如下：
1[root@docker35 ~]# docker pull registry.cn-hangzhou.aliyuncs.com/lhrbest/oracle18clhr_rpm_db
2Using default tag: latest
3latest: Pulling from lhrbest/oracle18clhr_rpm_db
4ac9208207ada: Already exists
55f7f556e707f: Pull complete
6Digest: sha256:e2e90034c232e328441b704a3db2edeb13a83cfe5e5dd9221f6ee954c4efdf1e
7Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/lhrbest/oracle18clhr_rpm_db:latest
8registry.cn-hangzhou.aliyuncs.com/lhrbest/oracle18clhr_rpm_db:latest
9[root@docker35 ~]# docker tag registry.cn-hangzhou.aliyuncs.com/lhrbest/oracle18clhr_rpm_db lhrbest/oracle18clhr_rpm_db
10[root@docker35 ~]# docker images | grep 18c
11lhrbest/oracle18clhr_rpm_db latest d99be9a3f472 11 days ago 13.1GB
12registry.cn-hangzhou.aliyuncs.com/lhrbest/oracle18clhr_rpm_db latest d99be9a3f472 11 days ago 13.1GB
13[root@docker35 ~]#
二、创建容器并启动数据库
1# 1、创建容器
2docker run -itd -h lhr18cocp --name lhr18cocp -p 222:22 -p 1522:1521 -p 5500:5500 --privileged=true lhrbest/oracle18clhr_rpm_db /usr/sbin/init
3# 2、进入容器
4docker exec -it lhr18cocp bash
5# 3、启动监听和数据库，使用root命令一键启动
6/etc/init.d/oracledb_ORCLCDB-18c start
在创建容器时，需要注意端口映射关系。在以上命令中，主机的222、1522和5500这3个端口不能被占用，否则会创建失败。
如果想再创建一个容器，那么只需要将以上命令修改参数name和p不同即可，立马就可以拥有一个新的环境，而且和之前的IP地址不同，用来做测试再方便不过了，如下：
1# 1、创建容器2
2docker run -itd -h lhr18cocp --name lhr18cocp2 -p 223:22 -p 1523:1521 -p 5501:5500 --privileged=true lhrbest/oracle18clhr_rpm_db /usr/sbin/init
3# 2、进入容器2
4docker exec -it lhr18cocp2 bash
5# 3、启动监听和数据库，使用root命令一键启动
6/etc/init.d/oracledb_ORCLCDB-18c start
执行过程：
1[root@docker35 ~]# docker images | grep 18c
2lhrbest/oracle18clhr_rpm_db latest d99be9a3f472 11 days ago 13.1GB
3registry.cn-hangzhou.aliyuncs.com/lhrbest/oracle18clhr_rpm_db latest d99be9a3f472 11 days ago 13.1GB
4[root@docker35 ~]# docker run -itd -h lhr18cocp --name lhr18cocp -p 222:22 -p 1522:1521 -p 5500:5500 --privileged=true lhrbest/oracle18clhr_rpm_db /usr/sbin/init
54bf134861d2c67faf68b1a8c42beb66821abc0fa2fc49a34beb143d218f00657
6[root@docker35 ~]# docker exec -it lhr18cocp bash
7
8[root@lhr18crpm /]# cat /etc/redhat-release
9CentOS Linux release 7.6.1810 (Core)
10[root@lhr18cocp /]# ifconfig
11eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
12 inet 172.17.0.8 netmask 255.255.0.0 broadcast 172.17.255.255
13 ether 02:42:ac:11:00:08 txqueuelen 0 (Ethernet)
14 RX packets 672 bytes 101230 (98.8 KiB)
15 RX errors 0 dropped 0 overruns 0 frame 0
16 TX packets 593 bytes 3748736 (3.5 MiB)
17 TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
18
19[root@lhr18cocp /]# /etc/init.d/oracledb_ORCLCDB-18c start
20Starting Oracle Net Listener.
21Oracle Net Listener started.
22Starting Oracle Database instance ORCLCDB.
23Oracle Database instance ORCLCDB started.
24
25[root@lhr18crpm /]# su - oracle
26Last login: Sun Jun 28 14:05:18 CST 2020 on pts/0
27[oracle@lhr18crpm ~]$ echo $ORACLE_HOME
28/opt/oracle/product/18c/dbhome_1
29[oracle@lhr18crpm ~]$ echo $ORACLE_SID
30ORCLCDB
再创建一个新的容器，可以看到IP地址和之前的不同，容器和容器之间是互不影响的，用来做cdb和pdb的迁移再好不过了：
1[root@docker35 ~]# docker run -itd -h lhr18cocp --name lhr18cocp2 -p 223:22 -p 1523:1521 -p 5501:5500 --privileged=true lhrbest/oracle18clhr_rpm_db /usr/sbin/init
268a14533f2024f33400c37ba0056456834db17ac1d6af62b05464016b137bdcc
3[root@docker35 ~]# docker exec -it lhr18cocp2 bash
4[root@lhr18cocp /]# ifconfig
5eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
6 inet 172.17.0.9 netmask 255.255.0.0 broadcast 172.17.255.255
7 ether 02:42:ac:11:00:09 txqueuelen 0 (Ethernet)
8 RX packets 8 bytes 656 (656.0 B)
9 RX errors 0 dropped 0 overruns 0 frame 0
10 TX packets 0 bytes 0 (0.0 B)
11 TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
三、尽情使用吧
3.1 数据库使用
1[root@lhr18cocp /]# su - oracle
2Last login: Thu Jul 9 16:57:52 CST 2020 on pts/1
3
4[oracle@lhr18cocp ~]$ lsnrctl status
5
6LSNRCTL for Linux: Version 18.0.0.0.0 - Production on 09-JUL-2020 17:02:23
7
8Copyright (c) 1991, 2018, Oracle. All rights reserved.
9
10Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=lhr18cocp)(PORT=1521)))
11STATUS of the LISTENER
12------------------------
13Alias LISTENER
14Version TNSLSNR for Linux: Version 18.0.0.0.0 - Production
15Start Date 09-JUL-2020 16:57:52
16Uptime 0 days 0 hr. 4 min. 31 sec
17Trace Level off
18Security ON: Local OS Authentication
19SNMP OFF
20Listener Parameter File /opt/oracle/product/18c/dbhome_1/network/admin/listener.ora
21Listener Log File /opt/oracle/diag/tnslsnr/lhr18cocp/listener/alert/log.xml
22Listening Endpoints Summary...
23 (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=lhr18cocp)(PORT=1521)))
24 (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
25 (DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=lhr18cocp)(PORT=5500))(Security=(my_wallet_directory=/opt/oracle/product/18c/dbhome_1/admin/ORCLCDB/xdb_wallet))(Presentation=HTTP)(Session=RAW))
26Services Summary...
27Service "ORCLCDB" has 1 instance(s).
28 Instance "ORCLCDB", status READY, has 1 handler(s) for this service...
29Service "ORCLCDBXDB" has 1 instance(s).
30 Instance "ORCLCDB", status READY, has 1 handler(s) for this service...
31Service "a8cb5bdeb697291fe0530f0011acfe5a" has 1 instance(s).
32 Instance "ORCLCDB", status READY, has 1 handler(s) for this service...
33Service "orclpdb1" has 1 instance(s).
34 Instance "ORCLCDB", status READY, has 1 handler(s) for this service...
35The command completed successfully
36
37[oracle@lhr18cocp ~]$ sas
38
39SQL*Plus: Release 18.0.0.0.0 - Production on Thu Jul 9 17:01:30 2020
40Version 18.3.0.0.0
41
42Copyright (c) 1982, 2018, Oracle. All rights reserved.
43
44
45Connected to:
46Oracle Database 18c Enterprise Edition Release 18.0.0.0.0 - Production
47Version 18.3.0.0.0
48
49SYS@ORCLCDB> show pdbs
50
51 CON_ID CON_NAME OPEN MODE RESTRICTED
52---------- ------------------------------ ---------- ----------
53 2 PDB$SEED READ ONLY NO
54 3 ORCLPDB1 READ WRITE NO
3.2 创建数据库
我们也可以自己创建自己需要的数据库，如下所示，创建了一个非cdb的数据库，dbname和sid都是lhrdb：
1[oracle@lhr18cocp ~]$ dbca -silent -ignorePreReqs -createDatabase -templateName General_Purpose.dbc -responseFile NO_VALUE \
2> -gdbname lhrdb -sid lhrdb \
3> -createAsContainerDatabase FALSE \
4> -sysPassword lhr -systemPassword lhr -dbsnmpPassword lhr \
5> -datafileDestination '/opt/oracle/oradata' -recoveryAreaDestination '/opt/oracle/flash_recovery_area' \
6> -storageType FS \
7> -characterset ZHS16GBK \
8> -sampleSchema true \
9> -totalMemory 1024 \
10> -databaseType MULTIPURPOSE \
11> -emConfiguration NONE
12[WARNING] [DBT-06208] The 'SYS' password entered does not conform to the Oracle recommended standards.
13 CAUSE:
14a. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9].
15b.The password entered is a keyword that Oracle does not recommend to be used as password
16 ACTION: Specify a strong password. If required refer Oracle documentation for guidelines.
17[WARNING] [DBT-06208] The 'SYSTEM' password entered does not conform to the Oracle recommended standards.
18 CAUSE:
19a. Oracle recommends that the password entered should be at least 8 characters in length, contain at least 1 uppercase character, 1 lower case character and 1 digit [0-9].
20b.The password entered is a keyword that Oracle does not recommend to be used as password
21 ACTION: Specify a strong password. If required refer Oracle documentation for guidelines.
22Prepare for db operation
2310% complete
24Copying database files
2540% complete
26Creating and starting Oracle instance
2742% complete
2846% complete
2950% complete
3054% complete
3158% complete
3260% complete
33Completing Database Creation
3466% complete
3569% complete
3670% complete
37Executing Post Configuration Actions
38100% complete
39Database creation complete. For details check the logfiles at:
40 /opt/oracle/cfgtoollogs/dbca/lhrdb.
41Database Information:
42Global Database Name:lhrdb
43System Identifier(SID):lhrdb
44Look at the log file "/opt/oracle/cfgtoollogs/dbca/lhrdb/lhrdb0.log" for further details.
45
46[oracle@lhr18cocp ~]$ . oraenv
47ORACLE_SID = [ORCLCDB] ? lhrdb
48The Oracle base remains unchanged with value /opt/oracle
49[oracle@lhr18cocp ~]$ sas
50
51SQL*Plus: Release 18.0.0.0.0 - Production on Thu Jul 9 17:20:47 2020
52Version 18.3.0.0.0
53
54Copyright (c) 1982, 2018, Oracle. All rights reserved.
55
56
57Connected to:
58Oracle Database 18c Enterprise Edition Release 18.0.0.0.0 - Production
59Version 18.3.0.0.0
60
61SYS@lhrdb> show pdbs
62SYS@lhrdb>
3.3 EMDE的使用

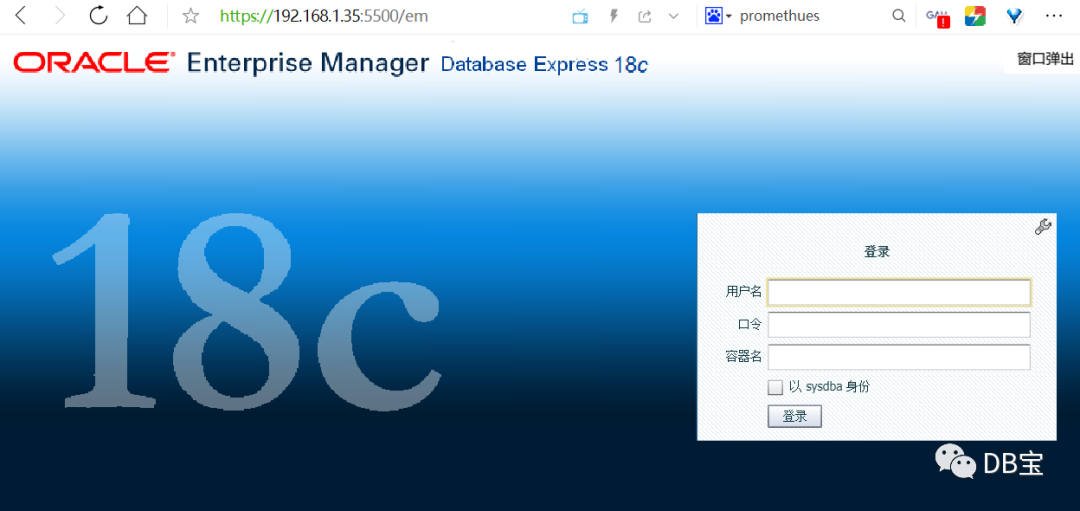

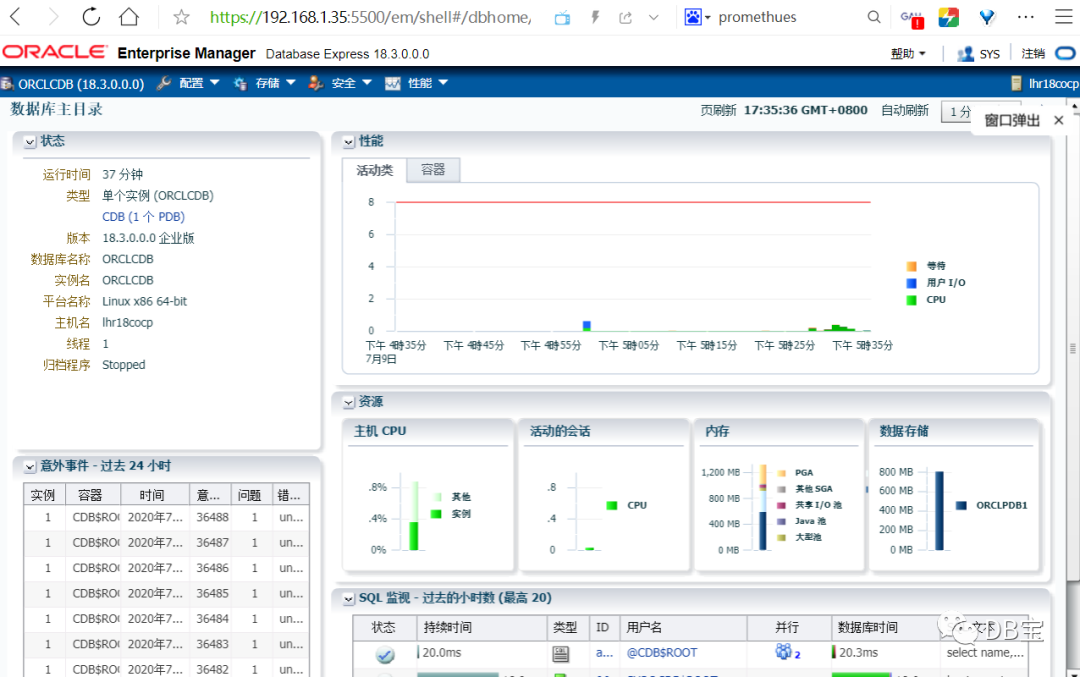

这个镜像默认配置了EM，端口为5500，所以EM的访问地址为：https://192.168.1.35:5500/em
1[oracle@lhr18cocp ~]$ lsnrctl status | grep tcps
2 (DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=lhr18cocp)(PORT=5500))(Security=(my_wallet_directory=/opt/oracle/product/18c/dbhome_1/admin/ORCLCDB/xdb_wallet))(Presentation=HTTP)(Session=RAW))
3.4 使用ssh连接到容器内
1C:\Users\lhrxxt>ssh root@192.168.1.35 -p222
2The authenticity of host '[192.168.1.35]:222 ([192.168.1.35]:222)' can't be established.
3ECDSA key fingerprint is SHA256:9LX3zOgSJ7HC5MztqfJg7S46TJLZBdwV4/xIdCkExy8.
4Are you sure you want to continue connecting (yes/no)? yes
5Warning: Permanently added '[192.168.1.35]:222' (ECDSA) to the list of known hosts.
6root@192.168.1.35's password:
7Last login: Wed Jun 24 08:53:40 2020 from gateway
8[root@lhr18cocp ~]# ps -ef|grep pmon
9oracle 244 0 0 16:57 ? 00:00:00 ora_pmon_ORCLCDB
10oracle 4143 0 0 17:19 ? 00:00:00 ora_pmon_lhrdb
11root 5193 5125 0 17:31 pts/2 00:00:00 grep --color=auto pmon
3.5 外部客户端连接容器内的数据库
我们可以在容器外部通过sqlplus或其他工具连接容器内的数据库，注意此时的端口应该为1522：
1C:\Users\lhrxxt>sqlplus sys/lhr@192.168.1.35:1522/ORCLCDB as sysdba
2
3SQL*Plus: Release 12.1.0.2.0 Production on Thu Jul 9 17:39:43 2020
4
5Copyright (c) 1982, 2014, Oracle. All rights reserved.
6
7
8Connected to:
9Oracle Database 18c Enterprise Edition Release 18.0.0.0.0 - Production
10
11SYS@192.168.1.35:1522/ORCLCDB> show pdbs
12
13 CON_ID CON_NAME OPEN MODE RESTRICTED
14---------- ------------------------------ ---------- ----------
15 2 PDB$SEED READ ONLY NO
16 3 ORCLPDB1 READ WRITE NO

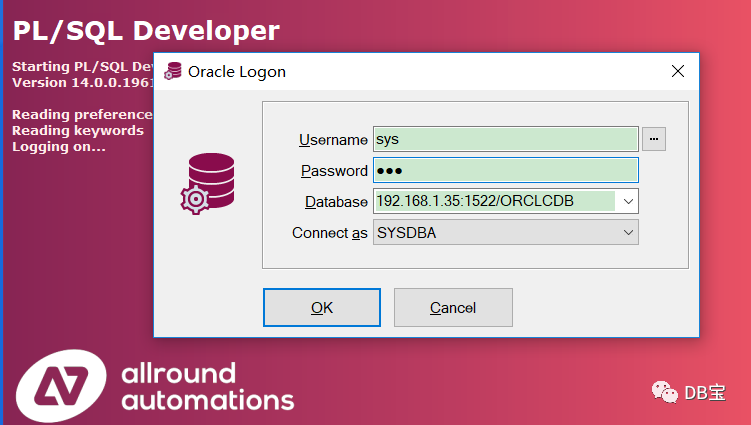

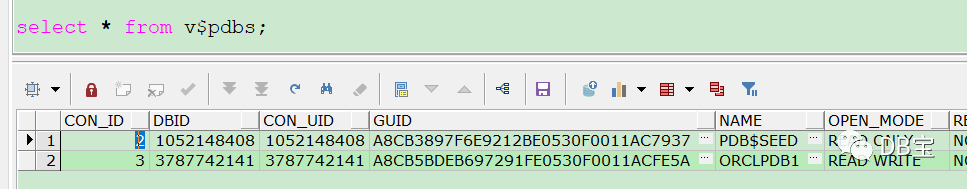

如果使用PLSQL Developer也是可以连接的，如下：
怎么样，是不是很爽，是不是非常方便呢，文末记得点赞哈。
本文结束。
