项目场景：

之前帮客户在Oracle Linux 7.9下搭建了一套HA集群（pacemaker），最近做测试时候发现了一个集群切换后的BUG。

因为软件安装完全在共享存储上，所以监听日志只配置vip即可。

问题①描述(主机名已脱敏)

在实现切换后节点二的监听和数据库实例状态是STOP，HA提示比较明显：listener_orac_start_0 on cxl-pcs02 ‘unknown error’

[root@cxl-pcs01 ~]# pcs status
Cluster name: cluster01
Stack: corosync
Current DC: cxl-pcs01 (version 1.1.23-1.0.1.el7-9acf116022) - partition with quorum
Last updated: Wed Sep 14 19:03:29 2022
Last change: Wed Sep 14 18:40:13 2022 by root via cibadmin on cxl-pcs01

2 nodes configured
8 resource instances configured

Online: [ cxl-pcs01 cxl-pcs02 ]

Full list of resources:

Resource Group: oracle
clustervip01 (ocf::heartbeat:IPaddr2): Started cxl-pcs02
vg01 (ocf::heartbeat:LVM): Started cxl-pcs02
vg02 (ocf::heartbeat:LVM): Started cxl-pcs02
data1 (ocf::heartbeat:Filesystem): Started cxl-pcs02
data2 (ocf::heartbeat:Filesystem): Started cxl-pcs02
listener_orac (ocf::heartbeat:oralsnr): Stopped
orac (ocf::heartbeat:oracle): Stopped
sbd_fencing (stonith:fence_sbd): Started cxl-pcs01

Failed Resource Actions:
* listener_orac_start_0 on cxl-pcs01 'unknown error' (1): call=48, status=complete, exitreason='Listener listener appears to have started, but is not running properly: ',
last-rc-change='Wed Sep 14 19:01:46 2022', queued=0ms, exec=60196ms
* listener_orac_start_0 on cxl-pcs02 'unknown error' (1): call=44, status=complete, exitreason='Listener listener appears to have started, but is not running properly: ',
last-rc-change='Wed Sep 14 19:00:38 2022', queued=0ms, exec=61821ms

Daemon Status:
corosync: active/enabled
pacemaker: active/enabled
pcsd: active/enabled sbd: active/enabled

拿到以上提示就去看看listener.ora配置，果然发现了问题，之前为了测试主机加了一行本机的IP地址

[oracle@cxl-pcs01 admin]$ cat listener.ora
# listener.ora Network Configuration File: /data1/app/oracle/product/11.2.0/db_1/network/admin/listener.ora
# Generated by Oracle configuration tools.
LISTENER =
(DESCRIPTION_LIST =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
#本机IP：
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.84.173)(PORT = 1521))
#虚拟IP：
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.125.231)(PORT = 1521))
)
)
SID_LIST_LISTENER =
(SID_LIST =
(SID_DESC =
(GLOBAL_DBNAME = orac)
(ORACLE_HOME = /data1/app/oracle/product/11.2.0/db_1)
(SID_NAME = orac)
)
)


ADR_BASE_LISTENER = /data1/app/oracle

问题②描述(主机名已脱敏)

当我去掉cxl-pcs01主机名的监听IP后还是有问题：VIP居然和物理IP不是一个网段的，之前没有考虑到此方面原因，遂将虚拟IP更改为了同网段IP地址

[root@cxl-pcs01 ~]# pcs resource update clustervip01 Ipaddr2 ip=192.168.84.167 cidr_netmask=24 op monitor interval=30s

[oracle@cxl-pcs01 admin]$ cat listener.ora
# listener.ora Network Configuration File: /data1/app/oracle/product/11.2.0/db_1/network/admin/listener.ora
# Generated by Oracle configuration tools.
LISTENER =
(DESCRIPTION_LIST =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
#虚拟IP：
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.84.167)(PORT = 1521))
)
)
SID_LIST_LISTENER =
(SID_LIST =
(SID_DESC =
(GLOBAL_DBNAME = orac)
(ORACLE_HOME = /data1/app/oracle/product/11.2.0/db_1)
(SID_NAME = orac)
)
)


ADR_BASE_LISTENER = /data1/app/oracle

问题③描述(主机名已脱敏)

但是还是不好使，没道理啊！我又删除了资源重新创建并更改了资源依赖和启动顺序，但和这个没啥关系

[root@cxl-pcs01 ~]#pcs resource delete orac
[root@cxl-pcs01 ~]#pcs resource delete listener_orac
[root@cxl-pcs01 ~]# pcs resource create orac oracle sid="orac" --group=oracle
Assumed agent name 'ocf:heartbeat:oracle' (deduced from 'oracle')
[root@cxl-pcs01 ~]# pcs constraint colocation add orac with listener_orac
[root@cxl-pcs01 ~]# pcs constraint order start listener_orac then start orac
Adding listener_orac orac (kind: Mandatory) (Options: first-action=start then-action=start)

[root@cxl-pcs01 ~]# pcs constraint show --full
Location Constraints:
Resource: clustervip01
Enabled on: cxl-pcs01 (score:INFINITY) (role: Started) (id:cli-prefer-clustervip01)
Resource: vg01
Enabled on: cxl-pcs01 (score:INFINITY) (role: Started) (id:cli-prefer-vg01)
Resource: vg02
Enabled on: cxl-pcs01 (score:INFINITY) (role: Started) (id:cli-prefer-vg02)
Ordering Constraints:
start clustervip01 then start vg01 (kind:Mandatory) (id:order-clustervip01-vg01-mandatory)
start clustervip01 then start vg02 (kind:Mandatory) (id:order-clustervip01-vg02-mandatory)
start vg01 then start data1 (kind:Mandatory) (id:order-vg01-data1-mandatory)
start vg02 then start data2 (kind:Mandatory) (id:order-vg02-data2-mandatory)
start data1 then start orac (kind:Mandatory) (id:order-data1-listener_orac-mandatory)
start orac then start listener_orac (kind:Mandatory) (id:order-listener_orac-orac-mandatory)
Colocation Constraints:
vg01 with clustervip01 (score:INFINITY) (id:colocation-vg01-clustervip01-INFINITY)
vg02 with clustervip01 (score:INFINITY) (id:colocation-vg02-clustervip01-INFINITY)
data1 with vg01 (score:INFINITY) (id:colocation-data1-vg01-INFINITY)
data2 with vg02 (score:INFINITY) (id:colocation-data2-vg02-INFINITY)
orac with data1 (score:INFINITY) (id:colocation-listener_orac-data1-INFINITY)
listener_orac with orac (score:INFINITY) (id:colocation-orac-listener_orac-INFINITY)
Ticket Constraints:

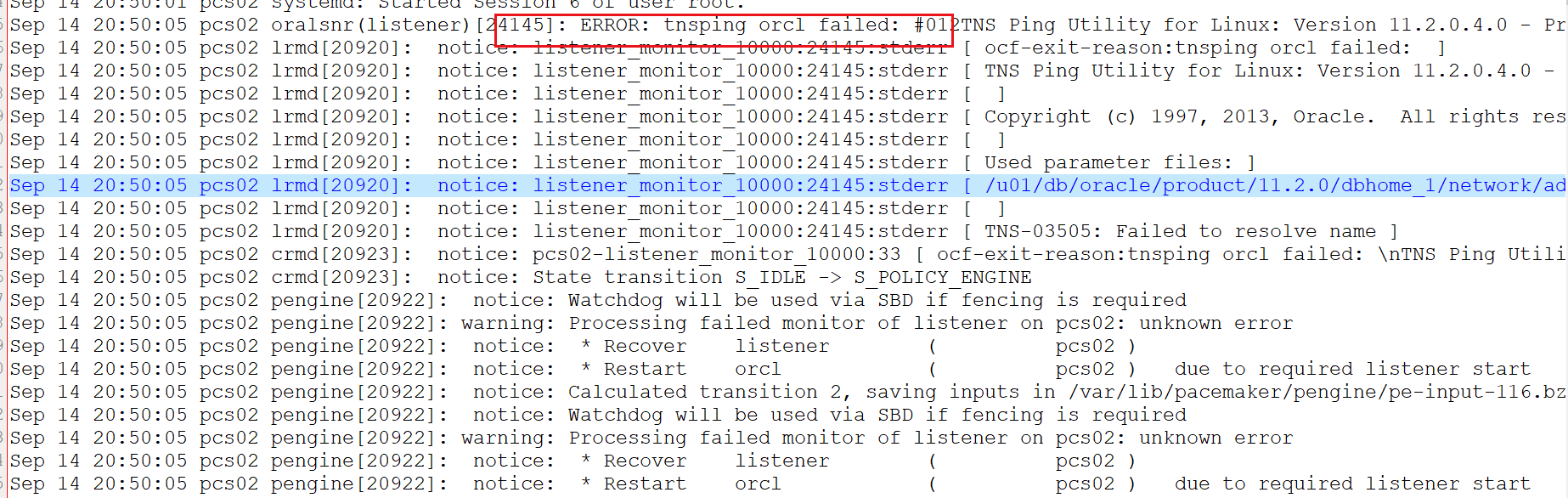

更改资源顺序后发现确实只是监听有问题，HA主动给停止了！！！我手动debug启动监听资源发现以下问题：
> stderr: Attempting to contact (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.125.231)(PORT = 1521)) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = orac)))

[root@cxl-pcs01 ~]# pcs resource debug-start listener_orac
Operation start for listener_orac (ocf:heartbeat:oralsnr) returned: 'unknown error' (1)
> stderr: ocf-exit-reason:tnsping orac failed:
> stderr: TNS Ping Utility for Linux: Version 11.2.0.4.0 - Production on 14-SEP-2022 18:34:36
> stderr:
> stderr: Copyright (c) 1997, 2013, Oracle. All rights reserved.
> stderr:
> stderr: Used parameter files:
> stderr: /data1/app/oracle/product/11.2.0/db_1/network/admin/sqlnet.ora
> stderr:
> stderr:
> stderr: Used TNSNAMES adapter to resolve the alias
> stderr: Attempting to contact (DESCRIPTION = (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.125.231)(PORT = 1521)) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = orac)))
> stderr: TNS-12535: TNS:operation timed out
> stderr: ocf-exit-reason:Listener listener appears to have started, but is not running properly:
> stderr: LSNRCTL for Linux: Version 11.2.0.4.0 - Production on 14-SEP-2022 18:34:36
> stderr:
> stderr: Copyright (c) 1991, 2013, Oracle. All rights reserved.
> stderr:
> stderr: Starting /data1/app/oracle/product/11.2.0/db_1/bin/tnslsnr: please wait...
> stderr:
> stderr: TNSLSNR for Linux: Version 11.2.0.4.0 - Production
> stderr: System parameter file is /data1/app/oracle/product/11.2.0/db_1/network/admin/listener.ora
> stderr: Log messages written to /data1/app/oracle/diag/tnslsnr/cxl-pcs01/listener/alert/log.xml
> stderr: Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
> stderr: Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.84.167)(PORT=1521)))
> stderr:
> stderr: Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=IPC)(KEY=EXTPROC1521)))
> stderr: STATUS of the LISTENER
> stderr: ------------------------
> stderr: Alias listener
> stderr: Version TNSLSNR for Linux: Version 11.2.0.4.0 - Production
> stderr: Start Date 14-SEP-2022 18:34:36
> stderr: Uptime 0 days 0 hr. 0 min. 0 sec
> stderr: Trace Level off
> stderr: Security ON: Local OS Authentication
> stderr: SNMP OFF
> stderr: Listener Parameter File /data1/app/oracle/product/11.2.0/db_1/network/admin/listener.ora
> stderr: Listener Log File /data1/app/oracle/diag/tnslsnr/cxl-pcs01/listener/alert/log.xml
> stderr: Listening Endpoints Summary...
> stderr: (DESCRIPTION=(ADDRESS=(PROTOCOL=ipc)(KEY=EXTPROC1521)))
> stderr: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=192.168.84.167)(PORT=1521)))
> stderr: Services Summary...
> stderr: Service "orac" has 1 instance(s).
> stderr: Instance "orac", status UNKNOWN, has 1 handler(s) for this service...
> stderr: The command completed successfully
> stderr: Last login: Wed Sep 14 18:28:25 CST 2022 on pts/0
> stderr: Sep 14 18:35:36 ERROR: Probable Oracle configuration error

我更改了网段，怎么还有125网段的IP提示，一拍脑袋，tnsname.ora里的配置没有改！
修改后结果：

[oracle@cxl-pcs01 admin]$ cat tnsnames.ora
# tnsnames.ora Network Configuration File: /data1/app/oracle/product/11.2.0/db_1/network/admin/tnsnames.ora
# Generated by Oracle configuration tools.

ORAC =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.84.167)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = orac)
)
)

这次最后重启pacemaker服务后没问题了。

原因分析：

原因是pacemaker在启监听时候，oraLsnr会去tnsping服务名，如果不通就宕掉，主动关闭了监听服务。所以要更改tnsname.ora的配置文件。
