AR9344 802.11a/802.11n 5G
AR9344 FCC/CE/IC
AR9342 High power 1x10/100/1000M GE
AR9342 2 x 5G MMCX LTE/3G Application 30dBm
In the era of big data, using customs data to analyze valuable information for the promotion of foreign trade operations is a way to improve the competitiveness of foreign trade enterprises. Let's take a look at what is the use of customs data?
Let us take the customs data function of Futong Tianxia Cloud Platform as an example to show you, what is the use of customs data?
1. Competitors can be monitored through customs data
When will the peers supply our intended customers and potential customers? Excavate peer customer resources, monitor peer export status, analyze peer export products, specific supply content, supply cycle changes, and procurement chain. Know yourself and the enemy

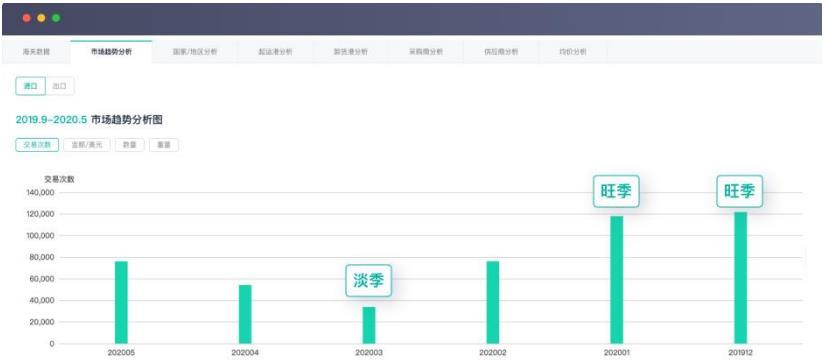

2. Understand the off-peak season of products through customs data
How to check the off-peak season of products in different countries and regions? Through the comparison of peaks and troughs in four dimensions of customs data transaction times, amount, quantity, and weight, we can learn more about the market trend analysis of products, and then make targeted stocking and new releases. , promotion and other marketing strategies.

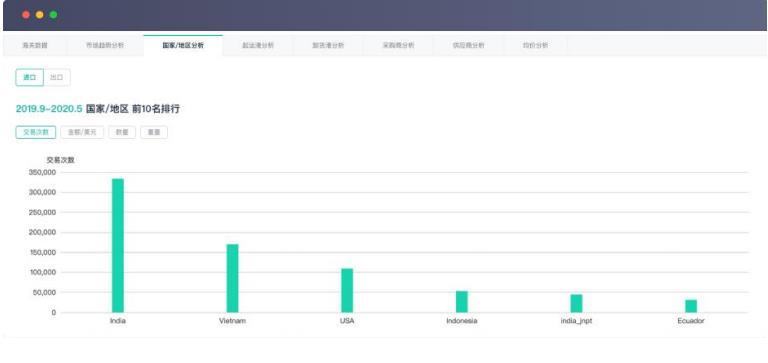

3. Customs data can help you discover and open emerging markets
Where is the best market for new products? Through the multi-dimensional analysis of purchasing countries/regions of customs data, you can quickly grasp the hot-selling market of the product and tap the blue ocean market of the product.

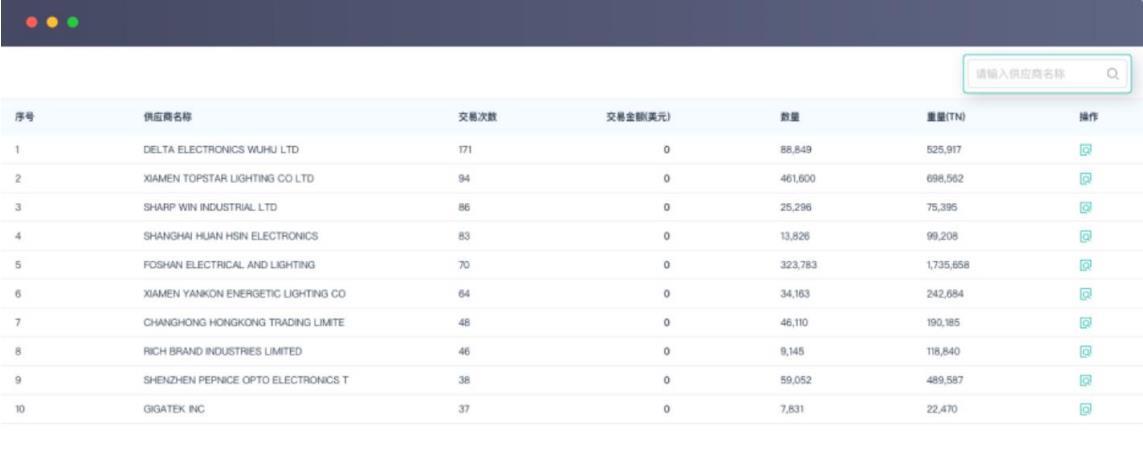

4. Customs data can help you locate potential buyers
How to locate potential buyers for a product? Master the ranking of the top buyers of the product through the purchasing and supplier analysis chart, and then obtain the purchasing cycle, amount, quantity and other information of these buyers. You can also dig deeper through the competitors of these buyers. client.
5. Customs data can help you find customers who run orders
How do customers run orders? How to monitor key customers in real time? You can locate suppliers/buyers and add new analysis charts, query customer names, and check whether customer information is matched. one. The customs data can also accurately locate key customers on the TOP list through the company name, and then monitor the customer's purchase records in real time, and grasp the status of the purchase period, trial orders, and running orders.
6. Mining customers through customs data of peer buyers
The above 6 points are the role that customs data can directly help companies. In addition, they can also play some roles that are easily overlooked by companies:
1. Guide the enterprise to formulate procurement plans and arrangements;
2. Reduce the occupation of inventory funds;
3. Reduce inventory;
4. Master the real purchasing status of buyers.
It can be seen from the above that customs data is useful for foreign trade! Foreign trade enterprises must not ignore the value of customs data, and must actively use it.
The following are our main chips and website information, if you are interested in our products, you can also directly contact our mailbox, we will provide you with the best service!
FYI, Wallys are able to provide customizable solutions based on your your Spec requirements for applications, feel free to let me know if any question
MT7915/MT7975/IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ4028/IPQ8072/IPQ8072A/IPQ8074/IPQ8074A/QCN6024/QCN9074/QCN9024/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344 /AX200NGW/ AP9342
With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and wireless network cards.
In the complex market, Wallys products stand out and are affirmed by partners. From 802.11 a - ax, Wallys always keeps up with the most cutting-edge wireless technology, aimed to help customers take the preemptive opportunities to occupy the market and lead a win -win cooperation.
BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:sales3@wallystech.com

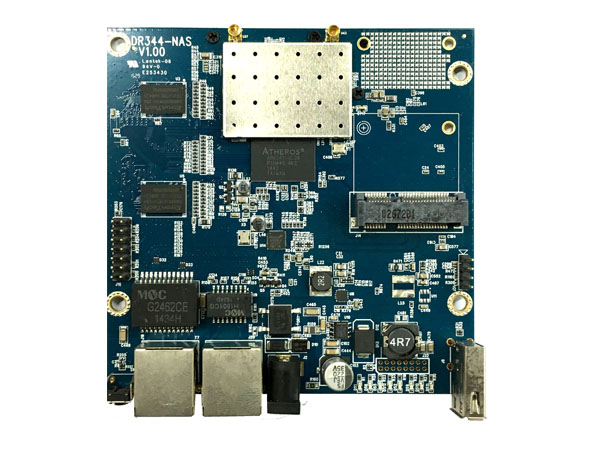

1. DR344
Technical Specifications |
Hardware Information | |
CPU | Atheros/AR9344-AC2A 560 MHz processor frequency |
System Memory | 64MB（max 128MB DDR2 optional) |
NOR Flash | 8MB (max 16MB optional) |
Switch IC | Atheros/AR8035-AL1A-R 1 GIGA port PHY/RGMII switch |
Power IC | TI/TPS54531 24V to 5V 5A regulator |
AME/AME5291 5V to 3.3V 2A regulator | |
Power consumption | 2.04W(Board Only) |
6.6W(Board + 2.4G card) | |
7.1W(Board + 5G card) | |
1000M LAN port POE define | Pin 4/5 and pin 7/8 connect to the anode or cathode respectively 24V input |
Antenna Connector | 2 x 5G MMCX connectors（U3&U5） |
Power Connector | 1 x DC JACK（J2）D(center)=2.1mm Max 24V DC input /1 x 2 pin header pitch=3.96mm（J32） |
LAN Connector | 1 x 100M LAN（J4） port / 1 x 1000M LAN port（J3） |
ROHS Compliance | YES |
Humidity | Operating: 5% to 95% (non-condensing)； Storage: Max.90% (non-condensing) |
Temperature Range | Operating: -20ºC to 70ºC； Storage: -40ºC to 90ºC |
Reset Button | RT push button（SW6） |
Dimension | 105mm x 105mm x 15.1mm |
Featuring with industrial-grade Atheros/ AR9344(560 MHz)chipset,DR344
Integrated with 1 x 5G high power (up to 30dBm aggregate ) radio card
Supports 1 x 10/100Mbps Fast Ethernet Port and 1 x 10/100/1000Mbps Gigabit Ethernet Port
Support WiFi application（Optional）
Support 2 x 5G MMCX connectors
Support 5M/10M/20M/40M Bandwidth
Support 1 x USB2.0（Optional）
Support operating frequency from 2.312 GHz to 2.502 GHz and 4.92GHz to 6.085GHz
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

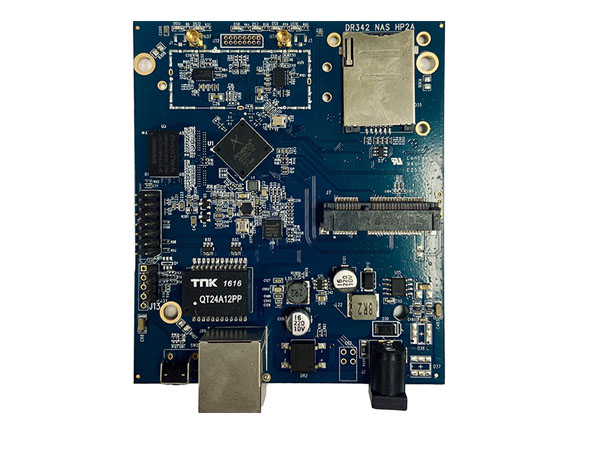

2. DR342
|
Symbol | Parameter |
CPU | Atheros AR9342 530MHz processor frequency |
System Memory | 64M DDR2 |
NOR Flash | 16MB |
Switch IC | Atheros AR8035-AL1AR 1 GIGA port PHY/RGMII switch |
Power IC | TI/TPS5436 |
Power consumption | 6W(Board Only) |
1000MLAN port | Pin 4/5 and pin 7/8 connect to the anode or cathode respectively |
Antenna Connector | 2 x 5G MMCX connectors |
Power Connector | 1 x DC JACK D(center)=2.1mm Max 50V DC |
Power Solution | DC Jack Input: 12-56V, Passive POE: 24 -56V |
LAN Connector | 1 x 1000M LAN port |
ROHS Compliance | YES |
Reset Button | RT push button |
Dimension | 99mm x 85mm x 16mm |
Socket Height | Mini PCIE 9.2mm |
Featuring with industrial-grade Atheros’s AR9342(533 MHz) chipset DR342
Integrated with 2x 2 5G high power (up to 30dBm aggregate ) Radio Card
5.180GHz to 5.825GHz Frequency Range
1x10/100/1000Mbps Gigabit Ethernet Port
2 x 5G MMCX Connectors
20M/40M Bandwidth
Support LTE/WiFi Card
RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals
