J721E - SBL(2)

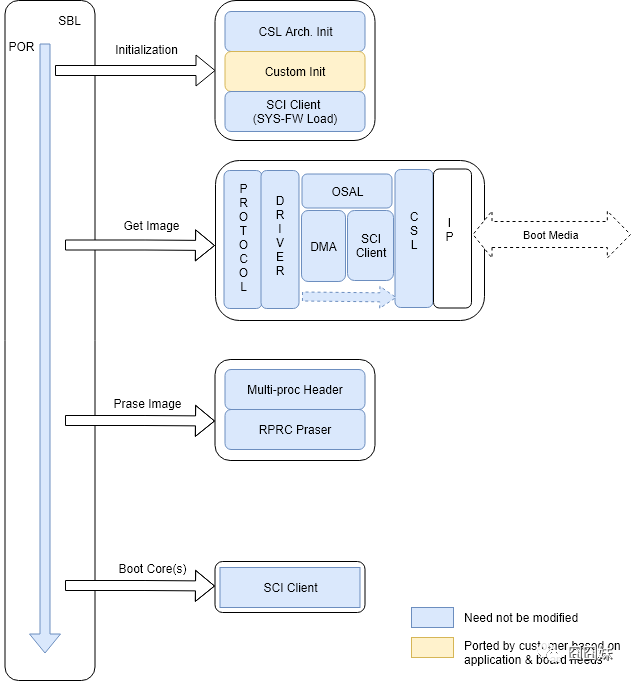

sbl
│
├── board
│   └── k3
│       └── sbl_main.c                                      <= define main() for SBL, board specific init
│
├── build
│   ├── makefile                                            <= makefile for the SBL component
│   ├── sbl_am65xx.sh                                       <= For legacy, called by Yocto build
│   ├── sbl_boot_test.mk                                    <= Builds SBL single core tests
│   ├── sbl_smp_test.mk                                     <= Builds example app for using SBL lib
│   ├── sbl_mcu0_boot_perf_test.mk                          <= Builds example app for SBL performance tuning
│   ├── sbl_mcu0_boot_xip_entry.mk                          <= Builds example trampoline app to demonstrate transitioning to a XIP app from SBL
│   ├── sbl_mcu0_boot_xip_test.mk                           <= Builds example app to demonstrate XIP execution from XIP capable boot media
│   ├── sbl_img.mk                                          <= builds SBL image that is loaded and executed by ROM code
│   ├── sbl_lib.mk                                          <= Builds sbl library that other apps can link into
│   ├── sbl_multicore_smp.mk                                <= Builds multi-core image from SBL lib eg. test to demonstrate symmetric multiprocessor boot (SMP)
│   └── sbl_multicore_amp.mk                                <= Builds multi-core image from single core tests to demonstrate asymmetric multiprocessor boot (AMP)
│
├── example
│   └── k3MulticoreApp
│       ├── binary
│       │   └── [soc]
│       │       ├── sbl_baremetal_*.appimage                <= SBL loadable board specific sample apps for testing SBL boot flow on GP devices
│       │       ├── sbl_baremetal_*.appimage.signed         <= SBL loadable board specific signed sample apps for testing SBL boot flow on HS devices
│       │       └── sbl_baremetal_*_release.x*.bin          <= Binary image that can be eXecuted In Place on XIP capable boot media
|       ├── [soc]
│       │   ├── mcuAmplinker.lds                            <= Linker command file when TI CGT is used for Asym. Multiproc. boot
│       │   ├── mpuAmplinker.lds                            <= GCC linker command file (for Cortex Axx cores) for Asym. Multiproc. boot
│       │   ├── mcuXiplinker.lds                            <= Linker command file for XIP trampoline app
│       │   └── xip_entry.lds                                       <= Linker command file for XIP test case
│       ├── mcuBootPerfLinker_j7.lds                        <= TI CGT Linker command file for SBL performance tuning example (J721E)
│       ├── mcuBootPerfLinker.lds                           <= TI CGT Linker command file for SBL performance tuning example (AM65xx)
|       ├── mcuBootPerfLinker_small.lds                     <= TI CGT Linker command file for SBL performance tuning example (for boot with MCU domain only)
│       ├── mcu[core#]LockStepLinker.lds                    <= Linker command file when TI CGT is used for R5 lock-step boot
│       ├── mpuSmplinker.lds                                <= GCC linker command file (for Cortex Axx cores) for SMP boot
│       ├── xip_entry.asm                                   <= Entry point of XIP trampoline app
│       ├── xip_stub.c                                      <= Simple SBL test app that demonstrates transitioning to a XIP app
│       ├── sbl_amp_multicore.c                             <= Simple SBL test that displays UART message
│       ├── sbl_amp_multicore_sections.h                    <= Allows same source to be loaded to different sections for different cores.
│       ├── sbl_mcu_0_boot_perf_benchmark.c                 <= SBL Test to tune boot performance.
│       ├── sbl_multicore_a53.asm                           <= Test case entry point  for Cortex-Axx cores
│       ├── sbl_multicore_r5.asm                            <= Test case entry point for Cortex-R5 cores
│       ├── sbl_multicore_r5_sections.inc                   <= Allows same source to be loaded to different sections for different MCUs.
│       ├── sbl_printf.c                                    <= Lightweight UART printf function for SBL testing
│       ├── sbl_smp_multicore.c                             <= Simple SBL SMP test that uses SBL lib to reset MPUs
│       └── sbl_smp_r5.asm                                  <= Provides dummy override function for __mpu_init for SMP testcase.
│
├── binary                                                  <= ROM bootable SBL images for each board/boot media
│   ├── [board]
│       └── [bootmedia]
│           └── bin
│               └── sbl_[bootmedia]_img_mcu1_0_release.tiimage
│
├── lib                                                     <= SBL lib for each boot media/board supported
│   ├── [bootmedia]
│   │   └── [board]
│   │       └── r5f
│   │           └── release
│   │               └── sbl_lib_[bootmedia].aer5f
│   └── cust
│       └── [board]
│           └── r5f
│               └── release
│                   └── sbl_lib_cust.aer5f
│
├── soc                                                     <= SOC specific SBL code
│   └── k3
│       ├── [soc]

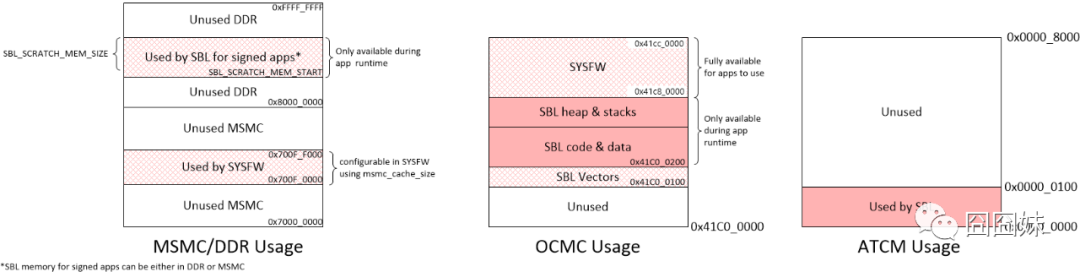

|       |   └── linker.cmd                                  <= Linker file used for generating ROM loadable SBL image.
│       ├── sbl_err_trap.h                                  <= Error loops for SBL
│       ├── sbl_init.asm                                    <= SBL Entry point
│       ├── sbl_misc.asm                                    <= SBL Assembly utility functions
│       ├── sbl_log.h                                       <= SBL logging framework
│       ├── sbl_sci_client.c                                <= Calls system firmware on DMSC
│       ├── sbl_sci_client.h
│       ├── sbl_slave_core_boot.c                           <= Code that contains the sequence to release a core from reset
│       ├── sbl_slave_core_boot.h
│       ├── sbl_soc.c                                       <= Cache Ops, PMU init, image verfication, etc & SoC specific code like RAT Init..
│       ├── sbl_soc_cfg.h                                   <= Abstraction layer for hiding SoC level changes from SBL
│       └── sbl_profile.h                                   <= SBL profiling framework
│
├── src                                                     <= Common drivers used across SOCs
│   ├── mmcsd
│   ├── hyperflash
│   ├── ospi
│   ├── qspi
│   ├── uart
│   ├── rprc                                                <= RPRC image parser used by SBL
│   └── spi
│
└── tools
    ├── btoccs
    ├── byteswap
    ├── ccsutil
    ├── combined_appimage                                   <= Creates a "combined" .appimage file for booting HLOS images (e.g., ATF,U-boot,Linux)
    │   ├── bin
    │   │   └── [board]
    │   │       ├── base-board.dtb                          <= Default (example) Linux DTB per platform - to be replaced with desired DTB
    │   │       └── combined.appimage                       <= Output "combined" .appimage for HLOS + RTOS images boot (after build)
    │   ├── config.mk                                       <= Configuration make include file. Use this to specify images to include in combined.appimage
    │   └── makefile                                        <= combined.appimage Makefile
    ├── flashWriter                                         <= Unused for AM65xx/J721E. AM65xx/J721E uses Uniflash to program flashes.

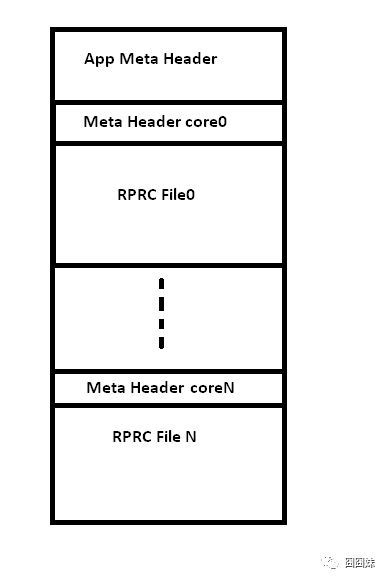

    ├── multicoreImageGen                                   <= Stitches multiple RPRC images for different cores into a single image
    ├── omapl13x_boot_utils                                 <= Unused for AM65xx/J721E
    ├── omapl13x_sd_card_format                             <= Unused for AM65xx/J721E
    ├── out2rprc                                            <= Converts .out into .rprc files, so that SBL can load non-continuous memory sections
    ├── scripts                                             <= Scripts used by .out  generated by CCS projects into SBL loadable images
    │   ├── K3ImageGen.bat
    │   └── K3ImageGen.sh
    └── tiImageGen                                          <= Unused for AM65xx/J721E. Image generation is handled by PDK build framework (<sdk_install_path>/pdk_*/packages/ti/build/)
