首先，在本地数据库中建4张表，然后分别插入数据；

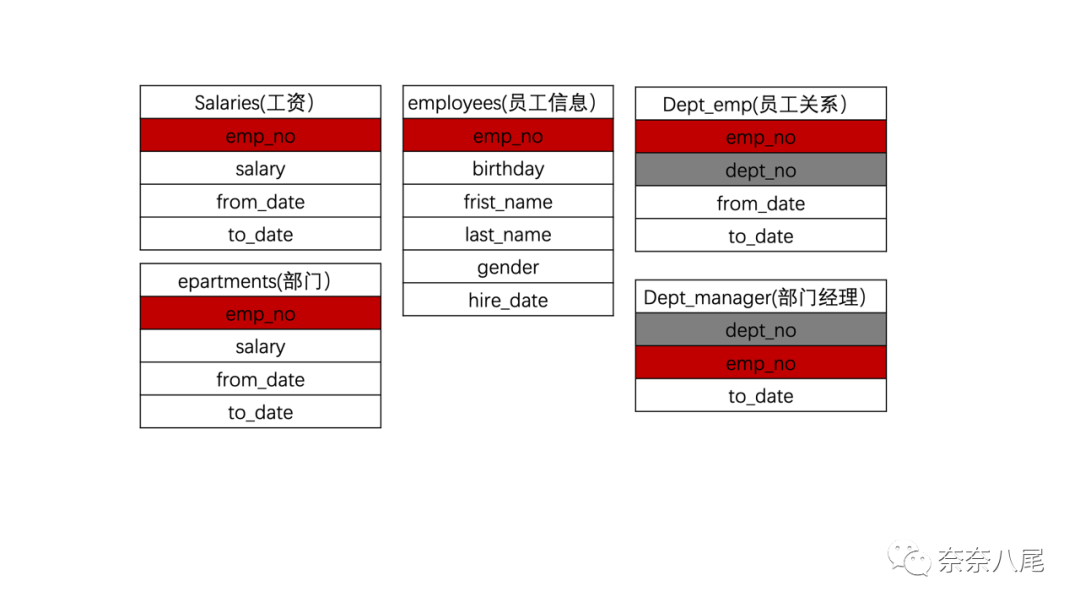

4张表的结构如下：
可通过相同颜色来记忆各表间的关联，
建表语句及插入语句如下：
CREATE TABLE `employees` (
`emp_no` int(11) NOT NULL,
`birth_date` date NOT NULL,
`first_name` varchar(14) NOT NULL,
`last_name` varchar(16) NOT NULL,
`gender` char(1) NOT NULL,
`hire_date` date NOT NULL,
PRIMARY KEY (`emp_no`));
INSERT INTO employees VALUES(10001,'1953-09-02','Georgi','Facello','M','1986-06-26');
INSERT INTO employees VALUES(10002,'1964-06-02','Bezalel','Simmel','F','1985-11-21');
INSERT INTO employees VALUES(10003,'1959-12-03','Parto','Bamford','M','1986-08-28');
INSERT INTO employees VALUES(10004,'1954-05-01','Chirstian','Koblick','M','1986-12-01');
INSERT INTO employees VALUES(10005,'1955-01-21','Kyoichi','Maliniak','M','1989-09-12');
INSERT INTO employees VALUES(10006,'1953-04-20','Anneke','Preusig','F','1989-06-02');
INSERT INTO employees VALUES(10007,'1957-05-23','Tzvetan','Zielinski','F','1989-02-10');
INSERT INTO employees VALUES(10008,'1958-02-19','Saniya','Kalloufi','M','1994-09-15');
INSERT INTO employees VALUES(10009,'1952-04-19','Sumant','Peac','F','1985-02-18');
INSERT INTO employees VALUES(10010,'1963-06-01','Duangkaew','Piveteau','F','1989-08-24');
INSERT INTO employees VALUES(10011,'1953-11-07','Mary','Sluis','F','1990-01-22');
CREATE TABLE `salaries` (
`emp_no` int(11) NOT NULL,
`salary` int(11) NOT NULL,
`from_date` date NOT NULL,
`to_date` date NOT NULL,
PRIMARY KEY (`emp_no`,`from_date`));
INSERT INTO salaries VALUES(10001,88958,'2002-06-22','9999-01-01');
INSERT INTO salaries VALUES(10002,72527,'2001-08-02','9999-01-01');
INSERT INTO salaries VALUES(10003,43311,'2001-12-01','9999-01-01');
INSERT INTO salaries VALUES(10004,74057,'2001-11-27','9999-01-01');
INSERT INTO salaries VALUES(10005,94692,'2001-09-09','9999-01-01');
INSERT INTO salaries VALUES(10006,43311,'2001-08-02','9999-01-01');
INSERT INTO salaries VALUES(10007,88070,'2002-02-07','9999-01-01');
CREATE TABLE `dept_manager` (
`dept_no` char(4) NOT NULL,
`emp_no` int(11) NOT NULL,
`to_date` date NOT NULL,
PRIMARY KEY (`emp_no`,`dept_no`));
INSERT INTO dept_manager VALUES('d001',10002,'9999-01-01');
INSERT INTO dept_manager VALUES('d002',10006,'9999-01-01');
INSERT INTO dept_manager VALUES('d003',10005,'9999-01-01');
INSERT INTO dept_manager VALUES('d004',10004,'9999-01-01');
CREATE TABLE `dept_emp` (
`emp_no` int(11) NOT NULL,
`dept_no` char(4) NOT NULL,
`from_date` date NOT NULL,
`to_date` date NOT NULL,
PRIMARY KEY (`emp_no`,`dept_no`));
INSERT INTO dept_emp VALUES(10001,'d001','1986-06-26','9999-01-01');
INSERT INTO dept_emp VALUES(10002,'d001','1996-08-03','9999-01-01');
INSERT INTO dept_emp VALUES(10003,'d004','1995-12-03','9999-01-01');
INSERT INTO dept_emp VALUES(10004,'d004','1986-12-01','9999-01-01');
INSERT INTO dept_emp VALUES(10005,'d003','1989-09-12','9999-01-01');
INSERT INTO dept_emp VALUES(10006,'d002','1990-08-05','9999-01-01');
INSERT INTO dept_emp VALUES(10007,'d005','1989-02-10','9999-01-01');
INSERT INTO dept_emp VALUES(10008,'d005','1998-03-11','2000-07-31');
INSERT INTO dept_emp VALUES(10009,'d006','1985-02-18','9999-01-01');
INSERT INTO dept_emp VALUES(10010,'d005','1996-11-24','2000-06-26');
INSERT INTO dept_emp VALUES(10010,'d006','2000-06-26','9999-01-01');
CREATE TABLE `departments` (
`dept_no` char(4) NOT NULL,
`dept_name` varchar(40) NOT NULL,
PRIMARY KEY (`dept_no`));
INSERT INTO departments VALUES('d001','Marketing');
INSERT INTO departments VALUES('d002','Finance');
完成数据导入后可 show tables ，查看数据是否成功导入，然后开始练习啦～
