repmgr是一个对postgresql流复制进行管理以及自动故障转移的开源软件，大大的简化了PG流复制架构的管理。但是repmgr不具备提供VIP功能，只能借助keepalived实现VIP，并确保VIP运行在primary节点上。其不具备连接池功能，所以只是一个轻量级开源软件。下面详细介绍该架构的详细搭建过程。
repmgr软件的安装
yumcheck-update
yumgroupinstall "Development Tools"
yuminstall yum-utils openjade docbook-dtds docbook-style-dsssldocbook-style-xsl
yuminstall flex libselinux-devel libxml2-devel libxslt-developenssl-devel pam-devel readline-devel
./configure&& make install
注意，确保pg_config在安装用户的环境变量PATH中，repmgr会默认安装到postgres的软件目录下。
PG数据库及repmgr配置
createuser repluser with usperuser password '****';
createdatabase repmgr with owner='repluser';
local replication repluser trust
host replication repluser 127.0.0.1/32 trust
host replication repluser 10.26.60.0/24 scram-sha-256
local repmgr repluser trust
host repmgr repluser 127.0.0.1/32 trust
host repmgr repluser 10.26.60.0/24 scram-sha-256
spcl-pg250:5432:repmgr:repluser:Repl#2021
spcl-pg249:5432:repmgr:repluser:Repl#2021
node_id=1
node_name='host01'
conninfo='host=host01user=repluser dbname=repmgr connect_timeout=2'
data_directory='/pgdata’

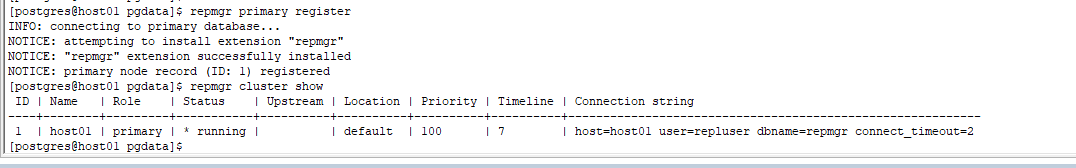

repmgr-f /etc/repmgr.conf primary register
repmgr-f etc/repmgr.conf cluster show
node_id=2
node_name='host02'
conninfo='host=host02user=repluser dbname=repmgr connect_timeout=2'
data_directory='/pgdata'
[postgres@host02pgdata]$ repmgr -h host01 -U repluser -d repmgr -f/pgdata/repmgr.conf standby clone --dry-run
NOTICE:destination directory "/pgdata" provided
INFO:connecting to source node
DETAIL:connection string is: host=host01 user=repluser dbname=repmgr
DETAIL:current installation size is 31 MB
INFO:"repmgr" extension is installed in database "repmgr"
INFO:replication slot usage not requested; no replication slot will beset up for this standby
INFO:parameter "max_wal_senders" set to 32
NOTICE:checking for available walsenders on the source node (2 required)
INFO:sufficient walsenders available on the source node
DETAIL:2 required, 31 available
NOTICE:checking replication connections can be made to the source server (2required)
INFO:required number of replication connections could be made to thesource server
DETAIL:2 replication connections required
WARNING:data checksums are not enabled and "wal_log_hints" is "off"
DETAIL:pg_rewind requires "wal_log_hints" to be enabled
NOTICE:standby will attach to upstream node 1
HINT:consider using the -c/--fast-checkpoint option
INFO:all prerequisites for "standby clone" are met
repmgr-h host01 -U repluser -d repmgr -f /etc/repmgr.conf standby clone

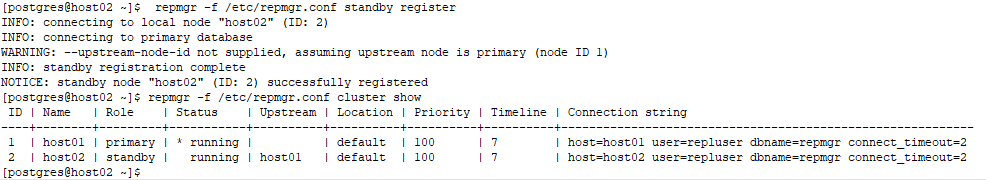

repmgr-f /etc/repmgr.conf standby register
repmgr-f /etc/repmgr.conf cluster show
至此，repmgr就搭建及配置完成。
利用repmgr进行主从切换
repmgrstandby switchover -f /etc/repmgr.conf --siblings-follow --dry-run --切换检查
repmgr-f /etc/repmgr.conf standby switchover
repmgr-f etc/repmgr.conf standby promote ---备节点
repmgr-f /etc/repmgr.conf standby follow --如果有多个备节点，在其他备节点执行
配置自动failover
shared_preload_libraries = 'repmgr'
monitor_interval_secs=2
connection_check_type=connection
reconnect_attempts==6
reconnect_interval=4
failover=automatic
promote_command='/usr/local/postgresql/bin/repmgr standby promote -f /etc/repmgr.conf --log-to-file'
follow_command='/usr/local/postgresql/bin/repmgr standby follow -f /etc/repmgr.conf --log-to-file --upstream-node-id=%n'
log_level='INFO'
log_facility='STDERR'
log_file='/data/pgdata/log/repmgr.log'
log_status_interval=300
repmgrd_service_start_command = 'repmgrd --daemonize=true'
repmgrd_service_stop_command = 'kill `cat /data/pgdata/repmgrd.pid`'
repmgrd_pid_file=' /pgdata/repmgrd.pid'
repmgrdaemon start
--自动failover之后需手工将原主节点恢复成备节点，然后执行repmgr-f /etc/repmgr.conf standby register --force ，否则下次不会自动failover。
keepalived配置
/etc/keepalived/keepalived.conf
global_defs {
router_id pg_ha
# enable_script_security
}
vrrp_script checkpg {
script "/etc/keepalived/scripts/checkpg.sh"
interval 15
fall 3
rise 1
}
vrrp_instance VI_pgusdp {
state BACKUP
interface ens160
virtual_router_id 152
priority 80
advert_int 1
nopreempt
authentication {
auth_type PASS
auth_pass 234235
}
track_script {
checkpg
}
notify_master "/etc/keepalived/scripts/master.sh"
notify_backup "/etc/keepalived/scripts/slave.sh"
virtual_ipaddress {
10.**.**.**/24
}
}
/etc/keepalived/scripts/checkpg.sh
#!/bin/bash
export PGDATABASE=postgres
export PGPORT=5432
export PGUSER=postgres
export PGBIN=/usr/local/postgresql/bin
export PGDATA=/data/pgdata
LOGFILE=/etc/keepalived/log/keepalived.log
nc -w 3 localhost 5432 </dev/null
a=`echo $?`
if [ $a -eq 1 ] ;then
exit 1
else
SQL1='SELECT pg_is_in_recovery from pg_is_in_recovery();'
db_role=`echo $SQL1 | ${PGBIN}/psql -d $PGDATABASE -U $PGUSER -h $PGDATA -At -w`
if [ $db_role == 't' ];then
exit 1
fi
fi
/etc/keepalived/scripts/master.sh
LOGFILE=/etc/keepalived/log/keepalived.log
export PGDATABASE=postgres
export PGPORT=5432
export PGUSER=postgres
export PGBIN=/usr/local/postgresql/bin
export PGDATA=/data/pgdata
LOGFILE=/etc/keepalived/log/keepalived.log
SQL1='SELECT pg_is_in_recovery from pg_is_in_recovery();'
db_role=`echo $SQL1 | ${PGBIN}/psql -d $PGDATABASE -U $PGUSER -h $PGDATA -At -w`
if [ $db_role == 't' ];then
echo -e `date +"%F %T"` "the current database is standby DB! " >> $LOGFILE
exit 1
else
echo -e `date +"%F %T"` "the current database is master DB!" >> $LOGFILE
fi
/etc/keepalived/scripts/slave.sh
LOGFILE=/etc/keepalived/log/keepalived.log
export PGDATABASE=postgres
export PGPORT=5432
export PGUSER=postgres
export PGBIN=/usr/local/postgresql/bin
export PGDATA=/data/pgdata
LOGFILE=/etc/keepalived/log/keepalived.log
SQL1='SELECT pg_is_in_recovery from pg_is_in_recovery();'
db_role=`echo $SQL1 | ${PGBIN}/psql -d $PGDATABASE -U $PGUSER -h $PGDATA -At -w`
if [ $db_role == 't' ];then
echo -e `date +"%F %T"` "the current database is standby DB! " >> $LOGFILE
else
echo -e `date +"%F %T"` "the current database is master DB!" >> $LOGFILE
fi
本文作者：刘运彬（上海新炬王翦团队）
本文来源：“IT那活儿”公众号
