Oracle/MySQL通过odbc访问LightDB

原创姚崇 2022-11-07

1092

安装unixODBC

wget http://www.unixodbc.org/unixODBC-2.3.7.tar.gz
tar -xzvf unixODBC-2.3.7.tar.gz
cd unixODBC-2.3.7/
./configure --prefix=/usr/local/odbc
make && make install

安装PostgreSQL ODBC

通过下方链接，下载对应Oracle所有服务器对应版本的PostgreSQL ODBC驱动，进行安装
PostgreSQL odbc下载地址

[root@node1 ~]# rpm -ivh postgresql13-libs-13.8-1PGDG.rhel7.x86_64.rpm
warning: postgresql13-libs-13.8-1PGDG.rhel7.x86_64.rpm: Header V4 DSA/SHA1 Signature, key ID 442df0f8: NOKEY
Preparing...                          ################################# [100%]
Updating / installing...
   1:postgresql13-libs-13.8-1PGDG.rhel################################# [100%]
[root@node1 ~]# rpm -ivh postgresql13-odbc-13.02.0000-1PGDG.rhel7.x86_64.rpm
warning: postgresql13-odbc-13.02.0000-1PGDG.rhel7.x86_64.rpm: Header V4 DSA/SHA1 Signature, key ID 442df0f8: NOKEY
Preparing...                          ################################# [100%]
Updating / installing...
   1:postgresql13-odbc-13.02.0000-1PGD################################# [100%]

安装好后，默认安装到/usr/pgsql-13/下

配置透明网关

$ cd $ORACLE_HOME/hs/admin
$ cat initPG_LINK.ora

HS_FDS_CONNECT_INFO = PG_LINK
HS_FDS_TRACE_LEVEL = 255
HS_FDS_SHAREABLE_NAME=/usr/pgsql-13/lib/psqlodbcw.so
HS_LANGUAGE=AMERICAN_AMERICA.AL32UTF8
HS_NLS_NCHAR=UCS2

set ODBCINI=/home/oracle/odbc.ini

配置监听和tnsnames

# Generated by Oracle configuration tools.

LISTENER =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = 0.0.0.0)(PORT = 1521))
  )
SID_LIST_LISTENER =
  (SID_LIST =
    (SID_DESC =
      (GLOBAL_DBNAME = test)
      (ORACLE_HOME = /oracle/app/product/19.3.0/db_1)
      (SID_NAME = test)
    )
    (SID_DESC =
      (SID_NAME = PG_LINK)
      (ORACLE_HOME = /oracle/app/product/19.3.0/db_1)
      (ENVS=LD_LIBRARY_PATH="/usr/pgsql-13/lib:/oracle/app/product/19.3.0/db_1")
      (PROGRAM = dg4odbc)
    )
  )

启动监听

LSNRCTL> start
Starting /oracle/app/product/19.3.0/db_1/bin/tnslsnr: please wait...

TNSLSNR for Linux: Version 19.0.0.0.0 - Production
System parameter file is /oracle/app/product/19.3.0/db_1/network/admin/listener.ora
Log messages written to /oracle/app/diag/tnslsnr/node1/listener/alert/log.xml
Listening on: (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=0.0.0.0)(PORT=1521)))

Connecting to (DESCRIPTION=(ADDRESS=(PROTOCOL=TCP)(HOST=0.0.0.0)(PORT=1521)))
STATUS of the LISTENER
------------------------
Alias                     LISTENER
Version                   TNSLSNR for Linux: Version 19.0.0.0.0 - Production
Start Date                07-NOV-2022 19:14:03
Uptime                    0 days 0 hr. 0 min. 0 sec
Trace Level               off
Security                  ON: Local OS Authentication
SNMP                      OFF
Listener Parameter File   /oracle/app/product/19.3.0/db_1/network/admin/listener.ora
Listener Log File         /oracle/app/diag/tnslsnr/node1/listener/alert/log.xml
Listening Endpoints Summary...
  (DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=0.0.0.0)(PORT=1521)))
Services Summary...
Service "PG_LINK" has 1 instance(s).
  Instance "PG_LINK", status UNKNOWN, has 1 handler(s) for this service...
Service "test" has 1 instance(s).
  Instance "test", status UNKNOWN, has 1 handler(s) for this service...
The command completed successfully

配置tnsname

cat tnsnames.ora
PG_LINK =
 (DESCRIPTION=
    (ADDRESS= (PROTOCOL=TCP)(HOST=127.0.0.1)(PORT=1521))
    (CONNECT_DATA=(SID=PG_LINK))
 (HS=OK)
 )

$ tnsping PG_LINK
Attempting to contact (DESCRIPTION= (ADDRESS= (PROTOCOL=TCP)(HOST=127.0.0.1)(PORT=1521)) (CONNECT_DATA=(SID=PG_LINK)) (HS=OK))
OK (10 msec)

配置odbc连接

cat /home/oracle/odbc.ini

[PG_LINK]
#数据源说明，根据实际情况自定义
Description        = PostgreSQL connection to atlasdb
#指定PostgreSQL的ODBC驱动所在位置，rpm安装后所在位置
Driver             = /usr/pgsql-13/lib/psqlodbcw.so
Setup              = /usr/pgsql-13/lib/psqlodbcw.so
#数据库名，远程访问的数据库名
Database           = test
#数据库所在的主机名或IP
Servername         = 10.0.4.4
#数据库用户名(可不填，在代码中指定即可)
UserName           = test
#数据库用户密码(可不填，在代码中指定即可)
Password           = test
#数据库端口
Port               = 5432
SocketBufferSize   = 4096
FetchBufferSize    = 500
ReadOnly           = Yes
RowVersioning      = No
ShowSystemTables   = No

#查询结果的字符编码
ConnSettings       = set client_encoding to UTF8

执行isql访问LightDB

$ export ODBCINI=/home/oracle/odbc.ini
$ isql PG_LINK -v
+---------------------------------------+
| Connected!                            |
|                                       |
| sql-statement                         |
| help [tablename]                      |
| quit                                  |
|                                       |
+---------------------------------------+
SQL> select * from emp;
+-------+-----------+----------+-------+-----------+----------+----------+-------+
| empno | ename     | job      | mgr   | hiredate  | sal      | comm     | deptno|
+-------+-----------+----------+-------+-----------+----------+----------+-------+
| 7369  | SMITH     | CLERK    | 7902  | 1980-12-17| 800.00   |          | 20    |
| 7499  | ALLEN     | SALESMAN | 7698  | 1981-02-20| 1600.00  | 300.00   | 30    |
| 7521  | WARD      | SALESMAN | 7698  | 1981-02-22| 1250.00  | 500.00   | 30    |
| 7566  | JONES     | MANAGER  | 7839  | 1981-04-02| 2975.00  |          | 20    |
| 7654  | MARTIN    | SALESMAN | 7698  | 1981-09-28| 1250.00  | 1400.00  | 30    |
| 7698  | BLAKE     | MANAGER  | 7839  | 1981-05-01| 2850.00  |          | 30    |
| 7782  | CLARK     | MANAGER  | 7839  | 1981-06-09| 2450.00  |          | 10    |
| 7788  | SCOTT     | ANALYST  | 7566  | 1987-04-19| 3000.00  |          | 20    |
| 7839  | KING      | PRESIDENT|       | 1981-11-17| 5000.00  |          | 10    |
| 7844  | TURNER    | SALESMAN | 7698  | 1981-09-08| 1500.00  | 0.00     | 30    |
| 7876  | ADAMS     | CLERK    | 7788  | 1987-05-23| 1100.00  |          | 20    |
| 7900  | JAMES     | CLERK    | 7698  | 1981-12-03| 950.00   |          | 30    |
| 7902  | FORD      | ANALYST  | 7566  | 1981-12-03| 3000.00  |          | 20    |
| 7934  | MILLER    | CLERK    | 7782  | 1982-01-23| 1300.00  |          | 10    |
+-------+-----------+----------+-------+-----------+----------+----------+-------+
SQLRowCount returns 14
SQLRowCount returns 14
14 rows fetched
SQL>

如果报错如下，仔细核对odbc.ini配置文件，我是因为少写了[PG_LINK]标签

$ export ODBCINI=/home/oracle/odbc.ini
$
$ isql PG_LINK -v
[IM002][unixODBC][Driver Manager]Data source name not found and no default driver specified
[ISQL]ERROR: Could not SQLConnect

创建DBlink验证

create database link pg_link connect to "test" identified by "test" using 'PG_LINK';
SQL> select * from "haha"@PG_LINK;

 id
----------
  1

遇见的问题

SQL> select * from "emp"@PG_LINK;
select * from "emp"@PG_LINK
*
ERROR at line 1:
ORA-28562: Heterogeneous Services data truncation error
Fetched item was truncated. {01004,NativeErr = -2}
ORA-02063: preceding 2 lines from PG_LINK

https://www.easysoft.com/blog/postgresql-oracle.html

How to Resolve Common Errors Encountered while using Database Gateways (DG4IFMX, Dg4MSQL, DG4SYBS), DG4ODBC or Generic Connectivity (Doc ID 234517.1)

DG4DB2 failed with ORA-28562 Error in data truncation of heterogeneous services (Doc ID 2722398.1)

SQL> select * from nls_database_parameters

PARAMETER                      VALUE
------------------------------ ------------------------------
NLS_RDBMS_VERSION              19.0.0.0.0
NLS_NCHAR_CONV_EXCP            FALSE
NLS_LENGTH_SEMANTICS           BYTE
NLS_COMP                       BINARY
NLS_DUAL_CURRENCY              $
NLS_TIMESTAMP_TZ_FORMAT        DD-MON-RR HH.MI.SSXFF AM TZR
NLS_TIME_TZ_FORMAT             HH.MI.SSXFF AM TZR
NLS_TIMESTAMP_FORMAT           DD-MON-RR HH.MI.SSXFF AM
NLS_TIME_FORMAT                HH.MI.SSXFF AM
NLS_SORT                       BINARY
NLS_DATE_LANGUAGE              AMERICAN

PARAMETER                      VALUE
------------------------------ ------------------------------
NLS_DATE_FORMAT                DD-MON-RR
NLS_CALENDAR                   GREGORIAN
NLS_NUMERIC_CHARACTERS         .,
NLS_NCHAR_CHARACTERSET         AL16UTF16
NLS_CHARACTERSET               AL32UTF8
NLS_ISO_CURRENCY               AMERICA
NLS_CURRENCY                   $
NLS_TERRITORY                  AMERICA
NLS_LANGUAGE                   AMERICAN

20 rows selected.

2、PostgreSQL驱动版本低问题

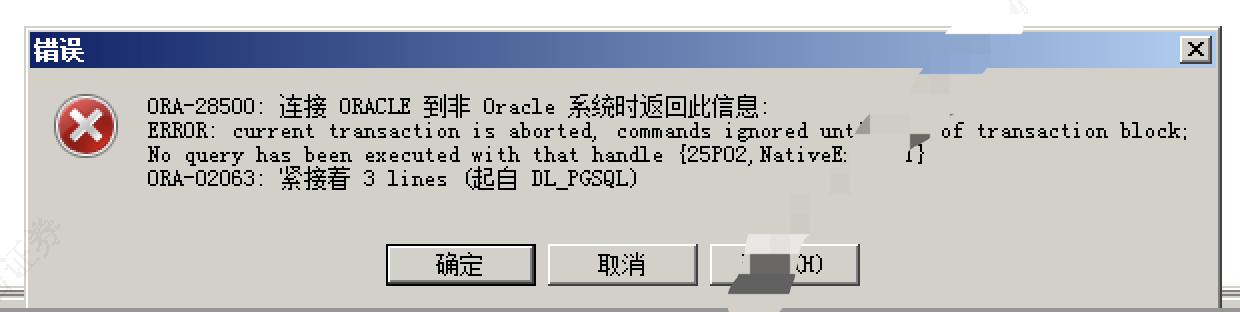

ORA-08500:连接ORACLE到非Oracle系统时返回此信息
ERROR: current transaction is aborted, commands ignored until end of transaction block;
ORA-02063: 紧接着 3 lines

查看数据库日志,会有如下报错,

xxxx xxx [1853958] STATEMENT:  SELECT * FROM "table_name"
xxxx xxx [1853958] ERROR:  column d.adsrc does not exist at character 150
xxxx xxx [1853958] STATEMENT:  BEGIN;select n.nspname, c.relname, a.attname, a.atttypid, t.typname, a.attnum, a.attlen, a.atttypmod, a.attnotnull, c.relhasrules, c.relkind, c.oid, d.adsrc, case t.typtype when 'd' then t.typbasetype else 0 end, t.typtypmod from (((pg_catalog.pg_class c inner join pg_catalog.pg_namespace n on n.oid = c.relnamespace and c.relname like 'xxxxx' and n.nspname like 'aaaa
') inner join pg_catalog.pg_attribute a on (not a.attisdropped) and a.attnum > 0 and a.attrelid = c.oid) inner join pg_catalog.pg_type t on t.oid = a.atttypid) left outer join pg_attrdef d on a.atthasdef and d.adrelid = a.attrelid and d.adnum = a.attnum order by n.nspname, c.relname, attnum

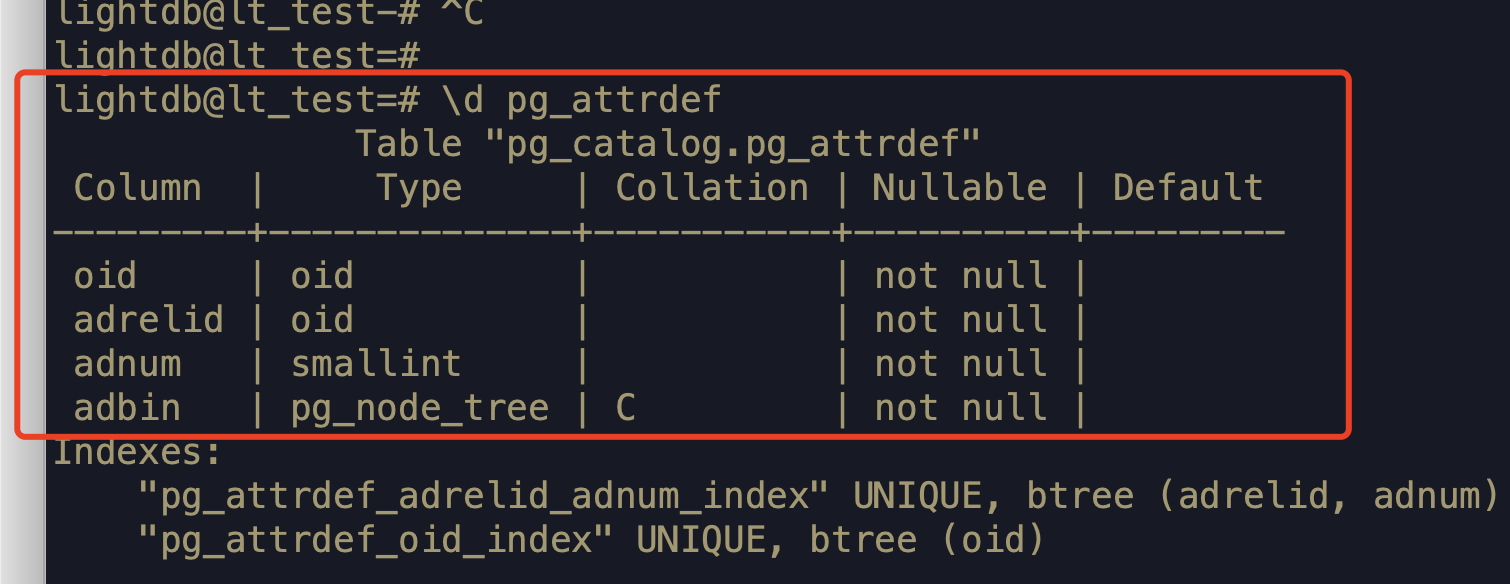

原因PostgreSQL11以后，pg_attrdef表结构无adsrc字段了，所以驱动最少用pg12的

MySQL目前只有MariaDB odbc访问PostgreSQL

前言

PostgreSQL 可以通过mysql_fdw访问MySQL（或者MariaDB），
那MySQL如何访问PostgreSQL呢？
答案是CONNECT Store Engine。
MariaDB 从 10.0.2版本开始支持CONNECT Store Engine。
CONNECT存储引擎使MariaDB可以访问外部（本地或远程）数据（MED）。这是通过根据不同的数据类型（尤其是各种格式的文件），通过ODBC或JDBC从其他DBMS或产品（例如Excel或MongoDB）提取的数据或从环境中检索到的数据（例如DIR，WMI）定义表来完成的和MAC表）。
该存储引擎支持表分区，MariaDB虚拟列，并允许定义特殊列，例如ROWID，FILEID和SERVID。

本文就介绍下Ubuntu MariaDB如何通过CONNECT插件来访问Postgres。
环境
• MariaDB 10.4
• host: 127.0.0.1
• port: 3306
• username: root
• password: pass
• PostgreSQL 12.2
• host: 192.168.1.6
• port: 5433
• username: postgres
• database: postgres
• password:
• Ubuntu 18.04 LTS
安装CONNECT插件

$ yum install mariadb-plugin-connect
mysql> INSTALL SONAME 'ha_connect';

安装ODBC-PostgreSQL
• MariaDB服务器上安装ODBC-PostgreSQL
$ apt-get install unixodbc odbc-postgresql

配置ODBC.ini

cat >>/etc/odbc.ini <<EOF
[pg12]
Description = PostgreSQL
Driver      = PostgreSQL Unicode
Trace       = No
TraceFile   = /tmp/psqlodbc.log
Database    = postgres
Servername  = 192.168.1.6
UserName    = postgres
Password    =
Port        = 5433
ReadOnly         = Yes
RowVersioning    = No
ShowSystemTables = No
ShowOidColumn    = No
FakeOidIndex     = No
ConnSettings     =
EOF

测试odbc

isql -v pg12

测试CONNECT

create database postgres
use postgres;
CREATE TABLE iris (
  sepal_length double(12,2) NULL,
  sepal_width double(12,2) NULL,
  petal_length double(12,2) NULL,
  petal_width double(12,2) NULL,
  species varchar(20) NULL
)ENGINE=CONNECT TABLE_TYPE=ODBC tabname='mysql.iris'
CONNECTION='DSN=pg12'
;

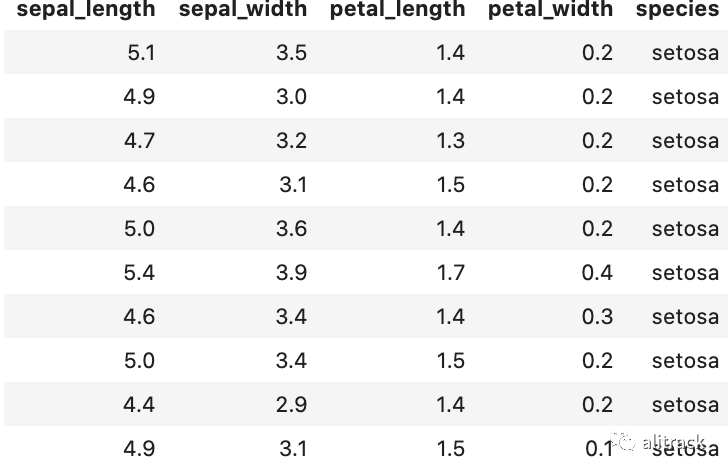

select * from iris limit 10;

mysql> show create table postgres.iris;
>>返回
CREATE TABLE `iris` (
`sepal_length` float DEFAULT NULL,
`sepal_width` float DEFAULT NULL,
`petal_length` float DEFAULT NULL,
`petal_width` float DEFAULT NULL,
`species` varchar(20) DEFAULT NULL) ENGINE=CONNECT DEFAULT CHARSET=latin1
CONNECTION='DSN=pg12'
`TABLE_TYPE`=ODBC `tabname`='mysql.iris'

参考

https://mp.weixin.qq.com/s?__biz=MzU1NTg2ODQ5Nw==&mid=2247484786&idx=1&sn=9db9f7b1cd61103fff6ed9a7d56b5988&chksm=fbcc8d4cccbb045a6bed55bbcca47d544e8d18c5d73a01a8acbc80d8c2b562ae0a24b4ad7539&token=574247946&lang=zh_CN#rd
