(下篇)
--副标题：redhat 6.5安装oracle12.2 RAC指导手册（下篇）
6、grid软件安装
6.1 检测安装环境
--全面检查：
./runcluvfy.sh stage -pre crsinst -nrac1,rac2 -verbose
--检查网络和等效性
./runcluvfy.sh comp nodecon -n rac1,rac2-verbose
[grid@rac1 grid]$ ./runcluvfy.sh comp nodecon -n rac1,rac2 -verbose
Verifying Node Connectivity ... Verifying Hosts File ... Node Name Status ------------------------------------ ------------------------ rac1 passed rac2 passed Verifying Hosts File ...PASSED
Interface information for node "rac1"
Name IP Address Subnet Gateway Def. Gateway HW Address MTU ------ --------------- --------------- --------------- --------------- ----------------- ------ eth0 192.168.2.191 192.168.2.0 0.0.0.0 192.168.2.2 00:0C:29:7E:7E:8E 1500 eth1 10.1.1.191 10.1.1.0 0.0.0.0 192.168.2.2 00:0C:29:7E:7E:98 1500 eth2 10.1.1.192 10.1.1.0 0.0.0.0 192.168.2.2 00:0C:29:7E:7E:A2 1500
Interface information for node "rac2"
Name IP Address Subnet Gateway Def. Gateway HW Address MTU ------ --------------- --------------- --------------- --------------- ----------------- ------ eth0 192.168.2.193 192.168.2.0 0.0.0.0 192.168.2.2 00:0C:29:4D:85:CF 1500 eth1 10.1.1.193 10.1.1.0 0.0.0.0 192.168.2.2 00:0C:29:4D:85:D9 1500 eth2 10.1.1.194 10.1.1.0 0.0.0.0 192.168.2.2 00:0C:29:4D:85:E3 1500
Node Name IP Address Subnet MTU -------- ------- ------------ ------------ ------------- rac1 eth0 192.168.2.191 192.168.2.0 1500 rac2 eth0 192.168.2.193 192.168.2.0 1500
Node Name IP Address Subnet MTU -------- -------- ------------ ------------ ------------ rac1 eth1 10.1.1.191 10.1.1.0 1500 rac1 eth2 10.1.1.192 10.1.1.0 1500 rac2 eth1 10.1.1.193 10.1.1.0 1500 rac2 eth2 10.1.1.194 10.1.1.0 1500 Verifying Check that maximum (MTU) size packet goes through subnet ...PASSED Verifying Node Connectivity ...PASSED Verifying Multicast check ...PASSED
Verification of node connectivity was successful.
CVU operation performed: node connectivity Date: Feb 22, 2016 8:17:50 PM CVU home: dba/soft/grid/ User: grid |

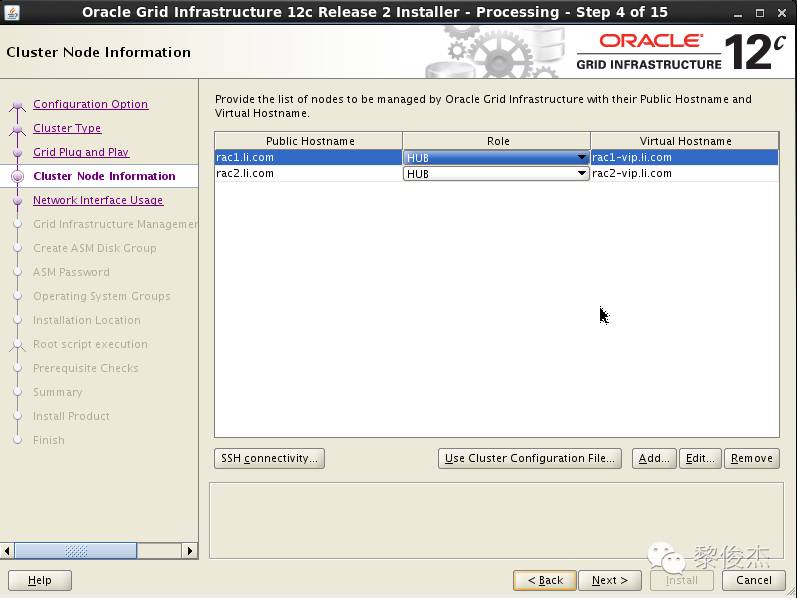

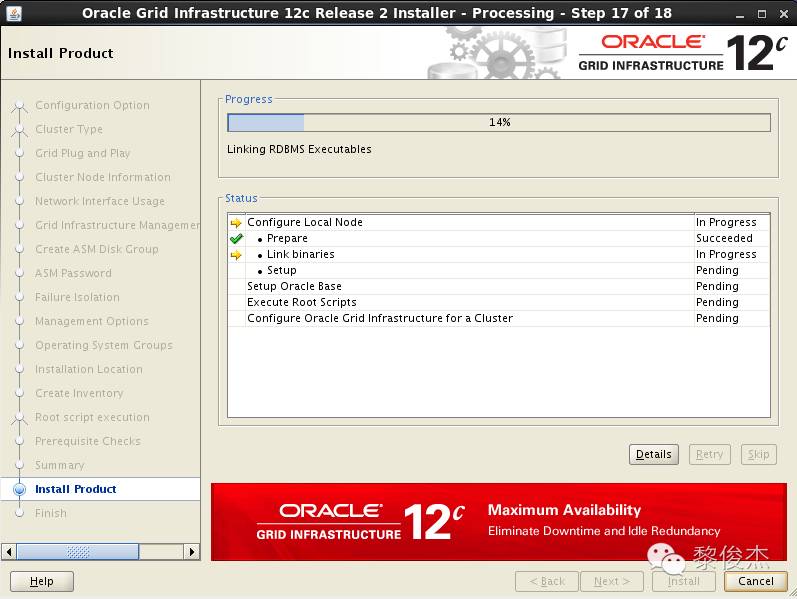

6.2 安装GI（Grid Infrastructure）

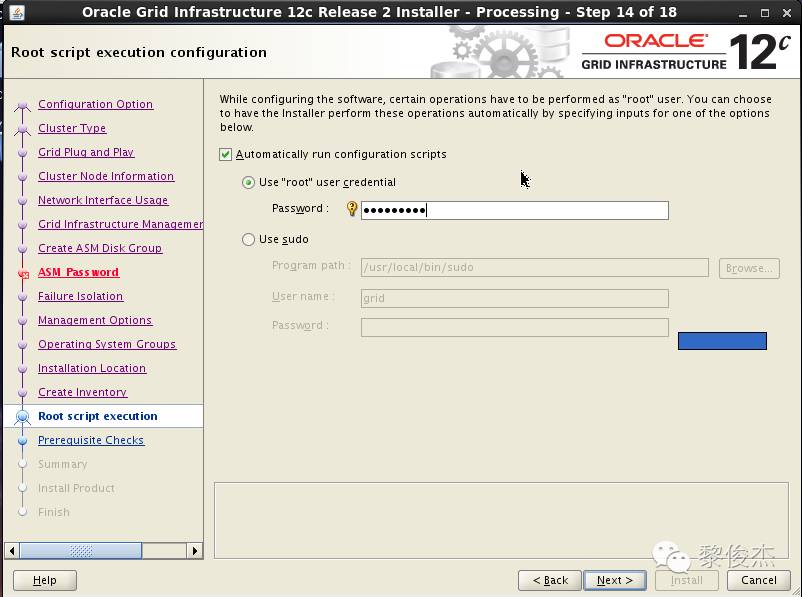

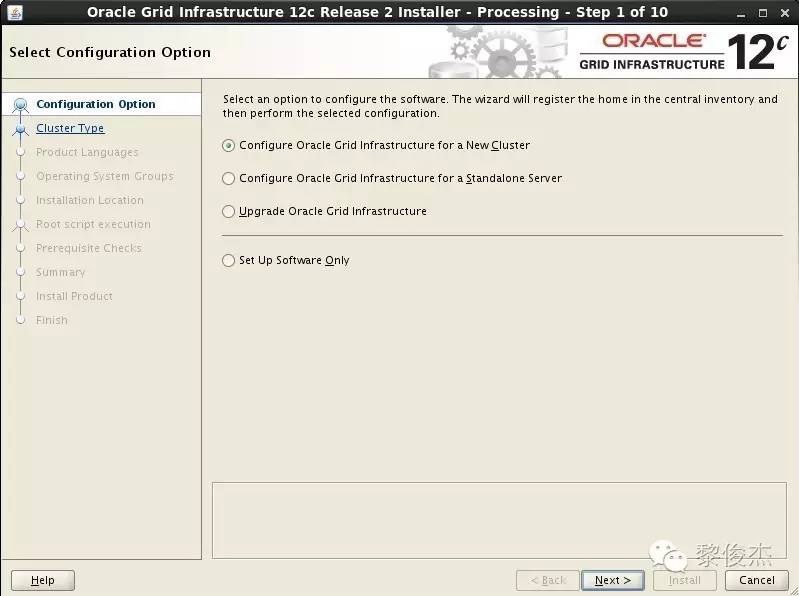

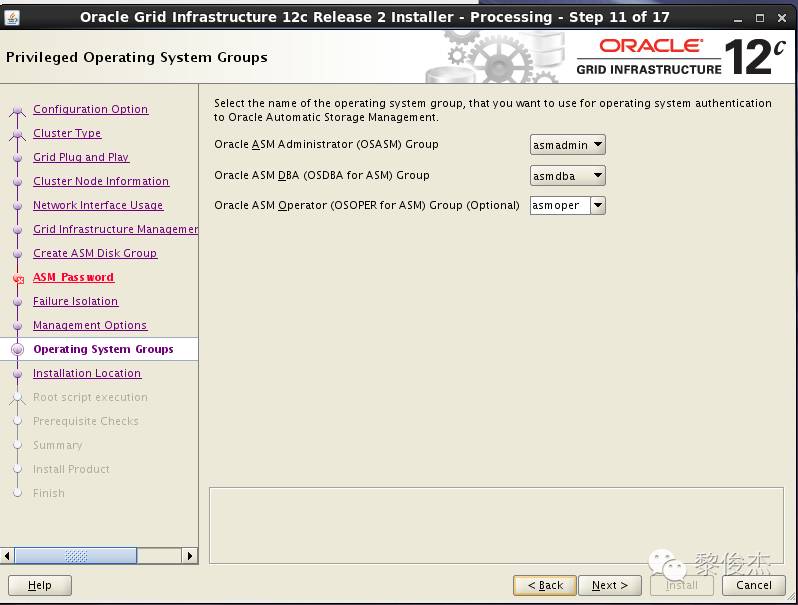

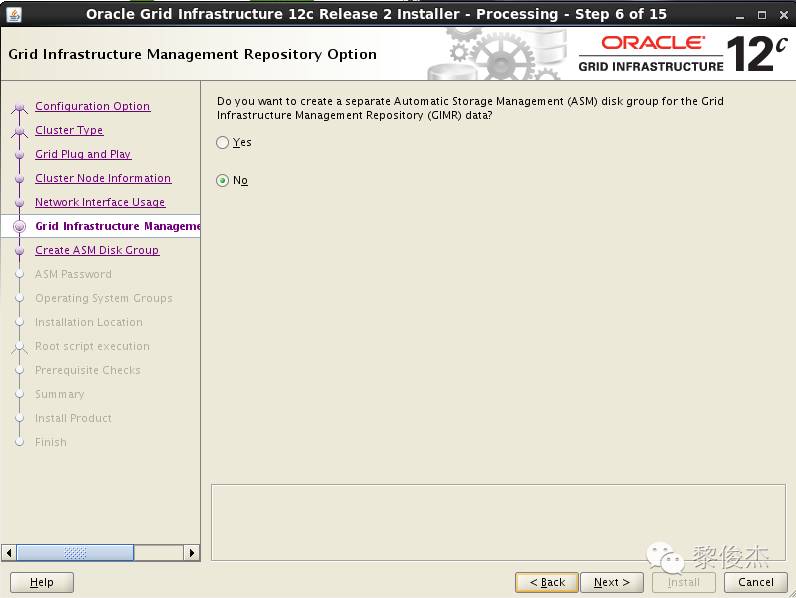

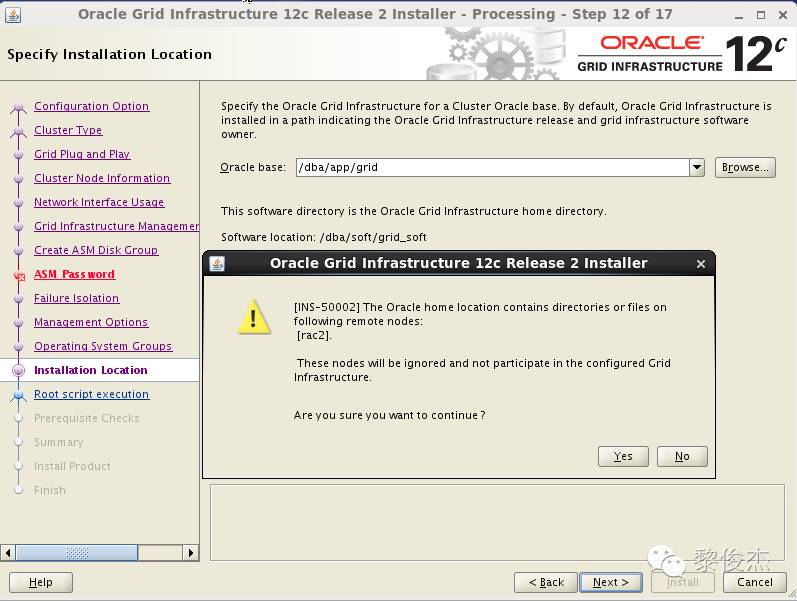

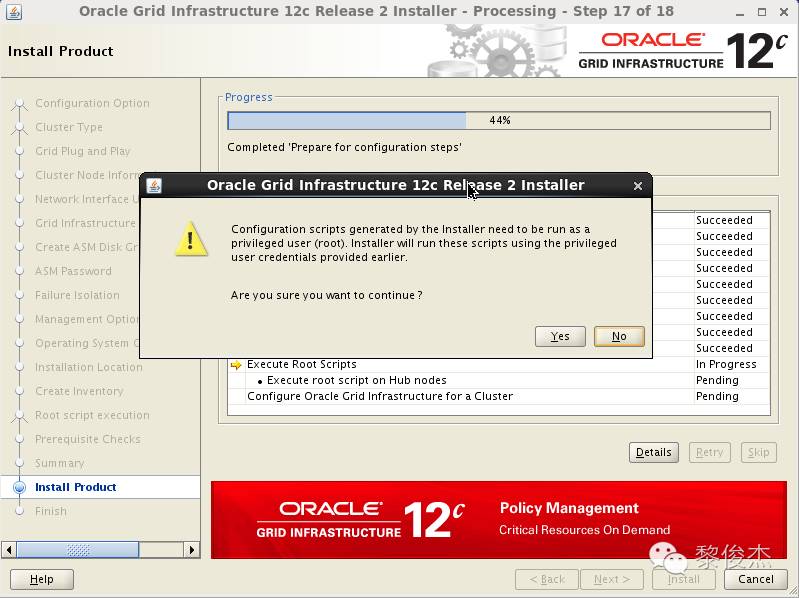

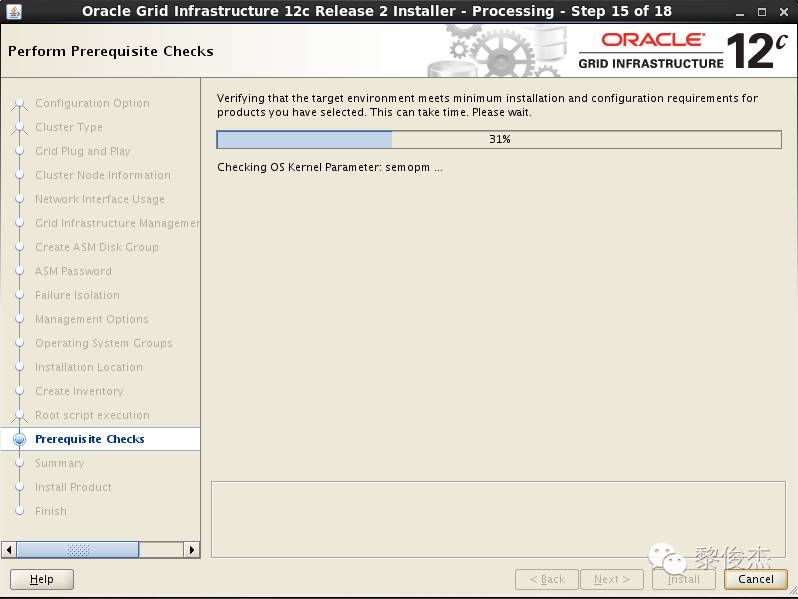

./gridSetup.sh

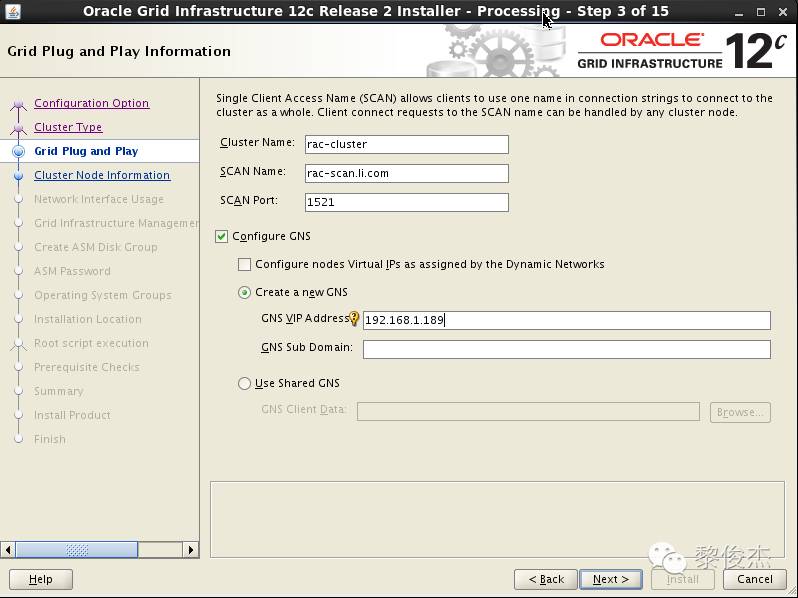

Scan name需要和/etc/hosts中的scan名称一致，否则会报下面错误：
ins-40718 single client access name(scan):XXclusternamecould not be resolved

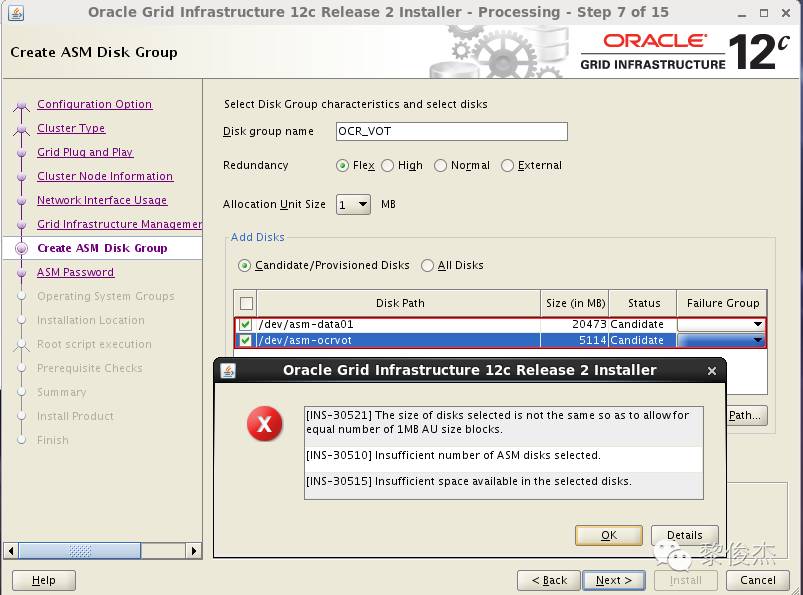

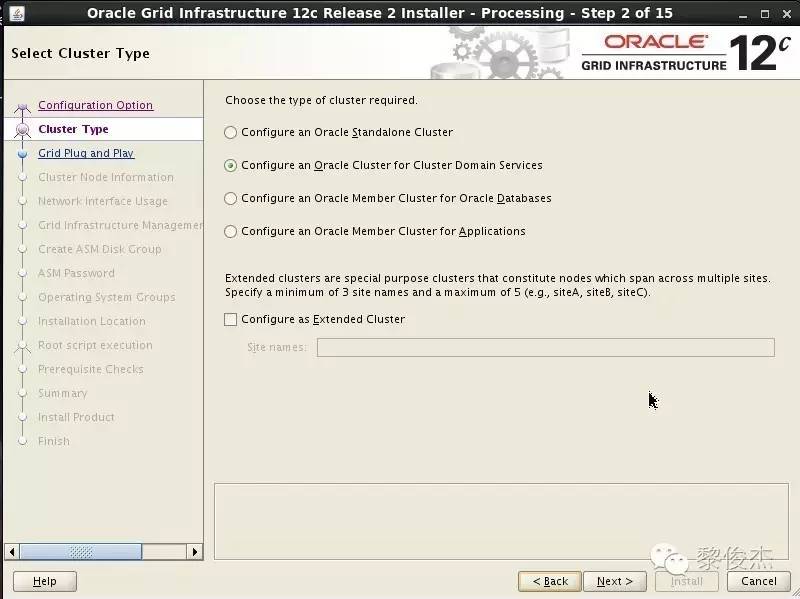

如果选择flex，必须3块磁盘，以及剩余空间36352MB以上，如下图所示：
[grid@rac1 tmp]$ crs_stat -t Name Type Target State Host ------------------------------------------------------------ ora....SM.lsnr ora....er.type ONLINE ONLINE rac1 ora....ER.lsnr ora....er.type ONLINE ONLINE rac1 ora....AF.lsnr ora....er.type OFFLINE OFFLINE ora....N1.lsnr ora....er.type ONLINE ONLINE rac2 ora....N2.lsnr ora....er.type ONLINE ONLINE rac1 ora....N3.lsnr ora....er.type ONLINE ONLINE rac1 ora.MGMTLSNR ora....nr.type ONLINE ONLINE rac1 ora.OCR_VOT.dg ora....up.type ONLINE ONLINE rac1 ora.asm ora.asm.type ONLINE ONLINE rac1 ora.cvu ora.cvu.type ONLINE ONLINE rac1 ora.gns ora.gns.type ONLINE ONLINE rac1 ora.gns.vip ora....ip.type ONLINE ONLINE rac1 ora.ioserver ora....er.type OFFLINE OFFLINE ora.mgmtdb ora....db.type ONLINE ONLINE rac1 ora....network ora....rk.type ONLINE ONLINE rac1 ora.ons ora.ons.type ONLINE ONLINE rac1 ora.proxy_advm ora....vm.type OFFLINE OFFLINE ora.qosmserver ora....er.type ONLINE ONLINE rac1 ora....C1.lsnr application ONLINE ONLINE rac1 ora.rac1.ons application ONLINE ONLINE rac1 ora.rac1.vip ora....t1.type ONLINE ONLINE rac1 ora....C2.lsnr application ONLINE ONLINE rac2 ora.rac2.ons application ONLINE ONLINE rac2 ora.rac2.vip ora....t1.type ONLINE ONLINE rac2 ora.scan1.vip ora....ip.type ONLINE ONLINE rac2 ora.scan2.vip ora....ip.type ONLINE ONLINE rac1 ora.scan3.vip ora....ip.type ONLINE ONLINE rac1 |

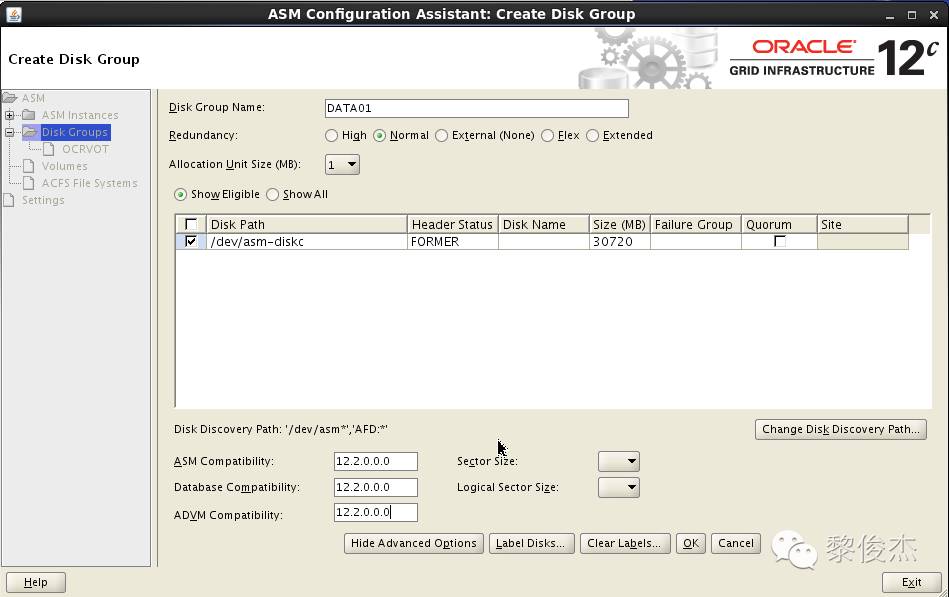

7 、asmca创建其它asmdiskgroup

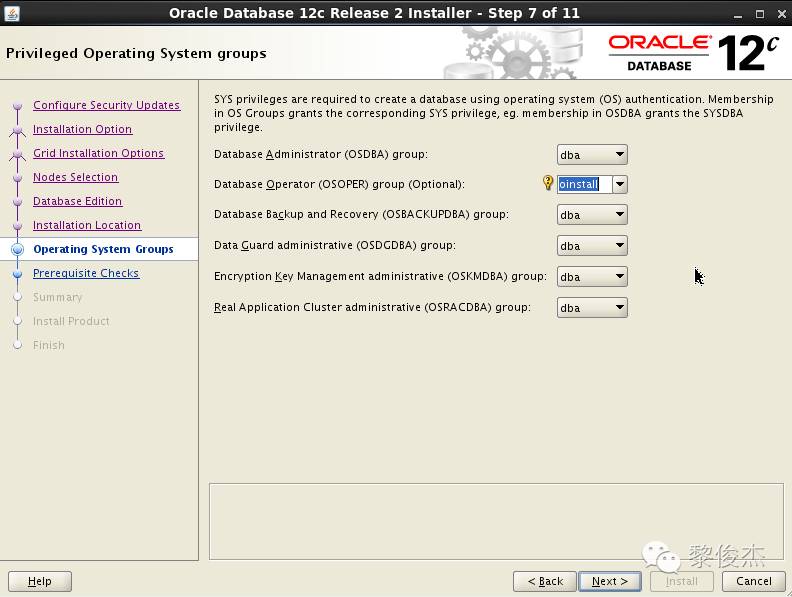

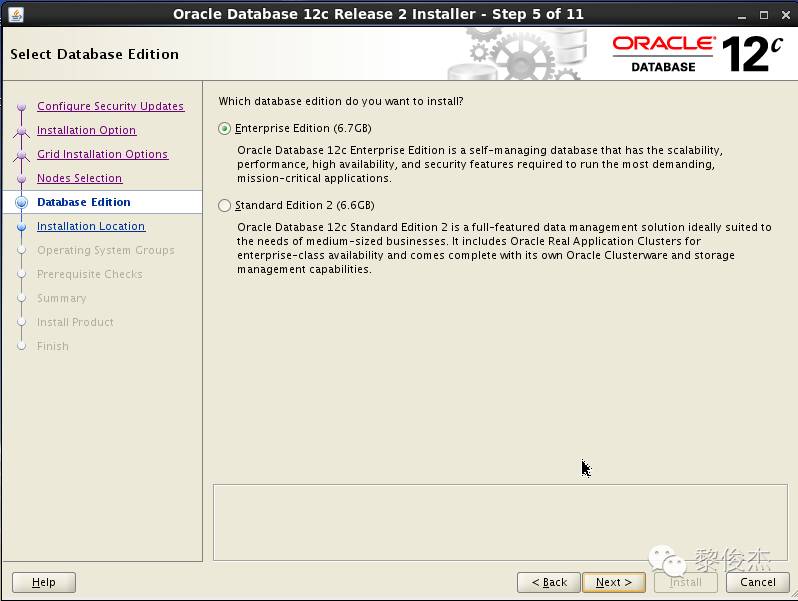

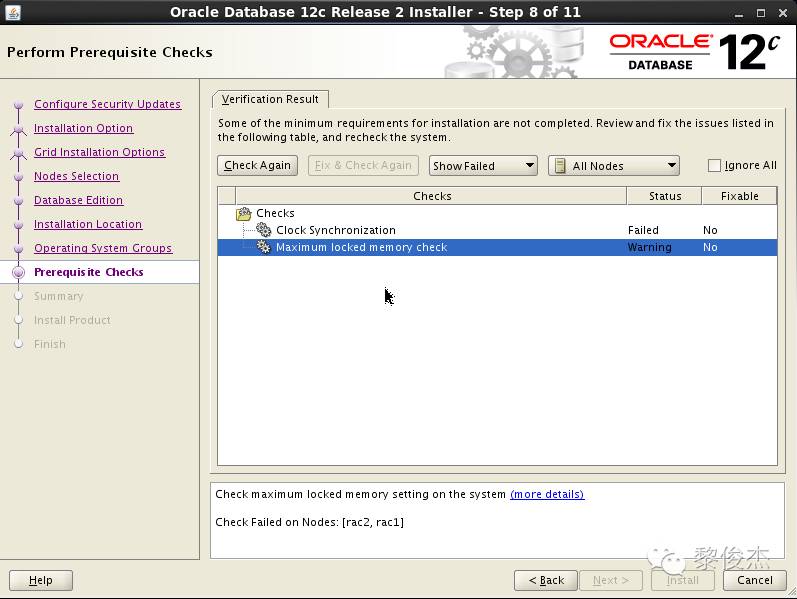

8、database软件安装
#su – oracle

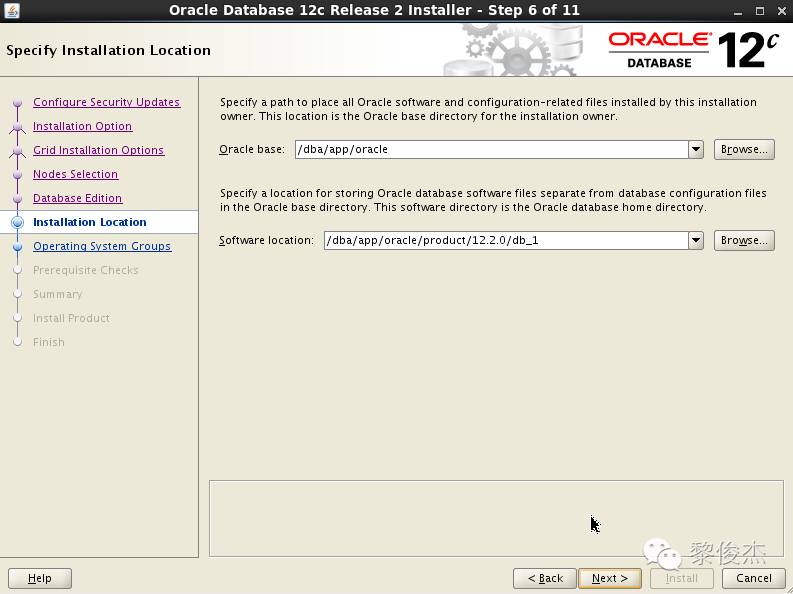

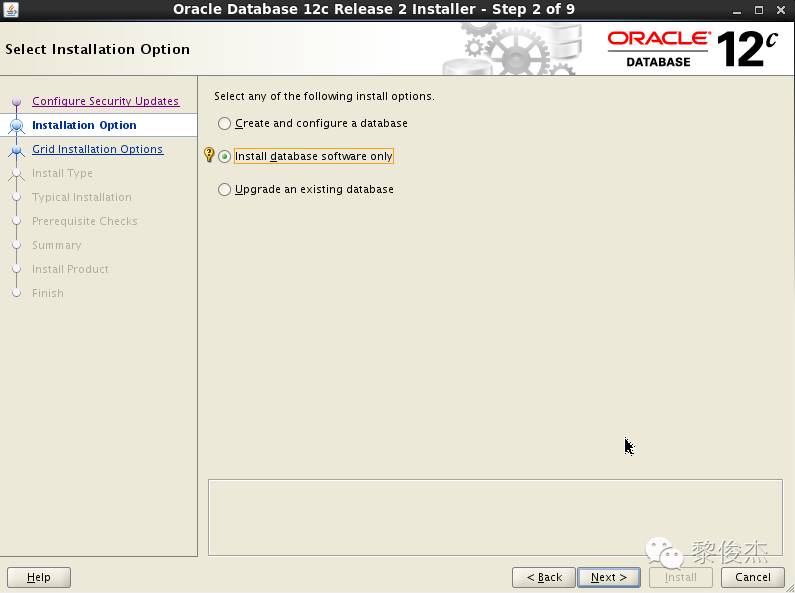

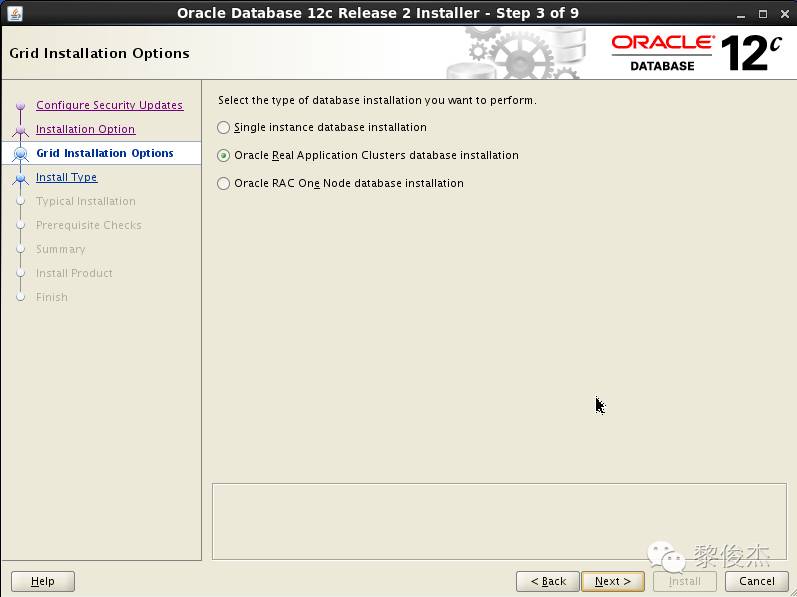

$./runInstaller

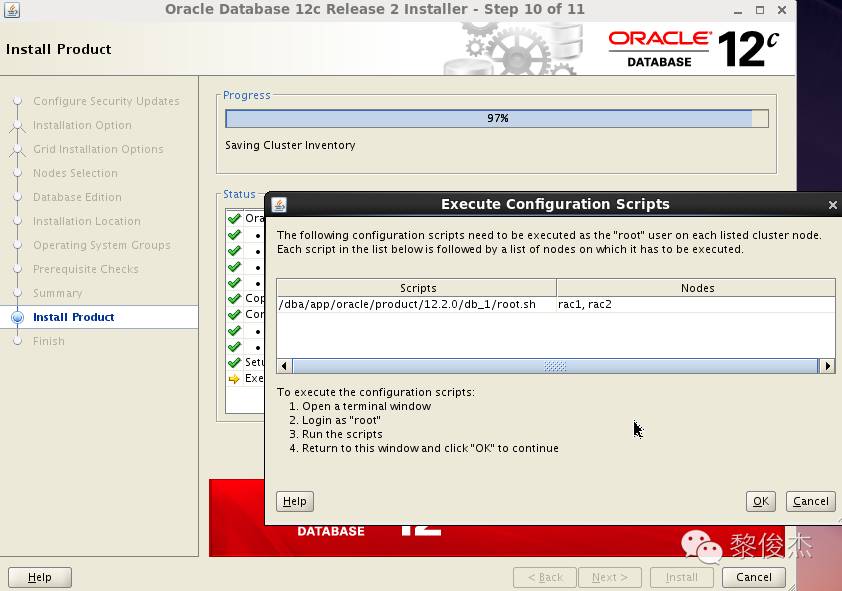

按照上图提示，在两个节点上分别执行：
./dba/app/oracle/product/12.2.0/db_1/root.sh

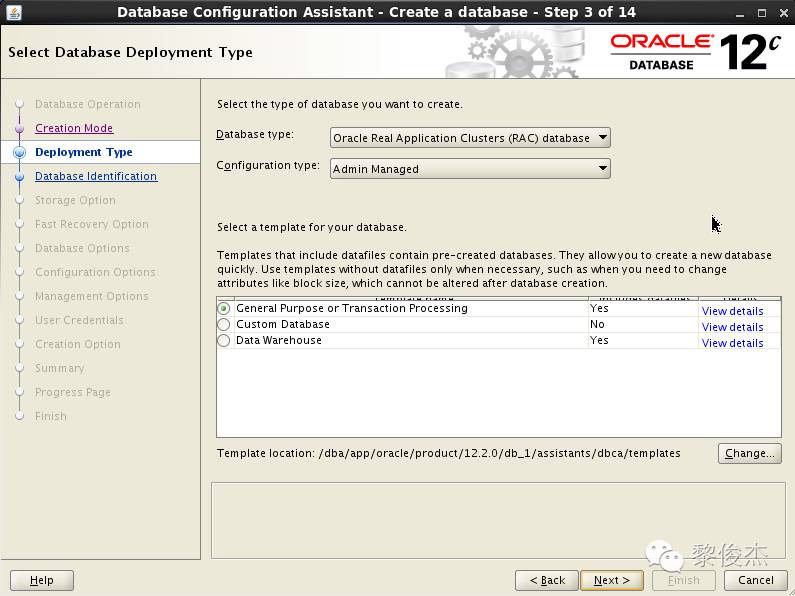

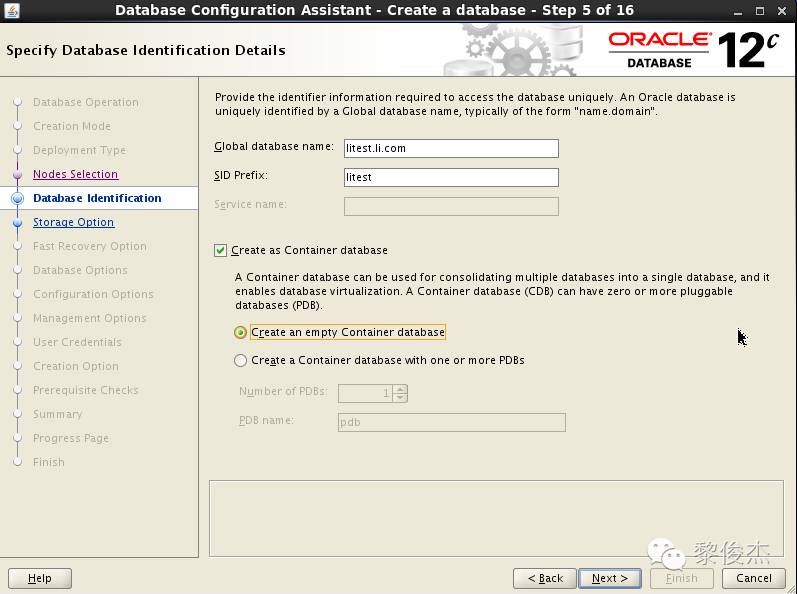

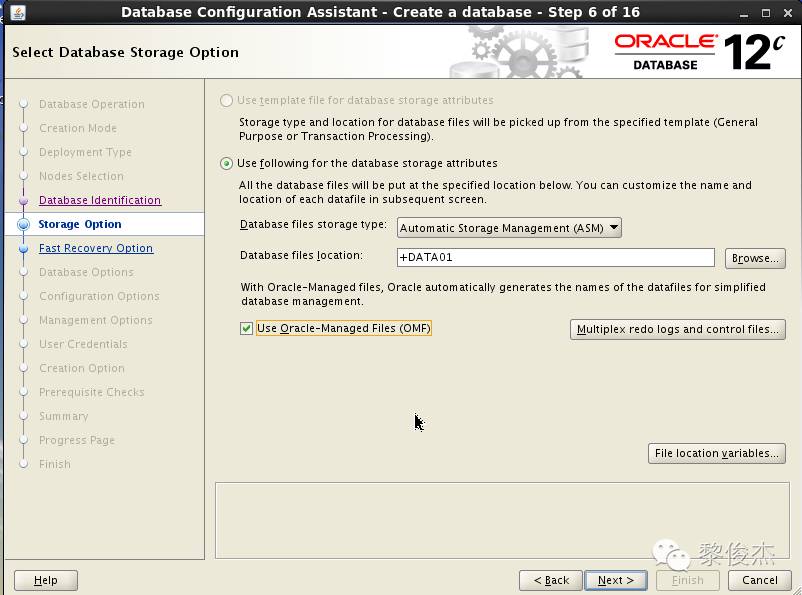

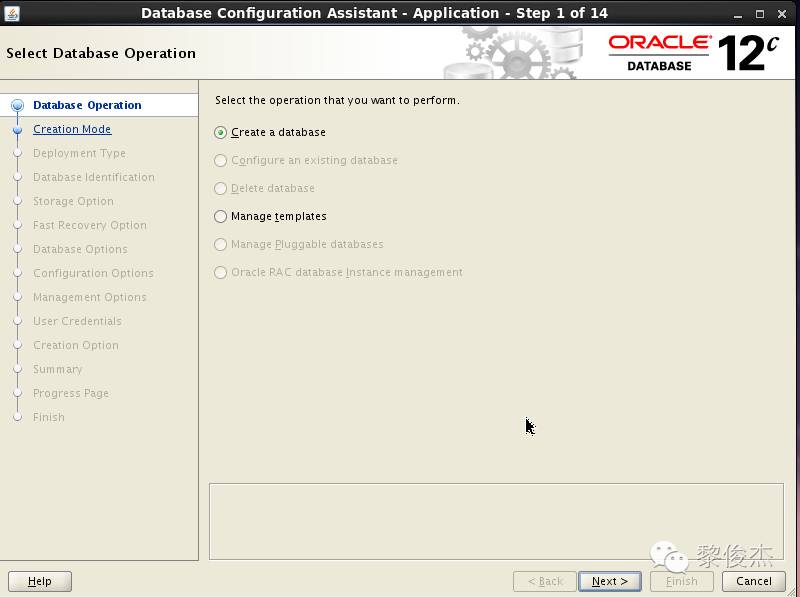

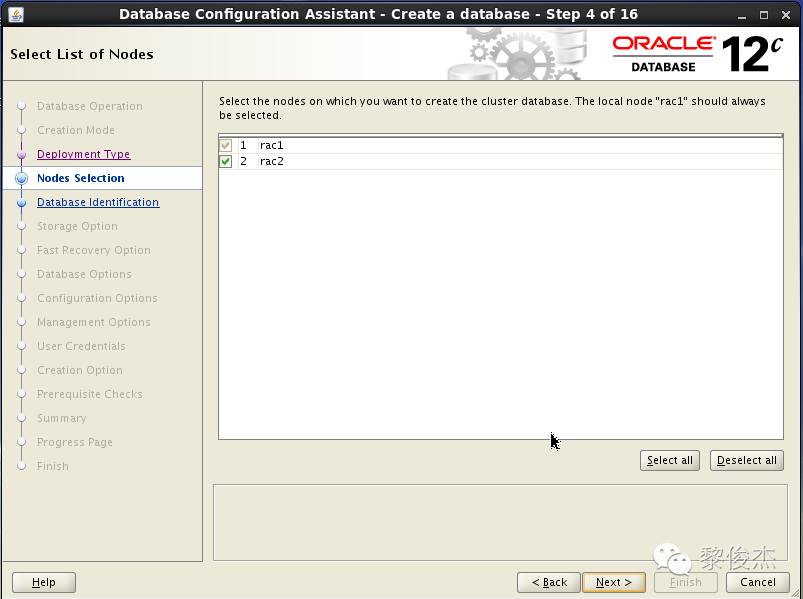

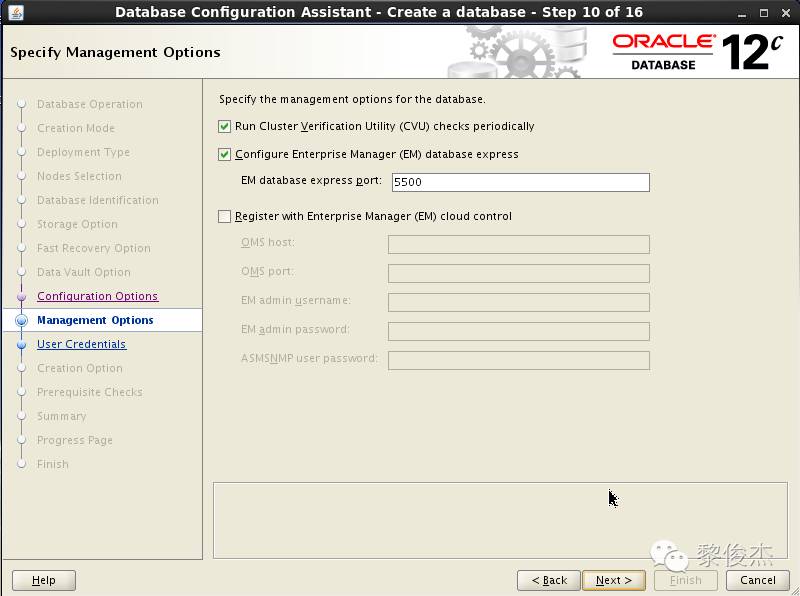

9、创建CDB
#su - oracle

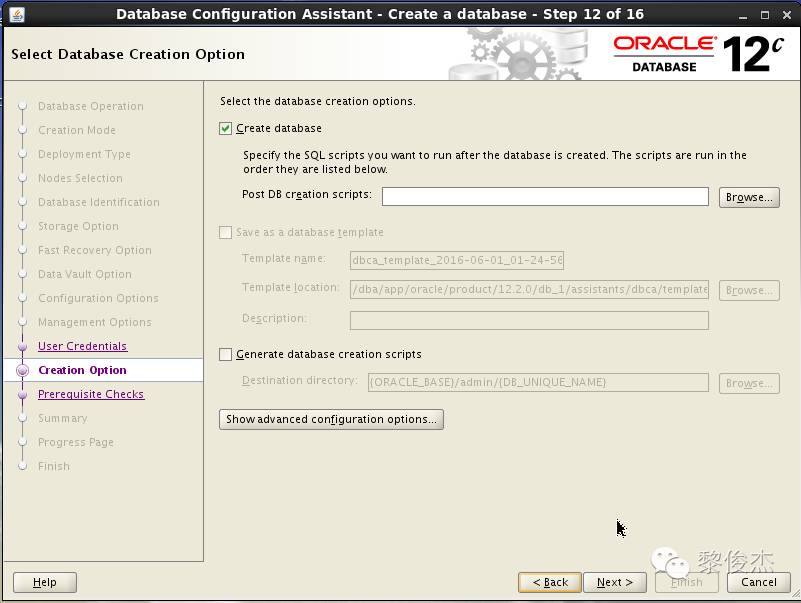

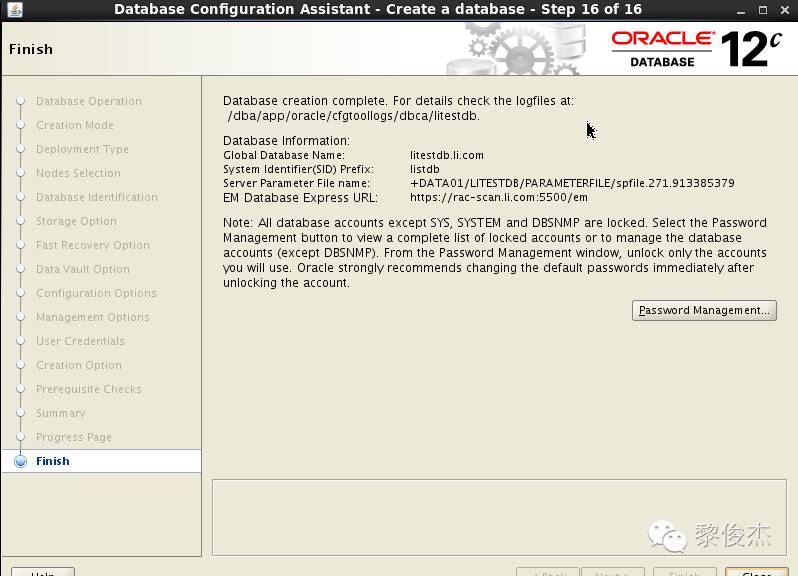

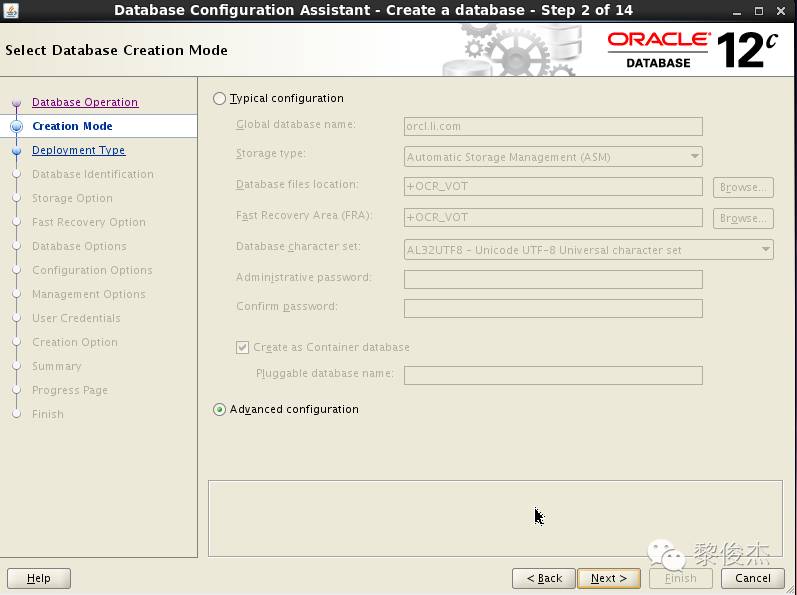

$dbca
查看创建的容器数据库：
SQL> select name,cdb from v$database;
NAME CDB
--------- ---
LITESTDB YES
查看存在的插拔数据库：
SQL> col pdb_name for a30
SQL> selectpdb_id,pdb_name,dbid,status,creation_scn from dba_pdbs;
PDB_ID PDB_NAME DBID STATUS CREATION_SCN
------ ----------------- -------------------- -----------
2 PDB$SEED 33618433 NORMAL 2717802
10、创建PDB
10.1 以命令方式创建PDB
$sqlplus “/as sysdba”
SQL> CREATE PLUGGABLE DATABASE lipdb
ADMIN USER lipdbdba IDENTIFIED BY lipdbdba
STORAGE (MAXSIZE 5G MAX_SHARED_TEMP_SIZE 100M)
DEFAULT TABLESPACE tbs_pdb2 DATAFILE '+DATA01' SIZE 100M AUTOEXTEND ON;
Pluggable database created.
10.2 查看创建成功的PDB
SQL> col pdb_name for a30
SQL> selectpdb_id,pdb_name,dbid,status,creation_scn from dba_pdbs;
PDB_ID PDB_NAME DBID STATUS CREATION_SCN
------ --------- ---------- --------------------
3 LIPDB 182063881 NEW 3294239
2 PDB$SEED 33618433 NORMAL 2717802
