注：近期在进行去O数据库测试，了解了下openGauss数据库，前期也在测试环境进行了openGauss的安装等方面的学习，根据制定的计划，也希望能对openGauss进行一些压测，观察数据库运行状况，于是网上查找资料，并根据网上的一些资料，并进行了测试和文档整理，也向之前写这方面文档的人致敬，感谢他们的付出。也希望对此熟悉的人能多多指正，以便完善和修改，另外，在生成的报告里，对于操作系统层面的一些数据未显示出来，还在排查中，也希望对此熟悉的能多多指导。
本次是测试环境验证测试，服务器是在虚拟机上，配置也较差，如生产环境还需考虑更多方面。
一、环境准备
1.1、安装依赖包
[root@opengauss-node1 ~]# yum install gcc glibc-headers gcc-c++ gcc-gfortran readline-devel libXt-devel pcre-devel libcurl libcurl-devel -y
[root@opengauss-node1 ~]# yum install ncurses ncurses-devel autoconf automake zlib zlib-devel bzip2 bzip2-devel xz-devel ant -y
1.2、安装JDK
[root@opengauss-node1 ~]# mkdir -p /opt/module
[root@opengauss-node1 ~]# tar -zxvf jdk-8u321-linux-x64.tar.gz -C /opt/module
-- 配置JAVA_HOME环境变量
[root@opengauss-node1 ~]# vim /etc/profile
-- 添加如下内容
export JAVA_HOME=/opt/module/jdk1.8.0_321
export PATH=$PATH:$JAVA_HOME/bin
export CLASSPATH=.:$JAVA_HOME/lib/tools.jar:$JAVA_HOME/lib/dt.jar:$CLASSPATH
-- 生效配置
[root@opengauss-node1 ~]# source /etc/profile
-- 验证并查看版本
[root@opengauss-node1 ~]# java -version
openjdk version "1.8.0_352"
OpenJDK Runtime Environment (build 1.8.0_352-b08)
OpenJDK 64-Bit Server VM (build 25.352-b08, mixed mode)
1.3、安装R语言
[root@opengauss-node1 ~]# wget https://mirror.bjtu.edu.cn/cran/src/base/R-3/R-3.6.3.tar.gz
[root@opengauss-node1 ~]# tar -zxvf R-3.6.3.tar.gz
[root@opengauss-node1 ~]# cd R-3.6.3
-- 编译
[root@opengauss-node1 R-3.6.3]# ./configure
-- 安装
[root@opengauss-node1 R-3.6.3]# make && make install
-- 验证并查看版本
[root@opengauss-node1 ~]# R --version
R version 3.6.3 (2020-02-29) -- "Holding the Windsock"
Copyright (C) 2020 The R Foundation for Statistical Computing
Platform: x86_64-pc-linux-gnu (64-bit)
R is free software and comes with ABSOLUTELY NO WARRANTY.
You are welcome to redistribute it under the terms of the
GNU General Public License versions 2 or 3.
For more information about these matters see
https://www.gnu.org/licenses/.
1.4、编译安装htop
[root@opengauss-node1 ~]# wget https://github.com/htop-dev/htop/releases/download/3.2.0/htop-3.2.0.tar.xz
[root@opengauss-node1 ~]# tar -zxvf htop-3.2.0.tar.gz
[root@opengauss-node1 ~]# cd htop-3.2.0
[root@opengauss-node1 htop-3.2.0]# ./autogen.sh
[root@opengauss-node1 htop-3.2.0]# ./configure
[root@opengauss-node1 htop-3.2.0]# make && make install
-- 验证并查看版本
[root@opengauss-node1 ~]# htop --version
htop 3.2.0
1.5、安装benchmarksql
[root@opengauss-node1 ~]# wget https://udomain.dl.sourceforge.net/project/benchmarksql/benchmarksql-5.0.zip
[root@opengauss-node1 ~]# unzip benchmarksql-5.0.zip
[root@opengauss-node1 ~]# ls -l benchmarksql-5.0
total 36
-rwxr-xr-x 1 root root 1130 May 26 2016 build.xml
drwxr-xr-x 3 root root 4096 May 26 2016 doc
-rwxr-xr-x 1 root root 6376 May 26 2016 HOW-TO-RUN.txt
drwxr-xr-x 5 root root 4096 May 26 2016 lib
-rwxr-xr-x 1 root root 5318 May 26 2016 README.md
drwxr-xr-x 7 root root 4096 May 26 2016 run
drwxr-xr-x 6 root root 4096 May 26 2016 src
1.6、安装并替换JDBC驱动
-- 下载对应版本jdbc驱动
[root@opengauss-node1 ~]# wget https://opengauss.obs.cn-south-1.myhuaweicloud.com/3.1.0/x86/openGauss-3.1.0-JDBC.tar.gz
-- 解压jdbc驱动
[root@opengauss-node1 ~]# tar -zxvf openGauss-3.1.0-JDBC.tar.gz
postgresql.jar
opengauss-jdbc-3.1.0.jar
README_cn.md
README_en.md
[root@opengauss-node1 ~]# mv /root/benchmarksql-5.0/lib/postgres/postgresql-9.3-1102.jdbc41.jar /root/benchmarksql-5.0/lib/postgres/postgresql-9.3-1102.jdbc41.jar_bak
[root@opengauss-node1 ~]# cp /root/postgresql.jar /root/benchmarksql-5.0/lib/postgres/
[root@opengauss-node1 ~]# ls -lrt /root/benchmarksql-5.0/lib/postgres/
total 1408
-rw-r--r-- 1 root root 592322 May 26 2016 postgresql-9.3-1102.jdbc41.jar_bak
-rw-r--r-- 1 root root 847123 Nov 21 09:31 postgresql.jar
1.7、进行ant编译benchmarksql
[root@opengauss-node1 ~]# cd /root/benchmarksql-5.0/
[root@opengauss-node1 ~]# cd /root/benchmarksql-5.0/
[root@opengauss-node1 benchmarksql-5.0]# ant
Buildfile: /root/benchmarksql-5.0/build.xml
init:
[mkdir] Created dir: /root/benchmarksql-5.0/build
compile:
[javac] Compiling 11 source files to /root/benchmarksql-5.0/build
dist:
[mkdir] Created dir: /root/benchmarksql-5.0/dist
[jar] Building jar: /root/benchmarksql-5.0/dist/BenchmarkSQL-5.0.jar
BUILD SUCCESSFUL
Total time: 5 seconds
1.8、配置benchmarksql文件
[root@opengauss-node1 ~]# cd /root/benchmarksql-5.0/run/
[root@opengauss-node1 run]# cp -p props.pg props.openGauss
[root@opengauss-node1 run]# vim props.pg props.openGauss
-- 设置如下内容
db=postgres
driver=org.postgresql.Driver
conn=jdbc:postgresql://192.168.17.136:26000/presdb?prepareThreshold=1&batchMode=on&fetchsize=10
user=preuser
password=gauss@123
warehouses=01
loadWorkers=4
terminals=1
runTxnsPerTerminal=0
runMins=6
limitTxnsPerMin=0
terminalWarehouseFixed=false
newOrderWeight=45
paymentWeight=43
orderStatusWeight=4
deliveryWeight=4
stockLevelWeight=4
resultDirectory=my_result_%tY-%tm-%td_%tH%tM%tS
osCollectorScript=./misc/os_collector_linux.py
osCollectorInterval=1
osCollectorSSHAddr=omm@192.168.17.136
osCollectorDevices=net_ens33 blk_sda
1.9、创建数据库及用户
[omm@opengauss-node1 ~]$ gsql -d postgres -p 26000
gsql ((openGauss 3.1.0 build 4e931f9a) compiled at 2022-09-29 14:19:24 commit 0 last mr )
Non-SSL connection (SSL connection is recommended when requiring high-security)
Type "help" for help.
openGauss=# create user preuser with sysadmin identified by 'gauss@123';
CREATE ROLE
openGauss=# create database presdb encoding='UTF-8' owner=preuser;
CREATE DATABASE
1.10、配置白名单
[root@opengauss-node1 ~]# su - omm
Last login: Mon Nov 21 10:15:07 CST 2022 on pts/1
[omm@opengauss-node1 ~]$ gs_guc reload -N all -I all -h "host presdb jack 192.168.17.136/32 sha256"
The gs_guc run with the following arguments: [gs_guc -N all -I all -h host presdb jack 192.168.17.136/32 sha256 reload ].
Begin to perform the total nodes: 2.
Popen count is 2, Popen success count is 2, Popen failure count is 0.
Begin to perform gs_guc for datanodes.
Command count is 2, Command success count is 2, Command failure count is 0.
Total instances: 2. Failed instances: 0.
ALL: Success to perform gs_guc!
1.11、修改并配置建表脚本
[root@opengauss-node1 ~]# cd /root/benchmarksql-5.0/run/sql.common/
[root@opengauss-node1 ~]# vim tableCreates.sql
-- 编辑tableCreates.sql文件，创建表空间，并将表分散在不同表空间
CREATE TABLESPACE tbs1 location '/opt/gaussdb/install/data/db1/tbs1';
CREATE TABLESPACE tbs2 location '/opt/gaussdb/install/data/db1/tbs2';
create table bmsql_config (
cfg_name varchar(30) primary key,
cfg_value varchar(50)
) tablespace tbs2;
create table bmsql_warehouse (
w_id integer not null,
w_ytd decimal(12,2),
w_tax decimal(4,4),
w_name varchar(10),
w_street_1 varchar(20),
w_street_2 varchar(20),
w_city varchar(20),
w_state char(2),
w_zip char(9)
)WITH (FILLFACTOR=80) tablespace tbs2;
create table bmsql_district (
d_w_id integer not null,
d_id integer not null,
d_ytd decimal(12,2),
d_tax decimal(4,4),
d_next_o_id integer,
d_name varchar(10),
d_street_1 varchar(20),
d_street_2 varchar(20),
d_city varchar(20),
d_state char(2),
d_zip char(9)
)WITH (FILLFACTOR=80) tablespace tbs2;
create table bmsql_customer (
c_w_id integer not null,
c_d_id integer not null,
c_id integer not null,
c_discount decimal(4,4),
c_credit char(2),
c_last varchar(16),
c_first varchar(16),
c_credit_lim decimal(12,2),
c_balance decimal(12,2),
c_ytd_payment decimal(12,2),
c_payment_cnt integer,
c_delivery_cnt integer,
c_street_1 varchar(20),
c_street_2 varchar(20),
c_city varchar(20),
c_state char(2),
c_zip char(9),
c_phone char(16),
c_since timestamp,
c_middle char(2),
c_data varchar(500)
)WITH (FILLFACTOR=80) tablespace tbs1;
create sequence bmsql_hist_id_seq;
create table bmsql_history (
hist_id integer,
h_c_id integer,
h_c_d_id integer,
h_c_w_id integer,
h_d_id integer,
h_w_id integer,
h_date timestamp,
h_amount decimal(6,2),
h_data varchar(24)
)WITH (FILLFACTOR=80) tablespace tbs2;
create table bmsql_new_order (
no_w_id integer not null,
no_d_id integer not null,
no_o_id integer not null
)WITH (FILLFACTOR=80) tablespace tbs2;
create table bmsql_oorder (
o_w_id integer not null,
o_d_id integer not null,
o_id integer not null,
o_c_id integer,
o_carrier_id integer,
o_ol_cnt integer,
o_all_local integer,
o_entry_d timestamp
)WITH (FILLFACTOR=80) tablespace tbs2;
create table bmsql_order_line (
ol_w_id integer not null,
ol_d_id integer not null,
ol_o_id integer not null,
ol_number integer not null,
ol_i_id integer not null,
ol_delivery_d timestamp,
ol_amount decimal(6,2),
ol_supply_w_id integer,
ol_quantity integer,
ol_dist_info char(24)
)WITH (FILLFACTOR=80) tablespace tbs2;
create table bmsql_item (
i_id integer not null,
i_name varchar(24),
i_price decimal(5,2),
i_data varchar(50),
i_im_id integer
) tablespace tbs2;
create table bmsql_stock (
s_w_id integer not null,
s_i_id integer not null,
s_quantity integer,
s_ytd integer,
s_order_cnt integer,
s_remote_cnt integer,
s_data varchar(50),
s_dist_01 char(24),
s_dist_02 char(24),
s_dist_03 char(24),
s_dist_04 char(24),
s_dist_05 char(24),
s_dist_06 char(24),
s_dist_07 char(24),
s_dist_08 char(24),
s_dist_09 char(24),
s_dist_10 char(24)
)WITH (FILLFACTOR=80) tablespace tbs2;
二、进行BenchmarkSQL压测
12.1 导入测试数据
[root@opengauss-node1 ~]# cd /root/benchmarksql-5.0/run/
[root@opengauss-node1 run]# ./runDatabaseBuild.sh props.openGauss
# ------------------------------------------------------------
# Loading SQL file ./sql.common/tableCreates.sql
# ------------------------------------------------------------
Nov 21, 2022 10:34:25 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [6150799d-4a27-4ed4-9da9-7df3d9ff7e92] Try to connect. IP: 192.168.17.136:26000
Nov 21, 2022 10:34:25 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [192.168.17.136:33644/192.168.17.136:26000] Connection is established. ID: 6150799d-4a27-4ed4-9da9-7df3d9ff7e92
Nov 21, 2022 10:34:25 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: Connect complete. ID: 6150799d-4a27-4ed4-9da9-7df3d9ff7e92
CREATE TABLESPACE tbs1 location '/opt/gaussdb/install/data/tbs1';
CREATE TABLESPACE tbs2 location '/opt/gaussdb/install/data/tbs2';
create table bmsql_config (
cfg_name varchar(30) primary key,
cfg_value varchar(50)
) tablespace tbs2;
create table bmsql_warehouse (
w_id integer not null,
w_ytd decimal(12,2),
w_tax decimal(4,4),
w_name varchar(10),
w_street_1 varchar(20),
w_street_2 varchar(20),
w_city varchar(20),
w_state char(2),
w_zip char(9)
)WITH (FILLFACTOR=80) tablespace tbs2;
create table bmsql_district (
d_w_id integer not null,
d_id integer not null,
d_ytd decimal(12,2),
d_tax decimal(4,4),
d_next_o_id integer,
d_name varchar(10),
d_street_1 varchar(20),
d_street_2 varchar(20),
d_city varchar(20),
d_state char(2),
d_zip char(9)
)WITH (FILLFACTOR=80) tablespace tbs2;
create table bmsql_customer (
c_w_id integer not null,
c_d_id integer not null,
c_id integer not null,
c_discount decimal(4,4),
c_credit char(2),
c_last varchar(16),
c_first varchar(16),
c_credit_lim decimal(12,2),
c_balance decimal(12,2),
c_ytd_payment decimal(12,2),
c_payment_cnt integer,
c_delivery_cnt integer,
c_street_1 varchar(20),
c_street_2 varchar(20),
c_city varchar(20),
c_state char(2),
c_zip char(9),
c_phone char(16),
c_since timestamp,
c_middle char(2),
c_data varchar(500)
)WITH (FILLFACTOR=80) tablespace tbs1;
create sequence bmsql_hist_id_seq;
[192.168.17.136:33644/192.168.17.136:26000] ERROR: relation "bmsql_hist_id_seq" already exists in schema "public"
Detail: creating new table with existing name in the same schema
create table bmsql_history (
hist_id integer,
h_c_id integer,
h_c_d_id integer,
h_c_w_id integer,
h_d_id integer,
h_w_id integer,
h_date timestamp,
h_amount decimal(6,2),
h_data varchar(24)
)WITH (FILLFACTOR=80) tablespace tbs2;
create table bmsql_new_order (
no_w_id integer not null,
no_d_id integer not null,
no_o_id integer not null
)WITH (FILLFACTOR=80) tablespace tbs2;
create table bmsql_oorder (
o_w_id integer not null,
o_d_id integer not null,
o_id integer not null,
o_c_id integer,
o_carrier_id integer,
o_ol_cnt integer,
o_all_local integer,
o_entry_d timestamp
)WITH (FILLFACTOR=80) tablespace tbs2;
create table bmsql_order_line (
ol_w_id integer not null,
ol_d_id integer not null,
ol_o_id integer not null,
ol_number integer not null,
ol_i_id integer not null,
ol_delivery_d timestamp,
ol_amount decimal(6,2),
ol_supply_w_id integer,
ol_quantity integer,
ol_dist_info char(24)
)WITH (FILLFACTOR=80) tablespace tbs2;
create table bmsql_item (
i_id integer not null,
i_name varchar(24),
i_price decimal(5,2),
i_data varchar(50),
i_im_id integer
) tablespace tbs2;
create table bmsql_stock (
s_w_id integer not null,
s_i_id integer not null,
s_quantity integer,
s_ytd integer,
s_order_cnt integer,
s_remote_cnt integer,
s_data varchar(50),
s_dist_01 char(24),
s_dist_02 char(24),
s_dist_03 char(24),
s_dist_04 char(24),
s_dist_05 char(24),
s_dist_06 char(24),
s_dist_07 char(24),
s_dist_08 char(24),
s_dist_09 char(24),
s_dist_10 char(24)
)WITH (FILLFACTOR=80) tablespace tbs2;
Starting BenchmarkSQL LoadData
driver=org.postgresql.Driver
conn=jdbc:postgresql://192.168.17.136:26000/presdb?prepareThreshold=1&batchMode=on&fetchsize=10
user=preuser
password=***********
warehouses=01
loadWorkers=4
fileLocation (not defined)
csvNullValue (not defined - using default 'NULL')
Nov 21, 2022 10:34:27 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [403c108c-2fbe-480c-93d3-bb4880bb4ad1] Try to connect. IP: 192.168.17.136:26000
Nov 21, 2022 10:34:27 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [192.168.17.136:33646/192.168.17.136:26000] Connection is established. ID: 403c108c-2fbe-480c-93d3-bb4880bb4ad1
Nov 21, 2022 10:34:28 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: Connect complete. ID: 403c108c-2fbe-480c-93d3-bb4880bb4ad1
Worker 000: Loading ITEM
Nov 21, 2022 10:34:28 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [50a962f9-72fa-4e1a-b3d2-b98edbfd381e] Try to connect. IP: 192.168.17.136:26000
Nov 21, 2022 10:34:28 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [192.168.17.136:33648/192.168.17.136:26000] Connection is established. ID: 50a962f9-72fa-4e1a-b3d2-b98edbfd381e
Nov 21, 2022 10:34:28 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: Connect complete. ID: 50a962f9-72fa-4e1a-b3d2-b98edbfd381e
Worker 001: Loading Warehouse 1
Nov 21, 2022 10:34:28 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [0cede98c-746c-4de6-b532-34fbc5a7f851] Try to connect. IP: 192.168.17.136:26000
Nov 21, 2022 10:34:28 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [192.168.17.136:33650/192.168.17.136:26000] Connection is established. ID: 0cede98c-746c-4de6-b532-34fbc5a7f851
Nov 21, 2022 10:34:28 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: Connect complete. ID: 0cede98c-746c-4de6-b532-34fbc5a7f851
Nov 21, 2022 10:34:28 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [2412cc4f-bb50-4e2d-9b64-d9a915d810df] Try to connect. IP: 192.168.17.136:26000
Nov 21, 2022 10:34:28 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [192.168.17.136:33652/192.168.17.136:26000] Connection is established. ID: 2412cc4f-bb50-4e2d-9b64-d9a915d810df
Nov 21, 2022 10:34:28 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: Connect complete. ID: 2412cc4f-bb50-4e2d-9b64-d9a915d810df
Worker 000: Loading ITEM done
Worker 001: Loading Warehouse 1 done
# ------------------------------------------------------------
# Loading SQL file ./sql.common/indexCreates.sql
# ------------------------------------------------------------
Nov 21, 2022 10:36:12 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [2d95e83b-c954-45bd-888a-d0169a80d5dd] Try to connect. IP: 192.168.17.136:26000
Nov 21, 2022 10:36:12 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [192.168.17.136:33686/192.168.17.136:26000] Connection is established. ID: 2d95e83b-c954-45bd-888a-d0169a80d5dd
Nov 21, 2022 10:36:13 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: Connect complete. ID: 2d95e83b-c954-45bd-888a-d0169a80d5dd
alter table bmsql_warehouse add constraint bmsql_warehouse_pkey
primary key (w_id);
alter table bmsql_district add constraint bmsql_district_pkey
primary key (d_w_id, d_id);
alter table bmsql_customer add constraint bmsql_customer_pkey
primary key (c_w_id, c_d_id, c_id);
create index bmsql_customer_idx1
on bmsql_customer (c_w_id, c_d_id, c_last, c_first);
alter table bmsql_oorder add constraint bmsql_oorder_pkey
primary key (o_w_id, o_d_id, o_id);
create unique index bmsql_oorder_idx1
on bmsql_oorder (o_w_id, o_d_id, o_carrier_id, o_id);
alter table bmsql_new_order add constraint bmsql_new_order_pkey
primary key (no_w_id, no_d_id, no_o_id);
alter table bmsql_order_line add constraint bmsql_order_line_pkey
primary key (ol_w_id, ol_d_id, ol_o_id, ol_number);
alter table bmsql_stock add constraint bmsql_stock_pkey
primary key (s_w_id, s_i_id);
alter table bmsql_item add constraint bmsql_item_pkey
primary key (i_id);
# ------------------------------------------------------------
# Loading SQL file ./sql.common/foreignKeys.sql
# ------------------------------------------------------------
Nov 21, 2022 10:36:16 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [8443366d-83dd-4775-a2ab-b6bc70cddf47] Try to connect. IP: 192.168.17.136:26000
Nov 21, 2022 10:36:17 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [192.168.17.136:33694/192.168.17.136:26000] Connection is established. ID: 8443366d-83dd-4775-a2ab-b6bc70cddf47
Nov 21, 2022 10:36:17 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: Connect complete. ID: 8443366d-83dd-4775-a2ab-b6bc70cddf47
alter table bmsql_district add constraint d_warehouse_fkey
foreign key (d_w_id)
references bmsql_warehouse (w_id);
alter table bmsql_customer add constraint c_district_fkey
foreign key (c_w_id, c_d_id)
references bmsql_district (d_w_id, d_id);
alter table bmsql_history add constraint h_customer_fkey
foreign key (h_c_w_id, h_c_d_id, h_c_id)
references bmsql_customer (c_w_id, c_d_id, c_id);
alter table bmsql_history add constraint h_district_fkey
foreign key (h_w_id, h_d_id)
references bmsql_district (d_w_id, d_id);
alter table bmsql_new_order add constraint no_order_fkey
foreign key (no_w_id, no_d_id, no_o_id)
references bmsql_oorder (o_w_id, o_d_id, o_id);
alter table bmsql_oorder add constraint o_customer_fkey
foreign key (o_w_id, o_d_id, o_c_id)
references bmsql_customer (c_w_id, c_d_id, c_id);
alter table bmsql_order_line add constraint ol_order_fkey
foreign key (ol_w_id, ol_d_id, ol_o_id)
references bmsql_oorder (o_w_id, o_d_id, o_id);
alter table bmsql_order_line add constraint ol_stock_fkey
foreign key (ol_supply_w_id, ol_i_id)
references bmsql_stock (s_w_id, s_i_id);
alter table bmsql_stock add constraint s_warehouse_fkey
foreign key (s_w_id)
references bmsql_warehouse (w_id);
alter table bmsql_stock add constraint s_item_fkey
foreign key (s_i_id)
references bmsql_item (i_id);
# ------------------------------------------------------------
# Loading SQL file ./sql.postgres/extraHistID.sql
# ------------------------------------------------------------
Nov 21, 2022 10:36:21 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [7bee3d72-1be6-40b3-bd40-f80e2d8f9b67] Try to connect. IP: 192.168.17.136:26000
Nov 21, 2022 10:36:21 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [192.168.17.136:33698/192.168.17.136:26000] Connection is established. ID: 7bee3d72-1be6-40b3-bd40-f80e2d8f9b67
Nov 21, 2022 10:36:22 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: Connect complete. ID: 7bee3d72-1be6-40b3-bd40-f80e2d8f9b67
-- ----
-- Extra Schema objects/definitions for history.hist_id in PostgreSQL
-- ----
-- ----
-- This is an extra column not present in the TPC-C
-- specs. It is useful for replication systems like
-- Bucardo and Slony-I, which like to have a primary
-- key on a table. It is an auto-increment or serial
-- column type. The definition below is compatible
-- with Oracle 11g, using a sequence and a trigger.
-- ----
-- Adjust the sequence above the current max(hist_id)
select setval('bmsql_hist_id_seq', (select max(hist_id) from bmsql_history));
-- Make nextval(seq) the default value of the hist_id column.
alter table bmsql_history
alter column hist_id set default nextval('bmsql_hist_id_seq');
-- Add a primary key history(hist_id)
alter table bmsql_history add primary key (hist_id);
# ------------------------------------------------------------
# Loading SQL file ./sql.postgres/buildFinish.sql
# ------------------------------------------------------------
Nov 21, 2022 10:36:23 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [08219958-d717-4365-a908-9c66f657db3d] Try to connect. IP: 192.168.17.136:26000
Nov 21, 2022 10:36:23 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [192.168.17.136:33700/192.168.17.136:26000] Connection is established. ID: 08219958-d717-4365-a908-9c66f657db3d
Nov 21, 2022 10:36:23 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: Connect complete. ID: 08219958-d717-4365-a908-9c66f657db3d
-- ----
-- Extra commands to run after the tables are created, loaded,
-- indexes built and extra's created.
-- PostgreSQL version.
-- ----
vacuum analyze;
12.2 执行TPCC测试
[root@opengauss-node1 ~]# cd /root/benchmarksql-5.0/run/
[root@opengauss-node1 run]# ./runBenchmark.sh props.openGauss
[root@opengauss-node1 run]# ./runBenchmark.sh props.openGauss
10:41:08,383 [main] INFO jTPCC : Term-00,
10:41:08,394 [main] INFO jTPCC : Term-00, +-------------------------------------------------------------+
10:41:08,394 [main] INFO jTPCC : Term-00, BenchmarkSQL v5.0
10:41:08,395 [main] INFO jTPCC : Term-00, +-------------------------------------------------------------+
10:41:08,395 [main] INFO jTPCC : Term-00, (c) 2003, Raul Barbosa
10:41:08,396 [main] INFO jTPCC : Term-00, (c) 2004-2016, Denis Lussier
10:41:08,405 [main] INFO jTPCC : Term-00, (c) 2016, Jan Wieck
10:41:08,406 [main] INFO jTPCC : Term-00, +-------------------------------------------------------------+
10:41:08,406 [main] INFO jTPCC : Term-00,
10:41:08,407 [main] INFO jTPCC : Term-00, db=postgres
10:41:08,408 [main] INFO jTPCC : Term-00, driver=org.postgresql.Driver
10:41:08,408 [main] INFO jTPCC : Term-00, conn=jdbc:postgresql://192.168.17.136:26000/presdb?prepareThreshold=1&batchMode=on&fetchsize=10
10:41:08,409 [main] INFO jTPCC : Term-00, user=preuser
10:41:08,409 [main] INFO jTPCC : Term-00,
10:41:08,410 [main] INFO jTPCC : Term-00, warehouses=01
10:41:08,410 [main] INFO jTPCC : Term-00, terminals=1
10:41:08,417 [main] INFO jTPCC : Term-00, runMins=6
10:41:08,418 [main] INFO jTPCC : Term-00, limitTxnsPerMin=0
10:41:08,419 [main] INFO jTPCC : Term-00, terminalWarehouseFixed=false`
10:41:08,419 [main] INFO jTPCC : Term-00,
10:41:08,419 [main] INFO jTPCC : Term-00, newOrderWeight=45
10:41:08,420 [main] INFO jTPCC : Term-00, paymentWeight=43
10:41:08,420 [main] INFO jTPCC : Term-00, orderStatusWeight=4
10:41:08,420 [main] INFO jTPCC : Term-00, deliveryWeight=4
10:41:08,421 [main] INFO jTPCC : Term-00, stockLevelWeight=4
10:41:08,421 [main] INFO jTPCC : Term-00,
10:41:08,421 [main] INFO jTPCC : Term-00, resultDirectory=my_result_%tY-%tm-%td_%tH%tM%tS
10:41:08,422 [main] INFO jTPCC : Term-00, osCollectorScript=./misc/os_collector_linux.py
10:41:08,423 [main] INFO jTPCC : Term-00,
10:41:08,507 [main] INFO jTPCC : Term-00, copied props.openGauss to my_result_2022-11-21_104108/run.properties
10:41:08,510 [main] INFO jTPCC : Term-00, created my_result_2022-11-21_104108/data/runInfo.csv for runID 1
10:41:08,511 [main] INFO jTPCC : Term-00, writing per transaction results to my_result_2022-11-21_104108/data/result.csv
10:41:08,515 [main] INFO jTPCC : Term-00, osCollectorScript=./misc/os_collector_linux.py
10:41:08,516 [main] INFO jTPCC : Term-00, osCollectorInterval=1
10:41:08,517 [main] INFO jTPCC : Term-00, osCollectorSSHAddr=omm@192.168.17.136
10:41:08,518 [main] INFO jTPCC : Term-00, osCollectorDevices=net_ens33 blk_sda
10:41:08,778 [main] INFO jTPCC : Term-00,
Nov 21, 2022 10:41:08 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [beaafb49-e280-4ff4-a693-bebb929a6fc6] Try to connect. IP: 192.168.17.136:26000
omm@192.168.17.136's password: Nov 21, 2022 10:41:09 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [192.168.17.136:33794/192.168.17.136:26000] Connection is established. ID: beaafb49-e280-4ff4-a693-bebb929a6fc6
Nov 21, 2022 10:41:09 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: Connect complete. ID: beaafb49-e280-4ff4-a693-bebb929a6fc6
10:41:09,685 [main] INFO jTPCC : Term-00, C value for C_LAST during load: 86
10:41:09,687 [main] INFO jTPCC : Term-00, C value for C_LAST this run: 165
10:41:09,688 [main] INFO jTPCC : Term-00,
Nov 21, 2022 10:41:09 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl48MB
INFO: [1b54fced-29e6-4149-880b-88caabda8191] Try to connect. IP: 192.168.17.136:26000
Nov 21, 2022 10:41:09 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: [192.168.17.136:33796/192.168.17.136:26000] Connection is established. ID: 1b54fced-29e6-4149-880b-88caabda8191
Nov 21, 2022 10:41:09 AM org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl
INFO: Connect complete. ID: 1b54fced-29e6-4149-880b-88caabda8191
Term-00, Running Average tpmTOTAL: 2420.61 Current tpmTOTAL: 95640 Memory Usage: 9MB / 129MB
三、查看压测结果
3.1 benchmarksql压测数据
-- 通过运行runBenchmark.sh看直接看到的压测结果是
10:47:09,991 [Thread-2] INFO jTPCC : Term-00,
10:47:09,992 [Thread-2] INFO jTPCC : Term-00,
10:47:09,994 [Thread-2] INFO jTPCC : Term-00, Measured tpmC (NewOrders) = 1095.13
10:47:09,994 [Thread-2] INFO jTPCC : Term-00, Measured tpmTOTAL = 2420.59
10:47:09,994 [Thread-2] INFO jTPCC : Term-00, Session Start = 2022-11-21 10:41:09
10:47:09,995 [Thread-2] INFO jTPCC : Term-00, Session End = 2022-11-21 10:47:09
10:47:09,995 [Thread-2] INFO jTPCC : Term-00, Transaction Count = 14523
3.2 生成html报告
[root@opengauss-node1 ~]# cd /root/benchmarksql-5.0/run/
[root@opengauss-node1 run]# ./generateReport.sh my_result_2022-11-21_104108
Generating my_result_2022-11-21_104108/tpm_nopm.png ... OK
Generating my_result_2022-11-21_104108/latency.png ... OK
Generating my_result_2022-11-21_104108/cpu_utilization.png ... Error in read.table(file = file, header = header, sep = sep, quote = quote, :
no lines available in input
Calls: read.csv -> read.table
Execution halted
ERROR
R version 3.6.3 (2020-02-29) -- "Holding the Windsock"
Copyright (C) 2020 The R Foundation for Statistical Computing
Platform: x86_64-pc-linux-gnu (64-bit)
R is free software and comes with ABSOLUTELY NO WARRANTY.
You are welcome to redistribute it under certain conditions.
Type 'license()' or 'licence()' for distribution details.
Natural language support but running in an English locale
R is a collaborative project with many contributors.
Type 'contributors()' for more information and
'citation()' on how to cite R or R packages in publications.
Type 'demo()' for some demos, 'help()' for on-line help, or
'help.start()' for an HTML browser interface to help.
Type 'q()' to quit R.
> # ----
> # R graph to show CPU utilization
> # ----
>
> # ----
> # Read the runInfo.csv file.
> # ----
> runInfo <- read.csv("data/runInfo.csv", head=TRUE)
>
> # ----
> # Determine the grouping interval in seconds based on the
> # run duration.
> # ----
> xmax <- runInfo$runMins
> for (interval in c(1, 2, 5, 10, 20, 60, 120, 300, 600)) {
+ if ((xmax * 60) / interval <= 1000) {
+ break
+ }
+ }
> idiv <- interval * 1000.0
>
> # ----
> # Read the recorded CPU data and aggregate it for the desired interval.
> # ----
> rawData <- read.csv("data/sys_info.csv", head=TRUE)
Generating my_result_2022-11-21_104108/report.html ... OK
[root@opengauss-node1 my_result_2022-11-21_104108]# pwd
/root/benchmarksql-5.0/run/my_result_2022-11-21_104108
[root@opengauss-node1 my_result_2022-11-21_104108]# ls -lrt
total 224
-rw-r--r-- 1 root root 571 Nov 21 10:41 run.properties
-rw-r--r-- 1 root root 96663 Nov 21 10:53 tpm_nopm.png
drwxr-xr-x 2 root root 4096 Nov 21 10:53 data
-rw-r--r-- 1 root root 114412 Nov 21 10:53 latency.png
-rw-r--r-- 1 root root 6749 Nov 21 10:53 report.html

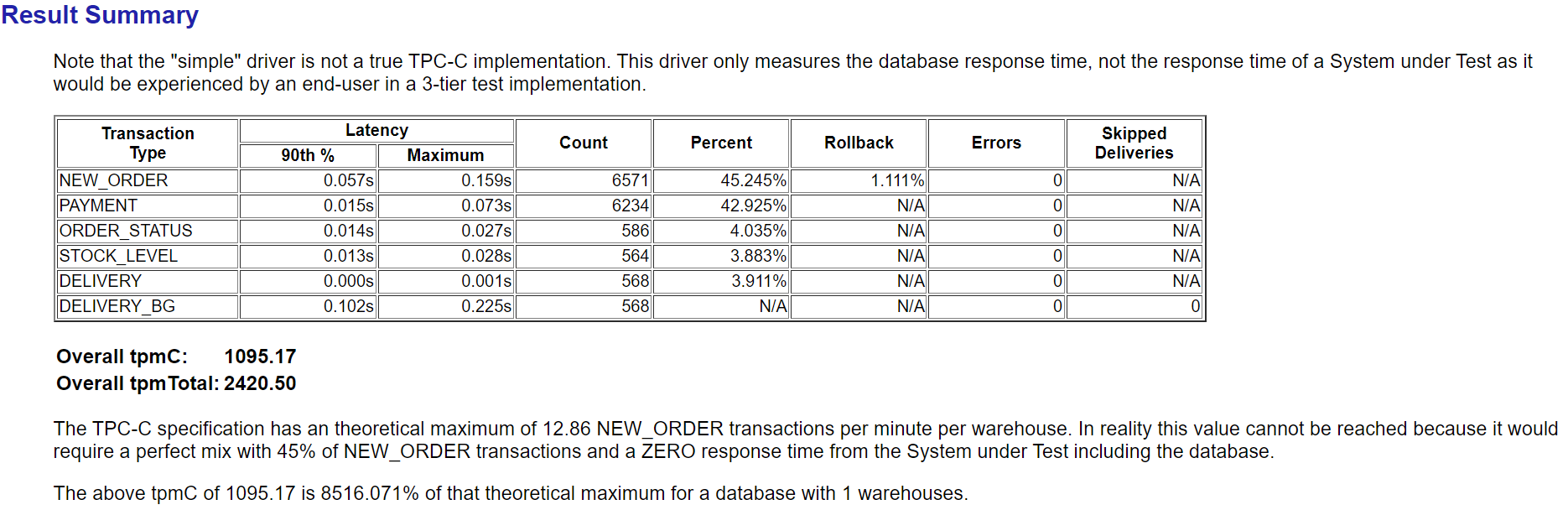

3.2 查看html报告
-- 打包my_result_2022-11-21_104108并下载
[root@opengauss-node1 ~]# /root/benchmarksql-5.0/run
[root@opengauss-node1 run]# tar -cf my_result_2022-11-21_104108.tar ./my_result_2022-11-21_104108/
以下一些系统性能报告，不知为何未出图，问题在排查中，也希望对此熟悉的能给与指导。
最后修改时间：2022-11-29 09:31:38
「喜欢这篇文章，您的关注和赞赏是给作者最好的鼓励」
关注作者
【版权声明】本文为墨天轮用户原创内容，转载时必须标注文章的来源（墨天轮），文章链接，文章作者等基本信息，否则作者和墨天轮有权追究责任。如果您发现墨天轮中有涉嫌抄袭或者侵权的内容，欢迎发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。
