jdk下载地址：
https://download.oracle.com/otn/java/jdk/8u231-b11/5b13a193868b4bf28bcb45c792fce896/jdk-8u231-linux-x64.tar.gz
rocketmq下载地址：
https://archive.apache.org/dist/rocketmq/4.5.1/rocketmq-all-4.5.1-bin-release.zip
tar xzf jdk-8u231-linux-x64.tar.gz
mv -rf jdk1.8.0_231 usr/local
sed -i '/PATH=/a export JAVA_HOME=/usr/local/jdk1.8.0_231' /root/.bash_profile
sed -i '/JAVA/a PATH=$JAVA_HOME/bin:$PATH' /root/.bash_profile
unzip rocketmq-all-4.5.1-bin-release.zip
mv rocketmq-all-4.5.1-bin-release /usr/local/
sed -i '/$JAVA/a export ROCKETMQ_HOME=/usr/local/rocketmq4.5.1' /root/.bash_profile
sed -i '/ROCKETMQ/a PATH=$ROCKETMQ_HOME/bin:$PATH' /root/.bash_profile
source /root/.bash_profile
cd /usr/local/rocketmq4.5.1

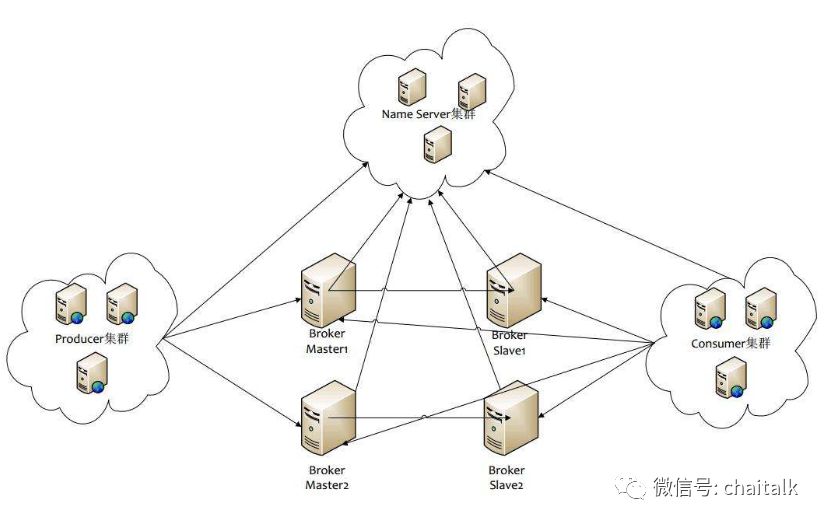

两台服务器集群部署（双主双从异步复制2m-2s-async）
创建存储路径
cd /usr/local/rocketmq4.5.1
mkdir -p data/rocketmq/store/{rootdir-a-m,commitlog-a-m,rootdir-b-s,commitlog-b-s}
mkdir -p data/rocketmq/store/{rootdir-b-m,commitlog-b-m,rootdir-a-s,commitlog-a-s}
修改配置文件
cd /usr/local/rocketmq4.5.1/conf/2m-2s-async
10.147.4.224 角色为：broker-a-master & broker-b-slave
vi broker-a.properties
# 是否允许 Broker 自动创建Topic
autoCreateTopicEnable=true
# 是否允许 Broker 自动创建订阅组
autoCreateSubscriptionGroup=true
#所属集群名字
brokerClusterName=c_RocketMQ
#broker名字，注意此处不同的配置文件填写的不一样
brokerName=node_a
#brokerId 0 表示 Master，>0 表示 Slave
brokerId=0
#Broker role有3种：SYNC MASTER、ASYNC MASTER、SLAVE。关键词SYNC和ASYNC表示Master和Slave之间同步消息的机制，SYNC即同步更新，
#指当Slave和Master消息同步完成后，再返回发送成功的状态。ASYNC即异步更新，master与slave有短暂消息延迟，毫秒级。本次搭建使用
#了异步复制集群模式，线上环境推荐使用同步双写模式，即SYNC_MASTER
brokerRole=ASYNC_MASTER
# 刷盘方式 ASYNC_FLUSH 异步刷盘
flushDiskType=ASYNC_FLUSH
##Broker 对外服务的监听端口
listenPort=10911
#nameserver地址，分号分割
namesrvAddr=10.147.4.152:9876;10.147.4.224:9876
#在发送消息时，自动创建服务器不存在的topic，默认创建的队列数
defaultTopicQueueNums=4
#是否允许 Broker 自动创建Topic，建议线下开启，线上关闭
autoCreateTopicEnable=true
#是否允许 Broker 自动创建订阅组，建议线下开启，线上关闭
autoCreateSubscriptionGroup=true
brokerIP1=10.147.4.152
#存储路径
storePathRootDir=/usr/local/rocketmq4.5.1/data/rocketmq/store/rootdir-a-m
storePathCommitLog=/usr/local/rocketmq4.5.1/data/rocketmq/store/commitlog-a-m
# 消费队列存储路径存储路径
#storePathConsumerQueue=/usr/local/rocketmq4.5.1/data/store/consumequeue
#消息索引存储路径
#storePathIndex=/usr/local/rocketmq4.5.1/data/store/index
#checkpoint 文件存储路径
#storeCheckpoint=/usr/local/rocketmq4.5.1/data/store/checkpoint
#abort 文件存储路径
#abortFile=/usr/local/rocketmq4.5.1/data/store/abort
#删除文件时间点，默认凌晨 4点
deleteWhen=04
#文件保留时间，默认 48 小时
fileReservedTime=120
# commitLog每个文件的大小默认1G
mapedFileSizeCommitLog=1073741824
#ConsumeQueue每个文件默认存30W条，根据业务情况调整
mapedFileSizeConsumeQueue=300000
#destroyMapedFileIntervalForcibly=120000
#redeleteHangedFileInterval=120000
#检测物理文件磁盘空间
#diskMaxUsedSpaceRatio=88
vi broker-b-s.properties
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
brokerClusterName=c_RocketMQ
brokerName=node_b
brokerId=1
brokerRole=SLAVE
flushDiskType=ASYNC_FLUSH
listenPort=10921
namesrvAddr=10.147.4.152:9876;10.147.4.224:9876
defaultTopicQueueNums=4
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
brokerIP1=10.147.4.152
storePathRootDir=/usr/local/rocketmq4.5.1/data/rocketmq/store/rootdir-b-s
storePathCommitLog=/usr/local/rocketmq4.5.1/data/rocketmq/store/commitlog-b-s
deleteWhen=04
fileReservedTime=120
mapedFileSizeCommitLog=1073741824
mapedFileSizeConsumeQueue=300000
192.168.1.212 角色：broker-b-master & broker-a-slave
vi broker-b.properties
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
brokerClusterName=c_RocketMQ
brokerName=node_b
brokerId=0
brokerRole=ASYNC_MASTER
flushDiskType=ASYNC_FLUSH
listenPort=10911
namesrvAddr=10.147.4.152:9876;10.147.4.224:9876
defaultTopicQueueNums=4
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
brokerIP1=10.147.4.224
storePathRootDir=/usr/local/rocketmq4.5.1/data/rocketmq/store/rootdir-a-m
storePathCommitLog=/usr/local/rocketmq4.5.1/data/rocketmq/store/commitlog-a-m
deleteWhen=04
fileReservedTime=120
mapedFileSizeCommitLog=1073741824
mapedFileSizeConsumeQueue=300000
vi broker-a-s.properties
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
brokerClusterName=c_RocketMQ
brokerName=node_a
brokerId=1
brokerRole=SLAVE
flushDiskType=ASYNC_FLUSH
listenPort=10921
namesrvAddr=10.147.4.152:9876;10.147.4.224:9876
defaultTopicQueueNums=4
autoCreateTopicEnable=true
autoCreateSubscriptionGroup=true
brokerIP1=10.147.4.224
storePathRootDir=/usr/local/rocketmq4.5.1/data/rocketmq/store/rootdir-a-s
storePathCommitLog=/usr/local/rocketmq4.5.1/data/rocketmq/store/commitlog-a-s
deleteWhen=04
fileReservedTime=120
mapedFileSizeCommitLog=1073741824
mapedFileSizeConsumeQueue=300000
修改日志配置文件(两台一样)
mkdir -p /usr/local/rocketmq4.5.1/logs
cd /usr/local/rocketmq4.5.1/conf
sed -i 's#${user.home}#/usr/local/rocketmq4.5.1#g' *.xml
启动服务
RocketMQ服务需要先启动NameService，再启动BrokerMaster，最后启动BrokerSlave
nohup sh /usr/local/rocketmq4.5.1/bin/mqnamesrv > /usr/local/rocketmq4.5.1/data/rocketmq/store/mqnamesrv.log 2>&1 &
nohup sh /usr/local/rocketmq4.5.1/bin/mqbroker -c /usr/local/rocketmq4.5.1/conf/2m-2s-async/broker-a.properties >/usr/local/rocketmq4.5.1/data/rocketmq/store/broker-a-m.log 2>&1 &
nohup sh /usr/local/rocketmq4.5.1/bin/mqbroker -c /usr/local/rocketmq4.5.1/conf/2m-2s-async/broker-b.properties >/usr/local/rocketmq4.5.1/data/rocketmq/store/broker-b-m.log 2>&1 &
nohup sh /usr/local/rocketmq4.5.1/bin/mqbroker -c /usr/local/rocketmq4.5.1/conf/2m-2s-async/broker-b-s.properties >/usr/local/rocketmq4.5.1/data/rocketmq/store/broker-b-s.log 2>&1 &
nohup sh /usr/local/rocketmq4.5.1/bin/mqbroker -c /usr/local/rocketmq4.5.1/conf/2m-2s-async/broker-a-s.properties >/usr/local/rocketmq4.5.1/data/rocketmq/store/broker-a-s.log 2>&1 &
使用JPS查看一下进程是否有问题
使用clusterList命令来验证一下集群健康状态
命令：
sh mqadmin clusterList -n 10.147.4.224:9876
sh mqadmin topicList -n 10.147.4.224:9876
使用自带模拟测试
export NAMESRV_ADDR=10.147.4.224:9876
模拟Consumer收消息
sh tools.sh org.apache.rocketmq.example.quickstart.Consumer
模拟Producer发消息
sh tools.sh org.apache.rocketmq.example.quickstart.Producer
关闭broker：
sh mqshutdown broker
关闭nameserver：
sh mqshutdown namesrv
