每日一练：openGauss 3.0.0数据库在线实训课程
第一课
1.1openGauss数据库状态查看
学习目标
学习从操作系统层面和使用openGauss工具查看数据库的状态、版本和数据文件目录。
gs_ctl是openGauss提供的数据库服务控制工具，可以用来启停数据库服务和查询数据库状态。主要供openGauss管理模块调用。
gs_ctl工具由操作系统用户omm执行。可以执行：
启动、停止、重启openGauss节点。

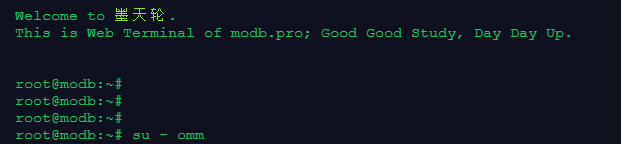

1、进入web终端，切换用户 -omm ：
#第一次进入等待15秒
#su - omm

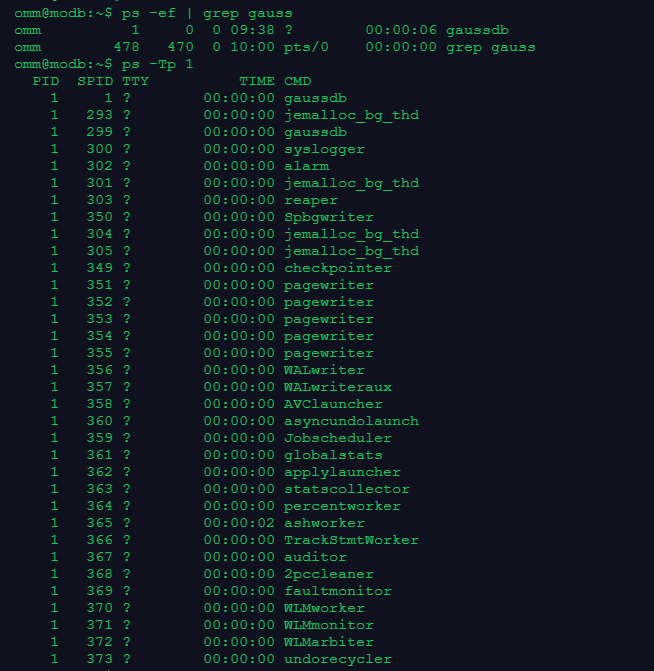

2.操作系统层面查看数据库进程和线程。如果数据库启动，则有相应的进程和线程。
omm@modb:~$ ps -ef | grep gauss
omm 1 0 0 09:38 ? 00:00:06 gaussdb
omm 478 470 0 10:00 pts/0 00:00:00 grep gauss
omm@modb:~$ ps -Tp 1
PID SPID TTY TIME CMD
1 1 ? 00:00:00 gaussdb
1 293 ? 00:00:00 jemalloc_bg_thd
1 299 ? 00:00:00 gaussdb
1 300 ? 00:00:00 syslogger
1 302 ? 00:00:00 alarm
1 301 ? 00:00:00 jemalloc_bg_thd
1 303 ? 00:00:00 reaper
1 350 ? 00:00:00 Spbgwriter
1 304 ? 00:00:00 jemalloc_bg_thd
1 305 ? 00:00:00 jemalloc_bg_thd
1 349 ? 00:00:00 checkpointer
1 351 ? 00:00:00 pagewriter
1 352 ? 00:00:00 pagewriter
1 353 ? 00:00:00 pagewriter
1 354 ? 00:00:00 pagewriter
1 355 ? 00:00:00 pagewriter
1 356 ? 00:00:00 WALwriter
1 357 ? 00:00:00 WALwriteraux
1 358 ? 00:00:00 AVClauncher
1 360 ? 00:00:00 asyncundolaunch
1 359 ? 00:00:00 Jobscheduler
1 361 ? 00:00:00 globalstats
1 362 ? 00:00:00 applylauncher
1 363 ? 00:00:00 statscollector
1 364 ? 00:00:00 percentworker
1 365 ? 00:00:02 ashworker
1 366 ? 00:00:00 TrackStmtWorker
1 367 ? 00:00:00 auditor
1 368 ? 00:00:00 2pccleaner
1 369 ? 00:00:00 faultmonitor
1 370 ? 00:00:00 WLMworker
1 371 ? 00:00:00 WLMmonitor
1 372 ? 00:00:00 WLMarbiter
1 373 ? 00:00:00 undorecycler
3.使用gs_ctl工具查看数据库状态，如果数据库启动，显示gs_ctl: server is running (PID: 1)
omm@modb:~$ gs_ctl status
[2022-11-24 10:01:41.724][480][][gs_ctl]: gs_ctl status,datadir is /var/lib/opengauss/data
gs_ctl: server is running (PID: 1)
/usr/local/opengauss/bin/gaussdb
4.使用gs_ctl 查看数据文件的目录
omm@modb:~$ gs_ctl notify
[2022-11-24 10:01:57.257][488][][gs_ctl]: gs_ctl notify ,datadir is /var/lib/opengauss/data
[2022-11-24 10:01:57.258][488][][gs_ctl]: the parameter of notify must be specified
5.查看omm用户的环境变量
omm@modb:~$ cat ~/.bashrc
# ~/.bashrc: executed by bash(1) for non-login shells.
# see /usr/share/doc/bash/examples/startup-files (in the package bash-doc)
# for examples
# If not running interactively, don't do anything
case $- in
*i*) ;;
*) return;;
esac
# don't put duplicate lines or lines starting with space in the history.
# See bash(1) for more options
HISTCONTROL=ignoreboth
# append to the history file, don't overwrite it
shopt -s histappend
# for setting history length see HISTSIZE and HISTFILESIZE in bash(1)
HISTSIZE=1000
HISTFILESIZE=2000
# check the window size after each command and, if necessary,
# update the values of LINES and COLUMNS.
shopt -s checkwinsize
# If set, the pattern "**" used in a pathname expansion context will
# match all files and zero or more directories and subdirectories.
#shopt -s globstar
# make less more friendly for non-text input files, see lesspipe(1)
#[ -x /usr/bin/lesspipe ] && eval "$(SHELL=/bin/sh lesspipe)"
# set variable identifying the chroot you work in (used in the prompt below)
if [ -z "${debian_chroot:-}" ] && [ -r /etc/debian_chroot ]; then
debian_chroot=$(cat /etc/debian_chroot)
fi
# set a fancy prompt (non-color, unless we know we "want" color)
case "$TERM" in
xterm-color|*-256color) color_prompt=yes;;
esac
# uncomment for a colored prompt, if the terminal has the capability; turned
# off by default to not distract the user: the focus in a terminal window
# should be on the output of commands, not on the prompt
#force_color_prompt=yes
if [ -n "$force_color_prompt" ]; then
if [ -x /usr/bin/tput ] && tput setaf 1 >&/dev/null; then
# We have color support; assume it's compliant with Ecma-48
# (ISO/IEC-6429). (Lack of such support is extremely rare, and such
# a case would tend to support setf rather than setaf.)
color_prompt=yes
else
color_prompt=
fi
fi
if [ "$color_prompt" = yes ]; then
PS1='${debian_chroot:+($debian_chroot)}\[\033[01;32m\]\u@\h\[\033[00m\]:\[\033[01;34m\]\w\[\033[00m\]\$ '
else
PS1='${debian_chroot:+($debian_chroot)}\u@\h:\w\$ '
fi
unset color_prompt force_color_prompt
# If this is an xterm set the title to user@host:dir
case "$TERM" in
xterm*|rxvt*)
PS1="\[\e]0;${debian_chroot:+($debian_chroot)}\u@\h: \w\a\]$PS1"
;;
*)
;;
esac
# enable color support of ls and also add handy aliases
if [ -x /usr/bin/dircolors ]; then
test -r ~/.dircolors && eval "$(dircolors -b ~/.dircolors)" || eval "$(dircolors -b)"
alias ls='ls --color=auto'
#alias dir='dir --color=auto'
#alias vdir='vdir --color=auto'
#alias grep='grep --color=auto'
#alias fgrep='fgrep --color=auto'
#alias egrep='egrep --color=auto'
fi
# colored GCC warnings and errors
#export GCC_COLORS='error=01;31:warning=01;35:note=01;36:caret=01;32:locus=01:quote=01'
# some more ls aliases
#alias ll='ls -l'
#alias la='ls -A'
#alias l='ls -CF'
# Alias definitions.
# You may want to put all your additions into a separate file like
# ~/.bash_aliases, instead of adding them here directly.
# See /usr/share/doc/bash-doc/examples in the bash-doc package.
if [ -f ~/.bash_aliases ]; then
. ~/.bash_aliases
fi
# enable programmable completion features (you don't need to enable
# this, if it's already enabled in /etc/bash.bashrc and /etc/profile
# sources /etc/bash.bashrc).
if ! shopt -oq posix; then
if [ -f /usr/share/bash-completion/bash_completion ]; then
. /usr/share/bash-completion/bash_completion
elif [ -f /etc/bash_completion ]; then
. /etc/bash_completion
fi
fi
export GAUSSHOME=/usr/local/opengauss
export PATH=$GAUSSHOME/bin:$PATH
export LD_LIBRARY_PATH=$GAUSSHOME/lib:$LD_LIBRARY_PATH
export PGDATA=/var/lib/opengauss/data
6.从环境变量查看数据文件的目录
omm@modb:~$ grep -i PGDATA ~/.bashrc
export PGDATA=/var/lib/opengauss/data

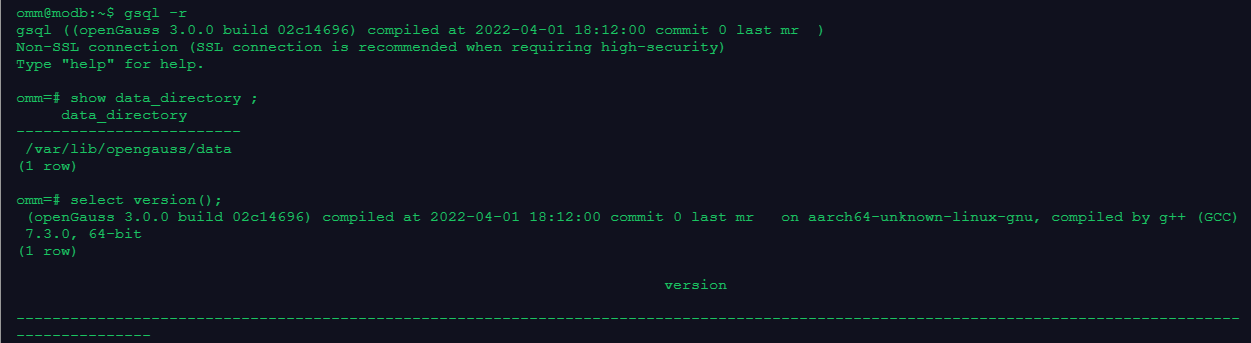

7.在gsql中查看数据文件的目录、数据库版本
omm@modb:~$ gsql -r
gsql ((openGauss 3.0.0 build 02c14696) compiled at 2022-04-01 18:12:00 commit 0 last mr )
Non-SSL connection (SSL connection is recommended when requiring high-security)
Type "help" for help.
omm=# show data_directory ;
data_directory
-------------------------
/var/lib/opengauss/data
(1 row)
omm=# select version();
(openGauss 3.0.0 build 02c14696) compiled at 2022-04-01 18:12:00 commit 0 last mr on aarch64-unknown-linux-gnu, compiled by g++ (GCC)
7.3.0, 64-bit
(1 row)
version
----------------------------------------------------------------------------------------------------------------------------------------
---------------
课程总结
1.从操作系统层面查看数据库进程和线程,判断数据库是否启动。
2.使用gs_ctl工具查看数据库状态,判断数据库是否启动。
3.使用gs_ctl 查看数据文件的目录
4.从环境变量查看数据文件的目录
5.在gsql中查看数据文件目录、数据库版本
