接触OG出现很多困惑,表空间是其中之一.
ORACLE里表空间是个逻辑概念,创建表空间同时创建数据文件,通过数据文件落盘来实现存储，而数据文件大小、是否扩展都是物理文件的属性。而OG这里，这个概念不一样了：
- 表空间本身就可以控制数据库的磁盘布局;
- 表空间对应于一个文件系统目录，如果使用revative location，路径指向数据库节点的数据目录/pg_location/相对路径(例如：/opt/huawei/install/data/dn/pg_location/tablespace/music_tbs);
- 在创建表空间也可以不用指定大小（使用表空间配额管理会使性能有30%左右的影响，在HCS等场景下一般不建议用户使用自定义的表空间）;
- 如果初始化数据库所在的分区或者卷空间已满，又不能逻辑上扩展更多空间，可以在不同的分区上创建和使用表空间，直到系统重新配置空间。
文档链接：
学习目标
学习表空间与数据库对象的关系。
在musicdb数据库中创建的所有的表，没有指定表空间的名字，因此都创建在数据库默认的表空间music_tbs中，当我们在musicdb数据库中创建表warehouse_t1的时候，明确指定在表空间ds_location1中创建时，这个表会存储在这个指定的表空间。即一个数据库中的对象，可以位于不同的表空间.
课程学习
1.连接数据库，准备测试环境
1）登录数据库
[omm@hecs-30579 tablespace]$ gsql -d postgres -p 26000 -r
gsql ((openGauss 3.1.0 build 4e931f9a) compiled at 2022-09-29 14:19:24 commit 0 last mr )
Non-SSL connection (SSL connection is recommended when requiring high-security)
Type "help" for help.
2）使用元命令\db、\l查看表空间、数据库
openGauss=# \db
List of tablespaces
Name | Owner | Location
------------+-------+----------
pg_default | omm |
pg_global | omm |
(2 rows)
openGauss=# \l
List of databases
Name | Owner | Encoding | Collate | Ctype | Access privileges
-----------+-------+-----------+---------+-------+-------------------
postgres | omm | SQL_ASCII | C | C |
template0 | omm | SQL_ASCII | C | C | =c/omm +
| | | | | omm=CTc/omm
template1 | omm | SQL_ASCII | C | C | =c/omm +
| | | | | omm=CTc/omm
(3 rows)
3）创建表空间music_tbs
openGauss=# create tablespace music_tbs relative location 'tablespace/music_tbs';
CREATE TABLESPACE
4）查看表空间music_tbs磁盘路径
openGauss=# \! ls /opt/huawei/install/data/dn/pg_location/tablespace/
music_tbs
openGauss=# \! ls /opt/huawei/install/data/dn/pg_location/tablespace/music_tbs
PG_9.2_201611171_dn_6001
openGauss=# \! ls /opt/huawei/install/data/dn/pg_location/tablespace/music_tbs/PG_9.2_201611171_dn_6001
pgsql_tmp
openGauss=# \! ls -lah /opt/huawei/install/data/dn/pg_location/tablespace/music_tbs/PG_9.2_201611171_dn_6001
total 12K
drwx------ 3 omm dbgrp 4.0K Dec 2 10:22 .
drwx------ 3 omm dbgrp 4.0K Dec 2 10:22 ..
drwx------ 2 omm dbgrp 4.0K Dec 2 10:22 pgsql_tmp
openGauss=# \! ls /opt/huawei/install/data/dn/pg_location/tablespace/music_tbs/PG_9.2_201611171_dn_6001/pgsql_tmp
openGauss=#
5）创建数据库musicdb
openGauss=# create database musicdb with tablespace=music_tbs;
CREATE DATABASE
openGauss=#

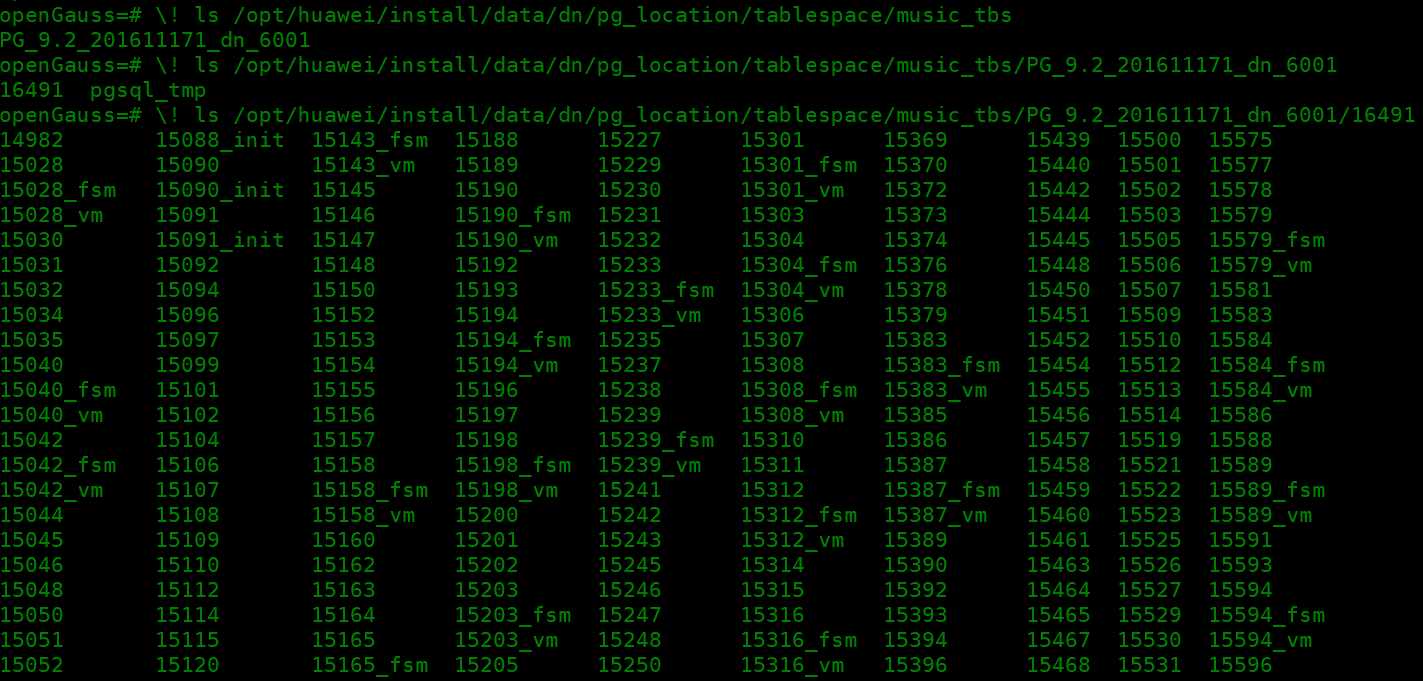

6）查看数据库musicdb磁盘路径
7）创建用户user1,授予sysadmin
openGauss=# create user user1 identified by 'kunpeng@1234';
CREATE ROLE
openGauss=# alter user user1 sysadmin;
ALTER ROLE
2.创建表空间、查看表空间ds_location1
1) 创建表空间ds_location1
openGauss=# create tablespace ds_location1 relative location 'tablespace/tablespace_1';
CREATE TABLESPACE
openGauss=#
2) 使用元命令\db查看表空间ds_location1
openGauss=# \db
List of tablespaces
Name | Owner | Location
--------------+-------+-------------------------
ds_location1 | omm | tablespace/tablespace_1
music_tbs | omm | tablespace/music_tbs
pg_default | omm |
pg_global | omm |
(4 rows)
3) 查看表空间ds_location1磁盘路径
openGauss=# \! ls -lah /opt/huawei/install/data/dn/pg_location/tablespace/
total 16K
drwx------ 4 omm dbgrp 4.0K Dec 2 10:43 .
drwx------ 3 omm dbgrp 4.0K Nov 28 08:43 ..
drwx------ 3 omm dbgrp 4.0K Dec 2 10:22 music_tbs
drwx------ 3 omm dbgrp 4.0K Dec 2 10:43 tablespace_1
openGauss=#
openGauss=#
openGauss=# \! ls -lah /opt/huawei/install/data/dn/pg_location/tablespace/tablespace_1
total 12K
drwx------ 3 omm dbgrp 4.0K Dec 2 10:43 .
drwx------ 4 omm dbgrp 4.0K Dec 2 10:43 ..
drwx------ 3 omm dbgrp 4.0K Dec 2 10:43 PG_9.2_201611171_dn_6001
openGauss=# \! ls -lah /opt/huawei/install/data/dn/pg_location/tablespace/tablespace_1/PG_9.2_201611171_dn_6001
total 12K
drwx------ 3 omm dbgrp 4.0K Dec 2 10:43 .
drwx------ 3 omm dbgrp 4.0K Dec 2 10:43 ..
drwx------ 2 omm dbgrp 4.0K Dec 2 10:43 pgsql_tmp
openGauss=#
可以看到music_tbs和ds_location1两个表空间路径下都创建了PG_9.2_201611171_dn_6001目录，代表当前实例
[omm@hecs-30579 openGauss]$ gs_om -t status --detail
[ Cluster State ]
cluster_state : Normal
redistributing : No
current_az : AZ_ALL
[ Datanode State ]
node node_ip port instance state
-------------------------------------------------------------------------------------------------
1 hecs-30579 192.168.0.98 26000 6001 /opt/huawei/install/data/dn P Primary Normal
[omm@hecs-30579 openGauss]$
3.使用user1用户，访问musicdb数据库 ，在表空间ds_location1上创建表warehouse_t1:
openGauss=# \c musicdb user1
Password for user user1:
Non-SSL connection (SSL connection is recommended when requiring high-security)
You are now connected to database "musicdb" as user "user1".
musicdb=>
musicdb=> create table warehouse_t1(col1 char(10)) tablespace ds_location1;
CREATE TABLE
musicdb=>
4.查看musicdb数据库目前有哪些表：
musicdb=> select table_catalog,table_schema,table_name,table_type from information_schema.tables where table_schema not in('pg_catalog','information_schema','dbe_perf');
table_catalog | table_schema | table_name | table_type
---------------+-----------------+--------------+------------
musicdb | db4ai | snapshot | BASE TABLE
musicdb | dbe_pldeveloper | gs_errors | BASE TABLE
musicdb | dbe_pldeveloper | gs_source | BASE TABLE
musicdb | public | warehouse_t1 | BASE TABLE
(4 rows)
musicdb=>
5.查询表在那个表空间:
1) 查询表warehouse_t1在那个表空间:
musicdb=> select * from pg_tables where tablename = 'warehouse_t1';
schemaname | tablename | tableowner | tablespace | hasindexes | hasrules | hastriggers | tablecreator |
created | last_ddl_time
------------+--------------+------------+--------------+------------+----------+-------------+--------------+------------
-------------------+-------------------------------
public | warehouse_t1 | user1 | ds_location1 | f | f | f | user1 | 2022-12-02
11:07:20.744739+08 | 2022-12-02 11:07:20.744739+08
(1 row)
musicdb=>

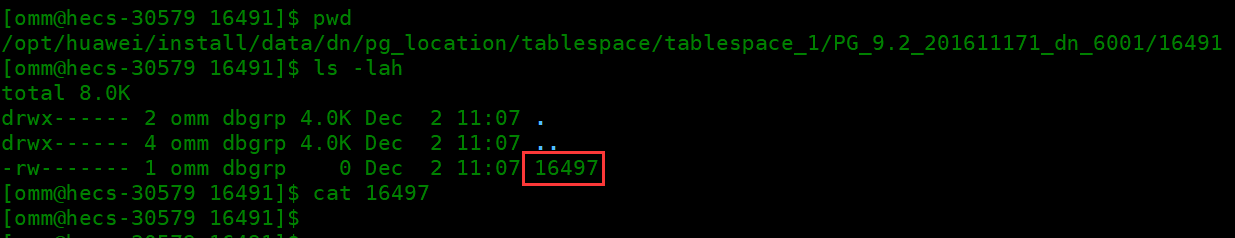

2) 查询磁盘路径/opt/huawei/install/data/dn/pg_location/tablespace/tablespace_1/PG_9.2_201611171_dn_6001/16491下有哪些文件:
3) 创建表warehouse_t12未指定表空间，则在默认表空间（不显示默认表空间名）
musicdb=> create table warehouse_t12 (col1 char(10));
CREATE TABLE
musicdb=> select * from pg_tables where tablename = 'warehouse_t12';
schemaname | tablename | tableowner | tablespace | hasindexes | hasrules | hastriggers | tablecreator | c
reated | last_ddl_time
------------+---------------+------------+------------+------------+----------+-------------+--------------+-------------
------------------+-------------------------------
public | warehouse_t12 | user1 | | f | f | f | user1 | 2022-12-02 1
1:24:54.338564+08 | 2022-12-02 11:24:54.338564+08
(1 row)
musicdb=>
6.查看openGuass数据库的默认表空间
musicdb=> select datname,dattablespace,spcname from pg_database d, pg_tablespace t where d.dattablespace=t.oid;
datname | dattablespace | spcname
-----------+---------------+------------
template1 | 1663 | pg_default
template0 | 1663 | pg_default
musicdb | 16490 | music_tbs
postgres | 1663 | pg_default
(4 rows)

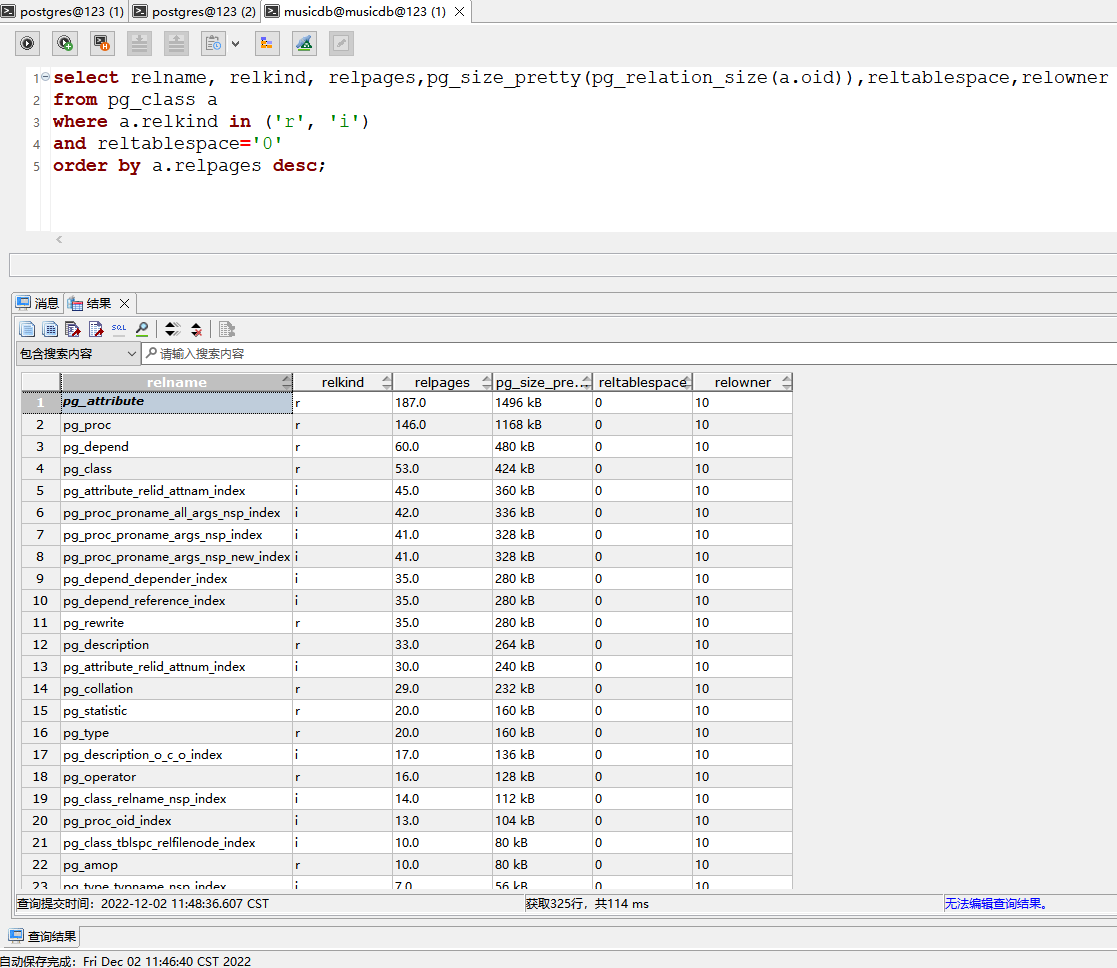

7.查询数据库的默认表空间上的对象
musicdb=> select relname, relkind, relpages,pg_size_pretty(pg_relation_size(a.oid)),reltablespace,relowner
musicdb-> from pg_class a
musicdb-> where a.relkind in ('r', 'i')
musicdb-> and reltablespace='0'
musicdb-> order by a.relpages desc;
relname | relkind | relpages | pg_size_pretty | reltablespace | relowner
------------------------------------------------+---------+----------+----------------+---------------+----------
pg_attribute | r | 187 | 1496 kB | 0 | 10
pg_proc | r | 146 | 1168 kB | 0 | 10
pg_depend | r | 60 | 480 kB | 0 | 10
pg_class | r | 53 | 424 kB | 0 | 10
pg_attribute_relid_attnam_index | i | 45 | 360 kB | 0 | 10
pg_proc_proname_all_args_nsp_index | i | 42 | 336 kB | 0 | 10
pg_proc_proname_args_nsp_index | i | 41 | 328 kB | 0 | 10
pg_proc_proname_args_nsp_new_index | i | 41 | 328 kB | 0 | 10
pg_depend_depender_index | i | 35 | 280 kB | 0 | 10
pg_depend_reference_index | i | 35 | 280 kB | 0 | 10
pg_rewrite | r | 35 | 280 kB | 0 | 10
pg_description | r | 33 | 264 kB | 0 | 10
pg_attribute_relid_attnum_index | i | 30 | 240 kB | 0 | 10
pg_collation | r | 29 | 232 kB | 0 | 10
pg_statistic | r | 20 | 160 kB | 0 | 10
pg_type | r | 20 | 160 kB | 0 | 10
pg_description_o_c_o_index | i | 17 | 136 kB | 0 | 10
pg_operator | r | 16 | 128 kB | 0 | 10
pg_class_relname_nsp_index | i | 14 | 112 kB | 0 | 10
pg_proc_oid_index | i | 13 | 104 kB | 0 | 10
pg_class_tblspc_relfilenode_index | i | 10 | 80 kB | 0 | 10
pg_amop | r | 10 | 80 kB | 0 | 10
--More--

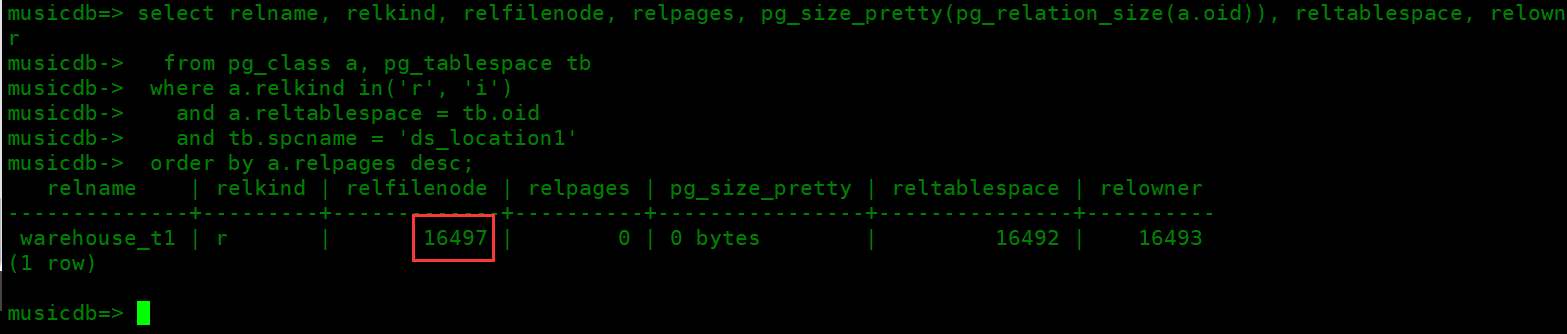

8.查询表空间ds_location1上的对像
musicdb-> order by a.relpages desc;
relname | relkind | relfilenode | relpages | pg_size_pretty | reltablespace | relowner
--------------+---------+-------------+----------+----------------+---------------+----------
warehouse_t1 | r | 16497 | 0 | 0 bytes | 16492 | 16493
(1 row)
musicdb=>
学习心得
OG的表空间初步理解是物理概念
