openGauss系列_Centos 7.6 使用 PTK v0.5 安装部署 MogDB v3.0.3 一主两备级联集群

原创 尚雷 2022-12-08
1122

一、安装环境准备

本次选择在集群环境规划的节点一节点使用PTK来部署MogDB集群，初期未创建omm数据库操作系统用户，通过PTK来创建omm用户及对应组。

本次部署一主两备环境，计划后期测试集群的增删节点。

1.1 硬件环境要求

根据MogDB官网信息，安装部署MogDB对于硬件有一定要求，如部署生产环境请参照要求进行配置。

项目 配置描述
内存 功能调试32GB以上。 性能测试和商业部署时，单实例部署建议128GB以上。 复杂的查询对内存的需求量比较高，在高并发场景下，可能出现内存不足。此时建议使用大内存的机器，或使用负载管理限制系统的并发。
CPU 功能调试最小1×8 核，2.0GHz。 性能测试和商业部署时，单实例部署建议1×16核，2.0GHz。 CPU超线程和非超线程两种模式都支持。但是，MogDB各节点的设置需保持一致。
硬盘 用于安装MogDB的硬盘需最少满足如下要求： - 至少1GB用于安装MogDB的应用程序。 - 每个主机需大约300MB用于元数据存储。 - 预留70%以上的磁盘剩余空间用于数据存储。 建议系统盘配置为RAID1，数据盘配置为RAID5，且规划4组RAID5数据盘用于安装MogDB。有关RAID的配置方法在本手册中不做介绍。请参考硬件厂家的手册或互联网上的方法进行配置，其中Disk Cache Policy一项需要设置为Disabled，否则机器异常掉电后有数据丢失的风险。 MogDB支持使用SSD盘作为数据库的主存储设备，支持SAS接口和NVME协议的SSD盘，以RAID的方式部署使用。
网络要求 300兆以上以太网。 建议网卡设置为双网卡冗余bond。有关网卡冗余bond的配置方法在本手册中不做介绍。请参考硬件厂商的手册或互联网上的方法进行配置。 MogDB网络如果配置bond，请保证bond模式一致，不一致的bond配置可能导致MogDB工作异常。

1.2 软件环境要求

根据MogDB官网信息，安装部署MogDB对于部分软件有一定要求，请参照官网要求配置如下软件。

软件类型 配置描述
rdtscp指令集（x86） 执行lscpu | grep rdtscp命令查看是否支持rdtscp指令集。
bmi2指令集（CentOS） 执行lscpu | grep bmi2命令查看是否支持bmi2指令集。
工具 Huawei JDK 1.8.0、psmisc、bzip2
Python - openEuler：支持Python 3.7.X - CentOS：支持Python 3.6.X - 麒麟：支持Python 3.7.X 说明： python需要通过–enable-shared方式编译。

1.3 操作系统要求

根据MogDB官网信息，安装部署MogDB对于操作系统版本是有一定要求，在安装部署MogDB前要检测所使用的操作系统是否符合要求。

操作系统 PTK方式 OM方式 手动方式
CentOS 7 (x86_64) √ √ √
CentOS 8 (arm64) √ √
CentOS 8 (x86_64) √ √
EulerOS 2 (arm64) √ √
EulerOS 2 (x86_64) √ √
Kylin V10 (arm64) √ √ √
Kylin V10 (x86_64) √ √ √
NeoKylin V7 (x86_64) √ √
Oracle Linux 7 (x86_64) √ √
Oracle Linux 8 (x86_64) √ √
Red Hat Enterprise Linux 7 (x86_64) √ √ √
Red Hat Enterprise Linux 8 (x86_64) √ √
Rocky Linux 7 (x86_64) √ √
Rocky Linux 8 (x86_64) √ √
SLES 12 (arm64) √ √
UOS 20 (arm64) √ √ √
UOS 20 (x86_64) √ √ √
Ubuntu 18 (x86_64) √ √
openEuler 20 (arm64) √ √ √
openEuler 20 (x86_64) √ √ √
openEuler 22 (arm64) √ √
openEuler 22 (x86_64) √ √

1.4 软件依赖要求

根据MogDB官网信息，安装部署MogDB需要依赖一些软件包，所以在部署MogDB前，要检查如下依赖包是否已安装。

所需软件 建议版本
libaio-devel 建议版本：0.3.109-13
flex 要求版本：2.5.31 以上
bison 建议版本：2.7-4
ncurses-devel 建议版本：5.9-13.20130511
glibc-devel 建议版本：2.17-111
patch 建议版本：2.7.1-10
redhat-lsb-core 建议版本：4.1
readline-devel 建议版本：7.0-13
libnsl（openEuler+x86环境中） 建议版本：2.28-36
openSSH 建议版本 ：8.4p1
expect 建议版本 ：5.45.4
-- 检查操作系统依赖包
-- root 用户【所有节点】
rpm  -qa  --queryformat  "%{NAME}-%{VERSION}-%{RELEASE}  (%{ARCH})\n"  |  grep  -E "libaio-devel|flex|bison|ncurses-devel|glibc-devel|patch|redhat-lsb-core|readline-devel|openSSH|expect|zlib*|lsof|bzip2|numactl"
-- 安装依赖包
yum -y install libaio-devel flex bison ncurses-devel glibc-devel patch redhat-lsb-core readline-devel openSSH expect zlib* lsof bzip2 numactl

二、操作系统设置

2.1 安装python3

-- 本次选择安装python 3.6.5版本
-- root 用户【所有节点】
mkdir /usr/local/python3
cd /usr/local/python3
wget https://www.python.org/ftp/python/3.6.5/Python-3.6.5.tgz
tar -zxf Python-3.6.5.tgz
cd /usr/local/python3/Python-3.6.5
-- 不加CFLAGS=-fPIC，会在升级3.0的时候遇到编译问题
./configure --prefix=/usr/local/python3 --enable-shared CFLAGS=-fPIC
make && make install
ln -s /usr/local/python3/bin/python3 /usr/bin/python3
ln -s /usr/local/python3/bin/pip3 /usr/bin/pip3

-- 设置环境变量
cat >>/etc/profile<<EOF
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/usr/local/python3/bin
EOF
source /etc/profile

2.2 关闭操作系统防火墙

-- root 用户【所有节点】
systemctl disable firewalld.service
systemctl stop firewalld.service
systemctl status firewalld.service

2.3 设置字符集参数

-- root 用户【所有节点】
cat >>/etc/profile <<EOF
export LANG=en_US.UTF-8
EOF
source /etc/profile
# 检查字符集
cat /etc/profile | grep LANG
env |grep -i lang

2.4 设置时区和时间

-- root 用户【所有节点】
cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
-- 查看
date

2.5 关闭swap交换内存

-- root 用户【所有节点】
-- 永久关闭
注释 swap 行
vim /etc/fstab

-- 查看
free -h 查看 swap一行全是 0 表示swap关闭

2.6 设置网卡MTU

-- root 用户【所有节点】
-- 设置网卡为1500
ifconfig 网卡名 mtu 1500

-- 查看
ifconfig -a |grep -i mtu

2.7 设置root用户远程登录

-- root 用户【所有节点】
cat >>/etc/ssh/sshd_config<<EOF
PermitRootLogin yes
EOF
-- 检查
cat /etc/ssh/sshd_config |grep PermitRootLogin

2.8 关闭透明大页

-- root 用户【所有节点】
cat >> /etc/rc.d/rc.local<<EOF
if test -f /sys/kernel/mm/transparent_hugepage/enabled;
	then
		echo never > /sys/kernel/mm/transparent_hugepage/enabled
fi
if test -f /sys/kernel/mm/transparent_hugepage/defrag;
	then
		echo never > /sys/kernel/mm/transparent_hugepage/defrag
fi
EOF

-- 查看是否关闭：
cat /sys/kernel/mm/transparent_hugepage/enabled
cat /sys/kernel/mm/transparent_hugepage/defrag

2.9 修改 Banner 配置

-- root 用户【所有节点】
cat >>/etc/ssh/sshd_config<<EOF
Banner none
EOF
-- 检查
cat /etc/ssh/sshd_config | grep Banner

-- 重启生效
systemctl restart sshd.service

三、安装MogDB集群

3.1 在线安装PTK

-- 本次选择在集群节点一节点在线安装最新版PTK
-- root 用户 【节点一】
[root@mogdb-db1 ~]# curl --proto '=https' --tlsv1.2 -sSf https://cdn-mogdb.enmotech.com/ptk/install.sh | sh
Downloading ptk package...
Detected shell: bash
Shell profile:  /root/.bash_profile
ptk has been added to PATH in /root/.bash_profile
open a new terminal or source /root/.bash_profile to active it
Installed path: /root/.ptk/bin/ptk

-- 配置环境变量
根据在线安装提示，重新打开一个会话窗口或执行 source /root/.bash_profile生效PTK环境变量
[root@mogdb-db1 ~]# source /root/.bash_profile
[root@mogdb-db1 ~]# more /root/.bash_profile
# .bash_profile

# Get the aliases and functions
if [ -f ~/.bashrc ]; then
        . ~/.bashrc
fi

# User specific environment and startup programs

PATH=$PATH:$HOME/bin

export PATH

export PATH=/root/.ptk/bin:$PATH

-- 查看PTK版本
[root@mogdb-db1 ~]# ptk -v
PTK Version: v0.5.5 release
Go Version: go1.18.1
Build Date: 2022-12-05T19:41:46
Git Hash: 6c0ef5f

3.2 下载MogDB安装包

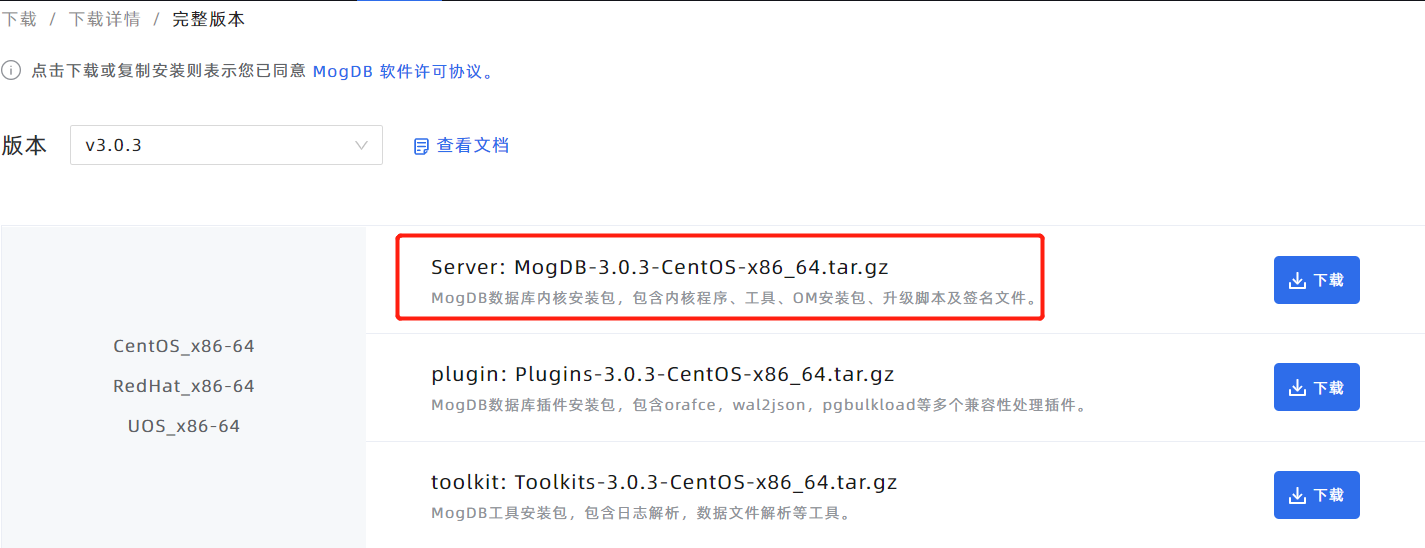

登陆https://www.mogdb.io/downloads/allDownload链接下载地址，下载对应操作系统数据库安装包。


-- root 用户 【节点一】
[root@mogdb-db1 ~]# cd /opt/software/mogdb/
[root@mogdb-db1 mogdb]# wget https://cdn-mogdb.enmotech.com/mogdb-media/3.0.3/MogDB-3.0.3-CentOS-x86_64.tar.gz
--2022-12-07 11:22:41--  https://cdn-mogdb.enmotech.com/mogdb-media/3.0.3/MogDB-3.0.3-CentOS-x86_64.tar.gz
Resolving cdn-mogdb.enmotech.com (cdn-mogdb.enmotech.com)... 122.193.130.107
Connecting to cdn-mogdb.enmotech.com (cdn-mogdb.enmotech.com)|122.193.130.107|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 139260078 (133M) [application/gzip]
Saving to: ‘MogDB-3.0.3-CentOS-x86_64.tar.gz’

100%[=====================================================================================================] 139,260,078 21.4MB/s   in 6.8s

2022-12-07 11:22:48 (19.6 MB/s) - ‘MogDB-3.0.3-CentOS-x86_64.tar.gz’ saved [139260078/139260078]

3.3 创建config.yaml配置文件

PTK安装集群环境需配置config.yaml集群配置文件。

参照官网可使用ptk template > config.yaml方式进行手动配置生成集群yaml文件；

也可以采用ptk template create根据提示交互式一步步生成集群ymal文件。

PTK详细用法及参数说明请参阅官网文档：https://docs.mogdb.io/zh/ptk/v0.5/usage-config

-- 加密 root口令
[root@mogdb-db1 mogdb]# ptk encrypt root
root: pTk6YjEwYWI2ZGE9PjxDPUJAQ2VmYzZpOHBHMUdzSWd0dTRWUmNpM1hobDNtSmRxdlMya1kzOGxkMGxzcTA=

-- 加密 db_password 口令
[root@mogdb-db1 mogdb]# ptk encrypt Mogdb@passwd
Mogdb@passwd: pTk6YjQ4ZjhkYTY9PjxDPUJARFhFWGVjNUV1SFVCMVJQWi1xWFNXcnhwN2lYN184SUpvSG1fZS0xNjV6SW8=

-- root 用户 【节点一】
[root@opensource-db ~]# cd /opt/software/mogdb/
-- 创建config.yaml配置文件
cat>> config.yaml <<EOF
global:
    <!-- 集群名称 -->
    cluster_name: cluster_mogdb
    <!-- 运行数据库操作系统用户名 -->
    user: omm
    <!-- 运行数据库的操作系统用户组  -->
    group: dbgrp
    <!-- 数据库的初始用户密码，若配置文件中未填写，会在安装时通过交互式要求输入  -->
    db_password: pTk6YjQ4ZjhkYTY9PjxDPUJARFhFWGVjNUV1SFVCMVJQWi1xWFNXcnhwN2lYN184SUpvSG1fZS0xNjV6SW8=
    <!-- 数据库安装的基础目录，指定该目录后，app_dir，data_dir，log_dir和tool_dir 参数中若未配置的，PTK 会自动在该安装目录下会创建对应的目录 -->
    base_dir: /opt/mogdb
    <!-- CM 配置信息 (可选) -->
    cm_option:
        <!-- CM 安装目录 -->
        dir: /opt/mogdb/cm
        <!-- cm server 监听端口 -->
        cm_server_port: 15300
        <!-- 数据库提供服务的虚拟IP -->
        db_service_vip: ""
<!-- 集群内的数据库实例服务器配置信息 -->
db_servers:
    <!-- 数据库实例服务器 IP (仅支持 IPv4) -->
    - host: 192.168.17.112
      <!-- 数据库端口 -->
      db_port: 27000
      <!-- 数据库主备实例IP地址列表 -->
      ha_ips:
        -
      <!-- 数据库主备实例日志传输端口 -->
      ha_port: 27001
      <!-- 数据库实例角色，若不填，PTK 会随机选择一个实例作为主库，其余自动为备库 -->
      role: primary
      <!-- Available Zone (可用区) 名称 -->
      az_name: BJ
      <!-- 可用区使用的优先级，数值越小优先级越高 -->
      az_priority: 1
      <!-- SSH 登录信息，登录用户需为 **root** 或者具有 sudo 权限的用户 -->
      ssh_option:
        <!-- SSH 登录用户端口 -->
        port: 22
        <!-- SSH 登录用户账号 -->
        user: root
        <!-- SSH 登录用户账号口令 -->
        password: pTk6YjEwYWI2ZGE9PjxDPUJAQ2VmYzZpOHBHMUdzSWd0dTRWUmNpM1hobDNtSmRxdlMya1kzOGxkMGxzcTA=
        <!-- SSH 执行单条命令时的超时时间 -->
        conn_timeout: 5m0s
        <!-- 跳板服务器登录信息，如果目标服务器无法直连时，支持通过中间跳板机方式连接 -->
        exec_timeout: 5m0s
    - host: 192.168.17.113
      db_port: 27000
      ha_ips:
        -
      ha_port: 27001
      role: standby
      az_name: SH
      az_priority: 2
      ssh_option:
        port: 22
        user: root
        password: pTk6YjEwYWI2ZGE9PjxDPUJAQ2VmYzZpOHBHMUdzSWd0dTRWUmNpM1hobDNtSmRxdlMya1kzOGxkMGxzcTA=
        conn_timeout: 5m0s
        exec_timeout: 5m0s
    - host: 192.168.17.139
      db_port: 27000
      ha_ips:
        -
      ha_port: 27001
      <!-- cascade_standby 表示级联备库 -->
      role: cascade_standby
      <!-- 当实例角色为 cascade_standby 时，该字段表示要跟随的上游备库 IP -->
      upstream_host: 192.168.17.113
      -- 注意级联备库的az_name要和standby备库相同，否则集群部署完毕后会显示级联备库状态为Need Repar(Connecting...)
      az_name: SH
      -- 注意级联备库的az_priority要和standby备库相同
      az_priority: 2
      ssh_option:
        port: 22
        user: root
        password: pTk6YjEwYWI2ZGE9PjxDPUJAQ2VmYzZpOHBHMUdzSWd0dTRWUmNpM1hobDNtSmRxdlMya1kzOGxkMGxzcTA=
        conn_timeout: 5m0s
        exec_timeout: 5m0s
<!-- 集群内的CM服务部署机器列表 -->
cm_servers:
    <!-- CM Server 服务器 IP (仅支持 IPv4) -->
    - host: 192.168.17.112
    <!-- CM Server 监听端口 -->
      port: 25300
      role: ""
    - host: 192.168.17.113
      port: 25300
      role: ""
    - host: 192.168.17.139
      port: 25300
      role: ""
EOF

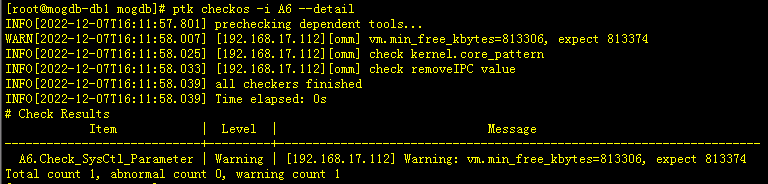

3.4 执行预检查

-- root 用户执行
[root@opensource-db mogdb]# ptk checkos -f config.yaml
[root@mogdb-db1 mogdb]# ptk checkos -f config.yaml
INFO[2022-12-07T16:09:45.364] prechecking dependent tools...
WARN[2022-12-07T16:09:46.761] [192.168.17.112][omm] vm.min_free_kbytes=813306, expect 813374
INFO[2022-12-07T16:09:46.767] [192.168.17.112][omm] check kernel.core_pattern
INFO[2022-12-07T16:09:46.777] [192.168.17.112][omm] check removeIPC value
WARN[2022-12-07T16:09:47.635] [192.168.17.139][omm] vm.min_free_kbytes=503638, expect 503721
WARN[2022-12-07T16:09:48.040] [192.168.17.113][omm] vm.min_free_kbytes=813306, expect 813374
INFO[2022-12-07T16:09:48.083] [192.168.17.113][omm] check kernel.core_pattern
INFO[2022-12-07T16:09:48.171] [192.168.17.113][omm] check removeIPC value
INFO[2022-12-07T16:09:49.176] [192.168.17.139][omm] check kernel.core_pattern
INFO[2022-12-07T16:09:49.274] [192.168.17.139][omm] check removeIPC value
WARN[2022-12-07T16:09:49.336] [192.168.17.112][omm] device(sda) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.336] [192.168.17.112][omm] device(sdb) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.336] [192.168.17.112][omm] device(sr0) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.336] [192.168.17.112][omm] device(dm-0) 'IO Request'=128, expect 256
WARN[2022-12-07T16:09:49.336] [192.168.17.112][omm] device(dm-1) 'IO Request'=128, expect 256
WARN[2022-12-07T16:09:49.336] [192.168.17.112][omm] device(fd0) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.370] [192.168.17.139][omm] device(sdc) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.371] [192.168.17.139][omm] device(sdf) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.371] [192.168.17.139][omm] device(sr0) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.371] [192.168.17.139][omm] device(sda) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.371] [192.168.17.139][omm] device(dm-1) 'IO Request'=128, expect 256
WARN[2022-12-07T16:09:49.371] [192.168.17.139][omm] device(sdb) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.371] [192.168.17.139][omm] device(sdd) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.371] [192.168.17.139][omm] device(sdg) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.371] [192.168.17.139][omm] device(dm-0) 'IO Request'=128, expect 256
WARN[2022-12-07T16:09:49.371] [192.168.17.139][omm] device(dm-4) 'IO Request'=128, expect 256
WARN[2022-12-07T16:09:49.371] [192.168.17.139][omm] device(dm-3) 'IO Request'=128, expect 256
WARN[2022-12-07T16:09:49.371] [192.168.17.139][omm] device(fd0) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.372] [192.168.17.139][omm] device(sde) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.372] [192.168.17.139][omm] device(dm-2) 'IO Request'=128, expect 256
WARN[2022-12-07T16:09:49.439] [192.168.17.113][omm] device(fd0) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.439] [192.168.17.113][omm] device(sda) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.439] [192.168.17.113][omm] device(sdb) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.439] [192.168.17.113][omm] device(sr0) 'IO Request'=32768, expect 256
WARN[2022-12-07T16:09:49.440] [192.168.17.113][omm] device(dm-0) 'IO Request'=128, expect 256
WARN[2022-12-07T16:09:49.440] [192.168.17.113][omm] device(dm-1) 'IO Request'=128, expect 256
INFO[2022-12-07T16:09:50.257] [192.168.17.112][omm] kernel version: 3.10.0-693.el7.x86_64
INFO[2022-12-07T16:09:50.303] [192.168.17.113][omm] kernel version: 3.10.0-693.el7.x86_64
INFO[2022-12-07T16:09:50.312] [192.168.17.139][omm] kernel version: 3.10.0-693.el7.x86_64
INFO[2022-12-07T16:09:50.318] [192.168.17.112][omm] swap memory 0kB, total memory 16267496kB
INFO[2022-12-07T16:09:50.358] [192.168.17.113][omm] swap memory 0kB, total memory 16267496kB
INFO[2022-12-07T16:09:50.373] [192.168.17.139][omm] swap memory 0kB, total memory 10074432kB
INFO[2022-12-07T16:09:50.554] [192.168.17.139][omm] platform: centos_7_64bit
INFO[2022-12-07T16:09:50.554] [192.168.17.112][omm] platform: centos_7_64bit
INFO[2022-12-07T16:09:50.554] [192.168.17.113][omm] platform: centos_7_64bit
ERRO[2022-12-07T16:09:59.604] [192.168.17.139][omm] not found package: numactl
INFO[2022-12-07T16:10:03.249] [192.168.17.139][omm] check port 27000
INFO[2022-12-07T16:10:03.249] [192.168.17.112][omm] check port 27000
? executing...INFO[2022-12-07T16:10:03.249] [192.168.17.113][omm] check port 27000
INFO[2022-12-07T16:10:03.452] [192.168.17.112][omm] port 27000 is free
INFO[2022-12-07T16:10:03.688] [192.168.17.139][omm] port 27000 is free
INFO[2022-12-07T16:10:04.041] [192.168.17.113][omm] port 27000 is free
INFO[2022-12-07T16:10:04.149] [192.168.17.112][omm] locale: LANG=en_US.UTF-8
INFO[2022-12-07T16:10:04.181] [192.168.17.139][omm] locale: LANG=en_US.UTF-8
INFO[2022-12-07T16:10:04.186] [192.168.17.113][omm] locale: LANG=en_US.UTF-8
INFO[2022-12-07T16:10:06.718] [192.168.17.112][omm] timezone: +0800
INFO[2022-12-07T16:10:06.815] [192.168.17.113][omm] timezone: +0800
INFO[2022-12-07T16:10:06.818] [192.168.17.139][omm] timezone: +0800
INFO[2022-12-07T16:10:06.818] all checkers finished
INFO[2022-12-07T16:10:06.818] write fix os script to root_fix_os.2022.1207.161006.sh success
INFO[2022-12-07T16:10:06.819] Time elapsed: 22s
# Check Results
                Item                |  Level
------------------------------------+-----------
  A1.Check_OS_Version               | OK
  A2.Check_Kernel_Version           | OK
  A3.Check_Unicode                  | OK
  A4.Check_TimeZone                 | OK
  A5.Check_Swap_Memory_Configure    | OK
  A6.Check_SysCtl_Parameter         | Warning
  A7.Check_FileSystem_Configure     | OK
  A8.Check_Disk_Configure           | OK
  A9.Check_Logical_Block            | OK
  A9.Check_BlockDev_Configure       | OK
  A10.Check_IO_Request              | Warning
  A10.Check_Asynchronous_IO_Request | OK
  A10.Check_IO_Configure            | OK
  A11.Check_Network_Configure       | OK
  A12.Check_Time_Consistency        | OK
  A13.Check_Firewall_Service        | OK
  A14.Check_THP_Service             | OK
  A15.Check_Dependent_Package       | Abnormal
  A16.Check_CPU_Instruction_Set     | Abnormal
  A17.Check_Port                    | OK
Total count 20, abnormal count 2, warning count 2
Failed to check os, can’t perform installation unless fix all the abnormal items
You can use 'ptk checkos -i ITEM --detail' to get detail message
Please check root_fix_os.[TIMESTAMP].sh for commands to resolve.

# 确保输出的检查结果均为 OK 或 Warning ，如有 Abnormal 或 ExecuteError出现，需根据日志提示修正系统参数后再安装


每次执行ptk checkos -f config.yaml都会在当前目录下生成诸如 root_fix_os.年.月日.时分秒.sh这样的文件，查看该文件，如果提示缺少包，会在该sh脚本文件里提示，并可以按照该脚本来执行一些缺少的包，该文件内容如下。

[root@mogdb-db1 mogdb]# cat root_fix_os.2022.1207.161006.sh
#!/usr/bin/env bash

local_ips=$(ip addr | grep 'inet' | grep -v 'inet6\|127.0.0.1' | grep -v grep | awk -F '/' '{print $1}' | awk '{print $2}')


# fix suggestions for host: 192.168.17.139
for ip in ${local_ips}; do
if [[ "${ip}" == "192.168.17.139" ]]; then
yum install -y numactl
exit 0
fi
done

根据ptk checkos -f config.yaml执行的结果，可通过如下方式查看具体的告警信息。

[root@mogdb-db1 mogdb]# ptk checkos -i A6 --detail
INFO[2022-12-07T16:11:57.801] prechecking dependent tools...
WARN[2022-12-07T16:11:58.007] [192.168.17.112][omm] vm.min_free_kbytes=813306, expect 813374
INFO[2022-12-07T16:11:58.025] [192.168.17.112][omm] check kernel.core_pattern
INFO[2022-12-07T16:11:58.033] [192.168.17.112][omm] check removeIPC value
INFO[2022-12-07T16:11:58.039] all checkers finished
INFO[2022-12-07T16:11:58.039] Time elapsed: 0s
# Check Results
            Item            |  Level  |                              Message
----------------------------+---------+----------------------------------------------------------------
A6.Check_SysCtl_Parameter | Warning | [192.168.17.112] Warning: vm.min_free_kbytes=813306, expect 813374
Total count 1, abnormal count 0, warning count 1
-- 根据提示进行修改设置

3.5 执行安装

对于预检查的 一些Abnormal告警信息，本次选择采用如下安装方式暂时忽略。

-- root 用户执行
[root@mogdb-db1 ~]#  cd /opt/software/mogdb/
[root@mogdb-db1 mogdb]# ptk install --assumeyes --pkg /opt/software/mogdb/MogDB-3.0.3-CentOS-x86_64.tar.gz --skip-check-distro --skip-check-os --file=/opt/software/mogdb/config.yaml
# 执行过程及结果如下
INFO[2022-12-07T17:15:39.875] PTK Version: 0.5.5 release
INFO[2022-12-07T17:15:39.875] load config from /opt/software/mogdb/config.yaml
INFO[2022-12-07T17:15:40.700] skip check os
INFO[2022-12-07T17:15:40.700] skip check distro
INFO[2022-12-07T17:15:40.700] start check user ...
INFO[2022-12-07T17:15:40.795] check user success
INFO[2022-12-07T17:15:40.795] start check port ...
INFO[2022-12-07T17:15:41.605] check port success
INFO[2022-12-07T17:15:41.605] start prepare installation package ...
INFO[2022-12-07T17:15:41.605] installation package is ready
INFO[2022-12-07T17:15:41.606] start validate installation package ...
INFO[2022-12-07T17:15:44.450] parsed kernel package name: MogDB-3.0.3-CentOS-64bit.tar.gz
INFO[2022-12-07T17:15:49.234] db product: MogDB, version: 3.0.3, number: 92.605, commit_id: 23ba838d
INFO[2022-12-07T17:15:49.235] validate installation package success
INFO[2022-12-07T17:15:49.235] start complete the configuration ...
INFO[2022-12-07T17:15:49.235] complete the configuration success
INFO[2022-12-07T17:15:49.236] start distribute installation package ...
> upload MogDB-3.0.3-CentOS-x...: 132.81 MiB / 132.81 MiB [----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------] 100.00% 22.06 MiB p/s 6.2s
> upload MogDB-3.0.3-CentOS-x...: 132.81 MiB / 132.81 MiB [----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------] 100.00% 22.06 MiB p/s 6.2s
INFO[2022-12-07T17:15:55.578] distrubite packages success
INFO[2022-12-07T17:15:55.578] start setup db ...
INFO[2022-12-07T17:15:55.584] [192.168.17.112][omm] create os user omm, group dbgrp
INFO[2022-12-07T17:15:55.628] [192.168.17.113][omm] create os user omm, group dbgrp
INFO[2022-12-07T17:15:55.637] [192.168.17.139][omm] create os user omm, group dbgrp
INFO[2022-12-07T17:15:55.805] [192.168.17.112][omm] set ulimit configs
INFO[2022-12-07T17:15:55.810] [192.168.17.112][omm] set user omm profiles
INFO[2022-12-07T17:15:55.939] [192.168.17.113][omm] set ulimit configs
INFO[2022-12-07T17:15:55.984] [192.168.17.113][omm] set user omm profiles
INFO[2022-12-07T17:15:55.987] [192.168.17.112][omm] check or set C library
INFO[2022-12-07T17:15:56.030] [192.168.17.139][omm] set ulimit configs
INFO[2022-12-07T17:15:56.060] [192.168.17.112][omm] make dir(s): /opt/mogdb/tool,/opt/mogdb/tool/ptk_tool/bin
INFO[2022-12-07T17:15:56.124] [192.168.17.139][omm] set user omm profiles
INFO[2022-12-07T17:15:56.696] [192.168.17.112][omm] decompress MogDB-3.0.3-CentOS-x86_64.tar.gz to dir /opt/mogdb/tool
INFO[2022-12-07T17:15:56.902] [192.168.17.113][omm] check or set C library
INFO[2022-12-07T17:15:56.990] [192.168.17.113][omm] make dir(s): /opt/mogdb/tool,/opt/mogdb/tool/ptk_tool/bin
INFO[2022-12-07T17:15:57.089] [192.168.17.139][omm] check or set C library
INFO[2022-12-07T17:15:57.253] [192.168.17.139][omm] make dir(s): /opt/mogdb/tool,/opt/mogdb/tool/ptk_tool/bin
INFO[2022-12-07T17:15:57.718] [192.168.17.113][omm] decompress MogDB-3.0.3-CentOS-x86_64.tar.gz to dir /opt/mogdb/tool
INFO[2022-12-07T17:15:58.067] [192.168.17.139][omm] decompress MogDB-3.0.3-CentOS-x86_64.tar.gz to dir /opt/mogdb/tool
INFO[2022-12-07T17:15:58.706] [192.168.17.112][omm] decompress *-om.tar.gz to dir /opt/mogdb/tool
INFO[2022-12-07T17:15:59.498] [192.168.17.112][omm] try to fix psutil python lib
WARN[2022-12-07T17:15:59.503] [192.168.17.112][omm]
Not found python3.6 or 3.7, skip fix psutil dynamic lib,
please install proper python and fix it manually or reinstall by ptk
if you don't fix this, it will cause that gs_om and cm_ctl cannot run properly, but not ptk and database
INFO[2022-12-07T17:15:59.503] [192.168.17.112][omm] write file /opt/mogdb/tool/ptk_tool/bin/README.md
INFO[2022-12-07T17:15:59.526] [192.168.17.112][omm] write file /opt/mogdb/tool/ptk_tool/bin/pscp
INFO[2022-12-07T17:15:59.550] [192.168.17.112][omm] write file /opt/mogdb/tool/ptk_tool/bin/pssh
INFO[2022-12-07T17:15:59.571] [192.168.17.112][omm] write file /opt/mogdb/tool/ptk_tool/bin/task_pool.py
INFO[2022-12-07T17:15:59.596] [192.168.17.112][omm] change /opt/mogdb/tool owner to omm
INFO[2022-12-07T17:15:59.610] [192.168.17.112][omm] make dir(s): /opt/mogdb/app
INFO[2022-12-07T17:15:59.842] [192.168.17.112][omm] decompress MogDB-3.0.3-CentOS-64bit.tar.gz to dir /opt/mogdb/app
INFO[2022-12-07T17:16:00.046] [192.168.17.139][omm] decompress *-om.tar.gz to dir /opt/mogdb/tool
INFO[2022-12-07T17:16:00.061] [192.168.17.113][omm] decompress *-om.tar.gz to dir /opt/mogdb/tool
INFO[2022-12-07T17:16:00.726] [192.168.17.139][omm] try to fix psutil python lib
WARN[2022-12-07T17:16:00.784] [192.168.17.139][omm]
Not found python3.6 or 3.7, skip fix psutil dynamic lib,
please install proper python and fix it manually or reinstall by ptk
if you don't fix this, it will cause that gs_om and cm_ctl cannot run properly, but not ptk and database
INFO[2022-12-07T17:16:00.784] [192.168.17.139][omm] write file /opt/mogdb/tool/ptk_tool/bin/README.md
INFO[2022-12-07T17:16:00.980] [192.168.17.139][omm] write file /opt/mogdb/tool/ptk_tool/bin/pscp
INFO[2022-12-07T17:16:01.136] [192.168.17.113][omm] try to fix psutil python lib
INFO[2022-12-07T17:16:01.194] [192.168.17.139][omm] write file /opt/mogdb/tool/ptk_tool/bin/pssh
WARN[2022-12-07T17:16:01.203] [192.168.17.113][omm]
Not found python3.6 or 3.7, skip fix psutil dynamic lib,
please install proper python and fix it manually or reinstall by ptk
if you don't fix this, it will cause that gs_om and cm_ctl cannot run properly, but not ptk and database
INFO[2022-12-07T17:16:01.203] [192.168.17.113][omm] write file /opt/mogdb/tool/ptk_tool/bin/README.md
INFO[2022-12-07T17:16:01.337] [192.168.17.139][omm] write file /opt/mogdb/tool/ptk_tool/bin/task_pool.py
INFO[2022-12-07T17:16:01.435] [192.168.17.113][omm] write file /opt/mogdb/tool/ptk_tool/bin/pscp
INFO[2022-12-07T17:16:01.479] [192.168.17.139][omm] change /opt/mogdb/tool owner to omm
INFO[2022-12-07T17:16:01.534] [192.168.17.139][omm] make dir(s): /opt/mogdb/app
INFO[2022-12-07T17:16:01.721] [192.168.17.113][omm] write file /opt/mogdb/tool/ptk_tool/bin/pssh
INFO[2022-12-07T17:16:01.942] [192.168.17.139][omm] decompress MogDB-3.0.3-CentOS-64bit.tar.gz to dir /opt/mogdb/app
INFO[2022-12-07T17:16:02.053] [192.168.17.113][omm] write file /opt/mogdb/tool/ptk_tool/bin/task_pool.py
INFO[2022-12-07T17:16:02.375] [192.168.17.113][omm] change /opt/mogdb/tool owner to omm
INFO[2022-12-07T17:16:02.497] [192.168.17.113][omm] make dir(s): /opt/mogdb/app
INFO[2022-12-07T17:16:03.059] [192.168.17.113][omm] decompress MogDB-3.0.3-CentOS-64bit.tar.gz to dir /opt/mogdb/app
INFO[2022-12-07T17:16:05.397] [192.168.17.112][omm] fix dynamic linker for gs_initdb
INFO[2022-12-07T17:16:05.493] [192.168.17.112][omm] fix dynamic linker for mogdb
INFO[2022-12-07T17:16:05.631] [192.168.17.112][omm] change /opt/mogdb/app owner to omm
INFO[2022-12-07T17:16:05.661] [192.168.17.112][omm] make dir(s): /opt/mogdb/log/gs_profile,/opt/mogdb/log/pg_log,/opt/mogdb/log/pg_audit,/opt/mogdb/log/bin,/opt/mogdb/log/pg_log/dn_6001,/opt/mogdb/log/pg_audit/dn_6001
INFO[2022-12-07T17:16:06.749] [192.168.17.139][omm] fix dynamic linker for gs_initdb
INFO[2022-12-07T17:16:06.970] [192.168.17.139][omm] fix dynamic linker for mogdb
INFO[2022-12-07T17:16:07.202] [192.168.17.139][omm] change /opt/mogdb/app owner to omm
INFO[2022-12-07T17:16:07.317] [192.168.17.139][omm] make dir(s): /opt/mogdb/log/gs_profile,/opt/mogdb/log/pg_log,/opt/mogdb/log/pg_audit,/opt/mogdb/log/bin,/opt/mogdb/log/pg_log/dn_6003,/opt/mogdb/log/pg_audit/dn_6003
INFO[2022-12-07T17:16:08.961] [192.168.17.112][omm] make dir(s): /opt/mogdb/tmp
INFO[2022-12-07T17:16:09.068] [192.168.17.113][omm] fix dynamic linker for gs_initdb
INFO[2022-12-07T17:16:09.229] [192.168.17.112][omm] save version to upgrade_version
INFO[2022-12-07T17:16:09.330] [192.168.17.113][omm] fix dynamic linker for mogdb
INFO[2022-12-07T17:16:09.381] [192.168.17.112][omm] create file cluster_manual_start
INFO[2022-12-07T17:16:09.500] [192.168.17.112][omm] generate cluster_static_config file
INFO[2022-12-07T17:16:09.516] [192.168.17.112][omm] change /opt/mogdb/app/bin/cluster_static_config owner to omm
INFO[2022-12-07T17:16:09.523] [192.168.17.112][omm] make dir(s): /opt/mogdb/data
INFO[2022-12-07T17:16:09.545] [192.168.17.113][omm] change /opt/mogdb/app owner to omm
INFO[2022-12-07T17:16:09.653] [192.168.17.113][omm] make dir(s): /opt/mogdb/log/gs_profile,/opt/mogdb/log/pg_log,/opt/mogdb/log/pg_audit,/opt/mogdb/log/bin,/opt/mogdb/log/pg_log/dn_6002,/opt/mogdb/log/pg_audit/dn_6002
INFO[2022-12-07T17:16:09.782] [192.168.17.112][omm] change /opt/mogdb/data owner to omm
INFO[2022-12-07T17:16:09.789] [192.168.17.112][omm] the database is initializing, please wait a few minutes
INFO[2022-12-07T17:16:11.690] [192.168.17.139][omm] make dir(s): /opt/mogdb/tmp
INFO[2022-12-07T17:16:11.954] [192.168.17.139][omm] save version to upgrade_version
INFO[2022-12-07T17:16:12.182] [192.168.17.139][omm] create file cluster_manual_start
INFO[2022-12-07T17:16:12.290] [192.168.17.139][omm] generate cluster_static_config file
INFO[2022-12-07T17:16:12.346] [192.168.17.139][omm] change /opt/mogdb/app/bin/cluster_static_config owner to omm
INFO[2022-12-07T17:16:12.391] [192.168.17.139][omm] make dir(s): /opt/mogdb/data
INFO[2022-12-07T17:16:12.643] [192.168.17.139][omm] change /opt/mogdb/data owner to omm
INFO[2022-12-07T17:16:12.699] [192.168.17.139][omm] the database is initializing, please wait a few minutes
INFO[2022-12-07T17:16:14.099] [192.168.17.113][omm] make dir(s): /opt/mogdb/tmp
INFO[2022-12-07T17:16:14.369] [192.168.17.113][omm] save version to upgrade_version
INFO[2022-12-07T17:16:14.592] [192.168.17.113][omm] create file cluster_manual_start
INFO[2022-12-07T17:16:14.700] [192.168.17.113][omm] generate cluster_static_config file
INFO[2022-12-07T17:16:14.760] [192.168.17.113][omm] change /opt/mogdb/app/bin/cluster_static_config owner to omm
INFO[2022-12-07T17:16:14.816] [192.168.17.113][omm] make dir(s): /opt/mogdb/data
INFO[2022-12-07T17:16:15.123] [192.168.17.113][omm] change /opt/mogdb/data owner to omm
INFO[2022-12-07T17:16:15.202] [192.168.17.113][omm] the database is initializing, please wait a few minutes
INFO[2022-12-07T17:16:36.930] [192.168.17.112][omm] config postgresql.conf
INFO[2022-12-07T17:16:37.162] [192.168.17.112][omm] config pg_hba.conf
INFO[2022-12-07T17:16:40.917] [192.168.17.113][omm] config postgresql.conf
INFO[2022-12-07T17:16:41.024] [192.168.17.139][omm] config postgresql.conf
INFO[2022-12-07T17:16:41.089] [192.168.17.113][omm] config pg_hba.conf
INFO[2022-12-07T17:16:41.219] [192.168.17.139][omm] config pg_hba.conf
INFO[2022-12-07T17:16:41.453] setup db success
INFO[2022-12-07T17:16:41.454] generate certification files
INFO[2022-12-07T17:16:42.567] download certification files
INFO[2022-12-07T17:16:42.684] upload certification files to (192.168.17.113,omm)
INFO[2022-12-07T17:16:44.055] upload certification files to (192.168.17.139,omm)
INFO[2022-12-07T17:16:44.996] certification files setup success
INFO[2022-12-07T17:16:44.996] start build ssh trust ...
INFO[2022-12-07T17:16:46.047] ssh trust build success
INFO[2022-12-07T17:16:46.048] start launch db ...
INFO[2022-12-07T17:16:46.048] [192.168.17.113][omm] start db by gs_ctl ...
INFO[2022-12-07T17:16:46.048] [192.168.17.112][omm] start db by gs_ctl ...
INFO[2022-12-07T17:16:46.048] [192.168.17.112][omm] the database is starting, please wait a few minutes
INFO[2022-12-07T17:16:46.048] [192.168.17.139][omm] start db by gs_ctl ...
INFO[2022-12-07T17:16:46.049] [192.168.17.139][omm] the database is starting, please wait a few minutes
INFO[2022-12-07T17:16:46.048] [192.168.17.113][omm] the database is starting, please wait a few minutes
INFO[2022-12-07T17:16:48.354] [192.168.17.112][omm] start db success
INFO[2022-12-07T17:16:48.354] [192.168.17.112][omm] start alter db initial password ...
INFO[2022-12-07T17:16:48.569] [192.168.17.112][omm] alter db password success
INFO[2022-12-07T17:16:48.648] [192.168.17.113][omm] start db success
INFO[2022-12-07T17:16:48.840] [192.168.17.139][omm] start db success
INFO[2022-12-07T17:16:48.841] build standbys ...
INFO[2022-12-07T17:16:48.841] [192.168.17.113][omm] start build db ...
INFO[2022-12-07T17:16:48.841] [192.168.17.113][omm] the database is building from upstream,  please wait a few minutes
INFO[2022-12-07T17:17:01.595] [192.168.17.113][omm] build db success
INFO[2022-12-07T17:17:01.595] standbys build success
INFO[2022-12-07T17:17:01.595] build cascade standbys ...
INFO[2022-12-07T17:17:01.595] [192.168.17.139][omm] start build db ...
INFO[2022-12-07T17:17:01.595] [192.168.17.139][omm] the database is building from upstream,  please wait a few minutes
INFO[2022-12-07T17:17:15.634] [192.168.17.139][omm] build db success
INFO[2022-12-07T17:17:15.634] cascade standbys build success
INFO[2022-12-07T17:17:15.634] launch db success
INFO[2022-12-07T17:17:15.634] clear temp dirs ...
INFO[2022-12-07T17:17:15.730] clear temp dirs success
INFO[2022-12-07T17:17:15.731] Time elapsed: 1m35s

   cluste_name  |      host      | user | port  |    status     | message
----------------+----------------+------+-------+---------------+----------
  cluster_mogdb | 192.168.17.112 | omm  | 27000 | start_success | success
                | 192.168.17.113 | omm  | 27000 | start_success | success
                | 192.168.17.139 | omm  | 27000 | start_success | success

3.6 查看实例信息

[root@mogdb-db1 opt]# ptk ls
  cluster_name  |  id  |         addr         | user |    data_dir     |          db_version          |     create_time     | comment
----------------+------+----------------------+------+-----------------+------------------------------+---------------------+----------
  cluster_mogdb | 6001 | 192.168.17.112:27000 | omm  | /opt/mogdb/data | MogDB 3.0.3 (build 23ba838d) | 2022-12-07 17:15:49 |
                | 6002 | 192.168.17.113:27000 | omm  | /opt/mogdb/data |                              |                     |
                | 6003 | 192.168.17.139:27000 | omm  | /opt/mogdb/data |

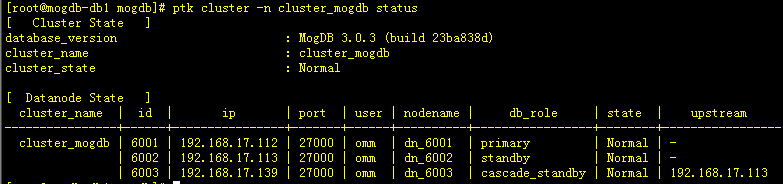

3.7 查看集群状态

[root@mogdb-db1 mogdb]# ptk cluster -n cluster_mogdb status
[   Cluster State   ]
database_version                        : MogDB 3.0.3 (build 23ba838d)
cluster_name                            : cluster_mogdb
cluster_state                           : Normal

[  Datanode State   ]
  cluster_name  |  id  |       ip       | port  | user | nodename |     db_role     | state  |    upstream
----------------+------+----------------+-------+------+----------+-----------------+--------+-----------------
  cluster_mogdb | 6001 | 192.168.17.112 | 27000 | omm  | dn_6001  | primary         | Normal | -
                | 6002 | 192.168.17.113 | 27000 | omm  | dn_6002  | standby         | Normal | -
                | 6003 | 192.168.17.139 | 27000 | omm  | dn_6003  | cascade_standby | Normal | 192.168.17.113


3.8 访问数据库

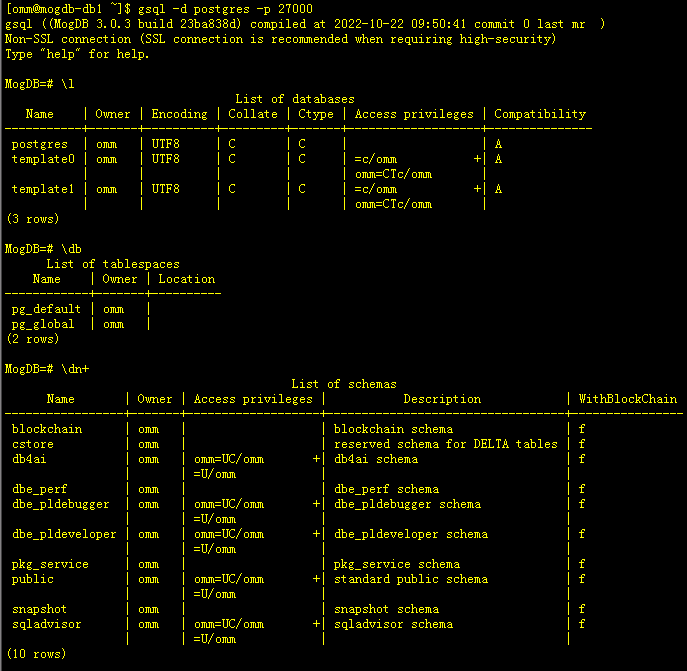

3.8.1 访问数据库

[omm@mogdb-db1 ~]$ gsql -d postgres -p 27000
gsql ((MogDB 3.0.3 build 23ba838d) compiled at 2022-10-22 09:50:41 commit 0 last mr  )
Non-SSL connection (SSL connection is recommended when requiring high-security)
Type "help" for help.

MogDB=# \l
                                 List of databases
   Name    | Owner | Encoding | Collate | Ctype | Access privileges | Compatibility
-----------+-------+----------+---------+-------+-------------------+---------------
 postgres  | omm   | UTF8     | C       | C     |                   | A
 template0 | omm   | UTF8     | C       | C     | =c/omm           +| A
           |       |          |         |       | omm=CTc/omm       |
 template1 | omm   | UTF8     | C       | C     | =c/omm           +| A
           |       |          |         |       | omm=CTc/omm       |
(3 rows)

MogDB=# \db
      List of tablespaces
    Name    | Owner | Location
------------+-------+----------
 pg_default | omm   |
 pg_global  | omm   |
(2 rows)

MogDB=# \dn+
                                         List of schemas
      Name       | Owner | Access privileges |           Description            | WithBlockChain
-----------------+-------+-------------------+----------------------------------+----------------
 blockchain      | omm   |                   | blockchain schema                | f
 cstore          | omm   |                   | reserved schema for DELTA tables | f
 db4ai           | omm   | omm=UC/omm       +| db4ai schema                     | f
                 |       | =U/omm            |                                  |
 dbe_perf        | omm   |                   | dbe_perf schema                  | f
 dbe_pldebugger  | omm   | omm=UC/omm       +| dbe_pldebugger schema            | f
                 |       | =U/omm            |                                  |
 dbe_pldeveloper | omm   | omm=UC/omm       +| dbe_pldeveloper schema           | f
                 |       | =U/omm            |                                  |
 pkg_service     | omm   |                   | pkg_service schema               | f
 public          | omm   | omm=UC/omm       +| standard public schema           | f
                 |       | =U/omm            |                                  |
 snapshot        | omm   |                   | snapshot schema                  | f
 sqladvisor      | omm   | omm=UC/omm       +| sqladvisor schema                | f
                 |       | =U/omm            |                                  |
(10 rows)


可以看到MogDB的访问方式和openGauss一样。

3.8.2 查询数据库信息

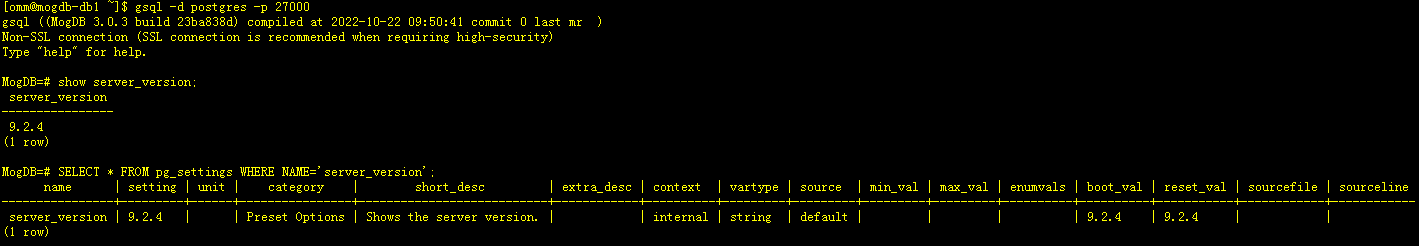

查询数据库版本信息

[omm@mogdb-db1 ~]$ gsql -d postgres -p 27000
gsql ((MogDB 3.0.3 build 23ba838d) compiled at 2022-10-22 09:50:41 commit 0 last mr  )
Non-SSL connection (SSL connection is recommended when requiring high-security)
Type "help" for help.

MogDB=# show server_version;
 server_version
----------------
 9.2.4
(1 row)

MogDB=# SELECT * FROM pg_settings WHERE NAME='server_version';
      name      | setting | unit |    category    |        short_desc         | extra_desc | context  | vartype | source  | min_val | max_val | enumvals | boot_val | reset_val | sourcefile | sourceline
----------------+---------+------+----------------+---------------------------+------------+----------+---------+---------+---------+---------+----------+----------+-----------+------------+------------
 server_version | 9.2.4   |      | Preset Options | Shows the server version. |            | internal | string  | default |         |         |          | 9.2.4    | 9.2.4     |            |
(1 row)


可以看到MogDB 3.0 同 openGauss 3.0 一样也是基于 postgres 9.2.4 基础上开发的。

四、卸载MogDB集群

卸载MogDB集群时，要先停集群，然后再进行卸载，/opt/mogdb卸载后需手工删除。

[root@mogdb-db1 mogdb]# ptk cluster -n cluster_mogdb stop
INFO[2022-12-07T17:33:18.781] operation: stop
INFO[2022-12-07T17:33:18.782] ========================================
INFO[2022-12-07T17:33:18.782] stop db [192.168.17.139:27000] ...
INFO[2022-12-07T17:33:20.041] stop db [192.168.17.139:27000] successfully
INFO[2022-12-07T17:33:20.041] stop db [192.168.17.113:27000] ...
INFO[2022-12-07T17:33:21.304] stop db [192.168.17.113:27000] successfully
INFO[2022-12-07T17:33:21.304] stop db [192.168.17.112:27000] ...
INFO[2022-12-07T17:33:22.480] stop db [192.168.17.112:27000] successfully
INFO[2022-12-07T17:33:22.480] ========================================
INFO[2022-12-07T17:33:22.480] stop successfully
[root@mogdb-db1 mogdb]#

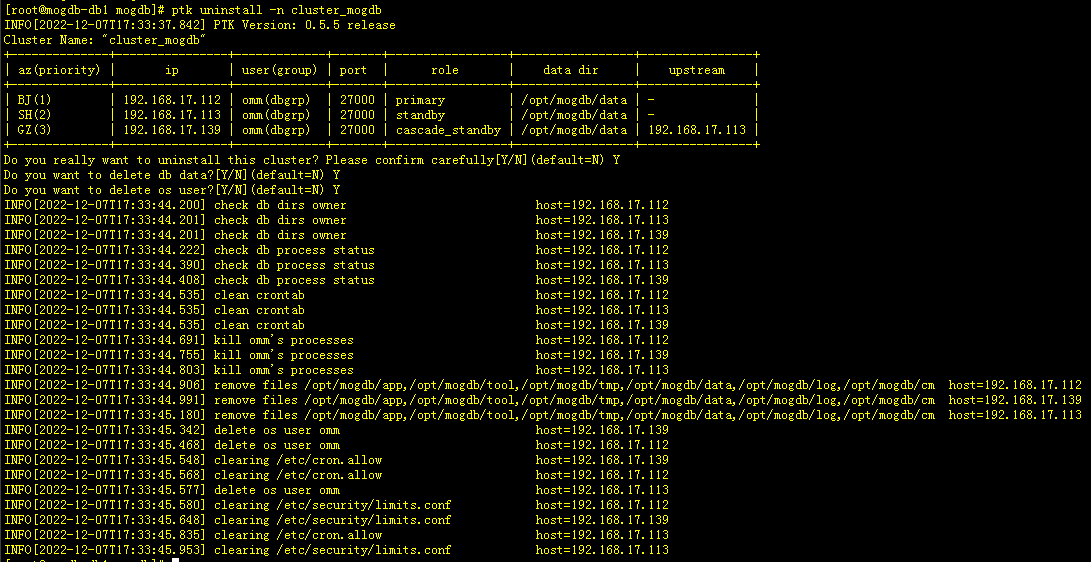

[root@mogdb-db1 mogdb]# ptk uninstall -n cluster_mogdb
INFO[2022-12-07T17:33:37.842] PTK Version: 0.5.5 release
Cluster Name: "cluster_mogdb"
+--------------+----------------+-------------+-------+-----------------+-----------------+----------------+
| az(priority) |       ip       | user(group) | port  |      role       |    data dir     |    upstream    |
+--------------+----------------+-------------+-------+-----------------+-----------------+----------------+
| BJ(1)        | 192.168.17.112 | omm(dbgrp)  | 27000 | primary         | /opt/mogdb/data | -              |
| SH(2)        | 192.168.17.113 | omm(dbgrp)  | 27000 | standby         | /opt/mogdb/data | -              |
| GZ(3)        | 192.168.17.139 | omm(dbgrp)  | 27000 | cascade_standby | /opt/mogdb/data | 192.168.17.113 |
+--------------+----------------+-------------+-------+-----------------+-----------------+----------------+
Do you really want to uninstall this cluster? Please confirm carefully[Y/N](default=N) Y
Do you want to delete db data?[Y/N](default=N) Y
Do you want to delete os user?[Y/N](default=N) Y
INFO[2022-12-07T17:33:44.200] check db dirs owner                           host=192.168.17.112
INFO[2022-12-07T17:33:44.201] check db dirs owner                           host=192.168.17.113
INFO[2022-12-07T17:33:44.201] check db dirs owner                           host=192.168.17.139
INFO[2022-12-07T17:33:44.222] check db process status                       host=192.168.17.112
INFO[2022-12-07T17:33:44.390] check db process status                       host=192.168.17.113
INFO[2022-12-07T17:33:44.408] check db process status                       host=192.168.17.139
INFO[2022-12-07T17:33:44.535] clean crontab                                 host=192.168.17.112
INFO[2022-12-07T17:33:44.535] clean crontab                                 host=192.168.17.113
INFO[2022-12-07T17:33:44.535] clean crontab                                 host=192.168.17.139
INFO[2022-12-07T17:33:44.691] kill omm's processes                          host=192.168.17.112
INFO[2022-12-07T17:33:44.755] kill omm's processes                          host=192.168.17.139
INFO[2022-12-07T17:33:44.803] kill omm's processes                          host=192.168.17.113
INFO[2022-12-07T17:33:44.906] remove files /opt/mogdb/app,/opt/mogdb/tool,/opt/mogdb/tmp,/opt/mogdb/data,/opt/mogdb/log,/opt/mogdb/cm  host=192.168.17.112
INFO[2022-12-07T17:33:44.991] remove files /opt/mogdb/app,/opt/mogdb/tool,/opt/mogdb/tmp,/opt/mogdb/data,/opt/mogdb/log,/opt/mogdb/cm  host=192.168.17.139
INFO[2022-12-07T17:33:45.180] remove files /opt/mogdb/app,/opt/mogdb/tool,/opt/mogdb/tmp,/opt/mogdb/data,/opt/mogdb/log,/opt/mogdb/cm  host=192.168.17.113
INFO[2022-12-07T17:33:45.342] delete os user omm                            host=192.168.17.139
INFO[2022-12-07T17:33:45.468] delete os user omm                            host=192.168.17.112
INFO[2022-12-07T17:33:45.548] clearing /etc/cron.allow                      host=192.168.17.139
INFO[2022-12-07T17:33:45.568] clearing /etc/cron.allow                      host=192.168.17.112
INFO[2022-12-07T17:33:45.577] delete os user omm                            host=192.168.17.113
INFO[2022-12-07T17:33:45.580] clearing /etc/security/limits.conf            host=192.168.17.112
INFO[2022-12-07T17:33:45.648] clearing /etc/security/limits.conf            host=192.168.17.139
INFO[2022-12-07T17:33:45.835] clearing /etc/cron.allow                      host=192.168.17.113
INFO[2022-12-07T17:33:45.953] clearing /etc/security/limits.conf            host=192.168.17.113

-- 卸载集群前应该先停止集群，否则直接卸载会报如下提示
[192.168.17.112omm]: db process still alive (pid[4482]), please stop it first
[192.168.17.113omm]: db process still alive (pid[7368]), please stop it first
[192.168.17.139omm]: db process still alive (pid[9238]), please stop it first


墨力计划墨力原创作者计划mogdbmogdb技术分享
最后修改时间：2022-12-09 09:21:28
「喜欢这篇文章，您的关注和赞赏是给作者最好的鼓励」
关注作者
【版权声明】本文为墨天轮用户原创内容，转载时必须标注文章的来源（墨天轮），文章链接，文章作者等基本信息，否则作者和墨天轮有权追究责任。如果您发现墨天轮中有涉嫌抄袭或者侵权的内容，欢迎发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

评论
