FEATURES:
- Specifically designed for dual-band wireless access points
- Qualcomm® Atheros QCA9880
- Maximum output power: 2.4GHz: 21dBm , 5GHz: 20dBm (per chain)
- Compatible with IEEE 802.11ac and backward compatible with 802.11a/b/g/n/ac
- 3x3 MIMO, rate up to 1300Mbps

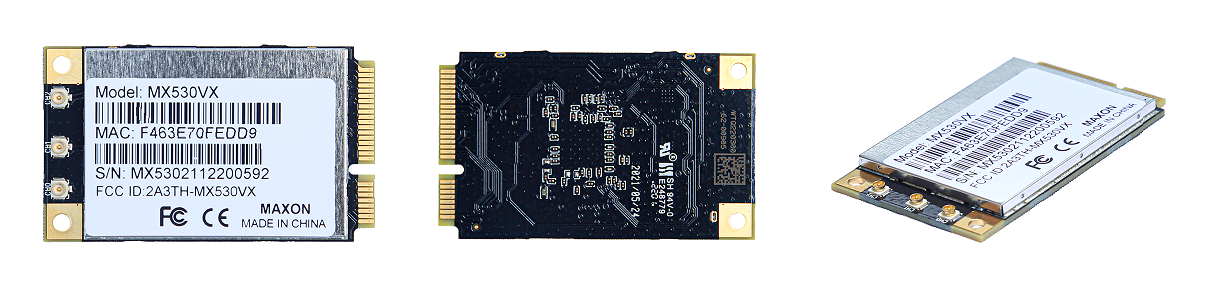

- Mini PCI Express connector
- Supports Spatial Multiplexing, Cyclic Delay Diversity (CDD), Low-Density Parity Check (LDPC) codes, Maximum Ratio Combining (MRC), - Space Time Block Code (STBC)
- Supports IEEE 802.11d, e, h, i, k, r, v timestamp and w standards
- Support Dynamic Frequency Selection (DFS)
- Cards are individually calibrated for the guaranteed quality
SPECIFICATIONS:
Chip: QCA9880
Reference Design: XB140-020
Host Connector: Mini PCI Express 1.1 standard
Working voltage: 3.3V DC
Antenna Connector: 3xU.FL
Frequency range: optional dual-band,
2.4GHz: 2.412GHz～2.472GHz or 5GHz: 5.150GHz～5.825GHz
Certifications: FCC & CE certification, REACH & RoHS compliance
Maximum power consumption: 5W
Supported operating systems: Qualcomm® Atheros Wireless LAN Driver or OpenWrt/LEDE with ath10k wireless driver
Modulation Methods: OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM
Ambient temperature:
Operating temperature: -20°C～70°C / -4 ~ 158℉
Storage temperature: -40°C～90°C/ -40 ~ 130℉
Ambient humidity (non-condensing):
working temperature: 5% ～ 95%,
storage temperature: maximum 90%
ESD Sensitivity Classification: 1C

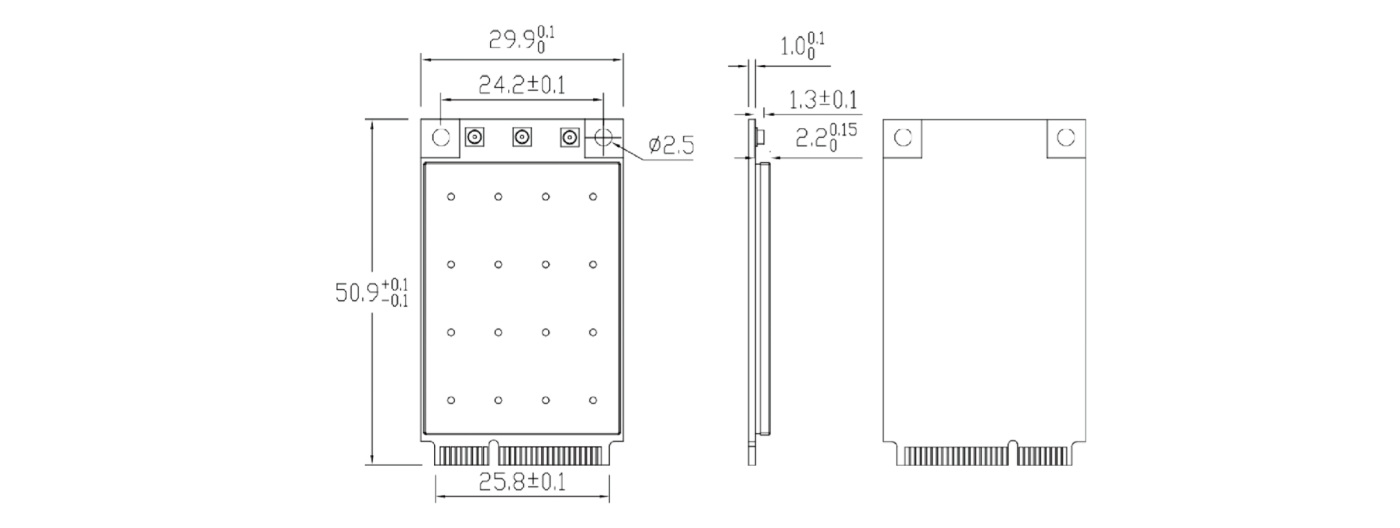

Dims (mm): 50.9 × 30.0 × 3.2
by: Nanjing Maxon O.E. Tech. Co., Ltd.
ctc: info(at)maxonc.com
