openGauss每日一练第 15 天 | openGauss 3.0.0数据库在线实训课程

> 作者：马顺华

> 从事运维管理工作多年，目前就职于某科技有限公司，熟悉运维自动化、OceanBase部署运维、MySQL 运维以及各种云平台技术和产品。并已获得OceanBase认证OBCA、OBCP证书。

第15天 | openGauss逻辑结构：表管理3

学习目标

学习查看表的相关信息

课程学习

openGauss逻辑结构：表管理3

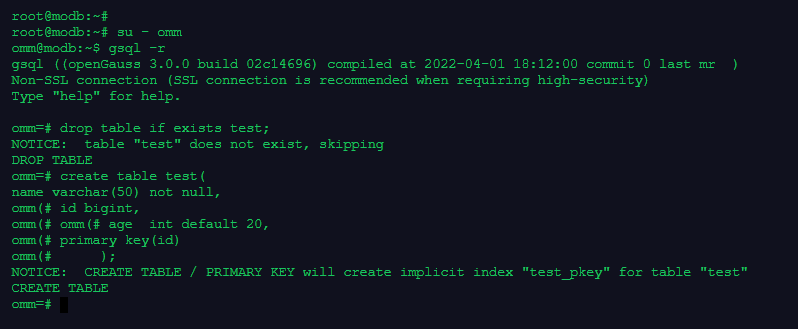

1.测试环境准备

–首先创建一张测试表。
drop table if exists test;
create table test(
id bigint,
name varchar(50) not null,
age int default 20,
primary key(id)
);

root@modb:~#
root@modb:~# su - omm
omm@modb:~$ gsql -r
gsql ((openGauss 3.0.0 build 02c14696) compiled at 2022-04-01 18:12:00 commit 0 last mr  )
Non-SSL connection (SSL connection is recommended when requiring high-security)
Type "help" for help.

omm=# drop table if exists test;
NOTICE:  table "test" does not exist, skipping
DROP TABLE
omm=# create table test(
name varchar(50) not null,
omm(# id bigint,
omm(# omm(# age  int default 20,
omm(# primary key(id)
omm(#      );
NOTICE:  CREATE TABLE / PRIMARY KEY will create implicit index "test_pkey" for table "test"
CREATE TABLE
omm=#

2.在gsql中查看表的定义、模式和所有者

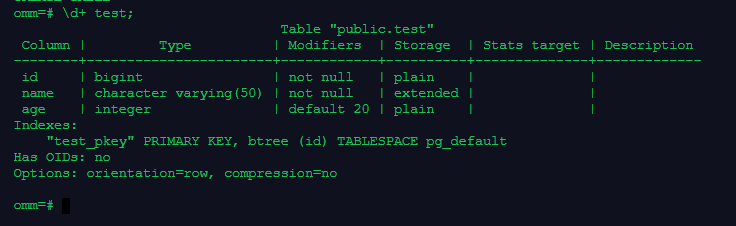

–在gsql中，使用\d tableNmae命令查看表的定义。

\d+ test;

omm=# \d+ test;
                                 Table "public.test"
 Column |         Type          | Modifiers  | Storage  | Stats target | Description
--------+-----------------------+------------+----------+--------------+-------------
 id     | bigint                | not null   | plain    |              |
 name   | character varying(50) | not null   | extended |              |
 age    | integer               | default 20 | plain    |              |
Indexes:
    "test_pkey" PRIMARY KEY, btree (id) TABLESPACE pg_default
Has OIDs: no
Options: orientation=row, compression=no

omm=#

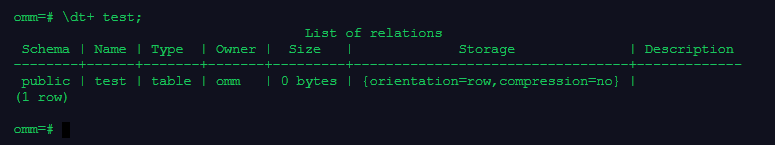

–在gsql中，使用\d tableNmae命令查看表的模式和所有者。

\dt+ test;

omm=# \dt+ test;
                                    List of relations
 Schema | Name | Type  | Owner |  Size   |             Storage              | Description
--------+------+-------+-------+---------+----------------------------------+-------------
 public | test | table | omm   | 0 bytes | {orientation=row,compression=no} |
(1 row)

omm=#

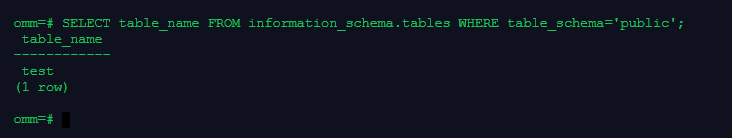

3.查看某个模式下有哪些表

–查看public模式下的所有表名：
SELECT table_name FROM information_schema.tables WHERE table_schema=‘public’;

omm=# SELECT table_name FROM information_schema.tables WHERE table_schema='public';
 table_name
------------
 test
(1 row)

omm=#

4.查看一个表下有哪些约束

–查看约束名称、约束类型
select conname, connamespace, contype, conkey
from pg_constraint
where conrelid in ( select oid
from pg_class
where relname=‘test’);

omm=# select conname, connamespace, contype, conkey
omm-#   from pg_constraint
omm-#  where conrelid in (  select oid
omm(#                   from pg_class
omm(#                  where relname='test');
  conname  | connamespace | contype | conkey
-----------+--------------+---------+--------
 test_pkey |         2200 | p       | {1}
(1 row)

omm=#

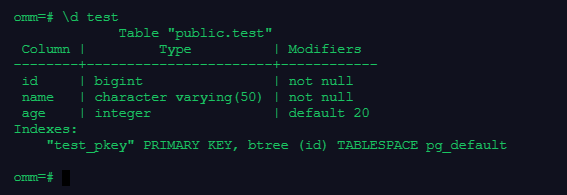

–或者使用gsql的元命令\d tableName很方便地查看一个表上有哪些约束
\d test

omm=# \d test
             Table "public.test"
 Column |         Type          | Modifiers
--------+-----------------------+------------
 id     | bigint                | not null
 name   | character varying(50) | not null
 age    | integer               | default 20
Indexes:
    "test_pkey" PRIMARY KEY, btree (id) TABLESPACE pg_default

omm=#

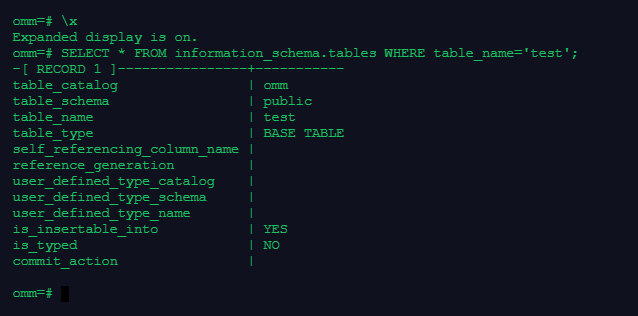

5.查看一个表属于数据库的哪个模式

\x

SELECT * FROM information_schema.tables WHERE table_name=‘test’;

omm=# \x
Expanded display is on.
omm=# SELECT * FROM information_schema.tables WHERE table_name='test';
-[ RECORD 1 ]----------------+-----------
table_catalog                | omm
table_schema                 | public
table_name                   | test
table_type                   | BASE TABLE
self_referencing_column_name |
reference_generation         |
user_defined_type_catalog    |
user_defined_type_schema     |
user_defined_type_name       |
is_insertable_into           | YES
is_typed                     | NO
commit_action                |

omm=#

课程作业

1.创建表和约束

2.使用\d tableNmae命令查看表的定义、模式和所有者

3.查看某个模式下有哪些表

4.查看一个表下有哪些约束

5.查看一个表属于数据库的哪个模式

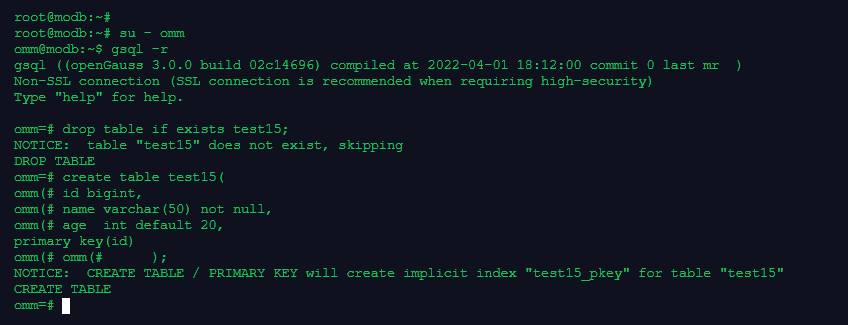

1.创建表和约束

root@modb:~#
root@modb:~# su - omm
omm@modb:~$ gsql -r
gsql ((openGauss 3.0.0 build 02c14696) compiled at 2022-04-01 18:12:00 commit 0 last mr  )
Non-SSL connection (SSL connection is recommended when requiring high-security)
Type "help" for help.

omm=# drop table if exists test15;
NOTICE:  table "test15" does not exist, skipping
DROP TABLE
omm=# create table test15(
omm(# id bigint,
omm(# name varchar(50) not null,
omm(# age  int default 20,
primary key(id)
omm(# omm(#      );
NOTICE:  CREATE TABLE / PRIMARY KEY will create implicit index "test15_pkey" for table "test15"
CREATE TABLE
omm=#

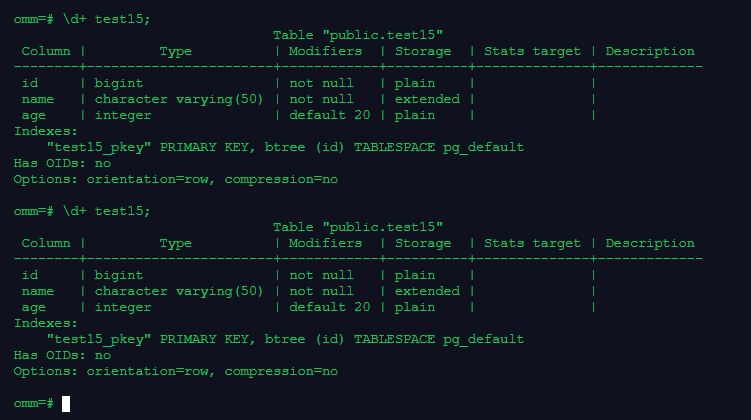

2.使用\d tableNmae命令查看表的定义、模式和所有者

omm=# \d+ test15;
                                Table "public.test15"
 Column |         Type          | Modifiers  | Storage  | Stats target | Description
--------+-----------------------+------------+----------+--------------+-------------
 id     | bigint                | not null   | plain    |              |
 name   | character varying(50) | not null   | extended |              |
 age    | integer               | default 20 | plain    |              |
Indexes:
    "test15_pkey" PRIMARY KEY, btree (id) TABLESPACE pg_default
Has OIDs: no
Options: orientation=row, compression=no

omm=# \d+ test15;
                                Table "public.test15"
 Column |         Type          | Modifiers  | Storage  | Stats target | Description
--------+-----------------------+------------+----------+--------------+-------------
 id     | bigint                | not null   | plain    |              |
 name   | character varying(50) | not null   | extended |              |
 age    | integer               | default 20 | plain    |              |
Indexes:
    "test15_pkey" PRIMARY KEY, btree (id) TABLESPACE pg_default
Has OIDs: no
Options: orientation=row, compression=no

omm=#

3.查看某个模式下有哪些表

omm=# SELECT table_name FROM information_schema.tables WHERE table_schema='public';
 table_name
------------
 test
 test15
(2 rows)

omm=#

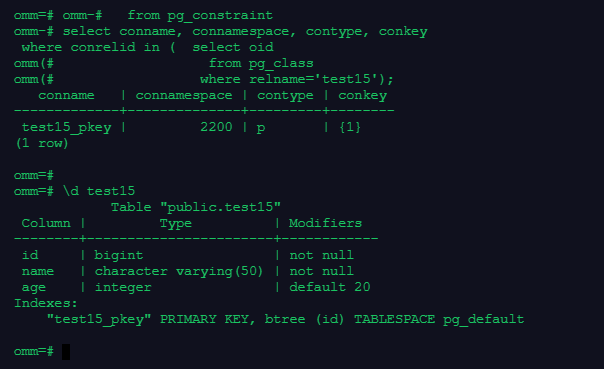

4.查看一个表下有哪些约束

omm=# omm-#   from pg_constraint
omm-# select conname, connamespace, contype, conkey
 where conrelid in (  select oid
omm(#                   from pg_class
omm(#                  where relname='test15');
   conname   | connamespace | contype | conkey
-------------+--------------+---------+--------
 test15_pkey |         2200 | p       | {1}
(1 row)

omm=#
omm=# \d test15
            Table "public.test15"
 Column |         Type          | Modifiers
--------+-----------------------+------------
 id     | bigint                | not null
 name   | character varying(50) | not null
 age    | integer               | default 20
Indexes:
    "test15_pkey" PRIMARY KEY, btree (id) TABLESPACE pg_default

omm=#

5.查看一个表属于数据库的哪个模式

omm=# \x
Expanded display is on.
omm=# SELECT * FROM information_schema.tables WHERE table_name='test15';
-[ RECORD 1 ]----------------+-----------
table_catalog                | omm
table_schema                 | public
table_name                   | test15
table_type                   | BASE TABLE
self_referencing_column_name |
reference_generation         |
user_defined_type_catalog    |
user_defined_type_schema     |
user_defined_type_name       |
is_insertable_into           | YES
is_typed                     | NO
commit_action                |

omm=#
