文档课题：运用网络存储配置共享存储——target、targetcli.

1、环境介绍

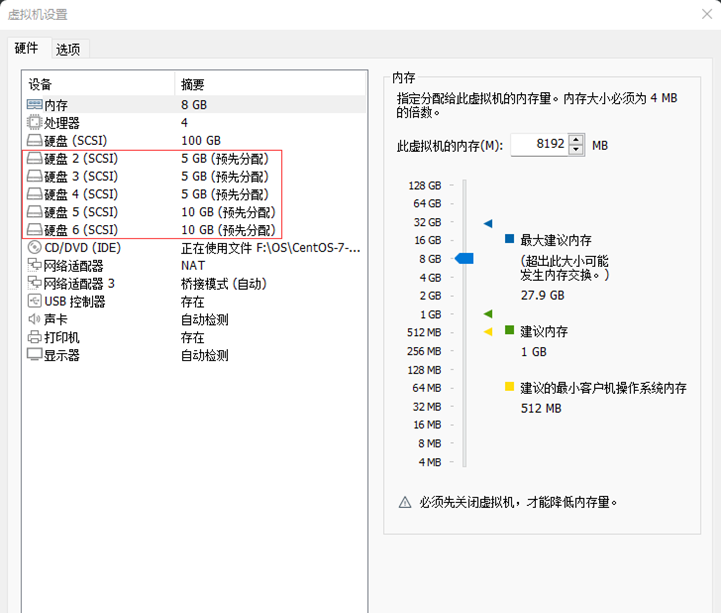

说明：存储服务器端添加3块5g、2块10g磁盘,如下所示：

2、共享存储配置

2.1、服务器端

2.1.1、target包

--存储服务器端安装target.

[root@liujun ~]# mount /dev/sr0 /mnt

mount: /dev/sr0 is write-protected, mounting read-only

[root@liujun ~]# yum -y install targetd targetcli

--启动target

[root@liujun ~]# systemctl start target

[root@liujun ~]# systemctl status target

● target.service - Restore LIO kernel target configuration

   Loaded: loaded (/usr/lib/systemd/system/target.service; disabled; vendor preset: disabled)

   Active: active (exited) since Sun 2022-12-18 16:30:05 CST; 7s ago

  Process: 3977 ExecStart=/usr/bin/targetctl restore (code=exited, status=0/SUCCESS)

 Main PID: 3977 (code=exited, status=0/SUCCESS)



Dec 18 16:30:05 liujun systemd[1]: Starting Restore LIO kernel target configuration...

Dec 18 16:30:05 liujun target[3977]: No saved config file at /etc/target/saveconfig.json, ok, exiting

Dec 18 16:30:05 liujun systemd[1]: Started Restore LIO kernel target configuration.

--设置开机自启

[root@liujun ~]# systemctl enable target

Created symlink from /etc/systemd/system/multi-user.target.wants/target.service to /usr/lib/systemd/system/target.service.

[root@liujun ~]# systemctl is-enabled target

enabled

2.1.2、磁盘检查

[root@liujun ~]# lsblk

NAME            MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT

sda               8:0    0  100G  0 disk

├─sda1            8:1    0    1G  0 part /boot

└─sda2            8:2    0   99G  0 part

  ├─centos-root 253:0    0   91G  0 lvm  /

  └─centos-swap 253:1    0    8G  0 lvm  [SWAP]

sdb               8:16   0    5G  0 disk

sdc               8:32   0    5G  0 disk

sdd               8:48   0    5G  0 disk

sde               8:64   0   10G  0 disk

sdf               8:80   0   10G  0 disk

sr0              11:0    1  4.4G  0 rom  /mnt

[root@liujun ~]# fdisk -l | grep /dev/

Disk /dev/sda: 107.4 GB, 107374182400 bytes, 209715200 sectors

/dev/sda1   *        2048     2099199     1048576   83  Linux

/dev/sda2         2099200   209715199   103808000   8e  Linux LVM

Disk /dev/sdd: 5368 MB, 5368709120 bytes, 10485760 sectors

Disk /dev/sdb: 5368 MB, 5368709120 bytes, 10485760 sectors

Disk /dev/sdc: 5368 MB, 5368709120 bytes, 10485760 sectors

Disk /dev/sdf: 10.7 GB, 10737418240 bytes, 20971520 sectors

Disk /dev/sde: 10.7 GB, 10737418240 bytes, 20971520 sectors

Disk /dev/mapper/centos-root: 97.7 GB, 97706311680 bytes, 190832640 sectors

Disk /dev/mapper/centos-swap: 8589 MB, 8589934592 bytes, 16777216 sectors

2.1.3、创建block

--先创建准备共享的块.

[root@liujun ~]# targetcli

Warning: Could not load preferences file /root/.targetcli/prefs.bin.

targetcli shell version 2.1.51

Copyright 2011-2013 by Datera, Inc and others.

For help on commands, type 'help'.



/> ls

o- / ......................................................................................................................... [...]

  o- backstores .............................................................................................................. [...]

  | o- block .................................................................................................. [Storage Objects: 0]

  | o- fileio ................................................................................................. [Storage Objects: 0]

  | o- pscsi .................................................................................................. [Storage Objects: 0]

  | o- ramdisk ................................................................................................ [Storage Objects: 0]

  o- iscsi ............................................................................................................ [Targets: 0]

  o- loopback ......................................................................................................... [Targets: 0]

--创建block.

/> cd backstores/block

/backstores/block> create name=disk1 dev=/dev/sdb

Created block storage object disk1 using /dev/sdb.

/backstores/block> create name=disk2 dev=/dev/sdc

Created block storage object disk2 using /dev/sdc.

/backstores/block> create name=disk3 dev=/dev/sdd

Created block storage object disk3 using /dev/sdd.

/backstores/block> create name=disk4 dev=/dev/sde

Created block storage object disk4 using /dev/sde.

/backstores/block> create name=disk5 dev=/dev/sdf

Created block storage object disk5 using /dev/sdf.

查看

/backstores/block> ls

o- block ...................................................................................................... [Storage Objects: 5]

  o- disk1 .............................................................................. [/dev/sdb (5.0GiB) write-thru deactivated]

  | o- alua ....................................................................................................... [ALUA Groups: 1]

  |   o- default_tg_pt_gp ........................................................................... [ALUA state: Active/optimized]

  o- disk2 .............................................................................. [/dev/sdc (5.0GiB) write-thru deactivated]

  | o- alua ....................................................................................................... [ALUA Groups: 1]

  |   o- default_tg_pt_gp ........................................................................... [ALUA state: Active/optimized]

  o- disk3 .............................................................................. [/dev/sdd (5.0GiB) write-thru deactivated]

  | o- alua ....................................................................................................... [ALUA Groups: 1]

  |   o- default_tg_pt_gp ........................................................................... [ALUA state: Active/optimized]

  o- disk4 ............................................................................. [/dev/sde (10.0GiB) write-thru deactivated]

  | o- alua ....................................................................................................... [ALUA Groups: 1]

  |   o- default_tg_pt_gp ........................................................................... [ALUA state: Active/optimized]

  o- disk5 ............................................................................. [/dev/sdf (10.0GiB) write-thru deactivated]

    o- alua ....................................................................................................... [ALUA Groups: 1]

      o- default_tg_pt_gp ........................................................................... [ALUA state: Active/optimized]

2.1.3、创建iqn

--cd到/iscsi目录下，使用targetcli创建名称为iqn.2022-12.com.leo:sharedisks的iqn.

/backstores/block> cd /iscsi

/iscsi> pwd

/iscsi

/iscsi> create iqn.2022-12.com.leo:sharedisks

Created target iqn.2022-12.com.leo:sharedisks.

Created TPG 1.

Global pref auto_add_default_portal=true

Created default portal listening on all IPs (0.0.0.0), port 3260.

/iscsi> ls

o- iscsi .............................................................................................................. [Targets: 1]

  o- iqn.2022-12.com.leo:sharedisks ...................................................................................... [TPGs: 1]

    o- tpg1 ................................................................................................. [no-gen-acls, no-auth]

      o- acls ............................................................................................................ [ACLs: 0]

      o- luns ............................................................................................................ [LUNs: 0]

      o- portals ...................................................................................................... [Portals: 1]

        o- 0.0.0.0:3260 ....................................................................................................... [OK]

说明：

a、iqn是名字，com.leo为域名，sharedisks说明磁盘作用.域名和磁盘作用可根据实际环境更改.

b、  创建完成iscsi名称后，下面会默认创建一个tpg1的路径，在tpg1下有三个路径：

1)acls（客户端访问名称，免认证配置）

2)luns（共享lun存储池，调用block共享块）

3)portals（共享存储地址和端口）

2.1.4、创建lun

--cd到/iscsi/iqn.2022-12.com.leo:sharedisks/tpg1/luns下创建LUN.

/iscsi> cd iqn.2022-12.com.leo:sharedisks/tpg1/luns

/iscsi/iqn.20...sks/tpg1/luns> pwd

/iscsi/iqn.2022-12.com.leo:sharedisks/tpg1/luns

/iscsi/iqn.20...sks/tpg1/luns> create lun=lun1 storage_object=/backstores/block/disk1

Created LUN 1.

/iscsi/iqn.20...sks/tpg1/luns> create lun=lun2 storage_object=/backstores/block/disk2

Created LUN 2.

/iscsi/iqn.20...sks/tpg1/luns> create lun=lun3 storage_object=/backstores/block/disk3

Created LUN 3.

/iscsi/iqn.20...sks/tpg1/luns> create lun=lun4 storage_object=/backstores/block/disk4

Created LUN 4.

/iscsi/iqn.20...sks/tpg1/luns> create lun=lun5 storage_object=/backstores/block/disk5

Created LUN 5.

/iscsi/iqn.20...sks/tpg1/luns> ls

o- luns .................................................................................................................. [LUNs: 5]

  o- lun1 .............................................................................. [block/disk1 (/dev/sdb) (default_tg_pt_gp)]

  o- lun2 .............................................................................. [block/disk2 (/dev/sdc) (default_tg_pt_gp)]

  o- lun3 .............................................................................. [block/disk3 (/dev/sdd) (default_tg_pt_gp)]

  o- lun4 .............................................................................. [block/disk4 (/dev/sde) (default_tg_pt_gp)]

  o- lun5 .............................................................................. [block/disk5 (/dev/sdf) (default_tg_pt_gp)]

/iscsi/iqn.20...sks/tpg1/luns> cd ..

/iscsi/iqn.20...aredisks/tpg1> ls

o- tpg1 ..................................................................................................... [no-gen-acls, no-auth]

  o- acls ................................................................................................................ [ACLs: 0]

  o- luns ................................................................................................................ [LUNs: 5]

  | o- lun1 ............................................................................ [block/disk1 (/dev/sdb) (default_tg_pt_gp)]

  | o- lun2 ............................................................................ [block/disk2 (/dev/sdc) (default_tg_pt_gp)]

  | o- lun3 ............................................................................ [block/disk3 (/dev/sdd) (default_tg_pt_gp)]

  | o- lun4 ............................................................................ [block/disk4 (/dev/sde) (default_tg_pt_gp)]

  | o- lun5 ............................................................................ [block/disk5 (/dev/sdf) (default_tg_pt_gp)]

  o- portals .......................................................................................................... [Portals: 1]

o- 0.0.0.0:3260 ........................................................................................................... [OK]

2.1.5、创建acls

--cd到acls目录下，创建2个client的acls免认证访问，创建允许客户端连接对象.

/iscsi/iqn.20...aredisks/tpg1> cd acls

/iscsi/iqn.20...sks/tpg1/acls> pwd

/iscsi/iqn.2022-12.com.leo:sharedisks/tpg1/acls

--客户端1.

/iscsi/iqn.20...sks/tpg1/acls> create wwn=iqn.2022-12.com.leo:leo-19c-ogg

Created Node ACL for iqn.2022-12.com.leo:leo-19c-ogg

Created mapped LUN 5.

Created mapped LUN 4.

Created mapped LUN 3.

Created mapped LUN 2.

Created mapped LUN 1.

--客户端2.

/iscsi/iqn.20...sks/tpg1/acls> create wwn=iqn.2022-12.com.leo:leo-11g-ogg

Created Node ACL for iqn.2022-12.com.leo:leo-11g-ogg

Created mapped LUN 5.

Created mapped LUN 4.

Created mapped LUN 3.

Created mapped LUN 2.

Created mapped LUN 1.

注意：leo-11g-ogg、leo-19c-ogg为客户端主机名.

/iscsi/iqn.20...sks/tpg1/acls> ls

o- acls .................................................................................................................. [ACLs: 2]

  o- iqn.2022-12.com.leo:leo-11g-ogg .............................................................................. [Mapped LUNs: 5]

  | o- mapped_lun1 ......................................................................................... [lun1 block/disk1 (rw)]

  | o- mapped_lun2 ......................................................................................... [lun2 block/disk2 (rw)]

  | o- mapped_lun3 ......................................................................................... [lun3 block/disk3 (rw)]

  | o- mapped_lun4 ......................................................................................... [lun4 block/disk4 (rw)]

  | o- mapped_lun5 ......................................................................................... [lun5 block/disk5 (rw)]

  o- iqn.2022-12.com.leo:leo-19c-ogg .............................................................................. [Mapped LUNs: 5]

    o- mapped_lun1 ......................................................................................... [lun1 block/disk1 (rw)]

    o- mapped_lun2 ......................................................................................... [lun2 block/disk2 (rw)]

    o- mapped_lun3 ......................................................................................... [lun3 block/disk3 (rw)]

    o- mapped_lun4 ......................................................................................... [lun4 block/disk4 (rw)]

o- mapped_lun5 ......................................................................................... [lun5 block/disk5 (rw)]

2.1.6、保存配置文件

--配置完成后，cd “/”，保存配置到配置文件.

/iscsi/iqn.20...sks/tpg1/acls> cd /

/> saveconfig

Configuration saved to /etc/target/saveconfig.json

2.2、客户端

2.2.1、安装软件

--安装客户端软件，节点1.

[root@leo-11g-ogg:~]# df -h

Filesystem               Size  Used Avail Use% Mounted on

devtmpfs                 1.9G     0  1.9G   0% /dev

tmpfs                    3.8G     0  3.8G   0% /dev/shm

tmpfs                    1.9G  9.9M  1.9G   1% /run

tmpfs                    1.9G     0  1.9G   0% /sys/fs/cgroup

/dev/mapper/centos-root   95G   23G   73G  24% /

/dev/sda1               1014M  185M  830M  19% /boot

tmpfs                    379M   32K  379M   1% /run/user/54321

/dev/sr0                 4.4G  4.4G     0 100% /run/media/oracle/CentOS 7 x86_64

tmpfs                    379M     0  379M   0% /run/user/0

[root@leo-11g-ogg:~]# mount /dev/sr0 /mnt

mount: /dev/sr0 is write-protected, mounting read-only



[root@leo-11g-ogg:~]# yum -y install iscsi-initiator-utils

Loaded plugins: fastestmirror, langpacks

Loading mirror speeds from cached hostfile

server                                                                                                                               | 3.6 kB  00:00:00

Package iscsi-initiator-utils-6.2.0.874-19.el7.x86_64 already installed and latest version

Nothing to do

--节点2.

[root@leo-19c-ogg:~]# mount /dev/sr0 /mnt

mount: /dev/sr0 is write-protected, mounting read-only

[root@leo-19c-ogg:~]# yum -y install iscsi-initiator-utils

Loaded plugins: fastestmirror, langpacks

Loading mirror speeds from cached hostfile

server                                                                                                                               | 3.6 kB  00:00:00

Package iscsi-initiator-utils-6.2.0.874-19.el7.x86_64 already installed and latest version

Nothing to do

2.2.2、启动服务

--节点1

[root@leo-11g-ogg:~]# systemctl start iscsid.service

[root@leo-11g-ogg:~]# systemctl start iscsi.service

--节点2

[root@leo-19c-ogg:~]# systemctl start iscsid.service

[root@leo-19c-ogg:~]# systemctl start iscsi.service

2.2.3、开机自启

--节点1

[root@leo-11g-ogg:~]# systemctl enable iscsid.service

Created symlink from /etc/systemd/system/multi-user.target.wants/iscsid.service to /usr/lib/systemd/system/iscsid.service.

[root@leo-11g-ogg:~]# systemctl enable iscsi.service

--节点2

[root@leo-19c-ogg:~]# systemctl enable iscsid.service

Created symlink from /etc/systemd/system/multi-user.target.wants/iscsid.service to /usr/lib/systemd/system/iscsid.service.

[root@leo-19c-ogg:~]# systemctl enable iscsi.service

2.2.4、修改配置文件

--节点1

[root@leo-11g-ogg:~]# vi /etc/iscsi/initiatorname.iscsi

修改如下：

InitiatorName=iqn.2022-12.com.leo:leo-11g-ogg

--节点2

[root@leo-19c-ogg:~]# vi /etc/iscsi/initiatorname.iscsi

修改如下：

InitiatorName=iqn.2022-12.com.leo:leo-19c-ogg

2.2.5、重启服务

--重启客户端服务，节点1：

[root@leo-11g-ogg:~]# systemctl restart iscsid.service

[root@leo-11g-ogg:~]# systemctl restart iscsi.service

--节点2

[root@leo-19c-ogg:~]# systemctl restart iscsid.service

[root@leo-19c-ogg:~]# systemctl restart iscsi.service

3、连接网络存储

说明：客户端连接网络存储.

3.1、发现网络存储

[root@liujun ~]# netstat -lntup | grep 3260

tcp        0      0 0.0.0.0:3260            0.0.0.0:*               LISTEN      -

--节点1

[root@leo-11g-ogg:~]# iscsiadm -m discovery -t sendtargets -p 192.168.133.218

192.168.133.218:3260,1 iqn.2022-12.com.leo:sharedisks

--节点2

[root@leo-19c-ogg:~]# iscsiadm -m discovery -t sendtargets -p 192.168.133.218

192.168.133.218:3260,1 iqn.2022-12.com.leo:sharedisks

3.2、连接网络存储

--节点1

[root@leo-11g-ogg:~]# iscsiadm -m node -T iqn.2022-12.com.leo:sharedisks -p 192.168.133.218:3260 -l

Logging in to [iface: default, target: iqn.2022-12.com.leo:sharedisks, portal: 192.168.133.218,3260] (multiple)

Login to [iface: default, target: iqn.2022-12.com.leo:sharedisks, portal: 192.168.133.218,3260] successful.

--节点2

[root@leo-19c-ogg:~]# iscsiadm -m node -T iqn.2022-12.com.leo:sharedisks -p 192.168.133.218:3260 -l

Logging in to [iface: default, target: iqn.2022-12.com.leo:sharedisks, portal: 192.168.133.218,3260] (multiple)

Login to [iface: default, target: iqn.2022-12.com.leo:sharedisks, portal: 192.168.133.218,3260] successful.

4、验证网络磁盘

--节点1

[root@leo-11g-ogg:~]# lsblk

NAME            MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT

sda               8:0    0  100G  0 disk

├─sda1            8:1    0    1G  0 part /boot

└─sda2            8:2    0   99G  0 part

  ├─centos-root 253:0    0   95G  0 lvm  /

  └─centos-swap 253:1    0    4G  0 lvm  [SWAP]

sdb               8:16   0    5G  0 disk

sdc               8:32   0    5G  0 disk

sdd               8:48   0    5G  0 disk

sde               8:64   0   10G  0 disk

sdf               8:80   0   10G  0 disk

sr0              11:0    1  4.4G  0 rom  /mnt

[root@leo-11g-ogg:~]# lsscsi

[1:0:0:0]    cd/dvd  NECVMWar VMware IDE CDR10 1.00  /dev/sr0

[2:0:0:0]    disk    VMware,  VMware Virtual S 1.0   /dev/sda

[3:0:0:1]    disk    LIO-ORG  disk1            4.0   /dev/sdb

[3:0:0:2]    disk    LIO-ORG  disk2            4.0   /dev/sdc

[3:0:0:3]    disk    LIO-ORG  disk3            4.0   /dev/sdd

[3:0:0:4]    disk    LIO-ORG  disk4            4.0   /dev/sde

[3:0:0:5]    disk    LIO-ORG  disk5            4.0   /dev/sdf



--节点2

[root@leo-19c-ogg:~]# lsblk

NAME            MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT

sda               8:0    0  100G  0 disk

├─sda1            8:1    0    1G  0 part /boot

└─sda2            8:2    0   99G  0 part

  ├─centos-root 253:0    0   91G  0 lvm  /

  └─centos-swap 253:1    0    8G  0 lvm  [SWAP]

sdb               8:16   0    5G  0 disk

sdc               8:32   0    5G  0 disk

sdd               8:48   0    5G  0 disk

sde               8:64   0   10G  0 disk

sdf               8:80   0   10G  0 disk

sr0              11:0    1  4.4G  0 rom  /mnt



参考网址：

https://www.bilibili.com/video/BV1ZD4y1y7zb/?spm_id_from=333.337.search-card.all.click&vd_source=8c872e2fd1d99229b38a73ed6718b776
