codis3.2 安装配置

数据库这点小事 2019-11-14

708

codis是一个分布式redis集群架构，在数据量和并发量都很大的业务场景，我们在使用单点redis的时候，往往会受到内存和cpu的限制，这个时候引入codis的集群架构，可以满足大数据量和高并发的业务场景。

github地址：https://github.com/CodisLabs/codis

Codis 3.2 组件组成：

Codis Server：数据节点，每个server相当于一个redis

Zookeeper : 存放数据路由表和codis-proxy节点的元信息

Codis Proxy：客户端连接的 Redis 代理服务, 实现了 Redis 协议.除部分命令不支持以外，表现的和原生的 Redis 没有区别。

对于同一个业务集群而言，可以同时部署多个 codis-proxy 实例；
不同 codis-proxy 之间由 codis-dashboard 保证状态同步。

Codis Dashboard：集群管理工具，支持 codis-proxy、codis-server 的添加、删除，以及数据迁移等操作。在集群状态发生改变时，codis-dashboard 维护集群下所有 codis-proxy 的状态的一致性。

对于同一个业务集群而言，同一个时刻 codis-dashboard 只能有 0个或者1个；
所有对集群的修改都必须通过 codis-dashboard 完成。

Codis Admin：集群管理的命令行工具。

可用于控制 codis-proxy、codis-dashboard 状态以及访问外部存储。

Codis FE：集群管理界面。

多个集群实例共享可以共享同一个前端展示页面；
通过配置文件管理后端 codis-dashboard 列表，配置文件可自动更新。

Storage：为集群状态提供外部存储。

提供 Namespace 概念，不同集群的会按照不同 product name 进行组织；
目前仅提供了 Zookeeper、Etcd、Fs 三种实现，但是提供了抽象的 interface 可自行扩展。

Redis Sentinel：哨兵进程，监控codis每组server的主从状态，在主出现故障时，从自动切换成主（不是瞬切，需要一定的时间）

架构规划：

操作系统：centos 7.5

服务器规划：

172.19.14.21     codis-proxy1(zk-1,proxy1,sentinel)
172.19.14.22     codis-proxy2(zk-2,proxy2,sentinel)
172.19.14.23     codis-proxy3(zk-3,proxy3,sentinel,dashboard,fe)
172.19.14.26     codis-server1（master,slave）
172.19.14.27     codis-server2（master,slave）
172.19.14.28     codis-server3（master,slave）

安装步骤：

一、配置hosts文件（所有服务器）

vim etc/hosts

172.19.14.21      codis-proxy1
172.19.14.22      codis-proxy2
172.19.14.23      codis-proxy3
172.19.14.26      codis-server1
172.19.14.27      codis-server2
172.19.14.28      codis-server3

修改network文件，根据host修改每个节点的hostname

vim etc/sysconfig/network

NETWORKING=yes
HOSTNAME=codis-proxy3

ps:使hostname立即生效

hostname codis-proxy3

二、安装zk(proxy节点)

1. 下载zk安装包

wget https://mirrors.tuna.tsinghua.edu.cn/apache/zookeeper/zookeeper-3.4.14/zookeeper-3.4.14.tar.gz

2. 安装java环境

zk要求java6以上版本

yum -y install java-1.8.0-openjdk-devel
java -version
openjdk version "1.8.0_232"
OpenJDK Runtime Environment (build 1.8.0_232-b09)
OpenJDK 64-Bit Server VM (build 25.232-b09, mixed mode)

3. 安装zk

tar zxvf zookeeper-3.4.14.tar.gz
mv zookeeper-3.4.14 usr/local/
mkdir -p appl/zookeeper/{data,logs}

4. 修改配置文件

[root@codis-proxy1 conf]# vim zoo.cfg

tickTime=2000
initLimit=5
syncLimit=2
dataDir=/var/zookeeper/data
dataLogDir=/appl/zookeeper/logs
clientPort=2181
server.1=codis-proxy1:2888:3888
server.2=codis-proxy2:2888:3888
server.3=codis-proxy3:2888:3888

5. 配置myid

在我们配置的dataDir指定的目录下面，创建一个myid文件，里面内容为一个数字，用来标识当前主机，conf/zoo.cfg文件中配置的server.X中X为什么数字，则myid文件中就输入这个数字

[root@codis-proxy1 ~]# echo 1 > appl/zookeeper/data/myid
[root@codis-proxy2 ~]# echo 2 > /appl/zookeeper/data/myid
[root@codis-proxy3 ~]# echo 3 > /appl/zookeeper/data/myid

6. 启动zookeeper

启动顺序zookeeper-1>zookeeper-2>zookeeper-3

[root@codis-proxy1]# usr/local/zookeeper/bin/zkServer.sh start
JMX enabled by default
Using config: usr/local/zookeeper/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED
[root@codis-proxy1]# usr/local/zookeeper/bin/zkServer.sh  status
JMX enabled by default
Using config: usr/local/zookeeper/bin/../conf/zoo.cfg
Mode: leader

启动完查看各节点zk状态，可以看到是1主2从结构 ( leader follower observer)

三、安装codis(codis_server和proxy机器上)

1. 安装go

下载go安装包

wget https://studygolang.com/dl/go1.13.3.linux-amd64.tar.gz

解压，移动到指定目录

tar -zxvf go1.13.3.linux-amd64.tar.gz
mv go usr/local/

修改环境变量

vim ~/.bash_profile

export GOROOT=/usr/local/go
export CODISPATH=/usr/local/codis
export GOPATH=/usr/local/codis
export PATH=$PATH:$GOROOT/bin:$CODISPATH/bin:$GOPATH/bin

source ~/.bash_profile #使环境变量生效

查看go环境是否安装成功

[root@localhost software]# go version
go version go1.13.3 linux/amd64

下载go语言开发包

go get github.com/tools/godep

此时的godep程序保存路径为： $GOPATH/src/github.com/tools/godep

将godep程序保存在"$GOPATH/bin"，利用go语言的命令实现

cd $GOPATH/src/github.com/tools/godep
go install ./

此时在$GOPATH/bin目录之中，会自动出现一个"godep"程序文件，证明go完成

2. 人工配置codis开发包

下载地址：https://github.com/CodisLabs/codis

上传codis-release3.2.zip到服务器，将包解压到$GOPATH/src/github.com/CodisLabs目录下

unzip codis-release3.2.zip -d $GOPATH/src/github.com/CodisLabs

修改目录

mv codis-release3.2/ codis/

进入codis源代码所在的目录，进行编译安装

cd $GOPATH/src/github.com/CodisLabs/codis/
make

srcroot            :
abs_srcroot        : usr/local/codis/src/github.com/CodisLabs/codis/vendor/github.com/spinlock/jemalloc-go/jemalloc-4.4.0/
objroot            :
abs_objroot        : usr/local/codis/src/github.com/CodisLabs/codis/vendor/github.com/spinlock/jemalloc-go/jemalloc-4.4.0/
JEMALLOC_PREFIX    : je_
JEMALLOC_PRIVATE_NAMESPACE
                   : je_
install_suffix     :
malloc_conf        :
autogen            : 1
cc-silence         : 1
debug              : 0
code-coverage      : 0
stats              : 1
prof               : 0
prof-libunwind     : 0
prof-libgcc        : 0
prof-gcc           : 0
tcache             : 1
fill               : 1
utrace             : 0
valgrind           : 0
xmalloc            : 0
munmap             : 0
lazy_lock          : 0
tls                : 1
cache-oblivious    : 1
===============================================================================
go build -i -o bin/codis-dashboard ./cmd/dashboard
go build -i -tags "cgo_jemalloc" -o bin/codis-proxy ./cmd/proxy
go build -i -o bin/codis-admin ./cmd/admin
go build -i -o bin/codis-ha ./cmd/ha
go build -i -o bin/codis-fe ./cmd/fe

无报错，编译成功，为了方便管理，重新建立个目录

$ mkdir -p usr/local/codis/{logs,conf,scripts}

logs：保存所有的日志数据

conf：保存所有的配置文件信息

将所有的可执行文件拷贝到"/usr/local/codis/"文件中

cp -r $GOPATH/src/github.com/CodisLabs/codis/bin /usr/local/codis

3.codis-bashboard部署（codis-web节点）

生成codis-dashboard配置文件

[root@codis-proxy3 conf]# vim usr/local/codis/conf/dashboard.conf

##################################################
#                                                #
#                  Codis-Dashboard               #
#                                                #
##################################################
# Set Coordinator, only accept "zookeeper" & "etcd" & "filesystem".
# for zookeeper/etcd, coorinator_auth accept "user:password"
# Quick Start
coordinator_name = "zookeeper"
coordinator_addr = "172.19.14.21:2181,172.19.14.22:2181,172.19.14.23:2181"
#coordinator_name = "zookeeper"
#coordinator_addr = "127.0.0.1:2181"
#coordinator_auth = ""
# Set Codis Product Name/Auth.
product_name = "codis-test"
product_auth = ""
# Set bind address for admin(rpc), tcp only.
admin_addr = "172.19.14.23:18080"
# Set arguments for data migration (only accept 'sync' & 'semi-async').
migration_method = "semi-async"
migration_parallel_slots = 100
migration_async_maxbulks = 200
migration_async_maxbytes = "32mb"
migration_async_numkeys = 500
migration_timeout = "30s"
# Set configs for redis sentinel.
sentinel_client_timeout = "10s"
sentinel_quorum = 2
sentinel_parallel_syncs = 1
sentinel_down_after = "30s"
sentinel_failover_timeout = "5m"
sentinel_notification_script = ""
sentinel_client_reconfig_script = ""

配置dashboard启动脚本

vim usr/local/codis/scripts/start_dashboard.sh

#!/bin/sh
CODIS_HOME=/usr/local/codis
#nohup usr/local/codis/bin/codis-dashboard --ncpu=2 --config=/usr/local/codis/conf/dashboard.conf --log=/usr/local/codis/logs/dashboard.log --log-level=WARN &  &
nohup $CODIS_HOME/bin/codis-dashboard --ncpu=2 --config=$CODIS_HOME/conf/dashboard.conf --log=$CODIS_HOME/log/dashboard.log --log-level=WARN&

配置dashboard停止脚本

vim usr/local/codis/scripts/start_dashboard.sh

#!/bin/sh
CODIS_HOME=/usr/local/codis
$CODIS_HOME/bin/codis-admin --dashboard=172.19.14.23:18080 --shutdown

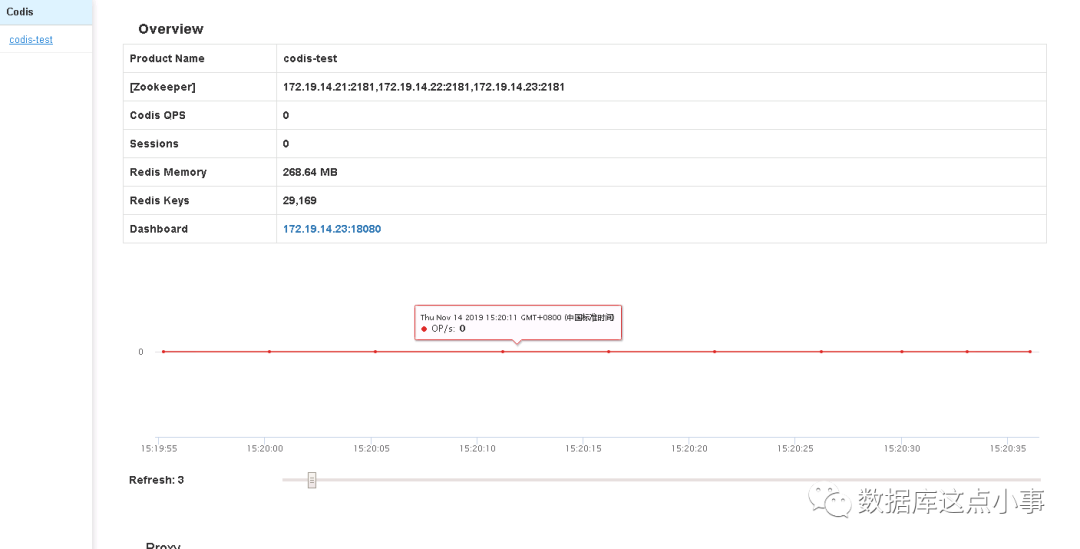

4. 配置codis-fe（codis-web节点）

生成codis-fe配置文件

vim usr/local/codis/conf/codis.json

[
    {
        "name": "codis-test",
        "dashboard": "172.19.14.23:18080"
    }
]

配置codis-fe启动脚本

vim usr/local/codis/scripts/start_codis-fe.sh

#!/bin/sh
CODIS_HOME=/usr/local/codis
nohup $CODIS_HOME/bin/codis-fe --ncpu=2 --log=$CODIS_HOME/log/fe.log --log-level=WARN --dashboard-list=$CODIS_HOME/conf/codis.json --listen=0.0.0.0:18090 &

5. 配置proxy（所有proxy节点）

vim usr/local/codis/conf/proxy.conf (各个proxy节点修改对应的admin_addr和proxy_addr)

##################################################
#                                                #
#                  Codis-Proxy                   #
#                                                #
##################################################
# Set Codis Product Name/Auth.
product_name = "codis-test"
product_auth = ""
# Set auth for client session
#   1. product_auth is used for auth validation among codis-dashboard,
#      codis-proxy and codis-server.
#   2. session_auth is different from product_auth, it requires clients
#      to issue AUTH <PASSWORD> before processing any other commands.
session_auth = ""
# Set bind address for admin(rpc), tcp only.
admin_addr = "172.19.14.21:11080"
# Set bind address for proxy, proto_type can be "tcp", "tcp4", "tcp6", "unix" or "unixpacket".
proto_type = "tcp4"
proxy_addr = "172.19.14.21:19000"
# Set jodis address & session timeout
#   1. jodis_name is short for jodis_coordinator_name, only accept "zookeeper" & "etcd".
#   2. jodis_addr is short for jodis_coordinator_addr
#   3. jodis_auth is short for jodis_coordinator_auth, for zookeeper/etcd, "user:password" is accepted.
#   4. proxy will be registered as node:
#        if jodis_compatible = true (not suggested):
#          zk/codis/db_{PRODUCT_NAME}/proxy-{HASHID} (compatible with Codis2.0)
#        or else
#          jodis/{PRODUCT_NAME}/proxy-{HASHID}
jodis_name = "zookeeper"
jodis_addr = "172.19.14.21:2181,172.19.14.22:2181,172.19.14.23:2181"
jodis_auth = ""
jodis_timeout = "20s"
jodis_compatible = false
# Set datacenter of proxy.
proxy_datacenter = ""
# Set max number of alive sessions.
proxy_max_clients = 20000
# Set max offheap memory size. (0 to disable)
proxy_max_offheap_size = "1024mb"
# Set heap placeholder to reduce GC frequency.
proxy_heap_placeholder = "256mb"
# Proxy will ping backend redis (and clear 'MASTERDOWN' state) in a predefined interval. (0 to disable)
backend_ping_period = "5s"
# Set backend recv buffer size & timeout.
backend_recv_bufsize = "128kb"
backend_recv_timeout = "30s"
# Set backend send buffer & timeout.
backend_send_bufsize = "128kb"
backend_send_timeout = "30s"
# Set backend pipeline buffer size.
backend_max_pipeline = 20480
# Set backend never read replica groups, default is false
backend_primary_only = false
# Set backend parallel connections per server
backend_primary_parallel = 1
backend_replica_parallel = 1
# Set backend tcp keepalive period. (0 to disable)
backend_keepalive_period = "75s"
# Set number of databases of backend.
backend_number_databases = 16
# If there is no request from client for a long time, the connection will be closed. (0 to disable)
# Set session recv buffer size & timeout.
session_recv_bufsize = "128kb"
session_recv_timeout = "30m"
# Set session send buffer size & timeout.
session_send_bufsize = "64kb"
session_send_timeout = "30s"
# Make sure this is higher than the max number of requests for each pipeline request, or your client may be blocked.
# Set session pipeline buffer size.
session_max_pipeline = 10000
# Set session tcp keepalive period. (0 to disable)
session_keepalive_period = "75s"
# Set session to be sensitive to failures. Default is false, instead of closing socket, proxy will send an error response to client.
session_break_on_failure = false
# Set metrics server (such as http://localhost:28000), proxy will report json formatted metrics to specified server in a predefined period.
metrics_report_server = ""
metrics_report_period = "1s"
# Set influxdb server (such as http://localhost:8086), proxy will report metrics to influxdb.
metrics_report_influxdb_server = ""
metrics_report_influxdb_period = "1s"
metrics_report_influxdb_username = ""
metrics_report_influxdb_password = ""
metrics_report_influxdb_database = ""
# Set statsd server (such as localhost:8125), proxy will report metrics to statsd.
metrics_report_statsd_server = ""
metrics_report_statsd_period = "1s"
metrics_report_statsd_prefix = ""

配置proxy启动脚本

vim usr/local/codis/scripts/start_codis-proxy.sh

#!/bin/sh
CODIS_HOME=/usr/local/codis
nohup $CODIS_HOME/bin/codis-proxy --ncpu=2 --config=$CODIS_HOME/conf/proxy.conf --log=$CODIS_HOME/log/proxy.log --log-level=WARN &

配置proxy停止脚本

vim usr/local/codis/scripts/stop_codis-proxy.sh

#!/bin/sh
CODIS_HOME=/usr/local/codis
$CODIS_HOME/bin/codis-admin --proxy=172.19.14.21:11080   --shutdown

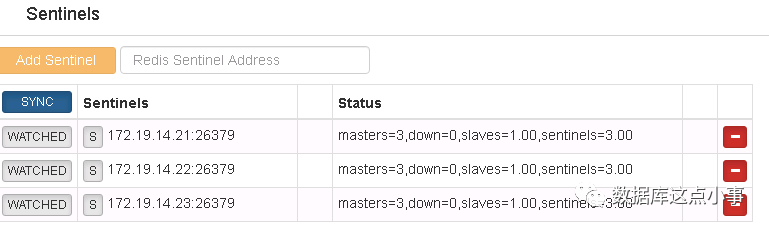

6. 哨兵配置(所有proxy节点)

[root@codis-proxy1 conf]# vim sentinel.conf

protected-mode no
port 26379
dir "/tmp"

7. 配置codis_server(所有server节点）

修改内核参数

[root@codis-server1 conf]# echo "vm.overcommit_memory = 1" >> etc/sysctl.conf
[root@codis-server1 conf]# sysctl -p

创建server端目录

mkdir -p var/codis_server/{run,conf,log,data}

修改server配置文件

vim var/codis_server/conf/6379.conf

bind 0.0.0.0
protected-mode no
daemonize yes
pidfile var/run/redis_6379.pid
bind 0.0.0.0
protected-mode no
daemonize yes
pidfile var/codis_server/run/redis_6379.pid
port 6379
save 900 1
save 300 10
save 60 10000
tcp-backlog 511
timeout 300
tcp-keepalive 0
loglevel notice
logfile "/var/codis_server/log/redis_6379.log"
databases 16
stop-writes-on-bgsave-error yes
rdbcompression yes
rdbchecksum yes
dbfilename 6379.rdb
dir var/codis_server/data
slave-serve-stale-data yes
slave-read-only yes
repl-disable-tcp-nodelay no
slave-priority 100
maxclients 3000
maxmemory 1gb
maxmemory-policy allkeys-lru
appendonly yes
appendfilename "6379_appendonly.aof"
appendfsync everysec
no-appendfsync-on-rewrite no
auto-aof-rewrite-percentage 100
auto-aof-rewrite-min-size 64mb
lua-time-limit 5000
slowlog-log-slower-than 10000
slowlog-max-len 128
latency-monitor-threshold 0
notify-keyspace-events ""
hash-max-ziplist-entries 512
hash-max-ziplist-value 64
list-max-ziplist-entries 512
list-max-ziplist-value 64
set-max-intset-entries 512
zset-max-ziplist-entries 128
zset-max-ziplist-value 64
hll-sparse-max-bytes 3000
activerehashing yes
client-output-buffer-limit normal 0 0 0

vim var/codis_server/conf/6380.conf

bind 0.0.0.0
protected-mode no
daemonize yes
pidfile var/run/redis_6380.pid
bind 0.0.0.0
protected-mode no
daemonize yes
pidfile var/codis_server/run/redis_6380.pid
port 6380
save 900 1
save 300 10
save 60 10000
tcp-backlog 511
timeout 300
tcp-keepalive 0
loglevel notice
logfile "/var/codis_server/log/redis_6380.log"
databases 16
stop-writes-on-bgsave-error yes
rdbcompression yes
rdbchecksum yes
dbfilename 6380.rdb
dir var/codis_server/data
slave-serve-stale-data yes
slave-read-only yes
repl-disable-tcp-nodelay no
slave-priority 100
maxclients 3000
maxmemory 1gb
maxmemory-policy allkeys-lru
appendonly yes
appendfilename "6380_appendonly.aof"
appendfsync everysec
no-appendfsync-on-rewrite no
auto-aof-rewrite-percentage 100
auto-aof-rewrite-min-size 64mb
lua-time-limit 5000
slowlog-log-slower-than 10000
slowlog-max-len 128
latency-monitor-threshold 0
notify-keyspace-events ""
hash-max-ziplist-entries 512
hash-max-ziplist-value 64
list-max-ziplist-entries 512
list-max-ziplist-value 64
set-max-intset-entries 512
zset-max-ziplist-entries 128
zset-max-ziplist-value 64
hll-sparse-max-bytes 3000
activerehashing yes
client-output-buffer-limit normal 0 0 0

安装过程问题记录

zk部分：

[root@mysql-master-21 data]# usr/local/zookeeper-3.4.14/bin/zkServer.sh status
ZooKeeper JMX enabled by default
Using config: usr/local/zookeeper-3.4.14/bin/../conf/zoo.cfg
Error contacting service. It is probably not running.

问题处理:查看zk日志

2019-11-01 10:57:46,995 [myid:1] - WARN  [QuorumPeer[myid=1]/0.0.0.0:2181:QuorumCnxManager@584] - Cannot open channel to 3 at election address codis-proxy1/172.19.14.21:3888
java.net.ConnectException: Connection refused (Connection refused)
        at java.net.PlainSocketImpl.socketConnect(Native Method)
        at java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:350)
        at java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:206)
        at java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:188)
        at java.net.SocksSocketImpl.connect(SocksSocketImpl.java:392)
        at java.net.Socket.connect(Socket.java:607)
        at org.apache.zookeeper.server.quorum.QuorumCnxManager.connectOne(QuorumCnxManager.java:558)
        at org.apache.zookeeper.server.quorum.QuorumCnxManager.connectAll(QuorumCnxManager.java:610)
        at org.apache.zookeeper.server.quorum.FastLeaderElection.lookForLeader(FastLeaderElection.java:838)
        at org.apache.zookeeper.server.quorum.QuorumPeer.run(QuorumPeer.java:958)
2019-11-01 10:57:46,995 [myid:1] - INFO  [QuorumPeer[myid=1]/0.0.0.0:2181:QuorumPeer$QuorumServer@185] - Resolved hostname: codis-proxy1 to address: codis-proxy1/172.19.14.21

查看配置文件，配置文件中sever和主机对应顺序出错，修改后解决报错

tickTime=2000
initLimit=5
syncLimit=2
dataDir=/var/zookeeper/data
#dataLogDir=/appl/zookeeper/logs
clientPort=2181
server.1=codis-proxy3:2888:3888
server.2=codis-proxy2:2888:3888
server.3=codis-proxy1:2888:3888

codis编译报错：

报错

Hint: It's a good idea to run 'make test' ;)
make[2]: Leaving directory `/usr/local/codis/src/github.com/CodisLabs/codis-release3.2/extern/redis-3.2.11/src'
make[1]: Leaving directory `/usr/local/codis/src/github.com/CodisLabs/codis-release3.2/extern/redis-3.2.11'
fatal: Not a git repository (or any of the parent directories): .git
autoconf
./autogen.sh: line 5: autoconf: command not found
Error 0 in autoconf
make[2]: *** [config] Error 1
make[1]: *** [build] Error 2
make: *** [codis-deps] Error 2

解决：

安装依赖

yum install autoconf automake libtool -y

解压go安装包报错

[root@localhost software]# tar -zxvf go1.13.3.linux-amd64.tar.gz
gzip: stdin: not in gzip format
tar: Child returned status 1
tar: Error is not recoverable: exiting now

解决：
根据提示，这个包没有用gzip压缩，省略z指令，报错并没有变

[root@localhost software]# tar -xvf go1.13.3.linux-amd64.tar.gz
gzip: stdin: not in gzip format
tar: Child returned status 1
tar: Error is not recoverable: exiting now

网上搜了下原因，大概原来是wget下来的tar省略了一些同意协议，所以安装包介质本身有点问题，手动下载好安装包后上传到服务器在解压果然解决了这个问题。

某节点通过go下载godep报错

报错1：

[root@localhost tools]# go get github.com/tools/godep
# cd .; git clone -- https://github.com/CodisLabs/codis /usr/local/codis/src/github.com/CodisLabs/codis
error: RPC failed; result=56, HTTP code = 200
fatal: The remote end hung up unexpectedly
fatal: early EOF
fatal: index-pack failed
package github.com/CodisLabs/codis: exit status 128

解决：

找了下资料发现是curl的postBuffer 默认值较小的原因，配置下个这个值,就不会出现该错误了

git config --global http.postBuffer 24288000000

然鹅现实是残酷的

[root@localhost tools]# go get github.com/tools/godep
# cd .; git clone -- https://github.com/CodisLabs/codis /usr/local/codis/src/github.com/CodisLabs/codis
fatal: Out of memory, malloc failed (tried to allocate 18446744072227747840 bytes)
package github.com/CodisLabs/codis: exit status 128

最终 yum install gcc 安装了gcc环境居然好了，当然也可以直接下载源码包

地址https://github.com/tools/godep

unzip /var/software/godep-master.zip -d $GOPATH/src/github.com/tools/
cd $GOPATH/src/github.com/tools/
mv godep-master godep

报错2：

[root@localhost software]# go get github.com/tools/godep
go: missing Git command. See https://golang.org/s/gogetcmd
package github.com/tools/godep: exec: "git": executable file not found in $PATH:

解决：

缺少git环境

yum -y install git

启动CODIS正常流程:

1.在zookeeper所有节点启动zookeeper服务

/usr/local/zookeeper-3.4.14/bin/zkCli.sh start

2.在codis-web启动codis-dashboard服务。

cd /usr/local/codis/scripts/
sh start_dashboard.sh

3.在codis-web启动codis-fe服务。

cd /usr/local/codis/scripts/
sh start_codis-fe.sh

4.在codis-proxy所有节点启动codis-proxy服务

cd /usr/local/codis/scripts/
sh start_codis-proxy.sh

5.在CODIS-SERVER所有节点启动codis服务

启动codis-server服务

/usr/local/codis/bin/codis-server /appl/codis_server/conf/6379.conf
/usr/local/codis/bin/codis-server /appl/codis_server/conf/6380.conf

6.在redis-sentinel所有节点启动redis-sentinel服务：

/usr/local/codis/bin/redis-sentinel  /usr/local/codis/conf/sentinel.conf &

通过CODIS-FE管理面板管理CODIS集群

地址:172.19.14.23:18090

添加proxy

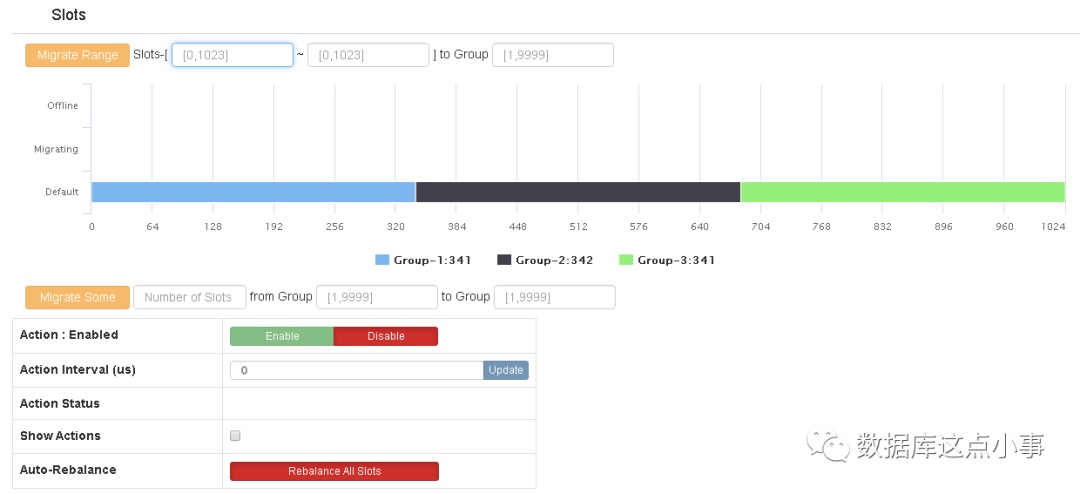

初始化SLOT，并分GROUP（在分group、添加CODIS后操作）：

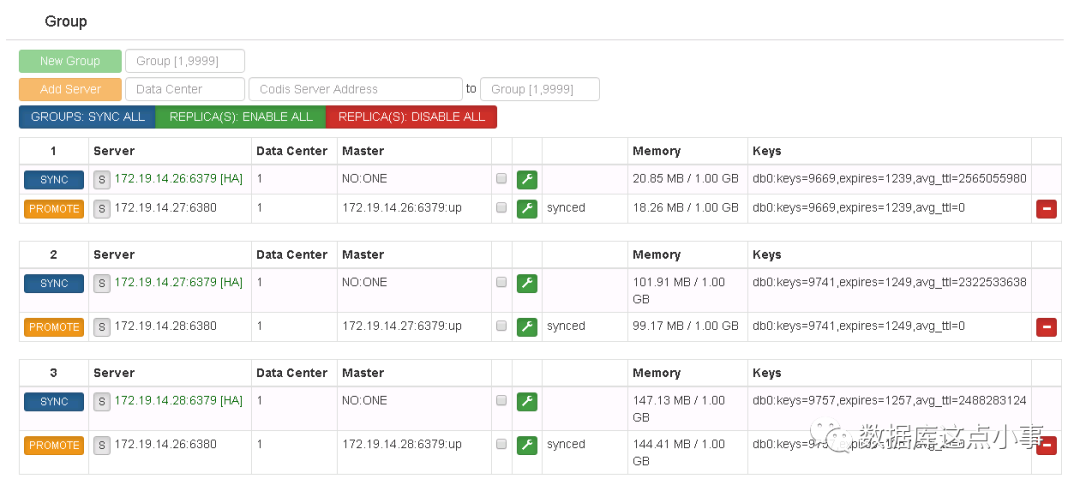

新增group后，再添加CODIS：（sync为主，promote为从，点击后，搭建主从并同步）

添加redis-sentinels:

添加完成后点击,此时查看sentinels的配置文件，会发现集群自动把集群的主备信息写入了配置文件中

[root@codis-proxy2 conf]# cat sentinel.conf

protected-mode no
port 26379
dir "/tmp"
# Generated by CONFIG REWRITE
sentinel myid b0612a76f5dd8000e7fe98609eb45dc90c925003
sentinel monitor codis-test-2 172.19.14.27 6379 2
sentinel failover-timeout codis-test-2 300000
sentinel config-epoch codis-test-2 0
sentinel leader-epoch codis-test-2 0
sentinel known-slave codis-test-2 172.19.14.28 6380
sentinel known-sentinel codis-test-2 172.19.14.23 26379 3019d72df0590fa5e3654ed120dad46ff97c6b2d
sentinel known-sentinel codis-test-2 172.19.14.21 26379 b5c733221c83d95fe9dde5f75ecc166486b906a0
sentinel monitor codis-test-1 172.19.14.26 6379 2
sentinel failover-timeout codis-test-1 300000
sentinel config-epoch codis-test-1 0
sentinel leader-epoch codis-test-1 0
sentinel known-slave codis-test-1 172.19.14.27 6380
sentinel known-sentinel codis-test-1 172.19.14.23 26379 3019d72df0590fa5e3654ed120dad46ff97c6b2d
sentinel known-sentinel codis-test-1 172.19.14.21 26379 b5c733221c83d95fe9dde5f75ecc166486b906a0
sentinel monitor codis-test-3 172.19.14.28 6379 2
sentinel failover-timeout codis-test-3 300000
sentinel config-epoch codis-test-3 0
sentinel leader-epoch codis-test-3 0
sentinel known-slave codis-test-3 172.19.14.26 6380
sentinel known-sentinel codis-test-3 172.19.14.23 26379 3019d72df0590fa5e3654ed120dad46ff97c6b2d
sentinel known-sentinel codis-test-3 172.19.14.21 26379 b5c733221c83d95fe9dde5f75ecc166486b906a0
sentinel current-epoch 1

至此，整个集群的搭建配置工作完成，因为后续采用了硬件设备实现的proxy的高可用，并没有在此使用keepalived_lvs。

数据库

文章转载自数据库这点小事，如果涉嫌侵权，请发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

codis3.2 安装配置

codis是一个分布式redis集群架构，在数据量和并发量都很大的业务场景，我们在使用单点redis的时候，往往会受到内存和cpu的限制，这个时候引入codis的集群架构，可以满足大数据量和高并发的业务场景。

github地址：https://github.com/CodisLabs/codis

评论
