$ tar -zxvf apache-dolphinscheduler-<version>-src.tar.gz
$ cd apache-dolphinscheduler-<version>-src/deploy/kubernetes/dolphinscheduler

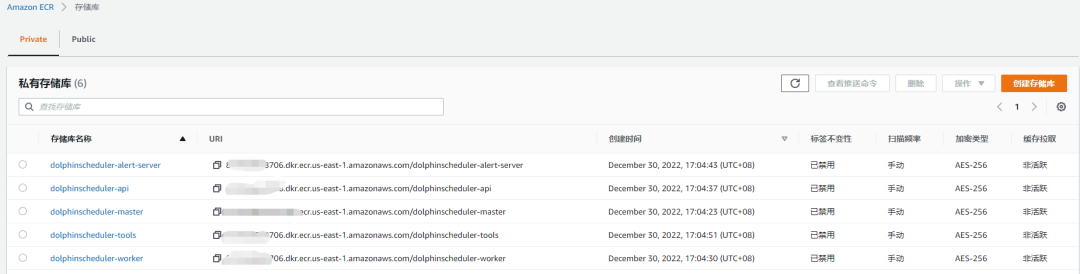

##修改镜像仓库地址为AWS ecr
image:
  registry: "xxxxxx.dkr.ecr.us-east-1.amazonaws.com"  -- ECR镜像地址
  tag: "3.1.2"
##使用外部数据源
postgresql:
  enabled: false
mysql:
  enabled: false

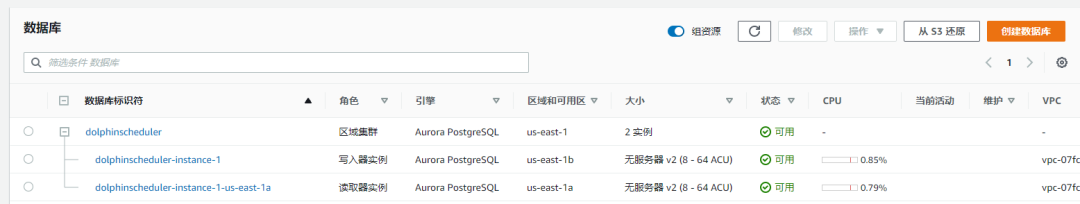

externalDatabase:
  type: "postgresql"
  host: "dolphinscheduler.cluster-xxxxx.us-east-1.rds.amazonaws.com"
  port: "5432"
  username: "postgres"
  password: "xxxxxxxx"
  database: "dolphinscheduler"
  params: "characterEncoding=utf8"
 ## 使用S3 存储资源文件
conf:
  common:
    resource.storage.type: S3
    resource.aws.access.key.id: xxxxxxx
    resource.aws.secret.access.key: xxxxxxxxx
    resource.aws.region: us-east-1
    resource.aws.s3.bucket.name: dolphinscheduler-resourse
    resource.aws.s3.endpoint: https://S3.us-east-1.amazonaws.com

master:
  resources:
    limits:
      memory: "8Gi"
      cpu: "4"
    requests:
      memory: "2Gi"
      cpu: "500m"
worker:
  resources:
    limits:
      memory: "8Gi"
      cpu: "4"
    requests:
      memory: "2Gi"
      cpu: "500m"
api:
  ...
alert:
  ...

$ kubectl create namespace dolphinscheduler

$ cd apache-dolphinscheduler-<version>-src/deploy/kubernetes/dolphinscheduler
$ helm repo add bitnami https://charts.bitnami.com/bitnami
$ helm dependency update .
$ helm install dolphinscheduler . --set image.tag=3.1.2 -n  dolphinscheduler --set region=us-east-1 --set vpcId=vpc-xxx

$ echo "
apiVersion: v1
kind: Service
metadata:
  namespace: dolphinscheduler
  name: service-dolphinscheduler
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-type: external
    service.beta.kubernetes.io/aws-load-balancer-nlb-target-type: ip
    service.beta.kubernetes.io/aws-load-balancer-scheme: internet-facing
    service.beta.kubernetes.io/subnets: subnet-xxx,subnet-xxx
spec:
  ports:
    - port: 12345
      targetPort: 12345
      protocol: TCP
  type: LoadBalancer
  selector:
    app.kubernetes.io/name: dolphinscheduler-api
" | kubectl apply -f -

$ kubectl get service  service-dolphinscheduler -n dolphinscheduler
NAME            TYPE           CLUSTER-IP         EXTERNAL-IP                                                                    PORT(S)        AGE
sample-service  LoadBalancer   10.9.240.137   k8s-nlbsampl-nlbsampl-xxxxxxxxxx-xxxxxxxxxxxxxxxx.elb.region-code.amazonaws.com  12345:32400/TCP   16h

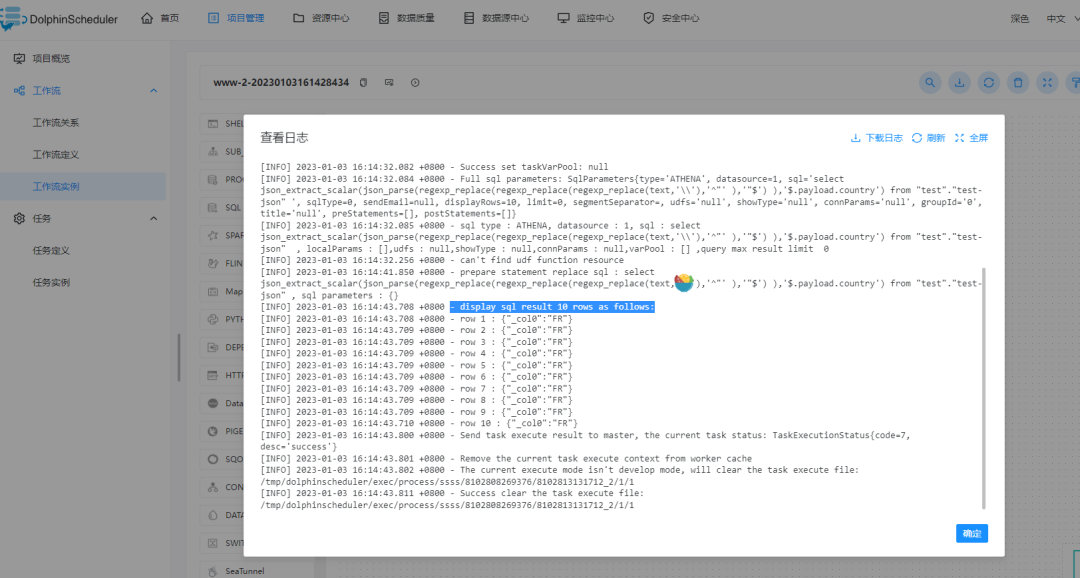

##示例worker镜像 DokcerFile
FROM dolphinscheduler.docker.scarf.sh/apache/dolphinscheduler-worker:3.1.2
RUN apt-get update && \
    apt-get install -y --no-install-recommends python3 && \
    apt-get install -y --no-install-recommends python3-pip && \
    rm -rf var/lib/apt/lists/*
RUN cd opt/dolphinscheduler/libs/ && \

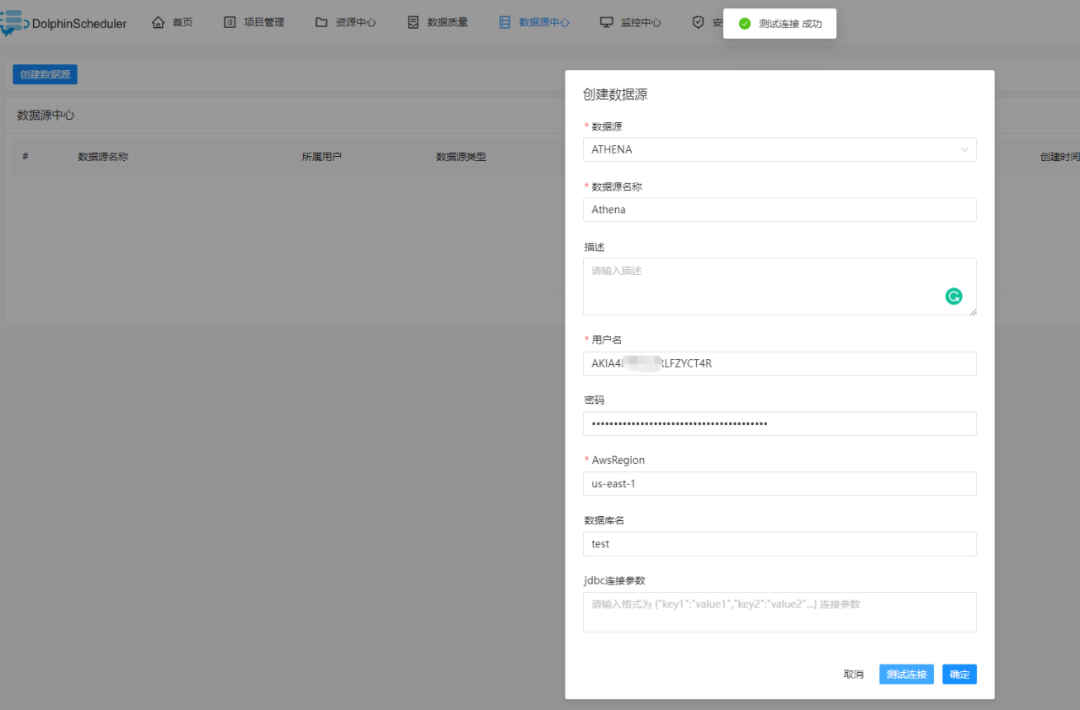

    wget https://s3.cn-north-1.amazonaws.com.cn/athena-downloads-cn/drivers/JDBC/SimbaAthenaJDBC-2.0.31.1000/AthenaJDBC42.jar

helm upgrade dolphinscheduler

## 扩缩容 api 至3个副本
kubectl scale --replicas=3 deploy dolphinscheduler-api -n dolphinscheduler
## 扩缩容 master 至2个副本
kubectl scale --replicas=2 sts dolphinscheduler-master  -n dolphinscheduler
## 扩缩容 worker 至2个副本
kubectl scale --replicas=6 sts dolphinscheduler-worker  -n dolphinscheduler

echo "
apiVersion: v1
kind: PersistentVolume
metadata:
  name: dolphin-efs-pv
spec:
  capacity:
    storage: 100Gi
  volumeMode: Filesystem
  accessModes:
    - ReadWriteMany
  persistentVolumeReclaimPolicy: Retain
  storageClassName: efs-sc
  csi:
    driver: efs.csi.aws.com
    volumeHandle: fs-xxx::fsap-xxx   // fsap
" | kubectl apply -f -

sharedStoragePersistence:    enabled: true    mountPath: "/opt/soft"    accessModes:    - "ReadWriteMany"    ## storageClassName must support the access mode: ReadWriteMany    storageClassName: "efs-sc"    storage: "20Gi"

{{- if .Values.common.sharedStoragePersistence.enabled }}
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: {{ include "dolphinscheduler.fullname" . }}-shared
  labels:
    app.kubernetes.io/name: {{ include "dolphinscheduler.fullname" . }}-shared
    {{- include "dolphinscheduler.common.labels" . | nindent 4 }}
  annotations:
    "helm.sh/resource-policy": keep
spec:
  accessModes:
  {{- range .Values.common.sharedStoragePersistence.accessModes }}
    - {{ . | quote }}
  {{- end }}
  storageClassName: {{ .Values.common.sharedStoragePersistence.storageClassName | quote }}
  volumeName: dolphin-efs-pv
  resources:
    requests:
      storage: {{ .Values.common.sharedStoragePersistence.storage | quote }}
{{- end }}
