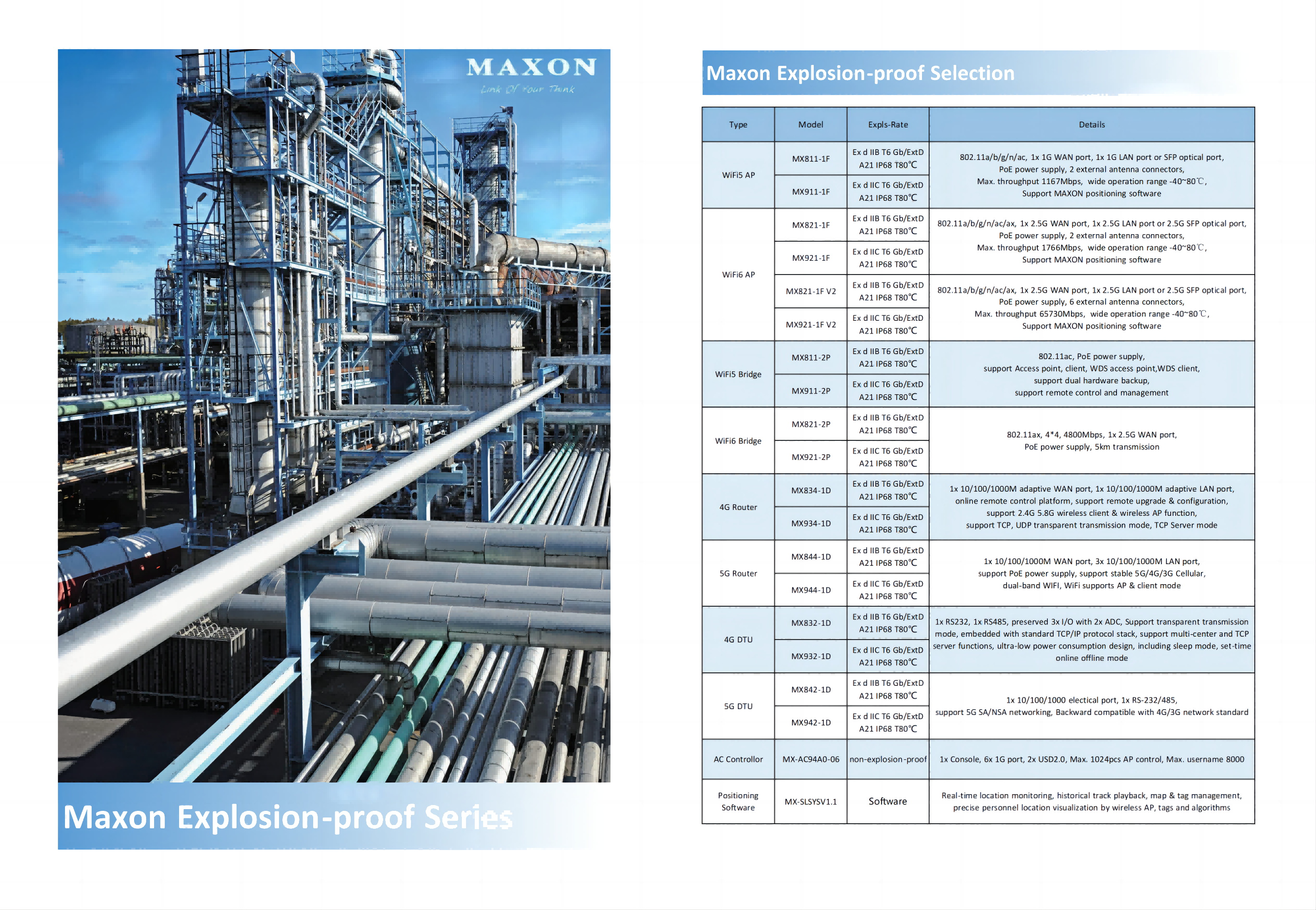

Maxon explosion-proof devices for industrial hazardous areas.
Access point, long-distance wireless bridge, router, DTU, etc.
Safety is always our primary concern.

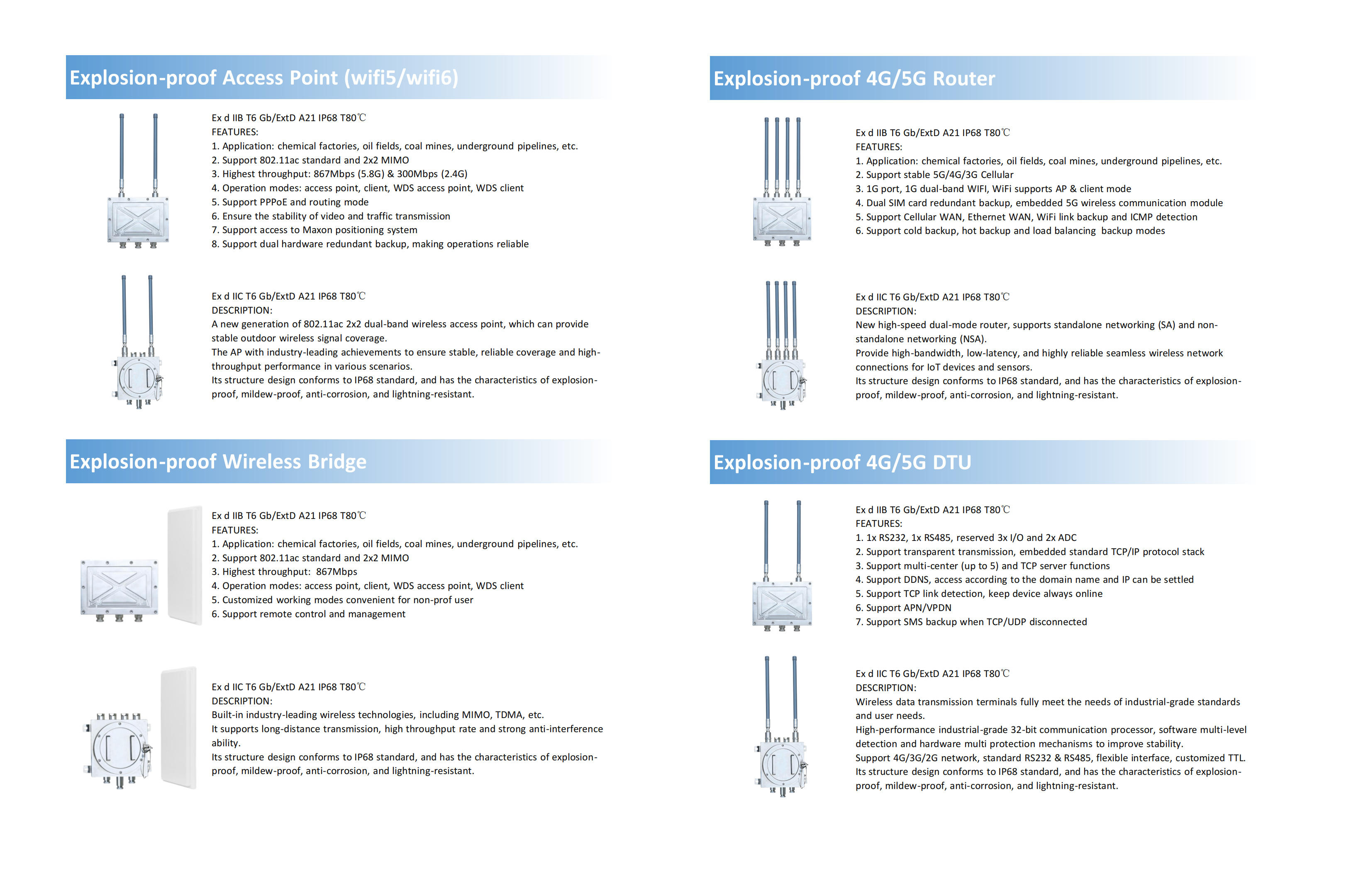

WiFi5 AP
MX811-1F: Ex d IIB T6 Gb/ExtD A21 IP68 T80℃
MX911-1F: Ex d IIC T6 Gb/ExtD A21 IP68 T80℃
802.11a/b/g/n/ac, 1x 1G WAN port, 1x 1G LAN port or SFP optical port,
PoE power supply, 2 external antenna connectors,
Max. throughput 1167Mbps, wide operation range -40~80℃,
Support MAXON positioning software
WiFi6 AP
MX821-1F: Ex d IIB T6 Gb/ExtD A21 IP68 T80℃
MX921-1F: Ex d IIC T6 Gb/ExtD A21 IP68 T80℃
802.11a/b/g/n/ac/ax, 1x 2.5G WAN port, 1x 2.5G LAN port or 2.5G SFP optical port,
PoE power supply, 2 external antenna connectors,
Max. throughput 1766Mbps, wide operation range -40~80℃,
Support MAXON positioning software
WiFi6 Pro AP
MX821-1F V2: Ex d IIB T6 Gb/ExtD A21 IP68 T80℃
MX921-1F V2: Ex d IIC T6 Gb/ExtD A21 IP68 T80℃
802.11a/b/g/n/ac/ax, 1x 2.5G WAN port, 1x 2.5G LAN port or 2.5G SFP optical port,
PoE power supply, 6 external antenna connectors,
Max. throughput 65730Mbps, wide operation range -40~80℃,
Support MAXON positioning software
WiFi5 Bridge
MX834-1D: Ex d IIB T6 Gb/ExtD A21 IP68 T80℃
MX934-1D: Ex d IIC T6 Gb/ExtD A21 IP68 T80℃
802.11ac, PoE power supply,
support Access point, client, WDS access point,WDS client,
support dual hardware backup,
support remote control and management
WiFi6 Bridge
MX821-2P: Ex d IIB T6 Gb/ExtD A21 IP68 T80℃
MX921-2P: Ex d IIC T6 Gb/ExtD A21 IP68 T80℃
802.11ax, 4*4, 4800Mbps, 1x 2.5G WAN port,
PoE power supply, 5km transmission
4G Router
MX834-1D: Ex d IIB T6 Gb/ExtD A21 IP68 T80℃
MX934-1D: Ex d IIC T6 Gb/ExtD A21 IP68 T80℃
1x 10/100/1000M adaptive WAN port, 1x 10/100/1000M adaptive LAN port,
online remote control platform, support remote upgrade & configuration,
support 2.4G 5.8G wireless client & wireless AP function,
support TCP, UDP transparent transmission mode, TCP Server mode
5G Router
MX844-1D: Ex d IIB T6 Gb/ExtD A21 IP68 T80℃
MX944-1D: Ex d IIC T6 Gb/ExtD A21 IP68 T80℃
1x 10/100/1000M WAN port, 3x 10/100/1000M LAN port,
support PoE power supply, support stable 5G/4G/3G Cellular,
dual-band WIFI, WiFi supports AP & client mode
4G DTU
MX832-1D: Ex d IIB T6 Gb/ExtD A21 IP68 T80℃
MX932-1D: Ex d IIC T6 Gb/ExtD A21 IP68 T80℃
1x RS232, 1x RS485, preserved 3x I/O with 2x ADC, Support transparent transmission mode, embedded with standard TCP/IP protocol stack, support multi-center and TCP server functions, ultra-low power consumption design, including sleep mode, set-time online offline mode
5G DTU
MX842-1D: Ex d IIB T6 Gb/ExtD A21 IP68 T80℃
MX942-1D: Ex d IIC T6 Gb/ExtD A21 IP68 T80℃
1x 10/100/1000 electical port, 1x RS-232/485,
support 5G SA/NSA networking, Backward compatible with 4G/3G network standard
AC Controllor
MX-AC94A0-06: non-explosion-proof
1x Console, 6x 1G port, 2x USD2.0, Max. 1024pcs AP control, Max. username 8000
Positioning Software
MX-SLSYSV1.1: Software
Real-time location monitoring, historical track playback, map & tag management,
precise personnel location visualization by wireless AP, tags and algorithms
