实践练习二（必选）：手动部署 OceanBase 集群

原创聪明的OB 2023-02-25

1101

主要内容：

1. （必选）手动部署一个 OB 单副本集群，包括一个 OBProxy 节点。

2. （必选）创建一个业务租户、一个业务数据库，以及一些表等。

1. 先准备一台虚拟机：

docker run --name obtest -p 60001:22 -p 28811:2881 --privileged centos:centos7 /usr/sbin/init

docker exec -it obtest bash

安装必要的软件

yum install net-tools.x86_64 -y

yum install openssh-server.x86_64 -y

yum install openssh-clients.x86_64 -y

yum install wget -y

systemctl restart sshd --重启ssh

passwd --修改密码

2. 检查环境配置

[root@aef5e48102b1 /]# lscpu

Architecture: x86_64

CPU op-mode(s): 32-bit, 64-bit

Byte Order: Little Endian

CPU(s): 6

On-line CPU(s) list: 0-5

Thread(s) per core: 2

Core(s) per socket: 3

Socket(s): 1

Vendor ID: GenuineIntel

CPU family: 6

Model: 60

Model name: Intel(R) Core(TM) i7-4790 CPU @ 3.60GHz

Stepping: 3

CPU MHz: 3591.689

BogoMIPS: 7183.37

Hypervisor vendor: Microsoft

Virtualization type: full

L1d cache: 32K

L1i cache: 32K

L2 cache: 256K

L3 cache: 8192K

Flags: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ss ht syscall nx pdpe1gb rdtscp lm constant_tsc rep_good nopl xtopology cpuid pni pclmulqdq ssse3 fma cx16 pcid sse4_1 sse4_2 movbe popcnt aes xsave avx f16c rdrand hypervisor lahf_lm abm invpcid_single pti ssbd ibrs ibpb stibp fsgsbase bmi1 avx2 smep bmi2 erms invpcid xsaveopt flush_l1d arch_capabilities

[root@aef5e48102b1 /]# free -h

total used free shared buff/cache available

Mem: 11G 503M 9G 9.9M 1.2G 10G

Swap: 0B 0B 0B

[root@aef5e48102b1 /]# cat /etc/redhat-release

CentOS Linux release 7.9.2009 (Core)

[root@aef5e48102b1 /]# uname -a

Linux aef5e48102b1 5.10.16.3-microsoft-standard-WSL2 #1 SMP Fri Apr 2 22:23:49 UTC 2021 x86_64 x86_64 x86_64 GNU/Linux

[root@aef5e48102b1 /]# df -h

Filesystem Size Used Avail Use% Mounted on

overlay 251G 2.3G 236G 1% /

tmpfs 64M 0 64M 0% /dev

tmpfs 5.9G 0 5.9G 0% /sys/fs/cgroup

shm 64M 0 64M 0% /dev/shm

/dev/sdb 251G 2.3G 236G 1% /etc/hosts

tmpfs 5.9G 8.2M 5.9G 1% /run

[root@aef5e48102b1 /]#

之前由于内存不足导致OB 服务起不来，这次调整docker desktop内存，步骤：

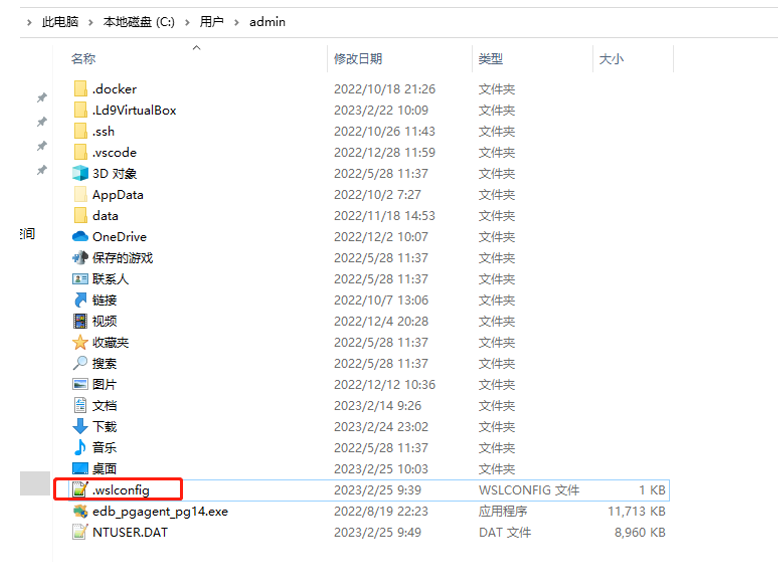

1.按下Windows + R 键，输入 %UserProfile% 并运行进入用户文件夹
新建文件 .wslconfig ，然后记事本编辑

[wsl2]

memory=12GB

processors=6

swap=0

localhostForwarding=true

3 . 手动部署一个 OB 单副本集群，包括一个 OBProxy 节点。

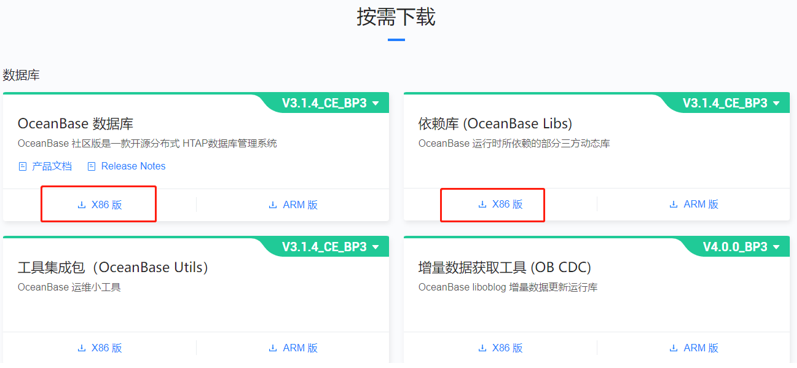

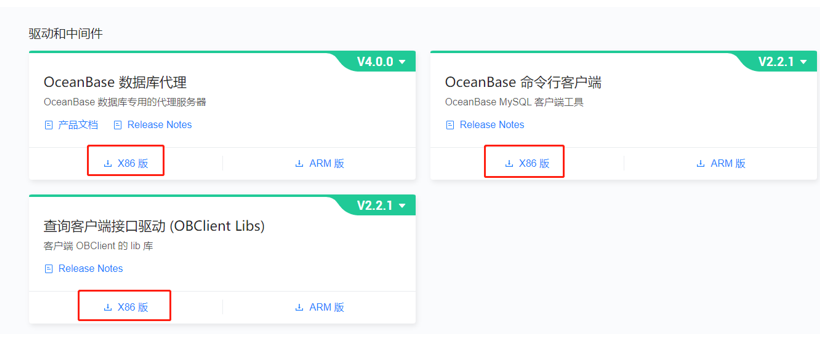

下载link ：https://www.oceanbase.com/softwarecenter

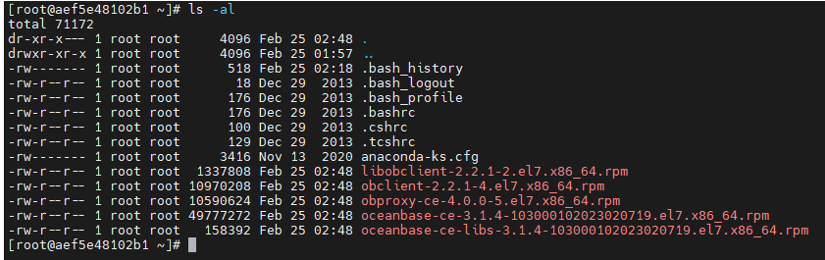

3.1 下载到本地，然后上传rpm包

3.2 创建用户和文件夹，部署安装包

useradd admin

usermod admin -G wheel

passwd admin

id admin

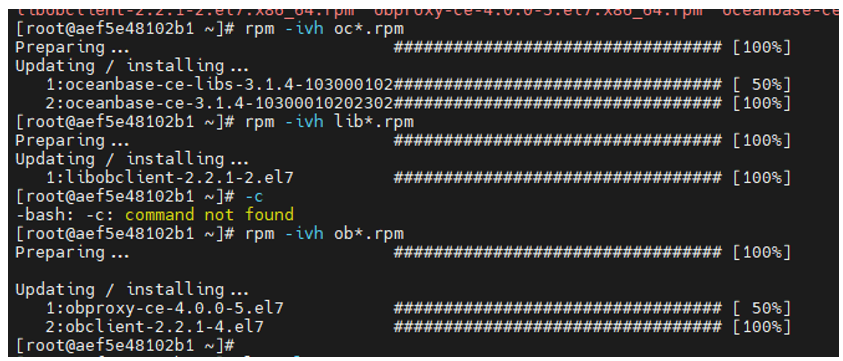

rpm -ivh oc*.rpm

rpm -ivh lib*.rpm

rpm -ivh ob*.rpm

mkdir -p /home/admin/oceanbase/store/obdemo/ /data/obdemo/sstable /redo/obdemo/{clog,ilog,slog}

ln -s /data/obdemo/sstable /home/admin/oceanbase/store/obdemo/sstable

ln -s /redo/obdemo/clog /home/admin/oceanbase/store/obdemo/clog

ln -s /redo/obdemo/slog /home/admin/oceanbase/store/obdemo/slog

ln -s /redo/obdemo/ilog /home/admin/oceanbase/store/obdemo/ilog

echo 'export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:~/oceanbase/lib'>>~/.bash_profile

yum install tree --add tree

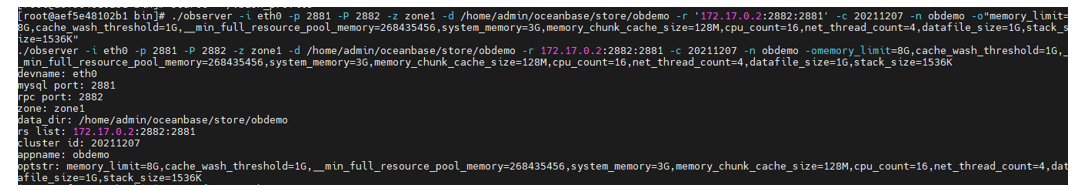

3.3 启动observer & obproxy

cd /home/admin/oceanbase && bin/observer -i eth0 -p 2881 -P 2882 -z zone1 -d /home/admin/oceanbase/store/obdemo -r '172.17.0.2:2882:2881' -c 20211207 -n obdemo -o"memory_limit=8G,cache_wash_threshold=1G,__min_full_resource_pool_memory=268435456,system_memory=3G,memory_chunk_cache_size=128M,cpu_count=16,net_thread_count=4,datafile_size=1G,stack_size=1536K"

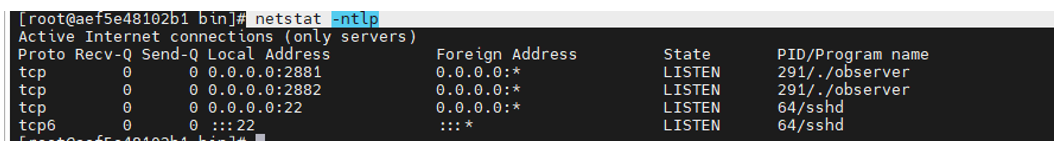

netstat -ntlp --检查端口

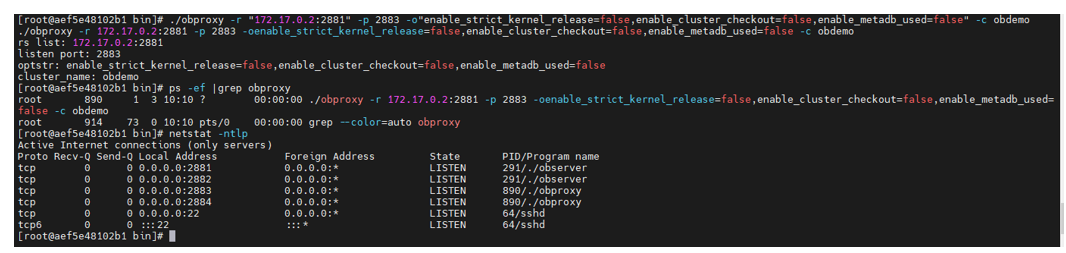

启动obproxy：

cd /home/admin/obproxy-4.0.0/bin

./obproxy -r "172.17.0.2:2881" -p 2883 -o"enable_strict_kernel_release=false,enable_cluster_checkout=false,enable_metadb_used=false" -c obdemo

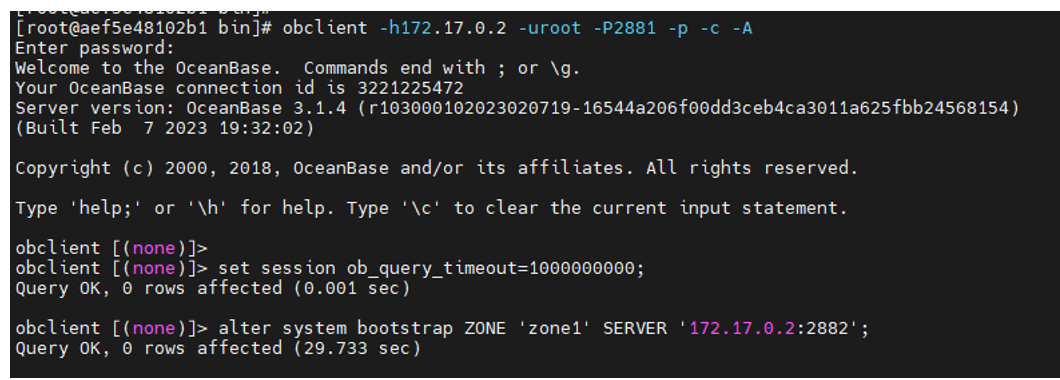

obclient -h172.17.0.2 -uroot -P2881 -p -c -A

set session ob_query_timeout=1000000000;

alter system bootstrap ZONE 'zone1' SERVER '172.17.0.2:2882'; --选主

错误1：

./observer: error while loading shared libraries: libmariadb.so.3: cannot open shared object file: No such file or directory

Fix step:

配置正确的路径：

echo 'export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/home/admin/oceanbase/lib'>>~/.bash_profile

错误2 ：

Error 4015 （HY000）: System Error

Fix step ：

重新初始化，修改CPU 数量从16 到8 ，虚拟机的配置是6

kill -9 `pidof observer`

rm -rf /home/admin/oceanbase/store/obdemo/*/*

/observer -i eth0 -p 2881 -P 2882 -z zone1 -d /home/admin/oceanbase/s tore/obdemo -r '172.17.0.2:2882:2881' -c 20211207 -n obdemo -o"memory_limit=8G,cache_wash_thres hold=1G,__min_full_resource_pool_memory=268435456,system_memory=3G,memory_chunk_cache_size=128M ,cpu_count=8,net_thread_count=4,datafile_size=1G,stack_size=1536K"

./observer -i eth0 -p 2881 -P 2882 -z zone1 -d /home/admin/oceanbase/store/obdemo -r 172.17.0.2 :2882:2881 -c 20211207 -n obdemo -omemory_limit=8G,cache_wash_threshold=1G,__min_full_resource_ pool_memory=268435456,system_memory=3G,memory_chunk_cache_size=128M,cpu_count=8,net_thread_coun t=4,datafile_size=1G,stack_size=1536K

4. 创建一个业务租户、一个业务数据库，以及一些表

系统租户连接：

obclient -h172.17.0.2 -uroot@sys -P2881 -p -c -A oceanbase

创建资源单元

CREATE RESOURCE UNIT unit1 max_cpu 4, max_memory '1G', max_iops 10000,max_disk_size '10G', max_session_num 100000, MIN_CPU=1,MIN_MEMORY= '1G', MIN_IOPS=128;

创建资源池

CREATE RESOURCE POOL pool1 UNIT = 'unit1',UNIT_NUM = 1,ZONE_LIST = ('zone1');

错误信息：

obclient [oceanbase]> CREATE RESOURCE POOL pool1 UNIT = 'unit1',UNIT_NUM = 1,ZONE_LIST = ('zone1');

ERROR 4624 (HY000): machine resource 'zone1' is not enough to hold a new unit

解决办法：

检查unit 情况：

select * from __all_unit_config;

降低sys租户的资源

alter RESOURCE UNIT sys_unit_config MAX_CPU 3;

[root@aef5e48102b1 bin]# obclient -h172.17.0.2 -uroot@sys -P2881 -p -c -A oceanbase

Enter password:

Welcome to the OceanBase. Commands end with ; or \g.

Your OceanBase connection id is 3221487811

Server version: OceanBase 3.1.4 (r103000102023020719-16544a206f00dd3ceb4ca3011a625fbb24568154) (Built Feb 7 2023 19:32:02)

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

obclient [oceanbase]> alter RESOURCE UNIT sys_unit_config MAX_CPU 3;

Query OK, 0 rows affected (0.015 sec)

obclient [oceanbase]> select * from __all_unit_config;

+----------------------------+----------------------------+----------------+-----------------+---------+---------+------------+------------+----------+----------+---------------+---------------------+

| 2023-02-25 18:52:50.922507 | 2023-02-25 19:08:16.038871 | 1 | sys_unit_config | 3 | 2.5 | 1610612736 | 1342177280 | 10000 | 5000 | 1073741824 | 9223372036854775807 |

| 2023-02-25 19:06:11.003879 | 2023-02-25 19:06:11.003879 | 1001 | unit1 | 4 | 1 | 1073741824 | 1073741824 | 10000 | 128 | 10737418240 | 100000 |

2 rows in set (0.001 sec)

obclient [oceanbase]> CREATE RESOURCE POOL pool1 UNIT = 'unit1',UNIT_NUM = 1,ZONE_LIST = ('zone1');

Query OK, 0 rows affected (0.023 sec)

obclient [oceanbase]> select * from __all_unit_config;

| 2023-02-25 18:52:50.922507 | 2023-02-25 19:08:16.038871 | 1 | sys_unit_config | 3 | 2.5 | 1610612736 | 1342177280 | 10000 | 5000 | 1073741824 | 9223372036854775807 |

| 2023-02-25 19:06:11.003879 | 2023-02-25 19:06:11.003879 | 1001 | unit1 | 4 | 1 | 1073741824 | 1073741824 | 10000 | 128 | 10737418240 | 100000 |

2 rows in set (0.001 sec)

obclient [oceanbase]> select * from __all_resource_pool;

+----------------------------+----------------------------+------------------+----------+------------+----------------+-----------+-----------+--------------+--------------------+

+----------------------------+----------------------------+------------------+----------+------------+----------------+-----------+-----------+--------------+--------------------+

| 2023-02-25 18:52:50.932536 | 2023-02-25 18:52:50.945251 | 1 | sys_pool | 1 | 1 | zone1 | 1 | 0 | 0 |

| 2023-02-25 19:08:32.095150 | 2023-02-25 19:08:32.095150 | 1002 | pool1 | 1 | 1001 | zone1 | -1 | 0 | 0 |

+----------------------------+----------------------------+------------------+----------+------------+----------------+-----------+-----------+--------------+--------------------+

2 rows in set (0.001 sec)

obclient [oceanbase]> select * from __all_tenant;

+----------------------------+----------------------------+-----------+-------------+-------------+-----------+--------------+--------+----------------+---------------+-----------+-----------------------+---------------+---------------------+-------------------+------------------------+-----------------------------+-----------------------+--------------------+------------------+----------------------+---------------+

| 2023-02-25 18:52:50.964980 | 2023-02-25 18:52:50.964980 | 1 | sys | -1 | zone1 | zone1 | 0 | 0 | system tenant | 0 | 0 | FULL{1}@zone1 | 0 | | 0 | 0 | -1 | 0 | -1 | TENANT_STATUS_NORMAL | 0 |

1 row in set (0.002 sec)

创建新租户：

obclient [oceanbase]> create tenant obtenant resource_pool_list=('pool1'), zone_list=('zone1'), primary_zone='zone1',comment 'mysql tenant/instance', charset='utf8' set ob_tcp_invited_nodes='%', ob_compatibility_mode='mysql';

Query OK, 0 rows affected (1.270 sec)

obclient [oceanbase]> exit

Bye

新租户连接：

[root@aef5e48102b1 bin]# obclient -h127.1 -P2881 -uroot@obtenant -P2881

Welcome to the OceanBase. Commands end with ; or \g.

Your OceanBase connection id is 3221487844

Server version: OceanBase 3.1.4 (r103000102023020719-16544a206f00dd3ceb4ca3011a625fbb24568154) (Built Feb 7 2023 19:32:02)

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

obclient [(none)]> show tenant

-> ;

+---------------------+

| Current_tenant_name |

+---------------------+

| obtenant |

+---------------------+

1 row in set (0.023 sec)

obclient [(none)]> create database testdb;

Query OK, 1 row affected (0.033 sec)

obclient [(none)]> use testdb;

Database changed

obclient [testdb]> create table t1 (id int ,name varchar(10));

Query OK, 0 rows affected (0.139 sec)

obclient [testdb]> insert into t1 values(1,1);

Query OK, 1 row affected (0.023 sec)

obclient [testdb]> select * from t1;

+------+------+

| id | name |

+------+------+

| 1 | 1 |

+------+------+

1 row in set (0.002 sec)

最后遇到一个bug ：

221版本修复了这个问题，连接root@proxysys用户时，请加上「–proxy-mode」。参考：Release V2.2.1 · oceanbase/obclient · GitHub 9

https://github.com/oceanbase/obclient/releases/tag/2.2.1

错误信息：

[root@aef5e48102b1 bin]# obclient -h172.17.0.2 -uroot@proxysys -P2883 -p –-proxy-mode
Enter password:
ERROR 2027 (HY000): received malformed packet

根据上面的文档，加入一个参数 --proxy-mode

[root@aef5e48102b1 bin]# obclient -h172.17.0.2 -uroot@proxysys -P2883 -p --proxy-mode
Enter password:
Welcome to the OceanBase. Commands end with ; or \g.
Your OceanBase connection id is 17
Server version:

Copyright (c) 2000, 2018, OceanBase and/or its affiliates. All rights reserved.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

修改obproxy 管理员密码：

alter proxyconfig set obproxy_sys_password = '111111';

obproxy 和observer 通信用户密码：
alter proxyconfig set observer_sys_password = '654321';

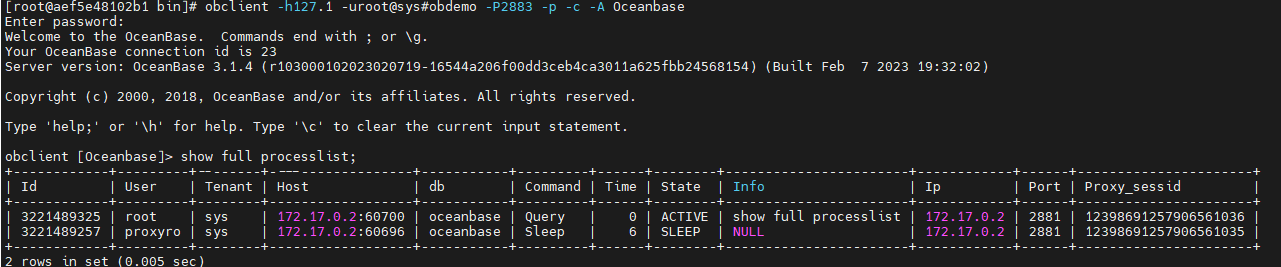

obclient -h127.1 -uroot@sys#obdemo -P2883 -p -c -A Oceanbase

show full processlist;

That is all !
