Citus 报错（六）ERROR: cannot pushdown the subquery DETAIL: There exist a reference table in the outer part of the

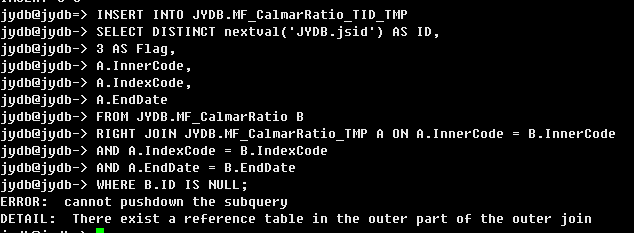

直奔主题，报错如下

ERROR: cannot pushdown the subquery
DETAIL: There exist a reference table in the outer part of the outer join

其中JYDB.MF_CalmarRatio_TMP为业务中产生的临时表，最初为了考虑join的问题，将TMP表设计成为Reference Table

代码限制 外链接主表不能是参考表,改SQL代码，考虑改为CTE亲和表

将MF_CalmarRatio_TMP表改成分布式表之前，SQL改过CTE 如下

INSERT INTO JYDB.MF_CalmarRatio_TID_TMP
with x as (select * from JYDB.MF_CalmarRatio)
SELECT DISTINCT nextval('JYDB.jsid') AS ID,
                3 AS Flag,
                A.InnerCode,
                A.IndexCode,
                A.EndDate
FROM JYDB.MF_CalmarRatio_TMP A
LEFT JOIN x B ON A.InnerCode = B.InnerCode
                                AND A.IndexCode = B.IndexCode
                                AND A.EndDate = B.EndDate
WHERE B.ID IS NULL;
ERROR:  the intermediate result size exceeds canopy.max_intermediate_result_size (currently 1048576 kB)
DETAIL:  Canopy restricts the size of intermediate results of complex subqueries and CTEs to avoid accidentally pulling large result sets into once place.
HINT:  To run the current query, set canopy.max_intermediate_result_size to a higher value or -1 to disable.

不是无脑增大max_intermediate_result_size值

如上报错的原因是因为分布式表转换为亲和表后与参考表进行join，Canopy 查询结果的大小超出了 citus.max_intermediate_result_size 的限制，当前限制为 1048576 kB。Canopy 限制复杂子查询和公共表表达式（CTE）的中间结果大小，以避免意外将大型结果集放入单个位置。

为了运行当前查询，您可以将 Canopy.max_intermediate_result_size 设置为更高的值，或将其设置为 -1 以禁用此限制。但请注意，如果中间结果集非常大，可能会影响查询的性能和可扩展性。如果您需要查询大量数据，请考虑使用分批次查询或优化查询语句以减少中间结果集的大小。

最终MF_CalmarRatio_TMP改为分布式表

jydb@jydb=> select * from canopy_tables;
         table_name          | canopy_table_type | distribution_column | colocation_id | table_size | shard_count | table_owner | access_method
-----------------------------+-------------------+---------------------+---------------+------------+-------------+-------------+---------------
 github_events               | distributed       | user_id             |             5 | 1920 kB    |          80 | jydb        | heap
 github_users                | distributed       | user_id             |             5 | 640 kB     |          80 | jydb        | heap
 jydb_deleterec              | reference         | <none>              |             8 | 8039 MB    |           1 | jydb        | heap
 jydb_system                 | reference         | <none>              |             8 | 192 kB     |           1 | jydb        | heap
 jydb_tid.mf_calmarratio_tid | reference         | <none>              |             8 | 568 MB     |           1 | jydb_tid    | heap
 mf_abnormalreturn           | distributed       | innercode           |             4 | 18 GB      |          80 | jydb        | heap
 mf_calmarratio              | distributed       | innercode           |             4 | 28 GB      |          80 | jydb        | heap
 mf_calmarratio_tid_tmp      | reference         | <none>              |             8 | 20 MB      |           1 | jydb        | heap
 mf_calmarratio_tmp          | distributed       | innercode           |             4 | 46 MB      |          80 | jydb        | heap
 mf_derivativeindexinfo      | reference         | <none>              |             8 | 360 kB     |           1 | jydb        | heap
 mf_fundmaxdrawd             | distributed       | innercode           |             4 | 58 GB      |          80 | jydb        | heap
 mf_nvperformancetransh      | distributed       | innercode           |             4 | 5172 MB    |          80 | jydb        | heap
 mf_nvperformancetransh_tmp  | reference         | <none>              |             8 | 47 MB      |           1 | jydb        | heap
 tmp_mf_calmarratio          | distributed       | innercode           |             4 | 25 MB      |          80 | jydb        | heap
 tmp_mf_calmarratio_tid      | reference         | <none>              |             8 | 0 bytes    |           1 | jydb        | heap
 tmp_mf_nvperformancetransh  | reference         | <none>              |             8 | 4872 kB    |           1 | jydb        | heap

再次查询查看执行计划

jydb@jydb=> explain analyze SELECT DISTINCT nextval('JYDB.jsid') AS ID,
jydb@jydb->                 3 AS Flag,
jydb@jydb->                 A.InnerCode,
jydb@jydb->                 A.IndexCode,
jydb@jydb->                 A.EndDate
jydb@jydb-> FROM JYDB.MF_CalmarRatio B
jydb@jydb-> LEFT JOIN JYDB.MF_CalmarRatio_TMP A ON A.InnerCode = B.InnerCode
jydb@jydb->                                 AND A.IndexCode = B.IndexCode
jydb@jydb->                                 AND A.EndDate = B.EndDate
jydb@jydb-> WHERE B.ID IS NULL;
                                                                                        QUERY PLAN

----------------------------------------------------------------------------------------------------------------------------------------------------------------------
--------------------
 HashAggregate  (cost=1500.00..2750.00 rows=100000 width=28) (actual time=40.556..40.564 rows=0 loops=1)
   Group Key: nextval('jsid'::regclass), remote_scan.flag, remote_scan.innercode, remote_scan.indexcode, remote_scan.enddate
   Batches: 1  Memory Usage: 3097kB
   ->  Custom Scan (Canopy Adaptive)  (cost=0.00..250.00 rows=100000 width=28) (actual time=40.173..40.181 rows=0 loops=1)
         Task Count: 80
         Tuple data received from nodes: 0 bytes
         Tasks Shown: One of 80
         ->  Task
               Tuple data received from node: 0 bytes
               Node: host=10.101.0.122 port=5432 dbname=jydb
               ->  Unique  (cost=4.76..4.77 rows=1 width=20) (actual time=0.083..0.084 rows=0 loops=1)
                     ->  Sort  (cost=4.76..4.76 rows=1 width=20) (actual time=0.083..0.083 rows=0 loops=1)
                           Sort Key: a.innercode, a.indexcode, a.enddate
                           Sort Method: quicksort  Memory: 33kB
                           ->  Nested Loop Left Join  (cost=0.70..4.75 rows=1 width=20) (actual time=0.048..0.048 rows=0 loops=1)
                                 ->  Index Scan using ix_mf_calmarratio_id_105713 on mf_calmarratio_105713 b  (cost=0.43..2.44 rows=1 width=16) (actual time=0.048..0.
048 rows=0 loops=1)
                                       Index Cond: (id IS NULL)
                                 ->  Index Only Scan using ix_mf_calmarratio_tmp_105873 on mf_calmarratio_tmp_105873 a  (cost=0.28..2.30 rows=1 width=16) (never execu
ted)
                                       Index Cond: ((innercode = b.innercode) AND (enddate = b.enddate) AND (indexcode = b.indexcode))
                                       Heap Fetches: 0
                   Planning Time: 1.236 ms
                   Execution Time: 0.130 ms
 Planning Time: 7.373 ms
 Execution Time: 42.619 ms
(24 rows)
