MYSQL 协议 (6) caching_sha2_password

原创 https://cloud.tencent.com/developer/article/2247829 2023-04-23

1000

本文主要讲caching_sha2_password的加密原理和连接过程(比mysql_native_password复杂一些)

mysql_native_password之前就已经讲过了.

本文不包含空密码场景

caching_sha2_password 加密原理

就是对密码做hash, 返回最后一次和第一次的异或, (最后一次加salt, 防止重返)

和mysql_native_password差不多, 只不过改用了sha2算法.

代码如下

def sha2_password(password,salt):
        stage1 = hashlib.sha256(password).digest()
        stage2 = hashlib.sha256(stage1).digest()
        stage3 = hashlib.sha256(stage2+salt).digest()

        result = bytearray(stage3)
        for x in range(len(result)):
                result[x] ^= stage1[x]
        return result

caching_sha2_password 源代码在sql/auth/sha2_password_common.cc

  /* SHA2(src) => digest_stage1 */
  if (m_digest_generator->update_digest(m_src.c_str(), m_src.length()) ||
      m_digest_generator->retrieve_digest(digest_stage1, m_digest_length)) {
    DBUG_PRINT("info", ("Failed to generate digest_stage1: SHA2(src)"));
    return true;
  }

  /* SHA2(digest_stage1) => digest_stage2 */
  m_digest_generator->scrub();
  if (m_digest_generator->update_digest(digest_stage1, m_digest_length) ||
      m_digest_generator->retrieve_digest(digest_stage2, m_digest_length)) {
    DBUG_PRINT("info",
               ("Failed to generate digest_stage2: SHA2(digest_stage1)"));
    return true;
  }

  /* SHA2(digest_stage2, m_rnd) => scramble_stage1 */
  m_digest_generator->scrub();
  if (m_digest_generator->update_digest(digest_stage2, m_digest_length) ||
      m_digest_generator->update_digest(m_rnd.c_str(), m_rnd.length()) ||
      m_digest_generator->retrieve_digest(scramble_stage1, m_digest_length)) {
    DBUG_PRINT("info", ("Failed to generate scrmable_stage1: "
                        "SHA2(digest_stage2, m_rnd)"));
    return true;
  }

  /* XOR(digest_stage1, scramble_stage1) => scramble */
  for (uint i = 0; i < m_digest_length; ++i)
    scramble[i] = (digest_stage1[i] ^ scramble_stage1[i]);

mysql_native_password源码在 sql/auth/password.cc

void scramble(char *to, const char *message, const char *password) {
  uint8 hash_stage1[SHA1_HASH_SIZE];
  uint8 hash_stage2[SHA1_HASH_SIZE];

  /* Two stage SHA1 hash of the password. */
  compute_two_stage_sha1_hash(password, strlen(password), hash_stage1,
                              hash_stage2);

  /* create crypt string as sha1(message, hash_stage2) */;
  compute_sha1_hash_multi((uint8 *)to, message, SCRAMBLE_LENGTH,
                          (const char *)hash_stage2, SHA1_HASH_SIZE);
  my_crypt(to, (const uchar *)to, hash_stage1, SCRAMBLE_LENGTH); /*while (s1 < s1_end) *to++ = *s1++ ^ *s2++;*/
}

连接过程

caching 的意思是缓存, 也就是server会把账号密码信息缓存在内存中, 方便下次快速连接.

所以caching_sha2_password 分为两种情况快速认证和完整认证 (着重讲)
下图均未包含switch request

switch request其实就是把加密后的密码发给server即可

scrambled = sha2_password(self.password.encode(),auth_pack[auth_pack.find(b'\x00')+1:])
self.write_pack(scrambled)
auth_pack = self.read_pack()

快速认证

和mysql_native_password差不多.

注: 密码认证失败, 就走完整认证

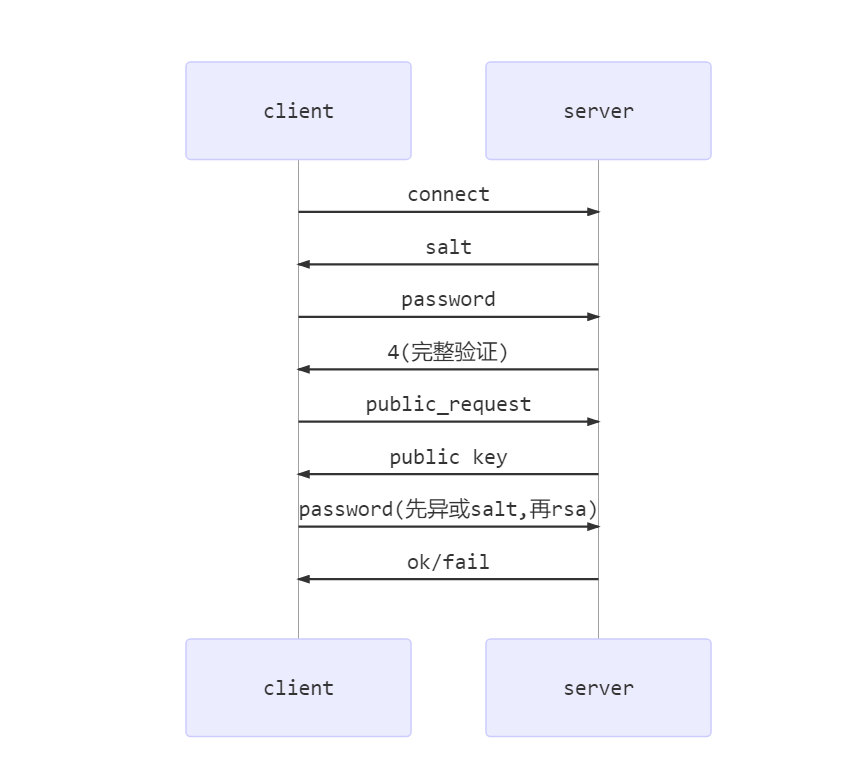

完整认证

多了个使用公钥加密的过程(实际上还会请求公钥)

当客户端发送加密后的密码(第一个包)给server时, server返回值如下:

0xFE 表示交换认证(再把密码加密下发过去(只要密码了))
0x01 额外认证(插件)
0x00 OK

当收到0xFE或者0x01时(第二个字段如下值)

b'\x03' fast
b'\x04' full  如果是SSL/SOCK/shard_MEM 就不需要公钥加密了,明文就行

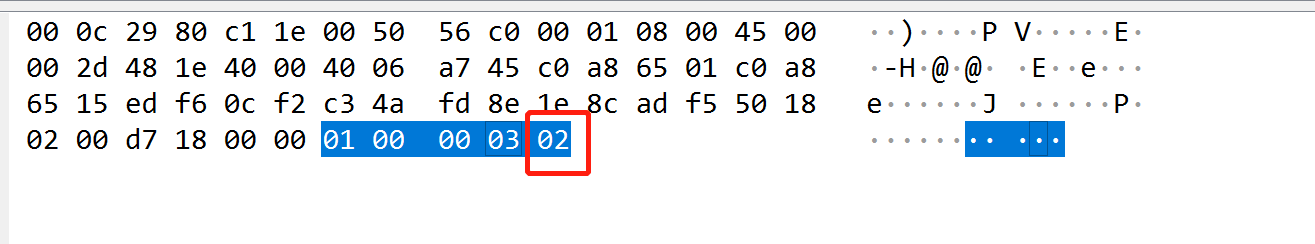

如果客户端需要公钥的话, 发个2给server即可 request_public_key = ‘\2’

测试

本次只演示完整认证.

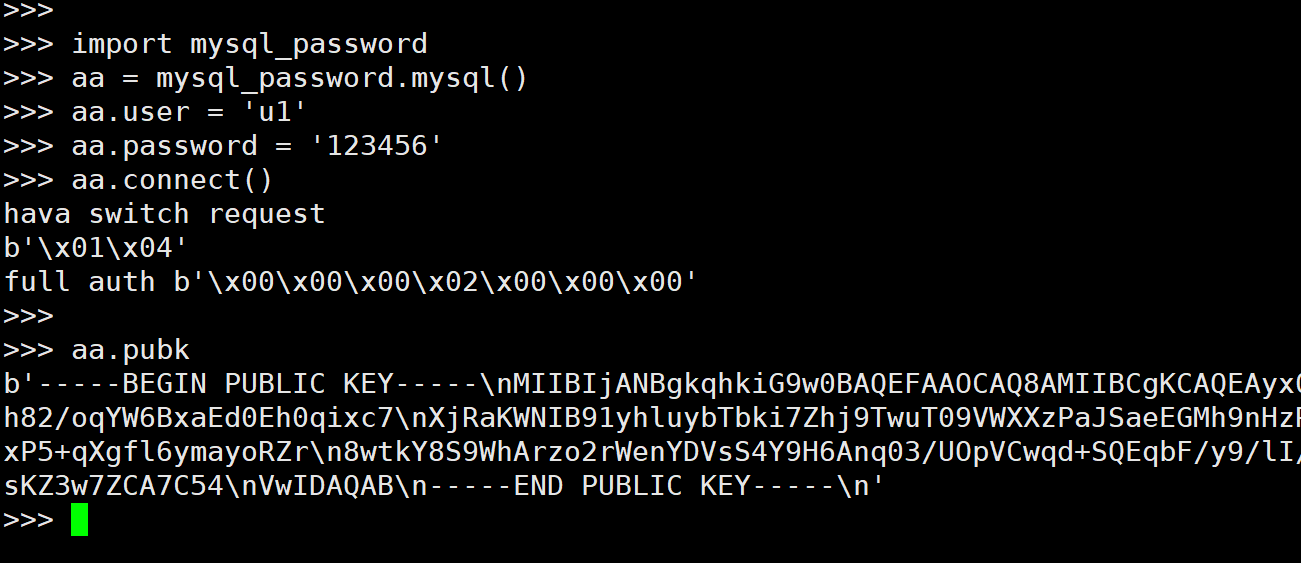

直接执行如下代码即可, 我基本上都封装好了. 源码见文末

import mysql_password
aa = mysql_password.mysql()
aa.user = 'u1'
aa.password = '123456'
aa.connect()
#aa.pubk

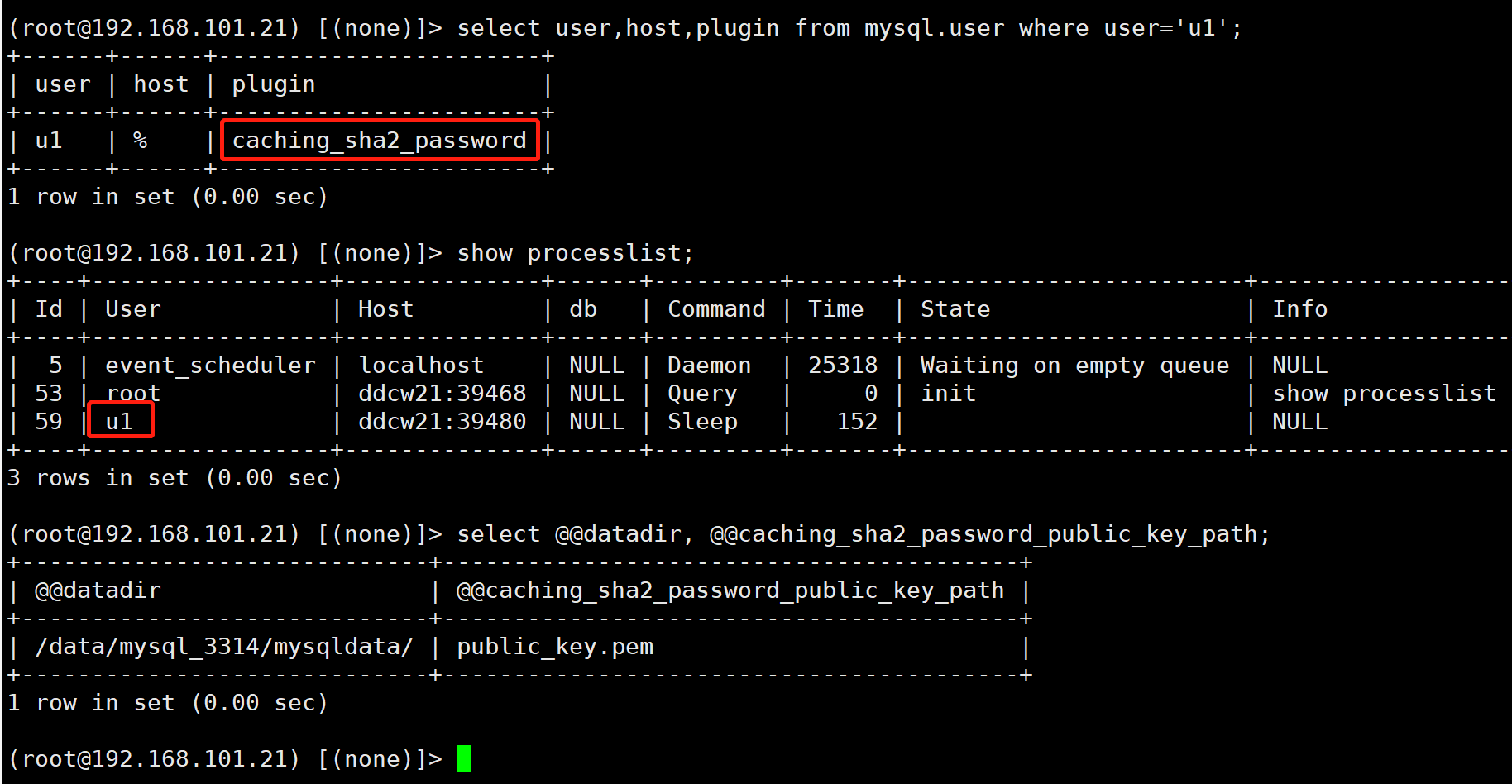

我们去server看下

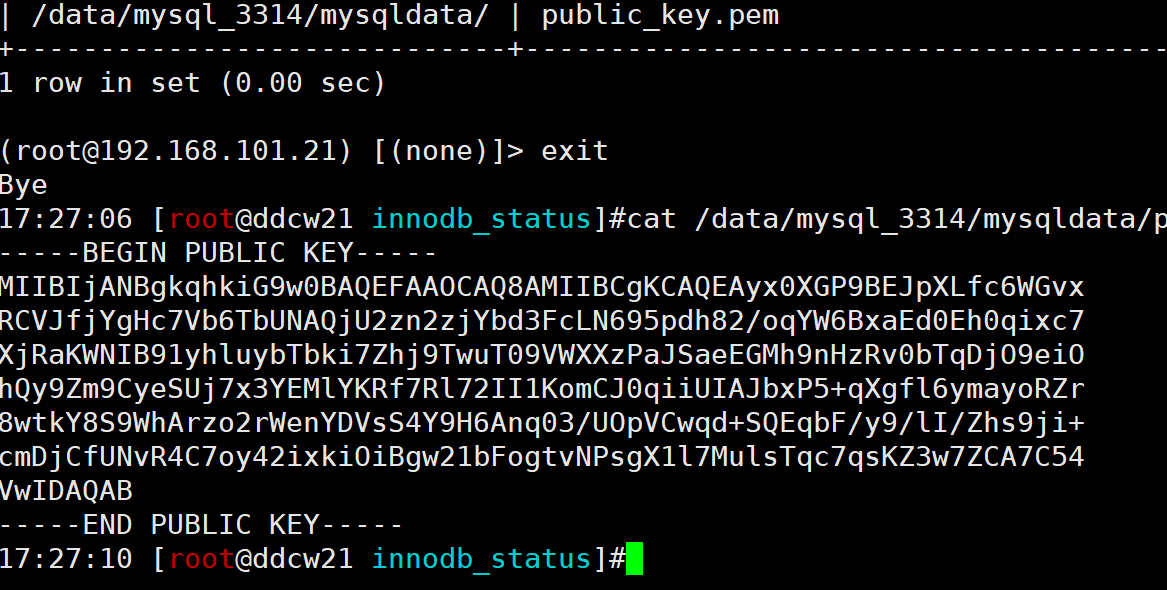

确实是没问题的, 我们再看下 Public key

和我们收到的public key 是一样的.

总结

caching_sha2_password 有两种认证模式, 快速认证和完整认证
完整认证(full) 在未使用ssl/sock/共享内存的情况会使用server的公钥对密码加密
switch auth (0xFE) 就是只是把加密的密码发过去即可.

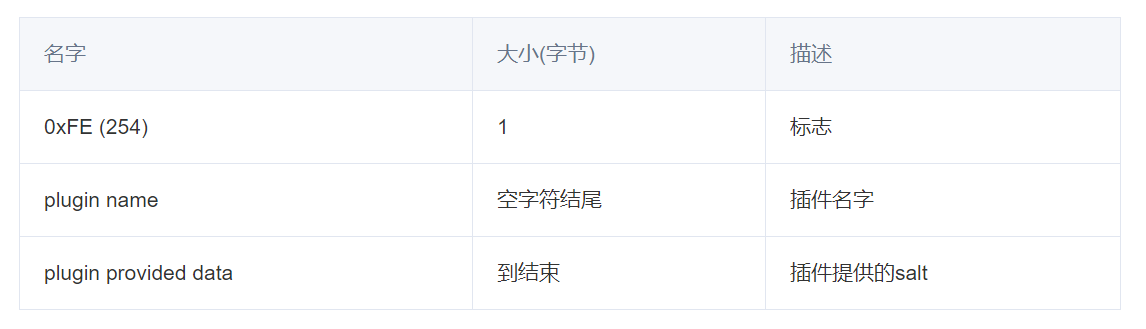

AuthSwitchRequest结果如下(回报没得结构,直接发加密后的password)

认证成功之后, server会缓存相关账号信息(官方说的, 实际上并没有找到, 下次使用gdb看看)

源码

源码有点长哈(基本上都是用之前的修修改改)…

rsa加密使用的pymysql的. 因为不属于本文的内容

import hashlib
import struct
import socket
import os

#来自pymysql
from cryptography.hazmat.backends import default_backend
from cryptography.hazmat.primitives import serialization, hashes
from cryptography.hazmat.primitives.asymmetric import padding

def btoint(bdata,t='little'):
	return int.from_bytes(bdata,t)

#来自pymysql
def _lenenc_int(i):
	if i < 0:
		raise ValueError("Encoding %d is less than 0 - no representation in LengthEncodedInteger" % i)
	elif i < 0xFB:
		return bytes([i])
	elif i < (1 << 16):
		return b"\xfc" + struct.pack("<H", i)
	elif i < (1 << 24):
		return b"\xfd" + struct.pack("<I", i)[:3]
	elif i < (1 << 64):
		return b"\xfe" + struct.pack("<Q", i)
	else:
		raise ValueError("Encoding %x is larger than %x - no representation in LengthEncodedInteger"% (i, (1 << 64)))

#就是做个异或
#来自Pymysql
def _xor_password(password, salt):
	salt = bytearray(salt[:20])
	password = bytearray(password)
	for i in range(len(password)):
		password[i] ^= salt[i%len(salt)]
	return bytes(password)

#来自pymysql
def sha2_rsa_encrypt(password, salt, public_key):
	message = _xor_password(password + b"\0", salt)
	rsa_key = serialization.load_pem_public_key(public_key, default_backend())
	return rsa_key.encrypt(
		message,
		padding.OAEP(
			mgf=padding.MGF1(algorithm=hashes.SHA1()),
			algorithm=hashes.SHA1(),
			label=None,
		),
	)

def native_password(password,salt):
	stage1 = hashlib.sha1(password).digest()
	stage2 = hashlib.sha1(stage1).digest()

	rp = hashlib.sha1(salt)
	rp.update(stage2)
	result = bytearray(rp.digest())

	for x in range(len(result)):
		result[x] ^= stage1[x]
	return result

def sha2_password(password,salt):
	stage1 = hashlib.sha256(password).digest()
	stage2 = hashlib.sha256(stage1).digest()
	stage3 = hashlib.sha256(stage2+salt).digest()

	result = bytearray(stage3)
	for x in range(len(result)):
		result[x] ^= stage1[x]
	return result

def parse_handshake(bdata):
	i = 0
	protocol_version = bdata[:1]
	server_end = bdata.find(b"\0", i)
	i = server_end + 1
	thread_id = btoint(bdata[i:i+4])
	i += 4
	salt = bdata[i:i+8]
	i += 9
	server_capabilities = btoint(bdata[i:i+2])
	i += 2
	server_charset = btoint(bdata[i:i+1])
	i += 1
	server_status = btoint(bdata[i:i+2])
	i += 2
	server_capabilities |= btoint(bdata[i:i+2]) << 16
	i += 2
	salt_length = struct.unpack('<B',bdata[i:i+1])[0]
	salt_length = max(13,salt_length-8)
	i += 11
	salt += bdata[i:i+salt_length]
	i += salt_length
	server_plugname = bdata[i:]
	return salt


class mysql(object):
	def __init__(self):
		self.host = '192.168.101.21'
		self.port = 3314
		self.user = 'u1'
		self.password = '123456'

	def read_pack(self,):
		pack_header = self.rf.read(4)
		btrl, btrh, packet_seq = struct.unpack("<HBB", pack_header)
		pack_size = btrl + (btrh << 16)
		self._next_seq_id = (self._next_seq_id + 1) % 256
		bdata = self.rf.read(pack_size)
		return bdata

	def write_pack(self,data):
		bdata = struct.pack("<I", len(data))[:3] + bytes([self._next_seq_id]) + data
		self.sock.sendall(bdata)
		self._next_seq_id = (self._next_seq_id + 1) % 256

	def handshake(self,bdata):
		i = 0 #已经读取的字节数, 解析binlog的时候也是这么用的.....
		protocol_version = bdata[:1] #只解析10

		server_end = bdata.find(b"\0", i)
		self.server_version = bdata[i:server_end]
		i = server_end + 1

		self.thread_id = btoint(bdata[i:i+4])
		i += 4

		self.salt = bdata[i:i+8]
		i += 9 #还有1字节的filter, 没啥意义,就不保存了

		self.server_capabilities = btoint(bdata[i:i+2])
		i += 2

		self.server_charset = btoint(bdata[i:i+1])
		i += 1

		self.server_status = btoint(bdata[i:i+2])
		i += 2

		self.server_capabilities |= btoint(bdata[i:i+2]) << 16 #往左移16位 为啥不把capability_flags_1和capability_flags_2和一起呢
		i += 2

		salt_length = struct.unpack('<B',bdata[i:i+1])[0] #懒得去判断capabilities & CLIENT_PLUGIN_AUTH了
		salt_length = max(13,salt_length-8) #前面已经有8字节了
		i += 1

		i += 10 #reserved

		self.salt += bdata[i:i+salt_length]
		i += salt_length

		self.server_plugname = bdata[i:]

	def HandshakeResponse41(self,):
		#client_flag = 3842565 #不含DBname
		client_flag = 33531525#不含DBname
		#client_flag |= 1 << 3

		charset_id = 45 #45:utf8mb4  33:utf8

		#bdata = client_flag.to_bytes(4,'little') #其实应该最后在加, 毕竟还要判断很多参数, 可能还需要修改, 但是懒
		bdata = struct.pack('<iIB23s',client_flag,2**24-1,charset_id,b'')

		bdata += self.user.encode() + b'\0'

		auth_password = native_password(self.password.encode(), self.salt[:20])
		auth_response = _lenenc_int(len(auth_password)) + auth_password
		bdata += auth_response

		bdata += b"mysql_native_password" + b'\0'

		#本文有设置连接属性, 主要是为了方便观察
		attr = {'_client_name':'ddcw_for_pymysql', '_pid':str(os.getpid()), "_client_version":'0.0.1',}
		#key长度+k+v长度+v
		connect_attrs = b""
		for k, v in attr.items():
			k = k.encode()
			connect_attrs += _lenenc_int(len(k)) + k
			v = v.encode()
			connect_attrs += _lenenc_int(len(v)) + v
		bdata += _lenenc_int(len(connect_attrs)) + connect_attrs
		self.write_pack(bdata)

		#0xFE 交换认证 https://dev.mysql.com/doc/dev/mysql-server/latest/page_protocol_connection_phase_packets_protocol_old_auth_switch_request.html
		#0x01 额外认证
		#0x00 OK
		#偷懒, 懒得去判断client_flag了
		auth_pack = self.read_pack()
		if auth_pack[:1] == b'\0':
			print('OK',auth_pack)
		elif auth_pack[:1] == b'\xfe':
			#switch request
			print('hava switch request')
			if auth_pack.find(b'caching_sha2_password') < 0:
				print('仅测试caching_sha2_password, 但当前是:',auth_pack[1:auth_pack.find(b'\x00')])
				return False
			scrambled = sha2_password(self.password.encode(),auth_pack[auth_pack.find(b'\x00')+1:]) #salt是剩下的部分
			self.write_pack(scrambled)
			auth_pack = self.read_pack()
			print(auth_pack)
			self.caching_sha2_password_auth(auth_pack)
		elif auth_pack[:1] == b'\x01':
			self.caching_sha2_password_auth(auth_pack)
		else:
			print('FAILED',auth_pack)


	def caching_sha2_password_auth(self,auth_pack):
		if auth_pack[1:2] == b'\x03': #fast
			bdata = self.read_pack() #ok pack
			print('fast auth success.',bdata)
		elif auth_pack[1:2] == b'\x04': #full
			#如果是SSL/socket/shard_mem就直接发送密码(不需要加密了) TODO
			self.write_pack(b'\x02') #要公钥
			bdata = self.read_pack() #server发来的公钥
			pubk = bdata[1:] #第一字节是extra_auth 而且肯定是 0x01
			#print('bdata',bdata)
			self.pubk = pubk
			password = sha2_rsa_encrypt(self.password.encode(), self.salt, pubk)
			self.write_pack(password)
			authpack = self.read_pack() #看看是否成功
			print('full auth',authpack)
		else:
			print('???',auth_pack)


	def query(self,sql):
		"""不考虑SQL超过16MB情况"""
		# payload_length:3  sequence_id:1 payload:N
		# payload: com_query(0x03):1 sql:n
		bdata = struct.pack('<IB',len(sql)+1,0x03) #I:每个com_query的seq_id都从0开始,第4字节固定为0, 所以直接用I, +1:com_query占用1字节,  0x03:com_query
		bdata += sql.encode()
		self.sock.sendall(bdata)
		self._next_seq_id = 1 #下一个包seq_id = 1

	def connect(self):
		self._next_seq_id = 0
		sock = socket.create_connection((self.host, self.port))
		sock.settimeout(None)
		self.sock = sock
		self.rf = sock.makefile("rb")
		bdata = self.read_pack()
		self.handshake(bdata)

		self.HandshakeResponse41()
