社区版OceanBase4.0单机安装升级至OceanBase4.1

原创 Oracle 2023-05-15

1172

1 查看现在的版本

[root@dbserver ~]# obd cluster list
+-------------------------------------------------+
|                   Cluster List                  |
+------+------------------------+-----------------+
| Name | Configuration Path     | Status (Cached) |
+------+------------------------+-----------------+
| lo   | /root/.obd/cluster/lo  | stopped         |
| gra  | /root/.obd/cluster/gra | stopped         |
+------+------------------------+-----------------+

obclient [oceanbase]> select version();
+------------------------------+
| version()                    |
+------------------------------+
| 5.7.25-OceanBase_CE-v4.0.0.0 |
+------------------------------+
1 row in set (0.001 sec)

现在的OceanBase社区版4.0是用4.0 all in one包安装的，安装是用的用户是root，不是ob官方推荐的admin用户。

2 下载安装ob4.1 rpm包

2.1 安装包下载

OceanBase4.1社区版安装包的下载地址是
(https://www.oceanbase.com/softwarecenter)

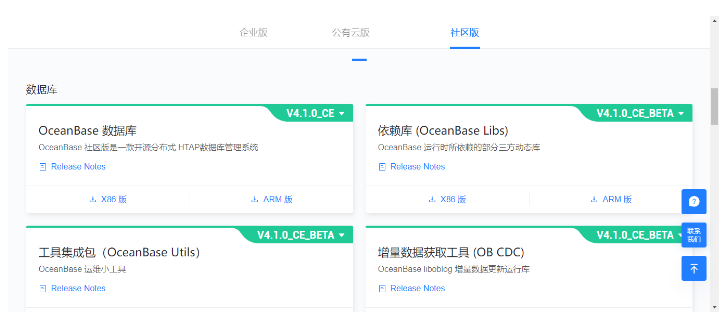

打开这个地址，显示的下面的下载页面

下载x86版的OceanBase数据库和依赖库包，这里依赖库包也要下载，安装数据库rpm包时会用得到。

2.2 检查升级的前提条件是否满足

OceanBase升级需要在observer节点上安装python2.7，并且需要安装datetime，sys，os，mysql.connector，logging，getopt，time模块
检查python版本

[root@dbserver ~]# python -V
Python 2.7.5

检查已经安装的python模块

[root@dbserver bin]# pydoc modules

Please wait a moment while I gather a list of all available modules...

/usr/lib64/python2.7/site-packages/gobject/constants.py:24: Warning: g_boxed_type_register_static: assertion 'g_type_from_name (name) == 0' failed
  import gobject._gobject
BaseHTTPServer      bisect              io                  selinux
Bastion             bsddb               itertools           semanage
.......

已经安装的模块里缺少mysql.connector模块，从官网上下载并安装

[root@dbserver ~]# rpm -ivh mysql-connector-python-2.1.8-1.el7.x86_64.rpm warning: mysql-connector-python-2.1.8-1.el7.x86_64.rpm: Header V3 DSA/SHA1 Signature, key ID 5072e1f5: NOKEY Preparing... ################################# [100%] Updating / installing... 1:mysql-connector-python-2.1.8-1.el################################# [100%]

2.3 安装OceanBase 4.1 rpm包

直接安装OceanBase 4.1数据库包

[root@dbserver ~]# rpm -Uvh oceanbase-ce-4.1.0.0-100000202023040520.el7.x86_64.rpm
error: Failed dependencies:
        libmariadb.so.3()(64bit) is needed by oceanbase-ce-4.1.0.0-100000202023040520.el7.x86_64
        libmariadb.so.3(libmysqlclient_18)(64bit) is needed by oceanbase-ce-4.1.0.0-100000202023040520.el7.x86_64

安装失败了，失败的原因是缺少libmariadb依赖包。先安装下载的OceanBase lib rpm包

[root@dbserver ~]# rpm -Uvh oceanbase-ce-libs-4.1.0.0-100000192023032010.el7.x86_64.rpm Preparing... ################################# [100%] Updating / installing... 1:oceanbase-ce-libs-4.1.0.0-1000001warning: user admin does not exist - using root warning: group admin does not exist - using root ################################# [100%]

安装这个包的过程中与警告信息，提示admin用户和组不存在，使用root用户和组。虽然有这个告警信息，安装的进度是100%，显示安装已经完成。现在接着安装数据库包

[root@dbserver ~]# rpm -Uvh oceanbase-ce-4.1.0.0-100000202023040520.el7.x86_64.rpm
warning: group admin does not exist - using root
warning: user admin does not exist - using root
warning: group admin does not exist - using root
################################# [100%]
warning: user admin does not exist - using root

这里出现的告警信息和安装库包时相同，安装进度也是100%。看一下数据库包的安装位置，使用rpm命令的-l选项可以查看rpm包里文件的安装位置。

[root@dbserver ~]# rpm -ql oceanbase-ce-4.1.0.0-100000202023040520.el7.x86_64 /home/admin/oceanbase/admin ....... /home/admin/oceanbase/etc ...... /home/admin/oceanbase/etc/upgrade_checker.py /home/admin/oceanbase/etc/upgrade_health_checker.py /home/admin/oceanbase/etc/upgrade_post.py /home/admin/oceanbase/etc/upgrade_pre.py

虽然系统不存在admin用户，安装时还是创建了/home/admin/目录作为安装目录。

3 升级至OceanBase4.1

3.1 升级前的准备工作

根据官网的升级指南，生产环境中升级需要备份

server_permanent_offline_time
enable_rebalance
enable_rereplication
这三个配置项的值，用于升级流程完成后进行还原。我这里的单机的测试环境，这个备份可以不做。
升级前需要做的另一个工作时查看升级路径，进入/home/admin/oceanbase/etc/目录，查看
oceanbase_upgrade_dep.yml文件，可以看到升级到4.1支持的升级路径

[root@dbserver ~]# cd /home/admin/oceanbase/etc
[root@dbserver etc]# cat oceanbase_upgrade_dep.yml

这个文件里可以看到的升级路径只有一个

- version: 4.0.0.0 can_be_upgraded_to: - 4.1.0.0 require_from_binary: value: True when_come_from: [4.0.0.0] - version: 4.1.0.0 require_from_binary: value: True when_come_from: [4.0.0.0, 4.1.0.0]

3.2 升级至OceanBase4.1

3.2.1 运行upgrade_checker.py脚本

这个脚本需要使用root用户登录到OceanBase的sys租户进行相关的检查并设置server_permanent_offline_time的值为72小时，这是这个参数需要备份的原因。

[root@dbserver etc]# python upgrade_checker.py -h 127.0.0.1 -P2881 -uroot@sys -p'lichx123'
  [2023-05-05 14:16:14] INFO upgrade_checker.py:637 parameters from cmd: host="127.0.0.1", port=2881, user="root@sys", password="lichx123", timeout="0", log-file="upgrade_checker.log"
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select distinct value from GV$OB_PARAMETERS  where name='min_observer_version', rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:325 check observer version success, version = 4.0.0.0
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select distinct value from GV$OB_PARAMETERS  where name='min_observer_version', rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select count(1) as unsync_cnt from GV$OB_LOG_STAT where in_sync = 'NO', rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:377 check paxos replica success
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select count(1) as cnt from DBA_OB_TENANT_JOBS where job_status='INPROGRESS' and result_code is null, rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select count(1) as rebalance_task_cnt from CDB_OB_LS_REPLICA_TASKS, rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:389 check rebalance task success
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select count(1) from CDB_OB_MAJOR_COMPACTION where STATUS != 'IDLE', rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:397 check cluster status success
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select distinct value from GV$OB_PARAMETERS  where name='min_observer_version', rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select count(*) as count from DBA_OB_TENANTS where status != 'NORMAL', rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:418 check tenant status success
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select count(*) as count from oceanbase.__all_virtual_tenant_info where tenant_role != 'PRIMARY' , rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:432 check tenant info success
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select count(1) from CDB_OB_RESTORE_PROGRESS, rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:441 check restore job success
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select distinct value from GV$OB_PARAMETERS  where name='min_observer_version', rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select tenant_name,primary_zone from DBA_OB_TENANTS where  tenant_id != 1, rowcount = 0
  [2023-05-05 14:16:14] INFO upgrade_checker.py:476 check tenant primary zone success
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select count(1) from __all_virtual_ddl_task_status, rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:487 check ddl task execut status success
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select count(1) from CDB_OB_BACKUP_JOBS, rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:498 check backup job success
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select distinct value from GV$OB_PARAMETERS  where name='min_observer_version', rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select count(1) from CDB_OB_ARCHIVELOG where status!='STOP', rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:520 check archive job success
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select distinct value from GV$OB_PARAMETERS  where name='min_observer_version', rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select count(1) from CDB_OB_ARCHIVE_DEST, rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:541 check archive destination success
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select distinct value from GV$OB_PARAMETERS  where name='min_observer_version', rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:45 succeed to execute query: select count(1) from CDB_OB_BACKUP_PARAMETER where name='data_backup_dest' and (value!=NULL or value!=''), rowcount = 1
  [2023-05-05 14:16:14] INFO upgrade_checker.py:562 check backup destination success
  [2023-05-05 14:16:14] INFO upgrade_checker.py:56 alter system set server_permanent_offline_time = '72h'
  [2023-05-05 14:16:15] INFO upgrade_checker.py:65 select count(*) as cnt from oceanbase.__all_virtual_sys_parameter_stat
             where name = 'server_permanent_offline_time' and value != '72h'
  [2023-05-05 14:16:15] INFO upgrade_checker.py:72 server_permanent_offline_time is sync, value is 72h

3.2.2 运行脚本upgrade_pre.py

[root@dbserver etc]# python upgrade_pre.py -h 127.0.0.1 -P2881 -uroot@sys -p'lichx123'
succeed to create run dir: upgrade_pre_extract_files_2023_05_05_14_19_05_879808_Ev8VFXNI

succeed to split all sub py files
[2023-05-05 14:19:05] INFO do_upgrade_pre.py:140 parameters from cmd: host="127.0.0.1", port=2881, user="root@sys", password="lichx123", timeout="0", module="set(['post_check', 'health_check', 'begin_upgrade', 'end_rolling_upgrade', 'begin_rolling_upgrade', 'end_upgrade', 'tenant_upgrade', 'special_action'])", log-file="upgrade_pre.log"
[2023-05-05 14:19:05] INFO actions.py:174 select distinct(substring_index(build_version, '_', 1)) from __all_server
[2023-05-05 14:19:05] INFO actions.py:180 check server version success
[2023-05-05 14:19:05] INFO do_upgrade_pre.py:65 ================begin to run begin upgrade action===============
[2023-05-05 14:19:05] INFO actions.py:186 select * from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_upgrade_mode' and value = 'True'
[2023-05-05 14:19:05] INFO actions.py:225 alter system begin upgrade
[2023-05-05 14:19:06] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_upgrade_mode' and value != 'True'
[2023-05-05 14:19:06] INFO actions.py:209 enable_upgrade_mode is sync, value is True
[2023-05-05 14:19:06] INFO do_upgrade_pre.py:70 ================succeed to run begin upgrade action===============
[2023-05-05 14:19:06] INFO do_upgrade_pre.py:73 ================begin to run begin rolling upgrade action===============
[2023-05-05 14:19:06] INFO actions.py:186 select * from oceanbase.GV$OB_PARAMETERS
           where name = '_upgrade_stage' and value = 'DBUPGRADE'
[2023-05-05 14:19:06] INFO actions.py:241 alter system begin rolling upgrade
[2023-05-05 14:19:06] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = '_upgrade_stage' and value != 'DBUPGRADE'
[2023-05-05 14:19:06] INFO actions.py:209 _upgrade_stage is sync, value is DBUPGRADE
[2023-05-05 14:19:06] INFO do_upgrade_pre.py:78 ================succeed to run begin rolling upgrade action===============
[2023-05-05 14:19:06] INFO do_upgrade_pre.py:81 ================begin to run special action===============
[2023-05-05 14:19:06] INFO actions.py:446 select distinct value from __all_virtual_sys_parameter_stat where name='min_observer_version'
[2023-05-05 14:19:06] INFO actions.py:452 get observer version success, version = 4.0.0.0
[2023-05-05 14:19:06] INFO actions.py:110 alter system set enable_ddl = 'False'
[2023-05-05 14:19:06] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_ddl' and value != 'False'
[2023-05-05 14:19:06] INFO actions.py:212 enable_ddl is not sync, value should be False
[2023-05-05 14:19:11] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_ddl' and value != 'False'
[2023-05-05 14:19:11] INFO actions.py:209 enable_ddl is sync, value is False
[2023-05-05 14:19:11] INFO actions.py:110 alter system set enable_major_freeze = 'False'
[2023-05-05 14:19:11] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_major_freeze' and value != 'False'
[2023-05-05 14:19:11] INFO actions.py:209 enable_major_freeze is sync, value is False
[2023-05-05 14:19:11] INFO actions.py:110 alter system set enable_rebalance = 'False'
[2023-05-05 14:19:11] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_rebalance' and value != 'False'
[2023-05-05 14:19:11] INFO actions.py:212 enable_rebalance is not sync, value should be False
[2023-05-05 14:19:16] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_rebalance' and value != 'False'
[2023-05-05 14:19:16] INFO actions.py:209 enable_rebalance is sync, value is False
[2023-05-05 14:19:16] INFO actions.py:110 alter system set enable_rereplication = 'False'
[2023-05-05 14:19:16] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_rereplication' and value != 'False'
[2023-05-05 14:19:16] INFO actions.py:209 enable_rereplication is sync, value is False
[2023-05-05 14:19:16] INFO do_upgrade_pre.py:86 ================succeed to run special action===============
[2023-05-05 14:19:16] INFO do_upgrade_pre.py:89 ================begin to run health check action ===============
[2023-05-05 14:19:16] INFO upgrade_health_checker.py:289 zone is empty, check all servers in cluster
[2023-05-05 14:19:16] INFO upgrade_health_checker.py:46 succeed to execute query: select count(*) from oceanbase.__all_server where (start_service_time <= 0 or status='inactive'), rowcount = 1
[2023-05-05 14:19:16] INFO upgrade_health_checker.py:333 check value is 0 success
[2023-05-05 14:19:16] INFO upgrade_health_checker.py:46 succeed to execute query: select count(*) from GV$OB_LOG_STAT where in_sync = 'NO', rowcount = 1
[2023-05-05 14:19:16] INFO upgrade_health_checker.py:333 check value is 0 success
[2023-05-05 14:19:16] INFO upgrade_health_checker.py:311 check paxos replica success
[2023-05-05 14:19:16] INFO upgrade_health_checker.py:46 succeed to execute query: select if (a.cnt = b.cnt, 1, 0) as passed from (select count(*) as cnt from oceanbase.__all_virtual_server_schema_info where refreshed_schema_version > 1 and refreshed_schema_version % 8 = 0) as a join (select count(*) as cnt from oceanbase.__all_server join oceanbase.__all_tenant) as b, rowcount = 1
[2023-05-05 14:19:16] INFO upgrade_health_checker.py:333 check value is 1 success
[2023-05-05 14:19:16] INFO upgrade_health_checker.py:295 skip check server version by cluster
[2023-05-05 14:19:16] INFO do_upgrade_pre.py:91 ================succeed to run health check action ===============
[2023-05-05 14:19:16] INFO do_upgrade_pre.py:42 ==================================================================================
[2023-05-05 14:19:16] INFO do_upgrade_pre.py:43 ============================== STATISTICS BEGIN ==================================
[2023-05-05 14:19:16] INFO do_upgrade_pre.py:44 ==================================================================================
[2023-05-05 14:19:16] INFO do_upgrade_pre.py:45 succeed run sql(except sql of special actions):

alter system begin upgrade;
alter system begin rolling upgrade;

[2023-05-05 14:19:16] INFO do_upgrade_pre.py:46 commited sql(except sql of special actions):

alter system begin upgrade;
alter system begin rolling upgrade;

[2023-05-05 14:19:16] INFO do_upgrade_pre.py:47 ==================================================================================
[2023-05-05 14:19:16] INFO do_upgrade_pre.py:48 =============================== STATISTICS END ===================================
[2023-05-05 14:19:16] INFO do_upgrade_pre.py:49 ==================================================================================

这个脚本执行alter system begin upgrade；
alter system begin rolling upgrade并确认命令执行成功并生效，也检查并更改enable_ddl，enable_major_freeze，enable_rebalance，enable_rereplication值，检查完之后进行集群健康检查，没有报错信息后才能继续进行升级。

3.2.3 集群升级

如果按zone进行升级，每个zone都要运行upgrade_health_checker.py脚本

[root@dbserver etc]# python upgrade_health_checker.py -h 127.0.0.1 -P2881 -uroot@sys -p'lichx123'
[2023-05-05 14:22:09] INFO upgrade_health_checker.py:396 parameters from cmd: host="127.0.0.1", port=2881, user="root@sys", password="lichx123", log-file="upgrade_cluster_health_checker.log", timeout=600, zone=""
[2023-05-05 14:22:09] INFO upgrade_health_checker.py:289 zone is empty, check all servers in cluster
[2023-05-05 14:22:09] INFO upgrade_health_checker.py:46 succeed to execute query: select count(*) from oceanbase.__all_server where (start_service_time <= 0 or status='inactive'), rowcount = 1
[2023-05-05 14:22:09] INFO upgrade_health_checker.py:333 check value is 0 success
[2023-05-05 14:22:09] INFO upgrade_health_checker.py:46 succeed to execute query: select count(*) from GV$OB_LOG_STAT where in_sync = 'NO', rowcount = 1
[2023-05-05 14:22:09] INFO upgrade_health_checker.py:333 check value is 0 success
[2023-05-05 14:22:09] INFO upgrade_health_checker.py:311 check paxos replica success
[2023-05-05 14:22:09] INFO upgrade_health_checker.py:46 succeed to execute query: select if (a.cnt = b.cnt, 1, 0) as passed from (select count(*) as cnt from oceanbase.__all_virtual_server_schema_info where refreshed_schema_version > 1 and refreshed_schema_version % 8 = 0) as a join (select count(*) as cnt from oceanbase.__all_server join oceanbase.__all_tenant) as b, rowcount = 1
[2023-05-05 14:22:09] INFO upgrade_health_checker.py:333 check value is 1 success
[2023-05-05 14:22:09] INFO upgrade_health_checker.py:295 skip check server version by cluster

这个是单机安装，只有一个zone。在多个zone是，可以执行滚动升级，不会影响到业务运行，这里只有一个zone，只能停止集群进行升级了。停止集群后，用4.1的observer替换4.0 observer后启动集群就完成升级了

cd /root/observer/bin
rm *
[root@dbserver bin]# cp /home/admin/oceanbase/bin/* .
[root@dbserver bin]# ls
import_time_zone_info.py  observer

替换完成后，启动集群

[root@dbserver bin]# obd cluster start lo
Get local repositories ok
Search plugins ok
Open ssh connection ok
Load cluster param plugin ok
Check before start observer ok
[WARN] OBD-1007: (127.0.0.1) The recommended number of open files is 655350 (Current value: 65536)

Start observer ok
observer program health check ok
Connect to observer ok
Initialize cluster ok
Wait for observer init ok
+---------------------------------------------+
|                   observer                  |
+-----------+---------+------+-------+--------+
| ip        | version | port | zone  | status |
+-----------+---------+------+-------+--------+
| 127.0.0.1 | 4.0.0.0 | 2881 | zone1 | ACTIVE |
+-----------+---------+------+-------+--------+
obclient -h127.0.0.1 -P2881 -uroot -Doceanbase

lo running

3.3 升级后检查

升级完成后，登录ob检查现在的版本

[root@dbserver bin]# obclient -h127.0.0.1 -P2881 -uroot@sys -p
Enter password:
Welcome to the OceanBase.  Commands end with ; or \g.
Your OceanBase connection id is 3221487617
Server version: OceanBase_CE 4.1.0.0 (r100000202023040520-0765e69043c31bf86e83b5d618db0530cf31b707) (Built Apr  5 2023 20:26:14)

Copyright (c) 2000, 2018, OB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

obclient [(none)]> select version();
+------------------------------+
| version()                    |
+------------------------------+
| 5.7.25-OceanBase_CE-v4.1.0.0 |
+------------------------------+
1 row in set (0.001 sec)

版本已经升级到4.1.0.0了
运行upgrade_post.py，在升级结束后必须运行这个脚本，这个脚本主要是结束升级及滚动升级。并更改一些选项

[root@dbserver etc]# python upgrade_post.py  -h 127.0.0.1 -P2881 -uroot@sys -p'lichx123'
succeed to create run dir: upgrade_post_extract_files_2023_05_05_16_02_31_419978_I3BKISJn

succeed to split all sub py files
[2023-05-05 16:02:31] INFO do_upgrade_post.py:150 parameters from cmd: host="127.0.0.1", port=2881, user="root@sys", password="lichx123", timeout="0", module="set(['post_check', 'health_check', 'begin_upgrade', 'end_rolling_upgrade', 'begin_rolling_upgrade', 'end_upgrade', 'tenant_upgrade', 'special_action'])", log-file="upgrade_post.log"
[2023-05-05 16:02:31] INFO actions.py:174 select distinct(substring_index(build_version, '_', 1)) from __all_server
[2023-05-05 16:02:31] INFO actions.py:180 check server version success
[2023-05-05 16:02:31] INFO do_upgrade_post.py:67 ================begin to run health check action ===============
[2023-05-05 16:02:31] INFO upgrade_health_checker.py:289 zone is empty, check all servers in cluster
[2023-05-05 16:02:31] INFO upgrade_health_checker.py:46 succeed to execute query: select count(*) from oceanbase.__all_server where (start_service_time <= 0 or status='inactive'), rowcount = 1
[2023-05-05 16:02:31] INFO upgrade_health_checker.py:333 check value is 0 success
[2023-05-05 16:02:31] INFO upgrade_health_checker.py:46 succeed to execute query: select count(*) from GV$OB_LOG_STAT where in_sync = 'NO', rowcount = 1
[2023-05-05 16:02:31] INFO upgrade_health_checker.py:333 check value is 0 success
[2023-05-05 16:02:31] INFO upgrade_health_checker.py:311 check paxos replica success
[2023-05-05 16:02:31] INFO upgrade_health_checker.py:46 succeed to execute query: select if (a.cnt = b.cnt, 1, 0) as passed from (select count(*) as cnt from oceanbase.__all_virtual_server_schema_info where refreshed_schema_version > 1 and refreshed_schema_version % 8 = 0) as a join (select count(*) as cnt from oceanbase.__all_server join oceanbase.__all_tenant) as b, rowcount = 1
[2023-05-05 16:02:31] INFO upgrade_health_checker.py:333 check value is 1 success
[2023-05-05 16:02:31] INFO upgrade_health_checker.py:295 skip check server version by cluster
[2023-05-05 16:02:31] INFO do_upgrade_post.py:69 ================succeed to run health check action ===============
[2023-05-05 16:02:31] INFO do_upgrade_post.py:72 ================begin to run end rolling upgrade action ===============
[2023-05-05 16:02:31] INFO actions.py:186 select * from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_upgrade_mode' and value = 'False'
[2023-05-05 16:02:32] INFO actions.py:186 select * from oceanbase.GV$OB_PARAMETERS
           where name = '_upgrade_stage' and value = 'POSTUPGRADE'
[2023-05-05 16:02:32] INFO actions.py:261 alter system end rolling upgrade
[2023-05-05 16:02:32] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'min_observer_version' and value != '4.1.0.0'
[2023-05-05 16:02:32] INFO actions.py:209 min_observer_version is sync, value is 4.1.0.0
[2023-05-05 16:02:32] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = '_upgrade_stage' and value != 'POSTUPGRADE'
[2023-05-05 16:02:32] INFO actions.py:209 _upgrade_stage is sync, value is POSTUPGRADE
[2023-05-05 16:02:32] INFO do_upgrade_post.py:77 ================succeed to run end rolling upgrade action ===============
[2023-05-05 16:02:32] INFO do_upgrade_post.py:80 ================begin to run tenant upgrade action ===============
[2023-05-05 16:02:32] INFO tenant_upgrade_action.py:58 select count(*) from oceanbase.__all_table where table_name = '__all_virtual_core_table'
[2023-05-05 16:02:32] INFO tenant_upgrade_action.py:229 start to run upgrade job, job_name:UPGRADE_ALL
[2023-05-05 16:02:32] INFO tenant_upgrade_action.py:58 select job_status from oceanbase.__all_rootservice_job
             where job_type = 'UPGRADE_ALL' order by job_id desc limit 1
[2023-05-05 16:02:32] INFO tenant_upgrade_action.py:146 upgrade job not created yet, should run upgrade job
[2023-05-05 16:02:32] INFO actions.py:124 select value from oceanbase.__all_sys_parameter where name = 'enable_ddl'
[2023-05-05 16:02:32] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_ddl' and value != 'False'
[2023-05-05 16:02:32] INFO actions.py:209 enable_ddl is sync, value is False
[2023-05-05 16:02:32] INFO actions.py:110 alter system set enable_ddl = 'True'
[2023-05-05 16:02:33] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_ddl' and value != 'True'
[2023-05-05 16:02:33] INFO actions.py:209 enable_ddl is sync, value is True
[2023-05-05 16:02:33] INFO actions.py:110 alter system set enable_sys_table_ddl = 'True'
[2023-05-05 16:02:33] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_sys_table_ddl' and value != 'True'
[2023-05-05 16:02:33] INFO actions.py:209 enable_sys_table_ddl is sync, value is True
[2023-05-05 16:02:33] INFO tenant_upgrade_action.py:58 select job_id from oceanbase.__all_rootservice_job order by job_id desc limit 1
[2023-05-05 16:02:33] INFO tenant_upgrade_action.py:130 get max_used_job_id:0
[2023-05-05 16:02:33] INFO tenant_upgrade_action.py:243 alter system run upgrade job 'UPGRADE_ALL'
[2023-05-05 16:02:33] INFO tenant_upgrade_action.py:58 select job_status, rs_svr_ip, rs_svr_port, gmt_create from oceanbase.__all_rootservice_job
               where job_type = 'UPGRADE_ALL' and job_id > 0 order by job_id desc limit 1

[2023-05-05 16:02:33] INFO tenant_upgrade_action.py:178 upgrade job not created yet
[2023-05-05 16:02:43] INFO tenant_upgrade_action.py:58 select job_status, rs_svr_ip, rs_svr_port, gmt_create from oceanbase.__all_rootservice_job
               where job_type = 'UPGRADE_ALL' and job_id > 0 order by job_id desc limit 1

[2023-05-05 16:02:43] INFO tenant_upgrade_action.py:183 upgrade job is still running
[2023-05-05 16:02:53] INFO tenant_upgrade_action.py:58 select job_status, rs_svr_ip, rs_svr_port, gmt_create from oceanbase.__all_rootservice_job
               where job_type = 'UPGRADE_ALL' and job_id > 0 order by job_id desc limit 1

[2023-05-05 16:02:53] INFO tenant_upgrade_action.py:183 upgrade job is still running
[2023-05-05 16:03:03] INFO tenant_upgrade_action.py:58 select job_status, rs_svr_ip, rs_svr_port, gmt_create from oceanbase.__all_rootservice_job
               where job_type = 'UPGRADE_ALL' and job_id > 0 order by job_id desc limit 1

[2023-05-05 16:03:03] INFO tenant_upgrade_action.py:183 upgrade job is still running
[2023-05-05 16:03:13] INFO tenant_upgrade_action.py:58 select job_status, rs_svr_ip, rs_svr_port, gmt_create from oceanbase.__all_rootservice_job
               where job_type = 'UPGRADE_ALL' and job_id > 0 order by job_id desc limit 1

[2023-05-05 16:03:13] INFO tenant_upgrade_action.py:209 execute upgrade job successfully
[2023-05-05 16:03:13] INFO actions.py:110 alter system set enable_sys_table_ddl = 'False'
[2023-05-05 16:03:14] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_sys_table_ddl' and value != 'False'
[2023-05-05 16:03:14] INFO actions.py:209 enable_sys_table_ddl is sync, value is False
[2023-05-05 16:03:14] INFO actions.py:110 alter system set enable_ddl = 'False'
[2023-05-05 16:03:14] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_ddl' and value != 'False'
[2023-05-05 16:03:14] INFO actions.py:209 enable_ddl is sync, value is False
[2023-05-05 16:03:14] INFO tenant_upgrade_action.py:255 run upgrade job success, job_name:UPGRADE_ALL
[2023-05-05 16:03:14] INFO tenant_upgrade_action.py:27 set @@session.ob_query_timeout = 600000000
[2023-05-05 16:03:14] INFO tenant_upgrade_action.py:30 alter system run job 'root_inspection'
[2023-05-05 16:03:15] INFO tenant_upgrade_action.py:33 set @@session.ob_query_timeout = 10000000
[2023-05-05 16:03:15] INFO tenant_upgrade_action.py:44 syslog level before upgrade: ip: 127.0.0.1, port: 2882, value: WDIAG
[2023-05-05 16:03:15] INFO do_upgrade_post.py:85 ================succeed to run tenant upgrade action ===============
[2023-05-05 16:03:15] INFO do_upgrade_post.py:88 ================begin to run end upgrade action ===============
[2023-05-05 16:03:15] INFO actions.py:186 select * from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_upgrade_mode' and value = 'False'
[2023-05-05 16:03:15] INFO actions.py:277 alter system end upgrade
[2023-05-05 16:03:15] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_upgrade_mode' and value != 'False'
[2023-05-05 16:03:15] INFO actions.py:209 enable_upgrade_mode is sync, value is False
[2023-05-05 16:03:15] INFO do_upgrade_post.py:93 ================succeed to run end upgrade action ===============
[2023-05-05 16:03:15] INFO do_upgrade_post.py:96 ================begin to run post check action ===============
[2023-05-05 16:03:15] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'min_observer_version' and value != '4.1.0.0'
[2023-05-05 16:03:15] INFO actions.py:209 min_observer_version is sync, value is 4.1.0.0
[2023-05-05 16:03:15] INFO actions.py:309 succeed to execute query: select tenant_id from oceanbase.__all_tenant except select tenant_id from oceanbase.__all_virtual_tenant_info where tenant_role = 'STANDBY', rowcount = 1
[2023-05-05 16:03:15] INFO actions.py:309 succeed to execute query: select count(*) from oceanbase.__all_server, rowcount = 1
[2023-05-05 16:03:15] INFO upgrade_post_checker.py:47 select count(*) as cnt from oceanbase.__all_virtual_tenant_parameter_info where name = 'compatible' and value = '4.1.0.0' and tenant_id in (1)
[2023-05-05 16:03:15] INFO upgrade_post_checker.py:54 'compatible' is sync, value is 4.1.0.0
[2023-05-05 16:03:15] INFO actions.py:309 succeed to execute query: select count(*) from __all_virtual_core_table where column_name in ('target_data_version', 'current_data_version') and column_value = 17179934720 and tenant_id in (1), rowcount = 1
[2023-05-05 16:03:15] INFO upgrade_post_checker.py:76 all tenant's target_data_version/current_data_version are match with 4.1.0.0
[2023-05-05 16:03:15] INFO actions.py:309 succeed to execute query: select count(*) from oceanbase.__all_virtual_upgrade_inspection where info != 'succeed', rowcount = 1
[2023-05-05 16:03:15] INFO upgrade_post_checker.py:91 check root inspection success
[2023-05-05 16:03:15] INFO actions.py:110 alter system set enable_ddl = 'True'
[2023-05-05 16:03:15] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_ddl' and value != 'True'
[2023-05-05 16:03:15] INFO actions.py:209 enable_ddl is sync, value is True
[2023-05-05 16:03:15] INFO actions.py:110 alter system set enable_rebalance = 'True'
[2023-05-05 16:03:15] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_rebalance' and value != 'True'
[2023-05-05 16:03:16] INFO actions.py:209 enable_rebalance is sync, value is True
[2023-05-05 16:03:16] INFO actions.py:110 alter system set enable_rereplication = 'True'
[2023-05-05 16:03:16] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_rereplication' and value != 'True'
[2023-05-05 16:03:16] INFO actions.py:209 enable_rereplication is sync, value is True
[2023-05-05 16:03:16] INFO actions.py:110 alter system set enable_major_freeze = 'True'
[2023-05-05 16:03:16] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_major_freeze' and value != 'True'
[2023-05-05 16:03:16] INFO actions.py:212 enable_major_freeze is not sync, value should be True
[2023-05-05 16:03:21] INFO actions.py:202 select count(*) as cnt from oceanbase.GV$OB_PARAMETERS
           where name = 'enable_major_freeze' and value != 'True'
[2023-05-05 16:03:21] INFO actions.py:209 enable_major_freeze is sync, value is True
[2023-05-05 16:03:21] INFO do_upgrade_post.py:101 ================succeed to run post check action ===============
[2023-05-05 16:03:21] INFO do_upgrade_post.py:43 ==================================================================================
[2023-05-05 16:03:21] INFO do_upgrade_post.py:44 ============================== STATISTICS BEGIN ==================================
[2023-05-05 16:03:21] INFO do_upgrade_post.py:45 ==================================================================================
[2023-05-05 16:03:21] INFO do_upgrade_post.py:46 succeed run sql(except sql of special actions):

alter system end rolling upgrade;
alter system end upgrade;

[2023-05-05 16:03:21] INFO do_upgrade_post.py:47 commited sql(except sql of special actions):

alter system end rolling upgrade;
alter system end upgrade;

[2023-05-05 16:03:21] INFO do_upgrade_post.py:48 ==================================================================================
[2023-05-05 16:03:21] INFO do_upgrade_post.py:49 =============================== STATISTICS END ===================================
[2023-05-05 16:03:21] INFO do_upgrade_post.py:50 ==================================================================================

4 总结

Ocean Base社区版由4.0升级至4.1的操作还是比较简单的，状态的检查、升级的启停，参数的修改都由python脚本来完成。要注意的是，升级结束后一定要执行upgrade_post.py脚本。

oceanbase

「喜欢这篇文章，您的关注和赞赏是给作者最好的鼓励」

关注作者
