JobManager源码分析

JobManager是Flink集群的主节点，协调Flink应用程序执行有关的职责：JobManager决定何时调度下一个 task（或一组 task）、对完成的 task 或执行失败做出反应、协调 checkpoint、并且协调从失败中恢复等等，这个进程由四个不同的组件构成。
（1）ResourceManager：负责 Flink 集群中的资源提供、回收、分配 - 它管理 task slots。
（2）Dispatcher：Dispatcher 提供了一个 REST 接口，用来提交 Flink 应用程序执行，并为每个提交的作业启动一个新的 JobMaster。它还运行 Flink WebUI 用来提供作业执行信息。
（3）JobMaster：JobMaster 负责管理单个JobGraph的执行。Flink 集群中可以同时运行多个作业，每个作业都有自己的 JobMaster。
（4）WebMonitorEndpoint：里面有很多Handler,如果客户端提交flink run的方式类提交job到flink集群，最终是WebMonitorEndpoint接收，并决定使用那个Handler进行处理。

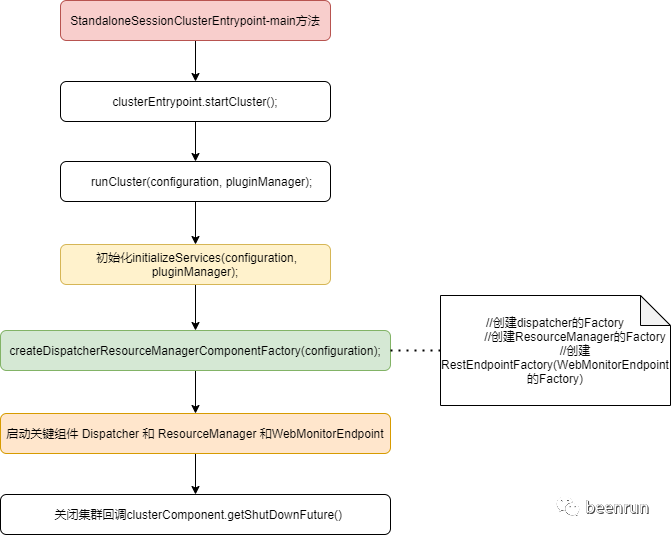

JobManager启动类Main

由上一个文章Flink源码解析1-脚本入口（41）知道入口类为：org.apache.flink.runtime.entrypoint.StandaloneSessionClusterEntrypoint
ClusterEntrypoint.runClusterEntrypoint(entrypoint);运行集群

public static void main(String[] args) {
        // startup checks and logging
        EnvironmentInformation.logEnvironmentInfo(
                LOG, StandaloneSessionClusterEntrypoint.class.getSimpleName(), args);
        SignalHandler.register(LOG);
        JvmShutdownSafeguard.installAsShutdownHook(LOG);


        final EntrypointClusterConfiguration entrypointClusterConfiguration =
                ClusterEntrypointUtils.parseParametersOrExit(
                        args,
                        new EntrypointClusterConfigurationParserFactory(),
                        StandaloneSessionClusterEntrypoint.class);
        //解析Flink的配置文件，flink-conf.ymal
        Configuration configuration = loadConfiguration(entrypointClusterConfiguration);
        //创建一个对象
        StandaloneSessionClusterEntrypoint entrypoint =
                new StandaloneSessionClusterEntrypoint(configuration);
        //运行集群
        ClusterEntrypoint.runClusterEntrypoint(entrypoint);
    }

JobManager启动类

进行启动clusterEntrypoint.startCluster();

public static void runClusterEntrypoint(ClusterEntrypoint clusterEntrypoint) {


        final String clusterEntrypointName = clusterEntrypoint.getClass().getSimpleName();
        try {
            //调用传入参数的启动集群方法startCluster()
            clusterEntrypoint.startCluster();
        } catch (ClusterEntrypointException e) {
            LOG.error(
                    String.format("Could not start cluster entrypoint %s.", clusterEntrypointName),
                    e);
            System.exit(STARTUP_FAILURE_RETURN_CODE);
        }


        int returnCode;
        Throwable throwable = null;


        try {
            returnCode = clusterEntrypoint.getTerminationFuture().get().processExitCode();
        } catch (Throwable e) {
            throwable = ExceptionUtils.stripExecutionException(e);
            returnCode = RUNTIME_FAILURE_RETURN_CODE;
        }


        LOG.info(
                "Terminating cluster entrypoint process {} with exit code {}.",
                clusterEntrypointName,
                returnCode,
                throwable);
        System.exit(returnCode);
    }

初始化文件并启动集群

(1)启动插件管理
(2)初始化文件系统
(3)启动集群

  public void startCluster() throws ClusterEntrypointException {
        LOG.info("Starting {}.", getClass().getSimpleName());


        try {
            FlinkSecurityManager.setFromConfiguration(configuration);
            //启动插件管理器
            PluginManager pluginManager =
                    PluginUtils.createPluginManagerFromRootFolder(configuration);
            //初始化文件系统
            /**
             * 本地Local 客户端会用 JobGraph ==>JobGraphFile
             * HDFS：FileSystem
             * 封装对象：Flink中用的HadoopFileSystem,包装了HFDS的FileSystem对象
             */
            configureFileSystems(configuration, pluginManager);


            SecurityContext securityContext = installSecurityContext(configuration);


            ClusterEntrypointUtils.configureUncaughtExceptionHandler(configuration);
            //启动集群
            securityContext.runSecured(
                    (Callable<Void>)
                            () -> {
                                runCluster(configuration, pluginManager);


                                return null;
                            });
        }

    }

创建需要的工厂

首先服务初始化
然后创建需要的各种工厂在DefaultDispatcherResourceManagerComponentFactory类中实现
(1)创建dispatcher的Factory
(2) 创建ResourceManager的Factory
(3) 创建RestEndpointFactory(WebMonitorEndpoint的Factory)

private void runCluster(Configuration configuration, PluginManager pluginManager)
            throws Exception {
        synchronized (lock) {
            //服务的初始化
            initializeServices(configuration, pluginManager);


            // write host information into configuration
            configuration.setString(JobManagerOptions.ADDRESS, commonRpcService.getAddress());
            configuration.setInteger(JobManagerOptions.PORT, commonRpcService.getPort());


            //创建dispatcher的Factory
            //创建ResourceManager的Factory
            //创建RestEndpointFactory(WebMonitorEndpoint的Factory)


            /**
             *         this.dispatcherRunnerFactory = dispatcherRunnerFactory;
             *         this.resourceManagerFactory = resourceManagerFactory;
             *         this.restEndpointFactory = restEndpointFactory;
             */
            final DispatcherResourceManagerComponentFactory
                    dispatcherResourceManagerComponentFactory =
                            createDispatcherResourceManagerComponentFactory(configuration);


            /**
            * 启动关键组件 Dispatcher 和 ResourceManager 和WebMonitorEndpoint
            */
            clusterComponent =
                    dispatcherResourceManagerComponentFactory.create(
                            configuration,
                            resourceId.unwrap(),
                            ioExecutor,
                            commonRpcService,
                            haServices,
                            blobServer,
                            heartbeatServices,
                            delegationTokenManager,
                            metricRegistry,
                            executionGraphInfoStore,
                            new RpcMetricQueryServiceRetriever(
                                    metricRegistry.getMetricQueryServiceRpcService()),
                            this);


            //集群进行关闭的时候，回调这里
            clusterComponent
                    .getShutDownFuture()
                    .whenComplete(
                            (ApplicationStatus applicationStatus, Throwable throwable) -> {
                                if (throwable != null) {
                                    shutDownAsync(
                                            ApplicationStatus.UNKNOWN,
                                            ShutdownBehaviour.GRACEFUL_SHUTDOWN,
                                            ExceptionUtils.stringifyException(throwable),
                                            false);
                                } else {
                                    // This is the general shutdown path. If a separate more
                                    // specific shutdown was
                                    // already triggered, this will do nothing
                                    shutDownAsync(
                                            applicationStatus,
                                            ShutdownBehaviour.GRACEFUL_SHUTDOWN,
                                            null,
                                            true);
                                }
                            });
        }
    }

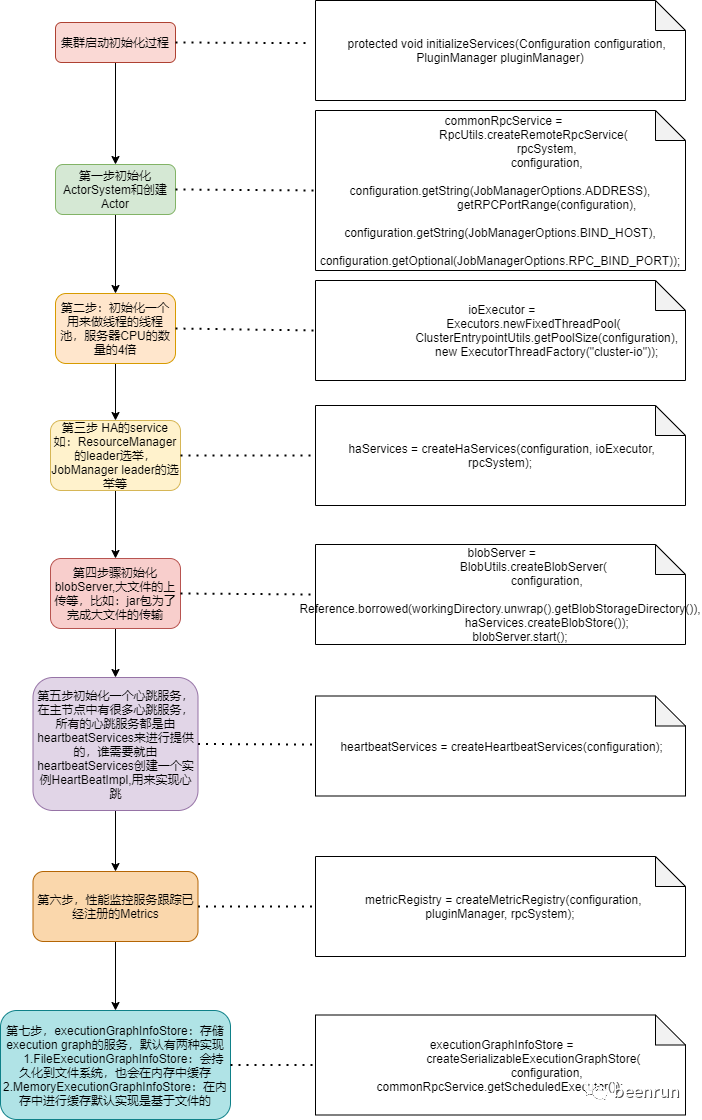

初始化服务

执行 initializeServices(configuration, pluginManager);

 protected void initializeServices(Configuration configuration, PluginManager pluginManager)
            throws Exception {


        LOG.info("Initializing cluster services.");


        synchronized (lock) {
            resourceId =
                    configuration
                            .getOptional(JobManagerOptions.JOB_MANAGER_RESOURCE_ID)
                            .map(
                                    value ->
                                            DeterminismEnvelope.deterministicValue(
                                                    new ResourceID(value)))
                            .orElseGet(
                                    () ->
                                            DeterminismEnvelope.nondeterministicValue(
                                                    ResourceID.generate()));


            LOG.debug(
                    "Initialize cluster entrypoint {} with resource id {}.",
                    getClass().getSimpleName(),
                    resourceId);


            workingDirectory =
                    ClusterEntrypointUtils.createJobManagerWorkingDirectory(
                            configuration, resourceId);


            LOG.info("Using working directory: {}.", workingDirectory);


            rpcSystem = RpcSystem.load(configuration);


            //第一步
            // 创建Akka RPC服务 commonRpcService 基于Akka的RpcService实现
            //commonRpcService 是一个基于Akka的actorSystem 其实就是一个tcp的RPC服务，端口为6123
            //1.初始化ActorSystem
            //2.启动Actor
            //启动好了后，会自己给自己发送一个消息，就是利用这里进行发送消息的
            commonRpcService =
                    RpcUtils.createRemoteRpcService(
                            rpcSystem,
                            configuration,
                            configuration.getString(JobManagerOptions.ADDRESS),
                            getRPCPortRange(configuration),
                            configuration.getString(JobManagerOptions.BIND_HOST),
                            configuration.getOptional(JobManagerOptions.RPC_BIND_PORT));


            JMXService.startInstance(configuration.getString(JMXServerOptions.JMX_SERVER_PORT));


            // update the configuration used to create the high availability services
            configuration.setString(JobManagerOptions.ADDRESS, commonRpcService.getAddress());
            configuration.setInteger(JobManagerOptions.PORT, commonRpcService.getPort());
            /**
             * 第二步：初始化一个用来做线程的线程池，服务器CPU的数量的4倍，如果当前CPU为8那么线程数量为4*8=32，专门用来做IO
             */
            ioExecutor =
                    Executors.newFixedThreadPool(
                            ClusterEntrypointUtils.getPoolSize(configuration),
                            new ExecutorThreadFactory("cluster-io"));
            /**
             * 第三步 HA的service
             * 如：ResourceManager的leader选举，JobManager leader的选举等
             * haServices==ZookeeperHAService
             */
            haServices = createHaServices(configuration, ioExecutor, rpcSystem);
            /**
             * 第四步骤
             * 初始化blobServer,大文件的上传等，比如：jar包
             * 为了完成大文件的传输
             */
            blobServer =
                    BlobUtils.createBlobServer(
                            configuration,
                            Reference.borrowed(workingDirectory.unwrap().getBlobStorageDirectory()),
                            haServices.createBlobStore());
            blobServer.start();
            configuration.setString(BlobServerOptions.PORT, String.valueOf(blobServer.getPort()));
            /**
             * 第五步
             * 初始化一个心跳服务
             * 在主节点中有很多心跳服务，所有的心跳服务都是由heartbeatServices来进行提供的，
             * 谁需要就由heartbeatServices创建一个实例HeartBeatImpl,用来实现心跳
             */
            heartbeatServices = createHeartbeatServices(configuration);
            delegationTokenManager =
                    KerberosDelegationTokenManagerFactory.create(
                            getClass().getClassLoader(),
                            configuration,
                            commonRpcService.getScheduledExecutor(),
                            ioExecutor);
            /**
             * 第六步，性能监控服务
             * 跟踪已经注册的Metrics
             */
            metricRegistry = createMetricRegistry(configuration, pluginManager, rpcSystem);


            final RpcService metricQueryServiceRpcService =
                    MetricUtils.startRemoteMetricsRpcService(
                            configuration,
                            commonRpcService.getAddress(),
                            configuration.getString(JobManagerOptions.BIND_HOST),
                            rpcSystem);
            metricRegistry.startQueryService(metricQueryServiceRpcService, null);


            final String hostname = RpcUtils.getHostname(commonRpcService);


            processMetricGroup =
                    MetricUtils.instantiateProcessMetricGroup(
                            metricRegistry,
                            hostname,
                            ConfigurationUtils.getSystemResourceMetricsProbingInterval(
                                    configuration));
            /**
             * 第七步executionGraphInfoStore：存储execution graph的服务，默认有两种实现
             * 1.FileExecutionGraphInfoStore：会持久化到文件系统，也会在内存中缓存
             * 2.MemoryExecutionGraphInfoStore：在内存中进行缓存
             * 默认实现是基于文件的
             */
            executionGraphInfoStore =
                    createSerializableExecutionGraphStore(
                            configuration, commonRpcService.getScheduledExecutor());
        }
    }

initializeServices初始化流程

JobManager初始化总结
