Batch Model

public class FakeSourceReader extends SimpleSourceReaderBase<Row> {


  private final BitSailConfiguration readerConfiguration;
  private final TypeInfo<?>[] typeInfos;


  private final transient int totalCount;
  private final transient RateLimiter fakeGenerateRate;
  private final transient AtomicLong counter;


  private final FakeRowGenerator fakeRowGenerator;


  public FakeSourceReader(BitSailConfiguration readerConfiguration, Context context) {
    this.readerConfiguration = readerConfiguration;
    this.typeInfos = context.getTypeInfos();
    this.totalCount = readerConfiguration.get(FakeReaderOptions.TOTAL_COUNT);
    this.fakeGenerateRate = RateLimiter.create(readerConfiguration.get(FakeReaderOptions.RATE));
    this.counter = new AtomicLong();
    this.fakeRowGenerator = new FakeRowGenerator(readerConfiguration, context.getIndexOfSubtask());
  }


  @Override

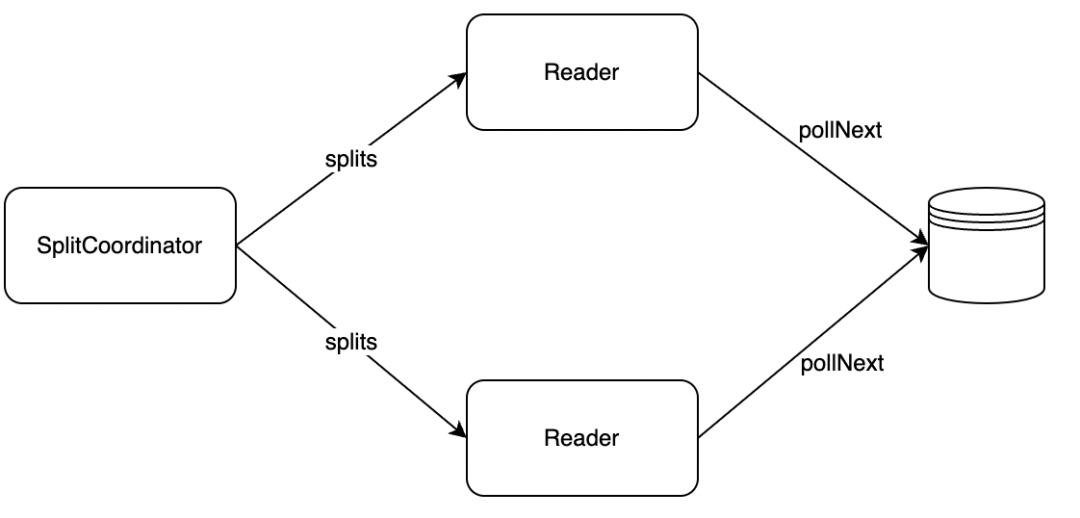

  public void pollNext(SourcePipeline<Row> pipeline) throws Exception {
    fakeGenerateRate.acquire();
    pipeline.output(fakeRowGenerator.fakeOneRecord(typeInfos));
  }


  @Override
  public boolean hasMoreElements() {
    return counter.incrementAndGet() <= totalCount;
  }
}

public class PrintWriter implements Writer<Row, String, Integer> {
  private static final Logger LOG = LoggerFactory.getLogger(PrintWriter.class);


  private final int batchSize;
  private final List<String> fieldNames;


  private final List<String> writeBuffer;
  private final List<String> commitBuffer;


  private final AtomicInteger printCount;


  public PrintWriter(int batchSize, List<String> fieldNames) {
    this(batchSize, fieldNames, 0);
  }


  public PrintWriter(int batchSize, List<String> fieldNames, int alreadyPrintCount) {
    Preconditions.checkState(batchSize > 0, "batch size must be larger than 0");
    this.batchSize = batchSize;
    this.fieldNames = fieldNames;
    this.writeBuffer = new ArrayList<>(batchSize);
    this.commitBuffer = new ArrayList<>(batchSize);
    printCount = new AtomicInteger(alreadyPrintCount);
  }


  @Override
  public void write(Row element) {
    String[] fields = new String[element.getFields().length];
    for (int i = 0; i < element.getFields().length; ++i) {
      fields[i] = String.format("\"%s\":\"%s\"", fieldNames.get(i), element.getField(i).toString());
    }


    writeBuffer.add("[" + String.join(",", fields) + "]");
    if (writeBuffer.size() == batchSize) {
      this.flush(false);
    }
    printCount.incrementAndGet();
  }


  @Override
  public void flush(boolean endOfInput) {
    commitBuffer.addAll(writeBuffer);
    writeBuffer.clear();
    if (endOfInput) {
      LOG.info("all records are sent to commit buffer.");
    }
  }


  @Override
  public List<String> prepareCommit() {
    return commitBuffer;
  }


  @Override
  public List<Integer> snapshotState(long checkpointId) {
    return Collections.singletonList(printCount.get());
  }
}

将连接器注册到配置文件中

{
  "name": "bitsail-connector-hive",
  "classes": [
    "com.bytedance.bitsail.connector.hive.source.HiveSource",
    "com.bytedance.bitsail.connector.hive.sink.HiveSink"
  ],
  "libs": [
    "bitsail-connector-hive-${version}.jar"
  ]
}

测试模块

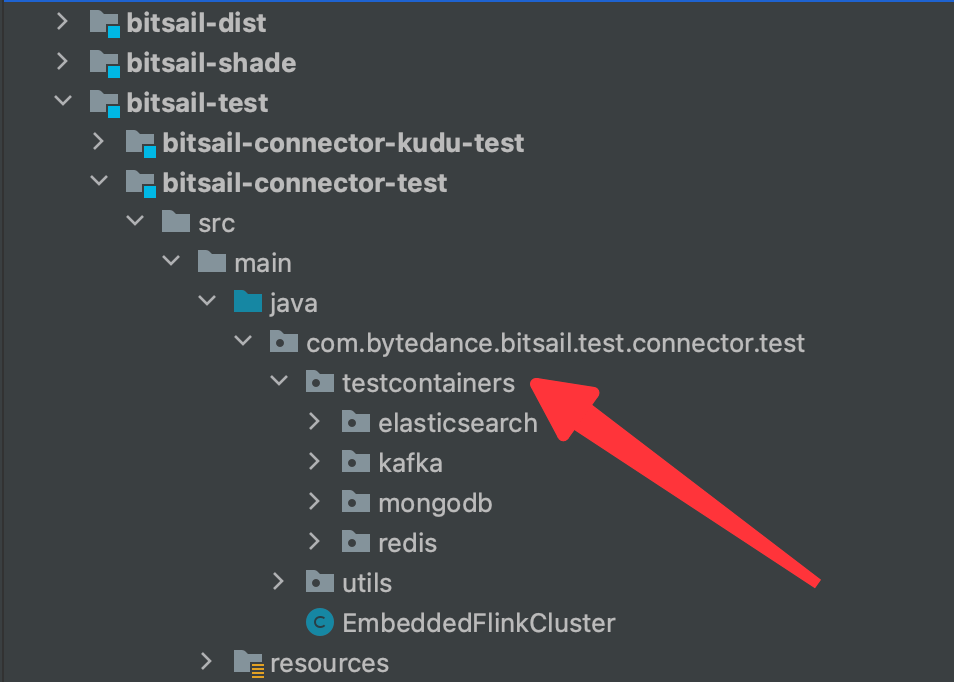

• 通过testcontainer来启动相应的组件

• 编写相应的配置文件

{
  "job": {
    "common": {
      "job_id": 313,
      "instance_id": 3123,
      "job_name": "bitsail_clickhouse_to_print_test",
      "user_name": "test"
    },
    "reader": {
      "class": "com.bytedance.bitsail.connector.clickhouse.source.ClickhouseSource",
      "jdbc_url": "jdbc:clickhouse://localhost:8123",
      "db_name": "default",
      "table_name": "test_ch_table",
      "split_field": "id",
      "split_config": "{\"name\": \"id\", \"lower_bound\": 0, \"upper_bound\": \"10000\", \"split_num\": 3}",
      "sql_filter": "( id % 2 == 0 )",
      "columns": [
        {
          "name": "id",
          "type": "int64"
        },
        {
          "name": "int_type",
          "type": "int32"
        },
        {
          "name": "double_type",
          "type": "float64"
        },
        {
          "name": "string_type",
          "type": "string"
        },
        {
          "name": "p_date",
          "type": "date"
        }
      ]
    },
    "writer": {
      "class": "com.bytedance.bitsail.connector.legacy.print.sink.PrintSink"
    }
  }
}

• 通过代码EmbeddedFlinkCluster.submit来进行作业提交

@Test
public void testClickhouseToPrint() throws Exception {
  BitSailConfiguration jobConf = JobConfUtils.fromClasspath("clickhouse_to_print.json");
  EmbeddedFlinkCluster.submitJob(jobConf);
}
