0x00 前言简述
描述：在 Kubernetes 集群中所有操作的资源数据都是存储在 etcd 数据库上, 所以防止集群节点瘫痪未正常工作或在集群迁移时，以及在出现异常的情况下能尽快的恢复集群数据，则我们需要定期针对etcd集群数据进行相应的容灾操作。
在K8S集群中或者Docker环境中，我们可以非常方便的针对 etcd 数据进行备份，通我们常在一个节点上对 etcd 做快照就能够实现etcd数据的备份，其快照文件包含所有 Kubernetes 状态和关键信息， 有了etcd集群数据备份后，例如在灾难场景(例如丢失所有控制平面节点)下也能快速恢复 Kubernetes 集群，Boss再也不同担心系统起不来呢。
0x01 环境准备
1.安装的二进制 etcdctl
描述: etcdctl 二进制文件可以在 github.com/coreos/etcd/releases
选择对应的版本下载，例如可以执行以下 install_etcdctl.sh
的脚本，修改其中的版本信息。
install_etcdctl.sh
#!/bin/bash# Author: WeiyiGeek# Description: etcd 与 etcdctl 下载安装ETCD_VER=v3.5.5ETCD_DIR=etcd-downloadDOWNLOAD_URL=https://github.com/coreos/etcd/releases/download# Downloadmkdir ${ETCD_DIR}cd ${ETCD_DIR}wget ${DOWNLOAD_URL}/${ETCD_VER}/etcd-${ETCD_VER}-linux-amd64.tar.gztar -xzvf etcd-${ETCD_VER}-linux-amd64.tar.gz# Installcd etcd-${ETCD_VER}-linux-amd64cp etcdctl usr/local/bin/
验证安装:
$ etcdctl version
etcdctl version: 3.5.5
API version: 3.5
2.拉取带有 etcdctl 的 Docker 镜像
操作流程:
# 镜像拉取与容器创建。docker run --rm \-v data/backup:/backup \-v etc/kubernetes/pki/etcd:/etc/kubernetes/pki/etcd \--env ETCDCTL_API=3 \registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.1-0 \/bin/sh -c "etcdctl version"
安装验证:
3.5.1-0: Pulling from google_containers/etcde8614d09b7be: Pull complete45b6afb4a92f: Pull complete.......Digest: sha256:64b9ea357325d5db9f8a723dcf503b5a449177b17ac87d69481e126bb724c263Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.1-0etcdctl version: 3.5.1API version: 3.5
3.Kubernetes 使用 etcdctl 镜像创建Pod
# 镜像拉取crictl pull registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.5-0# Pod 创建以及安装验证$ kubectl run etcdctl --image=registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.5-0 --command -- usr/local/bin/etcdctl version$ kubectl logs -f etcdctletcdctl version: 3.5.5API version: 3.5$ kubectl delete pod etcdctl
0x02 备份实践
1.使用二进制安装 etcdctl 客户端工具
温馨提示: 如果是单节点 Kubernetes 我们只需要对其的 etcd 数据库进行快照备份, 如果是多主多从的集群，我们则需依次备份多个 master 节点中 etcd，防止在备份时etc数据被更改！
此处实践环境为多master高可用集群节点, 即三主节点、四从工作节点，若你对K8s集群不了解或者项搭建高可用集群的朋友，关注 WeiyiGeek 公众号回复【Kubernetes学习之路汇总
】即可获得学习资料：
https://www.weiyigeek.top/wechat.html?key=Kubernetes学习之路汇总
$ kubectl get nodeNAME STATUS ROLES AGE VERSIONweiyigeek-107 Ready control-plane,master 279d v1.23.1weiyigeek-108 Ready control-plane,master 278d v1.23.1weiyigeek-109 Ready control-plane,master 278d v1.23.1weiyigeek-223 Ready work 278d v1.23.1weiyigeek-224 Ready work 278d v1.23.1weiyigeek-225 Ready work 279d v1.23.1weiyigeek-226 Ready work 118d v1.23.1
操作流程：
# 1.创建etcd快照备份目录$ mkdir -pv backup# 2.查看etcd证书$ ls etc/kubernetes/pki/etcd/ca.crt ca.key healthcheck-client.crt healthcheck-client.key peer.crt peer.key server.crt server.key# 3.查看 etcd 地址以及服务$ kubectl get pod -n kube-system -o wide | grep "etcd"etcd-weiyigeek-107 1/1 Running 1 279d 192.168.12.107 weiyigeek-107 <none><none>etcd-weiyigeek-108 1/1 Running 0 278d 192.168.12.108 weiyigeek-108 <none><none>etcd-weiyigeek-109 1/1 Running 0 278d 192.168.12.109 weiyigeek-109 <none><none># 4.此时在 107、 108 、109 主节点上查看你监听情况$ netstat -ano | grep "107:2379"tcp 0 0 192.168.12.107:2379 0.0.0.0:* LISTEN off (0.00/0/0)$ netstat -ano | grep "108:2379"tcp 0 0 192.168.12.108:2379 0.0.0.0:* LISTEN off (0.00/0/0)$ netstat -ano | grep "109:2379"tcp 0 0 192.168.12.109:2379 0.0.0.0:* LISTEN off (0.00/0/0)# 5. 使用etcdctl客户端工具依次备份节点中的数据$ etcdctl --endpoints=https://10.20.176.212:2379 \--cacert=/etc/kubernetes/pki/etcd/ca.crt \--cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt \--key=/etc/kubernetes/pki/etcd/healthcheck-client.key \snapshot save backup/etcd-snapshot.db{"level":"info","ts":"2022-10-23T16:32:26.020+0800","caller":"snapshot/v3_snapshot.go:65","msg":"created temporary db file","path":"/backup/etcd-snapshot.db.part"}{"level":"info","ts":"2022-10-23T16:32:26.034+0800","logger":"client","caller":"v3/maintenance.go:211","msg":"opened snapshot stream; downloading"}{"level":"info","ts":"2022-10-23T16:32:26.034+0800","caller":"snapshot/v3_snapshot.go:73","msg":"fetching snapshot","endpoint":"https://10.20.176.212:2379"}{"level":"info","ts":"2022-10-23T16:32:26.871+0800","logger":"client","caller":"v3/maintenance.go:219","msg":"completed snapshot read; closing"}{"level":"info","ts":"2022-10-23T16:32:26.946+0800","caller":"snapshot/v3_snapshot.go:88","msg":"fetched snapshot","endpoint":"https://10.20.176.212:2379","size":"112 MB","took":"now"}{"level":"info","ts":"2022-10-23T16:32:26.946+0800","caller":"snapshot/v3_snapshot.go:97","msg":"saved","path":"/backup/etcd-snapshot.db"}Snapshot saved at backup/etcd-snapshot.db
通过etcdctl查询Kubernetes中etcd数据，由于Kubernetes使用etcd v3版本的API，而且etcd 集群中默认使用tls认证，所以先配置几个环境变量。
# 1.环境变量export ETCDCTL_API=3export ETCDCTL_CACERT=/etc/kubernetes/pki/etcd/ca.crtexport ETCDCTL_CERT=/etc/kubernetes/pki/etcd/peer.crtexport ETCDCTL_KEY=/etc/kubernetes/pki/etcd/peer.key# 2.查询集群中所有的key列表# –-prefix：表示查找所有以/registry为前缀的key# --keys-only=true：表示只给出key不给出valueetcdctl --endpoints=https://10.20.176.212:2379 get registry --prefix --keys-only=true | head -n 1/registry/apiextensions.k8s.io/customresourcedefinitions/bgpconfigurations.crd.projectcalico.org# 3.查询某个key的值# -–keys-only=false : 表示要给出value，该参数默认值即为false，# -w=json ：表示输出json格式etcdctl --endpoints=https://10.20.176.212:2379 get registry/namespaces/default --prefix --keys-only=false -w=json | python3 -m json.tooletcdctl --endpoints=https://10.20.176.212:2379 get registry/namespaces/default --prefix --keys-only=false -w=json | python3 -m json.tool{"header": {"cluster_id": 11404821125176160774,"member_id": 7099450421952911102,"revision": 30240109,"raft_term": 3},"kvs": [{"key": "L3JlZ2lzdHJ5L25hbWVzcGFjZXMvZGVmYXVsdA==","create_revision": 192,"mod_revision": 192,"version": 1,"value": "azhzAAoPCg.......XNwYWNlEGgAiAA=="}],"count": 1}# 4.其 Key Value 都是采用 base64 编码echo -e "L3JlZ2lzdHJ5L25hbWVzcGFjZXMvZGVmYXVsdA==" | base64 -decho -e "azhzAAoPCgJ2MRIJTmFtZXNwYWNlEogCCu0BCgdkZWZhdWx0EgAaACIAKiQ5ZDQyYmYxMy03OGM0LTQ4NzQtOThiYy05NjNlMDg1MDYyZjYyADgAQggIo8yllQYQAFomChtrdWJlcm5ldGVzLmlvL21ldGFkYXRhLm5hbWUSB2RlZmF1bHR6AIoBfQoOa3ViZS1hcGlzZXJ2ZXISBlVwZGF0ZRoCdjEiCAijzKWVBhAAMghGaWVsZHNWMTpJCkd7ImY6bWV0YWRhdGEiOnsiZjpsYWJlbHMiOnsiLiI6e30sImY6a3ViZXJuZXRlcy5pby9tZXRhZGF0YS5uYW1lIjp7fX19fUIAEgwKCmt1YmVybmV0ZXMaCAoGQWN0aXZlGgAiAA==" | base64 -d# 5.实际上述value编码解码后的的内容如下:$ kubectl get ns default -o yamlapiVersion: v1kind: Namespacemetadata:creationTimestamp: "2022-06-15T04:54:59Z"labels:kubernetes.io/metadata.name: defaultname: defaultresourceVersion: "192"uid: 9d42bf13-78c4-4874-98bc-963e085062f6spec:finalizers:- kubernetesstatus:phase: Active# 5.Pod 资源信息查看etcdctl --endpoints=https://10.20.176.212:2379 get registry/pods/default --prefix --keys-only=true# registry/pods/default/nfs-dev-nfs-subdir-external-provisioner-cf7684f8b-fzl9h# registry/pods/default/nfs-local-nfs-subdir-external-provisioner-6f97d44bb8-424tketcdctl --endpoints=https://10.20.176.212:2379 get registry/pods/default --prefix --keys-only=true -w=json | python3 -m json.tool{"header": {"cluster_id": 11404821125176160774,"member_id": 7099450421952911102,"revision": 30442415,"raft_term": 3},"kvs": [{ # 实际上该编码是 registry/pods/default/nfs-dev-nfs-subdir-external-provisioner-cf7684f8b-fzl9h"key": "L3JlZ2lzdHJ5L3BvZHMvZGVmYXVsdC9uZnMtZGV2LW5mcy1zdWJkaXItZXh0ZXJuYWwtcHJvdmlzaW9uZXItY2Y3Njg0ZjhiLWZ6bDlo","create_revision": 5510865,"mod_revision": 5510883,"version": 5},{"key": "L3JlZ2lzdHJ5L3BvZHMvZGVmYXVsdC9uZnMtbG9jYWwtbmZzLXN1YmRpci1leHRlcm5hbC1wcm92aXNpb25lci02Zjk3ZDQ0YmI4LTQyNHRr","create_revision": 5510967,"mod_revision": 5510987,"version": 5}],"count": 2}
2.使用Docker镜像安装 etcdctl 客户端工具
描述: 在装有Docker环境的机器,我们可以非常方便的备份K8s集群中的etcd数据库，此处我已经安装好了Docker，若有不了解Docker或者需要搭建Docker环境中童鞋。
# 1.Docker 实践环境$ docker versionClient: Docker Engine - CommunityVersion 20.10.3.......Server: Docker Engine - CommunityEngine:Version: 20.10.3# 2.etcd 备份文件存储的目录$ mkdir -vp backup# 3.执行docker创建容器，在备份数据库后便删除该容器。$ docker run --rm \-v backup:/backup \-v etc/kubernetes/pki/etcd:/etc/kubernetes/pki/etcd \--env ETCDCTL_API=3 \registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.1-0 \/bin/sh -c "etcdctl --endpoints=https://192.168.12.107:2379 \--cacert=/etc/kubernetes/pki/etcd/ca.crt \--key=/etc/kubernetes/pki/etcd/healthcheck-client.key \--cert=/etc/kubernetes/pki/etcd/healthcheck-client.crt \snapshot save backup/etcd-snapshot.db"# {"level":"info","ts":1666515535.63076,"caller":"snapshot/v3_snapshot.go:68","msg":"created temporary db file","path":"/backup/etcd-snapshot.db.part"}# {"level":"info","ts":1666515535.6411893,"logger":"client","caller":"v3/maintenance.go:211","msg":"opened snapshot stream; downloading"}# {"level":"info","ts":1666515535.6419039,"caller":"snapshot/v3_snapshot.go:76","msg":"fetching snapshot","endpoint":"https://192.168.12.107:2379"}# {"level":"info","ts":1666515535.9170482,"logger":"client","caller":"v3/maintenance.go:219","msg":"completed snapshot read; closing"}# {"level":"info","ts":1666515535.931862,"caller":"snapshot/v3_snapshot.go:91","msg":"fetched snapshot","endpoint":"https://192.168.12.107:2379","size":"9.0 MB","took":"now"}# {"level":"info","ts":1666515535.9322069,"caller":"snapshot/v3_snapshot.go:100","msg":"saved","path":"/backup/etcd-snapshot.db"}Snapshot saved at backup/etcd-snapshot.db# 4.查看备份的etcd快照文件ls -alh backup/etcd-snapshot.db-rw------- 1 root root 8.6M Oct 23 16:58 backup/etcd-snapshot.db

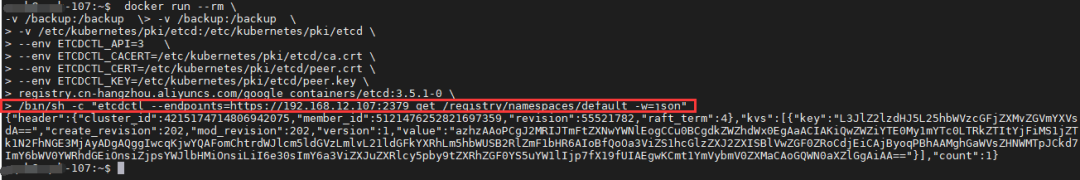

使用 Docker 容器查看 k8s 集群中的etcd数据库中的数据。
$ docker run --rm \-v backup:/backup \-v etc/kubernetes/pki/etcd:/etc/kubernetes/pki/etcd \--env ETCDCTL_API=3 \--env ETCDCTL_CACERT=/etc/kubernetes/pki/etcd/ca.crt \--env ETCDCTL_CERT=/etc/kubernetes/pki/etcd/peer.crt \--env ETCDCTL_KEY=/etc/kubernetes/pki/etcd/peer.key \registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.1-0 \/bin/sh -c "etcdctl --endpoints=https://192.168.12.107:2379 get registry/namespaces/default -w=json"
执行结果:
3.在kubernetes集群中快速创建pod进行手动备份
准备一个Pod资源清单并部署
cat <<EOF | kubectl apply -f -apiVersion: v1kind: Podmetadata:name: etcd-backuplabels:tool: backupspec:containers:- name: redisimage: registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.5-0imagePullPolicy: IfNotPresentcommand:- sh- -c- "etcd"env:- name: ETCDCTL_APIvalue: "3"- name: ETCDCTL_CACERTvalue: "/etc/kubernetes/pki/etcd/ca.crt"- name: ETCDCTL_CERTvalue: "/etc/kubernetes/pki/etcd/healthcheck-client.crt"- name: ETCDCTL_KEYvalue: "/etc/kubernetes/pki/etcd/healthcheck-client.key"volumeMounts:- name: "pki"mountPath: "/etc/kubernetes"- name: "backup"mountPath: "/backup"volumes:- name: pkihostPath:path: "/etc/kubernetes" # 证书目录type: "DirectoryOrCreate"- name: "backup"hostPath:path: "/storage/dev/backup" # 数据备份目录type: "DirectoryOrCreate"restartPolicy: NevernodeSelector:node-role.kubernetes.io/master: "" # 绑定在主节点中EOFpod/etcd-backup created
进入到该Pod终端之中执行相应的备份命令
~$ kubectl exec -it etcd-backup sh# 快照备份sh-5.1# export RAND=$RANDOMsh-5.1# etcdctl --endpoints=https://192.168.12.107:2379 snapshot save backup/etcd-107-${RAND}-snapshot.dbsh-5.1# etcdctl --endpoints=https://192.168.12.108:2379 snapshot save backup/etcd-108-${RAND}-snapshot.dbSnapshot saved at backup/etcd-108-32616-snapshot.dbsh-5.1# etcdctl --endpoints=https://192.168.12.109:2379 snapshot save backup/etcd-109-${RAND}-snapshot.db# etcd 节点成员sh-5.1# etcdctl member list --endpoints=https://192.168.12.107:2379 --endpoints=https://192.168.12.108:2379 --endpoints=https://192.168.12.109:23792db31a5d67ec1034, started, weiyigeek-108, https://192.168.12.108:2380, https://192.168.12.108:2379, false42efe7cca897d765, started, weiyigeek-109, https://192.168.12.109:2380, https://192.168.12.109:2379, false471323846709334f, started, weiyigeek-107, https://192.168.12.107:2380, https://192.168.12.107:2379, false# etcd 节点健康信息sh-5.1# etcdctl endpoint health --endpoints=https://192.168.12.107:2379 --endpoints=https://192.168.12.108:2379 --endpoints=https://192.168.12.109:2379https://192.168.12.107:2379 is healthy: successfully committed proposal: took = 11.930331mshttps://192.168.12.109:2379 is healthy: successfully committed proposal: took = 11.930993mshttps://192.168.12.108:2379 is healthy: successfully committed proposal: took = 109.515933ms# etcd 节点状态及空间占用信息sh-5.1# etcdctl endpoint status --endpoints=https://192.168.12.107:2379 --endpoints=https://192.168.12.108:2379 --endpoints=https://192.168.12.109:2379https://192.168.12.107:2379, 471323846709334f, 3.5.1, 9.2 MB, false, false, 4, 71464830, 71464830,https://192.168.12.108:2379, 2db31a5d67ec1034, 3.5.1, 9.2 MB, false, false, 4, 71464830, 71464830,https://192.168.12.109:2379, 42efe7cca897d765, 3.5.1, 9.2 MB, true, false, 4, 71464830, 71464830, # 此处为主
至此，手动备份etcd集群数据快照完毕!
偷偷的告诉你哟？【极客全栈修炼】微信小程序已经上线了，
可直接在微信里面直接浏览博主博客了哟，后续将上线更多有趣的小工具。
4.在kubernetes集群中使用CronJob资源控制器进行定时备份
首先准备一个cronJob资源清单：
cat > etcd-database-backup.yaml <<'EOF'apiVersion: batch/v1kind: CronJobmetadata:name: etcd-database-backupannotations:descript: "etcd数据库定时备份"spec:schedule: "*/5 * * * *" # 表示每5分钟运行一次jobTemplate:spec:template:spec:containers:- name: etcdctlimage: registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.5.5-0env:- name: ETCDCTL_APIvalue: "3"- name: ETCDCTL_CACERTvalue: "/etc/kubernetes/pki/etcd/ca.crt"- name: ETCDCTL_CERTvalue: "/etc/kubernetes/pki/etcd/healthcheck-client.crt"- name: ETCDCTL_KEYvalue: "/etc/kubernetes/pki/etcd/healthcheck-client.key"command:- /bin/sh- -c- |export RAND=$RANDOMetcdctl --endpoints=https://192.168.12.107:2379 snapshot save /backup/etcd-107-${RAND}-snapshot.dbetcdctl --endpoints=https://192.168.12.108:2379 snapshot save /backup/etcd-108-${RAND}-snapshot.dbetcdctl --endpoints=https://192.168.12.109:2379 snapshot save /backup/etcd-109-${RAND}-snapshot.dbvolumeMounts:- name: "pki"mountPath: "/etc/kubernetes"- name: "backup"mountPath: "/backup"imagePullPolicy: IfNotPresentvolumes:- name: "pki"hostPath:path: "/etc/kubernetes"type: "DirectoryOrCreate"- name: "backup"hostPath:path: "/storage/dev/backup" # 数据备份目录type: "DirectoryOrCreate"nodeSelector: # 将Pod绑定在主节点之中，否则只能将相关证书放在各个节点能访问的nfs共享存储中node-role.kubernetes.io/master: ""restartPolicy: NeverEOF
创建cronjob资源清单:
kubectl apply -f etcd-database-backup.yaml
# cronjob.batch/etcd-database-backup created
查看创建的cronjob资源及其集群etcd备份:
NAME SCHEDULE SUSPEND ACTIVE LAST SCHEDULE AGEcronjob.batch/etcd-database-backup */5 * * * * False 0 21s 14mNAME READY STATUS RESTARTS AGEpod/etcd-database-backup-27776740-rhzkk 0/1 Completed 0 21s
查看定时Pod日志以及备份文件:
kubectl logs -f pod/etcd-database-backup-27776740-rhzkkSnapshot saved at /backup/etcd-107-25615-snapshot.dbSnapshot saved at /backup/etcd-108-25615-snapshot.dbSnapshot saved at /backup/etcd-109-25615-snapshot.db$ ls -lt # 显示最新备份的文件按照时间排序total 25M-rw------- 1 root root 8.6M Oct 24 21:12 etcd-107-25615-snapshot.db-rw------- 1 root root 7.1M Oct 24 21:12 etcd-108-25615-snapshot.db-rw------- 1 root root 8.8M Oct 24 21:12 etcd-109-25615-snapshot.db
至此集群中的etcd快照数据备份完毕!
0x02 恢复实践
1.单master节点恢复
描述: 当单master集群节点资源清单数据丢失时，我们可采用如下方式进行快速恢复数据。
操作流程:
温馨提示: 如果是单节点的k8S集群则使用如下命令恢复
mv /etc/kubernetes/manifests/ /etc/kubernetes/manifests-backup/mv /var/lib/etcd /var/lib/etcd.bakETCDCTL_API=3 etcdctl snapshot restore /backup/etcd-212-32616-snapshot.db --data-dir=/var/lib/etcd/ --endpoints=https://10.20.176.212:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/peer.crt --key=/etc/kubernetes/pki/etcd/peer.key
2.多master节点恢复
温馨提示，此处的集群etcd数据库是安装在Kubernetes集群之中的，并非外部独立安装部署的。
$ kubectl get pod -n kube-system etcd-devtest-master-212 etcd-devtest-master-213 etcd-devtest-master-214NAME READY STATUS RESTARTS AGEetcd-devtest-master-212 1/1 Running 3 134detcd-devtest-master-213 1/1 Running 0 134detcd-devtest-master-214 1/1 Running 0 134d
2.前面我们提到过，在进行恢复前需要查看 etcd 集群当前成员以及监控状态。
# etcd 集群成员列表ETCDCTL_API=3 etcdctl member list --endpoints=https://10.20.176.212:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/peer.crt --key=/etc/kubernetes/pki/etcd/peer.key6286508b550016fe, started, devtest-master-212, https://10.20.176.212:2380, https://10.20.176.212:2379, false9dd15f852caf8e05, started, devtest-master-214, https://10.20.176.214:2380, https://10.20.176.214:2379, falsee0f23bd90b7c7c0d, started, devtest-master-213, https://10.20.176.213:2380, https://10.20.176.213:2379, false# etcd 集群节点状态查看主从节点ETCDCTL_API=3 etcdctl endpoint status --endpoints=https://10.20.176.212:2379 --endpoints=https://10.20.176.213:2379 --endpoints=https://10.20.176.214:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/peer.crt --key=/etc/kubernetes/pki/etcd/peer.key --write-out table# etcd 集群节点健康信息筛选出不健康的节点ETCDCTL_API=3 etcdctl endpoint health --endpoints=https://10.20.176.212:2379 --endpoints=https://10.20.176.213:2379 --endpoints=https://10.20.176.214:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/peer.crt --key=/etc/kubernetes/pki/etcd/peer.keyhttps://10.20.176.212:2379 is healthy: successfully committed proposal: took = 14.686875mshttps://10.20.176.214:2379 is healthy: successfully committed proposal: took = 16.201187mshttps://10.20.176.213:2379 is healthy: successfully committed proposal: took = 18.962462ms
3.停掉所有Master机器的kube-apiserver和etcd ，然后在利用备份进行恢复该节点的etcd数据。
mv /etc/kubernetes/manifests/ /etc/kubernetes/manifests-backup/# 在该节点上删除 /var/lib/etcdmv /var/lib/etcd /var/lib/etcd.bak# 利用快照进行恢复,注意etcd集群中可以用同一份snapshot恢复。ETCDCTL_API=3 etcdctl snapshot restore /backup/etcd-212-32616-snapshot.db --data-dir=/var/lib/etcd --name=devtest-master-212 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/peer.crt --key=/etc/kubernetes/pki/etcd/peer.key --initial-cluster-token=etcd-cluster-0 --initial-cluster=devtest-master-212=https://10.20.176.212:2380,devtest-master-213=https://10.20.176.213:2380,devtest-master-214=https://10.20.176.214:2380 --initial-advertise-peer-urls=https://10.20.176.212:2380
温馨提示: 当节点加入控制平面 control-plane 后为 API Server、Controller Manager 和 Scheduler
生成静态Pod配置清单，主机上的kubelet服务会监视 /etc/kubernetes/manifests
目录中的配置清单的创建、变动和删除等状态变动，并根据变动完成Pod创建、更新或删除操作。因此，这两个阶段创建生成的各配置清单将会启动Master组件的相关Pod
4.然后启动 etcd 和 apiserver 并查看 pods是否恢复正常。
# 查看 etcd pod$ kubectl get pod -n kube-system -l component=etcd# 查看组件健康状态$ kubectl get componentstatusesWarning: v1 ComponentStatus is deprecated in v1.19+NAME STATUS MESSAGE ERRORscheduler Healthy okcontroller-manager Healthy oketcd-0 Healthy {"health":"true","reason":""}
亲，文章就要看完了，不关注一下作者吗？
3.K8S集群中etcd数据库节点数据不一致问题解决实践
描述: 在日常巡检业务时，发现etcd数据不一致，执行kubectl get pod -n xxx获取的信息资源不一样， etcdctl 直接查询了 etcd 集群状态和集群数据，返回结果显示 3 个节点状态都正常，且 RaftIndex 一致，观察 etcd 的日志也并未发现报错信息，唯一可疑的地方是 3 个节点的 dbsize 差别较大,得出的结论是 etcd 数据不一致。
$ ETCDCTL_API=3 etcdctl endpoint status --endpoints=https://192.168.12.108:2379 --endpoints=https://192.168.12.107:2379 --endpoints=https://192.168.12.109:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/peer.crt --key=/etc/kubernetes/pki/etcd/peer.key --write-out table+-----------------------------+------------------+---------+---------+-----------+-----------+------------+| ENDPOINT | ID | VERSION | DB SIZE | IS LEADER | RAFT TERM | RAFT INDEX |+-----------------------------+------------------+---------+---------+-----------+-----------+------------+| https://192.168.12.108:2379 | 2db31a5d67ec1034 | 3.5.1 | 7.4 MB | false | 4 | 72291872 || https://192.168.12.107:2379 | 471323846709334f | 3.5.1 | 9.0 MB | false | 4 | 72291872 || https://192.168.12.109:2379 | 42efe7cca897d765 | 3.5.1 | 9.2 MB | true | 4 | 72291872 |+-----------------------------+------------------+---------+---------+-----------+-----------+------------+
由于从 kube-apiserver 的日志中同样无法提取出能够帮助解决问题的有用信息，起初我们只能猜测可能是 kube-apiserver 的缓存更新异常导致的。正当我们要从这个切入点去解决问题时，该同事反馈了一个更诡异的问题——自己新创建的 Pod，通过 kubectl查询 Pod 列表，突然消失了！纳尼？这是什么骚操作？经过我们多次测试查询发现，通过 kubectl 来 list pod 列表，该 pod 有时候能查到，有时候查不到。那么问题来了，K8s api 的 list 操作是没有缓存的，数据是 kube-apiserver 直接从 etcd 拉取返回给客户端的，难道是 etcd 本身出了问题？
众所周知，etcd 本身是一个强一致性的 KV 存储，在写操作成功的情况下，两次读请求不应该读取到不一样的数据。怀着不信邪的态度，我们通过 etcdctl 直接查询了 etcd 集群状态和集群数据，返回结果显示 3 个节点状态都正常，且 RaftIndex 一致，观察 etcd 的日志也并未发现报错信息，唯一可疑的地方是 3 个节点的 dbsize 差别较大。接着，我们又将 client 访问的 endpoint 指定为不同节点地址来查询每个节点的 key 的数量，结果发现 3 个节点返回的 key 的数量不一致，甚至两个不同节点上 Key 的数量差最大可达到几千！而直接通过 etcdctl 查询刚才创建的 Pod，发现访问某些 endpoint 能够查询到该 pod，而访问其他 endpoint 则查不到。
至此，基本可以确定 etcd 集群的节点之间确实存在数据不一致现象。
解决思路
解决实践: 此处将weiyigeek-109中的etcd数据备份恢复到weiyigeek-107与weiyigeek-108节点中。
# 1.导出 DB SIZE 最大的 etcd 节点数据（操作前一定要备份各 etcd 节点数据）。etcdctl --endpoints=https://192.168.12.107:2379 snapshot save /backup/etcd-107-snapshot.dbetcdctl --endpoints=https://192.168.12.108:2379 snapshot save /backup/etcd-108-snapshot.dbetcdctl --endpoints=https://192.168.12.109:2379 snapshot save /backup/etcd-109-snapshot.db # 最完整的etd数据节点（它是leader）# 补充：如果需要迁移leader，执行如下命令将leader交于weiyigeek-109etcdctl --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/peer.crt --key=/etc/kubernetes/pki/etcd/peer.key --endpoints=192.168.12.107:2379 move-leader 42efe7cca897d765# 2.备份异常节点上 etcd 目录mv /var/lib/etcd /var/lib/etcd.bak# 或者压缩备份tar -czvf etcd-20230308bak.taz.gz /var/lib/etcd# 3.从etcd集群中移除异常节点，注意此处指定的endpoints是正常的leader节点。$ etcdctl --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/peer.crt --key=/etc/kubernetes/pki/etcd/peer.key --endpoints=192.168.12.109:2379 member list# 异常 异常的 weiyigeek-107 节点$ etcdctl --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/peer.crt --key=/etc/kubernetes/pki/etcd/peer.key --endpoints=192.168.12.109:2379 member remove 2db31a5d67ec1034# 4.修改weiyigeek-107节点上的etcd服务, 先将该节点节点再次加入etcd集群。。$ mv /etc/kubernetes/manifests/etcd.yaml /etc/kubernetes/manifests-backup/etcd.yaml$ vim /etc/kubernetes/manifests-backup/etcd.yaml- --initial-cluster=weiyigeek-109=https://192.168.12.109:2380,weiyigeek-108=https://192.168.12.108:2380,weiyigeek-107=https://192.168.12.107:2380- --initial-cluster-state=existing$ kubectl exec -it -n kube-system etcd-weiyigeek-107 sh$ export ETCDCTL_API=3$ ETCD_ENDPOINTS=192.168.12.109:2379$ etcdctl --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/peer.crt --key=/etc/kubernetes/pki/etcd/peer.key --endpoints=$ETCD_ENDPOINTS member add weiyigeek-107 --peer-urls=https://192.168.12.107:2380Member 8cecf1f50b91e502 added to cluster 71d4ff56f6fd6e70# 5.加入到集群后，启动 weiyigeek-107 节点中的 etcd 服务mv /etc/kubernetes/manifests-backup/etcd.yaml /etc/kubernetes/manifests/etcd.yaml
验证结果
解决之后可以发现节点启动正常，数据也变成一致，各Etcd节点keys的数量是一致的都是1976,且数据大小都变成一致了。
$ for count in {107..109};do ETCDCTL_API=3 etcdctl get / --prefix --keys-only --endpoints=https://192.168.12.${count}:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/peer.crt --key=/etc/kubernetes/pki/etcd/peer.key | wc -l;done1976$ for count in {107..109};do ETCDCTL_API=3 etcdctl endpoint status --endpoints=https://192.168.12.${count}:2379 --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/peer.crt --key=/etc/kubernetes/pki/etcd/peer.key ;donehttps://192.168.12.107:2379, 8cecf1f50b91e502, 3.5.1, 9.2 MB, false, 9, 72291872https://192.168.12.108:2379, 35672f075108e36a, 3.5.1, 9.2 MB, false, 9, 72291872https://192.168.12.109:2379, 42efe7cca897d765, 3.5.1, 9.2 MB, true, 9, 72291872
至此，K8S集群中etcd数据不一致解决与恢复完毕，如果此篇文章对你有帮助，希望大家多多支持!
