问题描述
某客户生产系统核心库在2019-08-21 23:50:00左右出现了业务告警,应用无法连接的情况。
查看故障期间数据库的告警日志,发现在23:49:56,数据库进行了数据库文件扩容操作。
Wed Aug 21 23:49:56 2019 ALTER DATABASE DATAFILE xxxxxxx RESIZE 100G Wed Aug 21 23:51:38 2019 Completed: ALTER DATABASE DATAFILE xxxxxxx RESIZE 100G Wed Aug 21 23:52:31 2019 ALTER DATABASE DATAFILE xxxxxxx RESIZE 950G Thu Aug 22 00:05:23 2019 Completed: ALTER DATABASE DATAFILE xxxxxxx RESIZE 950G Thu Aug 22 00:15:18 2019
查看故障期间数据库的监听日志,发现从23:58:44到00:05:23这段时间内,数据库没有新的JDBC连接进来。
专家解答

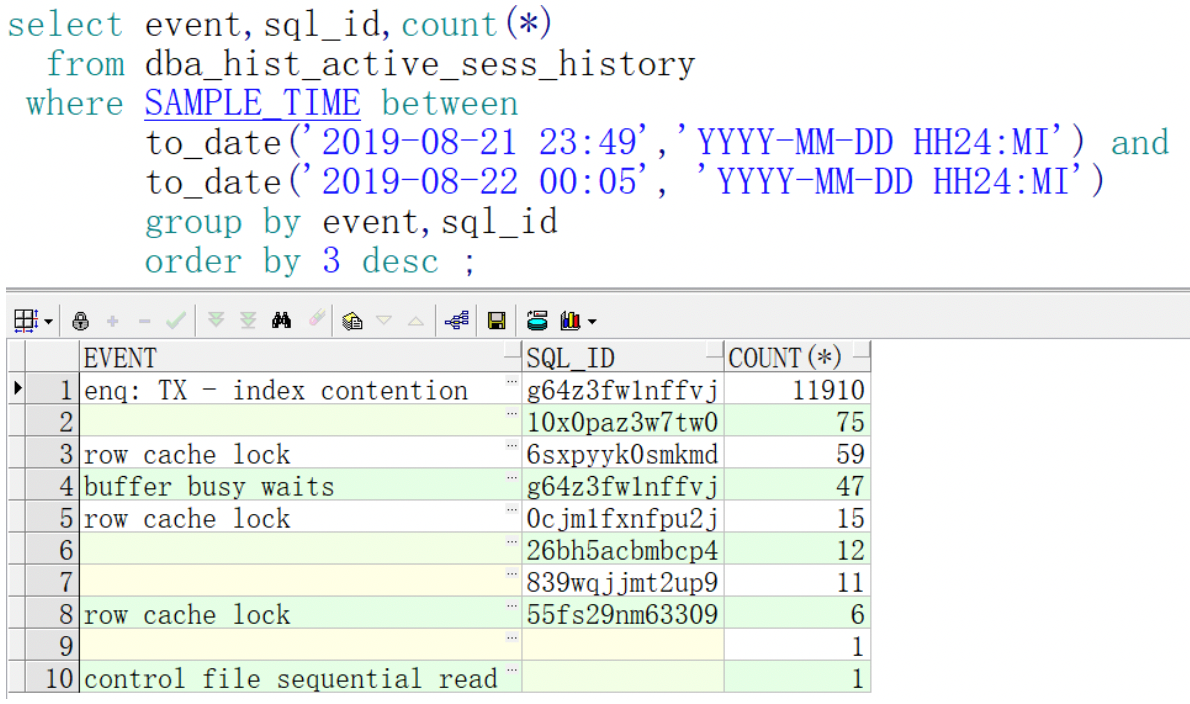

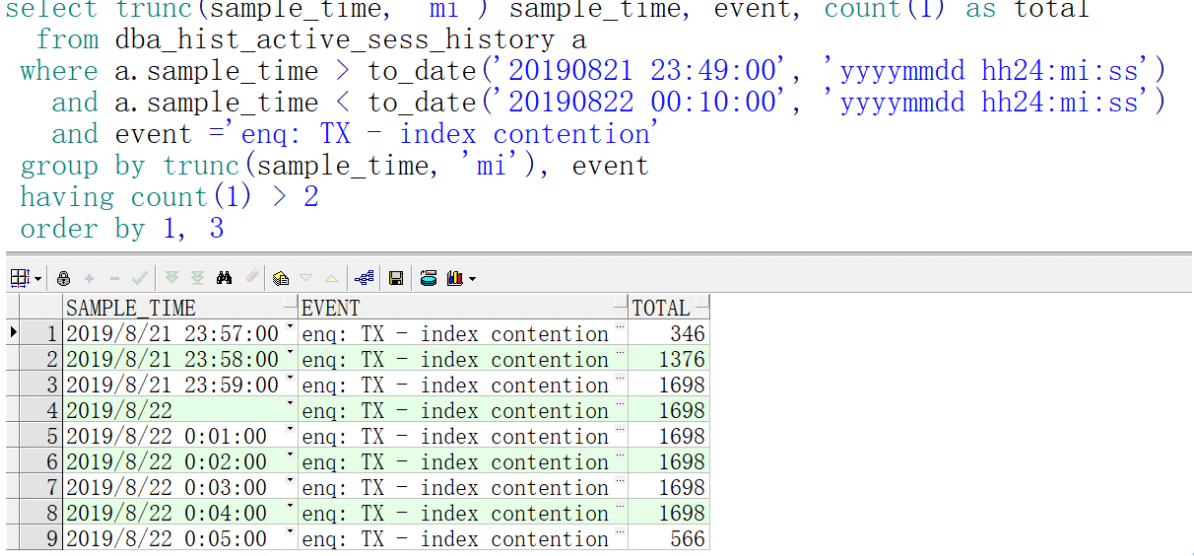

查看故障期间的ash信息,发现在应用异常的时间段内,SQL_ID为g64z3fw1nffvj的insert操作产生了大量的enq: TX - index contention等待,并且造成这个等待事件的原因就是alter database操作和它本身的insert操作,在resize的执行过程中enq: TX - index contention等待事件一直升高,resize操作成功后(即2019-08-22 00:05:00左右)等待事件恢复正常。
查看相关的trace文件信息:*** 2019-08-21 23:57:14.907
===============================================================================
HANG ANALYSIS:
instances (db_name.oracle_sid): xxxxx
===============================================================================
Chains most likely to have caused the hang<<<<<<<<<<<<<<<<<<<<<<查看HANG住三个可能因素
[a] Chain 1 Signature: <not in a wait><='buffer busy waits'<='enq: TX - index contention'
Chain 1 Signature Hash: 0xbeca5ef7
[b] Chain 2 Signature: <not in a wait><='buffer busy waits'<='enq: TX - index contention'
Chain 2 Signature Hash: 0xbeca5ef7
[c] Chain 3 Signature: <not in a wait><='row cache lock'
Chain 3 Signature Hash: 0xccefbfc0
===============================================================================
Non-intersecting chains:
-------------------------------------------------------------------------------
Chain 1:
-------------------------------------------------------------------------------
Oracle session identified by:
{
instance: 2 (xxxxx)
os id: 15343
process id: 67
session id: 2882
session serial #: 39285
}
is waiting for 'enq: TX - index contention' with wait info:
{
p1: 'name|mode'=0x54580004
p2: 'usn<<16 | slot'=0x470000
p3: 'sequence'=0xa32a2d
……
and is blocked by
=> Oracle session identified by:
{
instance: 2 (xxxxxxx)
os id: 105251
process id: 79
session id: 3400 <<<<<<<<<<<<<<<<<<<<<<chain 1被session_id=3400会话阻塞了
session serial #: 22853
}
which is not in a wait:
{
last wait: 36.074155 sec ago
blocking: 4 sessions
wait history:
1. event: 'ASM file metadata operation'
time waited: 0.000018 sec (last interval)
time waited: 0.001953 sec (total)
wait id: 94 p1: 'msgop'=0x21
p2: 'locn'=0x0
* time between wait #1 and #2: 0.000000 sec
2. event: 'KSV master wait'
time waited: 0.001856 sec
wait id: 96
* time between wait #2 and #3: 0.000000 sec
3. event: 'ASM file metadata operation'
time waited: 0.000003 sec (last interval)
time waited: 0.000079 sec (total)
wait id: 94 p1: 'msgop'=0x21
p2: 'locn'=0x0
}
Chain 1 Signature: <not in a wait><='buffer busy waits'<='enq: TX - index contention'
Chain 1 Signature Hash: 0xbeca5ef7
-------------------------------------------------------------------------------
===============================================================================
Intersecting chains:
-------------------------------------------------------------------------------
Chain 2:
-------------------------------------------------------------------------------
Oracle session identified by:
{
instance: 2 (xxxxxxx)
os id: 70061
process id: 69
session id: 2969
session serial #: 46127
}
…….
and is blocked by 'instance: 2, os id: 83344, session id: 2840',
which is a member of 'Chain 1'. <<<<<<<<<<<<<<<<<<<<<<被chain1阻塞了
Chain 2 Signature: <not in a wait><='buffer busy waits'<='enq: TX - index contention'
Chain 2 Signature Hash: 0xbeca5ef7
-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Chain 3:
-------------------------------------------------------------------------------
Oracle session identified by:
{
instance: 2 (xxxxxx)
os id: 102165
process id: 75
session id: 3227
session serial #: 3457
}
is waiting for 'row cache lock' with wait info:
{
p1: 'cache id'=0x6
p2: 'mode'=0x0
p3: 'request'=0x3
time in wait: 2.020260 sec
heur. time in wait: 1 min 59 sec
timeout after: 0.979740 sec
wait id: 360
blocking: 0 sessions
wait history:
* time between current wait and wait #1: 0.000015 sec
1. event: 'row cache lock'
time waited: 3.001099 sec
wait id: 359 p1: 'cache id'=0x6
p2: 'mode'=0x0
p3: 'request'=0x3
* time between wait #1 and #2: 0.000015 sec
2. event: 'row cache lock'
time waited: 3.000983 sec
wait id: 358 p1: 'cache id'=0x6
p2: 'mode'=0x0
p3: 'request'=0x3
* time between wait #2 and #3: 0.000013 sec
3. event: 'row cache lock'
time waited: 3.000978 sec
wait id: 357 p1: 'cache id'=0x6
p2: 'mode'=0x0
p3: 'request'=0x3
}
and is blocked by 'instance: 2, os id: 105251, session id: 3400'。
which is a member of 'Chain 1'. <<<<<<<<<<<<<<<<<<<<<<被session_id 3400阻塞了
Chain 3 Signature: <not in a wait><='row cache lock'
Chain 3 Signature Hash: 0xccefbfc0
-------------------------------------------------------------------------------
===============================================================================
Extra information that will be dumped at higher levels:
[level 4] : 1 node dumps -- [LEAF] [LEAF_NW]
[level 5] : 4 node dumps -- [NO_WAIT] [INVOL_WT] [SINGLE_NODE] [NLEAF] [SINGLE_NODE_NW]
State of ALL nodes
[2839]/2/2840/17657/0x13d1a33000/83344/NLEAF/[3399]
[2881]/2/2882/39285/0x13c1a48b38/15343/NLEAF/[2839]
[2968]/2/2969/46127/0x13b1a69c08/70061/NLEAF/[2839]
[3226]/2/3227/3457/0x13c1ade618/102165/NLEAF/[3399]
[3399]/2/3400/22853/0x1391b4cad8/105251/LEAF_NW/
*** 2019-08-21 23:57:14.908
===============================================================================
END OF HANG ANALYSIS
===============================================================================
*** 2019-08-21 23:58:53.765
Suspected Hangs in the System
Root Chain Total Hang
Hang Hang Inst Root #hung #hung Hang Hang Resolution
ID Type Status Num Sess Sess Sess Conf Span Action
----- ---- -------- ---- ----- ----- ----- ------ ------ -------------------
1 HANG VALID 2 3400 3 286 HIGH LOCAL Terminate Process
<<<<<<<<<<<<<<<<<<< 系统阻塞的可能原因是session id为3400的本地进程引起的
inst# SessId Ser# OSPID Event
----- ------ ----- --------- -----
2 2 19927 111623 enq: TX - index contention
2 2840 17657 83344 buffer busy waits
2 3400 22853 105251 not in wait
*** 2019-08-21 23:58:53.766
HM: Short Stack of immediate waiter session ID 2840, OSPID 83344 of hang ID 1
Short stack dump:
ksedsts()+465<-ksdxfstk()+32<-ksdxcb()+1927<-sspuser()+112<-__sighandler()<-semtimedop()+10<-skgpwwait()+178<-ksliwat()+2022<-kslwaitctx()+163<-kcbzwb()+1548<-kcbgcur()+8885<-ktfbhget()+254<-ktfbfsearch()+300<-ktfbtgex()+1240<-ktsxs_add()+2094<-ktspnr_next()+1115<-ktrsexec()+529<-ktspbmphwm()+1236<-ktspmvhwm()+53<-ktsp_bump_hwm()+212<-ktspgsp_main()+1941<-kdisnew()+279<-kdisnewle()+115<-kdisle()+4332<-kdiins0()+34743<-kdiinsp()+91<-kauxsin()+1784<-qesltcLoadIndexList()+922<-qesltcLoadIndexes()+55<-qerltcNoKdtBufferedInsRowCBK()+374<-qerltcSingleRowLoad()+279<-qerltcFetch()+379<-insexe()+691<-opiexe()+5632<-kpoal8()+2380<-opiodr()+917<-ttcpip()+2183<-opitsk()+1710<-opiino()+969<-opiodr()+917<-opidrv()+570<-sou2o()+103<-opimai_real()+133<-ssthrdmain()+265<-main()+201<-__libc_start_main()+253
HM: Short Stack of root session ID 3400, OSPID 105251 of hang ID 1
Short stack dump:
ksedsts()+465<-ksdxfstk()+32<-ksdxcb()+1927<-sspuser()+112<-__sighandler()<-pwrite(

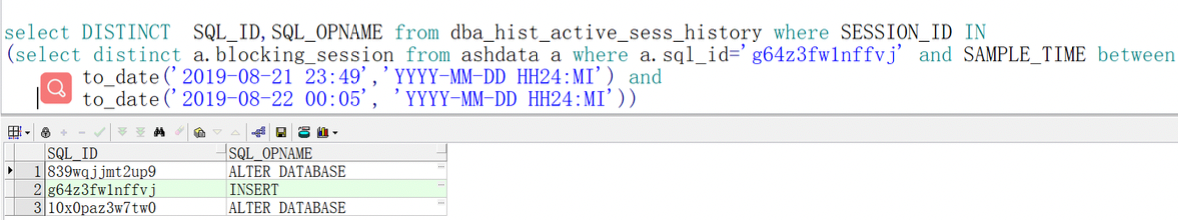

从上述trace文件可以看出系统HANG住的可能原因是session_id为 3400的会话引起的。根据查看dba_hist_active_sess_history视图可以看出session_id为 3400的会话就是alter database datafile resize的操作。

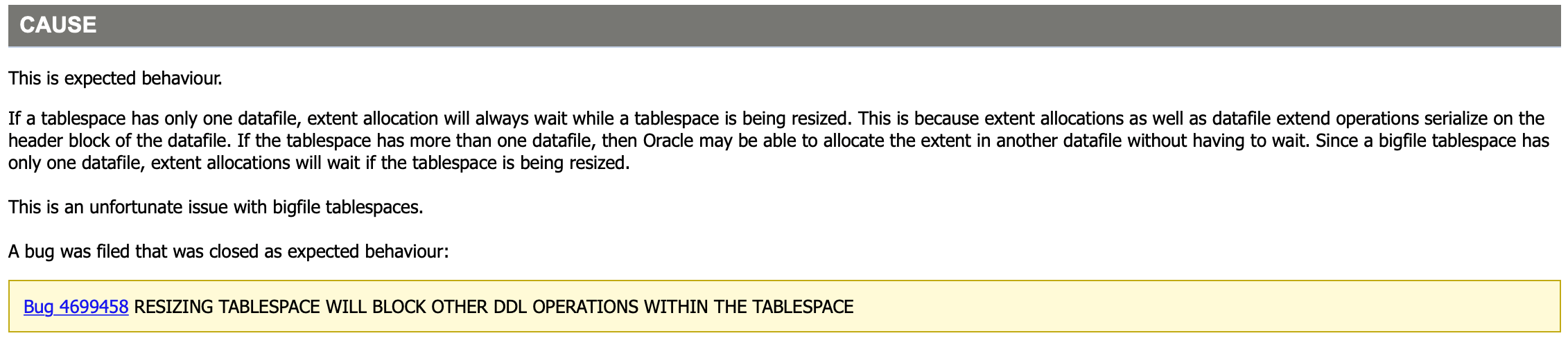

根据该故障现象,查询mos发现:Alter Tablespace Resize on Bigfile Tablespace Causes Sessions to Hang with ‘Enq: TX - contention’ and ‘Buffer busy waits’ (Doc ID 2089689.1) ,说明ORACLE 11.2.0.4及后续版本中存在该BUG,调整表空间大小时将阻塞表空间中的其他DDL操作。
问题解决
-
建议在数据库负载较低的时候进行数据文件扩容
-
建议每次表空间扩容的大小不要过大
