ZooKeeper分布式集群安装和配置

九万里大数据 2021-07-08

348

ZooKeeper在分布式系统上用的非常多，包括HDFS, HBase, Kafka, YARN, ClickHouse等都借助ZooKeeper实现服务的高可用性。这里介绍ZooKeeper分布式集群的安装和配置。

安装JDK

首先需要安装JDK

下载安装包

ZooKeeper官网^[1]

目前最新的ZooKeeper稳定版是3.6.3，可以通过以下地址找到离自己最近的镜像站点下载安装包。https://www.apache.org/dyn/closer.lua/zookeeper/zookeeper-3.6.3/apache-zookeeper-3.6.3-bin.tar.gz

比如，清华大学的镜像下载地址。https://mirrors.tuna.tsinghua.edu.cn/apache/zookeeper/zookeeper-3.6.3/apache-zookeeper-3.6.3-bin.tar.gz

下载后校验一下安装包的完整性，可以与官网sha512值^[2]比对。

[root@centos1 ~]# sha512sum apache-zookeeper-3.6.3-bin.tar.gz
3f7b1b7d9cf5647d52ad0076c922e108fa956e986b5624667c493cf6d8ff09d3ca88f623c79a799fe49c72e868cb3c9d0f77cb69608de74a183b2cbad10bc827  apache-zookeeper-3.6.3-bin.tar.gz

安装和配置

# 解压
tar -zxf apache-zookeeper-3.6.3-bin.tar.gz -C /usr/local
chown -R root:root /usr/local/apache-zookeeper-3.6.3-bin
ln -s /usr/local/apache-zookeeper-3.6.3-bin /usr/local/zookeeper

# 设置环境变量
vi /etc/profile

# ZooKeeper
export ZOOKEEPER_HOME=/usr/local/zookeeper
export PATH=$PATH:$ZOOKEEPER_HOME/bin

source /etc/profile

# 修改配置文件
cd /usr/local/zookeeper/conf
cp zoo_sample.cfg zoo.cfg

vi zoo.cfg

将zoo.cfg按照实际情况修改，比如以下是我三节点集群的配置。

# The number of milliseconds of each tick
tickTime=2000
# The number of ticks that the initial
# synchronization phase can take
initLimit=10
# The number of ticks that can pass between
# sending a request and getting an acknowledgement
syncLimit=5
# the directory where the snapshot is stored.
# do not use tmp for storage, /tmp here is just
# example sakes.
dataDir=/var/lib/zookeeper
dataLogDir=/var/lib/zookeeper
# the port at which the clients will connect
clientPort=2181
# the maximum number of client connections.
# increase this if you need to handle more clients
#maxClientCnxns=60
#
# Be sure to read the maintenance section of the
# administrator guide before turning on autopurge.
#
# http://zookeeper.apache.org/doc/current/zookeeperAdmin.html#sc_maintenance
#
# The number of snapshots to retain in dataDir
#autopurge.snapRetainCount=3
# Purge task interval in hours
# Set to "0" to disable auto purge feature
#autopurge.purgeInterval=1

## Metrics Providers
#
# https://prometheus.io Metrics Exporter
#metricsProvider.className=org.apache.zookeeper.metrics.prometheus.PrometheusMetricsProvider
#metricsProvider.httpPort=7000
#metricsProvider.exportJvmInfo=true

server.1=centos1:2888:3888
server.2=centos2:2888:3888
server.3=centos3:2888:3888

# 创建数据目录和日志目录
mkdir -p /var/lib/zookeeper
mkdir -p /var/log/zookeeper

# centos1
echo "1" > /var/lib/zookeeper/myid

# centos2
echo "2" > /var/lib/zookeeper/myid

# centos3
echo "3" > /var/lib/zookeeper/myid

# 启动ZooKeeper

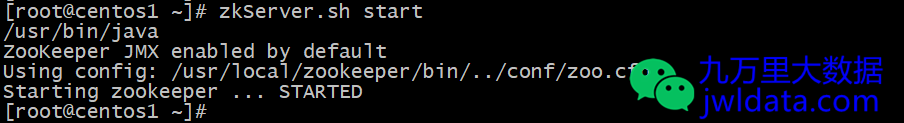

zkServer.sh start

# 查询ZooKeeper服务状态

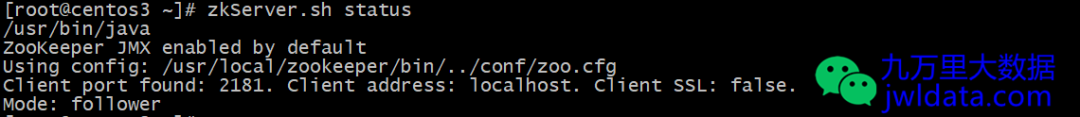

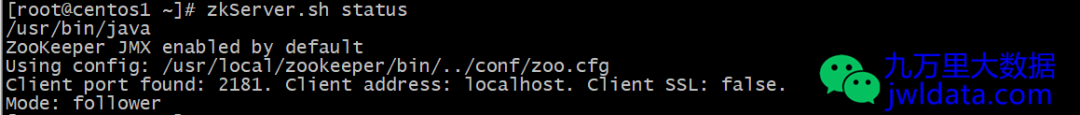

zkServer.sh status

# 客户端连接ZooKeeper

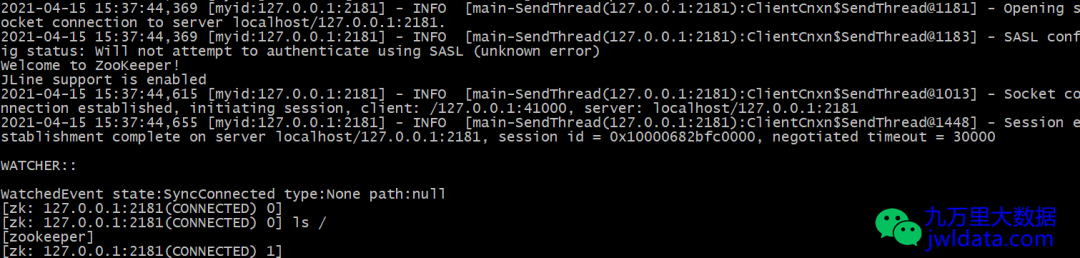

zkCli.sh -server 127.0.0.1:2181

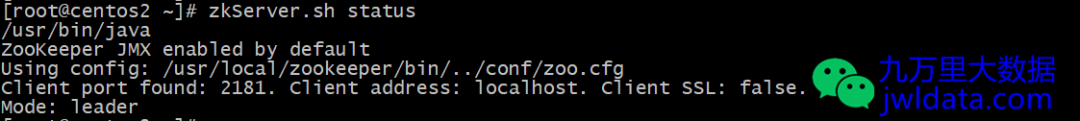

可以看到启动了两个follower，一个leader

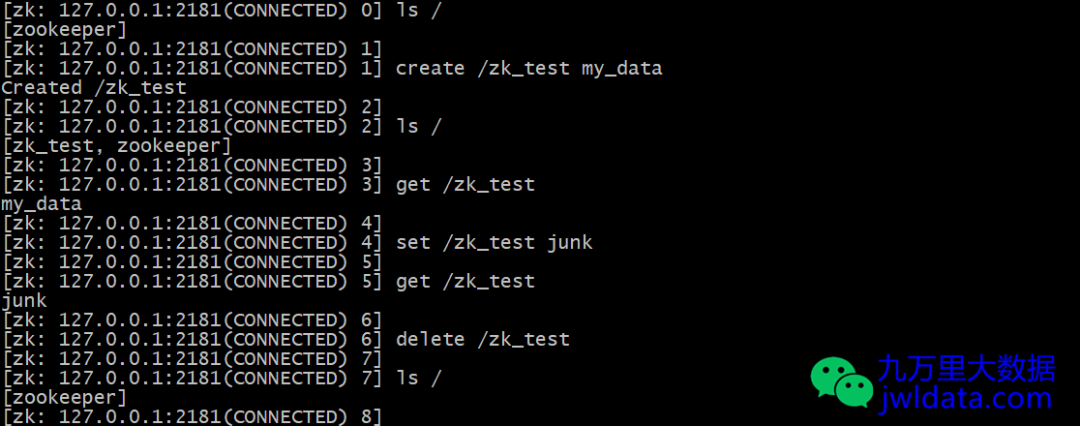

测试ZooKeeper

ls /

# 创建一个znode，关联字符串为my_data
create /zk_test my_data

# 获取这个znode关联的数据
get /zk_test

# 重新设置znode的关联数据
set /zk_test junk

# 删除znode
delete /zk_test
