作者
digoal
日期
2018-06-01
标签
PostgreSQL , pg_receivewal , pg_recvlogical
背景

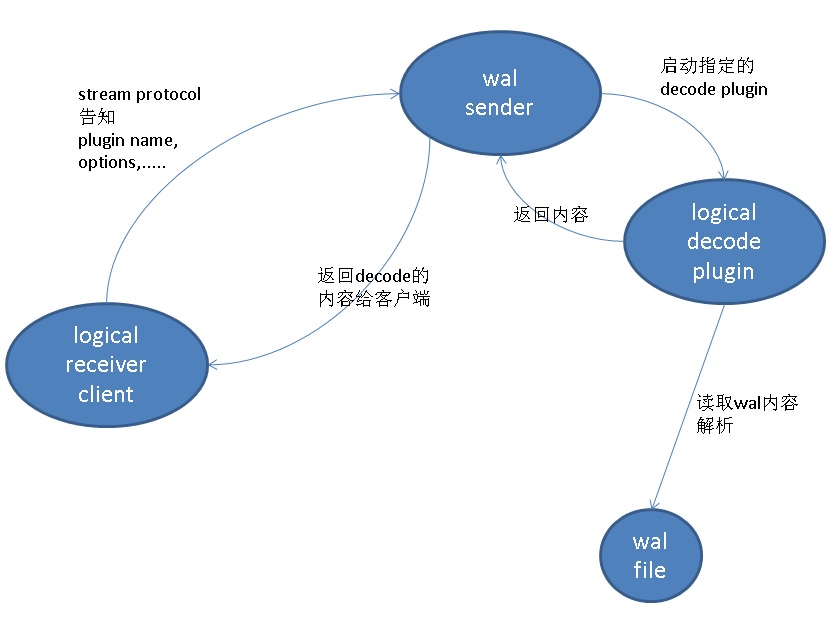

pg_recvlogical 是PG提供的一个通过流复制协议，实时接收数据库逻辑变更的命令行客户端。
逻辑变更内容的来源是上游数据库的wal sender进程调用logical decode plugin处理的。
通过给decode plugin传递plugin option，可以实现参数的传递。
PostgreSQL 9.5后引入的特性，支持通过流复制协议传递option, value.
stream protocol 协议支持option上报
https://www.postgresql.org/docs/10/static/protocol-replication.html
```
START_REPLICATION SLOT slot_name LOGICAL XXX/XXX [ ( option_name [ option_value ] [, ...] ) ]
Instructs server to start streaming WAL for logical replication, starting at WAL location XXX/XXX. The server can reply with an error, for example if the requested section of WAL has already been recycled. On success, server responds with a CopyBothResponse message, and then starts to stream WAL to the frontend.
The messages inside the CopyBothResponse messages are of the same format documented for START_REPLICATION ... PHYSICAL.
The output plugin associated with the selected slot is used to process the output for streaming.
SLOT slot_name
The name of the slot to stream changes from. This parameter is required, and must correspond to an existing logical replication slot created with CREATE_REPLICATION_SLOT in LOGICAL mode.
XXX/XXX
The WAL location to begin streaming at.
option_name
The name of an option passed to the slot's logical decoding plugin.
option_value
Optional value, in the form of a string constant, associated with the specified option.
```
所以，从9.5开始，我们可以在客户端向服务端的decode plugin传递信息，例如告诉decode plugin，想同步哪些表，哪些条件等等（当然这些需要在decode plugin中有对应逻辑）。
test_decode是pg内置的一个逻辑decode插件，通过修改test_decode，可以实现需要的格式输出，例如JSON。也可以实现TABLE的过滤等。
通过修改客户端pg_recvlogical 的代码，可以实现通过stream protocol上报需要过滤什么TABLE，以及写入到出标准输出、文件以外的例如kafka或者其他目标端。
pg_recvlogical
https://www.postgresql.org/docs/10/static/app-pgrecvlogical.html
```
-o name[=value]
--option=name[=value]
Pass the option name to the output plugin with, if specified, the option value value. Which options exist and their effects depends on the used output plugin.
-P plugin
--plugin=plugin
When creating a slot, use the specified logical decoding output plugin. See Chapter 48. This option has no effect if the slot already exists.
-F interval_seconds
--fsync-interval=interval_seconds
Specifies how often pg_recvlogical should issue fsync() calls to ensure the output file is safely flushed to disk.
The server will occasionally request the client to perform a flush and report the flush position to the server. This setting is in addition to that, to perform flushes more frequently.
Specifying an interval of 0 disables issuing fsync() calls altogether, while still reporting progress to the server. In this case, data could be lost in the event of a crash.
```
logical 代码
https://www.postgresql.org/docs/10/static/logicaldecoding-output-plugin.html
初始化decodeing
src/backend/replication/logical/logical.c
195 /*
196 * Create a new decoding context, for a new logical slot.
197 *
198 * plugin contains the name of the output plugin
199 * output_plugin_options contains options passed to the output plugin
200 * read_page, prepare_write, do_write are callbacks that have to be filled to
201 * perform the use-case dependent, actual, work.
202 *
203 * Needs to be called while in a memory context that's at least as long lived
204 * as the decoding context because further memory contexts will be created
205 * inside it.
206 *
207 * Returns an initialized decoding context after calling the output plugin's
208 * startup function.
209 */
210 LogicalDecodingContext *
211 CreateInitDecodingContext(char *plugin,
212 List *output_plugin_options, // 传递参数
213 bool need_full_snapshot,
214 XLogPageReadCB read_page,
215 LogicalOutputPluginWriterPrepareWrite prepare_write,
216 LogicalOutputPluginWriterWrite do_write)
217 {
test decoding
解析option参数
contrib/test_decoding/test_decoding.c
/* initialize this plugin */
89 static void
90 pg_decode_startup(LogicalDecodingContext *ctx, OutputPluginOptions *opt,
91 bool is_init)
92 {
93 ListCell *option;
94 TestDecodingData *data;
95
96 data = palloc0(sizeof(TestDecodingData));
97 data->context = AllocSetContextCreate(ctx->context,
98 "text conversion context",
99 ALLOCSET_DEFAULT_MINSIZE,
100 ALLOCSET_DEFAULT_INITSIZE,
101 ALLOCSET_DEFAULT_MAXSIZE);
102 data->include_xids = true;
103 data->include_timestamp = false;
104 data->skip_empty_xacts = false;
105 data->only_local = false;
106
107 ctx->output_plugin_private = data;
108
109 opt->output_type = OUTPUT_PLUGIN_TEXTUAL_OUTPUT;
110
111 foreach(option, ctx->output_plugin_options)
112 {
113 DefElem *elem = lfirst(option);
114
115 Assert(elem->arg == NULL || IsA(elem->arg, String));
116
117 if (strcmp(elem->defname, "include-xids") == 0) // 参数
118 {
119 /* if option does not provide a value, it means its value is true */
120 if (elem->arg == NULL)
121 data->include_xids = true;
122 else if (!parse_bool(strVal(elem->arg), &data->include_xids))
123 ereport(ERROR,
124 (errcode(ERRCODE_INVALID_PARAMETER_VALUE),
125 errmsg("could not parse value \"%s\" for parameter \"%s\"",
126 strVal(elem->arg), elem->defname)));
127 }
128 else if (strcmp(elem->defname, "include-timestamp") == 0) // 参数
129 {
130 if (elem->arg == NULL)
131 data->include_timestamp = true;
132 else if (!parse_bool(strVal(elem->arg), &data->include_timestamp))
133 ereport(ERROR,
134 (errcode(ERRCODE_INVALID_PARAMETER_VALUE),
135 errmsg("could not parse value \"%s\" for parameter \"%s\"",
136 strVal(elem->arg), elem->defname)));
137 }
138 else if (strcmp(elem->defname, "force-binary") == 0) // 参数
139 {
140 bool force_binary;
141
142 if (elem->arg == NULL)
143 continue;
144 else if (!parse_bool(strVal(elem->arg), &force_binary))
145 ereport(ERROR,
146 (errcode(ERRCODE_INVALID_PARAMETER_VALUE),
147 errmsg("could not parse value \"%s\" for parameter \"%s\"",
148 strVal(elem->arg), elem->defname)));
149
150 if (force_binary)
151 opt->output_type = OUTPUT_PLUGIN_BINARY_OUTPUT;
152 }
153 else if (strcmp(elem->defname, "skip-empty-xacts") == 0) // 参数
154 {
155
156 if (elem->arg == NULL)
157 data->skip_empty_xacts = true;
158 else if (!parse_bool(strVal(elem->arg), &data->skip_empty_xacts))
159 ereport(ERROR,
160 (errcode(ERRCODE_INVALID_PARAMETER_VALUE),
161 errmsg("could not parse value \"%s\" for parameter \"%s\"",
162 strVal(elem->arg), elem->defname)));
163 }
164 else if (strcmp(elem->defname, "only-local") == 0) // 参数
165 {
166
167 if (elem->arg == NULL)
168 data->only_local = true;
169 else if (!parse_bool(strVal(elem->arg), &data->only_local))
170 ereport(ERROR,
171 (errcode(ERRCODE_INVALID_PARAMETER_VALUE),
172 errmsg("could not parse value \"%s\" for parameter \"%s\"",
173 strVal(elem->arg), elem->defname)));
174 }
175 else
176 {
177 ereport(ERROR,
178 (errcode(ERRCODE_INVALID_PARAMETER_VALUE),
179 errmsg("option \"%s\" = \"%s\" is unknown",
180 elem->defname,
181 elem->arg ? strVal(elem->arg) : "(null)")));
182 }
183 }
184 }
185
参考
https://www.2ndquadrant.com/en/resources/pglogical/
https://github.com/eulerto/wal2json
https://github.com/debezium/postgres-decoderbufs
https://debezium.io/docs/connectors/postgresql/
函数接口
https://www.postgresql.org/docs/devel/static/functions-admin.html#FUNCTIONS-REPLICATION
https://www.postgresql.org/docs/devel/static/test-decoding.html
wal2json+debezium
https://github.com/fatihmehmetkose/debezium-aws-rds-config-scripts
