作者
digoal
日期
2016-01-07
标签
PostgreSQL , xfs , ext4 , 性能 , iozone
背景
之前使用PostgreSQL测试了xfs和ext4在tpc-b方面的性能，XFS完胜。
接下来使用专业的io测试软件iozone测试一下。
安装参考
测试case:
2G文件，单个请求8K到16MB分布，测试所有的iozone case，全程使用O_DIRECT。
[root@digoal current]# ./iozone -Ra -I -+u -y 8k -q 16m -g 2G -n 2G -f /data01/test -b /data01/test.wks
详细的参数请参考iozone -h
测试结果如下
./iozone -Ra -I -+u -y 8k -q 16m -g 2G -n 2G -f /data01/test -b /data01/test.wks

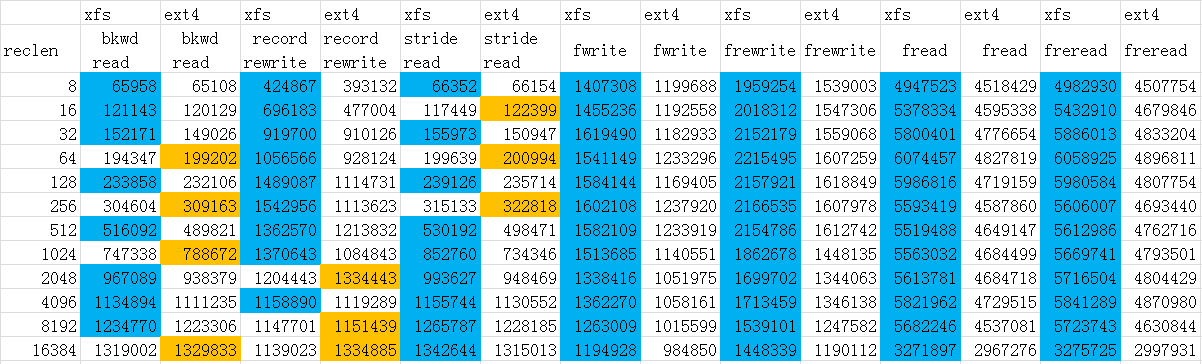

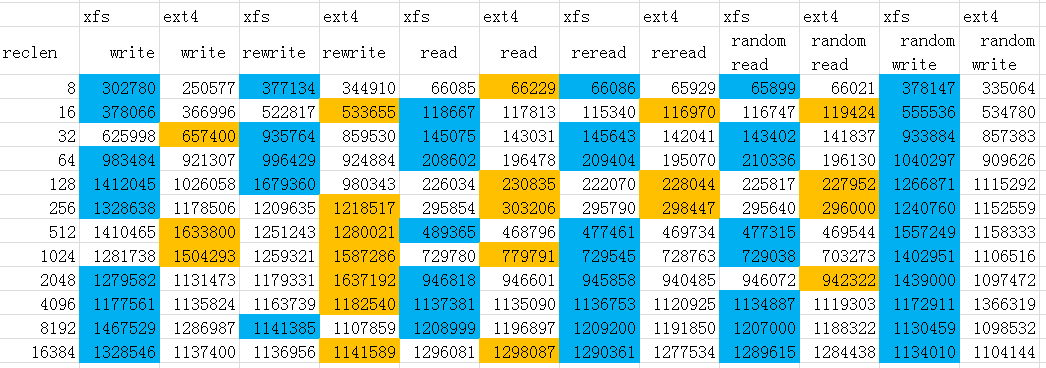

附图
蓝色表示XFS胜出
桔色表示EXT4胜出
详细报告
XFS
```
Iozone: Performance Test of File I/O
Version $Revision: 3.434 $
Compiled for 64 bit mode.
Build: linux-AMD64
Contributors:William Norcott, Don Capps, Isom Crawford, Kirby Collins
Al Slater, Scott Rhine, Mike Wisner, Ken Goss
Steve Landherr, Brad Smith, Mark Kelly, Dr. Alain CYR,
Randy Dunlap, Mark Montague, Dan Million, Gavin Brebner,
Jean-Marc Zucconi, Jeff Blomberg, Benny Halevy, Dave Boone,
Erik Habbinga, Kris Strecker, Walter Wong, Joshua Root,
Fabrice Bacchella, Zhenghua Xue, Qin Li, Darren Sawyer,
Vangel Bojaxhi, Ben England, Vikentsi Lapa,
Alexey Skidanov.
Run began: Thu Jan 7 17:59:58 2016
Excel chart generation enabled
Auto Mode
O_DIRECT feature enabled
CPU utilization Resolution = 0.001 seconds.
CPU utilization Excel chart enabled
Using Minimum Record Size 8 kB
Using Maximum Record Size 16384 kB
Using maximum file size of 2097152 kilobytes.
Using minimum file size of 2097152 kilobytes.
Command line used: ./iozone -Ra -I -+u -y 8k -q 16m -g 2G -n 2G -f /data01/test -b /data01/test.wks
Output is in kBytes/sec
Time Resolution = 0.000001 seconds.
Processor cache size set to 1024 kBytes.
Processor cache line size set to 32 bytes.
File stride size set to 17 * record size.
random random bkwd record stride
kB reclen write rewrite read reread read write read rewrite read fwrite frewrite fread freread
2097152 8 302780 377134 66085 66086 65899 378147 65958 424867 66352 1407308 1959254 4947523 4982930
2097152 16 378066 522817 118667 115340 116747 555536 121143 696183 117449 1455236 2018312 5378334 5432910
2097152 32 625998 935764 145075 145643 143402 933884 152171 919700 155973 1619490 2152179 5800401 5886013
2097152 64 983484 996429 208602 209404 210336 1040297 194347 1056566 199639 1541149 2215495 6074457 6058925
2097152 128 1412045 1679360 226034 222070 225817 1266871 233858 1489087 239126 1584144 2157921 5986816 5980584
2097152 256 1328638 1209635 295854 295790 295640 1240760 304604 1542956 315133 1602108 2166535 5593419 5606007
2097152 512 1410465 1251243 489365 477461 477315 1557249 516092 1362570 530192 1582109 2154786 5519488 5612986
2097152 1024 1281738 1259321 729780 729545 729038 1402951 747338 1370643 852760 1513685 1862678 5563032 5669741
2097152 2048 1279582 1179331 946818 945858 946072 1439000 967089 1204443 993627 1338416 1699702 5613781 5716504
2097152 4096 1177561 1163739 1137381 1136753 1134887 1172911 1134894 1158890 1155744 1362270 1713459 5821962 5841289
2097152 8192 1467529 1141385 1208999 1209200 1207000 1130459 1234770 1147701 1265787 1263009 1539101 5682246 5723743
2097152 16384 1328546 1136956 1296081 1290361 1289615 1134010 1319002 1139023 1342644 1194928 1448339 3271897 3275725
iozone test complete.
Excel output is below:
"Writer report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 302780 378066 625998 983484 1412045 1328638 1410465 1281738 1279582 1177561 1467529 1328546
"Re-writer report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 377134 522817 935764 996429 1679360 1209635 1251243 1259321 1179331 1163739 1141385 1136956
"Reader report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 66085 118667 145075 208602 226034 295854 489365 729780 946818 1137381 1208999 1296081
"Re-Reader report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 66086 115340 145643 209404 222070 295790 477461 729545 945858 1136753 1209200 1290361
"Random read report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 65899 116747 143402 210336 225817 295640 477315 729038 946072 1134887 1207000 1289615
"Random write report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 378147 555536 933884 1040297 1266871 1240760 1557249 1402951 1439000 1172911 1130459 1134010
"Backward read report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 65958 121143 152171 194347 233858 304604 516092 747338 967089 1134894 1234770 1319002
"Record rewrite report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 424867 696183 919700 1056566 1489087 1542956 1362570 1370643 1204443 1158890 1147701 1139023
"Stride read report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 66352 117449 155973 199639 239126 315133 530192 852760 993627 1155744 1265787 1342644
"Fwrite report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 1407308 1455236 1619490 1541149 1584144 1602108 1582109 1513685 1338416 1362270 1263009 1194928
"Re-Fwrite report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 1959254 2018312 2152179 2215495 2157921 2166535 2154786 1862678 1699702 1713459 1539101 1448339
"Fread report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 4947523 5378334 5800401 6074457 5986816 5593419 5519488 5563032 5613781 5821962 5682246 3271897
"Re-Fread report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 4982930 5432910 5886013 6058925 5980584 5606007 5612986 5669741 5716504 5841289 5723743 3275725
"Writer CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 54.60 60.17 72.35 81.03 87.45 96.28 99.24 99.58 100.00 99.94 100.00 99.85
"Re-writer CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 41.65 49.19 58.72 79.53 84.88 97.24 99.75 99.85 100.00 100.00 100.00 100.00
"Reader CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 6.29 9.19 8.98 11.43 8.70 17.45 25.29 44.20 61.47 76.23 83.77 88.55
"Re-Reader CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 6.31 10.92 8.33 10.67 13.17 17.47 28.20 44.02 61.22 76.02 83.48 88.40
"Random read CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 6.52 10.29 10.63 9.88 8.71 17.52 28.22 44.01 61.30 75.96 83.35 88.45
"Random write CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 42.99 49.59 58.69 78.72 88.92 97.14 98.97 99.80 99.61 100.00 99.88 100.00
"Backward read CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 6.50 8.27 8.79 12.94 8.79 18.04 26.06 44.54 62.80 76.34 84.38 90.53
"Record rewrite CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 47.12 54.67 60.43 81.31 86.91 96.68 99.08 99.87 100.00 100.00 100.00 100.00
"Stride read CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 6.53 10.85 9.39 13.30 11.58 17.46 26.67 37.29 64.48 77.26 86.61 92.06
"Fwrite CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 92.75 99.01 91.39 99.86 99.81 99.95 99.74 99.12 99.95 99.17 99.99 99.95
"Re-Fwrite CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 99.00 99.25 99.44 98.75 99.72 99.92 94.73 97.81 95.14 100.00 99.81 100.00
"Fread CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 100.00 100.00 100.00 100.00 100.00 100.00 99.98 99.96 100.00 100.00 100.00 100.00
"Re-Fread CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 100.00 99.99 99.35 99.95 100.00 100.00 100.00 100.00 100.00 100.00 100.00 100.00
```
EXT4
```
Iozone: Performance Test of File I/O
Version $Revision: 3.434 $
Compiled for 64 bit mode.
Build: linux-AMD64
Contributors:William Norcott, Don Capps, Isom Crawford, Kirby Collins
Al Slater, Scott Rhine, Mike Wisner, Ken Goss
Steve Landherr, Brad Smith, Mark Kelly, Dr. Alain CYR,
Randy Dunlap, Mark Montague, Dan Million, Gavin Brebner,
Jean-Marc Zucconi, Jeff Blomberg, Benny Halevy, Dave Boone,
Erik Habbinga, Kris Strecker, Walter Wong, Joshua Root,
Fabrice Bacchella, Zhenghua Xue, Qin Li, Darren Sawyer,
Vangel Bojaxhi, Ben England, Vikentsi Lapa,
Alexey Skidanov.
Run began: Thu Jan 7 18:00:06 2016
Excel chart generation enabled
Auto Mode
O_DIRECT feature enabled
CPU utilization Resolution = 0.001 seconds.
CPU utilization Excel chart enabled
Using Minimum Record Size 8 kB
Using Maximum Record Size 16384 kB
Using maximum file size of 2097152 kilobytes.
Using minimum file size of 2097152 kilobytes.
Command line used: ./iozone -Ra -I -+u -y 8k -q 16m -g 2G -n 2G -f /data01/test -b /data01/test.wks
Output is in kBytes/sec
Time Resolution = 0.000001 seconds.
Processor cache size set to 1024 kBytes.
Processor cache line size set to 32 bytes.
File stride size set to 17 * record size.
random random bkwd record stride
kB reclen write rewrite read reread read write read rewrite read fwrite frewrite fread freread
2097152 8 250577 344910 66229 65929 66021 335064 65108 393132 66154 1199688 1539003 4518429 4507754
2097152 16 366996 533655 117813 116970 119424 534780 120129 477004 122399 1192558 1547306 4595338 4679846
2097152 32 657400 859530 143031 142041 141837 857383 149026 910126 150947 1182933 1559068 4776654 4833204
2097152 64 921307 924884 196478 195070 196130 909626 199202 928124 200994 1233296 1607259 4827819 4896811
2097152 128 1026058 980343 230835 228044 227952 1115292 232106 1114731 235714 1169405 1618849 4719159 4807754
2097152 256 1178506 1218517 303206 298447 296000 1152559 309163 1113623 322818 1237920 1607978 4587860 4693440
2097152 512 1633800 1280021 468796 469734 469544 1158333 489821 1213832 498471 1233919 1612742 4649147 4762716
2097152 1024 1504293 1587286 779791 728763 703273 1106516 788672 1084843 734346 1140551 1448135 4684499 4793501
2097152 2048 1131473 1637192 946601 940485 942322 1097472 938379 1334443 948469 1051975 1344063 4684718 4804429
2097152 4096 1135824 1182540 1135090 1120925 1119303 1366319 1111235 1119289 1130552 1058161 1346138 4729515 4870980
2097152 8192 1286987 1107859 1196897 1191850 1188322 1098532 1223306 1151439 1228185 1015599 1247582 4537081 4630844
2097152 16384 1137400 1141589 1298087 1277534 1284438 1104144 1329833 1334885 1315013 984850 1190112 2967276 2997931
iozone test complete.
Excel output is below:
"Writer report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 250577 366996 657400 921307 1026058 1178506 1633800 1504293 1131473 1135824 1286987 1137400
"Re-writer report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 344910 533655 859530 924884 980343 1218517 1280021 1587286 1637192 1182540 1107859 1141589
"Reader report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 66229 117813 143031 196478 230835 303206 468796 779791 946601 1135090 1196897 1298087
"Re-Reader report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 65929 116970 142041 195070 228044 298447 469734 728763 940485 1120925 1191850 1277534
"Random read report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 66021 119424 141837 196130 227952 296000 469544 703273 942322 1119303 1188322 1284438
"Random write report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 335064 534780 857383 909626 1115292 1152559 1158333 1106516 1097472 1366319 1098532 1104144
"Backward read report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 65108 120129 149026 199202 232106 309163 489821 788672 938379 1111235 1223306 1329833
"Record rewrite report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 393132 477004 910126 928124 1114731 1113623 1213832 1084843 1334443 1119289 1151439 1334885
"Stride read report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 66154 122399 150947 200994 235714 322818 498471 734346 948469 1130552 1228185 1315013
"Fwrite report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 1199688 1192558 1182933 1233296 1169405 1237920 1233919 1140551 1051975 1058161 1015599 984850
"Re-Fwrite report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 1539003 1547306 1559068 1607259 1618849 1607978 1612742 1448135 1344063 1346138 1247582 1190112
"Fread report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 4518429 4595338 4776654 4827819 4719159 4587860 4649147 4684499 4684718 4729515 4537081 2967276
"Re-Fread report"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 4507754 4679846 4833204 4896811 4807754 4693440 4762716 4793501 4804429 4870980 4630844 2997931
"Writer CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 60.64 62.79 72.53 83.28 93.97 98.49 98.76 99.60 100.00 100.00 100.00 100.00
"Re-writer CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 43.76 51.58 63.94 82.82 93.63 98.48 99.60 99.59 99.90 100.00 100.00 100.00
"Reader CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 6.81 11.32 11.10 13.06 12.49 13.80 31.00 39.24 64.79 77.93 83.34 89.35
"Re-Reader CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 6.96 11.72 11.94 14.54 15.86 18.24 31.91 45.01 65.08 78.06 83.25 89.22
"Random read CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 7.01 10.59 12.14 13.31 15.89 20.20 31.93 47.75 65.28 78.22 83.02 89.32
"Random write CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 45.04 51.92 63.45 82.84 92.32 98.92 99.47 99.97 99.88 100.00 100.00 100.00
"Backward read CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 7.37 10.29 9.85 9.81 10.58 15.95 27.47 41.10 64.87 77.82 86.46 91.83
"Record rewrite CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 52.51 56.54 73.82 84.31 94.46 99.25 99.26 99.53 99.96 99.97 100.00 100.00
"Stride read CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 6.98 10.55 12.84 14.64 14.86 14.65 28.67 49.69 65.80 77.74 87.26 91.17
"Fwrite CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 96.92 95.70 95.52 93.15 96.91 92.07 93.77 95.17 98.75 98.81 98.90 98.40
"Re-Fwrite CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 89.14 89.42 88.62 88.45 88.13 89.37 88.15 90.24 92.71 89.48 92.73 99.08
"Fread CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 99.97 100.00 99.98 100.00 100.00 99.96 99.96 100.00 100.00 100.00 99.96 100.00
"Re-Fread CPU utilization report (Zero values should be ignored)"
"8" "16" "32" "64" "128" "256" "512" "1024" "2048" "4096" "8192" "16384"
"2097152" 99.94 99.96 100.00 99.93 99.95 100.00 100.00 100.00 100.00 100.00 99.94 99.99
```
PostgreSQL 许愿链接
您的愿望将传达给PG kernel hacker、数据库厂商等, 帮助提高数据库产品质量和功能, 说不定下一个PG版本就有您提出的功能点. 针对非常好的提议，奖励限量版PG文化衫、纪念品、贴纸、PG热门书籍等，奖品丰富，快来许愿。开不开森.
9.9元购买3个月阿里云RDS PostgreSQL实例
PostgreSQL 解决方案集合
德哥 / digoal's github - 公益是一辈子的事.
