作者
digoal
日期
2019-11-21
标签
PostgreSQL , 阿里云 , rds , essd , 三副本 , 云盘加密 , 100万 , 32T , 4GB/s
背景
ESSD云盘支持
- 3副本，
- 最高100万iops，
- 4GB/s读写带宽，
- 支持单盘最高32TB，
- 支持云盘加密特性。
ESSD云盘在可靠性、性能、容量、安全性等方面已经全面碾压本地ssd存储。

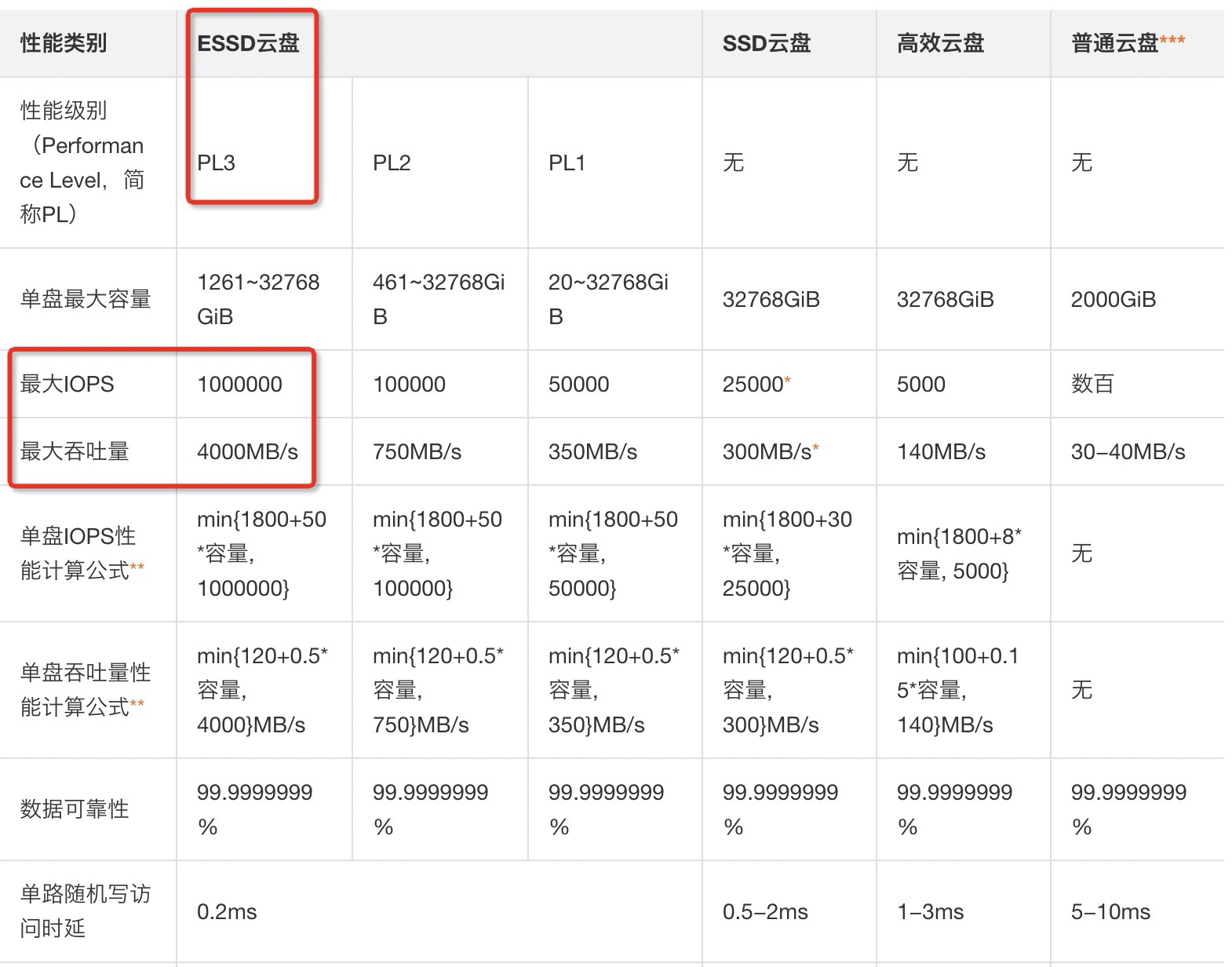

云盘性能算法如下
https://help.aliyun.com/document_detail/25382.html
RDS PG 11高可用版现已支持essd pl1, pl2, pl3 三级存储，满足超高性能要求用户需求。
RDS PG 11 + ESSD PL3的测试数据
测试环境：
ecs : 16C 64G
阿里云 RDS PG 11 高可用版
```
32C 128G
ESSD 2400GB
IOPS（4KB） = 1800+2400*50 = 121800
```
ecs和rds pg 11在同一个可用区。
tpcc
生成1000仓库
nohup time ./tpcc.lua --pgsql-host=pgm-bp11lllmi55hyq68118070.pg.rds.aliyuncs.com --pgsql-port=3433 --pgsql-user=dtstest --pgsql-db=db1 --threads=64 --tables=1 --scale=1000 --trx_level=RC --db-ps-mode=auto --db-driver=pgsql prepare >./out.log 2>&1 &
压测
nohup ./tpcc.lua --pgsql-host=pgm-bp11lllmi55hyq68118070.pg.rds.aliyuncs.com --pgsql-port=3433 --pgsql-user=dtstest --pgsql-db=db1 --threads=64 --tables=1 --scale=1000 --trx_level=RC --db-ps-mode=auto --db-driver=pgsql --time=1800 --report-interval=5 --enable_purge=yes run >./dtstest.log 2>&1 &
压测结果
```
SQL statistics:
queries performed:
read: 111590193
write: 115045439
other: 17837510
total: 244473142
transactions: 8917123 (4953.78 per sec.)
queries: 244473142 (135813.43 per sec.)
ignored errors: 37353 (20.75 per sec.)
reconnects: 0 (0.00 per sec.)
General statistics:
total time: 1800.0644s
total number of events: 8917123
Latency (ms):
min: 1.14
avg: 12.92
max: 2543.63
95th percentile: 33.12
sum: 115178705.70
Threads fairness:
events (avg/stddev): 139330.0469/1917.73
execution time (avg/stddev): 1799.6673/0.05
```
tpmc total 29.7万。
4953.78 * 60 = 297226.8
tpcb - select only
生成1亿数据量tpcb测试数据
pgbench -i -s 1000
压测
pgbench -M prepared -n -r -P 1 -c 256 -j 256 -T 1800 -S
压测结果
transaction type: <builtin: select only>
scaling factor: 1000
query mode: prepared
number of clients: 192
number of threads: 192
duration: 1800 s
number of transactions actually processed: 887059272
latency average = 0.385 ms
latency stddev = 0.609 ms
tps = 492757.587922 (including connections establishing)
tps = 493187.853109 (excluding connections establishing)
statement latencies in milliseconds:
0.001 \set aid random(1, 100000 * :scale)
0.388 SELECT abalance FROM pgbench_accounts WHERE aid = :aid;
49.3 万 qps
tpcb rw
压测
pgbench -M prepared -n -r -P 1 -c 128 -j 128 -T 1800
压测结果
transaction type: <builtin: TPC-B (sort of)>
scaling factor: 1000
query mode: prepared
number of clients: 128
number of threads: 128
duration: 1800 s
number of transactions actually processed: 95586310
latency average = 2.409 ms
latency stddev = 0.975 ms
tps = 53101.832127 (including connections establishing)
tps = 53115.931045 (excluding connections establishing)
statement latencies in milliseconds:
0.001 \set aid random(1, 100000 * :scale)
0.001 \set bid random(1, 1 * :scale)
0.001 \set tid random(1, 10 * :scale)
0.001 \set delta random(-5000, 5000)
0.263 BEGIN;
0.382 UPDATE pgbench_accounts SET abalance = abalance + :delta WHERE aid = :aid;
0.318 SELECT abalance FROM pgbench_accounts WHERE aid = :aid;
0.343 UPDATE pgbench_tellers SET tbalance = tbalance + :delta WHERE tid = :tid;
0.363 UPDATE pgbench_branches SET bbalance = bbalance + :delta WHERE bid = :bid;
0.320 INSERT INTO pgbench_history (tid, bid, aid, delta, mtime) VALUES (:tid, :bid, :aid, :delta, CURRENT_TIMESTAMP);
0.415 END;
5.3 万 tps
26.5 万 qps
10万仓库 tpcc on ecs+essd pl3
```
nohup time ./tpcc.lua --pgsql-host=xxx.pg.rds.aliyuncs.com --pgsql-port=3433 --pgsql-user=xxx --pgsql-db=db1 --threads=64 --tables=10 --scale=10000 --trx_level=RC --db-ps-mode=auto --db-driver=pgsql prepare >./out10w.log 2>&1 &
318321.51user 3679.27system 54:56:05elapsed 162%CPU (0avgtext+0avgdata 202560maxresident)k
0inputs+21040outputs (0major+24423633minor)pagefaults 0swaps
```
数据量： 12 TB
数据写入速度： 63.6 MB/s
```
546060+56*60+5;
select 1210241024.0/197765;
```
性能1： 10.55万 tpmc total (总数据12TB , 活跃数据1.2TB)
nohup ./tpcc.lua --pgsql-host=xxx.pg.rds.aliyuncs.com --pgsql-port=3433 --pgsql-user=xxx --pgsql-db=db1 --threads=64 --tables=1 --scale=10000 --trx_level=RC --db-ps-mode=auto --db-driver=pgsql --time=1800 --report-interval=5 --enable_purge=yes run >./dtstest10w1.log 2>&1 &
```
SQL statistics:
queries performed:
read: 39608331
write: 40829975
other: 6335500
total: 86773806
transactions: 3166118 (1758.26 per sec.)
queries: 86773806 (48188.55 per sec.)
ignored errors: 13093 (7.27 per sec.)
reconnects: 0 (0.00 per sec.)
General statistics:
total time: 1800.7124s
total number of events: 3166118
Latency (ms):
min: 0.79
avg: 36.38
max: 2817.36
95th percentile: 114.72
sum: 115198723.81
Threads fairness:
events (avg/stddev): 49470.5938/484.80
execution time (avg/stddev): 1799.9801/0.16
```
性能2： 6.87万 tpmc total (总数据12TB , 活跃数据12TB)
nohup ./tpcc.lua --pgsql-host=xxx.pg.rds.aliyuncs.com --pgsql-port=3433 --pgsql-user=xxx --pgsql-db=db1 --threads=64 --tables=10 --scale=10000 --trx_level=RC --db-ps-mode=auto --db-driver=pgsql --time=1800 --report-interval=5 --enable_purge=yes run >./dtstest10w10.log 2>&1 &
```
SQL statistics:
queries performed:
read: 27315940
write: 26570028
other: 5693886
total: 59579854
transactions: 2061087 (1144.93 per sec.)
queries: 59579854 (33096.61 per sec.)
ignored errors: 8630 (4.79 per sec.)
reconnects: 0 (0.00 per sec.)
General statistics:
total time: 1800.1781s
total number of events: 2061087
Latency (ms):
min: 2.07
avg: 55.89
max: 7487.91
95th percentile: 211.60
sum: 115198007.14
Threads fairness:
events (avg/stddev): 32204.4844/481.00
execution time (avg/stddev): 1799.9689/0.04
```
10万仓库 on ecs+nvme local ssd 1.8T * 8
性能1： 22.2 万 tpmc total (总数据12TB , 活跃数据1.2TB)
```
SQL statistics:
queries performed:
read: 83316006
write: 85894431
other: 13325546
total: 182535983
transactions: 6661141 (3700.10 per sec.)
queries: 182535983 (101394.33 per sec.)
ignored errors: 27925 (15.51 per sec.)
reconnects: 0 (0.00 per sec.)
General statistics:
total time: 1800.2559s
total number of events: 6661141
Latency (ms):
min: 0.25
avg: 17.29
max: 5217.87
95th percentile: 47.47
sum: 115179905.71
Threads fairness:
events (avg/stddev): 104080.3281/576.09
execution time (avg/stddev): 1799.6860/0.04
```
性能2： 10.8 万 tpmc total (总数据12TB , 活跃数据12TB)
```
SQL statistics:
queries performed:
read: 43001613
write: 41838242
other: 8943132
total: 93782987
transactions: 3242928 (1800.99 per sec.)
queries: 93782987 (52083.29 per sec.)
ignored errors: 13448 (7.47 per sec.)
reconnects: 0 (0.00 per sec.)
General statistics:
total time: 1800.6332s
total number of events: 3242928
Latency (ms):
min: 0.70
avg: 35.52
max: 3815.74
95th percentile: 134.90
sum: 115191966.63
Threads fairness:
events (avg/stddev): 50670.7500/296.03
execution time (avg/stddev): 1799.8745/0.06
```
小结
RDS PG 11 + ESSD在一台中等规格上达到了49.3W qps, 29.7万 tpmc。啥也别说，买买买！
ESSD云盘在可靠性、性能、容量、安全性等方面已经全面碾压本地ssd存储。
- 3副本，
- 最高100万iops，
- 4GB/s读写带宽，
- 支持单盘最高32TB，
- 支持云盘加密特性。
RDS PG 11高可用版现已支持essd pl1, pl2, pl3 三级存储，满足超高性能要求用户的需求。
测试环境 | 测试场景 | 数据量 | qps | tps
---|---|---|---|---
RDS PG 11 32C128G + ESSD PL3 2400GB | tpcc | 1000仓库(112GB,活跃112GB) | - | 29.7万 tpmc total
RDS PG 11 64C256G + ESSD PL3 32000GB | tpcc | 100000仓库(12TB,活跃1.2TB) | - | 10.55万 tpmc total
RDS PG 11 64C256G + ESSD PL3 32000GB | tpcc | 100000仓库(12TB,活跃12TB) | - | 6.87万 tpmc total
RDS PG 11 64C256G + nvme local ssd 1.8T * 8 | tpcc | 100000仓库(12TB,活跃1.2TB) | - | 22.2万 tpmc total
RDS PG 11 64C256G + nvme local ssd 1.8T * 8 | tpcc | 100000仓库(12TB,活跃12TB) | - | 10.8万 tpmc total
RDS PG 11 32C128G + ESSD PL3 2400GB | tpcb select only | 1亿 | 49.3万 | -
RDS PG 11 32C128G + ESSD PL3 2400GB | tpcb rw | 1亿 | 26.5万 | 5.3万
tpcc测试方法参考:
《PostgreSQL 12 tpcc 测试 - use sysbench-tpcc by Percona-Lab》
tpcb测试方法参考pgbench文档
