操作步骤

• 创建业务表，业务表用于存储带有特征向量的用户数据。

  业务表名称，和表结构请根据实际业务场景自定义。

  为提高特征检索查询效率，业务表必须创建为列存表，同时需要根据特征图片ID创建cstore B-tree索引以便短特征查询时，内部表根据ID使用B-tree进行快速查找。关于创建表的语法请参见CREATE TABLE。

  示例如下：

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

  CREATE TABLE face_data ( id bigint DEFAULT (0)::bigint NOT NULL, accessories integer NOT NULL, race integer NOT NULL, age integer NOT NULL, face_feature bytea, from_image_id bigint, from_person_id bigint, from_video_id bigint, gender integer NOT NULL, image_data character varying(255) DEFAULT NULL::character varying, indexed integer DEFAULT 0 NOT NULL, source_id bigint NOT NULL, source_type integer NOT NULL, time timestamp(6) without time zone NOT NULL, version integer NOT NULL, json character varying(255) DEFAULT NULL::character varying, sequence bigint NOT NULL, quality integer DEFAULT 0 NOT NULL ) WITH (orientation=column) DISTRIBUTE BY HASH (id); create index face_data_idx_id on face_data using btree(id);

• 调用build_vector_config_env创建业务表和特征检索内部表的关联关系。

  调用build_vector_config_env后会生成未编码表、已编码表、模型表三张内部表，及一张关联关系表。三张内部表的名称依次为*_uncode、*_code和*_mode1，其中*代表业务表表名。关联关系表的表名为gpu_vector_info。

  示例如下：

  select * from build_vector_config_env('face_data', 'id' ,'face_feature', 1024, 256, 'algorithm_cpu_pq_model');

  1 2 3 4

  build_vector_config_env ------------------------- (1 row)

  • “face_data”表示业务表名。
  • “id”表示业务表主键名。
  • “face_feature”表示业务表长特征字段名。
  • “algorithm_cpu_pq_model”表示创建关联表时的算法，可以通过select * from pgxc_get_searchlet_algorithm_info();命令查看可选用的算法，其中“algorithm_lopq_model”算法要求训练数据量达到512000条才触发训练。

  执行上述示例后，会生成4张表： face_data_uncode、face_data_code、 face_data_model和gpu_vector_info。

• 通过GDS或COPY向业务表或未编码表中导入数据。方法请参见导入数据。

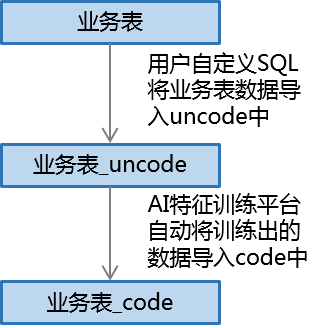

  图1 图像检索表关系图

  • 用户可以向业务表导入数据，再根据实际业务需求自定义SQL将业务表数据导入uncode表中。uncode表的字段比业务表多两个，“model_id integer”表示模型编号，“short_vector bytea”表示是否是短特征。
  • 用户也可以直接向uncode表中导入数据。

  uncode表中的数据量达到阈值后，GaussDB 200所提供的AI特征训练平台会实时从uncode表中读取长特征数据，训练出短特征和模型，并保存到code表中。所以可以通过控制uncode表数据的写入时间来控制特征训练的时间，可以选在业务量较少的晚上进行。

  此时注意导入的数据量需要同时满足以下要求时，才能触发AI特征训练平台训练短特征：

  • 大于或等于配置文件“${BIGDATA_HOME}/FusionInsight_MPPDB_6.5.1/install/FusionInsight-MPPDB-6.5.1/simSearch/TrainServer/config/searchletConfig.yaml”中"trainThreshold"参数值。
  • 大于等于创建关联表时选择的算法要求的最低数据量。如果选择“algorithm_lopq_model ”算法创建的关联表，则数据量需要达到512000条才触发训练。其他算法没有数据量要求。
  说明：

  可通过select * from pgxc_get_searchlet_vector_status() where table_name ='test_table1';命令查询数据是否加载到searchlet中。最后一个字段值为2表示正常、1表示在数据库中上传了数据但是没加载到searchlet模块中，0表示没有上传数据。

  如果训练平台未能正常训练数据，会在FusionInsight Manager界面产生ALM-37027告警。

• 使用短特征和长特征查询接口进行特征检索。

  不带过滤条件的短特征查询示例如下：

  select id,distance from    short_feature_search('face_data', '\x000064420000d24200005d4300000f430000aa4200008d4300004c42000000410000f4420000404300000c420000a2420000004000003743000019430000924300004c4300000c430000e84200005a430080884300004c430000f24200808e4300001041000024430000cc4200004a430000b4420080944300004c4300009343000070420000714300007f4300006d430000f042000010410000d8420000464300000000000078420000474300808d43000089430000b842000044420000de4200008c430000a2420000be42000055430000e642000080420000ca420000804300000b4300808e4300004a4300009242000065430000864300005c4300003a430080824300009841000040400000744300006b4300007243000018420000344200007e430000104300002e4300000b430000a842008084430000904200005843008081430000834300006c430000a841000040400000ae42000088430000744300007f43000078430080924300005d4300000d4300001042000000400000ee4200008b4300007743000073430000614300007b4300002843000038430000c84100006f4300005843008082430000594300000b430000b6420000754300002c42000077430000c040008093430000a0420000da4200000c430000aa4200001f430000a04100000143000070420000204300002a430000044300001743000037430000b6420000803f00808f430000a44200005c4300002b43000095430000384200001f430000e4420000d64200002c430000b84100005041000017430000e04100002e4300000543000071430000da4200000443000042430000e4420000884100009e42000018420000f442000067430000f8420000494300007e43000078420000804300007a430000734300000000000009430000584300007c4300008943000087430000164300003041000086430000bc420000454300000c4300009343000091430000f04100008843000011430000124300002d4300808a4300003143000004430080934300000c4300008f430000b041000090420000764300008f43000022430000c64200003c430000b0410000a0410000904100001f43000043430000d64200003e43000064430080844300006c420000ee42000018420000e040000050420000504100006443000038430000cc420000384300007b4300002b430000c24200002c420000d4420000a0400000844300007041000075430000084200001943000056430000934300009c4200005543000082430000644200808643000088430000704300005b430000e040000030420000154300008e43000086430000a24200000e43000010420000404200005943000078420000c242000055430000304100001343000014430000c64200004543000088420000444300003442',1,1) as (id bigint,accessories integer,race integer,age integer,face_feature bytea,from_image_id bigint,from_person_id bigint,from_video_id bigint,gender integer,image_data character varying(255),indexed integer,source_id bigint,source_type integer,time timestamp(6) without time zone,version integer,json character varying(255),sequence bigint,quality integer,target_id bigint,distance float4) order by distance asc limit 10;

  带过滤条件的短特征查询示例如下：

  select id,distance from    short_feature_search('face_data', '\x000064420000d24200005d4300000f430000aa4200008d4300004c42000000410000f4420000404300000c420000a2420000004000003743000019430000924300004c4300000c430000e84200005a430080884300004c430000f24200808e4300001041000024430000cc4200004a430000b4420080944300004c4300009343000070420000714300007f4300006d430000f042000010410000d8420000464300000000000078420000474300808d43000089430000b842000044420000de4200008c430000a2420000be42000055430000e642000080420000ca420000804300000b4300808e4300004a4300009242000065430000864300005c4300003a430080824300009841000040400000744300006b4300007243000018420000344200007e430000104300002e4300000b430000a842008084430000904200005843008081430000834300006c430000a841000040400000ae42000088430000744300007f43000078430080924300005d4300000d4300001042000000400000ee4200008b4300007743000073430000614300007b4300002843000038430000c84100006f4300005843008082430000594300000b430000b6420000754300002c42000077430000c040008093430000a0420000da4200000c430000aa4200001f430000a04100000143000070420000204300002a430000044300001743000037430000b6420000803f00808f430000a44200005c4300002b43000095430000384200001f430000e4420000d64200002c430000b84100005041000017430000e04100002e4300000543000071430000da4200000443000042430000e4420000884100009e42000018420000f442000067430000f8420000494300007e43000078420000804300007a430000734300000000000009430000584300007c4300008943000087430000164300003041000086430000bc420000454300000c4300009343000091430000f04100008843000011430000124300002d4300808a4300003143000004430080934300000c4300008f430000b041000090420000764300008f43000022430000c64200003c430000b0410000a0410000904100001f43000043430000d64200003e43000064430080844300006c420000ee42000018420000e040000050420000504100006443000038430000cc420000384300007b4300002b430000c24200002c420000d4420000a0400000844300007041000075430000084200001943000056430000934300009c4200005543000082430000644200808643000088430000704300005b430000e040000030420000154300008e43000086430000a24200000e43000010420000404200005943000078420000c242000055430000304100001343000014430000c64200004543000088420000444300003442',1,1, 'time<''2018-01-05 00:00:00''') as (id bigint,accessories integer,race integer,age integer,face_feature bytea,from_image_id bigint,from_person_id bigint,from_video_id bigint,gender integer,image_data character varying(255),indexed integer,source_id bigint,source_type integer,time timestamp(6) without time zone,version integer,json character varying(255),sequence bigint,quality integer,target_id bigint,distance float4) order by distance asc limit 10;

  长特征查询示例如下：

  select id, time,
  long_feature_compare('face_data','\x966b86bd7890273d3f660a3dc8dc033e69b8e03d01282a3e0366113eb3b6f03de374273df9b40dbee2f9733c959ad8bdf9c5babdd22ca1bd5b5cbabdb4e79abd35fefd3a604975bd8aabb0bc0ba66fbd7f2d113e0ce0393e0e00a8bc00c24a3dff8d853cd3b0953d12ff1e3e06a219be9ca7753d9162b2bd5dd3cebd1a84b0bd6d739d3d286953bdbe1363bd06692d3ef29f903c6722113d7e621fbb179d6dbd8bed333eabc04ebd2f06ddbd928a11bd744a7f3d61b7babc4ab857bc7acf6bbb0cb1053d4b9e123e3e79313eff40a8bd636647bd41946bbba3c404bd128c5fbd8a8d6a3d692d173df502db3d0f3008be8cdb883ddb0f323de5946cbd2a7fa3bddd8568bd12e6e5bbd07c383b7f48203c681d0b3a87d2d1bccd7c333beea089bcab03103ef20df5bd9f0b373c6f46d4bd01a8b43d6118453b3e3e143c641ef43c375309be9461193dd580473dacb73dbeef4fafbddc43e5bae79f1abd5a1182bdfe8ab23d5d2209bb13af76bd2eb0a2bde2c25dbd38d4b0bdef53caba60674ebd7850a5bd2e5bd9bb1320a93d216af03cf51ac7bdc1c94bbe86020ebed484333ea6e71f3ec946773d1d81fa3c526b70bed205d03cf138cbba30ffb43de239783c7e01773daf68bfbd9709683de39adabd267e2e3ca35d11bd0555a4bdd4d4b33d75a228bdac78e8bd8d1f87bd836046bd57efc43d5eafcdbd114146bec735543d000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000', face_feature) as distance from face_data where time between to_date('2018-01-02 00:00:00', 'yyyy-mm-dd hh24:mi:ss') and to_date('2018-01-03 00:00:00', 'yyyy-mm-dd hh24:mi:ss') and distance < 0.5 order by distance asc;
