I. XML metadata files are part of the product

XML files in XML metadata directory ( datamodeler\datamodeler\xmlmetadata ) describe properties and

structure of objects that can be created with Oracle SQL Developer Data Modeler UI or using scripting. They

are used by Data Modeler (DM) in its functionality thus any changes introduced to them could break normal

functionality of DM.

II. Information described in XML files

XML files follow internal object model used by DM and all properties of specific object can be found following

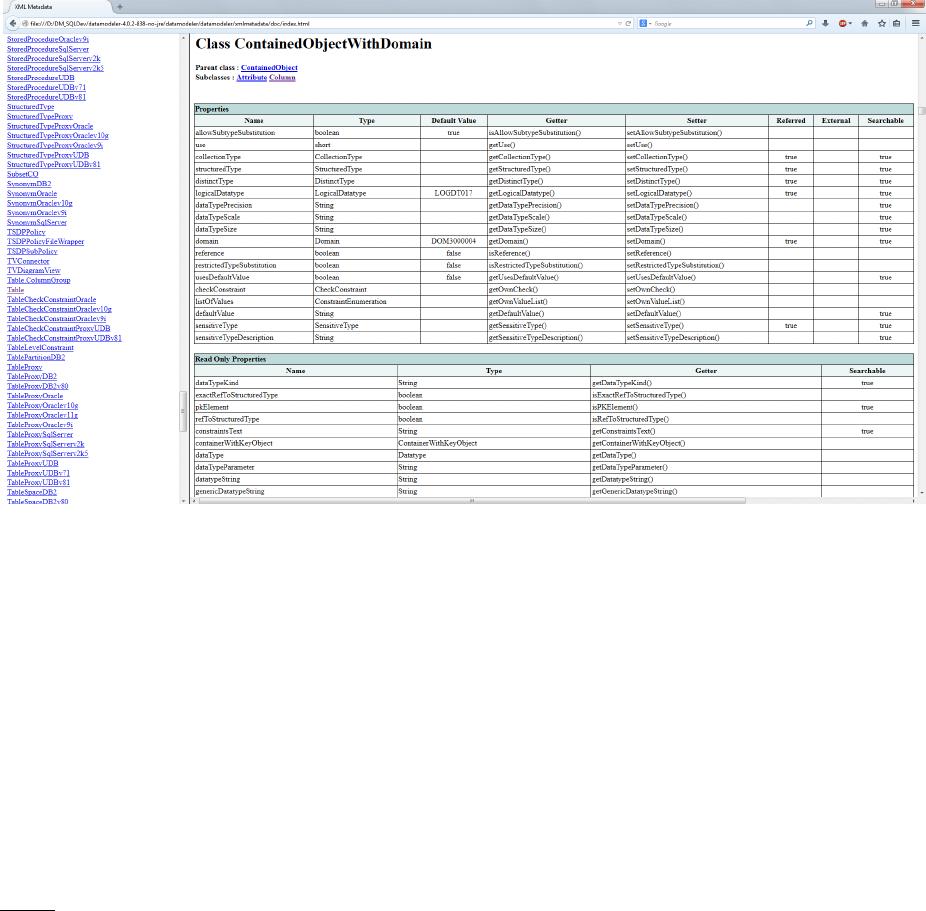

parent class link. There is an HTML presentation of XML files in doc directory (use index.html) which allow

faster navigation in class hierarchy – direct descendents of each class are also presented there.

Two important groups can be found in each XML file – properties and collections. They can be marked as

external which means that property or collection is stored outside the file that represents the object. As

example – Table has internal collection “columns” i.e. columns are stored in the file that represents table;

RelationalDesign class (representing relational model) has external collection Tables. Design class

(representing the whole design) has external property LogicalModel and external collection RelationalModels.

Each property has getter and setter method defined that can be used to get property or set it using scripting.

There are simple and complex properties. Simple properties (data types String, boolean, int, long…) are parts

of persistence of the object. Complex properties can be contained (their persistence is part of persistence of

the object) or referred - ID of referred object is stored in objects persistence though object is involved in setter

and getter method:

<property name="structuredType" dataType="oracle.dbtools.crest.model.design.datatypes.StructuredType" defaultValue=""

xmlName="structuredType" relatedProperty="use" relatedValue="3" xmlType="element" getter="getStructuredType" setter="setStructuredType"

reffered="true" search="true"/>

In some case simple String property holds object ID or list of object IDs – that’s related to dependencies

between objects during loading – it’s possible that referred object(s) may not be loaded when that property is

set.

Property can be marked as searchable and thus can be used in search, custom reports and set common

properties functionality. Some read only properties also are marked as searchable.

Complex properties could have methods for creating them or nullifying them (example – listOfValues in

ContainedObjectWithDomain) :

<property name="listOfValues" dataType="oracle.dbtools.crest.model.design.constraint.ConstraintEnumeration" isPropertyMap="true"

xmlName="listOfValues" xmlType="element" getter="getOwnValueList" setter="setOwnValueList" createPMap="createConstraintEnumeration"

itemXmlName="valueDef" keyXmlName="value" valueXmlName="description" removeItem="clearOwnValueList"/>

So listOfvalues can be created using instance of Column or Attribute – here is an example (script is bound to

logical model, gets entity by name, gets attribute by name, creates list of values if it’s not set for attribute, set it

on attribute and adds two values with description; :

ent = model.getEntitySet().getByName("PRODUCT INFORMATION");

if(ent!=null){

attr = ent.getElementByName("PRODUCT STATUS");

if(attr!=null){

attr.setUseDomainConstraints(false);

ce = attr.getOwnValueList();

if(ce==null){

ce = attr.createConstraintEnumeration();

attr.setOwnValueList(ce);

}

// clear existing properties if need that

//ce.clearProperties();

ce.add("aaa","desc aaa");

ce.add("bbb","desc bbb");

attr.setDirty(true);

}

Collection definition provide createItem method that can be used to create item of that collection using instance

of surrounding object – back to Tables collection we see that table can be created using model.createTable().

And columns collection in Table shows the method for creating column:

col = table.createColumn();

ModelObject is the root of the hierarchy and each model is also instance of DesignPart class.

Changed object should be marked as changed using setDirty(true) method otherwise they won’t be saved

during save operation.

Each collection with type xxxxxSet (EntitySet – logModel.getEntitySet(),TableSet – relModel.getTableSet())

allows objects to be found by name ( method getByName(name) ) and by object ID (method

getObjectByID(objectID) ). Collections for tables and views in relational model also allows object to be found by
