biggy: An Implementation of Uniﬁed Framework

for Big Data Management System

Yao Wu, Henan Guan

Key Laboratory of Data Engineering and Knowledge Engineering of Ministry of Education, Beijing, China

School of Information, Renmin University of China, Beijing, China

Email: {ideamaxwu, henanguan}@ruc.edu.cn

Abstract—Various tools, softwares and systems are proposed

and implemented to tackle the challenges in big data on different

emphases, e.g., data analysis, data transaction, data query, data

storage, data visualization, data privacy. In this paper, we propose

datar, a new prospective and uniﬁed framework for Big Data

Management System (BDMS) from the point of system architec-

ture by leveraging ideas from mainstream computer structure.

We introduce ﬁve key components of datar by reviewing the cur-

rent status of BDMS. Datar features with conﬁguration chain of

pluggable engines, automatic dataﬂow on job pipelines, intelligent

self-driving system management and interactive user interfaces.

Moreover, we present biggy as an implementation of datar with

manipulation details demonstrated by four running examples.

Evaluations on efﬁciency and scalability are carried out to show

the performance. Our work argues that the envisioned datar is

a feasible solution to the uniﬁed framework of BDMS, which

can manage big data pluggablly, automatically and intelligently

with speciﬁc functionalities, where speciﬁc functionalities refer

to input, storage, computation, control and output of big data.

Index Terms—big data management system, data processing,

uniﬁed framework, datar, biggy

I. INTRODUCTION

A. Motivation of Datar

As Alan Turing proposed the question “Can machines

think?” [1], the imitation game begins. Von Neumann started

an engineering research on computer and described a logical

design of a computer using the stored-program concept, which

is known as the Von Neumann architecture [2]. Charles Bab-

bage proposed the Analytical Engine, a designed mechanical

general-purpose computer. The goal of these pioneers is to de-

sign a computing machine better than human brains, which can

liberate human from manual work and tedious computation.

During the last several decades, data management principles

such as relational model of data, physical and logical inde-

pendence, declarative querying and cost-based optimization

have led to several ﬁelds of researches and a prosperous

industry. Many novel challenges and opportunities associated

with big data necessitate rethinking many aspects of these data

management platforms, while retaining other desirable aspects.

The practice and theory contributions [3], [4] of Bachman and

Codd open up the research on database. And the steps on

the road to data management never stop such as, Ingres [5],

Postgres [6], Mariposa [7], C-Store [8], VoltDB [9], AsterixDB

[10] and P-Store [11] in database ﬁeld, as well as, Megastore

Fig. 1. A typical workﬂow for big data management.

[12], Spanner [13], MillWheel [14], Azure CosmosDB

and

TiDB

in distributed system ﬁeld.

Michael Stonebraker proposed “On Size Doesn’t Fit All”,

and in this paper, we try to argue that “All Can Fit in One”.

Since the computing power of machines becomes stronger, we

can sniff the shift from computation to data management to

explore more in-sight information and knowledge from data.

Jim Gray foresighted the transformation from computation-

intensive to data-intensive science discovery and brought for-

ward The Fourth Paradigm [15]. He also thought the way to

cope with such paradigm was to develop a new generation

of computing tools to manage, visualize, and analyze massive

data. As we all know, Big Data Management System (BDMS)

is a complex set of functionalities, we think it necessary to

propose a uniﬁed architecture to guide the design of BDMS.

From these observations, we summarize and conclude with ﬁve

main components in BDMS to provide a better explanation for

a full understanding of our proposed datar architecture.

As shown in Fig. 1, BDMS consists of several core com-

ponents such as, collect, storage, process and visualize. Com-

pared with traditional database systems, BDMS architecture is

more ﬂexible and open for varied requirements due to different

focus-ons. In this paper, we unify the BDMS as datar, a

general framework to design and build BDMS, corresponding

to term computer.

https://azure.microsoft.com/zh-cn/services/cosmos-db/

https://www.pingcap.com/

arXiv:1810.09378v1 [cs.DB] 22 Oct 2018

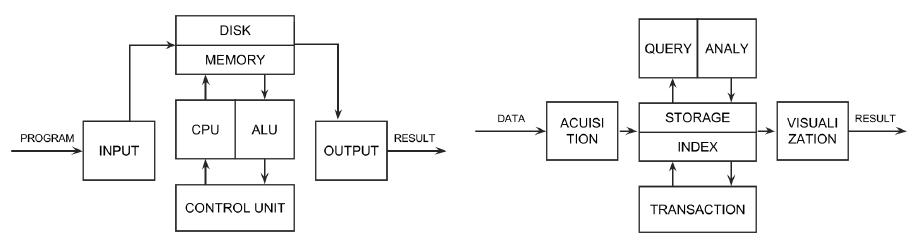

(a) Computer Architecture (b) Datar Architecture

Fig. 2. Computer VS Datar comparison in terms of architecture.

As we all know, the mainstream computer architecture

is divided into ﬁve parts, i.e., input, storage, computation,

control and output, in which, computation is the center.

If we look closely, we can ﬁnd that, BDMS is much the

same as computer, consisting of (data) input, (data) storage,

(data) computation (query/analysis), (data) control (transac-

tion/recovery) and data output (visualization), in which, data

storage is the center. In other words, we can name a computer

Fast Computation Processing System (FCPS). Likewise, the

BDMS can be called as datar, focusing on data. We use Fig. 2

to illustrate the similarities and differences between a computer

and a datar, in terms of architecture. In Fig. 2 (a), ﬁve core

components of a computer are shown in separate rectangles,

while in Fig. 2 (b), ﬁve corresponding parts are shown. A

computer and a datar share the similar functionalities with

different emphases on computation or data storage.

B. Concept of Datar

Deﬁnition (Datar) A datar is a set of coherent softe-

wares/systems based on a uniﬁed architecture that can manage

(big) data pluggablly, automatically and intelligently with

speciﬁc functionalities, where speciﬁc functionalities refer to

input, storage, computation, control and output of the (big)

data. Datar is featured with Interactive Interface Clients,

Pluggable Engines Conﬁguration, Automatic Dataﬂow on Job

Pipelines and Intelligent Self-driving System Management

based on the uniﬁed framework. In this paper, we implement

datar with these features as biggy, a data-storage-centered

solution to datar implementation.

A datar, i.e., a full-function BDMS, consists of ﬁve parts,

data input, data storage, data computation, data control and

data output. Compared with the computation-centered com-

puter, a datar is data-centered. We take AsterixDB [10] for

example, which is a new, full-function BDMS. Data input is

how data gets into the system. In AsterixDB, data feed is

a built-in mechanism allowing new data to be continuously

ingested into system from external sources, incrementally

populating the datasets and their associated indexes [16]. Data

storage is how the data is stored in the system and how the

indexes are built. In AstrixDB, data and index are stored based

on LSM structure [17]. Data computation is how to mine

valuable information from stored data. A bunch of methods

can be applied, such as popular in-memory computation

framework Spark on AsterixDB [18]. Besides, the execution

of data processing is also part of data analysis, like Hyracks

[19] in AsterixDB. Data control is how to control data when

it is processed. It is different from the traditional database

systems which have strict ACID properties. Another important

aspect of datar is data output, e.g., visualization. Cloudberry

is a research prototype to support interactive analytics and

visualization of large amounts of spatial-temporal data using

AsterixDB. Based on these features of AsterixDB, it is ideal

for us to explain the ﬁve main components of BDMS by one

system. The key drawback of taking AsterixDB as BDMS

is that it is a strongly coupled system, which is not suitable

for varied and dynamic requirement in real scenarios when

processing big data. And it is not easy for developers to combo

it with new emerging engines. Datar is proposed to achieve a

uniﬁed framework for building your own BDMS more ﬂexible.

C. Contributions of Datar

With the development of Internet services, data contents are

rapidly growing, and we have to face the challenges of han-

dling such big data. Data system research has come into a new

era, which brings the traditional concepts from row-based store

to column-based store, from disk-based query to in-memory

based analysis, and from ACID properties to CAP theorem.

Big data shows great value in real application and challenges

arise. Various tools and systems are proposed and developed

to tackle these challenges on different emphases. In this paper,

we describe the BDMS from a new perspective, the view of a

computer architecture, to propose a uniﬁed framework datar.

We focus our attention on the system architecture in BDMS

and break it down into ﬁve main components to elaborate.

The envisioned datar is implemented as biggy with favorable

features. The key contributions can be summarized as,

• We review current big data management systems by ﬁve

core components and state our contributions.

http://cloudberry.ics.uci.edu/
