故障现象：

前端反馈数据库无法连接

[ERROR]-[Thread: Druid-ConnectionPool-Create-26728049]-[com.alibaba.druid.pool.DruidDataSource$CreateConnectionThread.run()]: create connection error, url: jdbc:oracle:thin:@x.x.x.93:1521:empdb011, errorCode 17002, state 08006
java.sql.SQLRecoverableException: IO 错误: The Network Adapter could not establish the connection
	at oracle.jdbc.driver.T4CConnection.logon(T4CConnection.java:774)
	at oracle.jdbc.driver.PhysicalConnection.connect(PhysicalConnection.java:688)
	at oracle.jdbc.driver.T4CDriverExtension.getConnection(T4CDriverExtension.java:39)
	at oracle.jdbc.driver.OracleDriver.connect(OracleDriver.java:691)
	at com.alibaba.druid.filter.FilterChainImpl.connection_connect(FilterChainImpl.java:148)
	at com.alibaba.druid.filter.stat.StatFilter.connection_connect(StatFilter.java:220)
	at com.alibaba.druid.filter.FilterChainImpl.connection_connect(FilterChainImpl.java:142)
	at com.alibaba.druid.filter.FilterAdapter.connection_connect(FilterAdapter.java:785)
	at com.alibaba.druid.filter.FilterChainImpl.connection_connect(FilterChainImpl.java:142)
	at com.alibaba.druid.pool.DruidAbstractDataSource.createPhysicalConnection(DruidAbstractDataSource.java:1463)
	at com.alibaba.druid.pool.DruidAbstractDataSource.createPhysicalConnection(DruidAbstractDataSource.java:1525)
	at com.alibaba.druid.pool.DruidDataSource$CreateConnectionThread.run(DruidDataSource.java:2100)
Caused by: oracle.net.ns.NetException: The Network Adapter could not establish the connection
	at oracle.net.nt.ConnStrategy.execute(ConnStrategy.java:523)
	at oracle.net.resolver.AddrResolution.resolveAndExecute(AddrResolution.java:521)
	at oracle.net.ns.NSProtocol.establishConnection(NSProtocol.java:660)
	at oracle.net.ns.NSProtocol.connect(NSProtocol.java:286)
	at oracle.jdbc.driver.T4CConnection.connect(T4CConnection.java:1438)
	at oracle.jdbc.driver.T4CConnection.logon(T4CConnection.java:518)
	... 11 more
Caused by: java.io.IOException: Connection timed out: connect, socket connect lapse 20998 ms. /x.x.x.93 1521 0 1 true
	at ora

处理分析过程：

紧急登录一体机环境

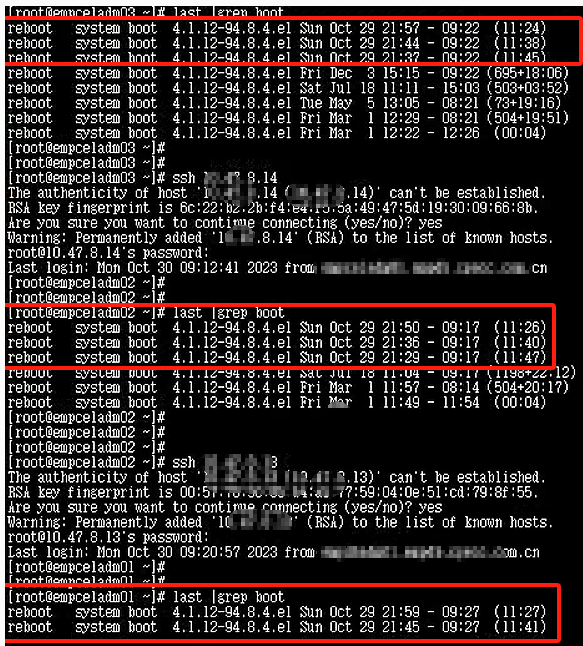

1.检查主机日志及是否重启,发现所有机器都重启过,可能断电了

2.检查集群状态，

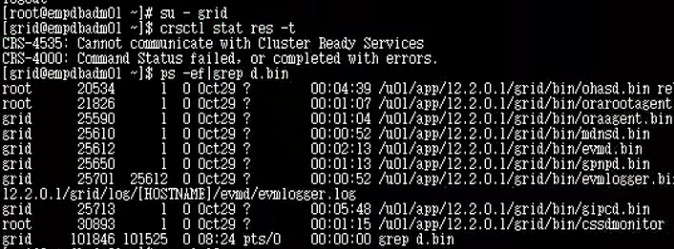

登录2个数据库节点，ps -ef|grep d.bin|wc -l只有11个进程，crs服务异常

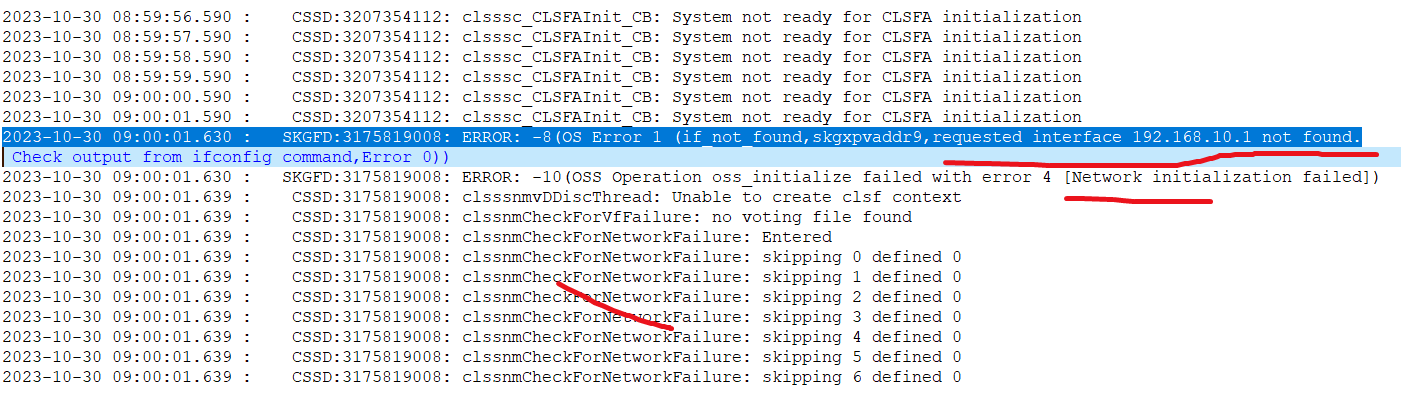

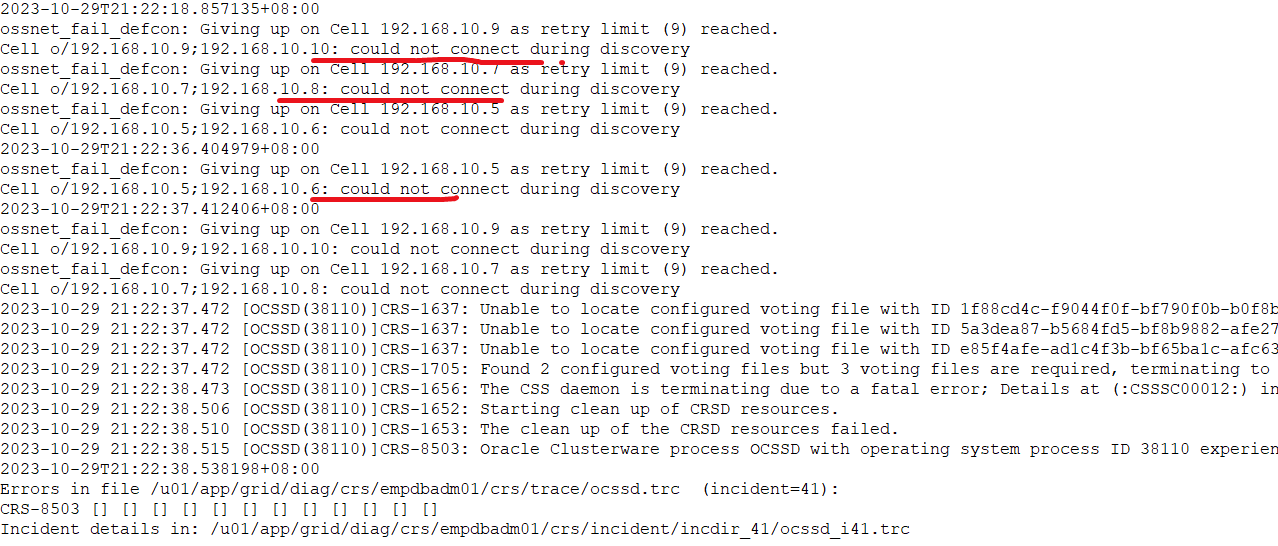

3.检查crs日志：心跳网络不正常

/u01/app/grid/diag/crs/rac1/crs/trace/alert.log

/u01/app/grid/diag/crs/rac1/crs/trace/ocssd.trc

4.检查心跳网络：

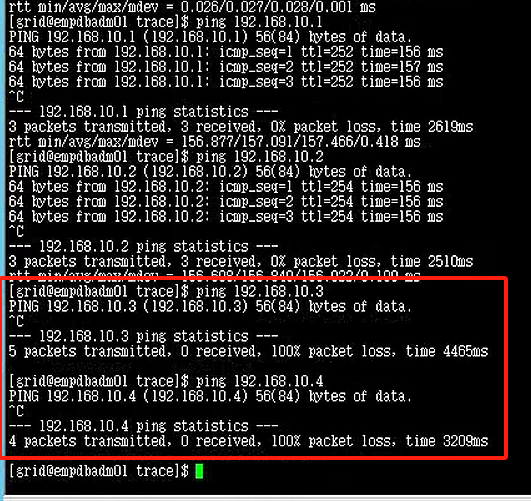

本机ping自己的私网ip正常，但ping其它机器心跳IP不通：

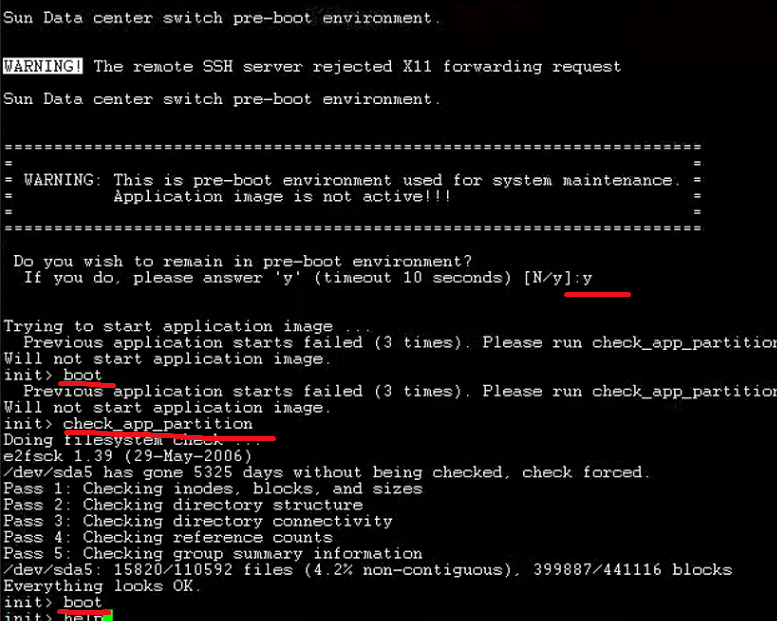

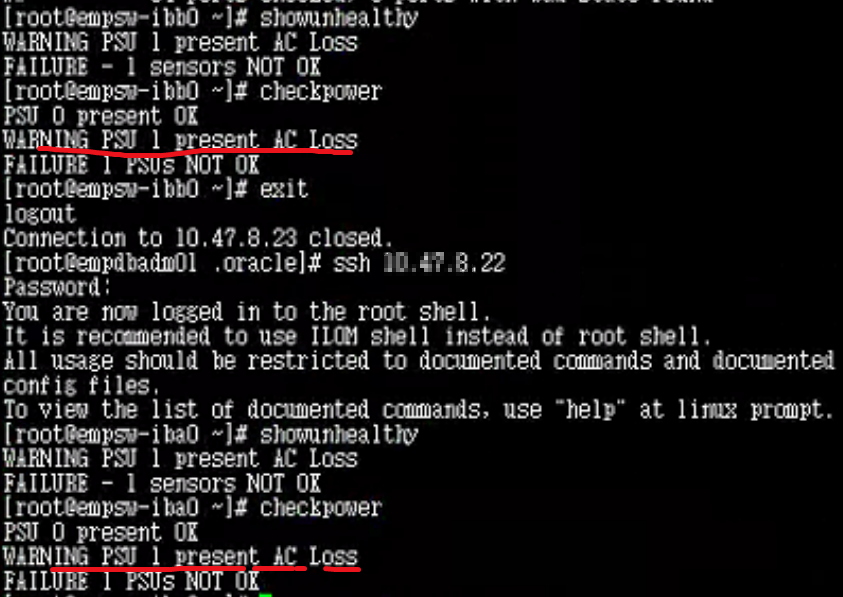

登录2台IB交换机检查状态：ssh 交换机IP，提示如下：

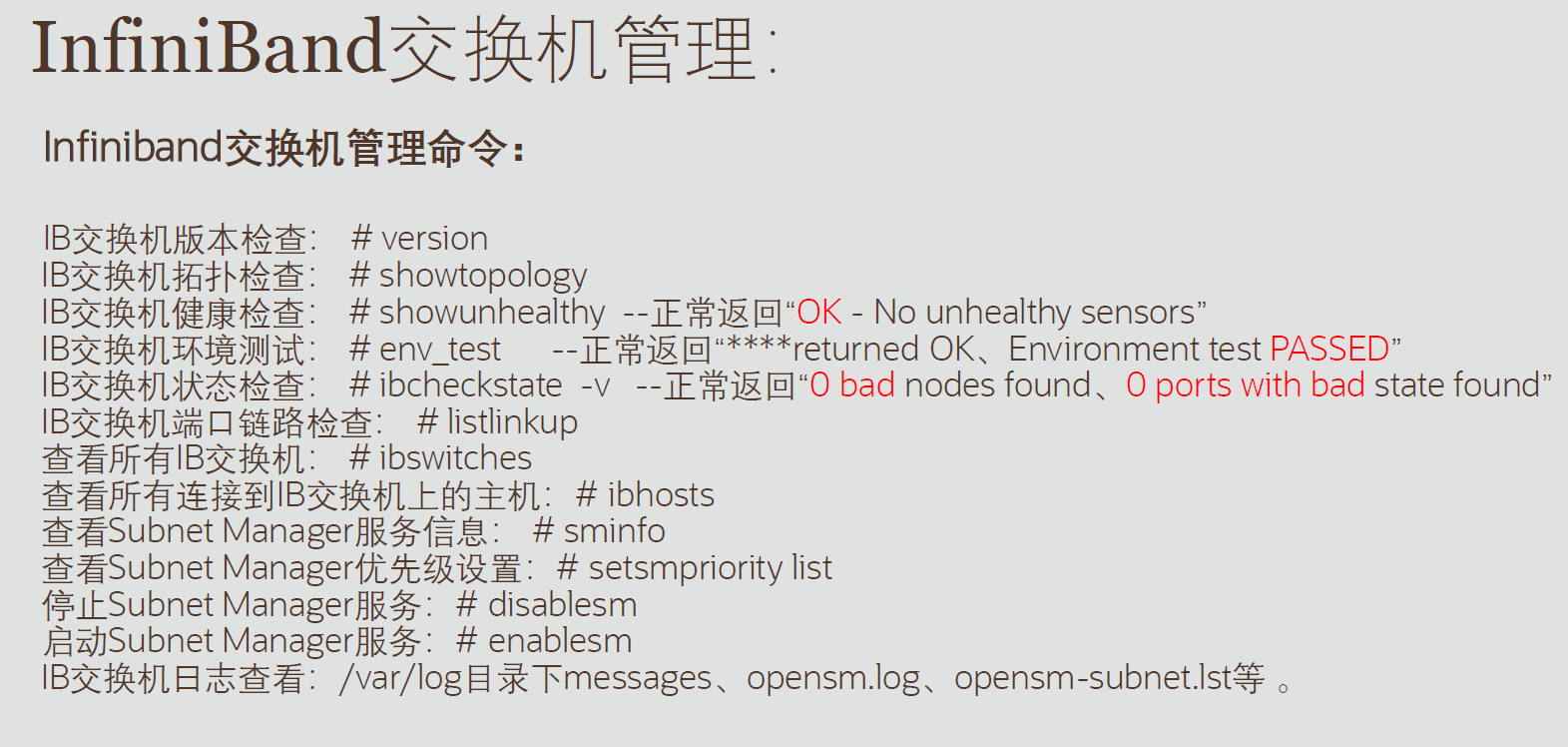

boot成功后，登录交换机检查：


心跳网络此时恢复正常。

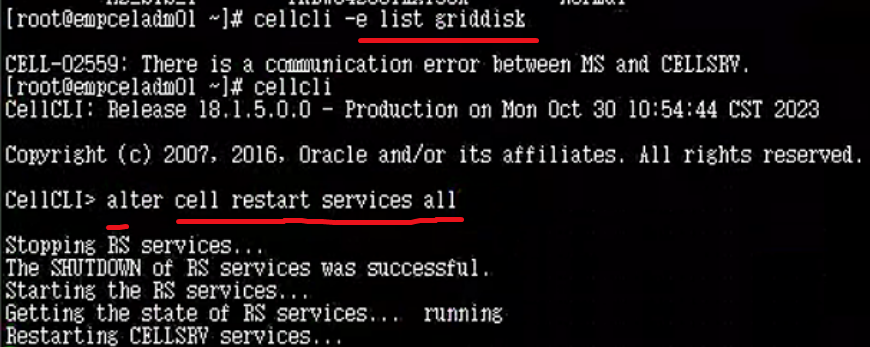

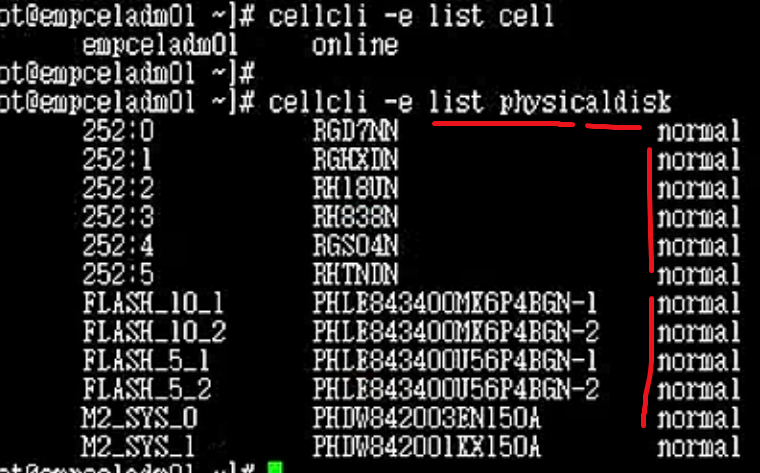

5.检查3个节点存储服务器磁盘状态，griddisk无法查看

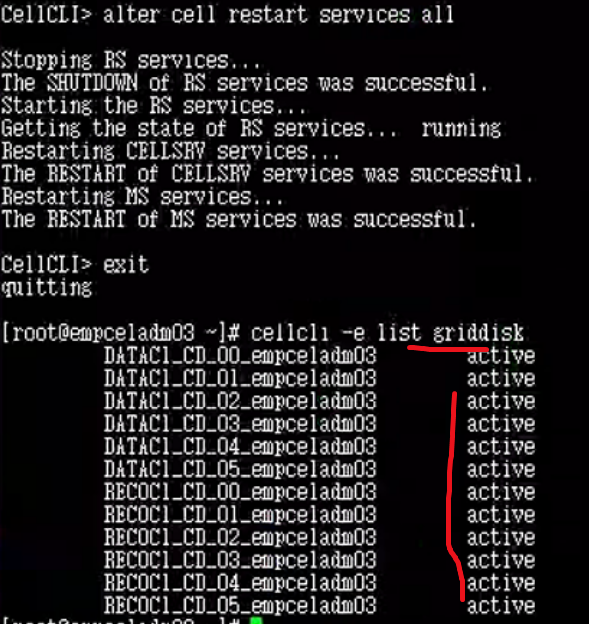

启动3个节点的cell服务，确保griddisk active状态

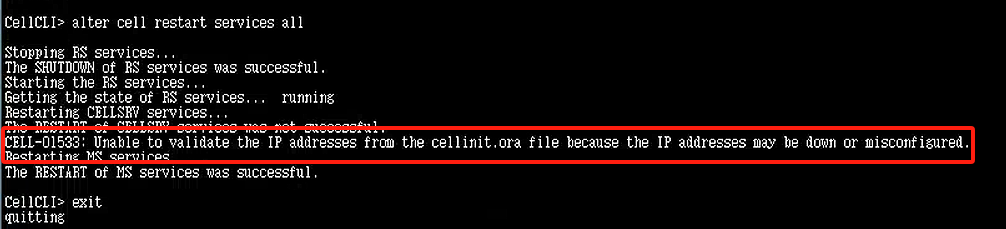

当心跳网络不通时，启动报错：

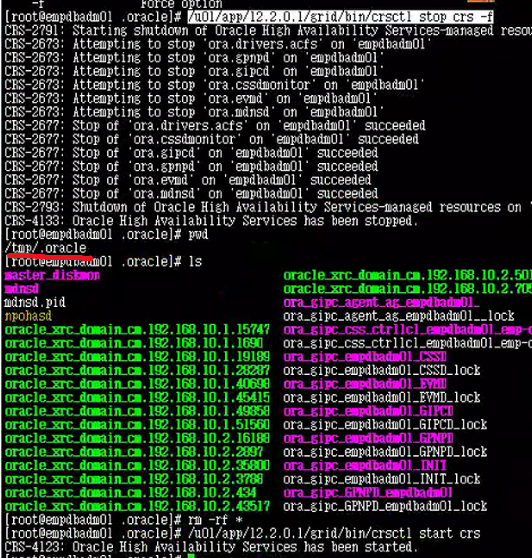

6.重启2个数据库节点的集群服务

3分钟后数据库集群恢复正常。应用检查恢复正常。

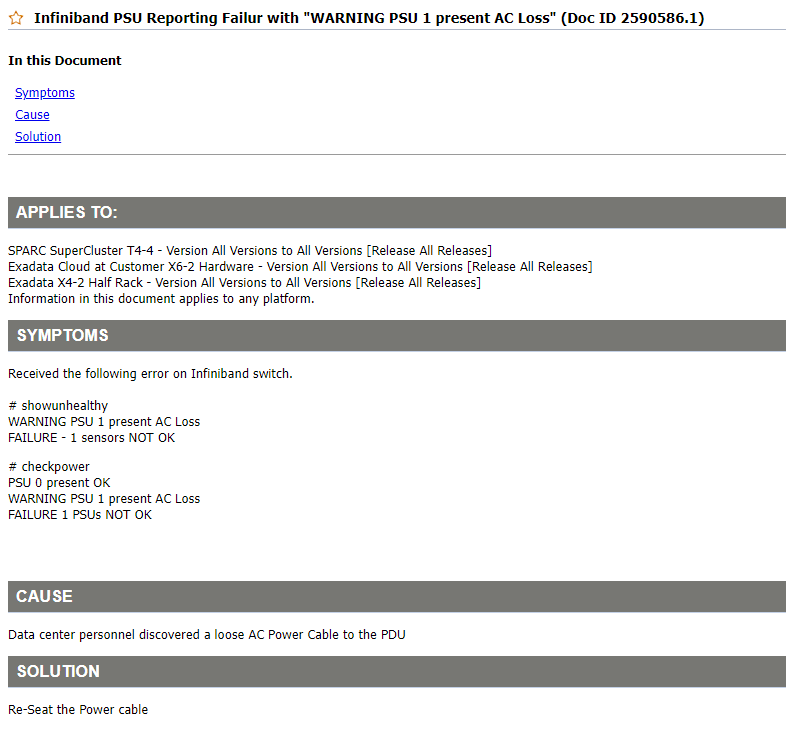

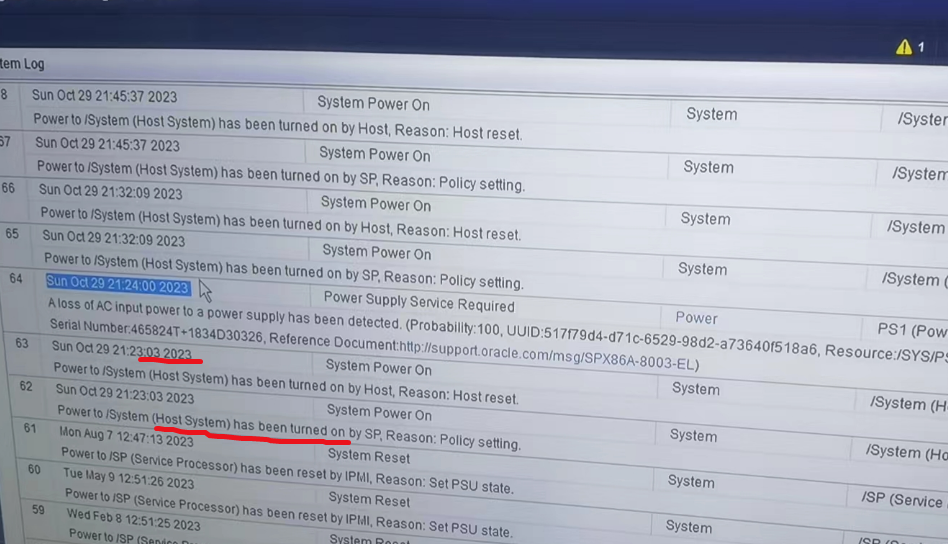

7.现场登录ilom检查原因，发现电源切换过

8.相关参考：
