腾讯TBase v2.5.0 数据库集群部署

原创拨开乌云见阳光 2024-05-26

2003

一、腾讯TBase数据库简介

TBase 是腾讯数据平台团队在开源的 PostgreSQL 基础上研发的企业级分布式 HTAP 数据库管理系统：具备高性能可扩展的分布式事务能力。
TBase 集群采用无共享 share nothing 架构。由多个 Coordinator、Datanodes 和 GTM 节点组成。

协调节点（Coordinator，CN）：是数据库服务的对外入口，负责数据的分发和查询规划，多个节点位置对等。
数据节点（Datanode，DN）：负责执行协调节点分发的执行请求，实际存储业务数据，所有用户数据都存储在 DataNode 中。
全局事务管理器（GlobalTransactionManager，GTM）：负责全局事务管理。

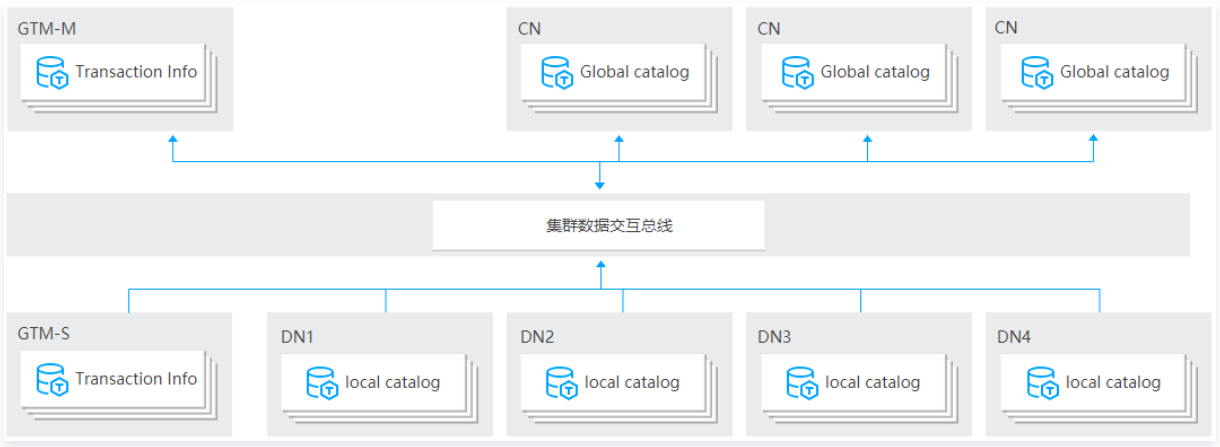

用户通过 CN 访问存储在 DN 中的数据。TBase数据库集群架构示意如下：

关于TBase更详细的情况介绍，请详见其官网：https://cloud.tencent.com/product/tbase

二、腾讯TBase v2.5.0 数据库集群部署过程

1、安装环境准备

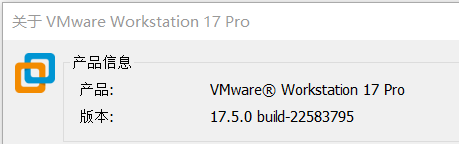

通过“VMware Workstation”创建一台虚拟机。

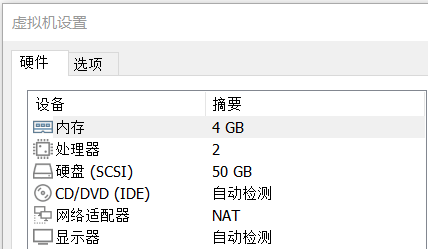

虚拟机分配内存4GB，IP配置为192.168.20.25，并安装了CentOS 7.9，如下：

2、规划TBase集群各功能节点

由于资源有限，因此准备在一台虚拟机上，通过分端口的方式模拟多个逻辑功能节点。

各个功能节点及端口，规划如下：

功能节点	端口
GTM	50001
CN	30004
DN1	40004
DN2	40005

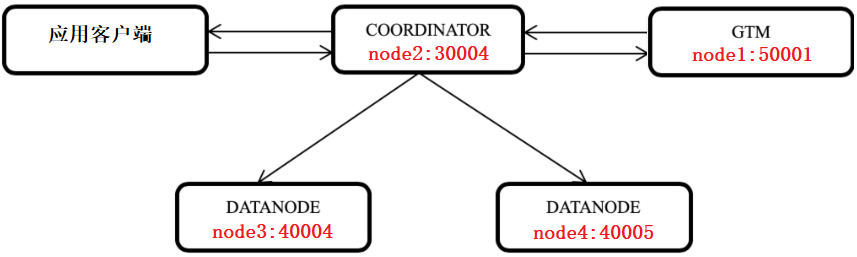

本次准备部署的TBase集群的各功能节点逻辑关系示意如下：

3、sshd配置

vi /etc/ssh/sshd_config
设置以下参数值：
MaxSessions 20
UseDNS no

4、关闭防火墙与selinux

systemctl stop firewalld
systemctl disable firewalld

sed -i 's/^SELINUX=enforcing/SELINUX=disabled/g' /etc/selinux/config
setenforce 0

5、设置limits.conf参数

vi /etc/security/limits.conf

* soft nofile 131072
* hard nofile 131072
* soft nproc 131072
* hard nproc 131072
* soft core unlimited
* hard core unlimited

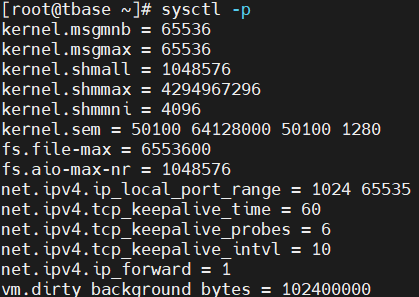

6、修改内核参数

vi /etc/sysctl.conf

7、TBase源码编译安装

（1）创建用户

mkdir /data
useradd -d /data/TBase TBase
passwd TBase

（2）下载安装包

下载地址：https://github.com/Tencent/TBase

（3）上传安装包到/data/TBase并设置其属主为TBase

chown TBase: TBase-2.5.0.tar.gz

（4）源代码编译

su - TBase
tar -xzvf TBase-2.5.0.tar.gz
cd TBase-2.5.0
SOURCECODE_PATH=/data/TBase/TBase-2.5.0
INSTALL_PATH=/data/TBase/install
cd ${SOURCECODE_PATH}
rm -rf ${INSTALL_PATH}/tbase_bin_v2.5
./configure --prefix=${INSTALL_PATH}/tbase_bin_v2.5 --enable-user-switch --with-openssl --with-ossp-uuid CFLAGS=-g
make clean
make -sj
make install
chmod +x contrib/pgxc_ctl/make_signature
cd contrib
make -sj
make install

（5）设置 TBase 用户各节点间的SSH互信

ssh-keygen -t rsa
ssh-copy-id -i  .ssh/id_rsa.pub 192.168.20.25

（6）设置环境变量

vi ~/.bashrc

export TBase_HOME=/data/TBase/install/tbase_bin_v2.5
export PATH=$TBase_HOME/bin:$PATH
export LD_LIBRARY_PATH=$TBase_HOME/lib:${LD_LIBRARY_PATH}
export LC_ALL=C

source ~/.bashrc

（7）设置集群配置文件

mkdir /data/TBase/pgxc_ctl
cd /data/TBase/pgxc_ctl
vi pgxc_ctl.conf

#!/bin/bash

pgxcInstallDir=/data/TBase/install/tbase_bin_v2.5
pgxcOwner=TBase
defaultDatabase=postgres
pgxcUser=$pgxcOwner
tmpDir=/tmp
localTmpDir=$tmpDir
configBackup=n
configBackupHost=pgxc-linker
configBackupDir=$HOME/pgxc
configBackupFile=pgxc_ctl.bak
#---- GTM ----------
gtmName=gtm
gtmMasterServer=192.168.20.25
gtmMasterPort=50001
gtmMasterDir=/data/TBase/data/gtm
gtmExtraConfig=none
gtmMasterSpecificExtraConfig=none
gtmSlave=n
#---- Coordinators -------
coordMasterDir=/data/TBase/data/coord
coordArchLogDir=/data/TBase/data/coord_archlog
coordNames=(cn001 )
coordPorts=(30004 )
poolerPorts=(31110 )
coordPgHbaEntries=(0.0.0.0/0)
coordMasterServers=(192.168.20.25)
coordMasterDirs=($coordMasterDir)
coordMaxWALsernder=2
coordMaxWALSenders=($coordMaxWALsernder )
coordSlave=n
coordSlaveSync=n
coordArchLogDirs=($coordArchLogDir)
coordExtraConfig=coordExtraConfig
cat > $coordExtraConfig <<EOF
#================================================
# Added to all the coordinator postgresql.conf
# Original: $coordExtraConfig

include_if_exists = '/data/TBase/global/global_TBase.conf'

wal_level = replica
wal_keep_segments = 256
max_wal_senders = 4
archive_mode = on
archive_timeout = 1800
archive_command = 'echo 0'
log_truncate_on_rotation = on
log_filename = 'postgresql-%M.log'
log_rotation_age = 4h
log_rotation_size = 100MB
hot_standby = on
wal_sender_timeout = 30min
wal_receiver_timeout = 30min
shared_buffers = 128MB
max_pool_size = 200
log_statement = 'ddl'
log_destination = 'csvlog'
logging_collector = on
log_directory = 'pg_log'
listen_addresses = '*'
max_connections = 200

EOF

coordSpecificExtraConfig=(none)
coordExtraPgHba=coordExtraPgHba
cat > $coordExtraPgHba <<EOF

local all all trust
host all all 0.0.0.0/0 trust
host replication all 0.0.0.0/0 trust
host all all ::1/128 trust
host replication all ::1/128 trust

EOF

coordSpecificExtraPgHba=(none)
coordAdditionalSlaves=n
cad1_Sync=n

#---- Datanodes ---------------------
dn1MstrDir=/data/TBase/data/dn001
dn2MstrDir=/data/TBase/data/dn002
dn1ALDir=/data/TBase/data/datanode_archlog1
dn2ALDir=/data/TBase/data/datanode_archlog2

primaryDatanode=dn001
datanodeNames=(dn001 dn002)
datanodePorts=(40004 40005)
datanodePoolerPorts=(41111 41112)
datanodePgHbaEntries=(0.0.0.0/0)
datanodeMasterServers=(192.168.20.25 192.168.20.25)
datanodeMasterDirs=($dn1MstrDir $dn2MstrDir)
dnWALSndr=4
datanodeMaxWALSenders=($dnWALSndr $dnWALSndr)

datanodeSlave=n
datanodeArchLogDirs=($dn1ALDir/dn001 $dn2ALDir/dn002)
datanodeExtraConfig=datanodeExtraConfig
cat > $datanodeExtraConfig <<EOF
#================================================
# Added to all the coordinator postgresql.conf
# Original: $datanodeExtraConfig

include_if_exists = '/data/TBase/global/global_TBase.conf'
listen_addresses = '*'
wal_level = replica
wal_keep_segments = 256
max_wal_senders = 4
archive_mode = on
archive_timeout = 1800
archive_command = 'echo 0'
log_directory = 'pg_log'
logging_collector = on
log_truncate_on_rotation = on
log_filename = 'postgresql-%M.log'
log_rotation_age = 4h
log_rotation_size = 100MB
hot_standby = on
wal_sender_timeout = 30min
wal_receiver_timeout = 30min
shared_buffers = 128MB
max_connections = 200
max_pool_size = 200
log_statement = 'ddl'
log_destination = 'csvlog'
wal_buffers = 4MB

EOF

datanodeSpecificExtraConfig=(none none)
datanodeExtraPgHba=datanodeExtraPgHba
cat > $datanodeExtraPgHba <<EOF

local all all trust
host all all 0.0.0.0/0 trust
host replication all 0.0.0.0/0 trust
host all all ::1/128 trust
host replication all ::1/128 trust

EOF

datanodeSpecificExtraPgHba=(none none)
datanodeAdditionalSlaves=n
walArchive=n
