HBA&multipath 操作&问题汇总

原创 布衣 2024-12-04
1186

背景

  最近给集群扩展ASM空间导致集群异常，后面分析为多路径磁盘残留信息导致识别问题。在这里测试一下残留信息及清理操作，顺便整理一下HBA卡操作命令，供以后查看。

HBA卡信息查看

  1. 查看当前卡的品牌：Emulex、Qlogic。
[root@dbrac1  ~]# lspci | grep -i fibre
0b:00.0 Fibre Channel: QLogic Corp. ISP2532-based 8Gb Fibre Channel to PCI Express HBA (rev 02)
  1. 查看HBA卡的驱动版本
-- qlogic
[root@dbrac1  ~]# modinfo qla2xxx | grep version
version:        8.07.00.16.06.7-k
srcversion:     C5AC2EED3547B0A71A137C1
vermagic:       2.6.32-573.el6.x86_64 SMP mod_unload modversions
-- emulex
[root@dbrac1  ~]# modinfo lpfc | grep version
version:        0:10.6.0.20
srcversion:     C7EDDC41F4AB73368AAD4F4
vermagic:       2.6.32-573.el6.x86_64 SMP mod_unload modversions
  1. 查看HBA卡的WWPN
[root@dbrac1  ~]# more /sys/class/fc_host/host*/port_name
0x5001438018744582
  1. 查看当前PORT状态
[root@dbrac1  ~]# cat /sys/class/fc_host/host7/port_state
Online
  1. 查看端口ID
[root@dbrac1  ~]# cat /sys/class/fc_host/host7/port_id
0x010100
  1. 查看支持速率
[root@dbrac1  ~]# cat /sys/class/fc_host/host7/supported_speeds
1 Gbit, 2 Gbit, 4 Gbit, 8 Gbit
[root@dbrac1  ~]# cat /sys/class/fc_host/host7/supported_classes
Class 3
  1. 插上光纤线状态
[root@dbrac1  ~]# cat /sys/class/fc_host/host7/speed
4 Gbit
[root@dbrac1  ~]# cat /sys/class/fc_host/host7/port_type
NPort (fabric via point-to-point)  <--- 与光纤交换机相连
LPort (private loop)               <----与其它HBA卡相连（来源网络）
  1. 重新扫描
  • 重新扫描整个主机 SCSI 总线
    将 $HOST 替换为要扫描的 SCSI 主机，可以是 host0、host1、host2 等。通常$HOST 是 host0。
    "- - -"代表channel，target和LUN编号。以上命令会导致hba下所有channel，target以及可见LUN被扫描。
echo "- - -" > /sys/class/scsi_host/$HOST/scan
  • 某些存储或系统没有scan文件，可以通issue_lip文件识别
echo "1" > /sys/class/fc_host/host0/issue_lip
  • 重新扫描特定 SCSI 设备
将 $DEVICE 替换为 sda、sdb、sdc 等。
echo 1 > /sys/block/$DEVICE/device/rescan

multipath（多路径）操作

  • 1.查看路径
[root@dbrac1  ~]# multipath -l
mpathi (360014380125d8a670000b000002f0000) dm-11 HP,HSV360
size=20G features='0' hwhandler='0' wp=rw
`-+- policy='round-robin 0' prio=0 status=active
  `- 8:0:0:7 sdh 8:112 active undef running
  • 2.路径别名配置
[root@dbrac1  ~]# vim /etc/multipath.conf
defaults {
        user_friendly_names yes
}
multipaths {
        multipath {
            no_path_retry fail
            wwid 360014380125d8a670000b000002f0000
            alias ASM-TEST
    }
}
-- 重启多路径
[root@dbrac1  ~]# /etc/init.d/multipathd restart
ok
正在关闭multipathd 端口监控程序：                          [确定]
正在启动守护进程multipathd：                               [确定]
[root@dbrac1  ~]# multipath -l
ASM-TEST (360014380125d8a670000b000002f0000) dm-11 HP,HSV360
size=20G features='0' hwhandler='0' wp=rw
`-+- policy='round-robin 0' prio=0 status=active
  `- 8:0:0:7 sdh 8:112 failed undef running
  • 3.删除多余的multipath I/O路径
[root@dbrac1  ~]# multipath -F
Nov 25 14:01:58 | ASM-DATA4: map in use
Nov 25 14:01:58 | ASM-DATA3: map in use
Nov 25 14:01:58 | ASM-DATA2: map in use
Nov 25 14:01:58 | ASM-CRS: map in use
Nov 25 14:01:58 | ASM-DATA1: map in use
Nov 25 14:01:58 | ASM-ARCH: map in use
  • 4.重新加载multipath配置
[root@dbrac1  ~]# multipath -v2
Nov 25 14:02:03 | mpatha: ignoring map
create: mpathh (360014380125d8a670000b00000290000) undef HP,HSV360
size=10G features='0' hwhandler='0' wp=undef
`-+- policy='round-robin 0' prio=1 status=undef
  `- 8:0:0:7 sdh 8:112 undef ready running

偶遇 multipath（多路径）问题汇总

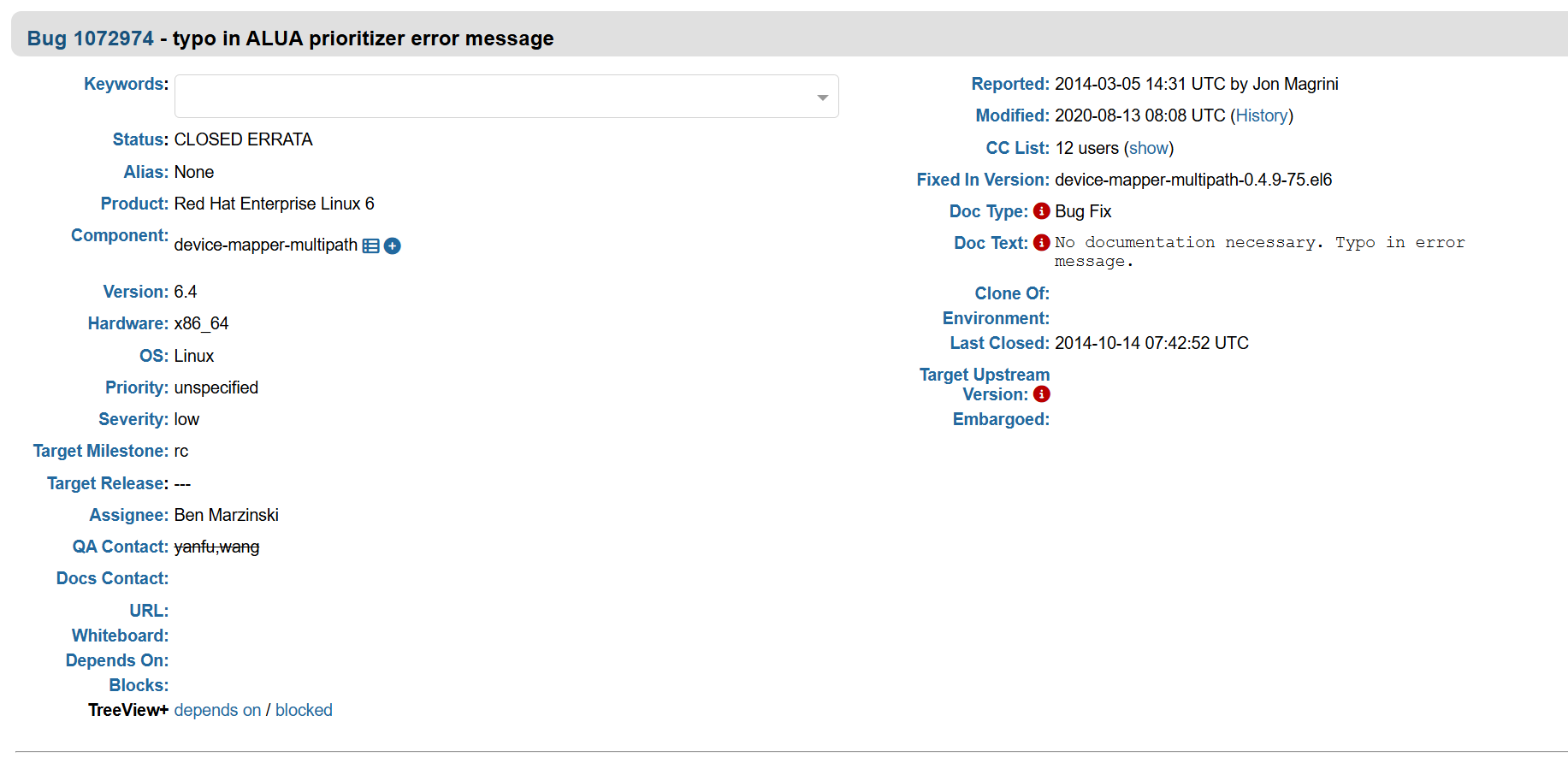

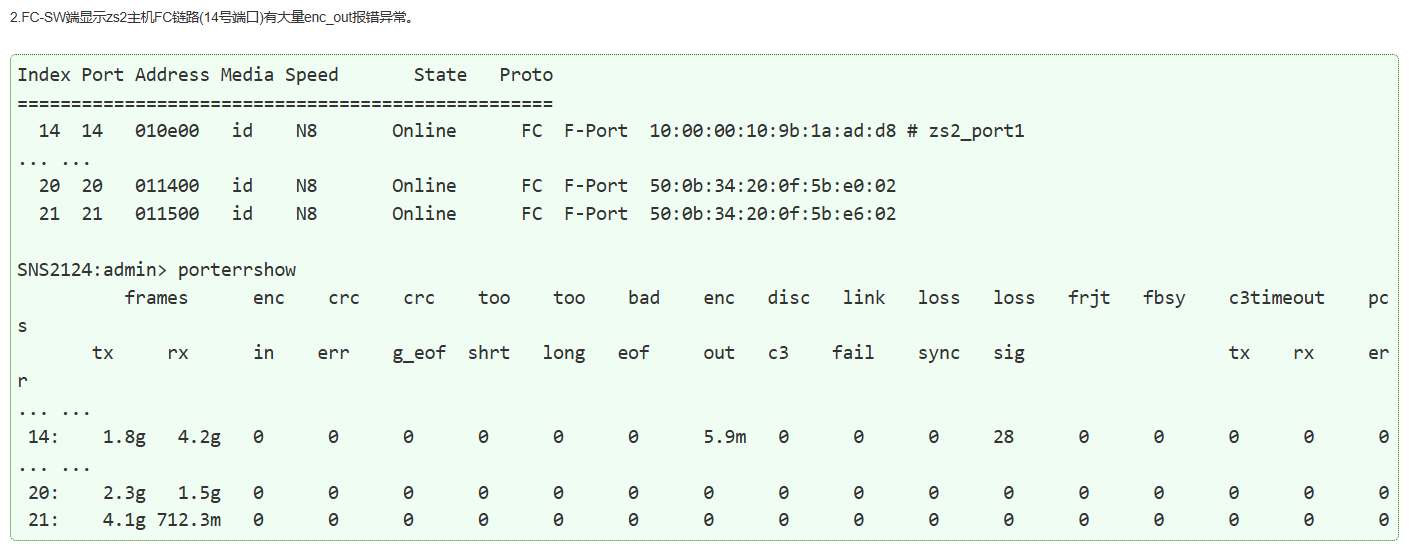

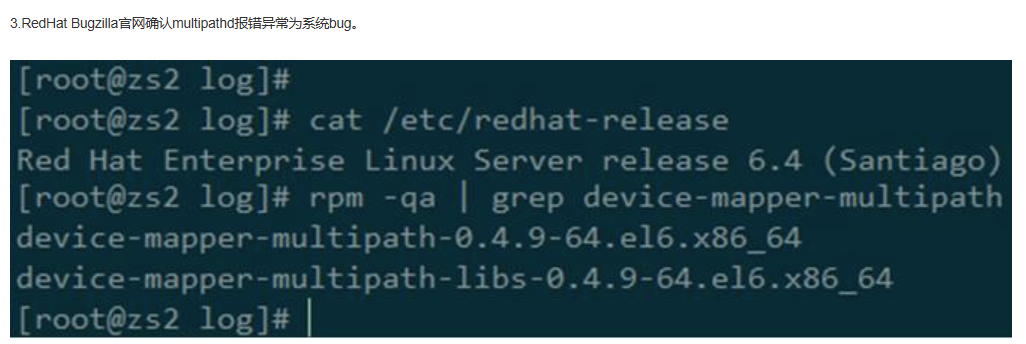

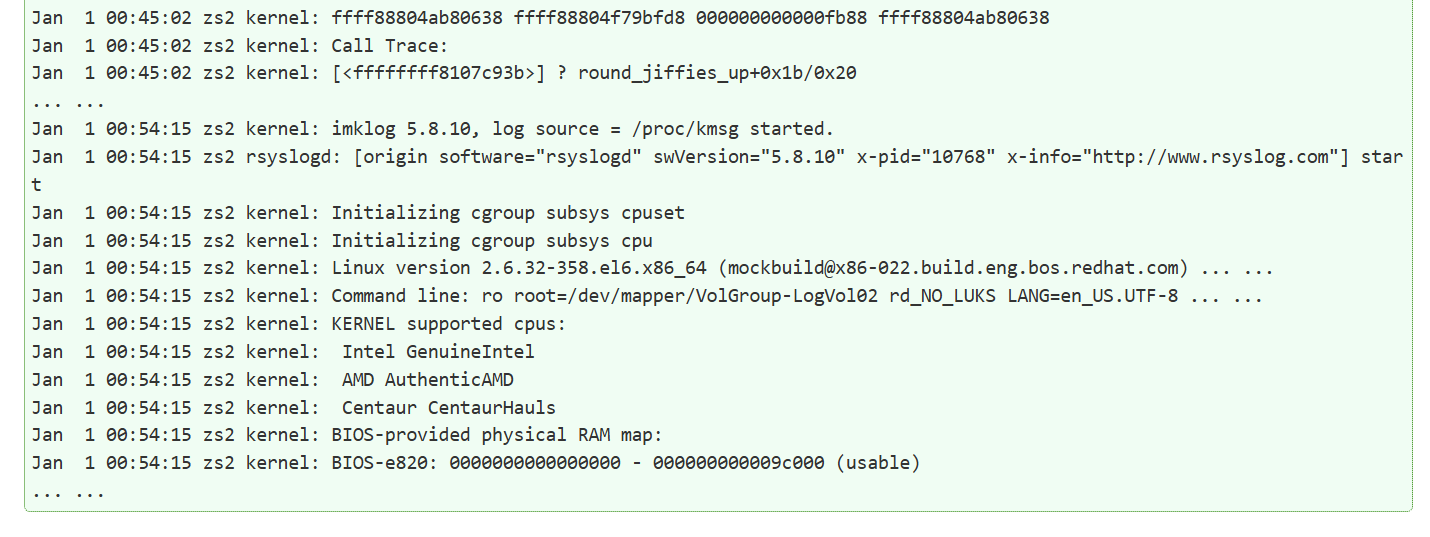

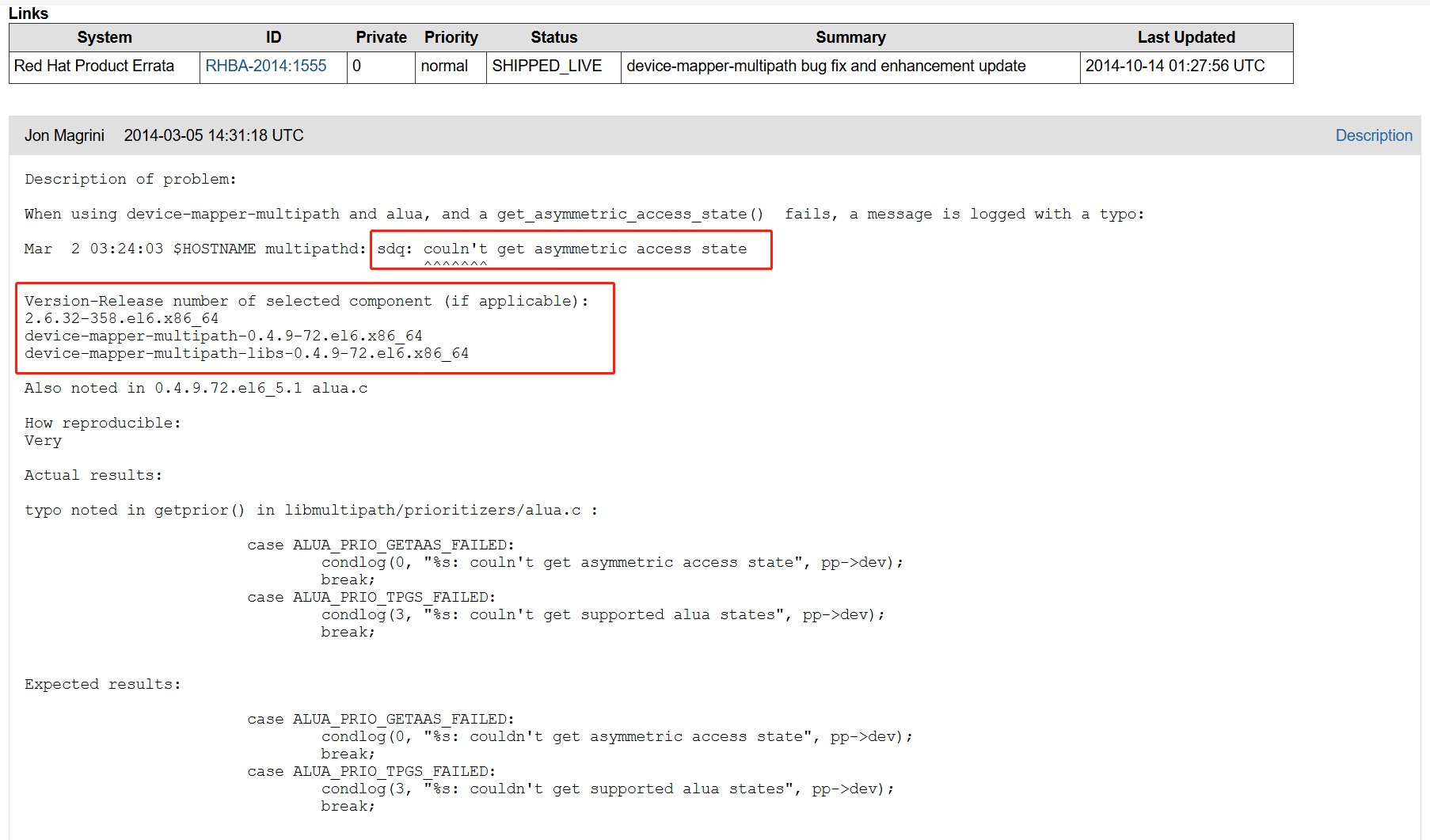

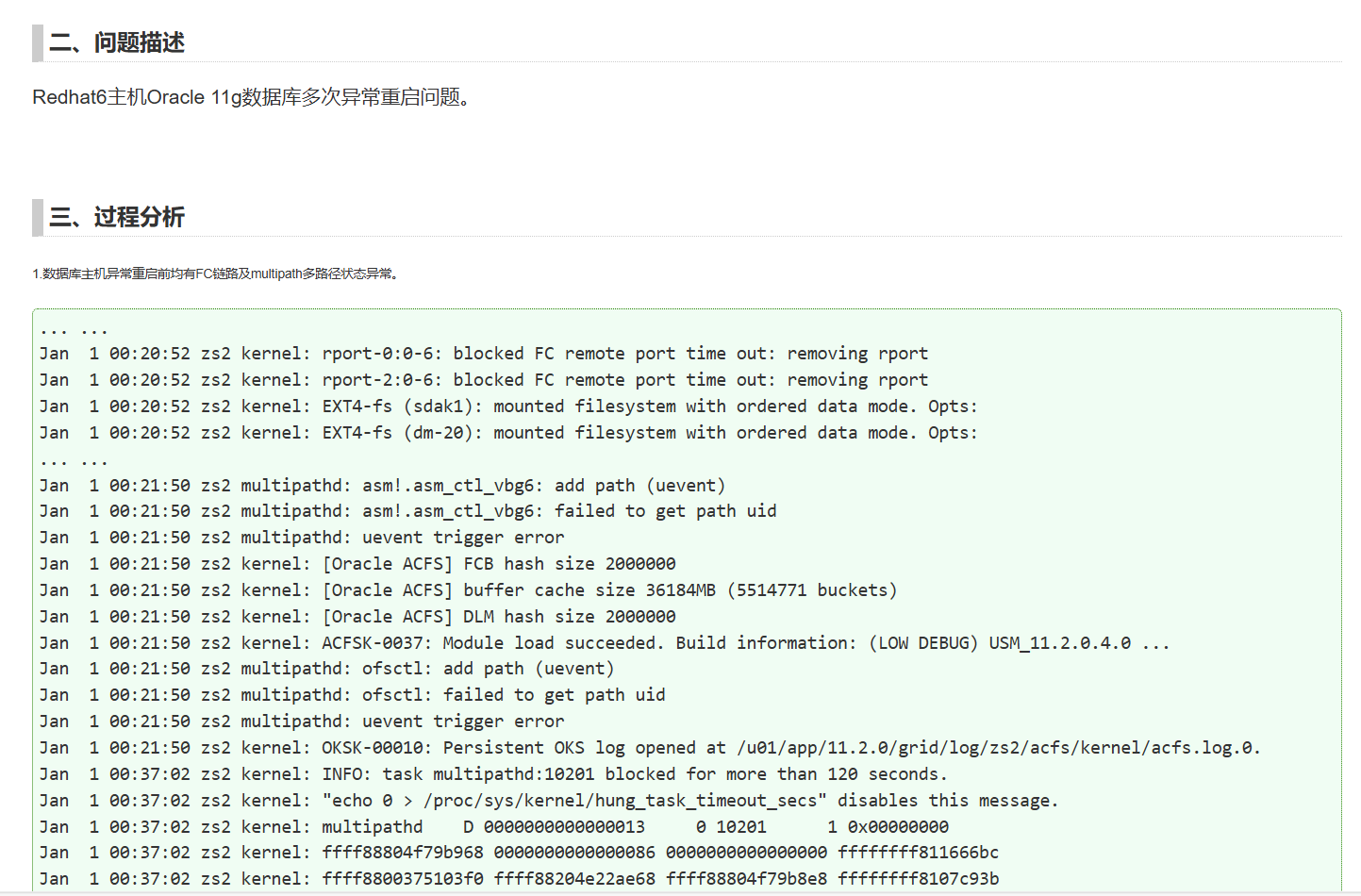

1、网络案例： Redhat6主机系统Oracle11g数据库异常重启问题

2、残留旧路径信息导致识别异常

[root@dbrac1  ~]# multipath -l
mpathh (360014380125d8a670000b00000290000) dm-11 HP,HSV360
size=20G features='0' hwhandler='0' wp=rw
`-+- policy='round-robin 0' prio=0 status=active
  `- 8:0:0:7 sdh 8:112 active undef running
[root@dbrac1  ~]# ll /sys/block/sd
sda/ sdb/ sdc/ sdd/ sde/ sdf/ sdg/ sdh/ =<sdh>=> 旧的信息
  • 删除 【sdh】 的信息
  • 命令：echo 1 > /sys/block/sdh/device/delete
[root@dbrac1  ~]# echo 1 > /sys/block/sdh/device/delete
[root@dbrac1  ~]# multipath -l
......(未再发现：sdh：mpathh (360014380125d8a670000b00000290000))
-- sdh 已被清理
[root@dbrac1  ~]# ll /dev/sd
sda   sda1  sda2  sdb   sdc   sdd   sde   sdf   sdg
  • 重新识别存储路径：sdh 更新为：size=10G
[root@dbrac1  ~]#  echo "- - -" > /sys/class/scsi_host/host7/scan
[root@dbrac1  ~]# multipath -l
mpathh (360014380125d8a670000b00000290000) dm-11 HP,HSV360
size=10G features='0' hwhandler='0' wp=rw
`-+- policy='round-robin 0' prio=0 status=active
  `- 8:0:0:7 sdh 8:112 active undef running

3、echo 1 > /sys/block/sd<*>/device/delete 操作需要谨慎

  • delete ASM-DATA1 磁盘：sdb
[root@dbrac1 ~]# multipath -l
ASM-DATA1 (360014380125d8a670000a000013e0000) dm-6 HP,HSV360
size=500G features='0' hwhandler='0' wp=rw
`-+- policy='round-robin 0' prio=0 status=active
  `- 7:0:0:1 sdb 8:16  active undef running
[root@dbrac1 ~]#  echo 1 > /sys/block/sdb/device/delete
  • 系统日志：
Nov 26 14:30:58 dbrac1 multipathd: sdb: remove path (uevent)
Nov 26 14:30:58 dbrac1 multipathd: ASM-DATA1: map in use
Nov 26 14:30:58 dbrac1 multipathd: ASM-DATA1: can't flush
Nov 26 14:30:58 dbrac1 multipathd: ASM-DATA1: load table [0 1048576000 multipath 0 0 0 0]
Nov 26 14:30:58 dbrac1 multipathd: sdb [8:16]: path removed from map ASM-DATA1
Nov 26 14:30:58 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 962656
Nov 26 14:31:00 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 960544
Nov 26 14:31:00 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 960608
Nov 26 14:31:00 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 4088
Nov 26 14:31:01 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 0
Nov 26 14:31:04 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 0
Nov 26 14:31:04 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 0
Nov 26 14:31:10 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 1048575872
Nov 26 14:31:10 dbrac1 kernel: Buffer I/O error on device dm-6, logical block 131071984
Nov 26 14:31:10 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 1048575872
Nov 26 14:31:10 dbrac1 kernel: Buffer I/O error on device dm-6, logical block 131071984
Nov 26 14:31:10 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 1048575984
Nov 26 14:31:10 dbrac1 kernel: Buffer I/O error on device dm-6, logical block 131071998
Nov 26 14:31:10 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 1048575984
Nov 26 14:31:10 dbrac1 kernel: Buffer I/O error on device dm-6, logical block 131071998
Nov 26 14:31:10 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 0
Nov 26 14:31:10 dbrac1 kernel: Buffer I/O error on device dm-6, logical block 0
Nov 26 14:31:10 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 0
Nov 26 14:31:10 dbrac1 kernel: Buffer I/O error on device dm-6, logical block 0
Nov 26 14:31:10 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 8
Nov 26 14:31:10 dbrac1 kernel: Buffer I/O error on device dm-6, logical block 1
Nov 26 14:31:10 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 1048575992
Nov 26 14:31:10 dbrac1 kernel: Buffer I/O error on device dm-6, logical block 131071999
Nov 26 14:31:10 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 1048575992
Nov 26 14:31:10 dbrac1 kernel: Buffer I/O error on device dm-6, logical block 131071999
Nov 26 14:31:10 dbrac1 kernel: end_request: I/O error, dev dm-6, sector 1048575992
  • 集群宕机
[grid@dbrac1 ~]$ crsctl stat res -t
......
ora.dbrac.db
      1        ONLINE  OFFLINE                         Instance Shutdown
      2        ONLINE  ONLINE       dbrac2             Open
......
  • grid 日志
2024-11-26 14:31:01.015:
[crsd(6374)]CRS-2765:Resource 'ora.dbrac.db' has failed on server 'dbrac1'.
  • oracle 日志
Tue Nov 26 14:30:58 2024
Errors in file /u01/oracle/diag/rdbms/dbrac/dbrac1/trace/dbrac1_lmon_8289.trc:
ORA-27072: File I/O error
Linux-x86_64 Error: 5: Input/output error
Additional information: 4
Additional information: 962656
Additional information: -1
WARNING: Read Failed. group:3 disk:0 AU:470 offset:49152 size:16384
WARNING: failed to read mirror side 1 of virtual extent 4 logical extent 0 of file 267 in group [3.985158147] from disk DATA_0000  allocation unit 470 reason error; if possible, will try another mirror side
Errors in file /u01/oracle/diag/rdbms/dbrac/dbrac1/trace/dbrac1_lmon_8289.trc:
ORA-00202: control file: '+DATA/dbrac_standby/controlfile/current.267.1096467161'
ORA-15081: failed to submit an I/O operation to a disk
Tue Nov 26 14:31:00 2024
Errors in file /u01/oracle/diag/rdbms/dbrac/dbrac1/trace/dbrac1_ckpt_8363.trc:
ORA-27072: File I/O error
Linux-x86_64 Error: 5: Input/output error
Additional information: 4
Additional information: 960544
Additional information: -1
WARNING: Read Failed. group:3 disk:0 AU:469 offset:16384 size:16384
WARNING: failed to read mirror side 1 of virtual extent 0 logical extent 0 of file 267 in group [3.985158147] from disk DATA_0000  allocation unit 469 reason error; if possible, will try another mirror side
Errors in file /u01/oracle/diag/rdbms/dbrac/dbrac1/trace/dbrac1_ckpt_8363.trc:
ORA-00202: control file: '+DATA/dbrac_standby/controlfile/current.267.1096467161'
ORA-15081: failed to submit an I/O operation to a disk
Errors in file /u01/oracle/diag/rdbms/dbrac/dbrac1/trace/dbrac1_ckpt_8363.trc:
ORA-27061: waiting for async I/Os failed
Linux-x86_64 Error: 5: Input/output error
Additional information: -1
Additional information: 16384
WARNING: Write Failed. group:3 disk:0 AU:469 offset:49152 size:16384
Errors in file /u01/oracle/diag/rdbms/dbrac/dbrac1/trace/dbrac1_ckpt_8363.trc:
ORA-15080: synchronous I/O operation to a disk failed
WARNING: failed to write mirror side 1 of virtual extent 0 logical extent 0 of file 267 in group 3 on disk 0 allocation unit 469
Errors in file /u01/oracle/diag/rdbms/dbrac/dbrac1/trace/dbrac1_ckpt_8363.trc:
ORA-00206: error in writing (block 3, # blocks 1) of control file
ORA-00202: control file: '+DATA/dbrac_standby/controlfile/current.267.1096467161'
ORA-15081: failed to submit an I/O operation to a disk
ORA-15081: failed to submit an I/O operation to a disk
Errors in file /u01/oracle/diag/rdbms/dbrac/dbrac1/trace/dbrac1_ckpt_8363.trc:
ORA-00221: error on write to control file
ORA-00206: error in writing (block 3, # blocks 1) of control file
ORA-00202: control file: '+DATA/dbrac_standby/controlfile/current.267.1096467161'
ORA-15081: failed to submit an I/O operation to a disk
ORA-15081: failed to submit an I/O operation to a disk
Tue Nov 26 14:31:00 2024
System state dump requested by (instance=1, osid=8363 (CKPT)), summary=[abnormal instance termination].
System State dumped to trace file /u01/oracle/diag/rdbms/dbrac/dbrac1/trace/dbrac1_diag_8266.trc
CKPT (ospid: 8363): terminating the instance due to error 221
Tue Nov 26 14:31:01 2024
ORA-1092 : opitsk aborting process
Tue Nov 26 14:31:01 2024
ORA-1092 : opitsk aborting process
Tue Nov 26 14:31:01 2024
License high water mark = 77
Dumping diagnostic data in directory=[cdmp_20241126143100], requested by (instance=1, osid=8363 (CKPT)), summary=[abnormal instance termination].
Instance terminated by CKPT, pid = 8363
USER (ospid: 30515): terminating the instance
Instance terminated by USER, pid = 30515
  • 重启扫描启库
[root@dbrac1 ~]# echo "- - -" > /sys/class/scsi_host/host7/scan
[root@dbrac1 ~]# tail -f /var/log/messages
Nov 26 14:31:38 dbrac1 -bash[24909]: HISTORY: IP=10.10.6.15 PID=24909 PPID=24907 SID=24909 UID=0 USER=root LOGIN=root CMD=echo "- - -" > /sys/class/scsi_host/host7/scan
Nov 26 14:31:38 dbrac1 kernel: scsi 7:0:0:1: Direct-Access     HP       HSV360           1100 PQ: 0 ANSI: 5
Nov 26 14:31:38 dbrac1 kernel: sd 7:0:0:1: Attached scsi generic sg4 type 0
Nov 26 14:31:38 dbrac1 kernel: sd 7:0:0:1: [sdb] 1048576000 512-byte logical blocks: (536 GB/500 GiB)
Nov 26 14:31:38 dbrac1 kernel: sd 7:0:0:1: [sdb] Write Protect is off
Nov 26 14:31:38 dbrac1 kernel: sd 7:0:0:1: [sdb] Write cache: disabled, read cache: enabled, supports DPO and FUA
Nov 26 14:31:38 dbrac1 kernel: sdb: unknown partition table
Nov 26 14:31:38 dbrac1 kernel: sd 7:0:0:1: [sdb] Attached SCSI disk
Nov 26 14:31:38 dbrac1 multipathd: sdb: add path (uevent)
Nov 26 14:31:38 dbrac1 multipathd: ASM-DATA1: load table [0 1048576000 multipath 0 0 1 1 round-robin 0 1 1 8:16 1]
Nov 26 14:31:38 dbrac1 multipathd: sdb [8:16]: path added to devmap ASM-DATA1
-- 启库
[grid@dbrac1 ~]$ srvctl start database -d dbrac
[grid@dbrac1 ~]$ crsctl stat res -t
......
ora.dbrac.db
      1        ONLINE  ONLINE       dbrac1             Open
      2        ONLINE  ONLINE       dbrac2             Open
......

总结

  • HBA卡操作基本都为常用命令，方便使用；
  • multipath-多路径在删除路径时需要清理干净残留信息，避免再次分盘时识别错误；
  • multipath-多路径在做delete时一定要谨慎操作，否则容易产生生产事故；
  • 此次收录网上案例方便大家综合分析；
  • 操作下载链接：HBA卡 & multipath 操作.pdf

欢迎赞赏支持或留言指正

墨力计划multipath
「喜欢这篇文章，您的关注和赞赏是给作者最好的鼓励」
关注作者
【版权声明】本文为墨天轮用户原创内容，转载时必须标注文章的来源（墨天轮），文章链接，文章作者等基本信息，否则作者和墨天轮有权追究责任。如果您发现墨天轮中有涉嫌抄袭或者侵权的内容，欢迎发送邮件至：contact@modb.pro进行举报，并提供相关证据，一经查实，墨天轮将立刻删除相关内容。

文章被以下合辑收录

布衣-DBA案例（共122篇）
ORACLE 运维操作记录

评论
