很久没有发文了，今天水一篇操作文章分享一下经验吧，后续陆续推出深度好文
springboot+logStash+elasticsearch+kibana
版本
elasticsearch 7.4.2 logStash 7.4.2 springboot 2.1.10
下载地址
选择下载的产品和版本，进行下载即可
https://www.elastic.co/cn/downloads/past-releases
部署
启动Elasticsearch
设置配置文件elasticsearch
cluster.name: my-application
node.name: node-1
path.data: /cxt/software/maces/7.4.2/elasticsearch-7.4.2/data
path.logs: /cxt/software/maces/7.4.2/elasticsearch-7.4.2/logs
network.host: 0.0.0.0
http.port: 9200
discovery.seed_hosts: ["127.0.0.1"]
cluster.initial_master_nodes: ["node-1"]启动
bin/elasticsearch
启动Kibana
直接去bin目录下启动即可， 都是本机启动无需修改配置
bin/kibana
启动LogStash
config文件夹下创建springboot-log.conf,该配置文件的作用是启动在本机9600端口，后面springboot应用可以直接往9600发送日志。input为日志输入，output为日志输出到elasticsearch
input{
# 启动在9600端口，输出在控制台
tcp {
mode => "server"
host => "0.0.0.0"
port => 9600
codec => json_lines
}
}
output{
elasticsearch{
hosts=>["192.168.123.166:9200"]
index => "springboot-logstash-%{+YYYY.MM.dd}"
}
# stdout{
# codec => rubydebug
# }
}启动
bin/logstash -f config/springboot-log.conf
启动SpringBoot应用
pom
<dependency>
<groupId>net.logstash.logback</groupId>
<artifactId>logstash-logback-encoder</artifactId>
<version>7.0</version>
</dependency>testController 方法
@RestController
public class TestController {
public static final Logger log = LoggerFactory.getLogger(TestController.class);
@RequestMapping("/test")
public String test(){
log.info("this is a log from springboot");
log.trace("this is a trace log ");
return "success";
}
}启动类main方法加入自动生成日志代码
@SpringBootApplication
public class ElkApplication {
public static final Logger log = LoggerFactory.getLogger(ElkApplication.class);
Random random = new Random(10000);
public static void main(String[] args) {
SpringApplication.run(ElkApplication.class, args);
new ElkApplication().initTask();
}
private void initTask() {
Executors.newSingleThreadScheduledExecutor().scheduleAtFixedRate(new Runnable() {
@Override
public void run() {
log.info("seed info msg :" + random.nextInt(999999));
}
}, 100, 100, TimeUnit.MILLISECONDS);
}
}resource新建logback-spring.xml
<?xml version="1.0" encoding="UTF-8"?>
<configuration>
<include resource="org/springframework/boot/logging/logback/base.xml" >
<appender name="LOGSTASH" class="net.logstash.logback.appender.LogstashTcpSocketAppender">
<!--配置logStash 服务地址-->
<destination>192.168.123.166:9600</destination>
<!-- 日志输出编码 -->
<encoder charset="UTF-8"
class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
<providers>
<timestamp>
<timeZone>UTC</timeZone>
</timestamp>
<pattern>
<pattern>
{
"logLevel": "%level",
"serviceName": "${springAppName:-}",
"pid": "${PID:-}",
"thread": "%thread",
"class": "%logger{40}",
"detail": "%message"
}
</pattern>
</pattern>
</providers>
</encoder>
</appender>
<root level="INFO">
<appender-ref ref="LOGSTASH" >
<appender-ref ref="CONSOLE" >
</root>
</configuration>
验证

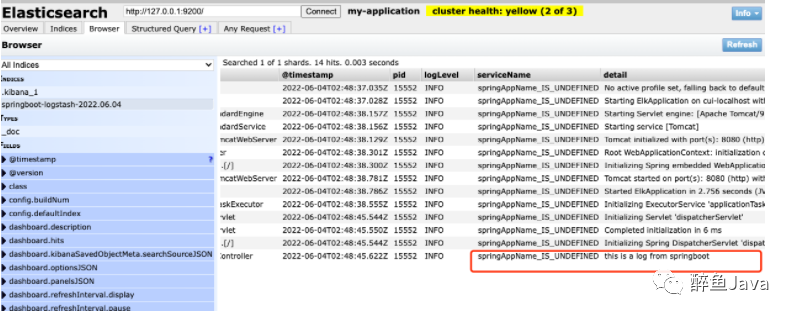

按顺序启动好了之后打开es-head插件即可查看索引信息，其中有一条调用接口的信息，还有应用启动的消息
Kibana数据展示

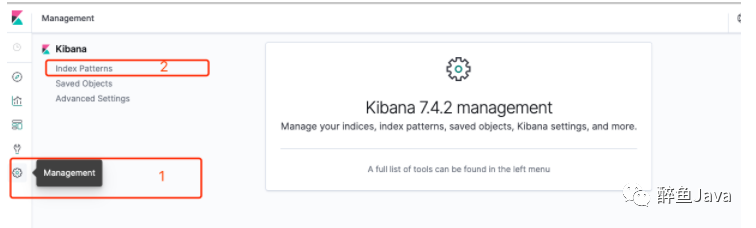

设置索引规则
输入之后设置时间戳匹配

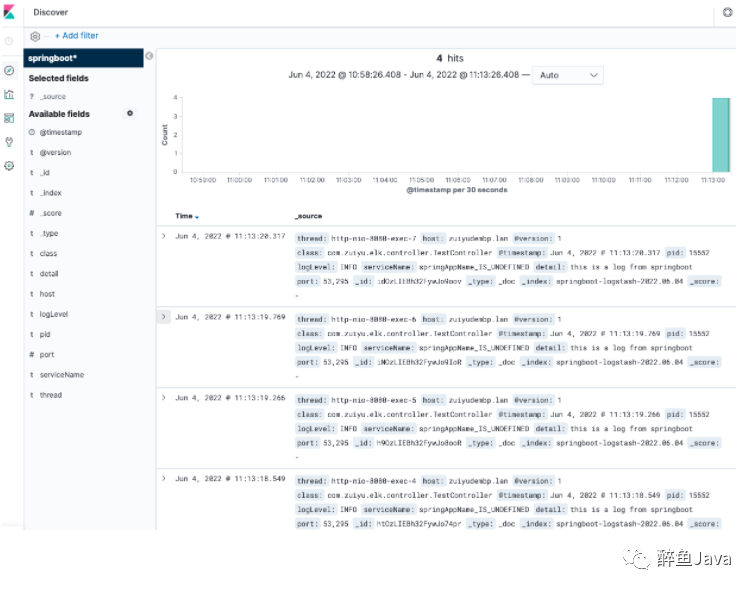

展示数据,选择Discover
加入filebeat
logstash 新建filebeat-logstash-log.conf
input{
beats {
host => "192.168.123.166"
port => 9600
}
}
output{
elasticsearch{
hosts=>["192.168.123.166:9200"]
index => "%{[@metadata][beat]}-%{[@metadata][version]}-%{+YYYY.MM.dd}"
}
}启动
bin/logstash -f filebeat-logstash-log.confFilebeat 修改配置文件,找到下方修改的地方修改即可，主要监听的日志文件和输出的logstash服务器地址
filebeat.inputs:
- type: log
enabled: true
paths:
- /cxt/codework/java/springboot-demo/logs/springboot-elk/2022-06-04/info.2022-06-04.0.log
setup.kibana:
Host: "192.168.123.166:5601"
#----------------------------- Logstash output --------------------------------
output.logstash:
# The Logstash hosts
hosts: ["192.168.123.166:9600"]springboot 应用程序配置生成日志文件的位置,resource下新建logback-spring-file.xml
<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="false" scan="false">
<!-- Log file path -->
<property name="log.path" value="logs/springboot-elk"/>
<!-- Console log output -->
<appender name="console"
class="ch.qos.logback.core.ConsoleAppender">
<encoder>
<pattern>%d{MM-dd HH:mm:ss.SSS} %-5level [%logger{50}] - %msg%n
</pattern>
</encoder>
</appender>
<!-- Log file debug output -->
<appender name="fileRolling_info" class="ch.qos.logback.core.rolling.RollingFileAppender">
<rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
<fileNamePattern>${log.path}/%d{yyyy-MM-dd}/info.%d{yyyy-MM-dd}.%i.log</fileNamePattern>
<TimeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
<maxFileSize>50MB</maxFileSize>
</TimeBasedFileNamingAndTriggeringPolicy>
</rollingPolicy>
<encoder>
<pattern>%date [%thread] %-5level [%logger{50}] %file:%line - %msg%n
</pattern>
</encoder>
<!--<filter class="ch.qos.logback.classic.filter.LevelFilter"> <level>ERROR</level>
<onMatch>DENY</onMatch> <onMismatch>NEUTRAL</onMismatch> </filter> -->
</appender>
<!-- Log file error output -->
<appender name="fileRolling_error" class="ch.qos.logback.core.rolling.RollingFileAppender">
<rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
<fileNamePattern>${log.path}/%d{yyyy-MM-dd}/error.%d{yyyy-MM-dd}.%i.log</fileNamePattern>
<timeBasedFileNamingAndTriggeringPolicy class="ch.qos.logback.core.rolling.SizeAndTimeBasedFNATP">
<maxFileSize>50MB</maxFileSize>
</timeBasedFileNamingAndTriggeringPolicy>
</rollingPolicy>
<encoder>
<pattern>%date [%thread] %-5level [%logger{50}] %file:%line - %msg%n
</pattern>
</encoder>
<filter class="ch.qos.logback.classic.filter.ThresholdFilter">
<level>ERROR</level>
</filter>
</appender>
<!-- Level: FATAL 0 ERROR 3 WARN 4 INFO 6 DEBUG 7 -->
<root level="info">
<!--{dev.start}-->
<appender-ref ref="console"/>
<!--{dev.end}-->
<!--{alpha.start}
<appender-ref ref="fileRolling_info" >
{alpha.end}-->
<!-- {release.start}-->
<appender-ref ref="fileRolling_info"/>
<!-- {release.end}-->
<appender-ref ref="fileRolling_error"/>
</root>
<!-- Framework level setting -->
<!-- <include resource="config/logger-core.xml" />-->
<!-- Project level setting -->
<!-- <logger name="your.package" level="DEBUG" /> -->
<logger name="org.springframework" level="INFO"></logger>
<logger name="org.mybatis" level="INFO"></logger>
</configuration>application.yml文件中指定logback-spring-file.xml
logging:
# 默认logback-spring.xml 使用logstash传输到es；
# 改为logback-spring-file.xml传输日志到归档日志文件，使用filebeat监听日志

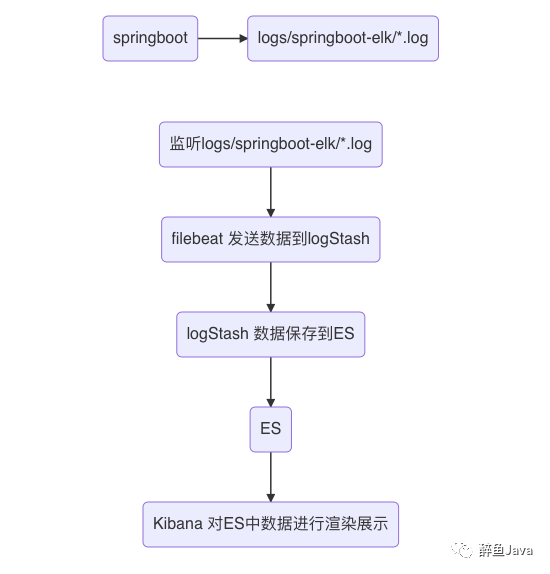

config: classpath:logback-spring-file.xml到这流程就结束了，现在流程就是
好了，以上就是ELK的搭建流程，顺带使用filebeat监听日志文件的也做了，大体就是这个酱紫，好久没有肝文章了，后面会陆续推出更多深度理论好文，欢迎关注微信公众号：《醉鱼JAVA》一起进步学习
