ElasticSearch搭建与实战

绘空事J 2021-07-19

3524

上周自主研究了ElasticSearch，本想着能够给项目带来点新的优化，但发现就以目前项目业务需求来看，只会给项目带来复杂度，默默的含泪把重构完的代码还原。

但没关系，对于程序员来说技多不压身，现在我就分享一下ELK的搭建与使用。

交流促进学习、欢迎大家吐槽和多多交流。

ElasticSearch搭建

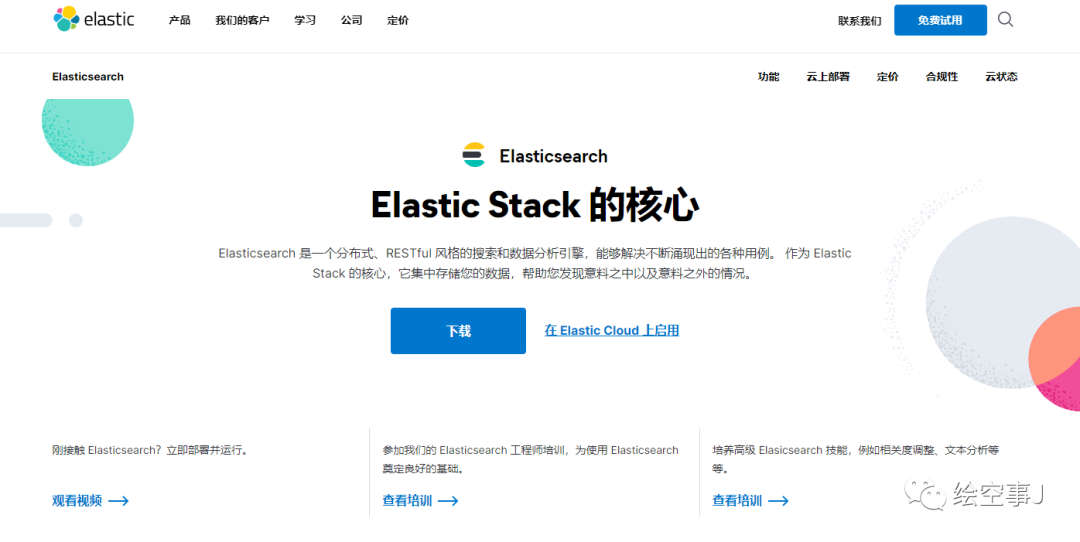

1.首先进入官方网址下载中间件，选择LINUX X86_64shaasc 版本，并解压到Linux服务器

传送门: https://www.elastic.co/cn/downloads/elasticsearch

tar -zxvf elasticsearch-7.13.2-linux-x86_64.tar.gz

2.修改配置参数

vim  config/elasticsearch.yml

cluster.name: es-cluster  #集群节点
node.name: master #节点名称
network.host: 10.13.9.231 #服务器ip
http.port: 9200 #服务器端口
discovery.zen.ping.unicast.hosts: ["10.13.9.231"] #指向localhost
cluster.initial_master_nodes: master

3.创建Es账号

由于ElasticSearch默认不允许root用户进行操作，所以我们创建一个Es账号

groupadd es
useradd es -g es -p root
chown -R es:es opt/elasticsearch-7.13.2

4.设置服务器最大使用文件限制

vim etc/security/limits.conf
* soft nofile 65536
* hard nofile 65536
vi etc/sysctl.conf
vm.max_map_count=262144

/sbin/sysctl -p

5.启动项目

su es
./bin/elasticsearch -d

6.搭建从节点

重复1-5步骤，添加配置文件

cluster.name: es-cluster #集群名称
node.name: slave1 #节点名称
network.host: 10.13.9.232 #网络地址
http.port: 9200 #端口
discovery.zen.ping.unicast.hosts: ["10.13.9.231"] #指向master

查看集群状态：

http://10.13.9.231:9200/_cluster/health

20个分片，10个主节点、10个从节点，没毛病~

{
    "cluster_name": "es-cluster",
    "status": "green",
    "timed_out": false,
    "number_of_nodes": 3,
    "number_of_data_nodes": 3,
    "active_primary_shards": 10,
    "active_shards": 20,
    "relocating_shards": 0,
    "initializing_shards": 0,
    "unassigned_shards": 0,
    "delayed_unassigned_shards": 0,
    "number_of_pending_tasks": 0,
    "number_of_in_flight_fetch": 0,
    "task_max_waiting_in_queue_millis": 0,
    "active_shards_percent_as_number": 100.0
}

Kibana搭建

1.下载安装kibana

 官网传送门：https://www.elastic.co/cn/downloads/kibana

tar -zxvf kibana-7.13.2-linux-x86_64.tar.gz

2.修改配置文件

vi config/kibana.yml

server.host: "10.13.9.231"
elasticsearch.hosts: ["http://10.13.9.231:9200"]
kibana.index: ".kibana"
elasticsearch.username: "kibana"
elasticsearch.password: "123456"
i18n.locale: "zh-CN"

3.授权

chown -R es:es opt/kibana

4.运行

./bin/kibana
nohup ./kibana &

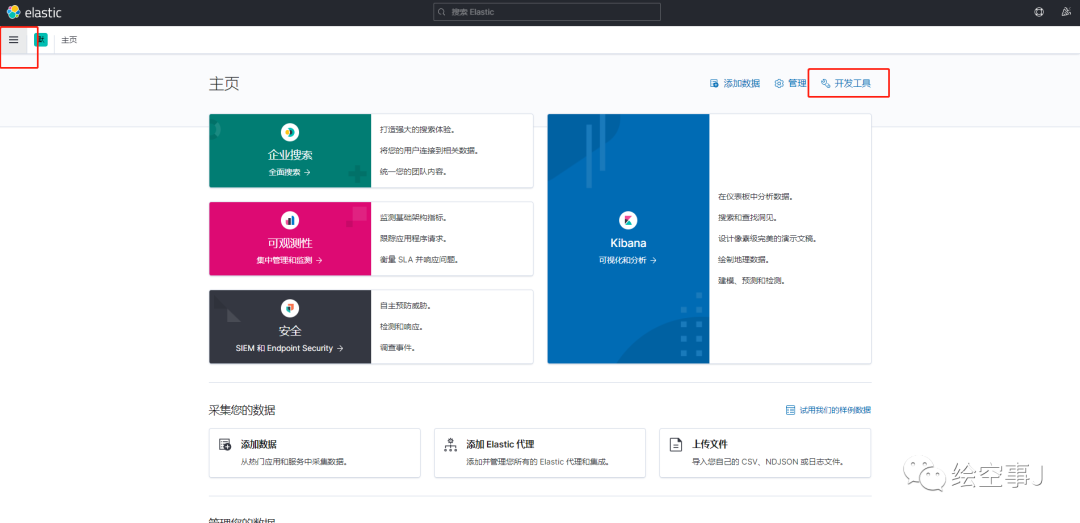

启动界面http://10.13.9.231:5601/app/kibana_overview#/

Logstash

1.下载安装

官网传送门：https://www.elastic.co/cn/downloads/logstash
下载并解压 ：tar -zxvf logstash-7.13.2-linux-x86_64.tar.gz

2.使用Logstash同步mysql数据到ElasticSearch

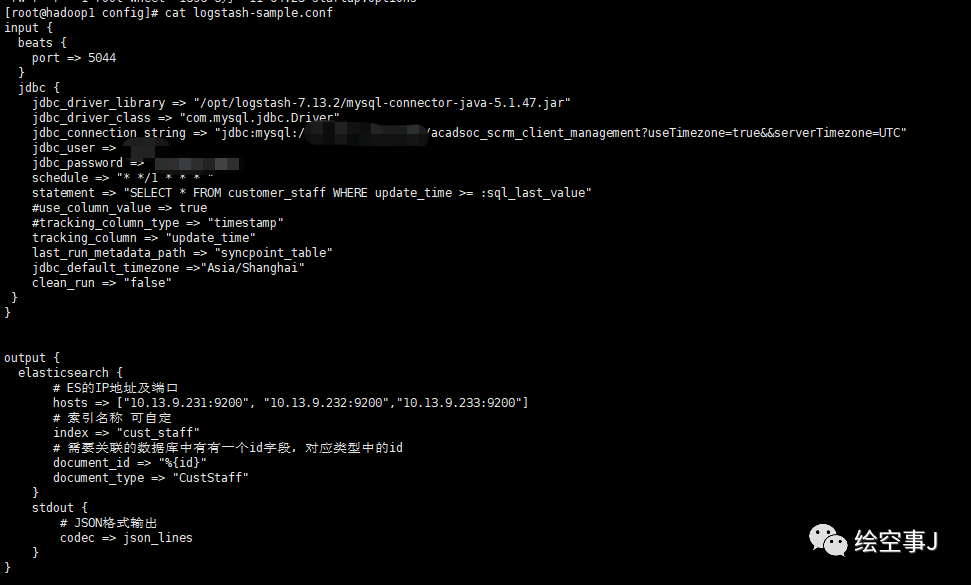

修改配置文件如下图

定时地从数据库中读取数据并同步到ES，1分钟一次，通过上次执行时间来更新。

执行./logstash -f ../config/logstash-sample.conf 启动logstash

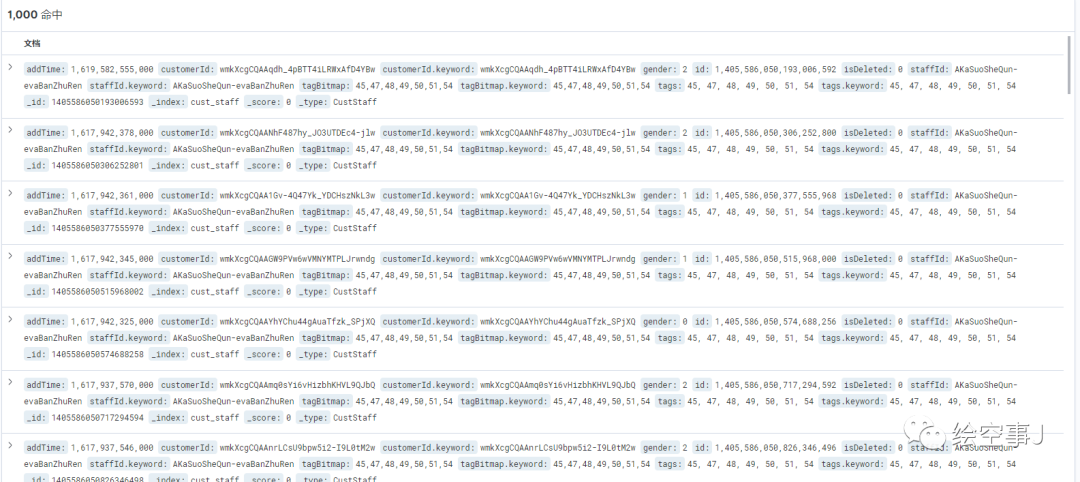

在kibana中可以查看到同步的数据

Java中使用ElasticSearch

package com.acadsoc.es.service;


import com.alibaba.fastjson.JSON;
import org.elasticsearch.action.admin.indices.exists.indices.IndicesExistsRequest;
import org.elasticsearch.action.admin.indices.exists.indices.IndicesExistsResponse;
import org.elasticsearch.action.admin.indices.mapping.put.PutMappingRequest;
import org.elasticsearch.action.delete.DeleteRequest;
import org.elasticsearch.action.delete.DeleteResponse;
import org.elasticsearch.action.get.GetRequest;
import org.elasticsearch.action.get.GetResponse;
import org.elasticsearch.action.index.IndexRequest;
import org.elasticsearch.action.index.IndexResponse;
import org.elasticsearch.action.search.SearchRequest;
import org.elasticsearch.action.search.SearchResponse;
import org.elasticsearch.action.update.UpdateRequest;
import org.elasticsearch.action.update.UpdateResponse;
import org.elasticsearch.client.*;
import org.elasticsearch.client.indices.GetIndexRequest;
import org.elasticsearch.common.xcontent.XContentType;
import org.elasticsearch.index.query.*;
import org.elasticsearch.index.reindex.BulkByScrollResponse;
import org.elasticsearch.index.reindex.UpdateByQueryRequest;
import org.elasticsearch.script.Script;
import org.elasticsearch.script.ScriptType;
import org.elasticsearch.script.mustache.SearchTemplateRequest;
import org.elasticsearch.script.mustache.SearchTemplateResponse;
import org.elasticsearch.search.SearchHit;
import org.elasticsearch.search.builder.SearchSourceBuilder;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.util.CollectionUtils;


import java.io.IOException;
import java.util.*;


/**
 * Description：TODO
 * Author: Amadeus Huang
 * Date: Created in 2021/7/4 22:05
 */
@Service("esService")
public class EsService implements EsServiceInterface {
    private Logger logger = LoggerFactory.getLogger(EsService.class);
    @Autowired
    private RestHighLevelClient restHighLevelClient;
    /**
     * 增加文档信息
     */
    public void addDocument(String index ,Object obj) {
        try {
            // 创建索引请求对象
            IndexRequest indexRequest = new IndexRequest(index);
            byte[] json = JSON.toJSONBytes(obj);
            // 设置文档内容
            indexRequest.source(json, XContentType.JSON);
            // 执行增加文档
            IndexResponse response = restHighLevelClient.index(indexRequest, RequestOptions.DEFAULT);
            logger.info("es创建状态：{}", response.status());
        } catch (Exception e) {
            logger.error("es创建失败", e);
        }
    }


    /**
     * 获取文档信息
     */
    public String getDocument(String index,String id) {
        try {
            // 获取请求对象
            GetRequest getRequest = new GetRequest(index,id);
            // 获取文档信息
            GetResponse getResponse = restHighLevelClient.get(getRequest, RequestOptions.DEFAULT);
            // 将 JSON 转换成对象
            if (getResponse.isExists()) {
                String sourceAsString = getResponse.getSourceAsString();
                logger.info("es获取信息：{}", sourceAsString);
                return sourceAsString;
            }
        } catch (IOException e) {
            logger.error("", e);
        }
        return null;
    }


    /**
     * 更新文档信息(替换)
     */
    public void updateDocument(String index ,String id ,Object obj) {
        try {
            // 创建索引请求对象
            UpdateRequest updateRequest = new UpdateRequest(index,id);
            // 将对象转换为 byte 数组
            byte[] json = JSON.toJSONBytes(obj);
            // 设置更新文档内容
            updateRequest.doc(json, XContentType.JSON);
            // 执行更新文档
            UpdateResponse response = restHighLevelClient.update(updateRequest, RequestOptions.DEFAULT);
            logger.info("es创建状态：{}", response.status());
        } catch (Exception e) {
            logger.error("", e);
        }
    }


    public void upsertDocument(String index ,String id ,Object obj){
        try {
            // 将对象转换为 byte 数组
            byte[] json = JSON.toJSONBytes(obj);
            // 创建更新请求，指定index，type,id,如果indexRequest 有值 （存在该数据）则用doc指定的内容更新indexRequest中指定的source，如果不存在该数据，则插入一条indexRequest指定的source数据
            UpdateRequest updateRequest = new UpdateRequest(index, id)
                    .doc(json, XContentType.JSON)
                    .upsert(json, XContentType.JSON);
            updateRequest.docAsUpsert(true);


            // 将更新请求加入批量操作请求
            UpdateResponse response = restHighLevelClient.update(updateRequest, RequestOptions.DEFAULT);
            logger.info("upsertDocument创建状态：{}", response.status());
        } catch (IOException e) {
            e.printStackTrace();
        }


    }


    /**
     * 删除文档信息
     */
    public void deleteDocument(String index ,String id ) {
        try {
            // 创建删除请求对象
            DeleteRequest deleteRequest = new DeleteRequest(index,id);
            // 执行删除文档
            DeleteResponse response = restHighLevelClient.delete(deleteRequest, RequestOptions.DEFAULT);
            logger.info("es删除状态：{}", response.status());
        } catch (IOException e) {
            logger.error("", e);
        }
    }
    /**
     * Description：column 中 list元素只要有一个命中就返回
     * Author: Amadeus Huang
     * Date: Created in 2021/7/10 18:37
     */
    //https://www.elastic.co/guide/en/elasticsearch/client/java-api/7.9/java-term-level-queries.html#java-query-dsl-terms-query
    public <T> String termsQuery(String index , String column , List<T> list,int from ,int size){
        //构建查询
        SearchSourceBuilder sourceBuilder = new SearchSourceBuilder();
        sourceBuilder.from(from);
        sourceBuilder.size(size);
        //查询条件 Terms
        TermsQueryBuilder termsQueryBuilder = QueryBuilders.termsQuery(column, list);
        //bool查询 -must -filter -should -must_not
        BoolQueryBuilder boolBuilder = QueryBuilders.boolQuery();
        boolBuilder.must(termsQueryBuilder);


        sourceBuilder.query(boolBuilder);
        SearchRequest searchRequest = new SearchRequest(index);
        searchRequest.source(sourceBuilder);
        try {
            SearchResponse response = restHighLevelClient.search(searchRequest,RequestOptions.DEFAULT);
            System.out.println(response);
            return response.toString();
        } catch (IOException e) {
            e.printStackTrace();
        }
        return null;
    }




    public String dslQuery(String index,String dsl){
        SearchTemplateRequest request = new SearchTemplateRequest();
        //指定索引
        request.setRequest(new SearchRequest(index));
        //设置为内联
        request.setScriptType(ScriptType.INLINE);
        String json=dsl;


        Map<String, Object> scriptParams = new HashMap<>();
        request.setScriptParams(scriptParams);


        //设置脚本
        request.setScript(json);


        try {
            SearchTemplateResponse response = restHighLevelClient.searchTemplate(request, RequestOptions.DEFAULT);
            //输出查询结果
            response.getResponse().getHits().forEach(System.out::println);
            return response.toString();
        } catch (IOException e) {
            e.printStackTrace();
        }
        return null;


    }


    public long dslQueryCount(String index,String dsl){
        SearchTemplateRequest request = new SearchTemplateRequest();
        //指定索引
        request.setRequest(new SearchRequest(index));
        //设置为内联
        request.setScriptType(ScriptType.INLINE);
        String json=dsl;


        Map<String, Object> scriptParams = new HashMap<>();
        request.setScriptParams(scriptParams);


        //设置脚本
        request.setScript(json);


        try {
            SearchTemplateResponse response = restHighLevelClient.searchTemplate(request, RequestOptions.DEFAULT);
            //输出查询结果
            response.getResponse().getHits().forEach(System.out::println);
            return response.getResponse().getHits().getTotalHits().value;
        } catch (IOException e) {
            e.printStackTrace();
        }
        return 0;
    }
    /**
     * Description：更新 慎用：75次/5min
     * Author: Amadeus Huang
     * Date: Created in 2021/7/13 12:26
     */
    public String dslUpdate(String index ,String dsl) throws IOException {
        UpdateByQueryRequest request = new UpdateByQueryRequest(index);
        Script script = new Script(ScriptType.INLINE, "painless",dsl, Collections.emptyMap());
        request.setScript(script);
        BulkByScrollResponse bulkResponse = restHighLevelClient.updateByQuery(request, RequestOptions.DEFAULT);
        System.out.println(bulkResponse);
        return bulkResponse.toString();
    }


    public List<Map<String, Object>> getResult(SearchRequest searchRequest){
        SearchResponse response = null;
        List<Map<String, Object>> result = new ArrayList<>();
        try {
            response = restHighLevelClient.search(searchRequest, RequestOptions.DEFAULT);
        } catch (IOException e) {
            e.printStackTrace();
        }
        if(response != null && response.getHits().getTotalHits().value>0){
            for(SearchHit hit : response.getHits()){
                Map<String, Object> sourceAsMap = hit.getSourceAsMap();
                result.add(sourceAsMap);
            }
        }
        return result;
    }


    public boolean indexExists(String index){
        try {
            GetIndexRequest exist=new GetIndexRequest(index);
            boolean exists=restHighLevelClient.indices().exists(exist, RequestOptions.DEFAULT);
            return exists;
        } catch (IOException e) {
            e.printStackTrace();
        }
        return false;
    }




}

数据库 elasticsearch
